3.1V
3years
23ah
3000 Times
Approx 2.7kg

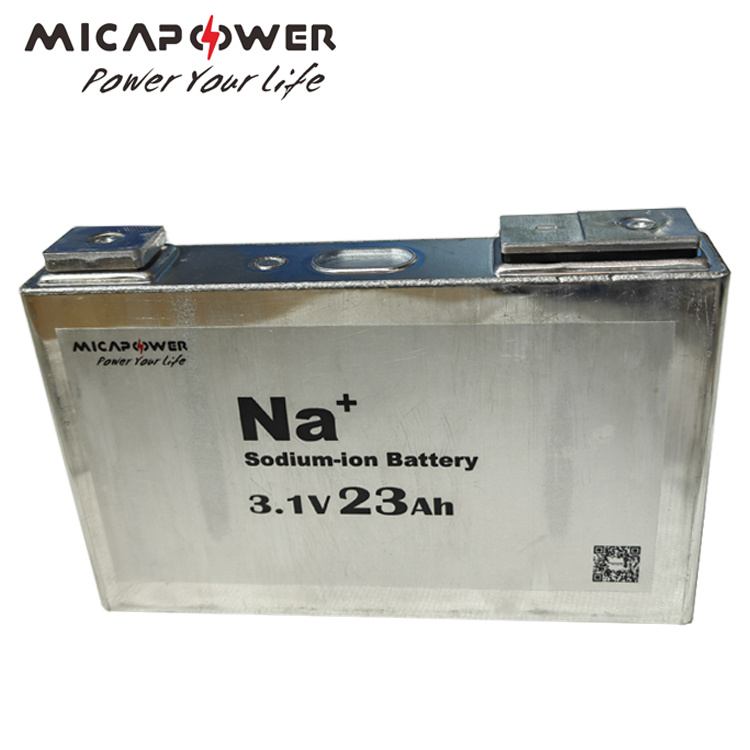

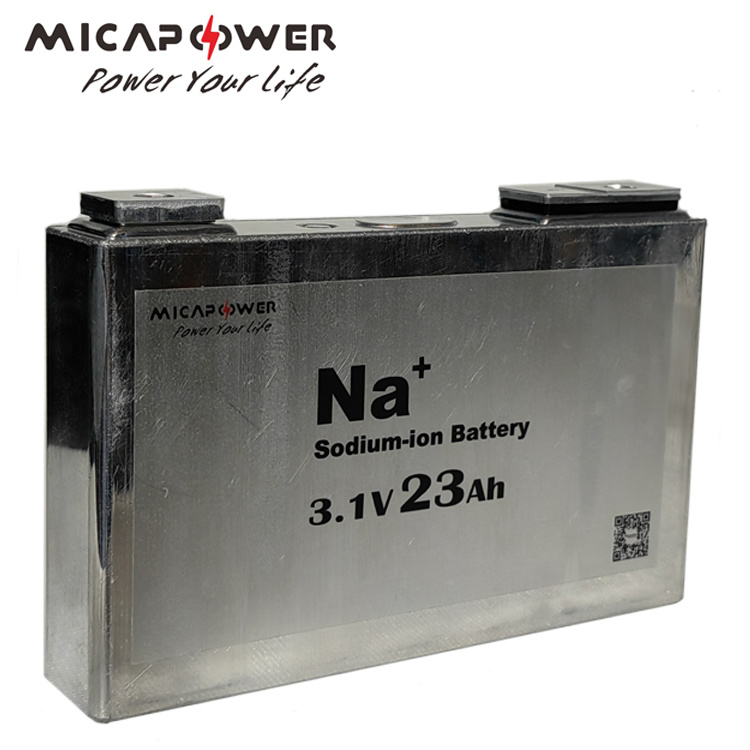

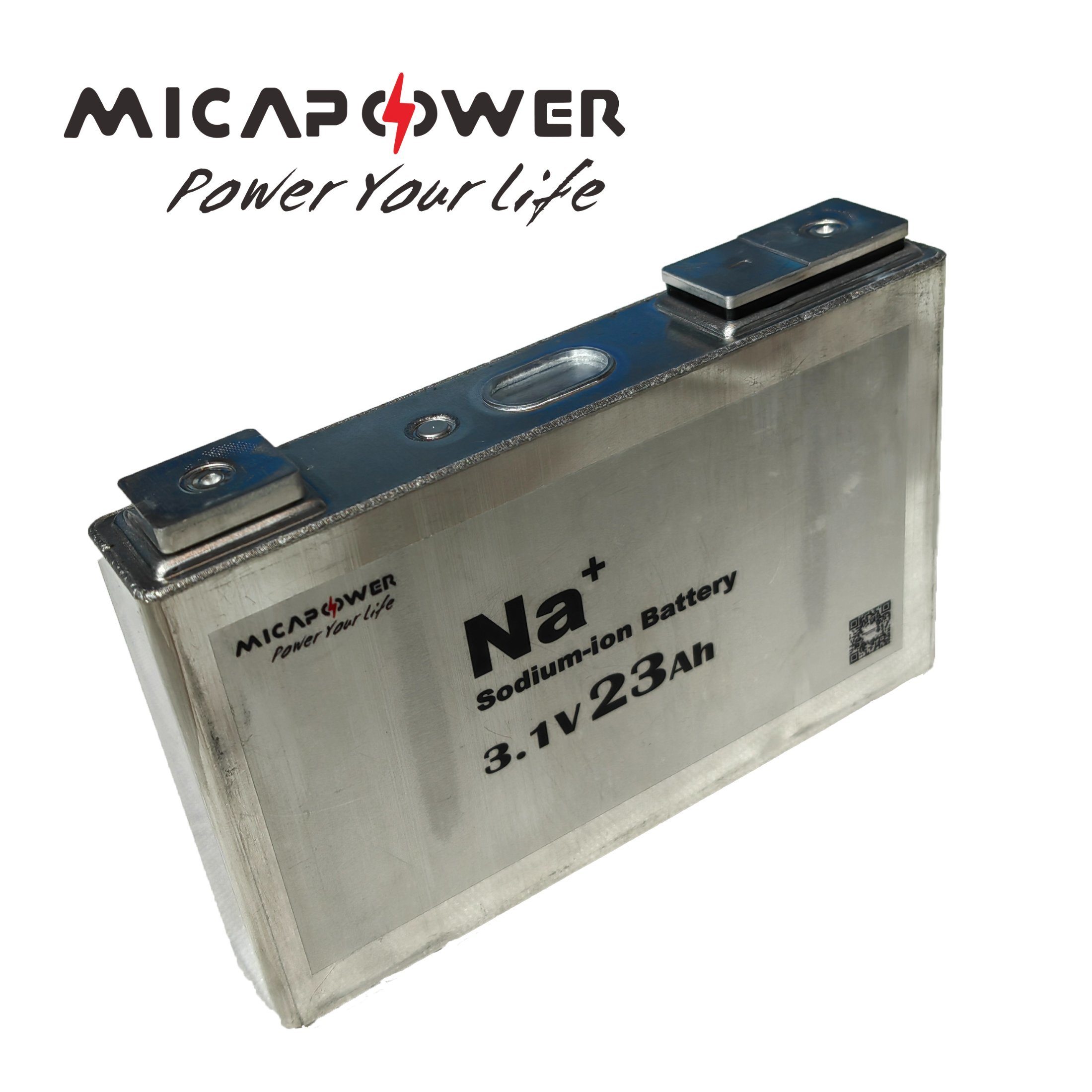

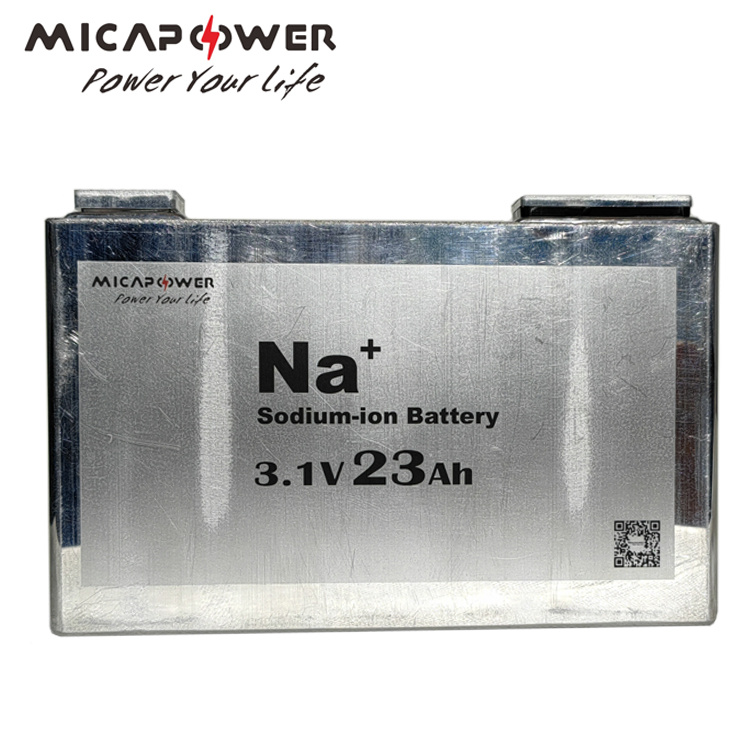

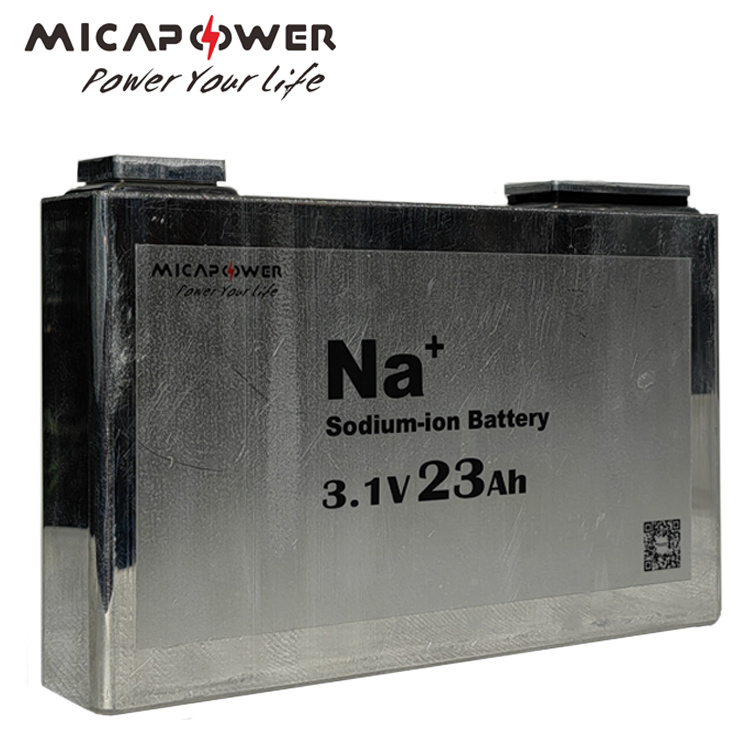

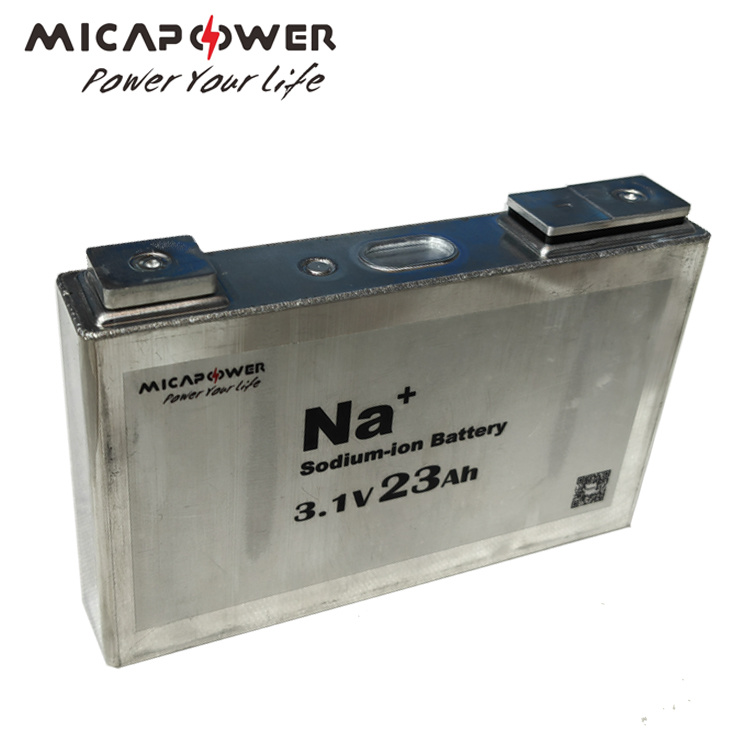

Sodium Ion Battery
| Item | Parameter | |
| Battery model | MCSIB 23Ah | |
| Nominal voltage | 3.1V | |
| Minimum capacity | 23Ah@25ºC | |
| Charging voltage | 4.0V | |
| Discharging cut-off voltage | 2.0V | |
| Standard charging | 0.2C /4.0V | |
| Max charging | 1C /4.0V | |
| Standard discharging | 23A/2.0V | |
| Max discharging | continuous discharge | 1C/2.0V |
| peak discharge | 2C/2.0V | |
| Standard Charging mode | CC/CV | |
| Operating temperature | Charging: 0°C ~ 45°C | |
| Discharging: -20°C ~60°C | ||
| Storage (At 50% SOC and specified temp, recoverable capacity in % vs time ) | -10ºC~25ºC | (12 months ≥85% ) |
| -10ºC ~45ºC | (6 months ≥85% ) | |
| -10ºC~55ºC | (1 month ≥90% ) | |
| 20±5ºC is the recommended storage temperature | ||
| Visual Inspection | There should not be any remarkable scratches, cracks, bolts, cauterization, deformations, swelling, leakage and so on the surface of the cell. | |
| Self-discharge Rate | <2% per month | |
Lithium Battery Division: MICA New Power

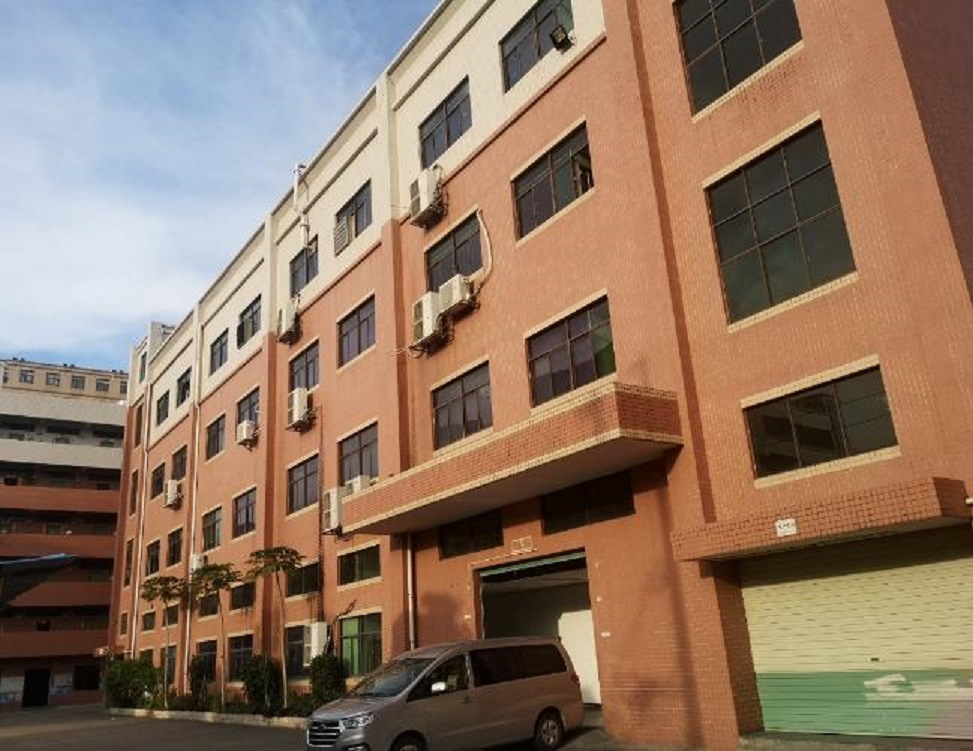

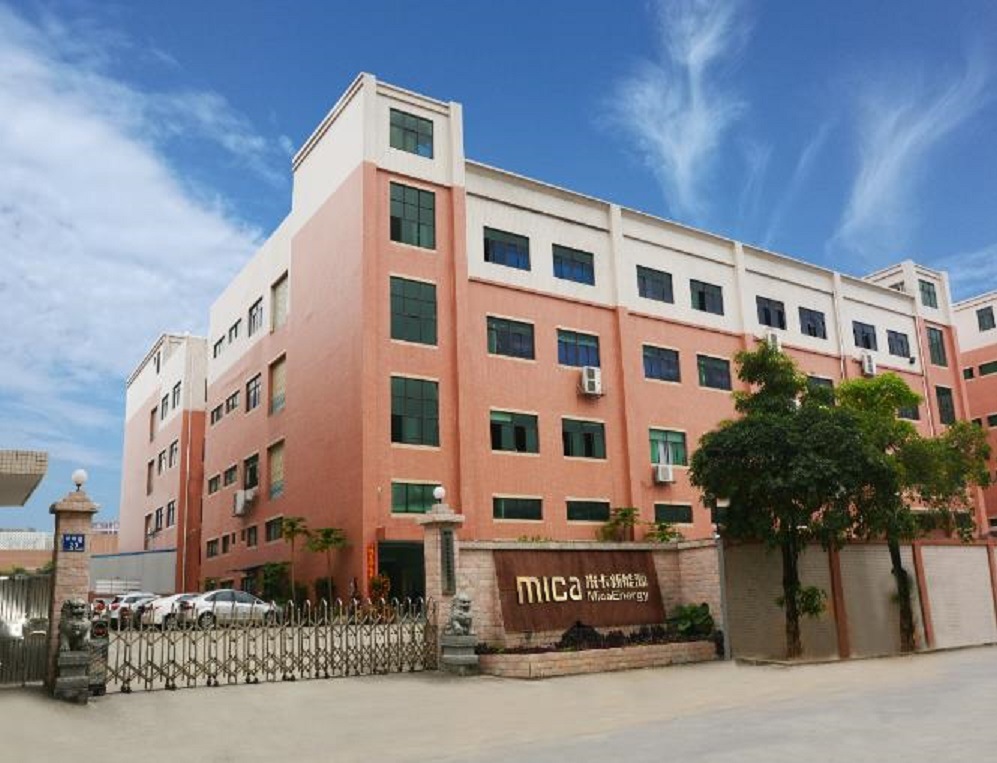

Mica battery was set up on May 2009 is a private hi-tech company integrating Lithium battery R&D, manufacturing and sales. With registered capital of 10 million RMB and an area over 20 thousand square meters, the company. Up to 2012,the total investment capital has accumulated to over 100 million RMB.

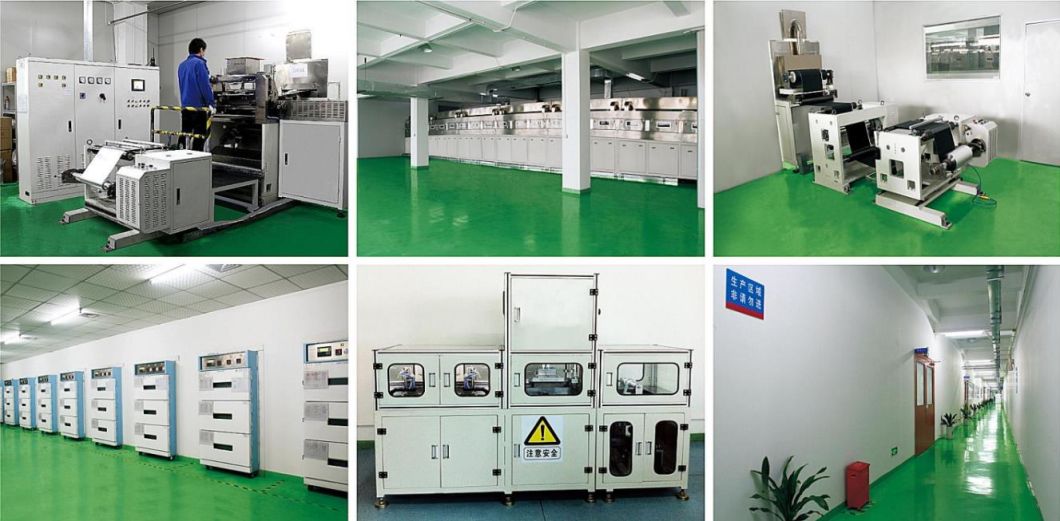

At present, the company has totally approx 1500 stuffs and obtains the most domestically-advanced automation equipment and leading producing technology. The daily production capacity of all kinds of Li-polymer and Al-Li-ion batteries amount to 200,000 units. All of these products are widely used in the communication fields and power battery field. We will increase investment and upgrade the daily production capacity of Li-polymer battery to 120,000 pieces, Al-Li-ion battery to 300,000 pieces to meet the ever-increasing needs of high-end market.
