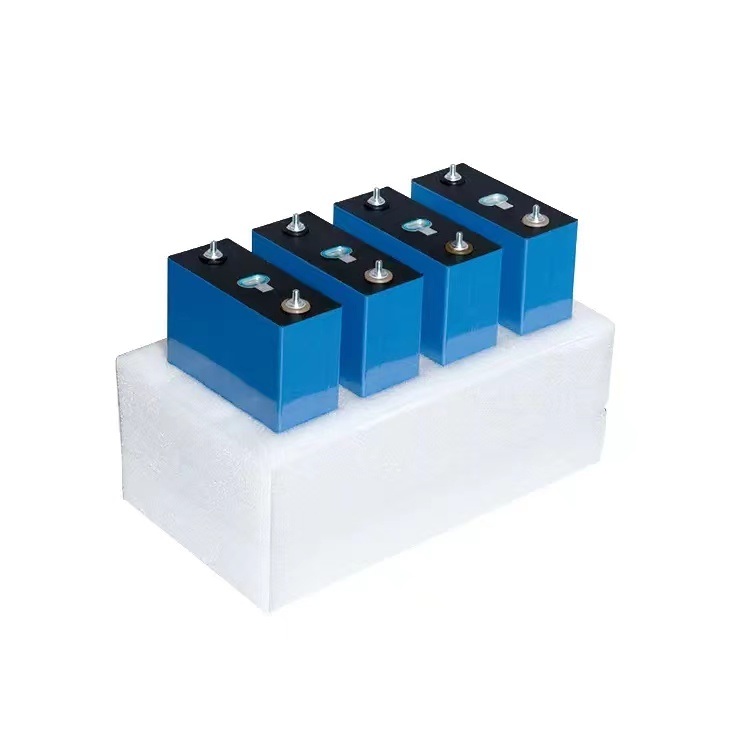

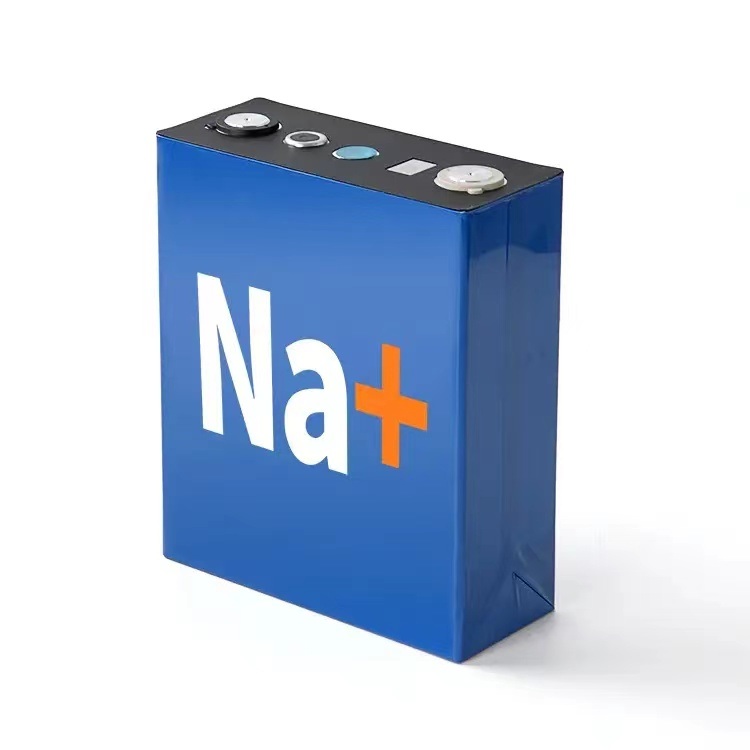

Na Ion Battery
Yes
Medium
12.8V
Blue
Na Ion Battery
Availability: | |
---|---|
No. | Item | Specification | Condition |
1 | Nominal capacity | 100 Ah | / |
2 | Nominal voltage | 3.0 V | / |
3 | AC impendence | ≤0.5mΩ | Testing within 7 days after shipment (30% SOC) |
4 | Battery weight | ≤2.7kg | / |
5 | Standard charge current | 0.33C | 25±2 ºC |
6 | Peak pulse charge current | 1C | 25±2 ºC,50% SOC,30 s |
7 | Standard discharge current | 0.33 C | 25±2 ºC |
8 | Maximum continuous discharge current | 1C | 25±2 ºC |
9 | Peak pulse discharge current | 2 C | 25±2 ºC,50% SOC,30 s |
10 | Operating voltage | 2.0~4.0 V | T>0 ºC |
1.5~4.0 V | T≤0 ºC | ||
11 | Operating temperature | -10~60 ºC | Charge |
-30~60 ºC | Discharge | ||
-40~60 ºC | Store | ||

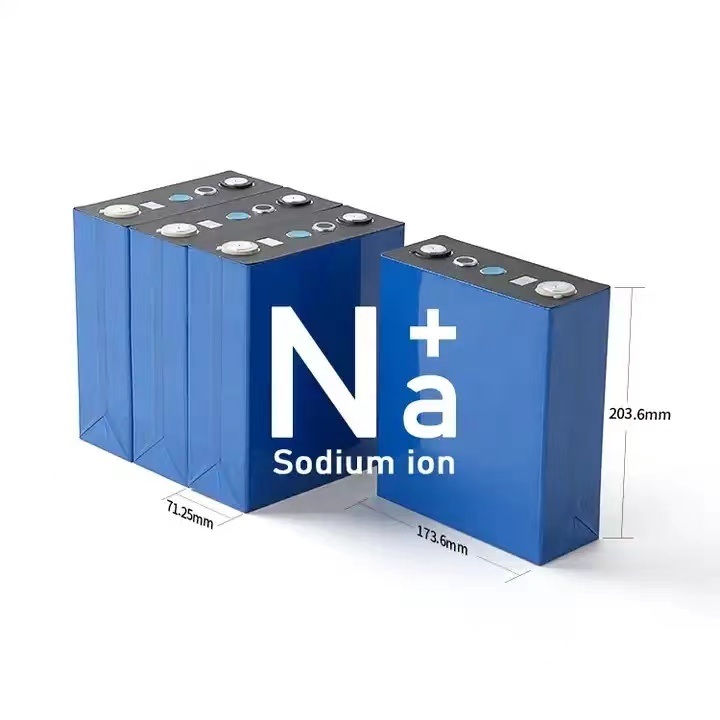

12 | Battery dimension | Refer to Section 10 | / |
13 | Voltage tolerance test for dielectric film | 0~10 mA | (AC 1500 ± 5 V; pressure 800 ± 20 kg) |
