Na Ion Battery
Yes
Medium
blue
12.8V
Na Ion Battery
|
| |
| No. | Item | Specification | Condition |
| 1 | Nominal capacity | 100 Ah | / |
| 2 | Nominal voltage | 3.0 V | / |
| 3 | AC impendence | ≤0.5mΩ | Testing within 7 days after shipment (30% SOC) |
| 4 | Battery weight | ≤2.7kg | / |
| 5 | Standard charge current | 0.33C | 25±2 ºC |
| 6 | Peak pulse charge current | 1C | 25±2 ºC,50% SOC,30 s |
| 7 | Standard discharge current | 0.33 C | 25±2 ºC |
| 8 | Maximum continuous discharge current | 1C | 25±2 ºC |
| 9 | Peak pulse discharge current | 2 C | 25±2 ºC,50% SOC,30 s |
| 10 | Operating voltage | 2.0~4.0 V | T>0 ºC |
| 1.5~4.0 V | T≤0 ºC | ||
| 11 | Operating temperature | -10~60 ºC | Charge |
| -30~60 ºC | Discharge | ||
| -40~60 ºC | Store | ||

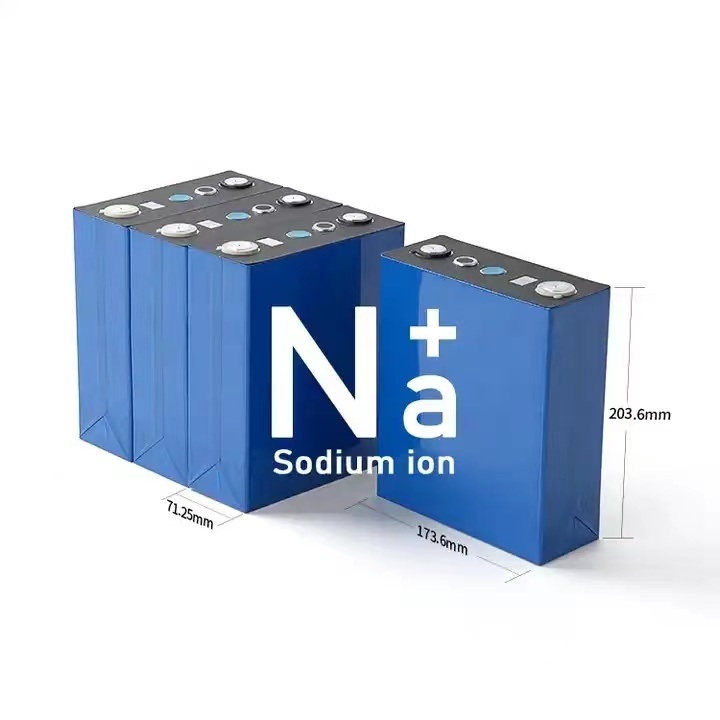

| 12 | Battery dimension | Refer to Section 10 | / |
| 13 | Voltage tolerance test for dielectric film | 0~10 mA | (AC 1500 ± 5 V; pressure 800 ± 20 kg) |
