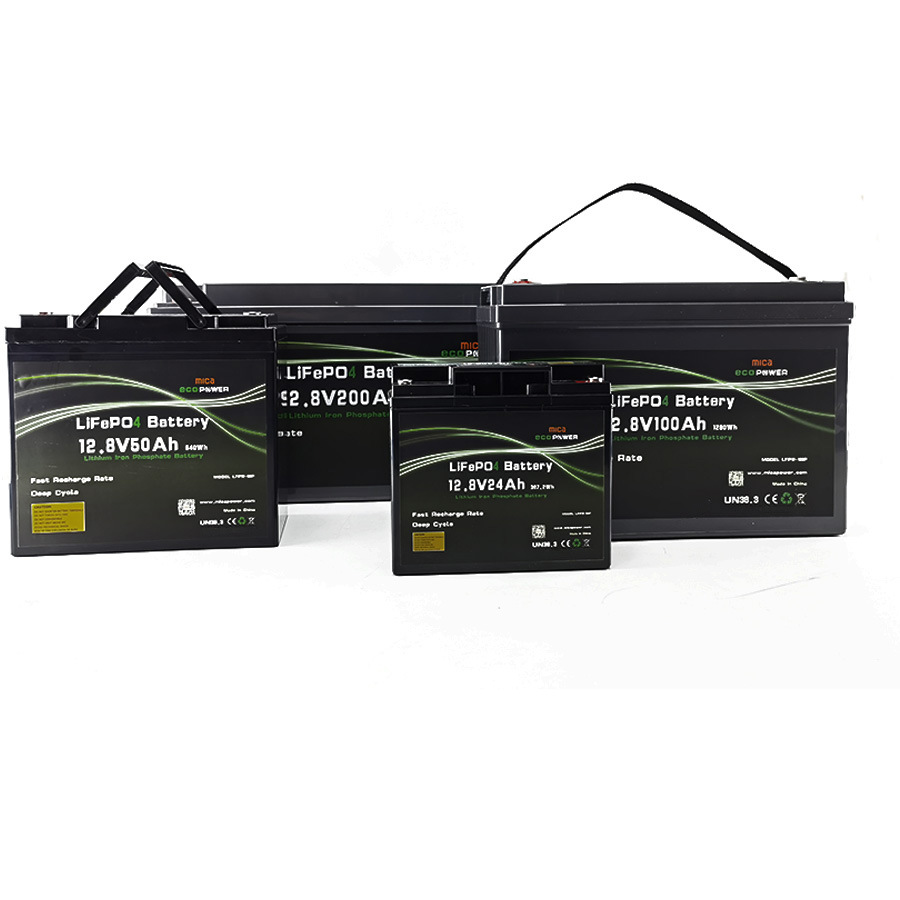

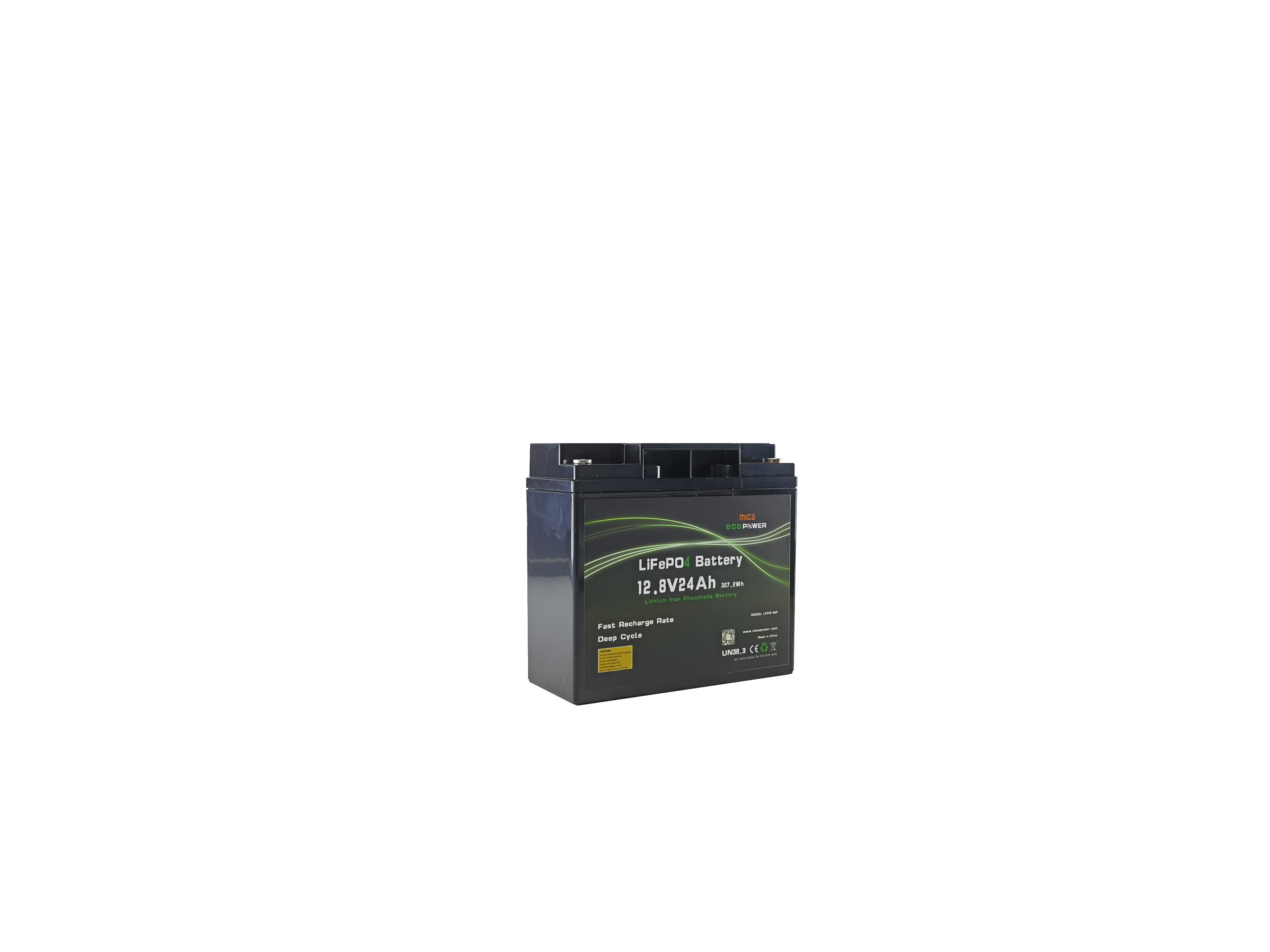

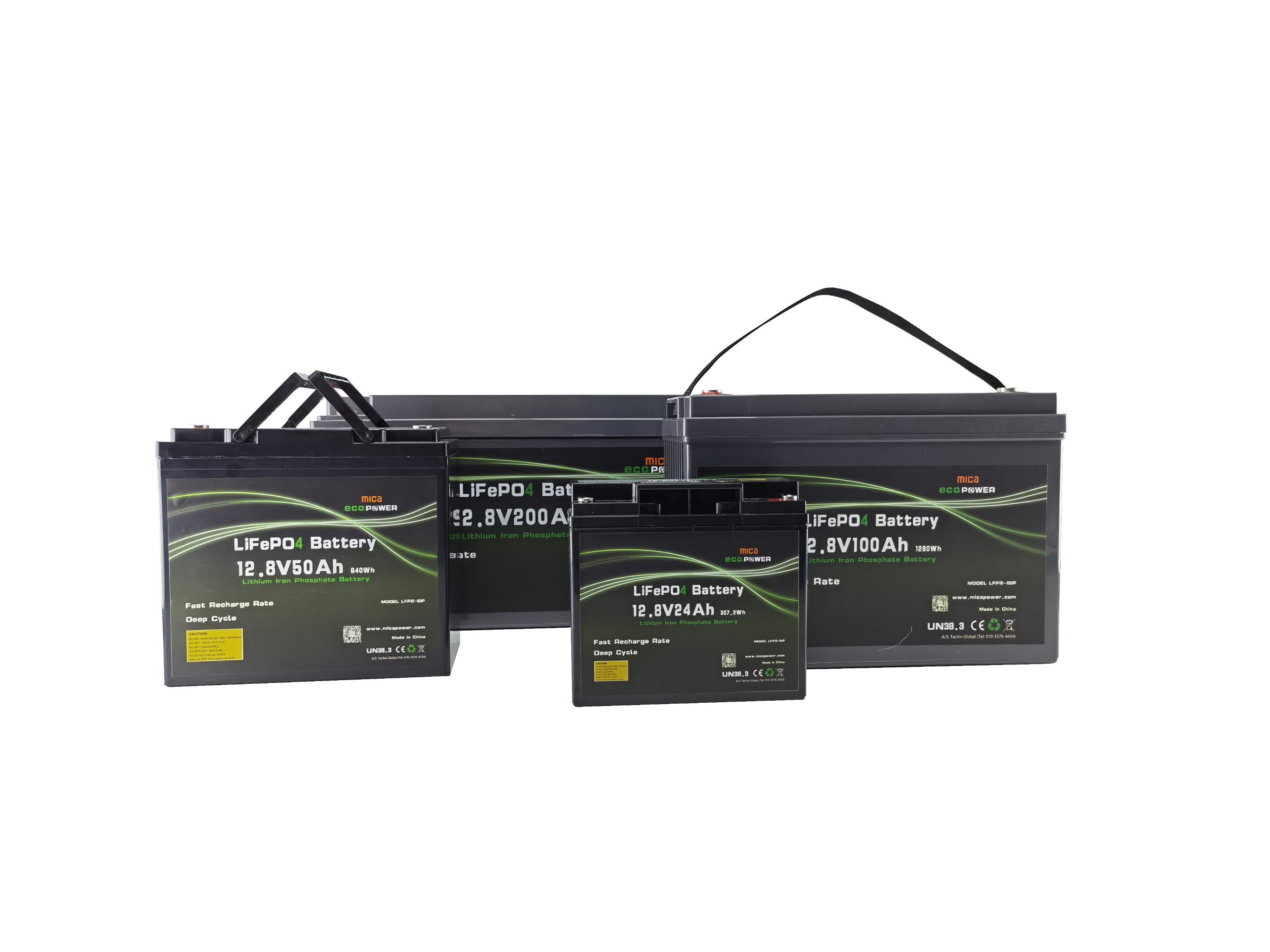

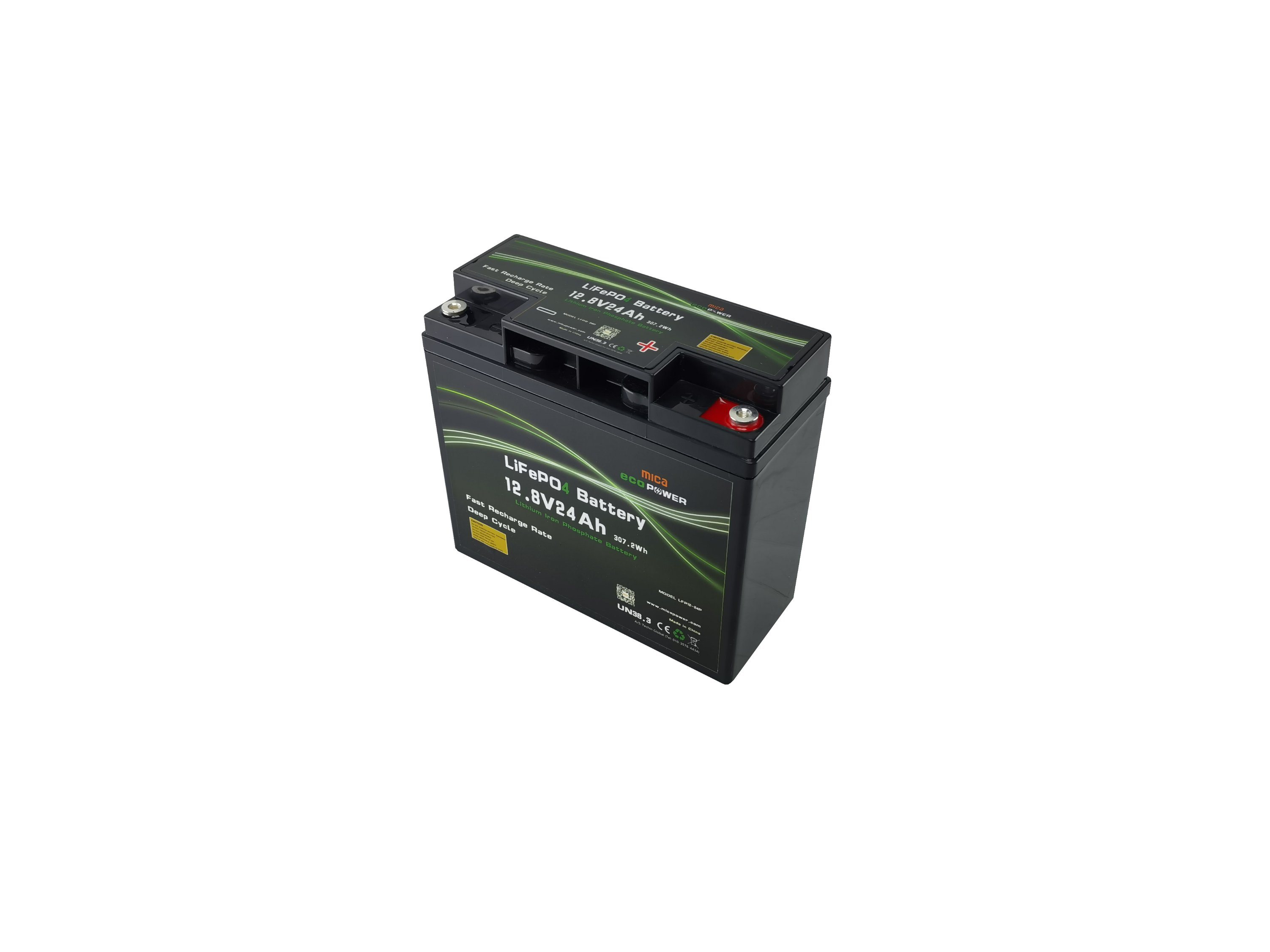

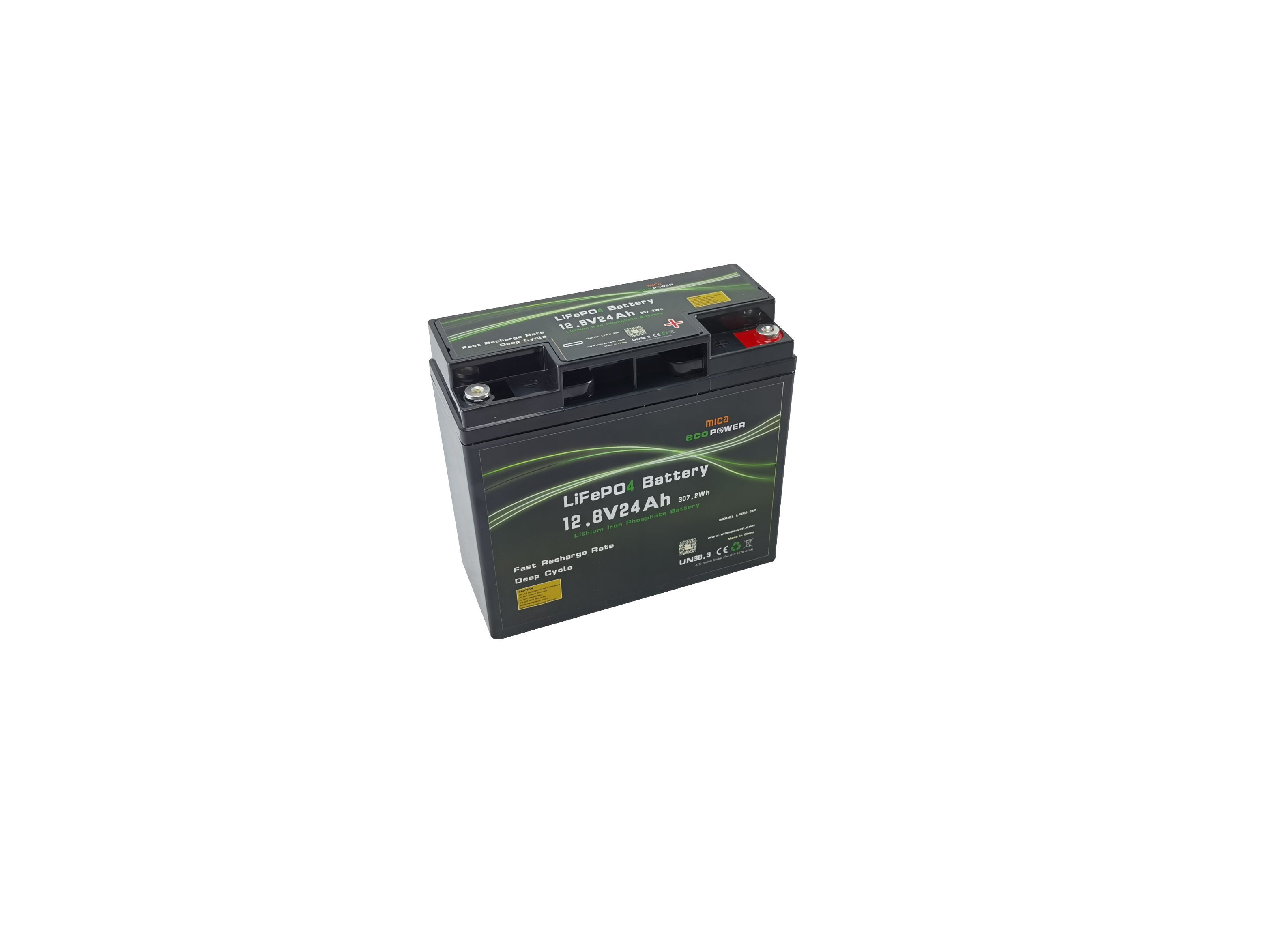

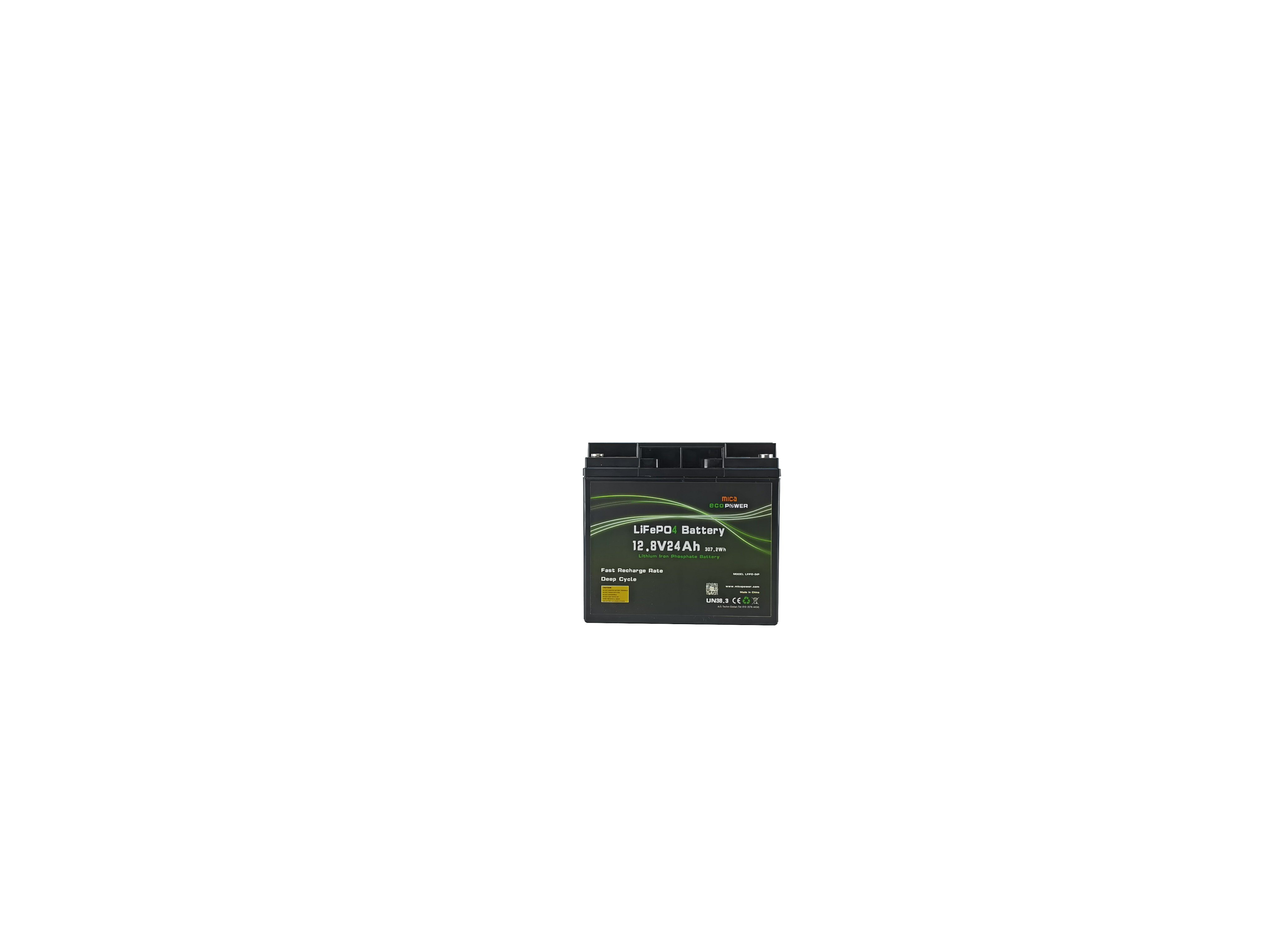

Mica Super Power Electric Bike Scooter 12V 24ah Lithium Iron Phosphate Battery Pack Solar Emergency Power System

Type:
Lithium Battery
Charger Type:
Electric Charger
Charger Application:
Standard Battery

Availability:



Inquire Add to Basket

Product Description

Model NO.	12V24Ah-01	Rated Capacity	24Ah
Standard Voltage	12V	Usage	Energy System Storage
Electrolyte	Li-ion	Certificates	UL1642 / IEC62133 / RoHS / Ce / FCC
Weight	~6kg	Nominal Voltage	12V
Nominal Capacity	24ah	Trademark	OEM/ODM
Transport Package	Carton	Specification	181 x 77 x 171mm (W x D x H)
Origin	China	HS Code	8507600090

LiFepo4 advantages:

Ultra-reliable Lithium Iron Phosphate (LiFePO4) technology
Integrated battery management System (BMS)
Ultra-long cycle life
Light weight & compact
Water & dust resistant (IP56)
Highly durable ABS enclosure
Drop-in lead acid replacement
Environment friendly
Bluetooth App is optional

Specification

General Information

Battery Type	LiFePO4(Lithium Iron Phosphate)
Nominal Voltage	12V
Nominal Capacity	24Ah 25ºC,C10
Nominal Energy	288Wh 25ºC,C10
Operation Voltage	10.4~14.6V
Operation Temperature	Charge: 0°C - 55°C \| Discharge: -20°C - 60°C
Cycle Life 100%DOD	>3000 cycles (288Wh 25ºC,C10)
Cycle Life 80%DOD	>4000 cycles (230Wh 25ºC,C10)
Cycle Life 50%DOD	>6000 cycles (144Wh 25ºC,C10)
Dimension	181 x 77 x 171mm (W x D x H)
Terminal Type	M6
Weight	~6kg
Warranty Period	5 years
Environment Protection	IP65
OEM ODM	Acceptable
Warranty	5 Years

BMS/Charge/Discharge

Charge Voltage Max	12V
Discharge Cut-off Voltage	10V
Charge Current Max	24A
Discharge Current Max	24A continues 48A burst (10 seconds)
Self-discharge Rate	<2% per month
Protection	Over-charge protection Over-discharge protection Over current protection Cell balancing function Cell balancing function Over temperature protection

Company Profile
More than 15 Years' Experience in Lithium Battery
Mica Power Co. Ltd was established in 2009. Our management team has more than 15 years' experience in rechargeable battery. Our factory covers an area of 15,000 square meters and has more than 500 employees.

Meeting Quality Standards
Our company has passed ISO 9001:2015 quality and BSCI system approval and our products have got the ROHS, CE, UL, IEC, UN38.3 certifications. The battery products have the advantages of high energy density, high power density, small volume, light weight, long service life, low self-discharge, flexible and varied shapes, safety performance and so on.

Benefit From Our Advantages

Backed by professional supporting team, we have expertise in R&D, OEM production and marketing. With the support of a professional and dedicated engineering and operation team, we are available to bringing customers' idea into reality. Flexible to customized request, such as sound adjusted, color, package, and accessories adjusted, so you can enjoy our quick one-stop OEM service.

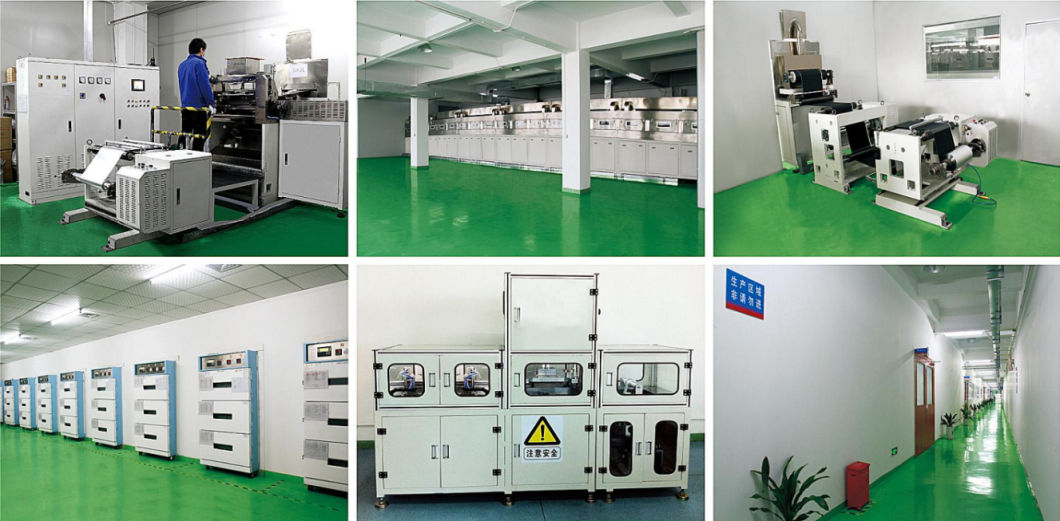

Our Factory

Advantages

1. Professional supporting team
2. Meeting Quality Standards
3. Flexible to customized request
4. quick one-stop OEM service
5. Exporting to Various Countries

Our Trade Show

Mica Super Power Electric Bike Scooter 12V 24ah Lithium Iron Phosphate Battery Pack Solar Emergency Power System

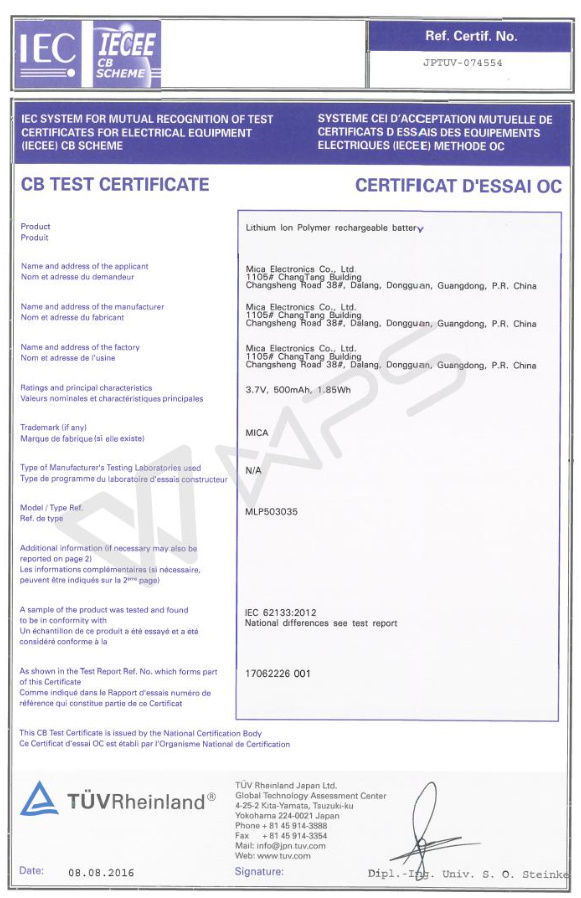

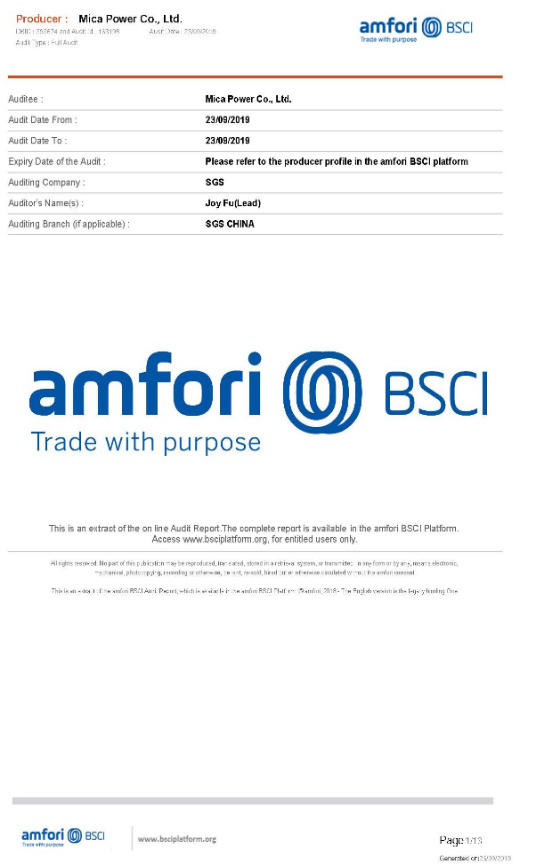

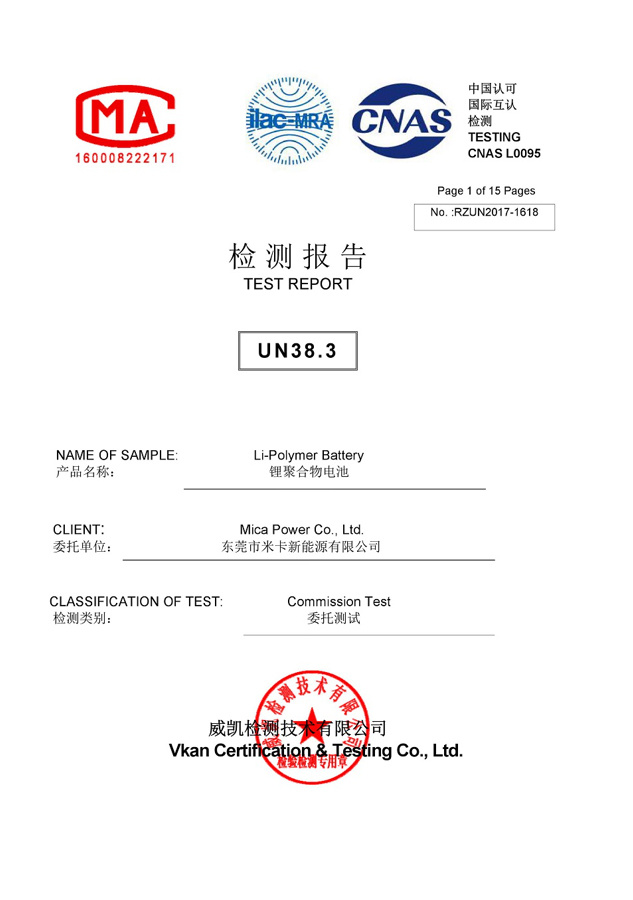

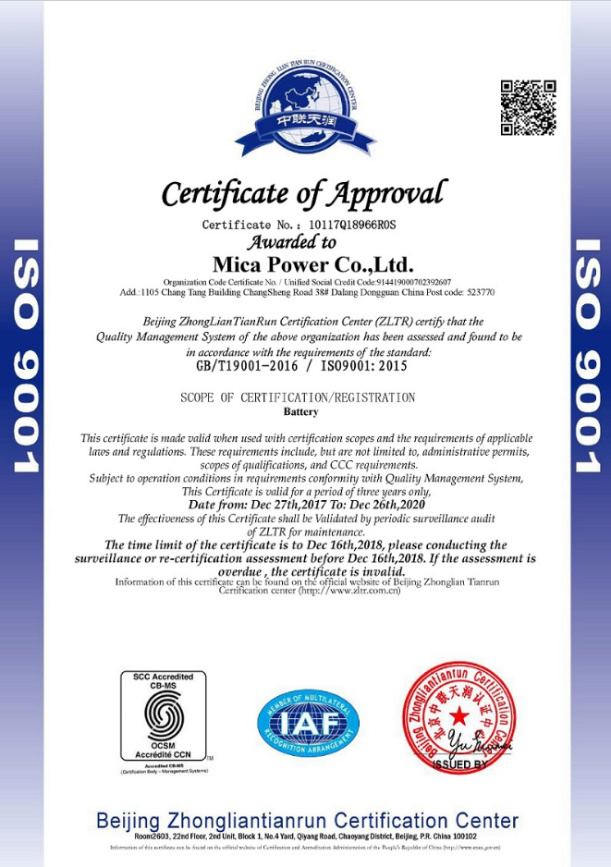

Our Certifications

FAQ

Q1. Can I have a sample order ?

A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.

Q2. How can I get a sample to check your quality?

A: After price confirmation, you can require for samples to check our quality.

Q3. How do you ship the goods and how long does it take to arrive?

A: EXPRESS,Airline and sea shipping also optional. It usually takes 10-15 days/ 15-20 days to arrive.

Q4. Do you have any MOQ limit for sample order?

A: MOQ, 1-10pcs for sample checking is available.
