24V
Over 4000 Times
12.8V
Company Profile
MICA POWER Co., Ltd. was founded in 2009 is a leading supplier in lithium battery solution in China. focusing on Lithium Polymer, Lithium ion & Lithium iron phosphate/LiFePO4 technology batteries and energy storage solutions. Our management team has more than 15 years' experience in battery business.
Facility Aare: 15000 square meters;
Employee: 1000.

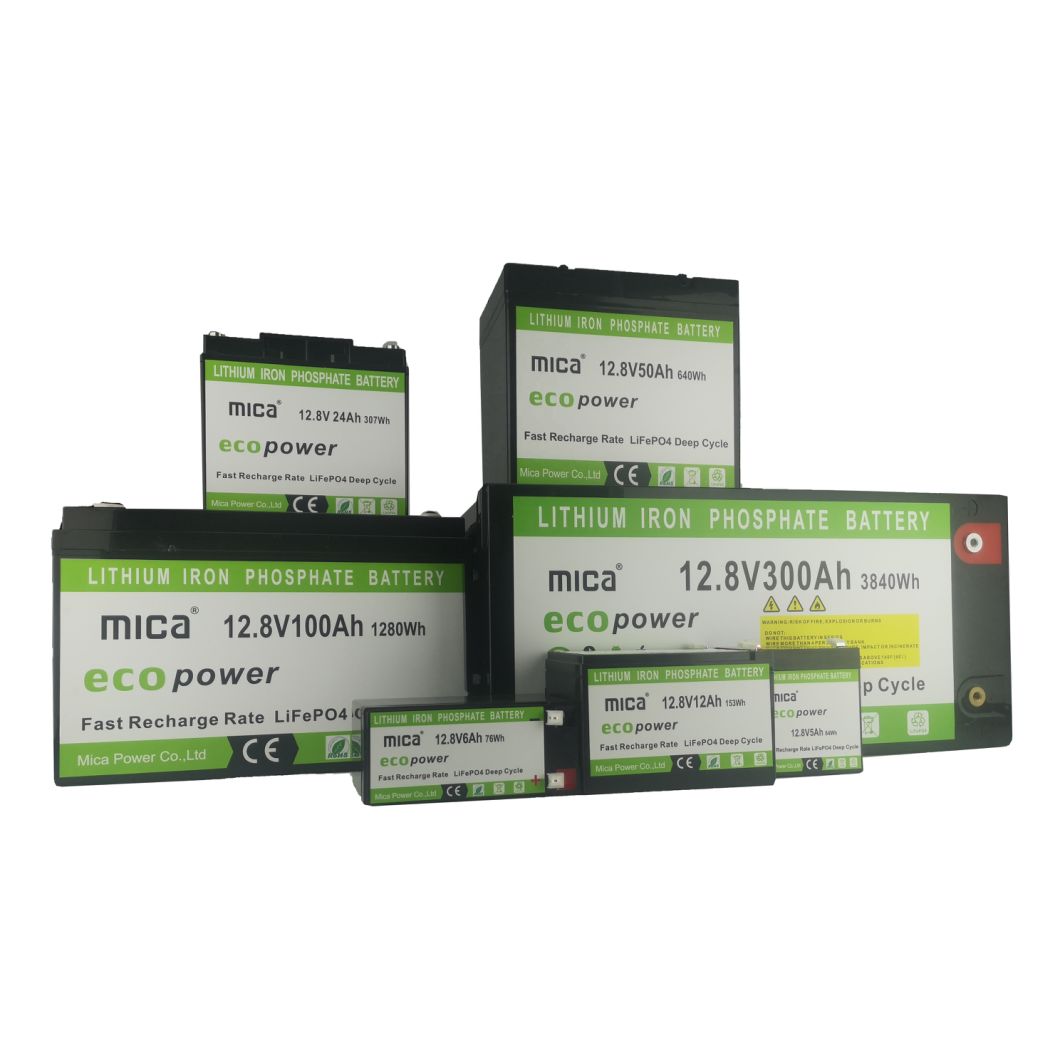

We specialize in manufacturing and exporting lithium-polymer batteries, lithium-ion batteries, LiFePo4 rechargeable batteries, rechargeable batteries for 3C consumer electronics, AGV, RV/ caravan, marine, motorcycle, golf cart / trolly, UPS, solar storage, medical, clean machine, industrial, commercial use, etc with reliable and safety solution.
We also support customers with an outstanding service and a customized POS concept.
Our products have UL, CE, KC, PSE, RoHS, UN38.3 certificated and exported worldwide like Europe,North America, South America, Africa, Middle East and South-east Asia.
Why you can choose MICA battery?
10 Years lifetime----LiFePO4 battery provides 4000+ cycles, which is more than 10 times to Lead Acid with 200~500 cycles. LiFePO4 battery has a 10-year service life, three times longer than the Lead Acid's 3-year lifetime.
1/3* Lightweight----LiFePO4 Battery weighs only 25kg for one module, only 1/3* the weight of lead acid batteries, which makes it an easy choice for RVs, Marine and Off-Grid Applications when mounting or mobility is in the consideration.

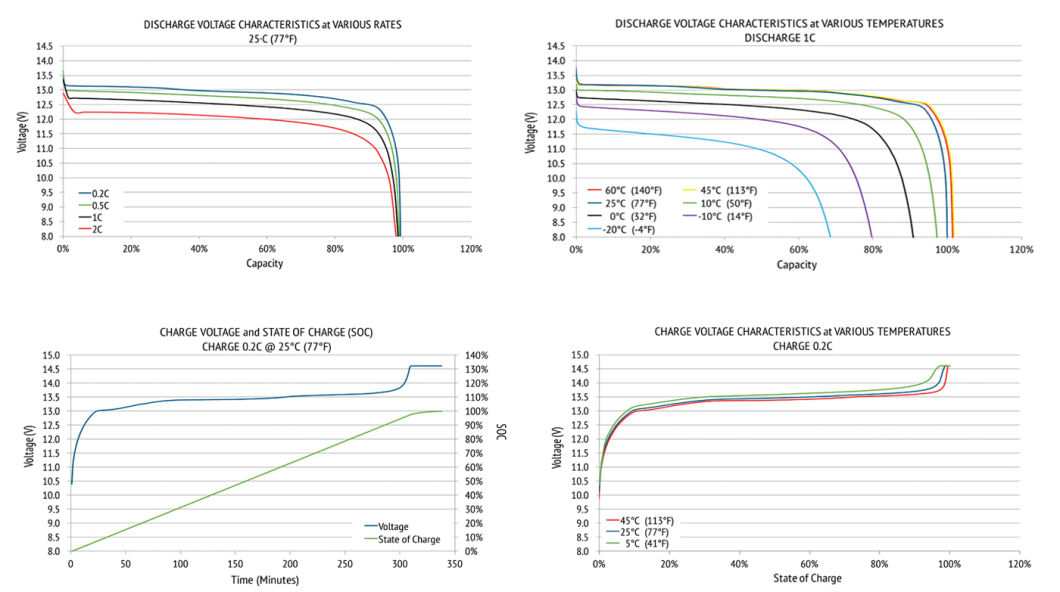

95%* Efficiency----LiFePO4 battery's flat discharge curve holds above 12.8V for up to 95%* of its capacity usage, providing astronomical boosts in run-time compared to only 50% in Lead Acid.
100% Protection----LiFePO4 battery has built-in BMS to protect it from overcharge, over-discharge, overcurrent, and short circuit with excellent self-discharge rate.
IP56 waterproof----Our battery is IP56 waterproof, setting you free from worrying to install indoors or outdoors.
Complete certification----- MSDS CE/RoHS/UN38.3/UL
| Items | Parameter | |

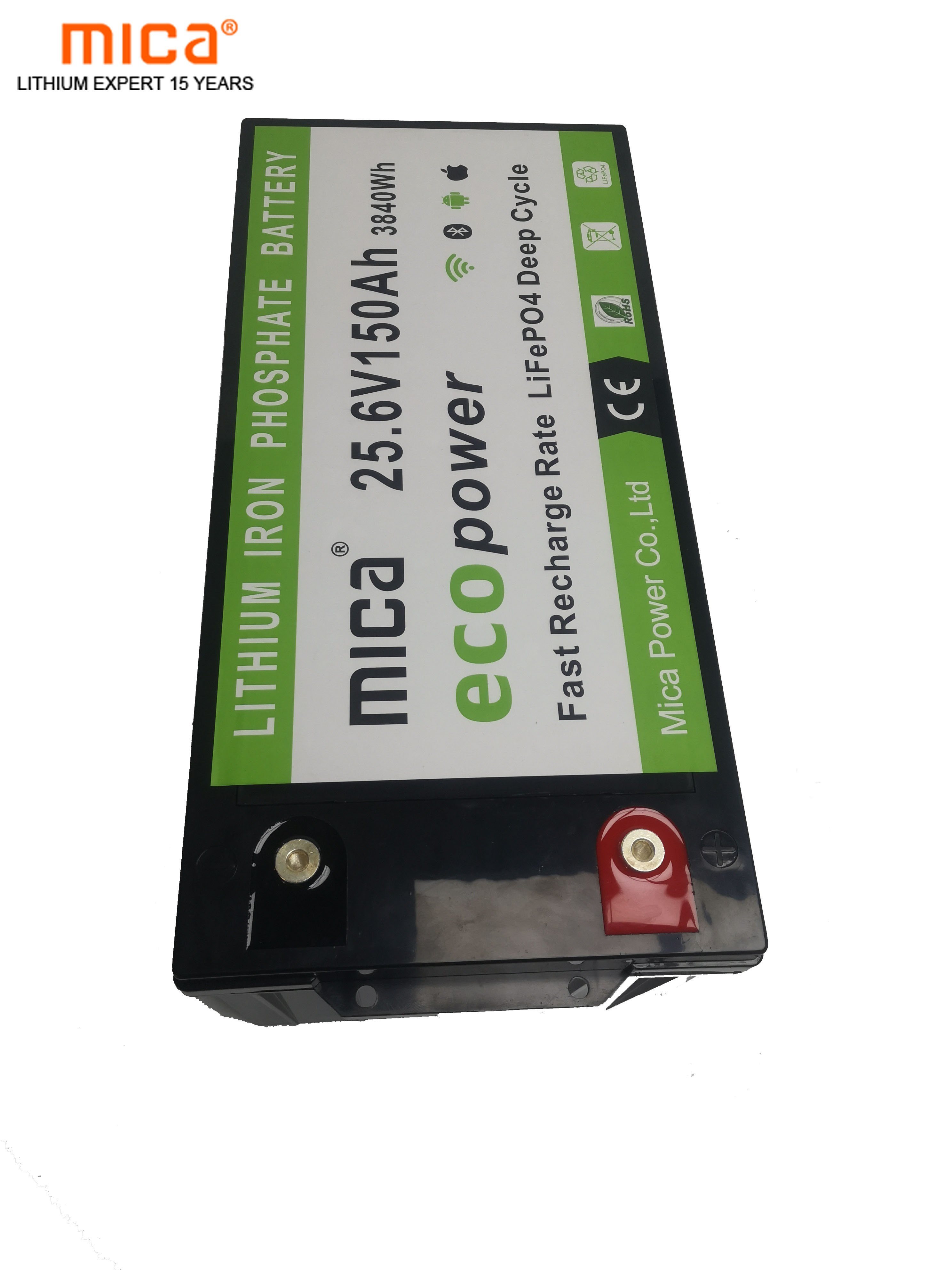

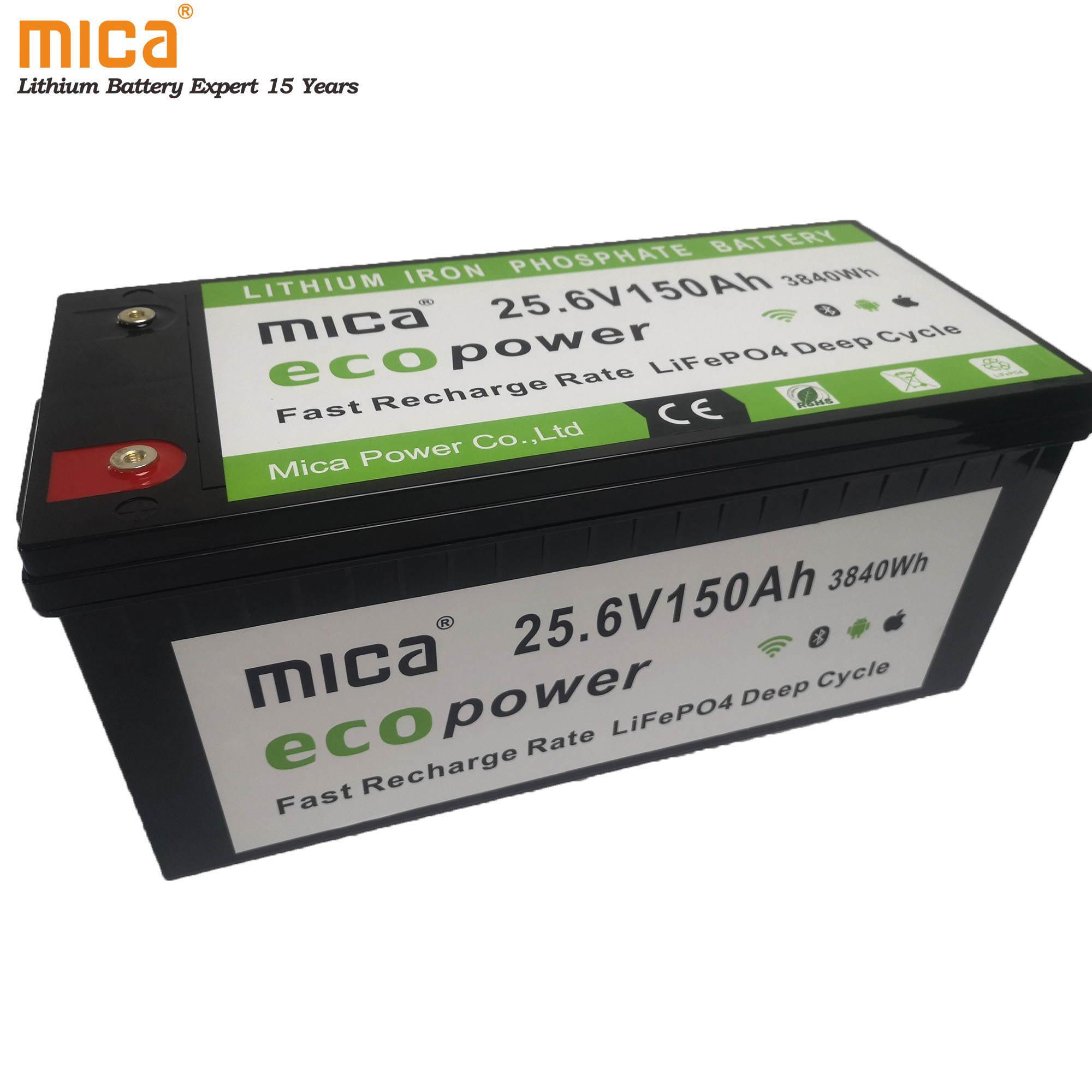

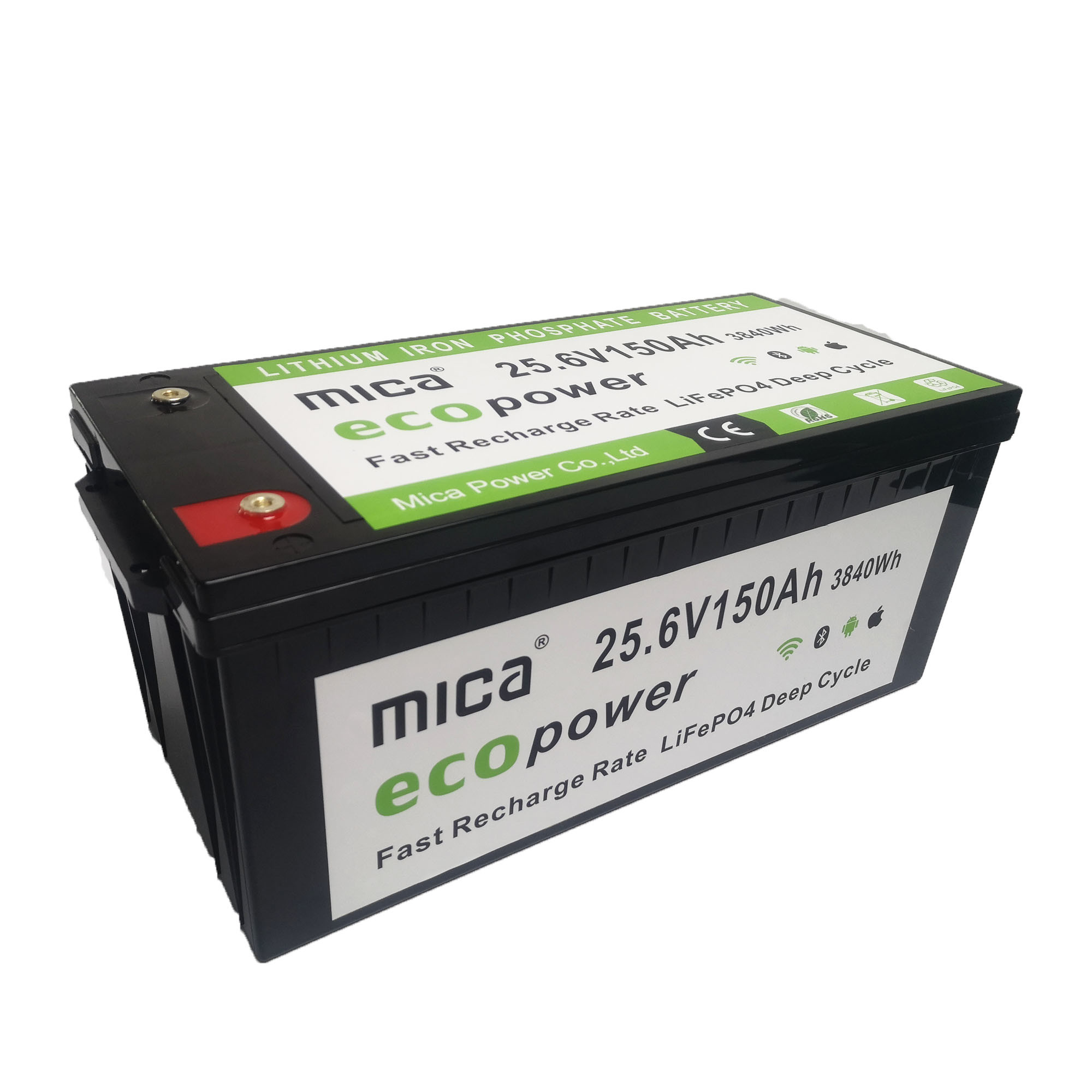

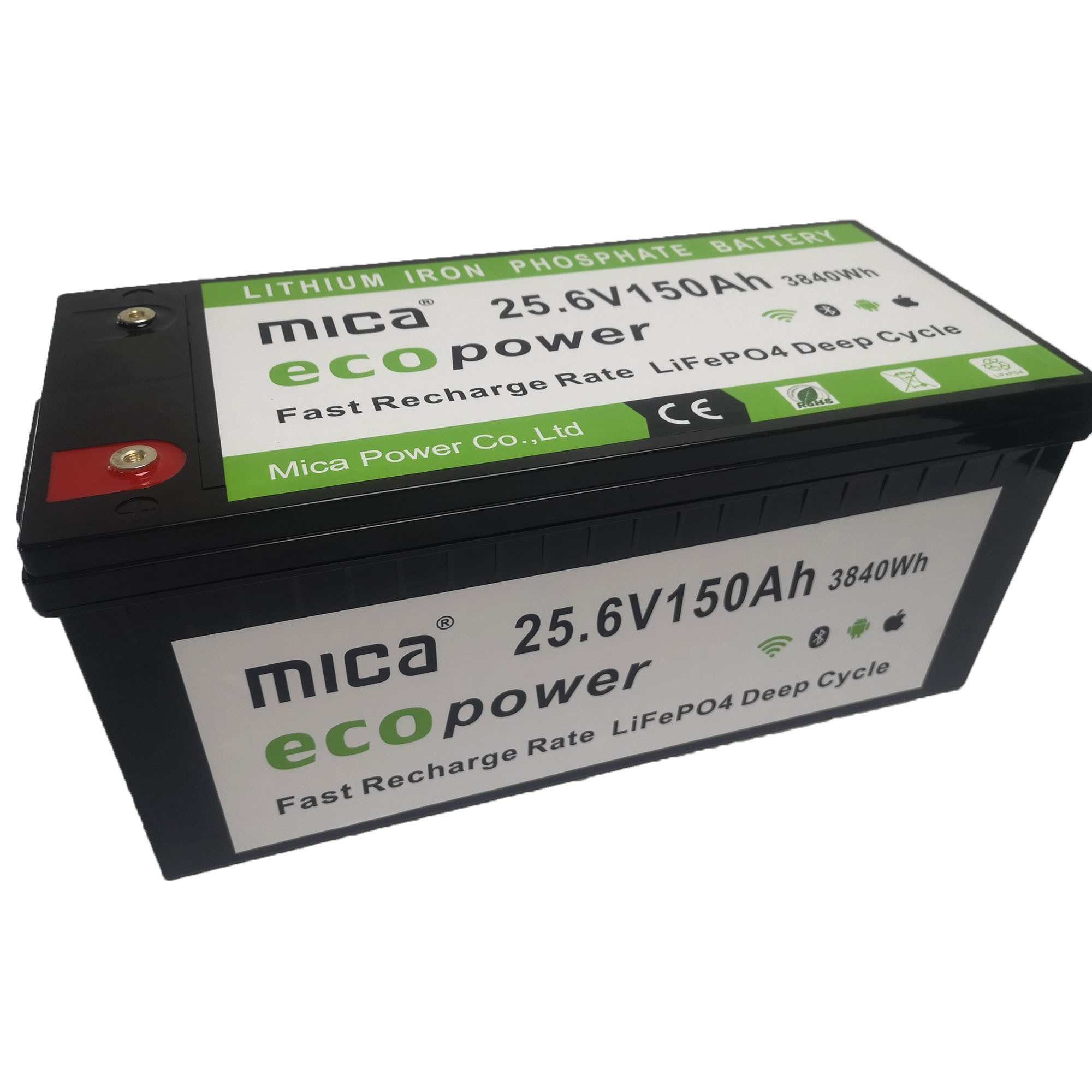

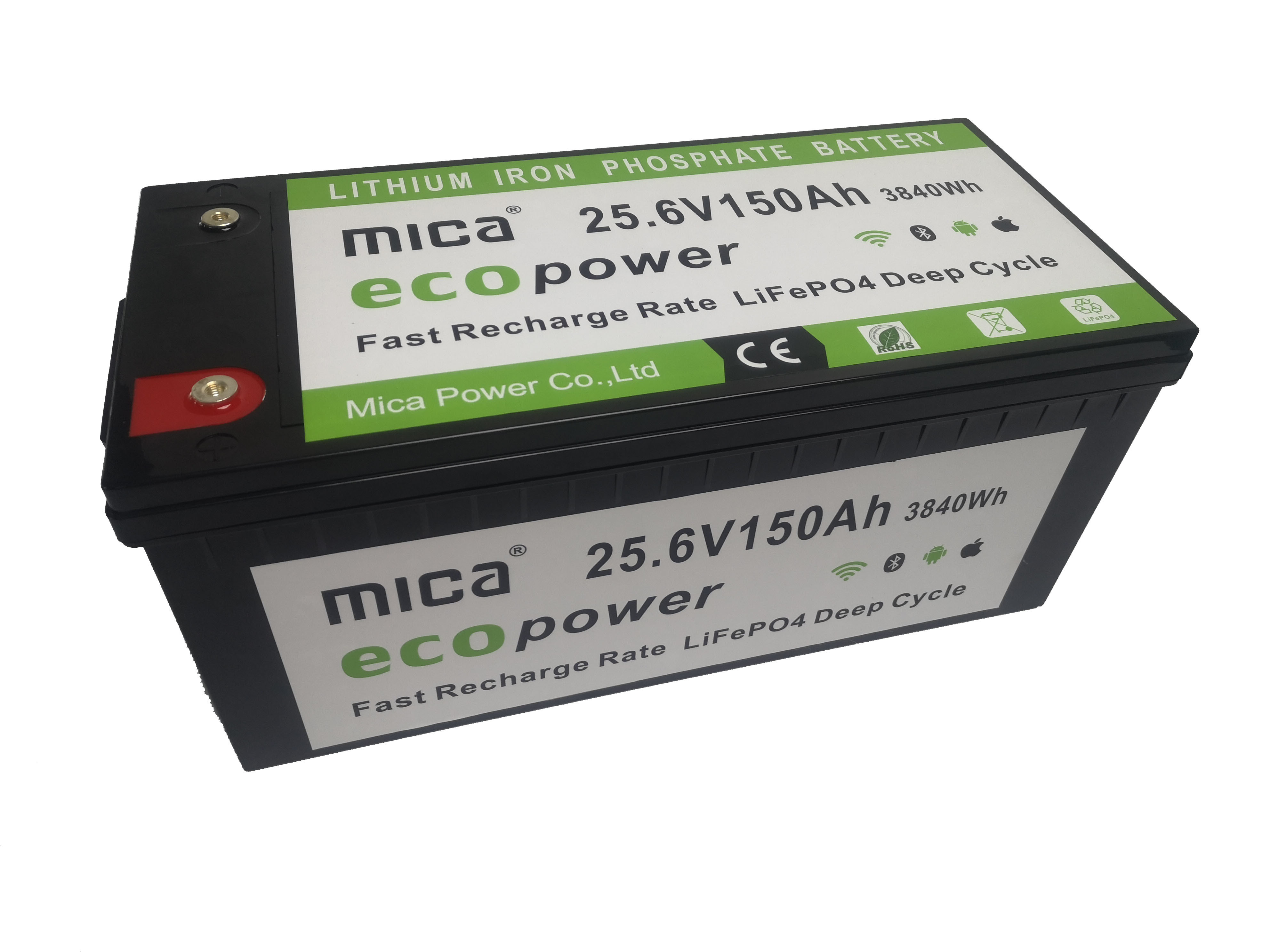

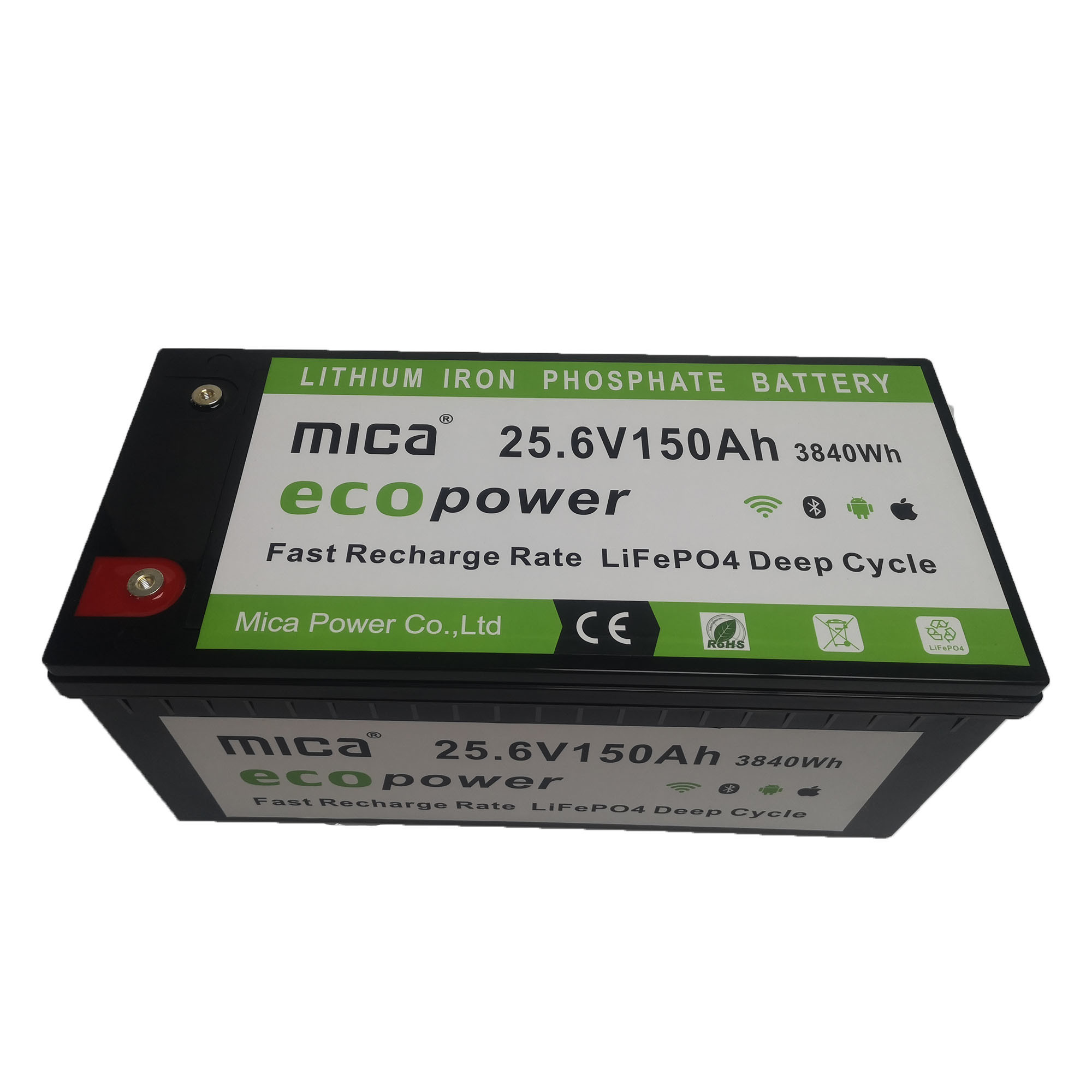

| Battery model | MC-24150F | |
| Nominal voltage | 25.6V | |
| Minimum capacity | 150Ah@25ºC | |
| Charging voltage | 29.2V | |
| Discharging cut-off voltage | 20V | |
| Standard charging | 0.2C /29.2V | |
| Max charging | 1.0C /20V | |
| Standard discharging | 1C/20V | |
| Max discharging | continuous discharge | 100A/20V |
| peak discharge | 200A/20V | |
| Standard Charging mode | CC/CV | |
| Operating temperature | Charging: 0°C ~ 45°C | |
| Discharging: -20°C ~60°C | ||
| Storage (At 50% SOC and specified temp, recoverable capacity in % vs time ) | -10ºC~25ºC | (12 months ≥85% ) |
| -10ºC ~45ºC | (6 months ≥85% ) | |
| -10ºC~55ºC | (1 month ≥90% ) | |
| 20±5ºC is the recommended storage temperature | ||
| Visual Inspection | There should not be any remarkable scratches, cracks, bolts, cauterization, deformations, swelling, leakage and so on the surface of the cell. | |
| Self-discharge Rate | <2% per month | |
