Li-ion Battery
LFP
Yes
Medium
14.6V
10V
| Availability: | |
|---|---|
Features
• Ultra-reliable Lithium Iron Phosphate (LiFePO4) technology
• Integrated battery management System (BMS)
• Ultra-long cycle life
• Light weight & compact
• Water & dust resistant (IP56)
• Highly durable ABS enclosure

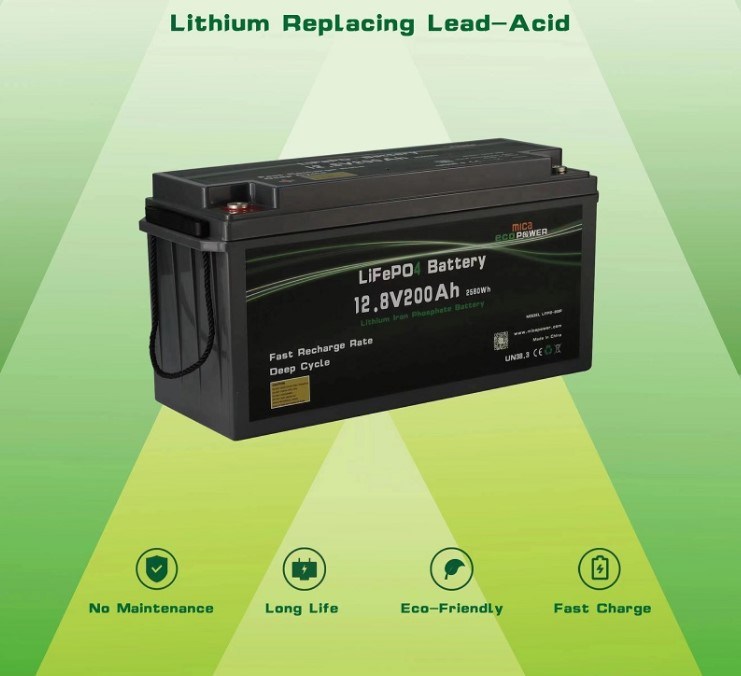

• Drop-in lead acid replacement
• Environment friendly
• Bluetooth App is optional
| General Information | |

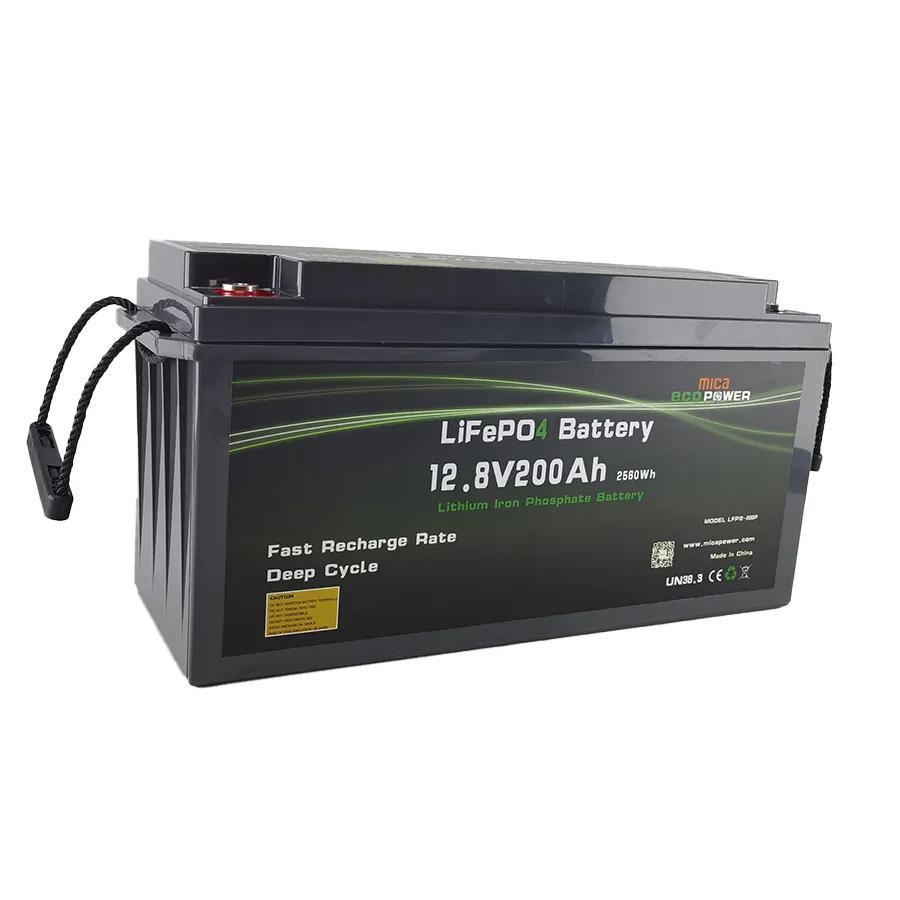

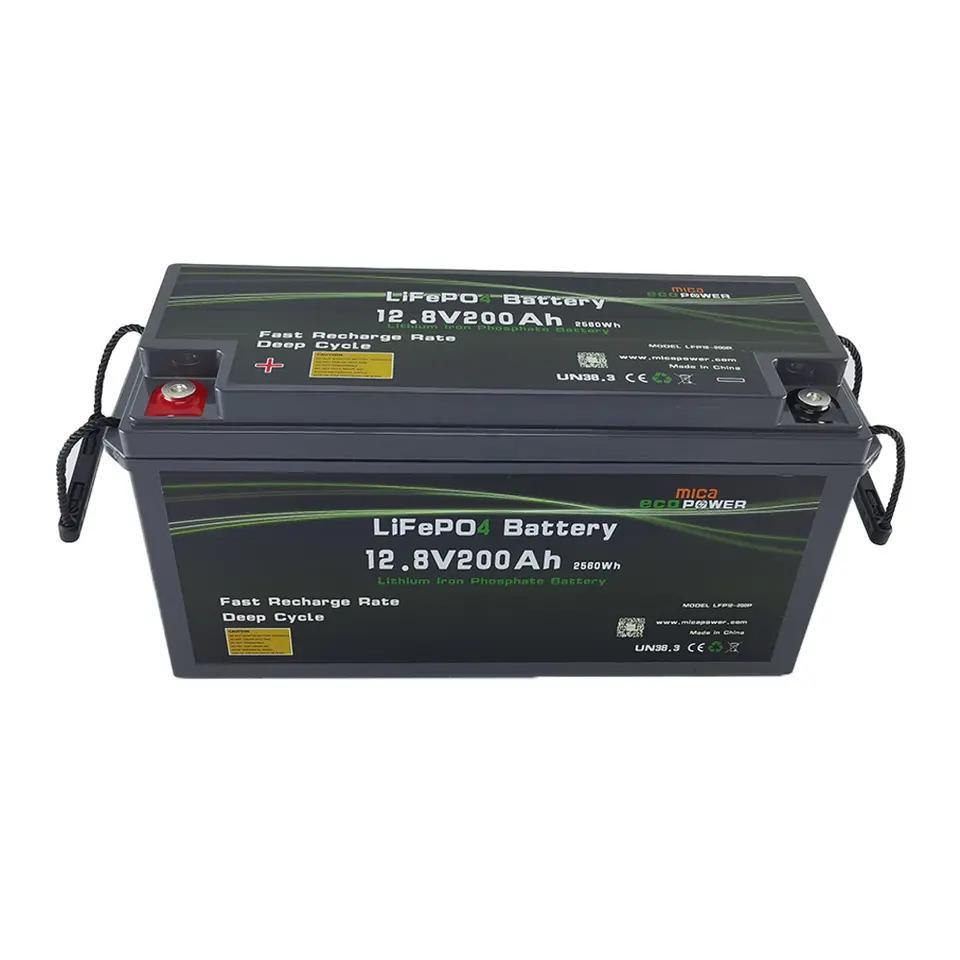

| Battery Type | LiFePO4(Lithium Iron Phosphate) |
| Nominal Voltage | 12.8V |
| Nominal Capacity | 200Ah25ºC,C10 |
| Nominal Energy | 2560Wh25ºC,C10 |
| Operation Voltage | 10~14.6V |
| Operation Temperature | Charge: 0°C - 45°C | Discharge: -20°C - 60°C |
| Cycle Life 100%DOD | >3000 cycles (2560Wh25ºC,C10) |
| Cycle Life 80%DOD | >4000 cycles (2048Wh25ºC,C10) |
| Cycle Life 50%DOD | >6000 cycles (1280Wh25ºC,C10) |
| Dimension | 522 x 238 x 222mm (W x D x H) |
| Terminal Type | M8 |
| Weight | ~25 kg |
| Warranty Period | 5 years |
| Environment Protection | IP56 |
| BMS/Charge/Discharge | |
| Charge Voltage Max | 14.6V |
| Discharge Cut-off Voltage | 10V |
| Charge Current Max | 100A |
| Discharge Current Max | 100A continues 200A burst (10 seconds) |
| Self-discharge Rate | <2% per month |
| Self-discharge Rate | Over-charge protection Over-discharge protection Over current protection Cell balancing function Over temperature protection |
Why choose us




Features
• Ultra-reliable Lithium Iron Phosphate (LiFePO4) technology
• Integrated battery management System (BMS)
• Ultra-long cycle life
• Light weight & compact
• Water & dust resistant (IP56)
• Highly durable ABS enclosure
• Drop-in lead acid replacement
• Environment friendly
• Bluetooth App is optional
| General Information | |
| Battery Type | LiFePO4(Lithium Iron Phosphate) |
| Nominal Voltage | 12.8V |
| Nominal Capacity | 200Ah25ºC,C10 |
| Nominal Energy | 2560Wh25ºC,C10 |
| Operation Voltage | 10~14.6V |
| Operation Temperature | Charge: 0°C - 45°C | Discharge: -20°C - 60°C |
| Cycle Life 100%DOD | >3000 cycles (2560Wh25ºC,C10) |
| Cycle Life 80%DOD | >4000 cycles (2048Wh25ºC,C10) |
| Cycle Life 50%DOD | >6000 cycles (1280Wh25ºC,C10) |
| Dimension | 522 x 238 x 222mm (W x D x H) |
| Terminal Type | M8 |
| Weight | ~25 kg |
| Warranty Period | 5 years |
| Environment Protection | IP56 |
| BMS/Charge/Discharge | |
| Charge Voltage Max | 14.6V |
| Discharge Cut-off Voltage | 10V |
| Charge Current Max | 100A |
| Discharge Current Max | 100A continues 200A burst (10 seconds) |
| Self-discharge Rate | <2% per month |
| Self-discharge Rate | Over-charge protection Over-discharge protection Over current protection Cell balancing function Over temperature protection |
