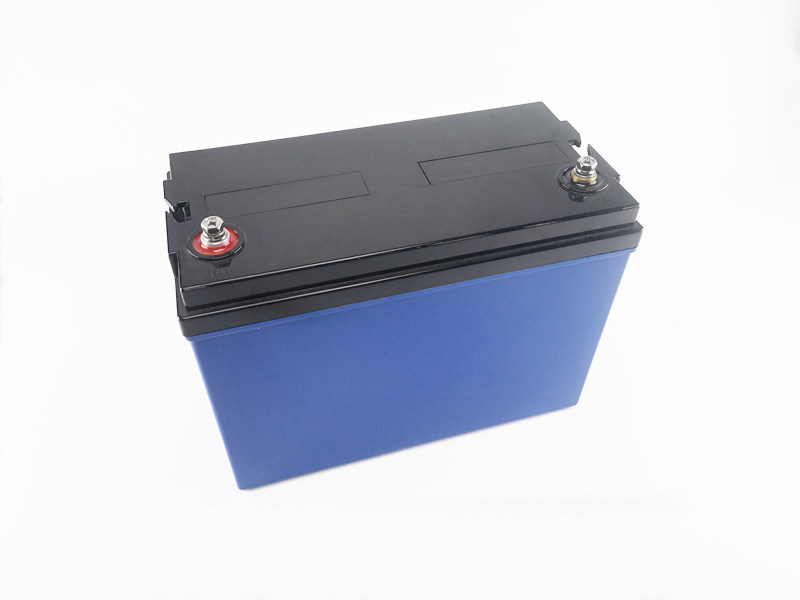

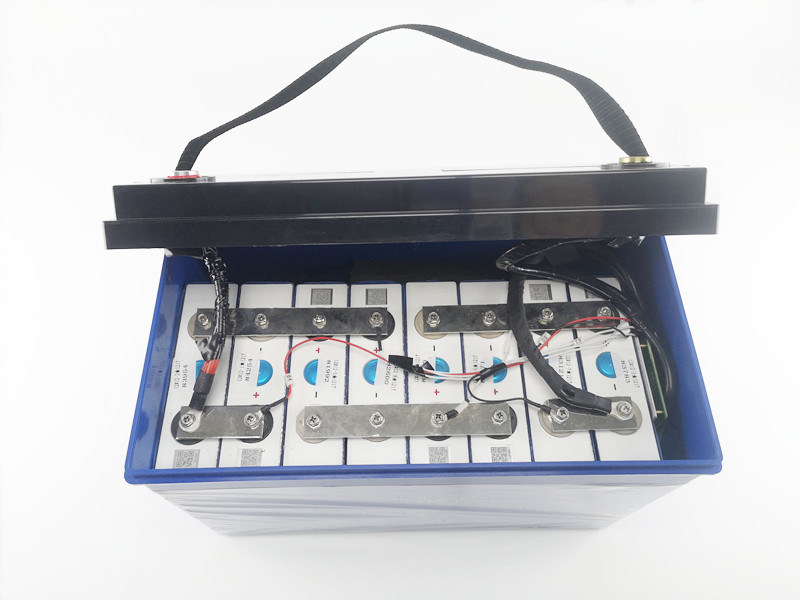

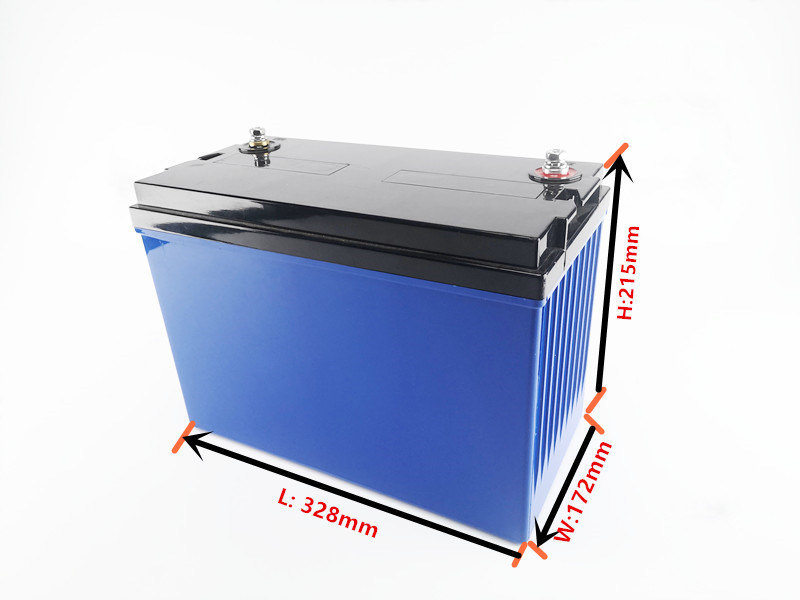

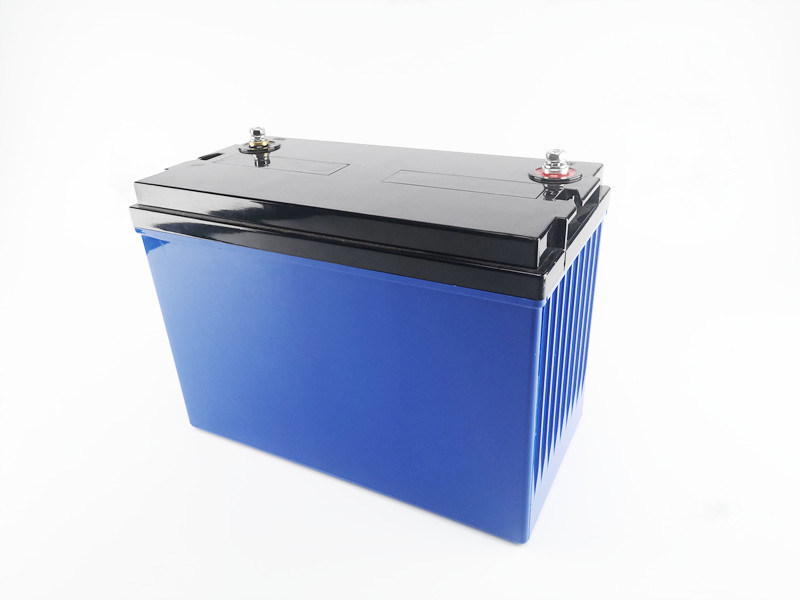

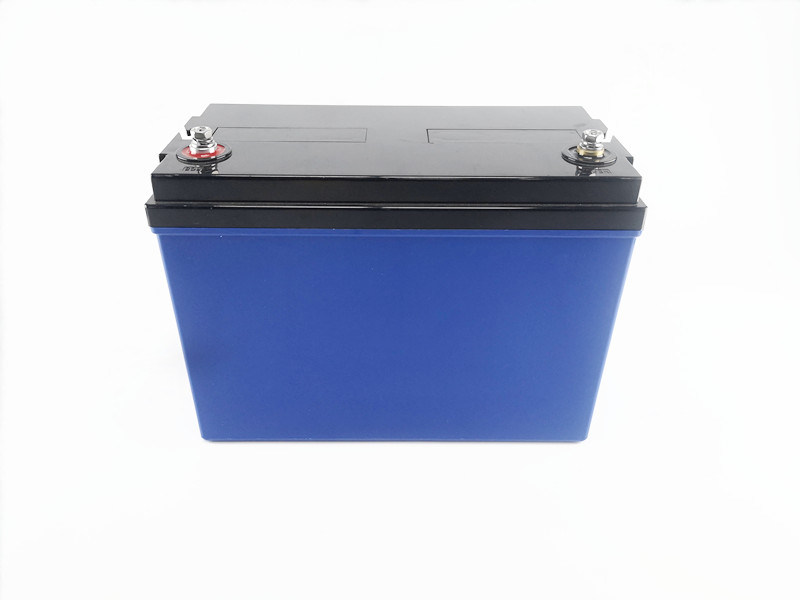

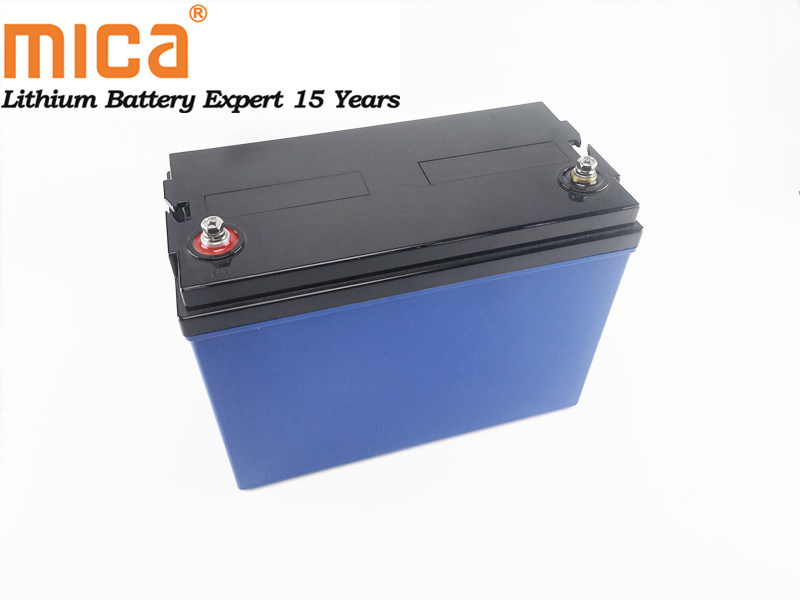

Lithium-Ion Battery Pack
Series and Parallel
Chargeable
| Items | Parameter | |
| Battery model | MC-IFR72174206F | |
| Nominal voltage | 3.2V | |
| Minimum capacity | 240Ah@25ºC | |
| Charging voltage | 3.65V | |
| Discharging cut-off voltage | 2.5V | |
| Standard charging | 0.2C /3.65V | |
| Max charging | 1.0C /3.65V | |
| Standard discharging | 1C/2.5V | |
| Max discharging | continuous discharge | 1.5C/2.5V |
| Burst discharge | 5.0C/2.5V | |
| Application | 5G/UPS/communication stations etc | |
| Operating temperature | Charging: 0°C ~ 45°C | |
| Discharging: -20°C ~60°C | ||
| Storage (At 50% SOC and specified temp, recoverable capacity in % vs time ) | -10ºC~25ºC | (12 months ≥85% ) |
| -10ºC ~45ºC | (6 months ≥85% ) | |
| -10ºC~55ºC | (1 month ≥90% ) | |
| 20±5ºC is the recommended storage temperature | ||
| Visual Inspection | There should not be any remarkable scratches, cracks, bolts, cauterization, deformations, swelling, leakage and so on the surface of the cell. | |
| Warranty | 12 months | |
More than 15 Years' Experience in Lithium Battery
Mica Power Co. Ltd was established in 2009. Our management team has more than 15 years' experience in rechargeable battery. Our factory covers an area of 15,000 square meters and has more than 500 employees.
