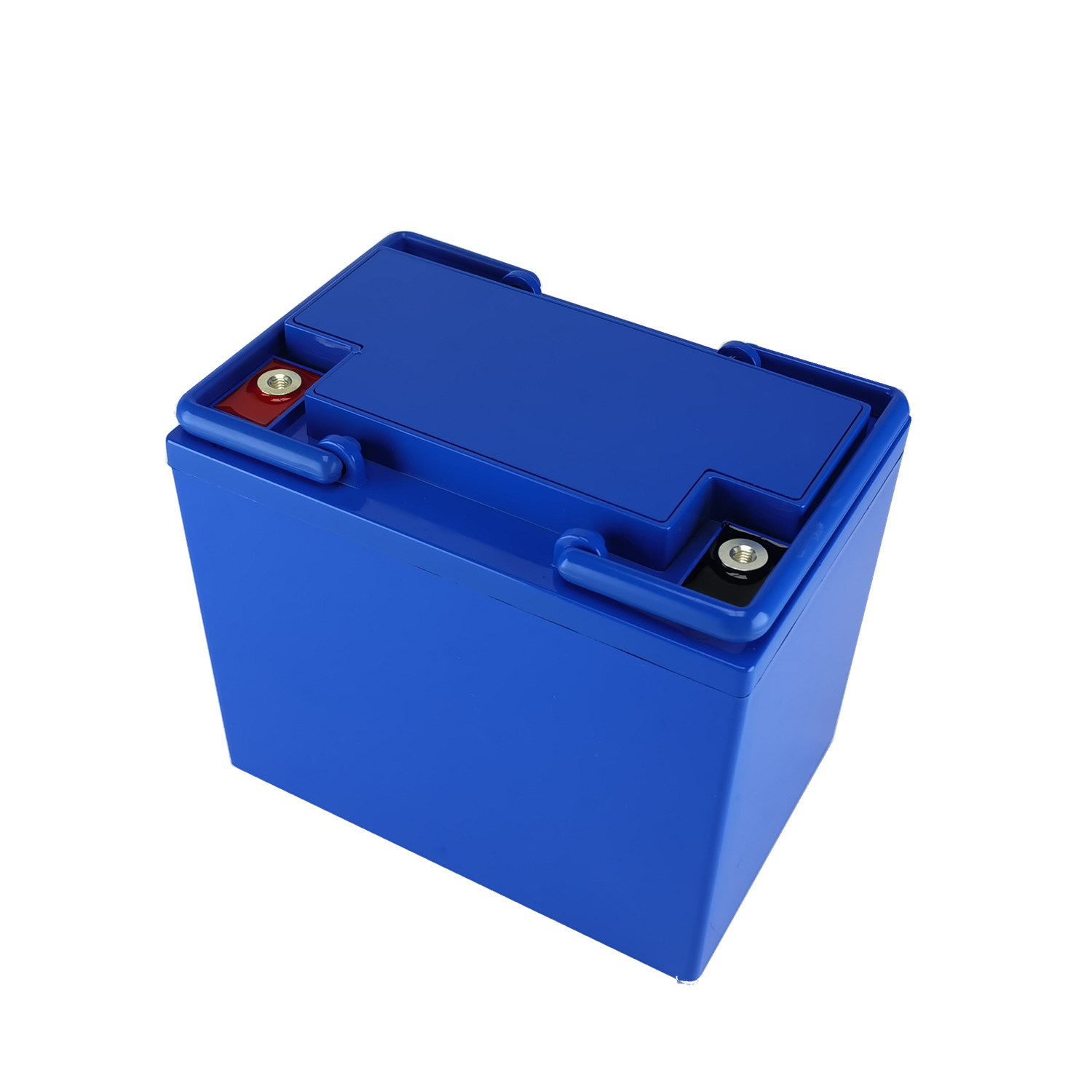

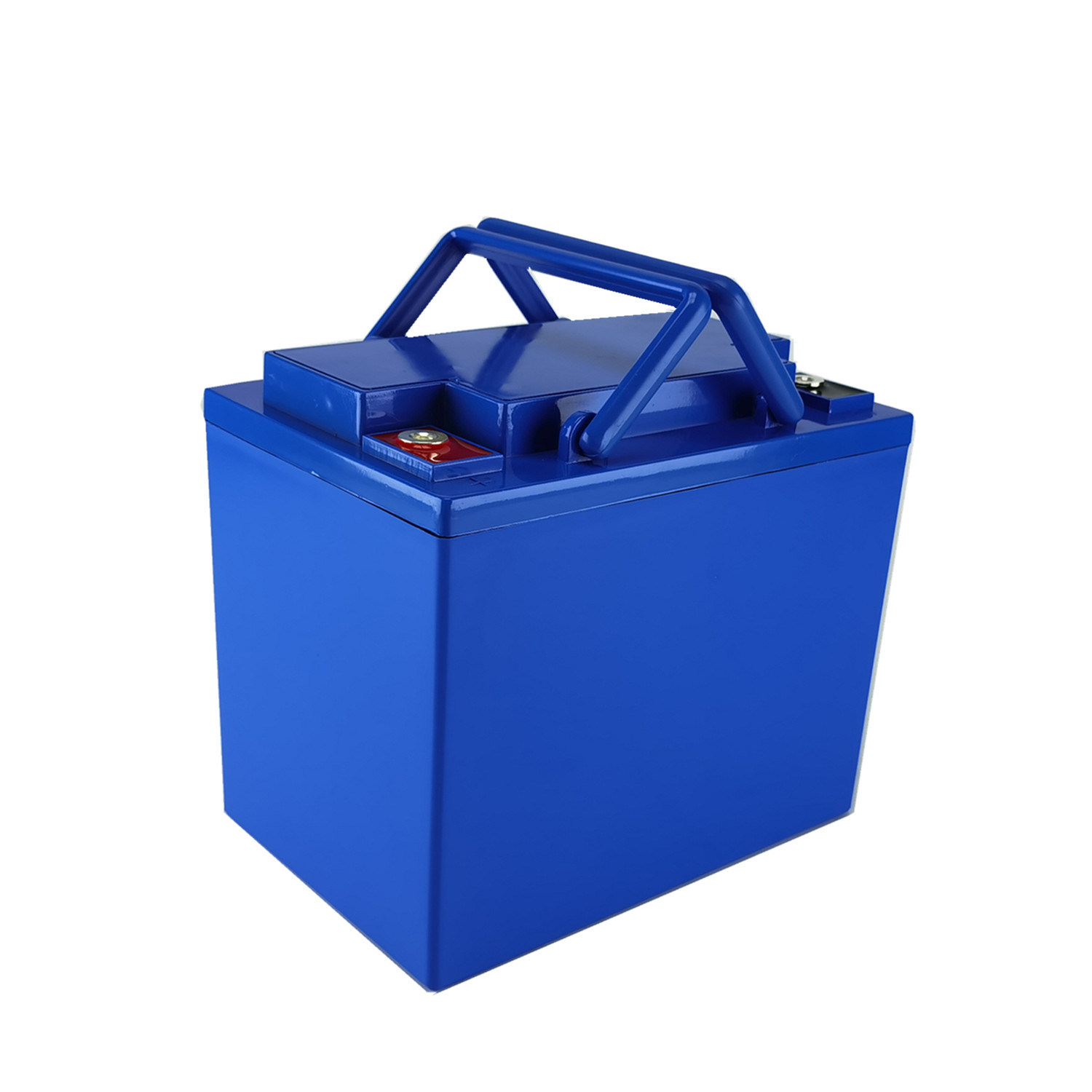

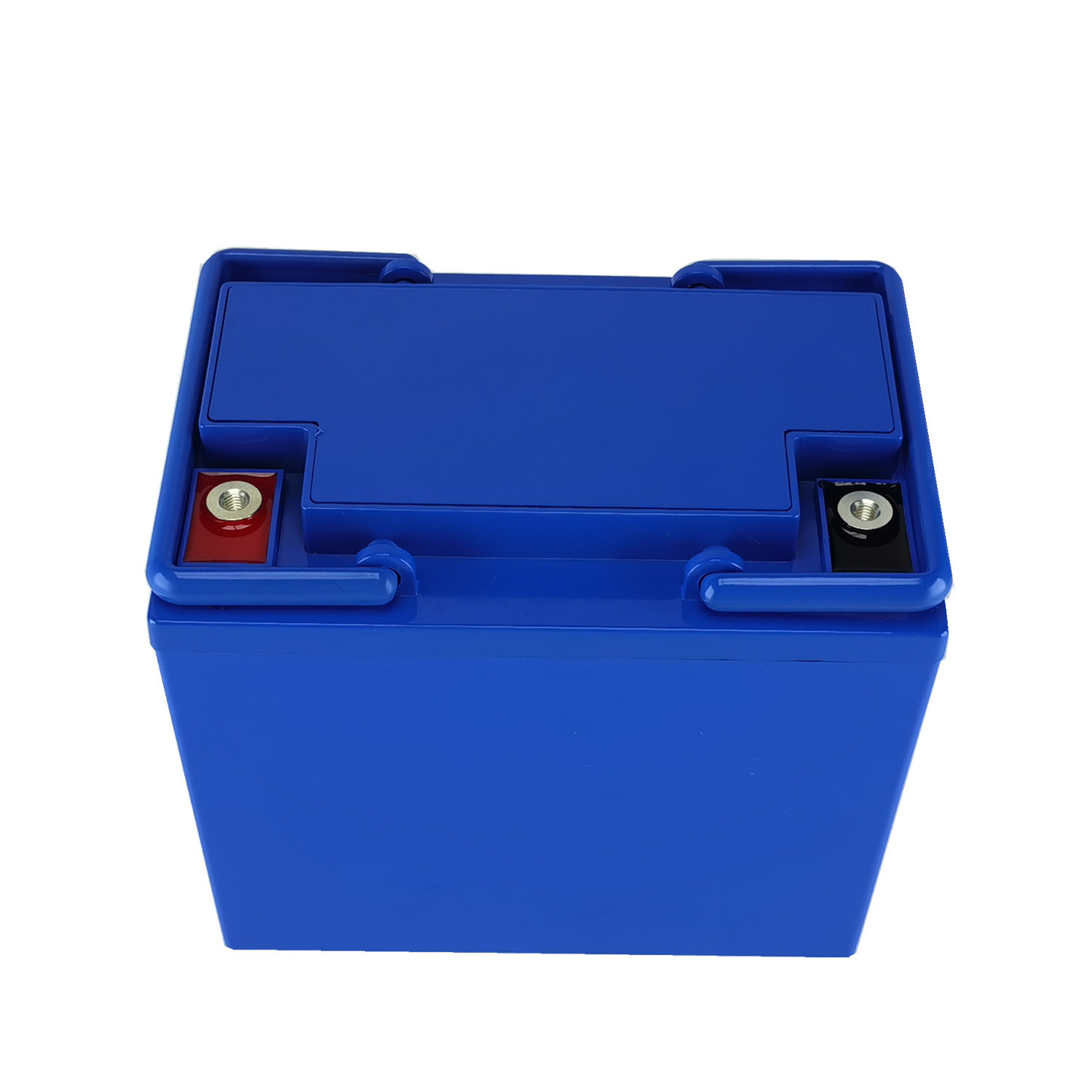

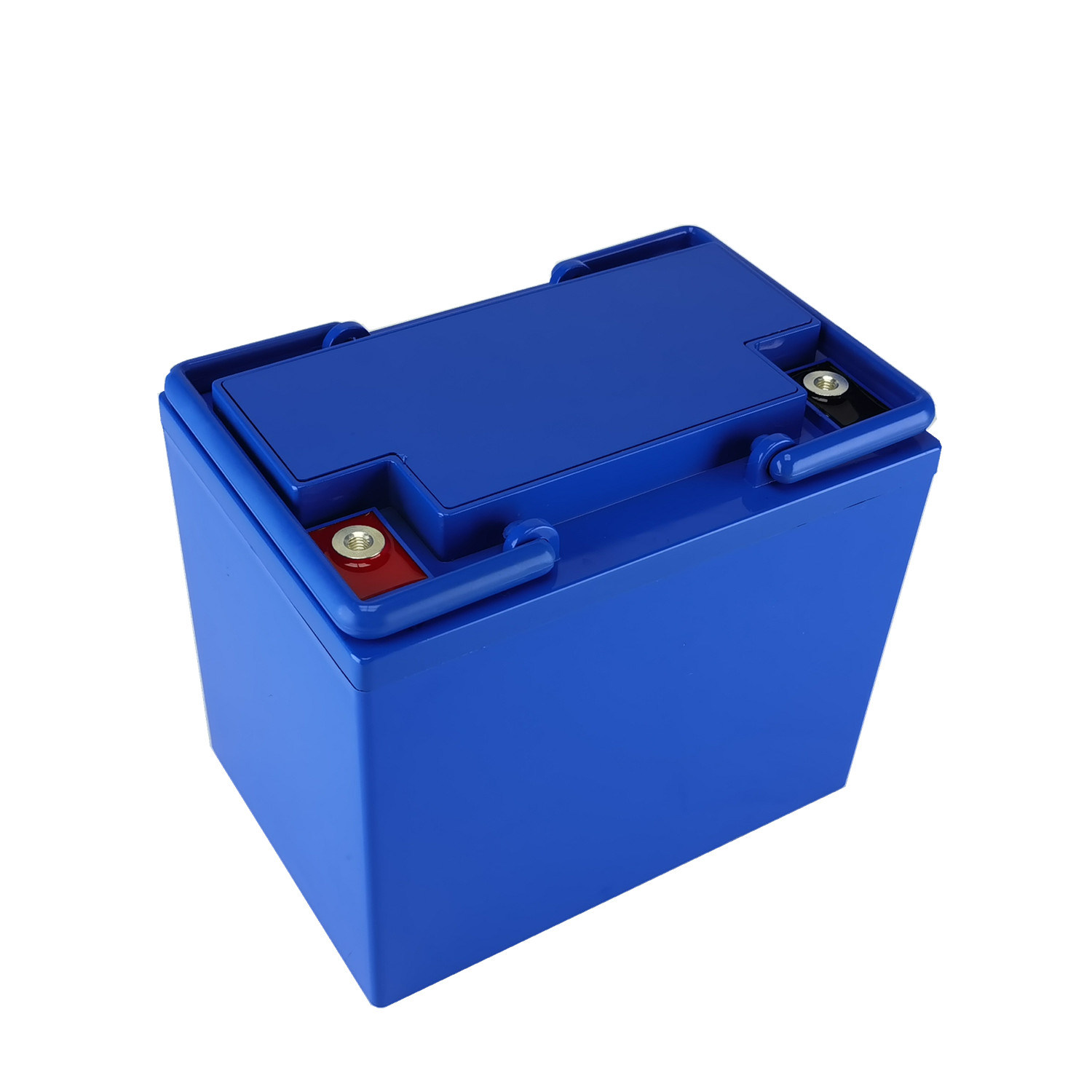

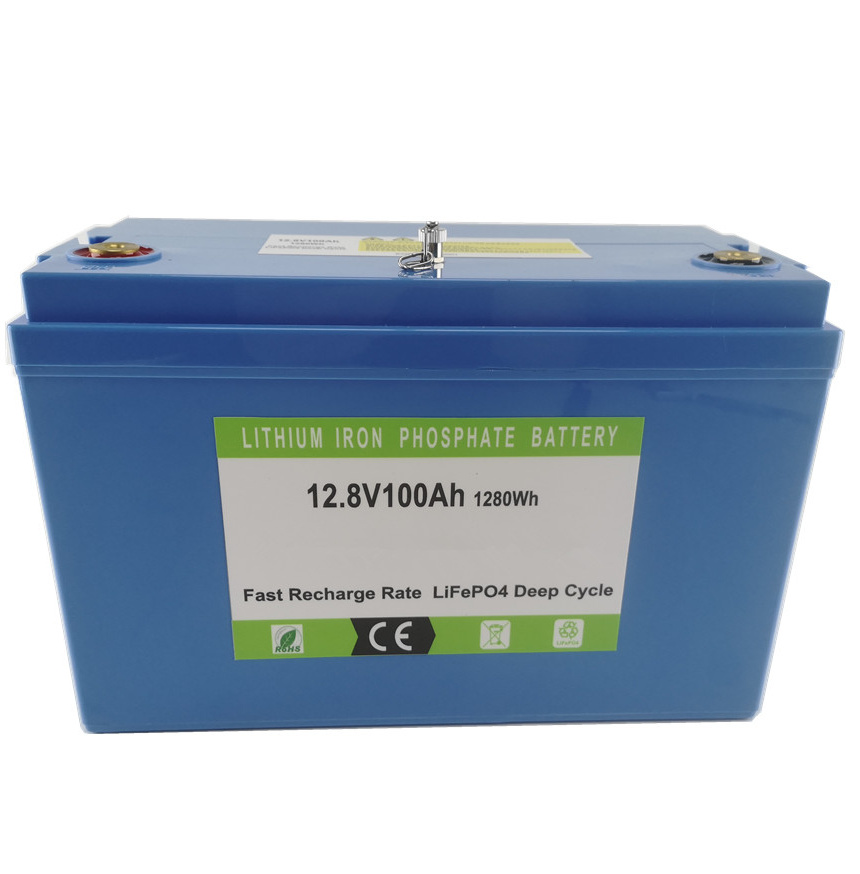

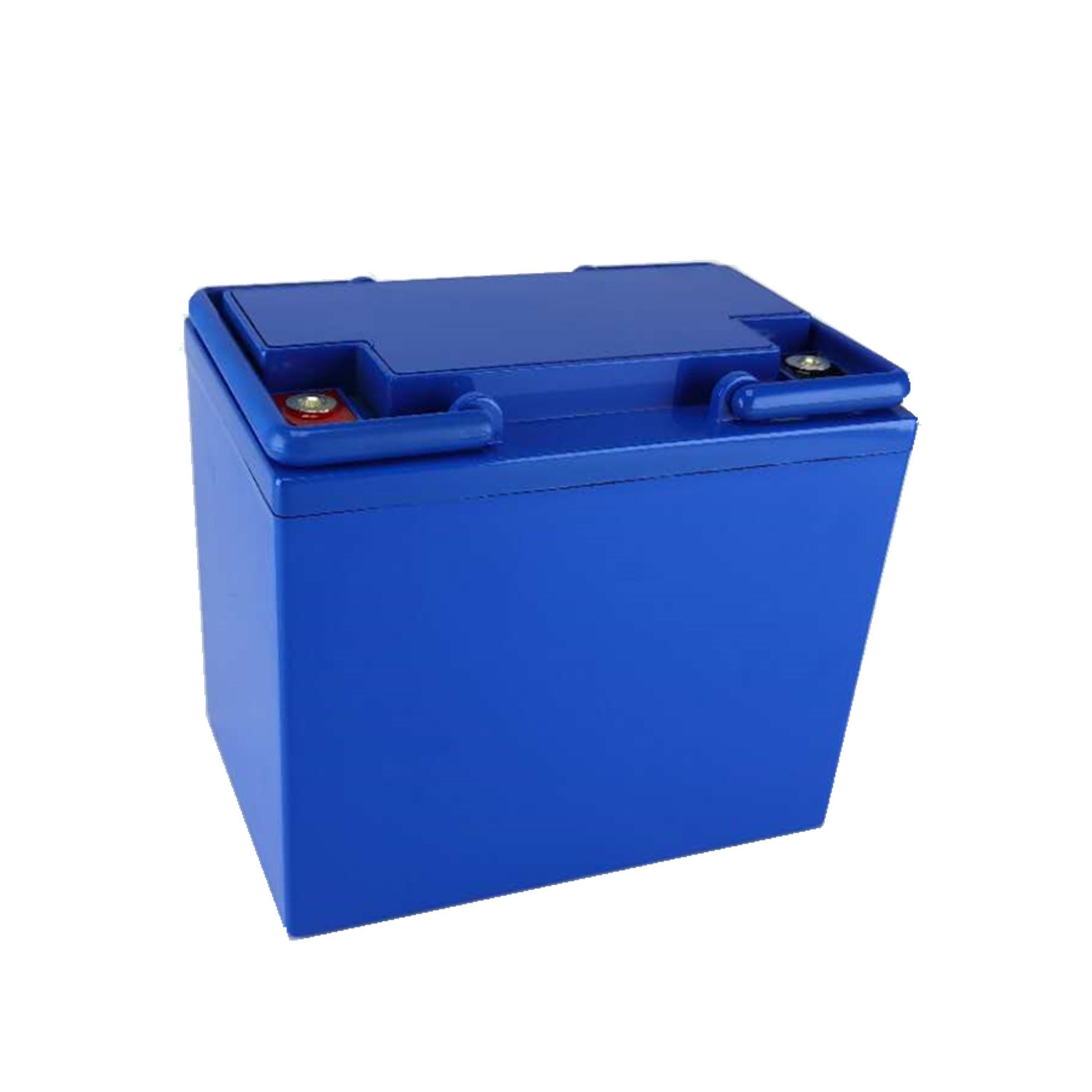

Lithium-Ion Battery Pack
Series and Parallel
Chargeable
Technical Specification
Suitable for energy storage use. High efficiency, long life and high reliability;| General Information | |
| Battery Type | LiFePO4(Lithium Iron Phosphate) |
| Nominal Voltage | 12.8V |
| Nominal Capacity | 100Ah 25ºC,C10 |
| Nominal Energy | 1280Wh 25ºC,C10 |
| Operation Voltage | 10.4~14.6V |
| Operation Temperature | Charge: 0°C - 55°C | Discharge: -20°C - 60°C |
| Cycle Life 100%DOD | >3000 cycles (1280Wh 25ºC,C10) |
| Cycle Life 80%DOD | >4000 cycles (1024Wh 25ºC,C10) |
| Cycle Life 50%DOD | >6000 cycles (640Wh 25ºC,C10) |
| Dimension | 338 x 170 x 215mm (W x D x H) |
| Terminal Type | M6 |
| Weight | ~13 kg |
| Warranty Period | 5 years |
| Environment Protection | IP65 |
| OEM ODM | Acceptable |
| Warranty | 5 Years |
| BMS/Charge/Discharge | |
| Charge Voltage Max | 14.6V |
| Discharge Cut-off Voltage | 10.4V |
| Charge Current Max | 100A |
| Discharge Current Max | 100A continues |
| Self-discharge Rate | <2% per month |
| Protection | Over-charge protection Over-discharge protection Over current protection Cell balancing function Cell balancing function Over temperature protection |
More than 15 Years' Experience in Lithium Battery
Mica Power Co. Ltd was established in 2009. Our management team has more than 15 years' experience in rechargeable battery. Our factory covers an area of 15,000 square meters and has more than 500 employees.
