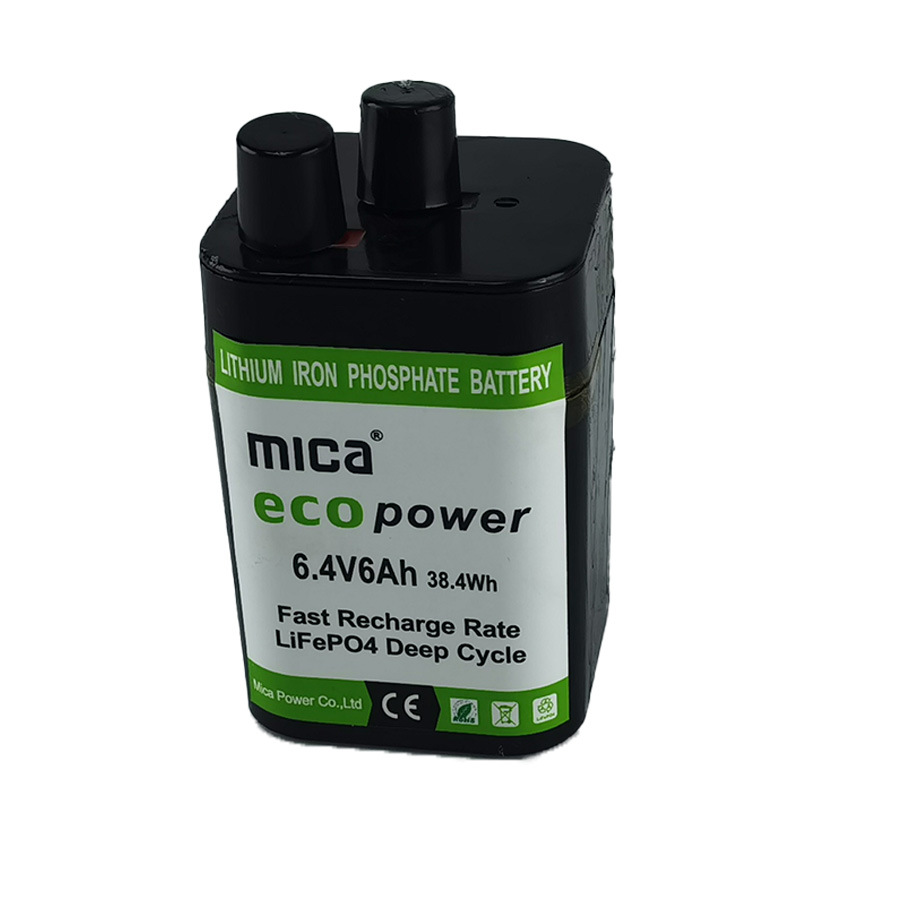

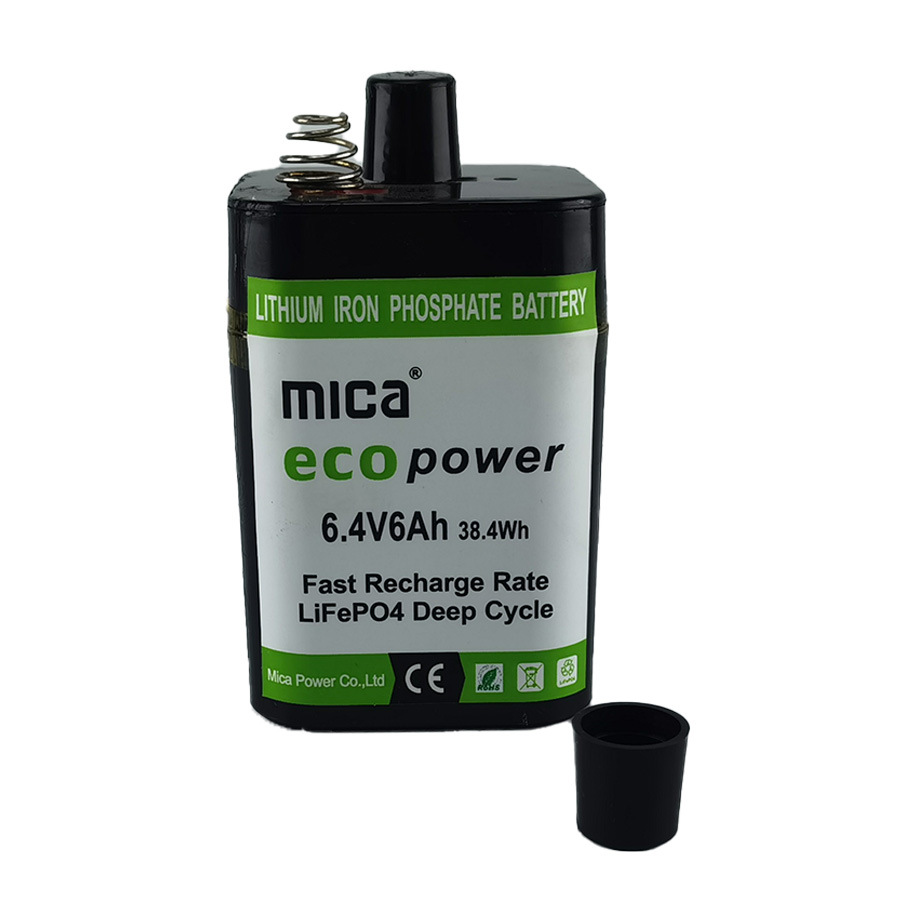

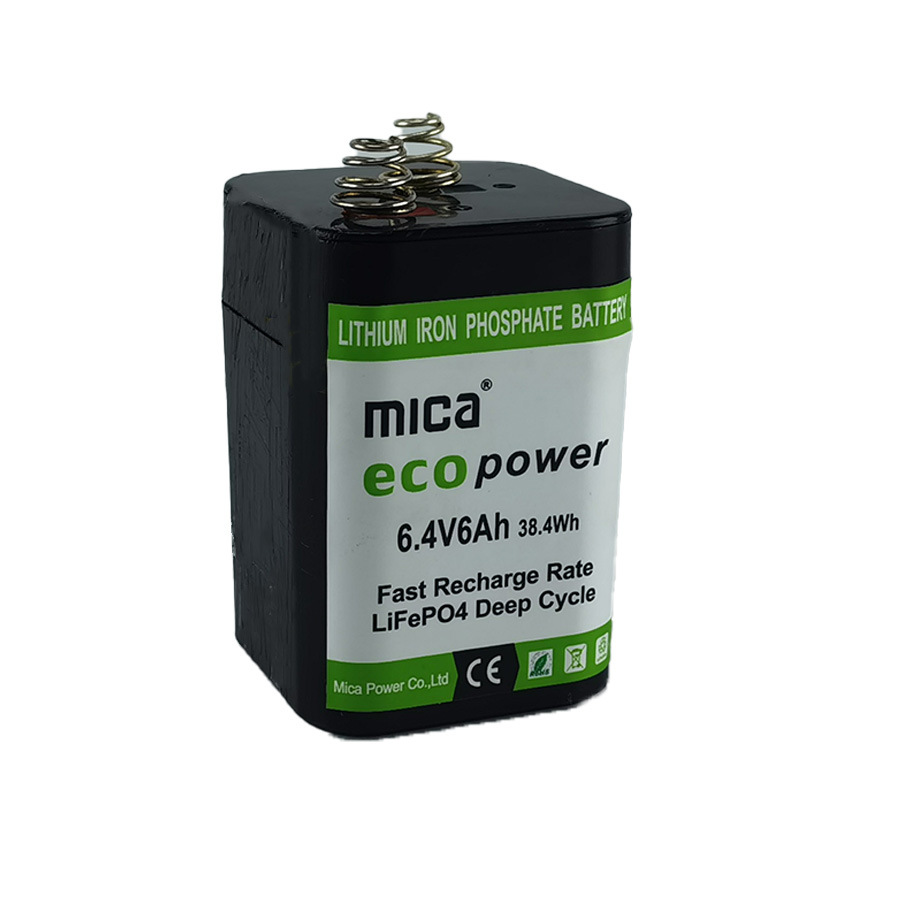

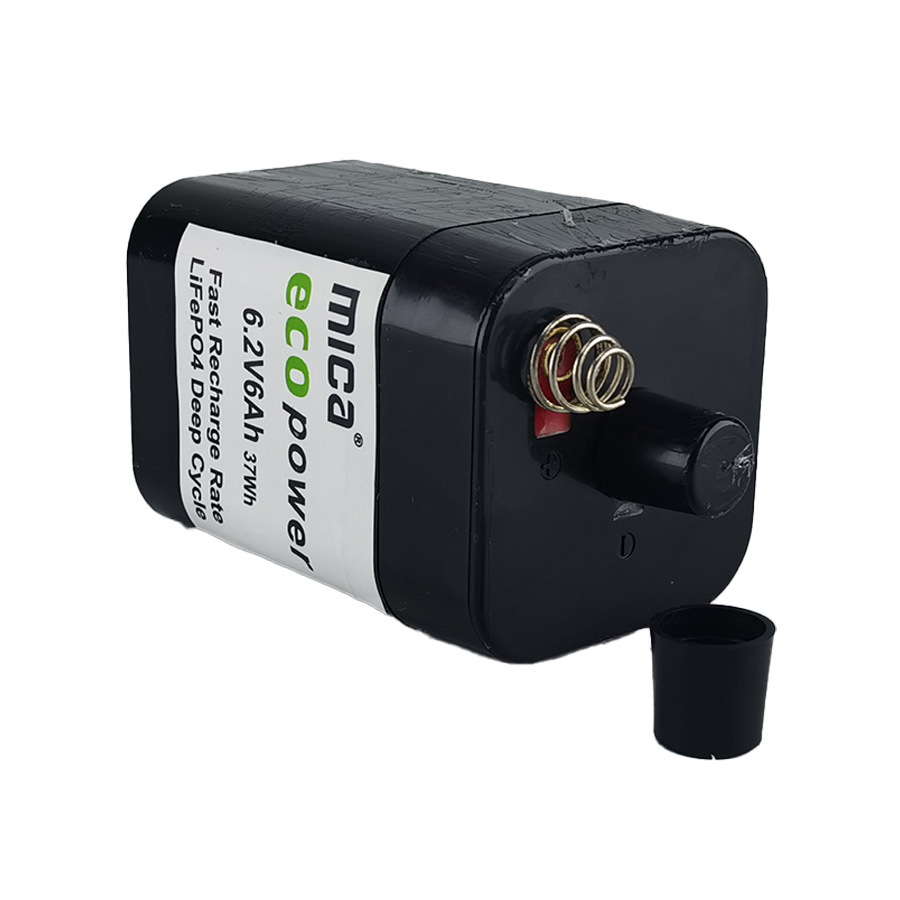

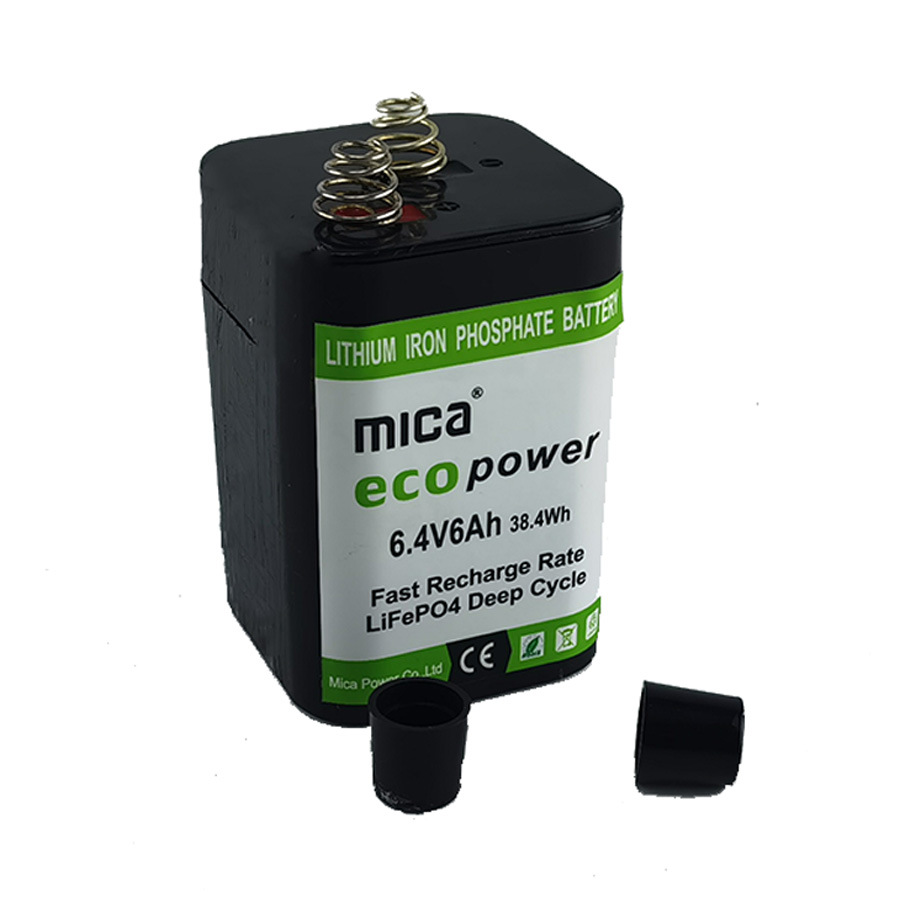

Lithium-Ion Battery Pack
Series and Parallel
Chargeable
Medium Discharge Rate
Small
Battery
| General Information | |
| Battery Type | LiFePO4(Lithium Iron Phosphate) |
| Nominal Voltage | 6.4V |
| Nominal Capacity | 6Ah 25ºC,C10 |
| Nominal Energy | 38.4Wh@25ºC,C10 |
| Operation Voltage | 5~7.3V |
| Operation Temperature | Charge: 0°C - 45°C | Discharge: -20°C - 60°C |
| Cycle Life 100%DOD | >2000 cycles (38.4Wh25ºC,C10) |
| Cycle Life 80%DOD | >3000 cycles (30.7Wh25ºC,C10) |
| Cycle Life 50%DOD | >4000 cycles (19.2Wh25ºC,C10) |
| Dimension | 67x 67 x 110mm (W x D x H) |

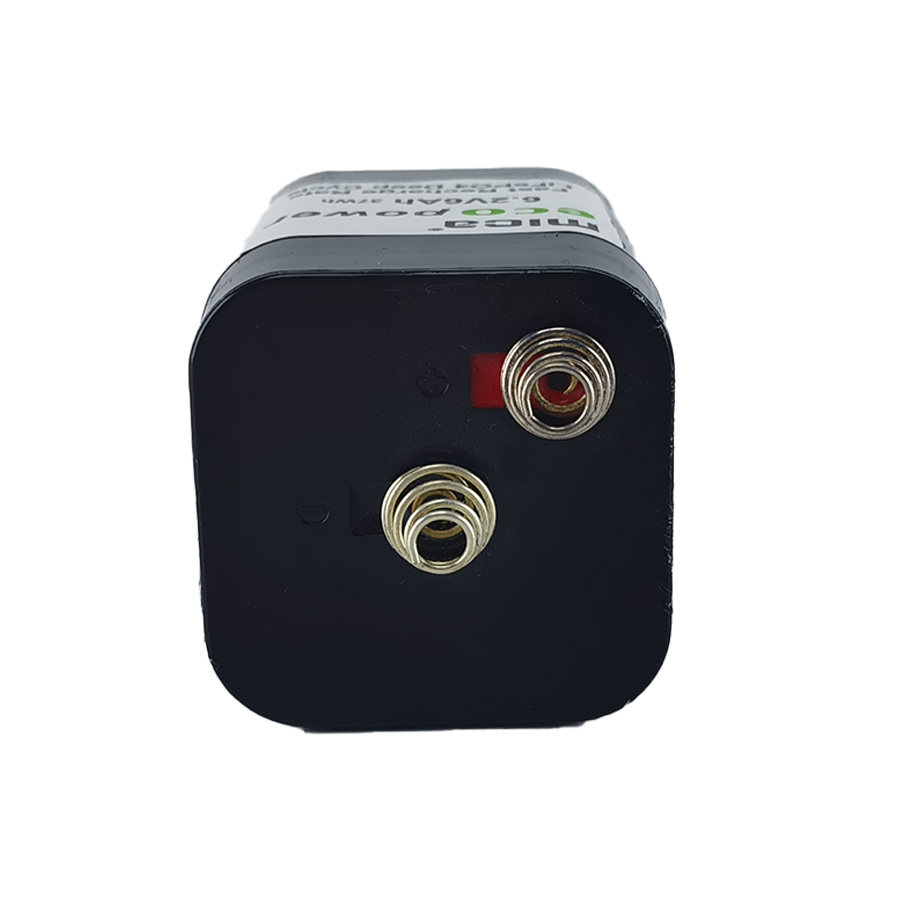

| Terminal Type | Spring S2 |
| Weight | 620g |
| Warranty Period | 3 years |
| Environment Protection | IP56 |
| BMS/Charge/Discharge | |
| Charge Voltage Max | 7.3V |
| Discharge Cut-off Voltage | 5V |
| Charge Current Max | 1C |
| Discharge Current Max | 1C-2C |
| Self-discharge Rate | <2% per month |
| Protection | Over-charge protection Over-discharge protection Over current protection Cell balancing function Over temperature protection |
FAQ
Q1: Can we get samples for test?
A: Yes, we can supply samples, and buyer pay for sample cost and shipping cost.
Q2: What is the MOQ ?
A: LiFepo4 battery is 50pcs/100pcs.
Li ion battery is 2000pcs/3000pcs.
More quantity has better price.
Q3: Can you accept OEM and ODM Service?
A: Yes, it's available.
Q4: What about the lead time?
A: Sample needs ~2wks , mass production time needs 2wks-4wks.
Q5: How do I track my shipment?
A: After we deliver your goods, we will send you the tracking No. once your goods has been shipped.
