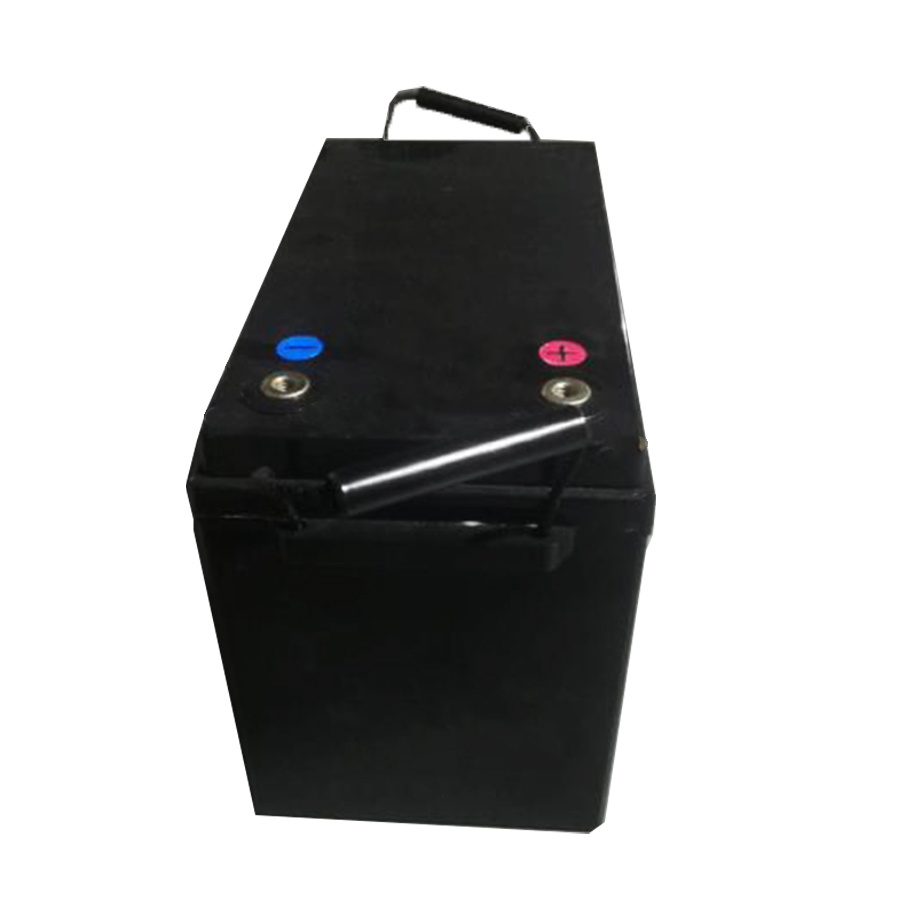

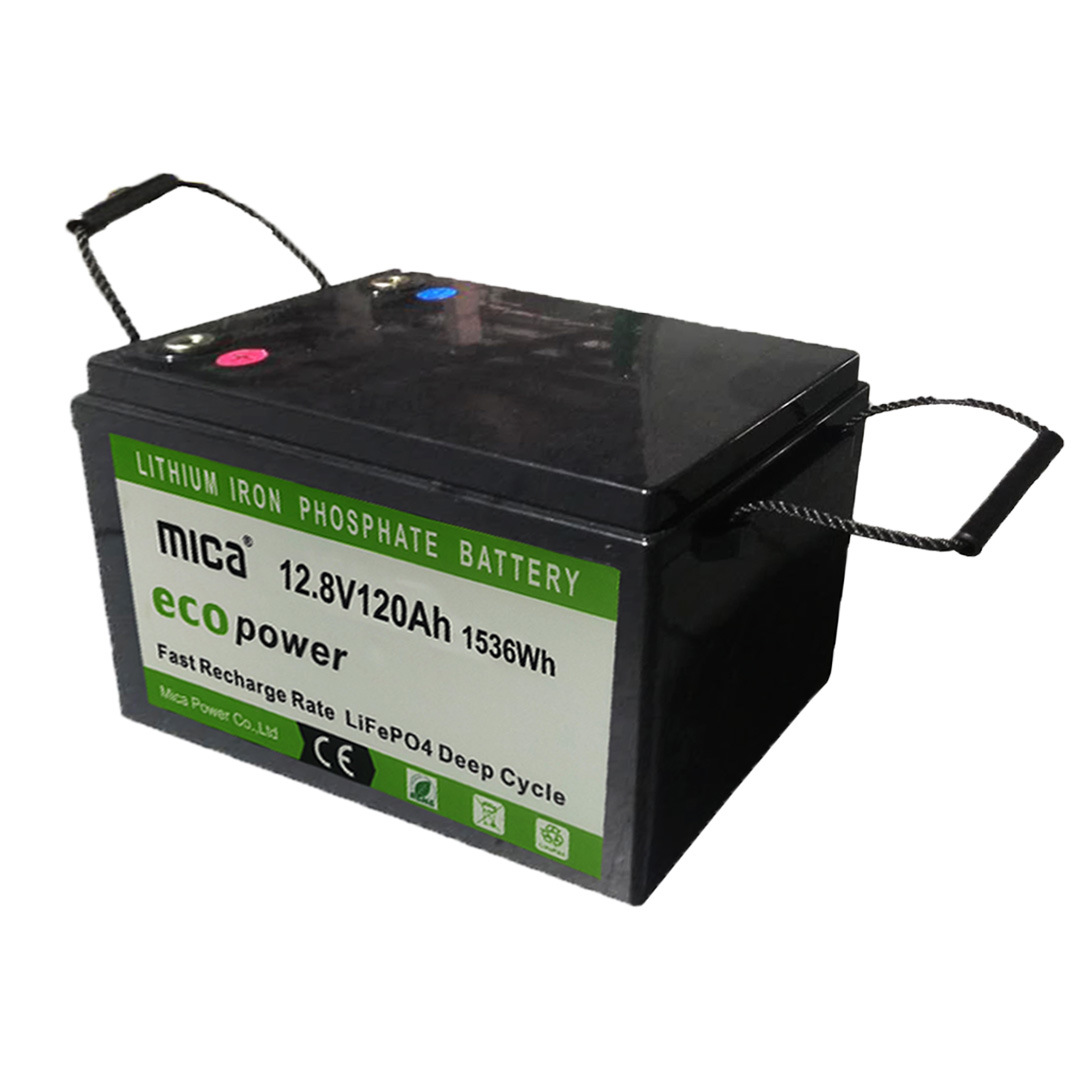

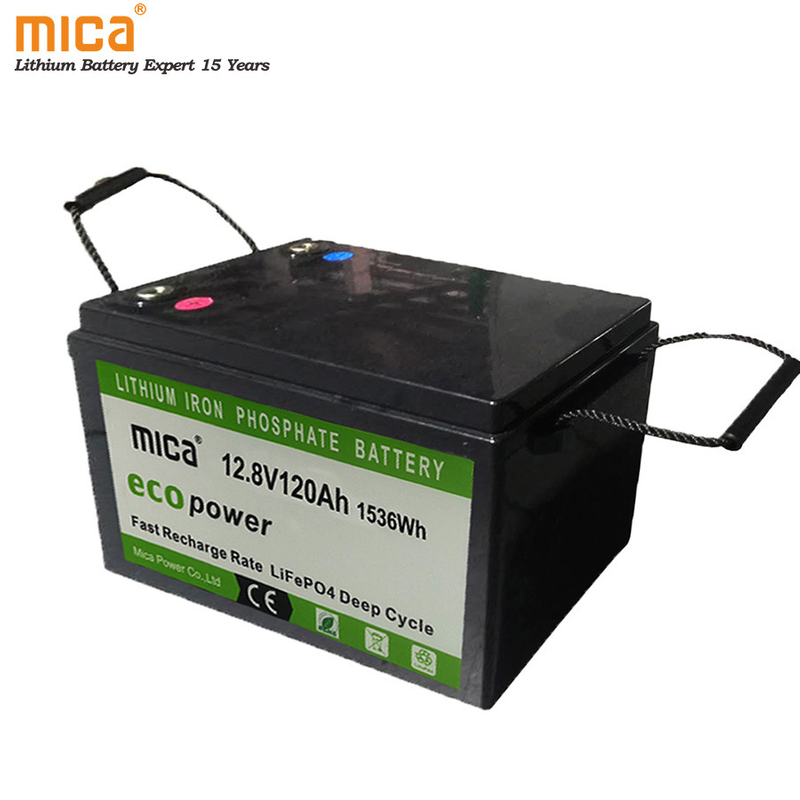

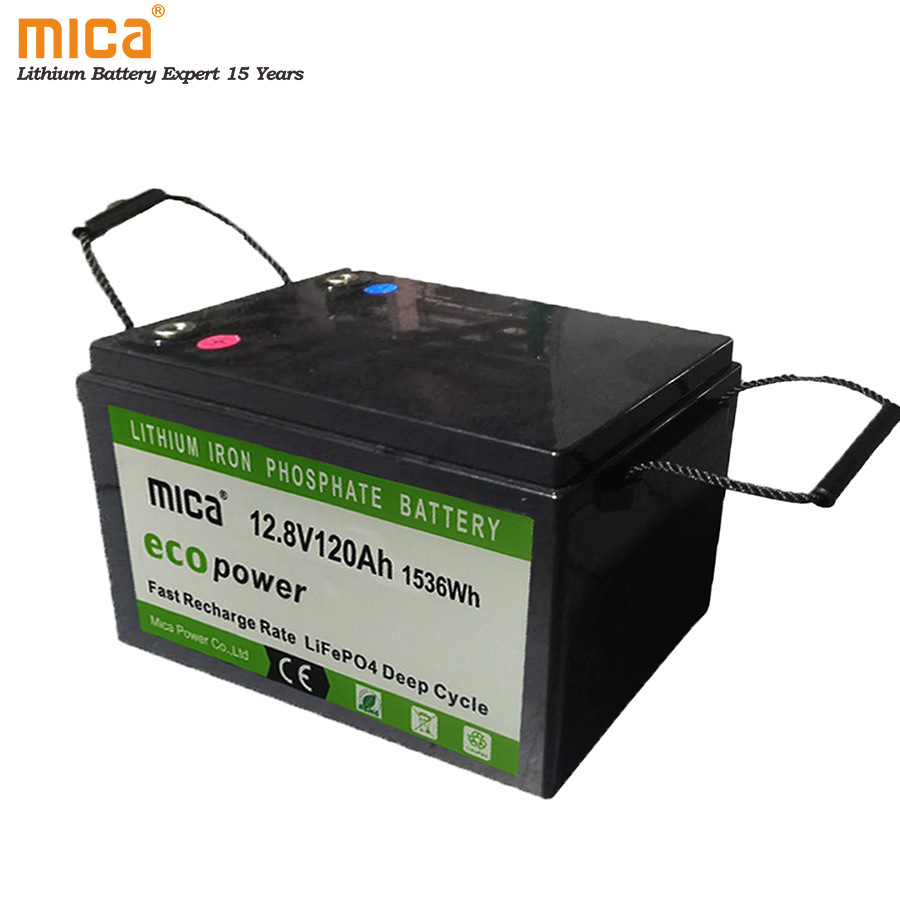

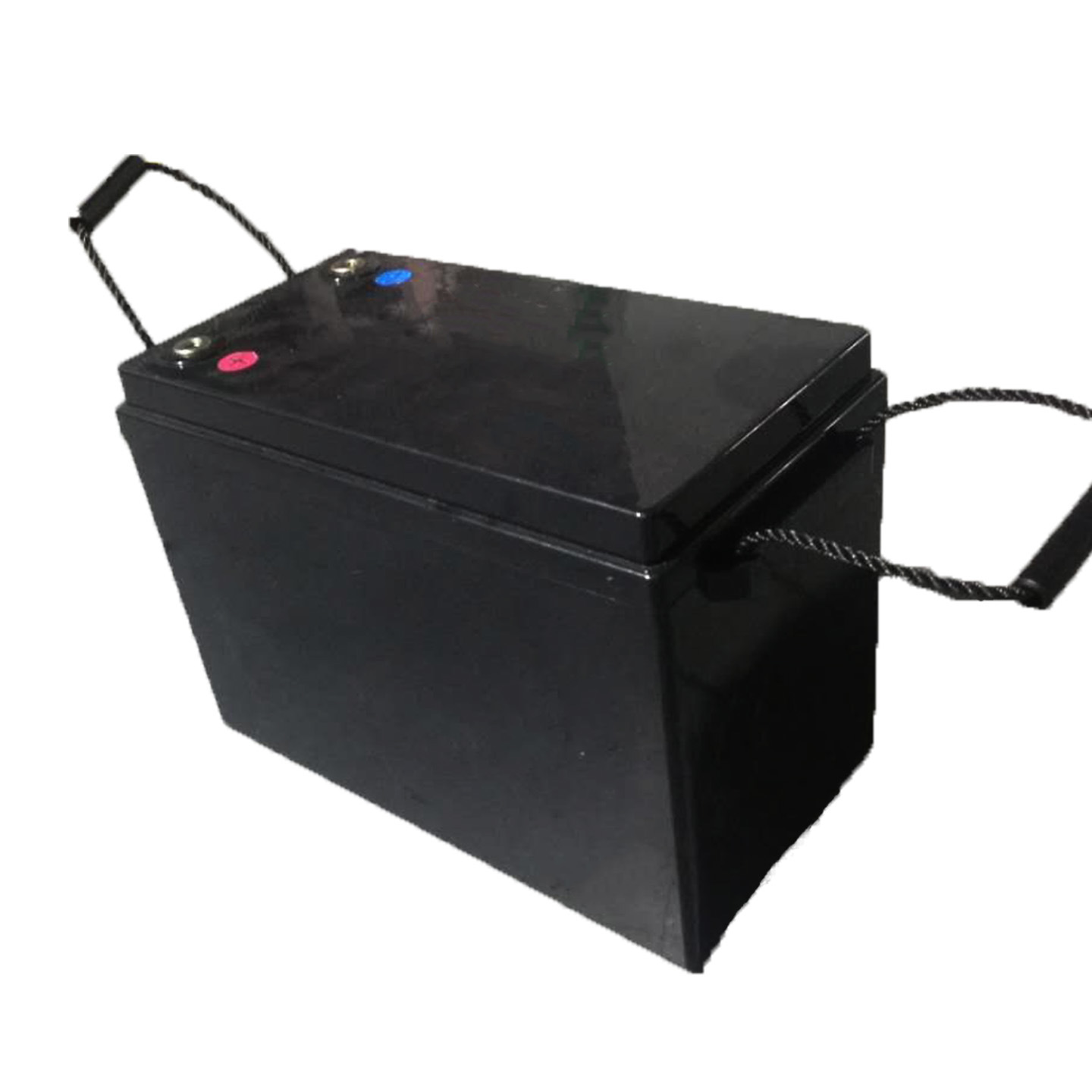

Lithium-Ion Battery Pack
Series and Parallel
Chargeable
High Discharge Rate
Medium
Battery
LiFepo4 advantages:
| General Information | |
| Battery Type | LiFePO4(Lithium Iron Phosphate) |
| Nominal Voltage | 12.8V |
| Nominal Capacity | 120Ah 25ºC,C10 |
| Nominal Energy | 1536Wh 25ºC,C10 |
| Operation Voltage | 10~14.6V |
| Operation Temperature | Charge: 0°C - 45°C | Discharge: -20°C - 60°C |
| Cycle Life 100%DOD | >3000 cycles (1536Wh@25ºC,C10) |
| Cycle Life 80%DOD | >4000 cycles (1229Wh@25ºC,C10) |
| Cycle Life 50%DOD | >6000 cycles (768Wh@25ºC,C10) |
| Dimension | 369 x 190 x 245mm (W x D x H) |
| Terminal Type | M10 |
| Weight | ~14 kg |
| Warranty Period | 5 years |
| Environment Protection | IP56 |
| Application | Can be used in series : Golf Cart , tricycle and so on |
| BMS/Charge/Discharge | |
| Charge Voltage Max | 14.6V |
| Discharge Cut-off Voltage | 10V |
| Charge Current Max | 120A |
| Discharge Current Max | 180A continues 240A burst (10 seconds) |
| Self-discharge Rate | <2% per month |
| Protection | Over-charge protection Over-discharge protection Over current protection Cell balancing function Over temperature protection |
More than 15 Years' Experience in Lithium Battery

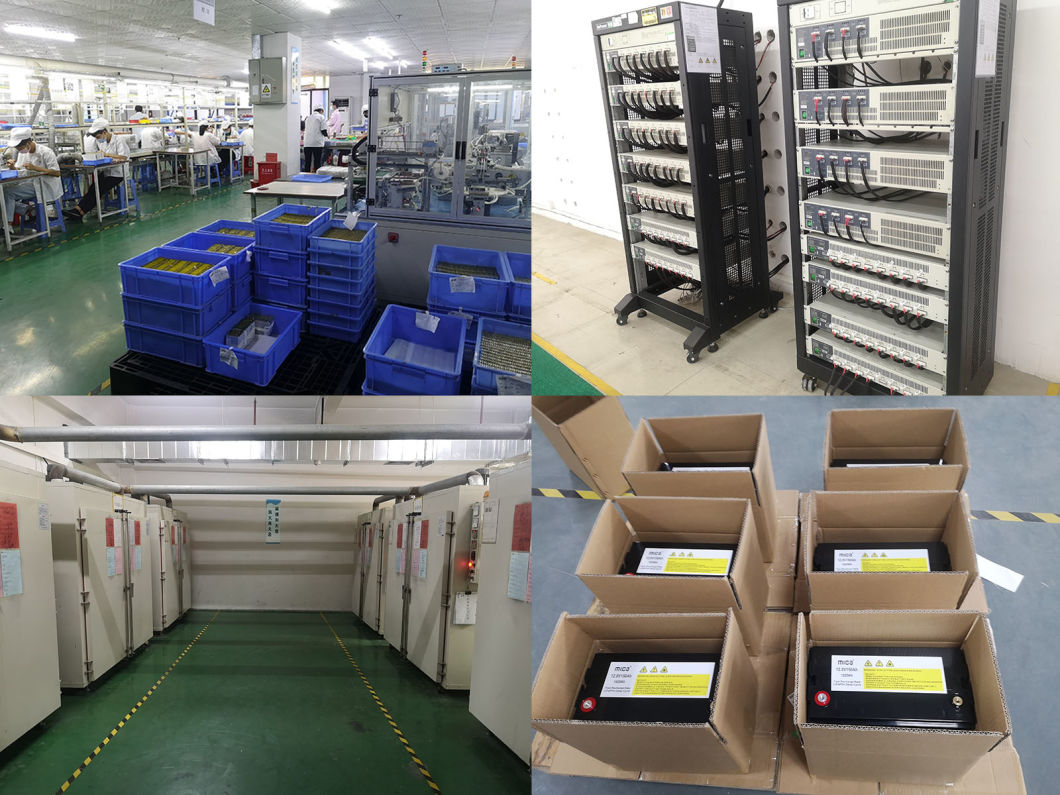

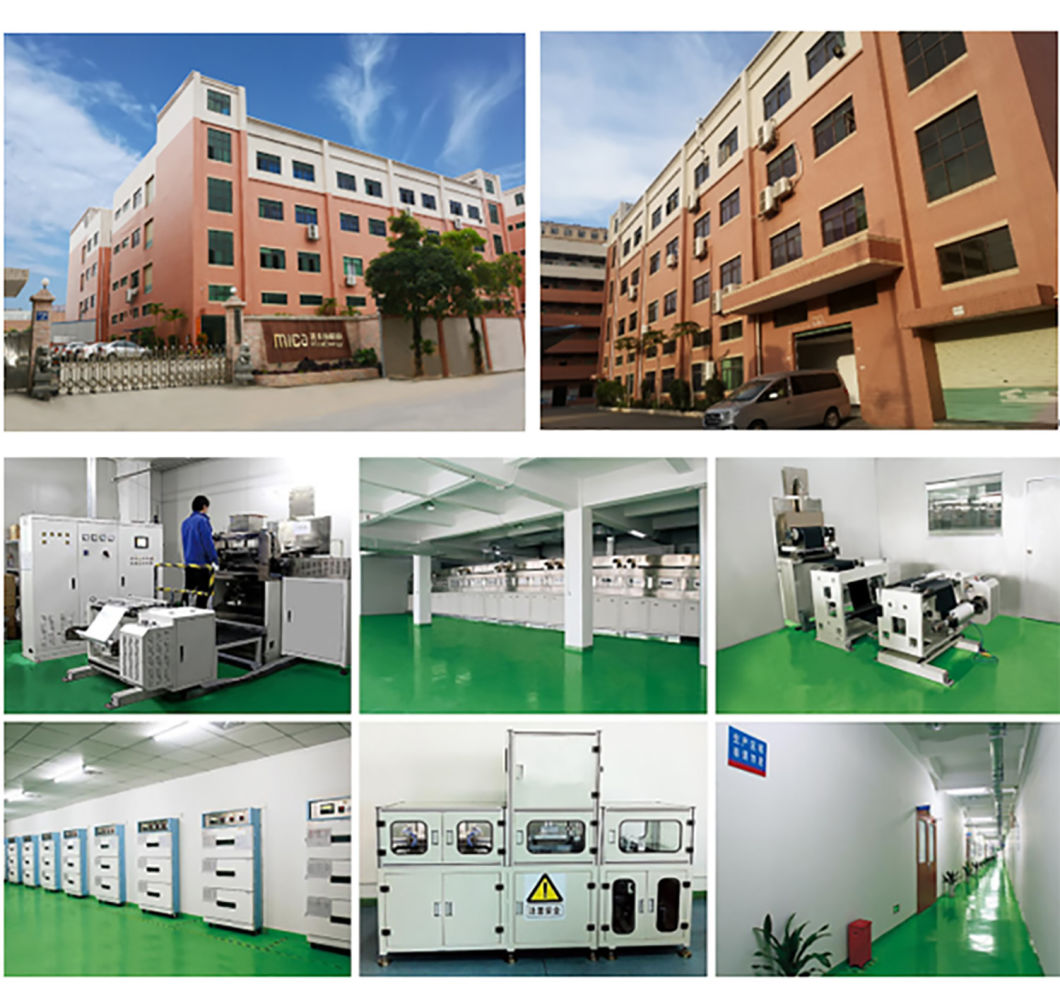

Mica Power Co. Ltd was established in 2009. Our management team has more than 15 years' experience in rechargeable battery. Our factory covers an area of 15,000 square meters and has more than 500 employees.
FAQ
Q1: Can we get samples for test?
A: Yes, we can supply samples, and buyer pay for sample cost and shipping cost.
