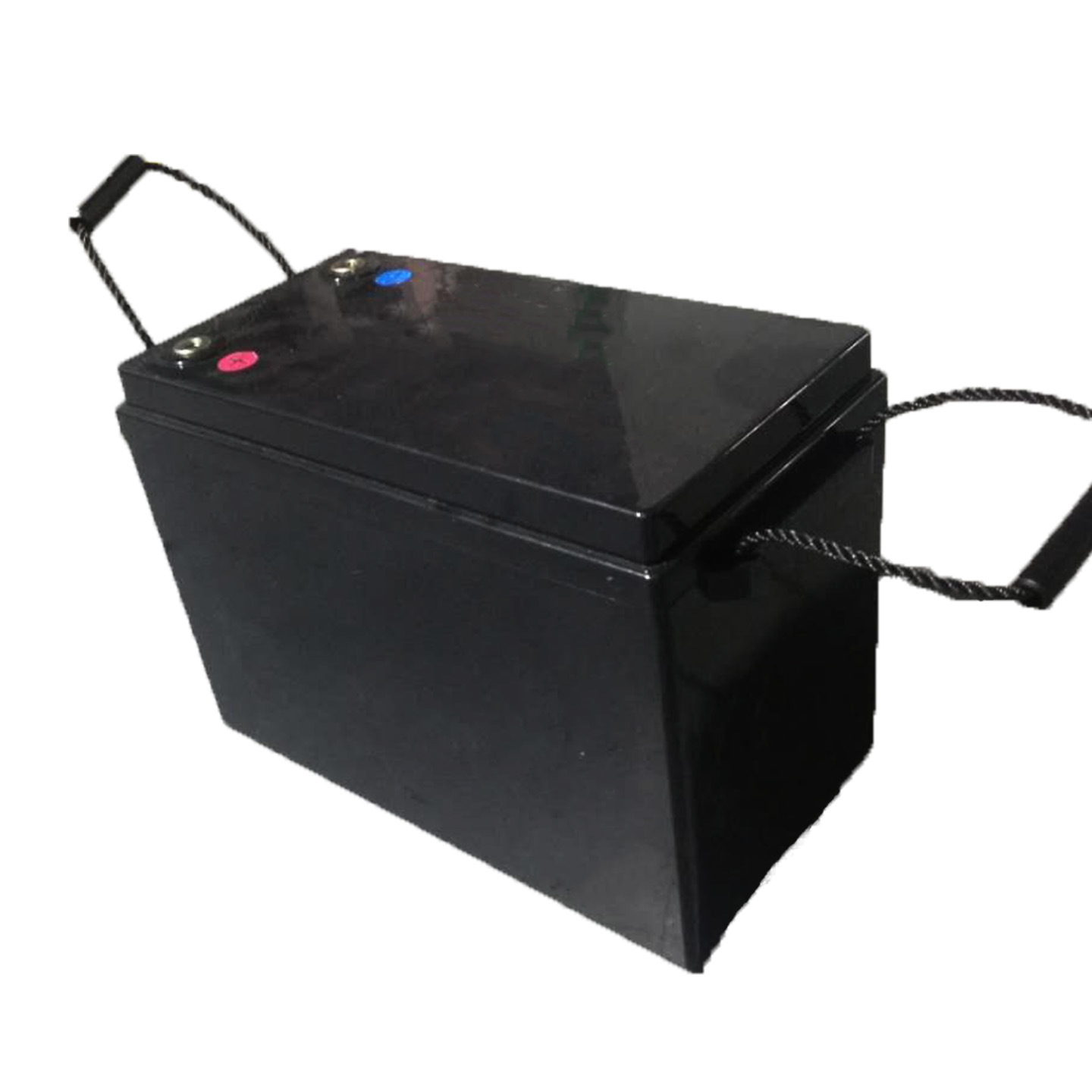

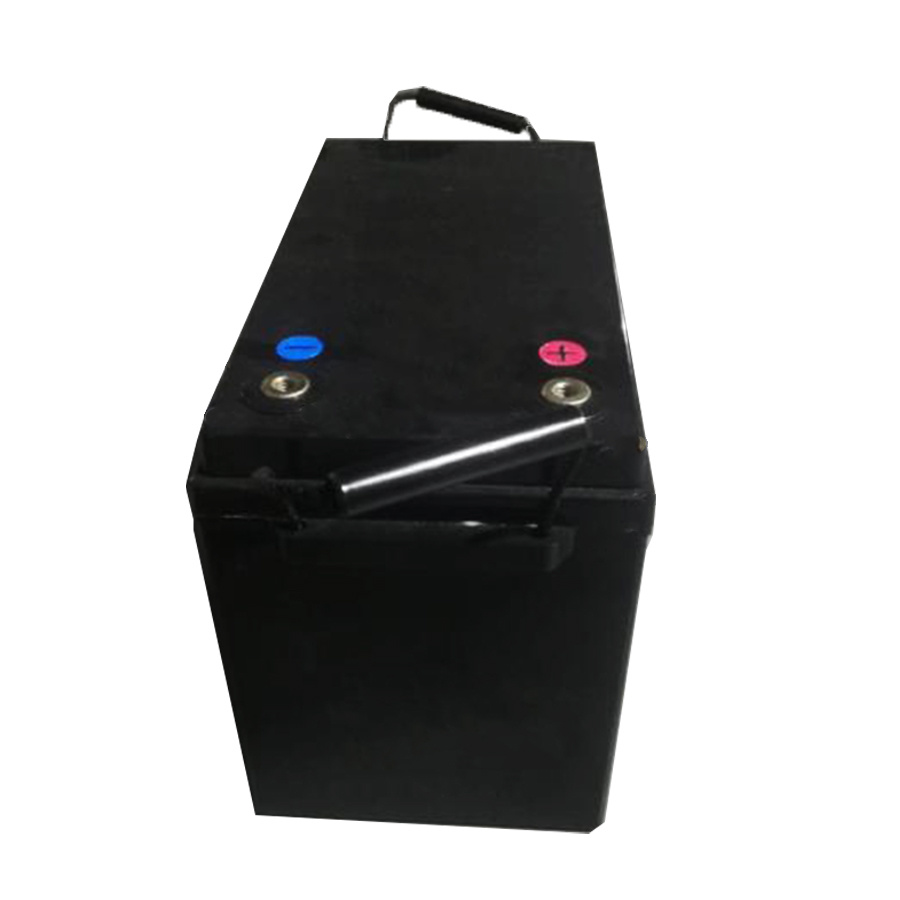

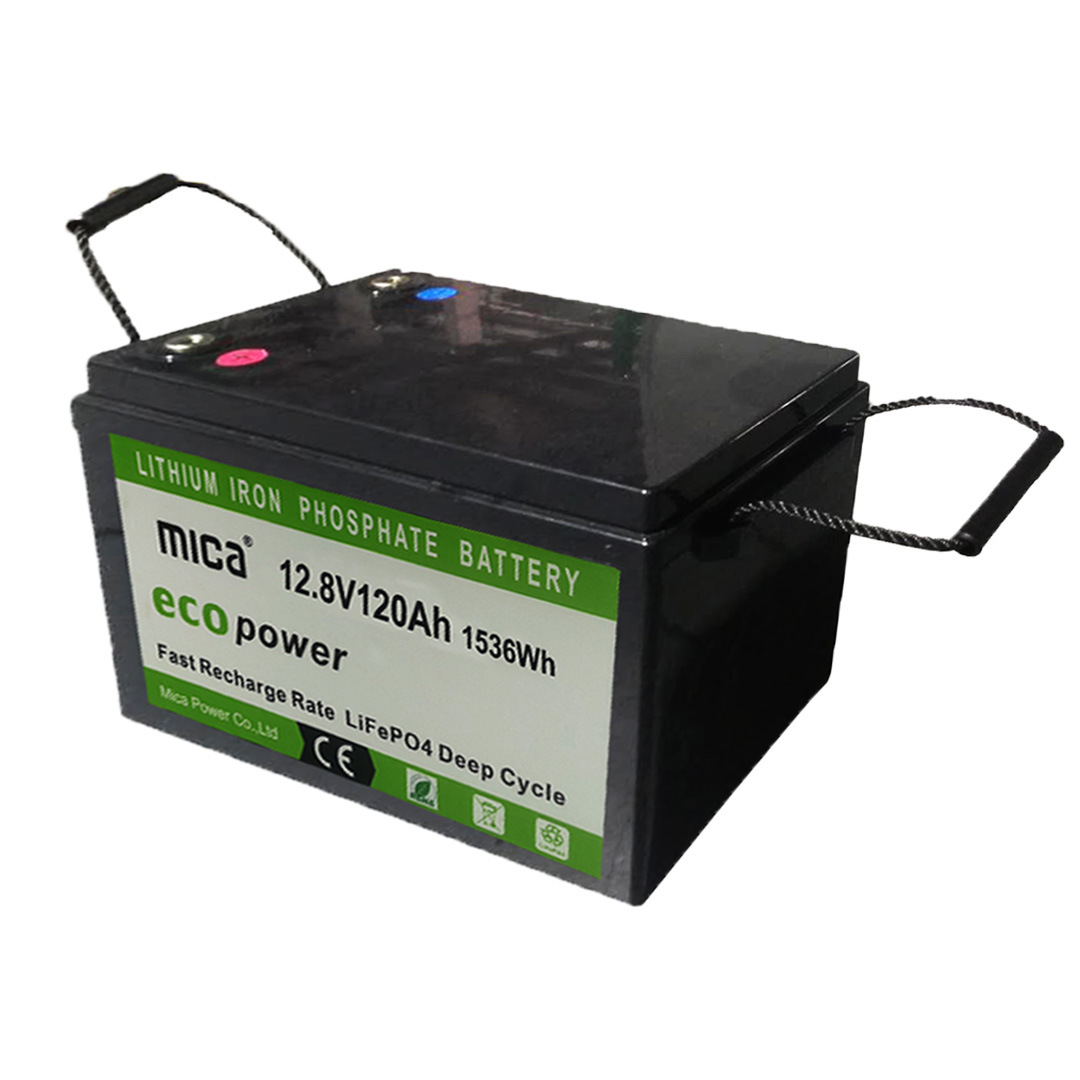

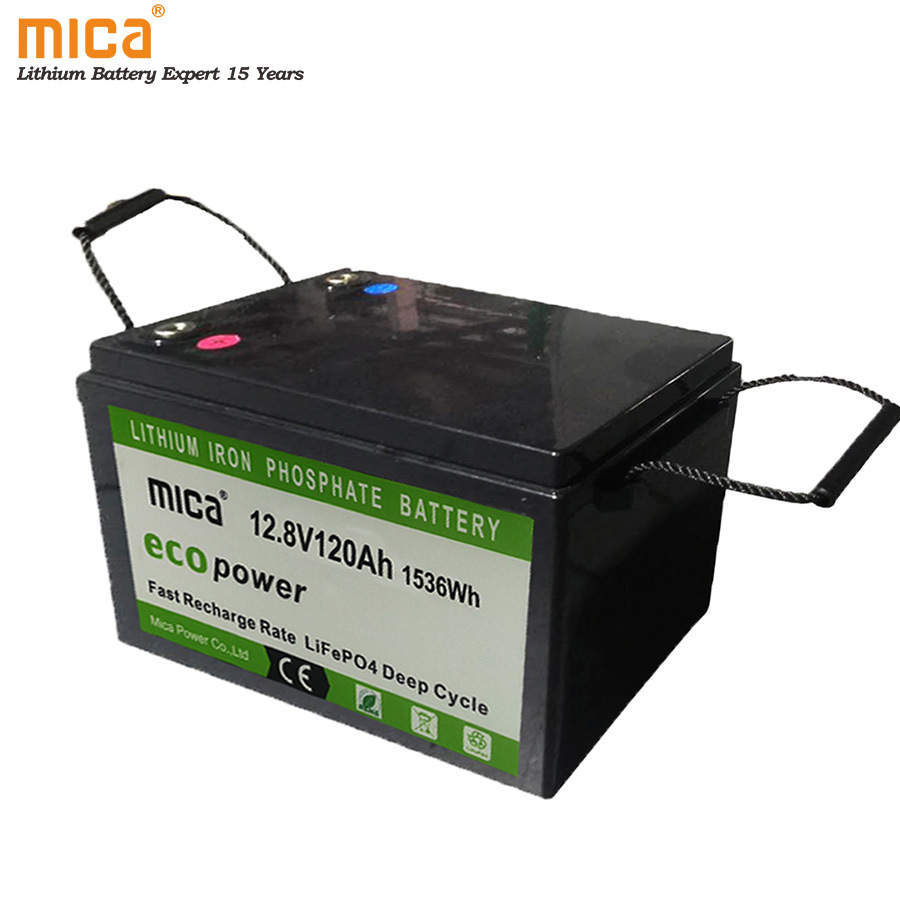

Lithium-Ion Battery Pack
Series and Parallel
Chargeable
High Discharge Rate
Medium
Battery
| General Information | |
| Battery Type | LiFePO4(Lithium Iron Phosphate) |
| Nominal Voltage | 12.8V |
| Nominal Capacity | 120Ah 25ºC,C10 |
| Nominal Energy | 1536Wh 25ºC,C10 |
| Operation Voltage | 10~14.6V |
| Operation Temperature | Charge: 0°C - 45°C | Discharge: -20°C - 60°C |
| Cycle Life 100%DOD | >3000 cycles (1536Wh@25ºC,C10) |
| Cycle Life 80%DOD | >4000 cycles (1229Wh@25ºC,C10) |
| Cycle Life 50%DOD | >6000 cycles (768Wh@25ºC,C10) |
| Dimension | 369 x 190 x 245mm (W x D x H) |
| Terminal Type | M10 |
| Weight | ~14 kg |
| Warranty Period | 5 years |
| Environment Protection | IP56 |
| Application | Can be used in series : Golf Cart , tricycle and so on |
| BMS/Charge/Discharge | |
| Charge Voltage Max | 14.6V |
| Discharge Cut-off Voltage | 10V |
| Charge Current Max | 120A |
| Discharge Current Max | 180A continues 240A burst (10 seconds) |
| Self-discharge Rate | <2% per month |
| Protection | Over-charge protection Over-discharge protection Over current protection Cell balancing function Over temperature protection |

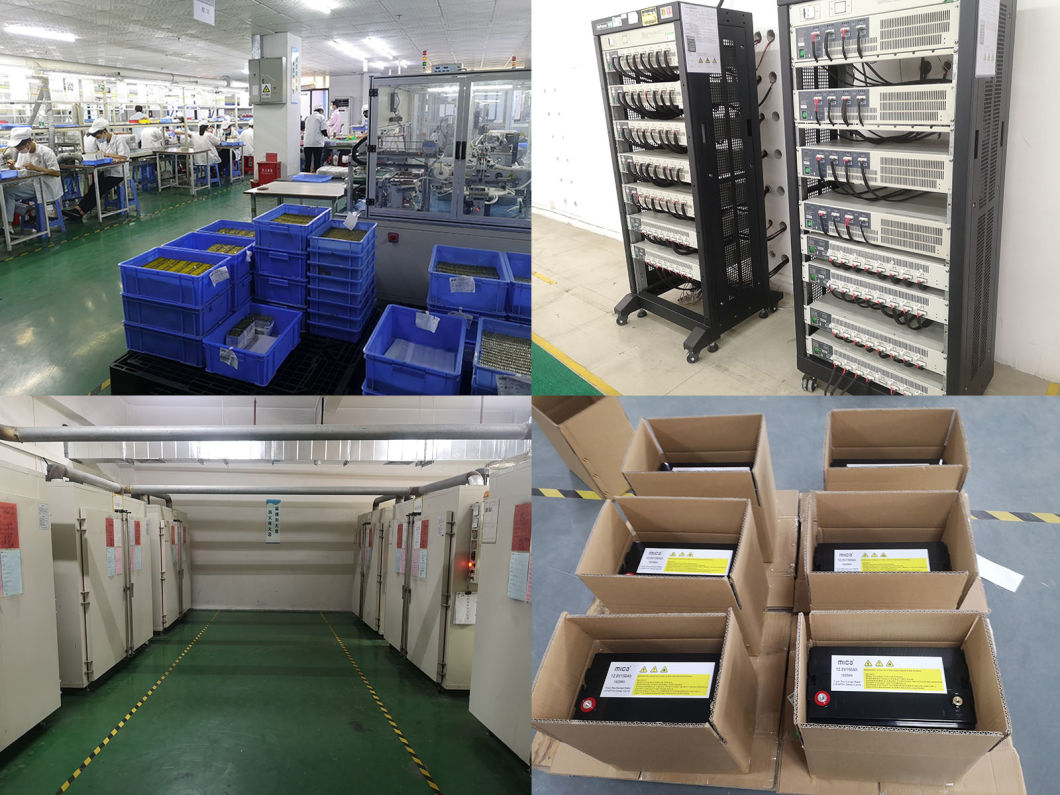

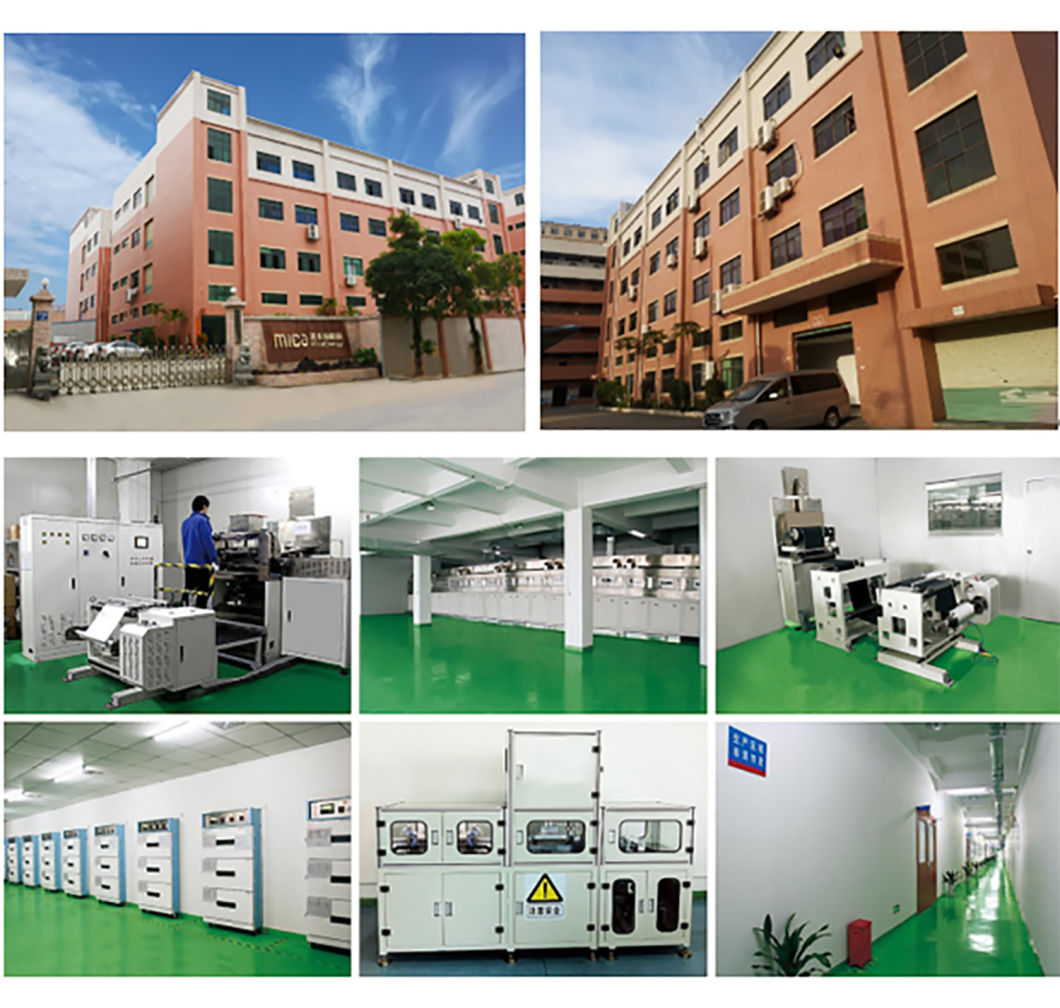

Backed by professional supporting team, we have expertise in R&D, OEM production and marketing. With the support of a professional and dedicated engineering and operation team, we are available to bringing customers' idea into reality. Flexible to customized request, such as sound adjusted, color, package, and accessories adjusted, so you can enjoy our quick one-stop OEM service.
FAQ
Q1: Can we get samples for test?
A: Yes, we can supply samples, and buyer pay for sample cost and shipping cost.
Q2: What is the MOQ ?
A: 1pc for sample verification is available. More quantity has better price.
Q3: Can you accept OEM and ODM Service?
A: Yes, it's available.
Q4: What about the lead time?
A: Sample needs ~2wks , mass production time needs 3wks-4wks.
Q5: How do I track my shipment?
A: After we deliver your goods, we will send you the tracking NO. once your goods has been shipped.
