Lithium-Ion Batteries
Chargeable
LiFePO4(Lithium Iron Phosphate)
100ah
10.4~14.6V
>3000 Cycles
| General Information | |
| Battery Type | LiFePO4(Lithium Iron Phosphate) |
| Nominal Voltage | 12.8V |
| Nominal Capacity | 100Ah 25ºC,C10 |
| Nominal Energy | 1280Wh 25ºC,C10 |
| Operation Voltage | 10.4~14.6V |
| Operation Temperature | Charge: 0°C - 55°C | Discharge: -20°C - 60°C |
| Cycle Life | >3000 cycles (1280Wh 25ºC,C10) |
| Dimension | 338 x 170 x 215mm (W x D x H) |
| Terminal Type | M6 |
| Weight | ~13 kg |
| Warranty Period | 5 years |
| Environment Protection | IP65 |
| OEM/ODM | Acceptable |
| Warranty | 5 Years |
| Bluetooth | Available |
| BMS/Charge/Discharge | |
| Charge Voltage Max | 14.6V |
| Discharge Cut-off Voltage | 10.4V |
| Charge Current Max | 100A |
| Discharge Current Max | 100A continues 200A burst (10 seconds) |
| Self-discharge Rate | <2% per month |
| Protection | Over-charge protection Over-discharge protection Over current protection Cell balancing function Cell balancing function Over temperature protection |

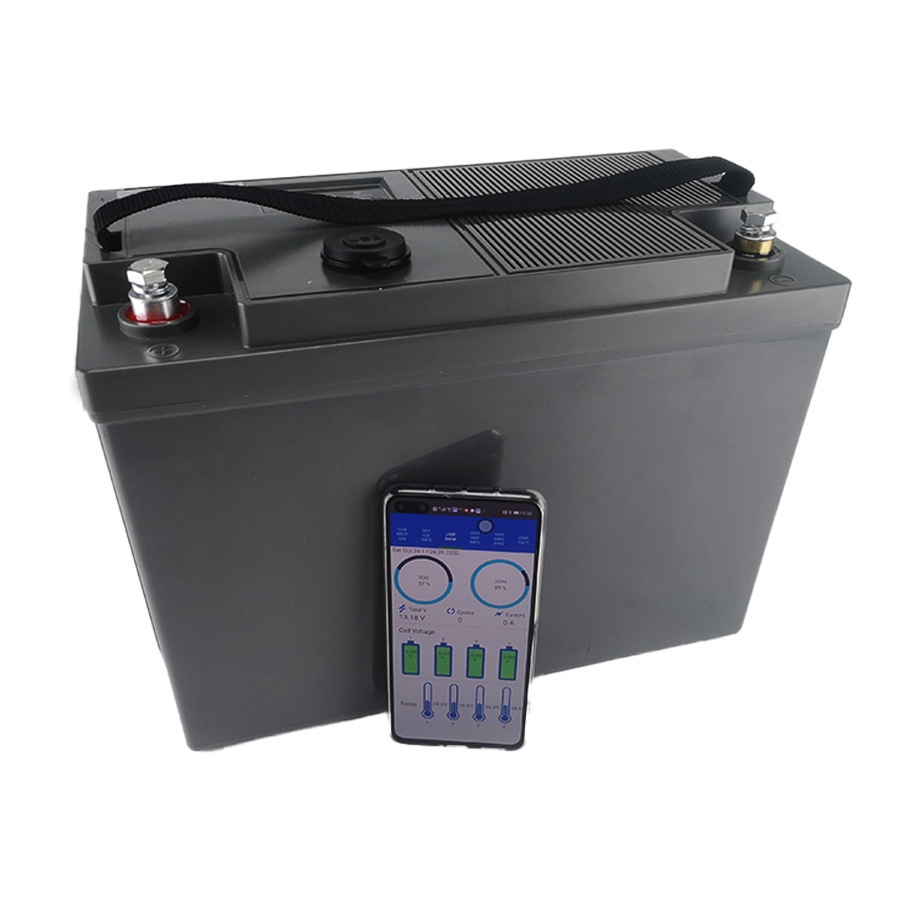

BlueTooth APP Function:
1. Connect the lithium batteries with the bluetooth.
2. Read the real time voltage and the current of the lithium batteries.
3. Control the real time discharge of lithium batteries and lock status.
4. Read the temperature,production date of the lithium batteries,also with the voltage of each cells.
5. Real time Monitor and protect the lithium batteries,read the operation protection when over current,over voltage ,short circuit and so on.
FAQ
Q1: Can we get samples for test?
A: Yes, we can supply samples, and buyer pay for sample cost and shipping cost.
Q2: What is the MOQ ?
A: LiFepo4 battery is 50pcs/100pcs.
Li ion battery is 2000pcs/3000pcs.
More quantity has better price.
Q3: Can you accept OEM and ODM Service?
A: Yes, it's available.
Q4: What about the lead time?
A: Sample needs ~2wks , mass production time needs 2wks-4wks.
Q5: How do I track my shipment?
A: After we deliver your goods, we will send you the tracking No. once your goods has been shipped.
