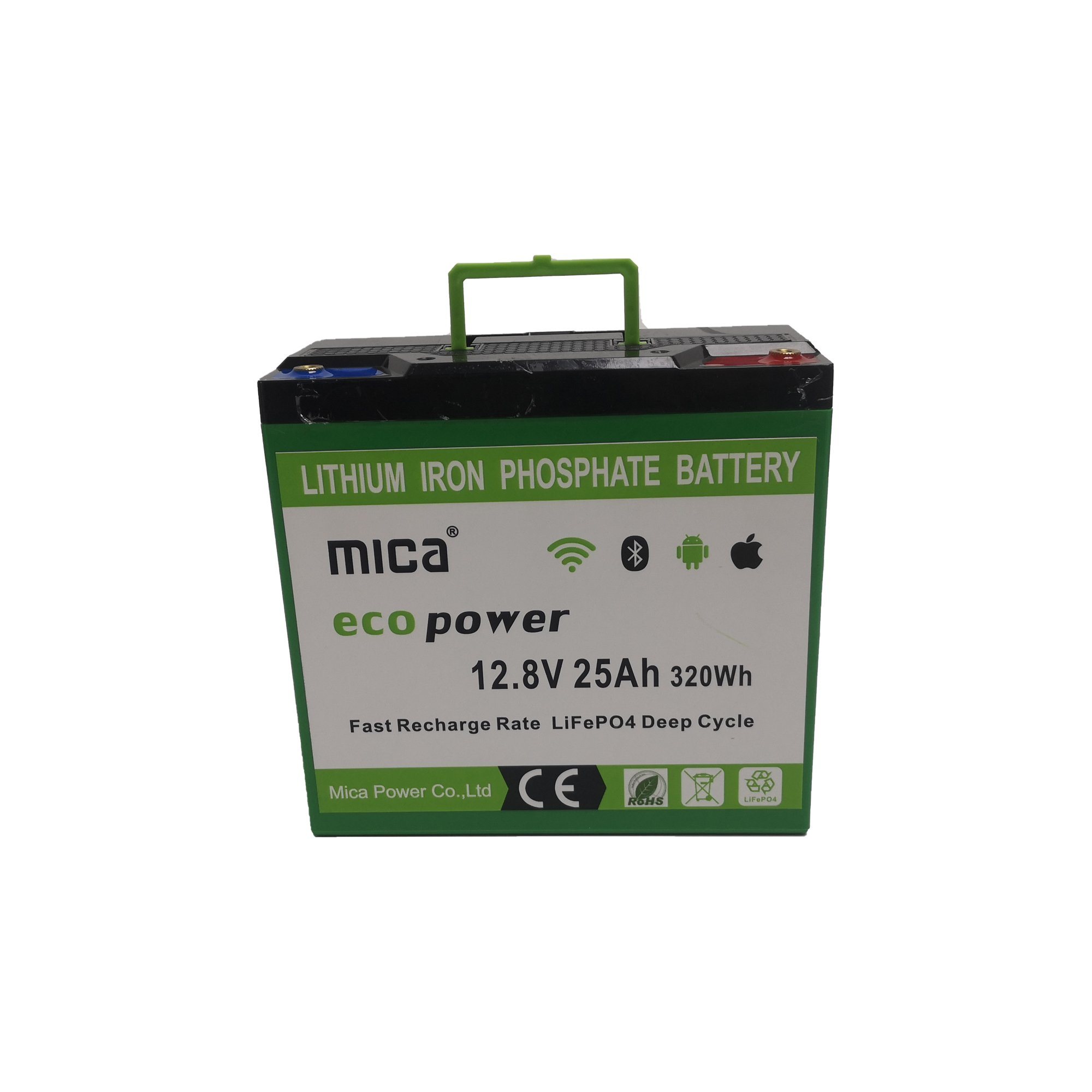

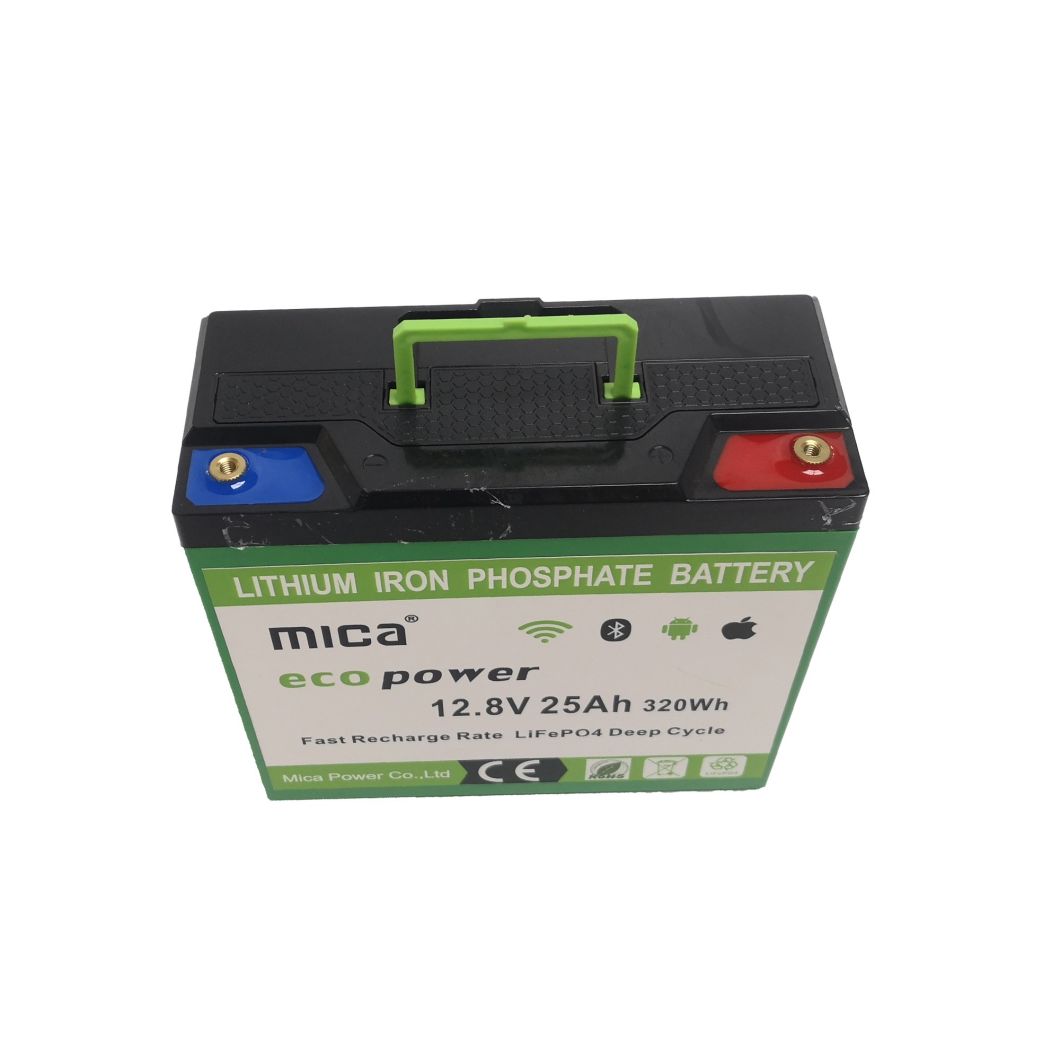

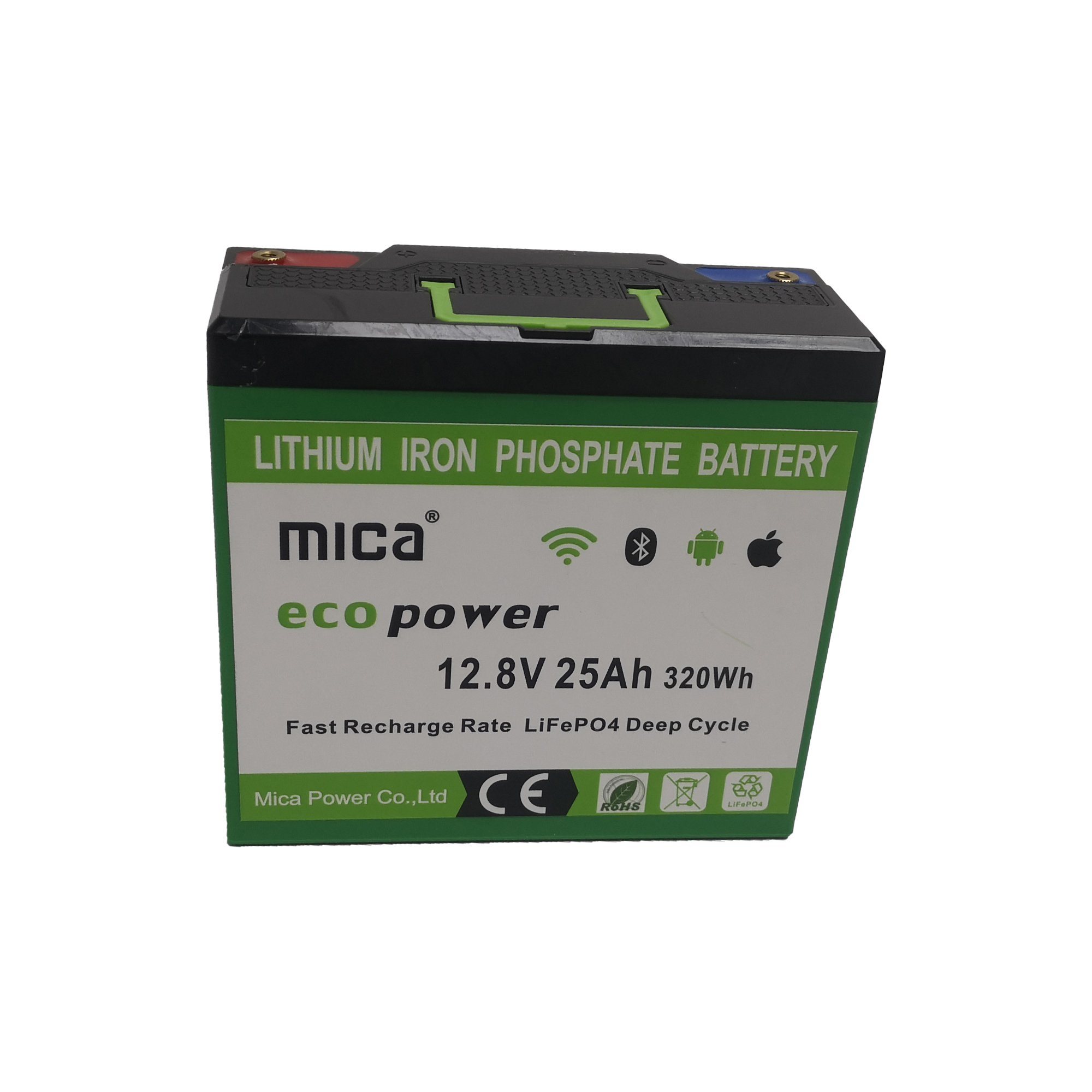

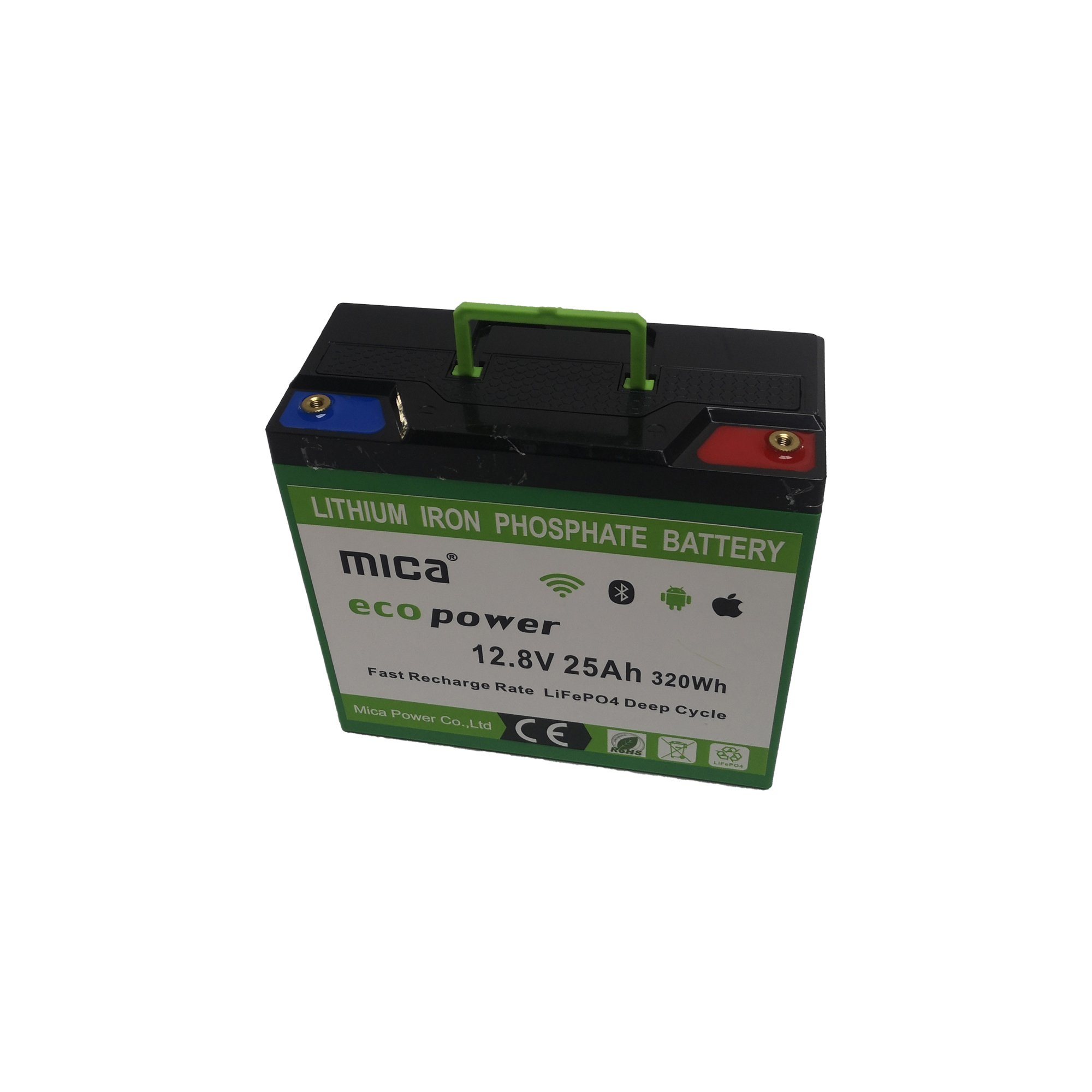

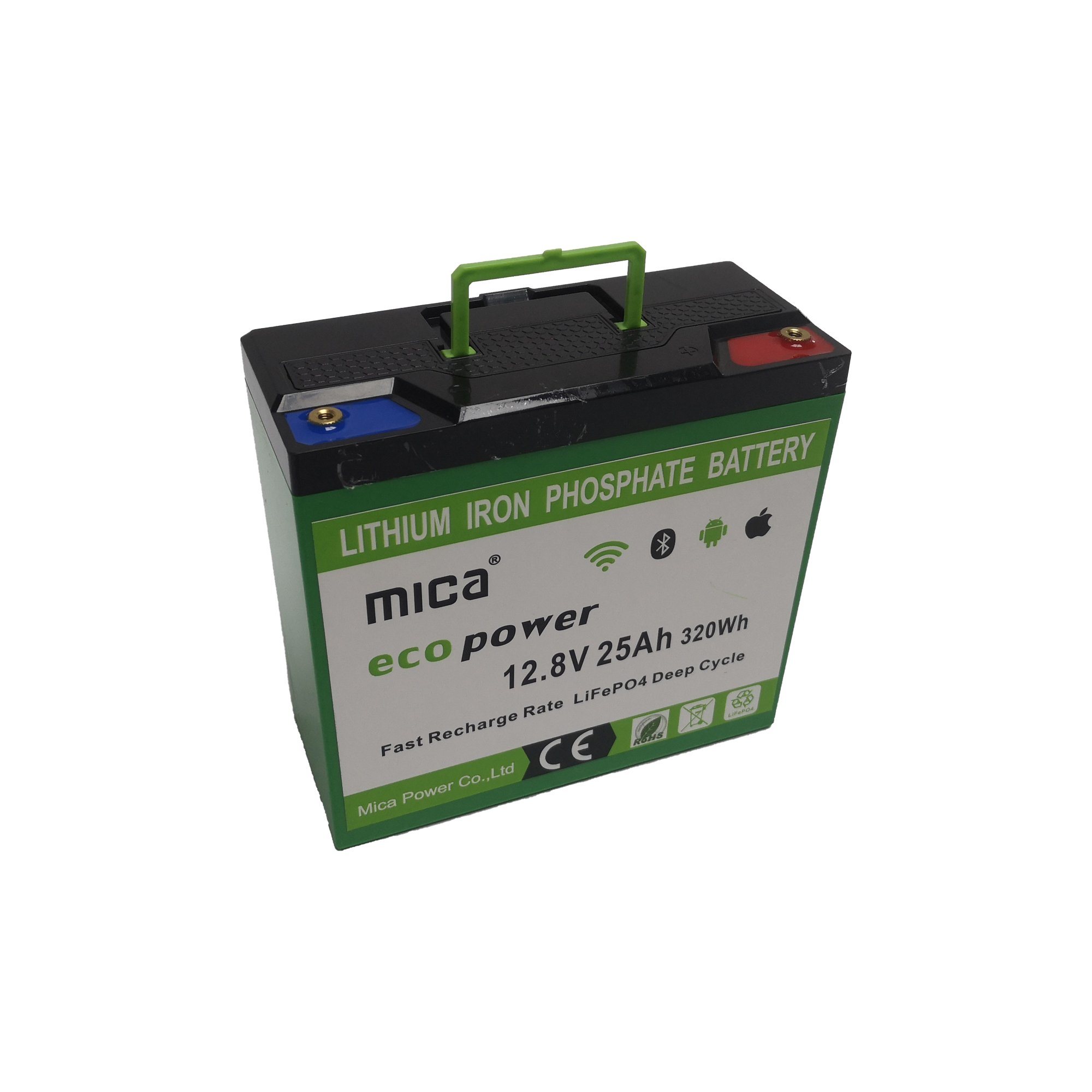

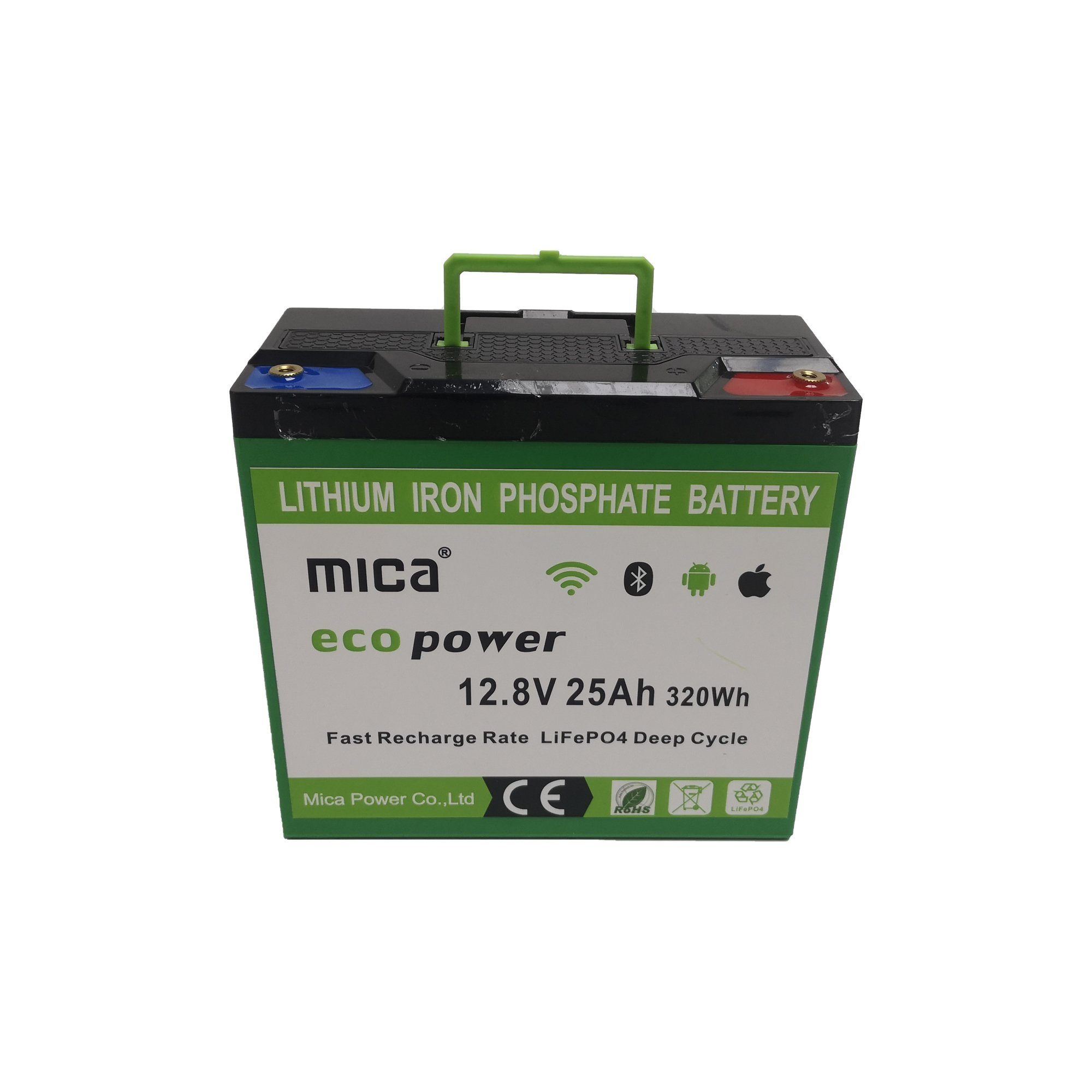

Lithium-Ion Battery Pack
Series and Parallel
Chargeable
High Discharge Rate
Medium
Battery
Product Feature
• Ultra-reliable Lithium Iron Phosphate (LiFePO4) technology
• Integrated battery management System (BMS)
• Ultra-long cycle life
• Light weight & compact • Water & dust resistant (IP56)
• Highly durable ABS enclosure
• Drop-in lead acid replacement
• Environment friendly
• Bluetooth App is optional
| General Information | |
| Battery Type | LiFePO4(Lithium Iron Phosphate) |
| Nominal Voltage | 12.8V |
| Nominal Capacity | 25Ah@25ºC,C10 |
| Nominal Energy | 320Wh@25ºC,C10 |
| Operation Voltage | 10~14.6V |
| Operation Temperature | Charge: 0°C - 45°C | Discharge: -20°C - 60°C |
| Cycle Life @ 100%DOD | >3000 cycles (320Wh@25ºC,C10) |
| Cycle Life @ 80%DOD | >4000 cycles (256Wh@25ºC,C10) |
| Cycle Life @ 50%DOD | >6000 cycles (160Wh@25ºC,C10) |
| Dimension | 181 x 77 x 171mm (W x D x H) |
| Terminal Type | M6 |
| Weight | ~3.1 kg |
| Warranty Period | 5 years |
| Environment Protection | IP56 |
| BMS/Charge/Discharge | |
| Charge Voltage Max | 14.6V |
| Discharge Cut-off Voltage | 10V |
| Charge Current Max | 20A |
| Discharge Current Max | 20A continues |
| 40A burst (10 seconds) | |
| Self-discharge Rate | <2% per month |
| Protection | Over-charge protection |
| Over-discharge protection | |
| Over current protection | |
| Cell balancing function | |
| Over temperature protection | |
Professional Lithium Batteries Supplier, 15 years manufacturing experience
UL/IEC62133/UN38.3 Certificate Products | Focus on Lithium Batteries & Pack | OEM/ODM
Company Profile:
More than 15 Years' Experience in Lithium Battery

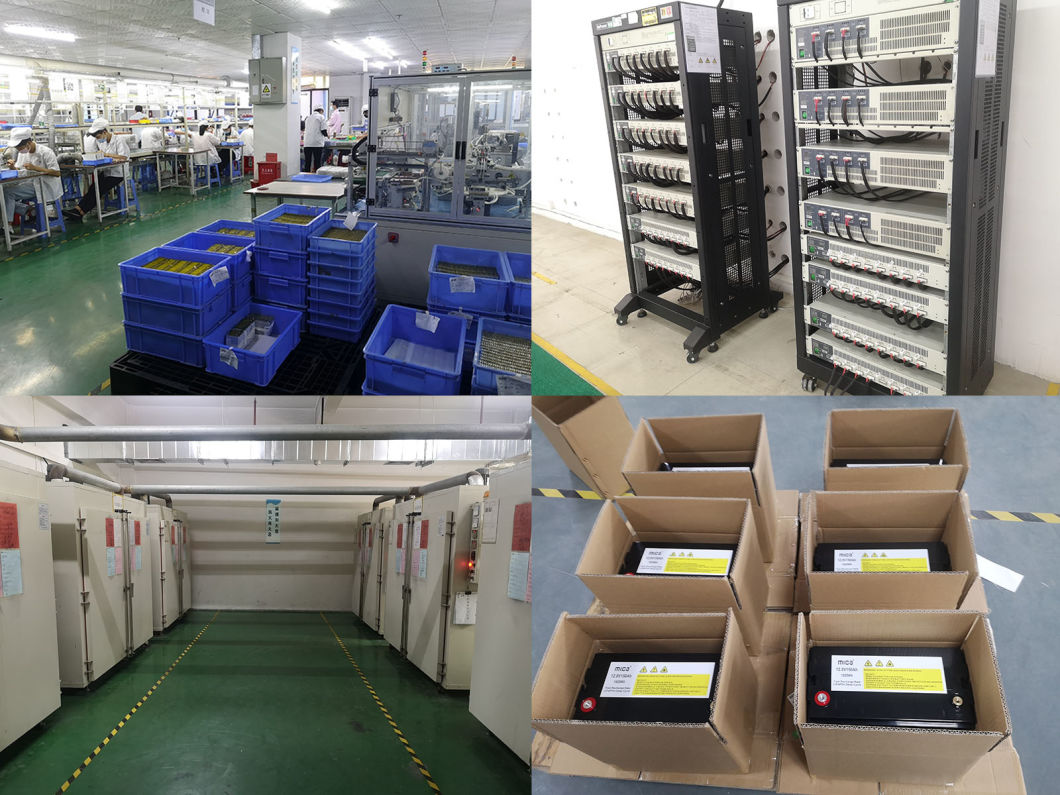

Mica Power Co. Ltd was established in 2009. Our management team has more than 15 years' experience in rechargeable battery. Our factory covers an area of 15,000 square meters and has more than 500 employees.
