Lithium-Ion Battery Pack
Series and Parallel
Chargeable

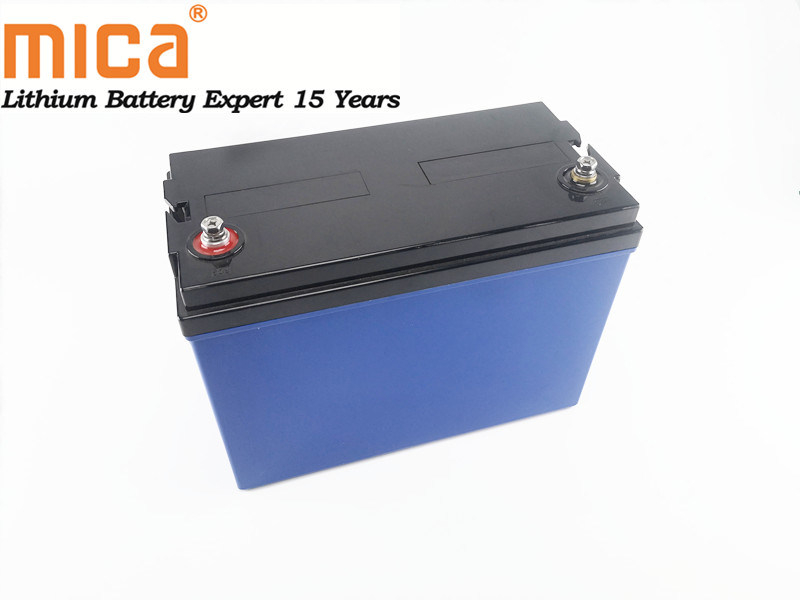

Lithium battery pack
Lifepo4 battery pack

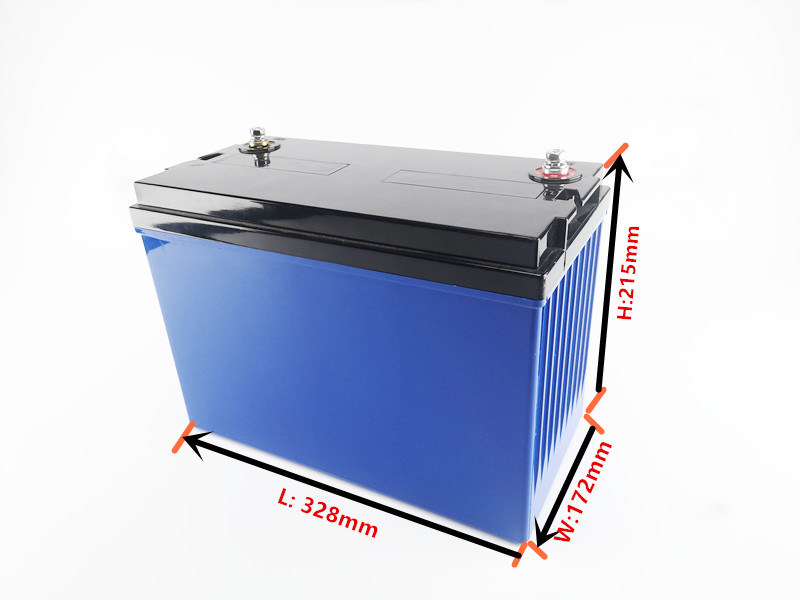

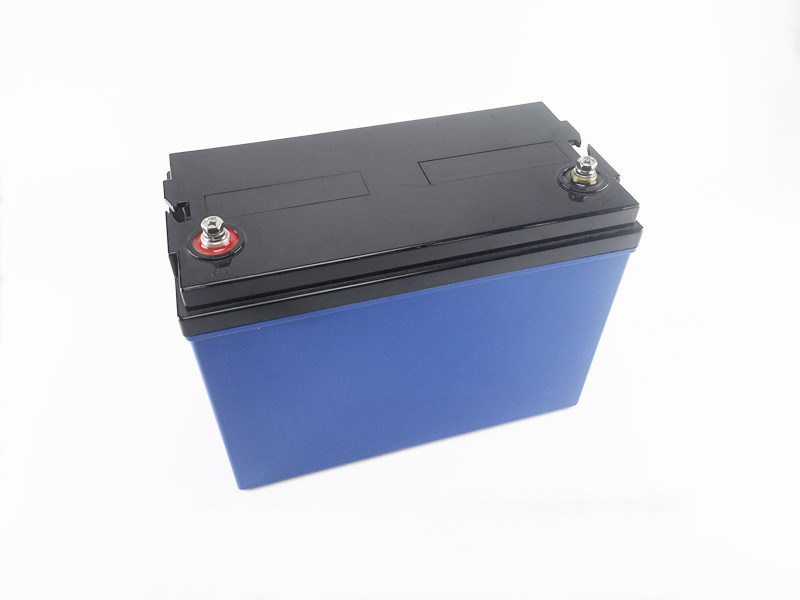

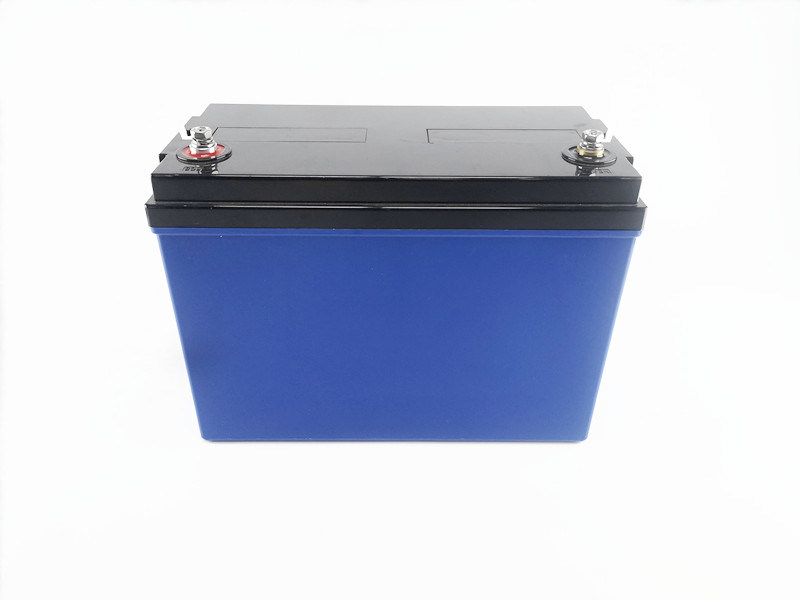

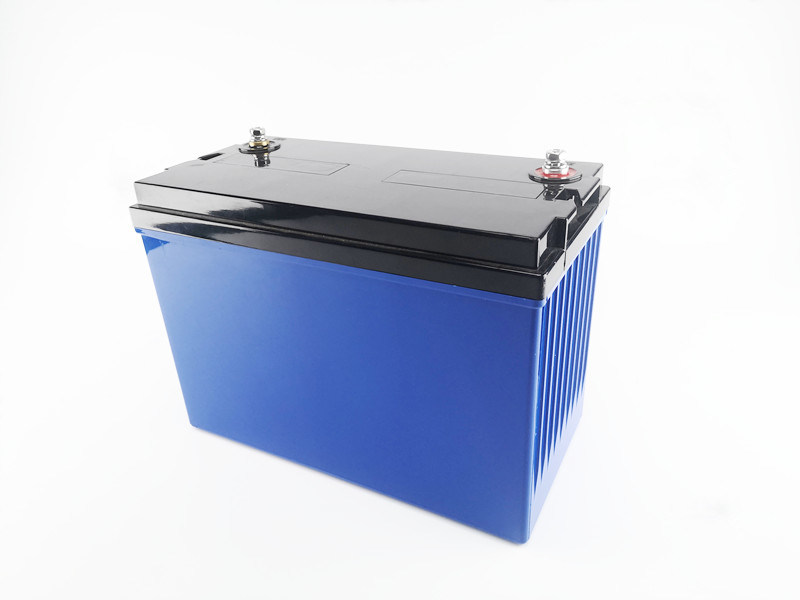

24V 80ah battery
Product Feature
• Ultra-reliable Lithium Iron Phosphate (LiFePO4) technology

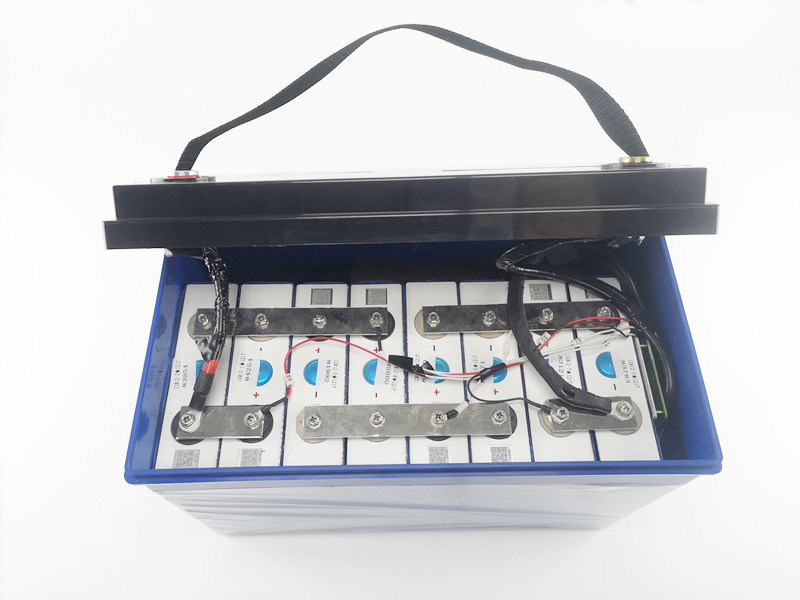

• Integrated battery management System (BMS)
• Ultra-long cycle life
• Light weight & compact • Water & dust resistant (IP56)
• Highly durable ABS enclosure
• Drop-in lead acid replacement
• Environment friendly
• Bluetooth App is optional*
Specification
| Items | Parameter | |
| Battery model | MC-2480F | |
| Nominal voltage | 25.6V | |
| Minimum capacity | 80Ah@25ºC | |
| Charging voltage | 29.2V | |
| Discharging cut-off voltage | 22.4V | |
| Standard charging | 0.2C /29.2V | |
| Max charging | 1.0C /29.2V | |
| Standard discharging | 1C/20V | |
| Max discharging | continuous discharge | 100A/20V |
| peak discharge | 300A/20V | |
| Standard Charging mode | CC/CV | |
| Operating temperature | Charging: 0°C ~ 45°C | |
| Discharging: -20°C ~60°C | ||
| Storage (At 50% SOC and specified temp, recoverable capacity in % vs time ) | -10ºC~25ºC | (12 months ≥85% ) |
| -10ºC ~45ºC | (6 months ≥85% ) | |
| -10ºC~55ºC | (1 month ≥90% ) | |
| 20±5ºC is the recommended storage temperature | ||
| Visual Inspection | There should not be any remarkable scratches, cracks, bolts, cauterization, deformations, swelling, leakage and so on the surface of the cell. | |
| Self-discharge Rate | <2% per month | |
More than 15 Years' Experience in Lithium Battery
Mica Power Co. Ltd was established in 2009. Our management team has more than 15 years' experience in rechargeable battery. Our factory covers an area of 15,000 square meters and has more than 500 employees.
