Lithium Battery
Standard Battery
12V
China

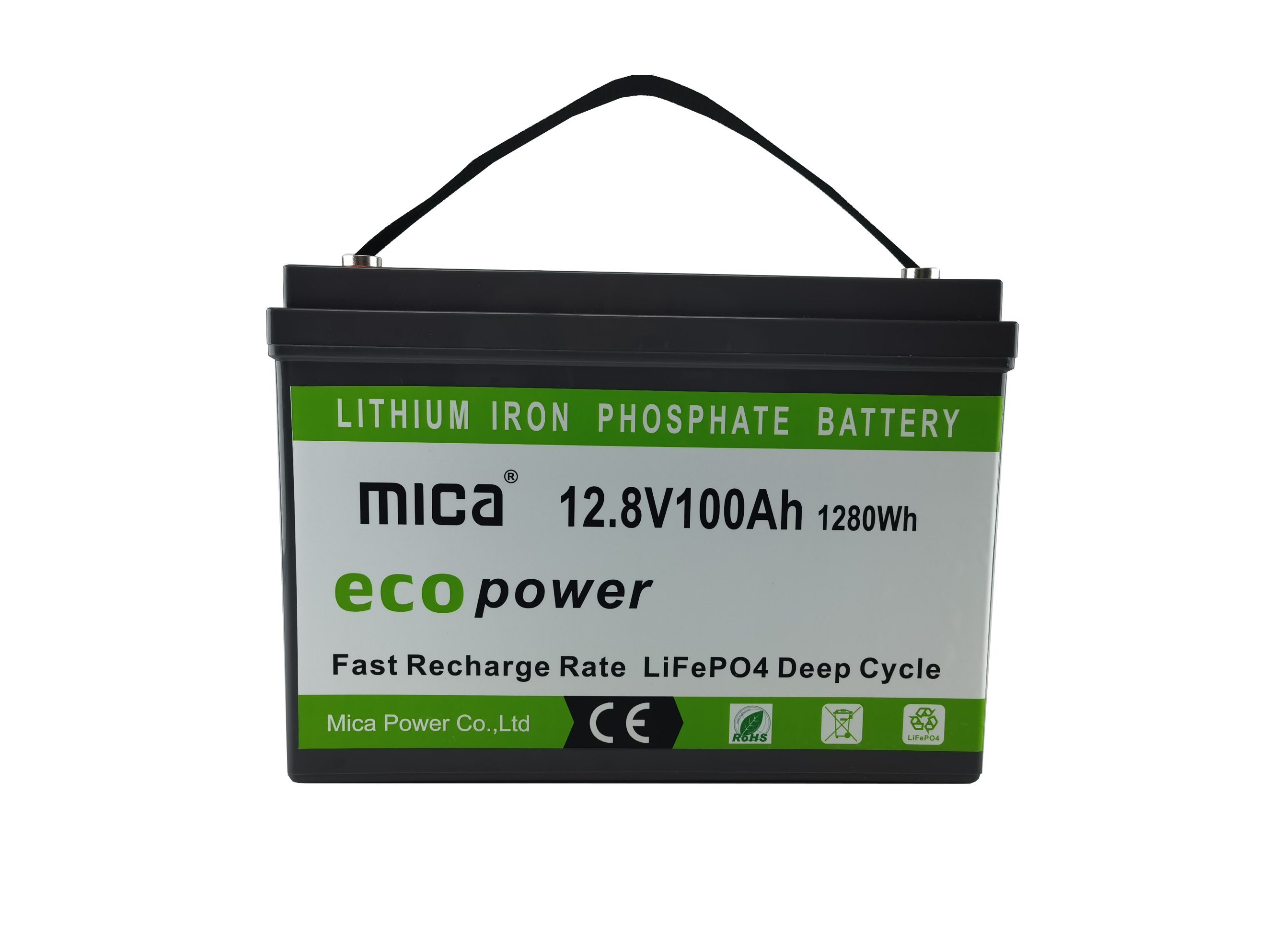

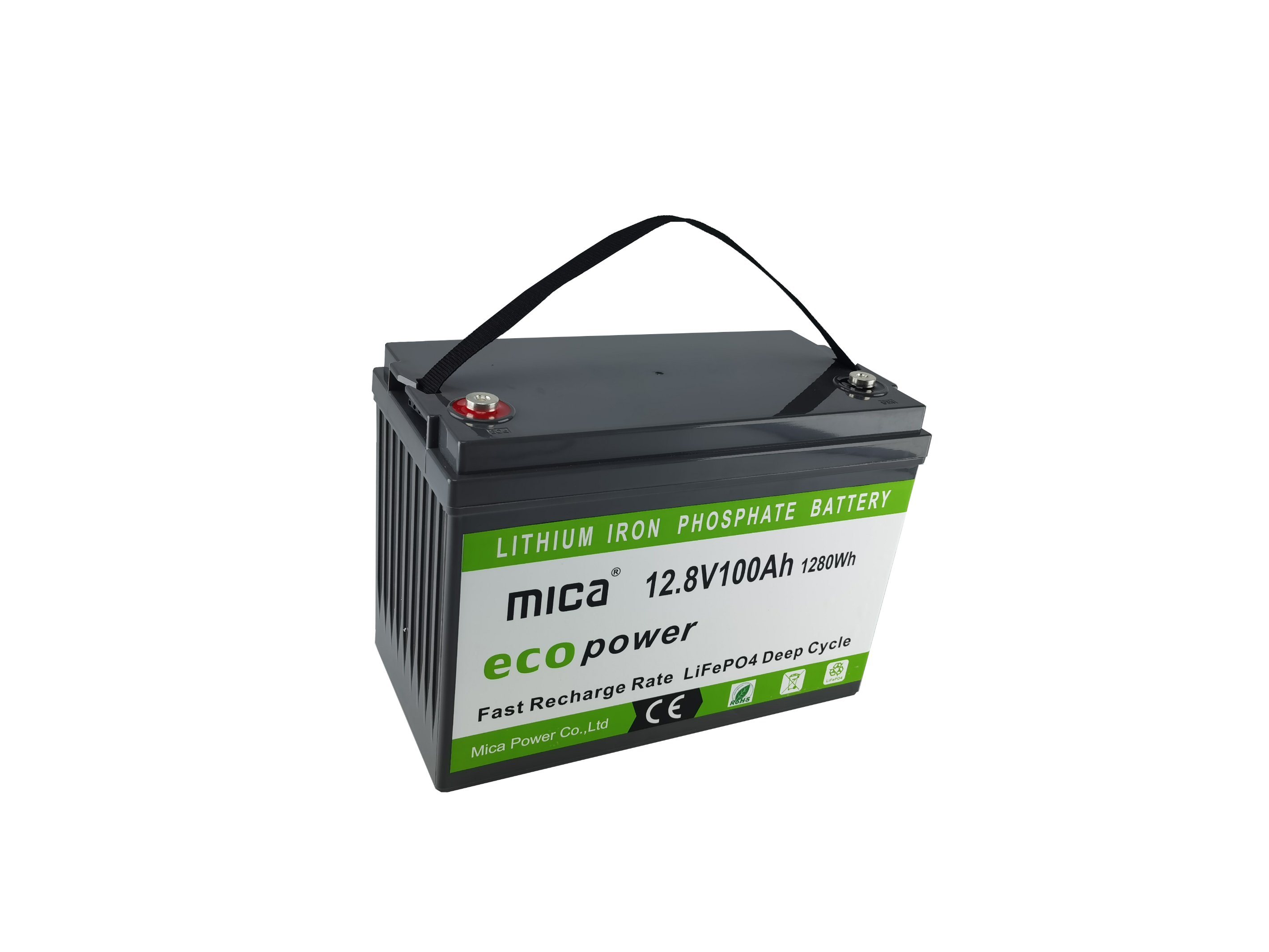

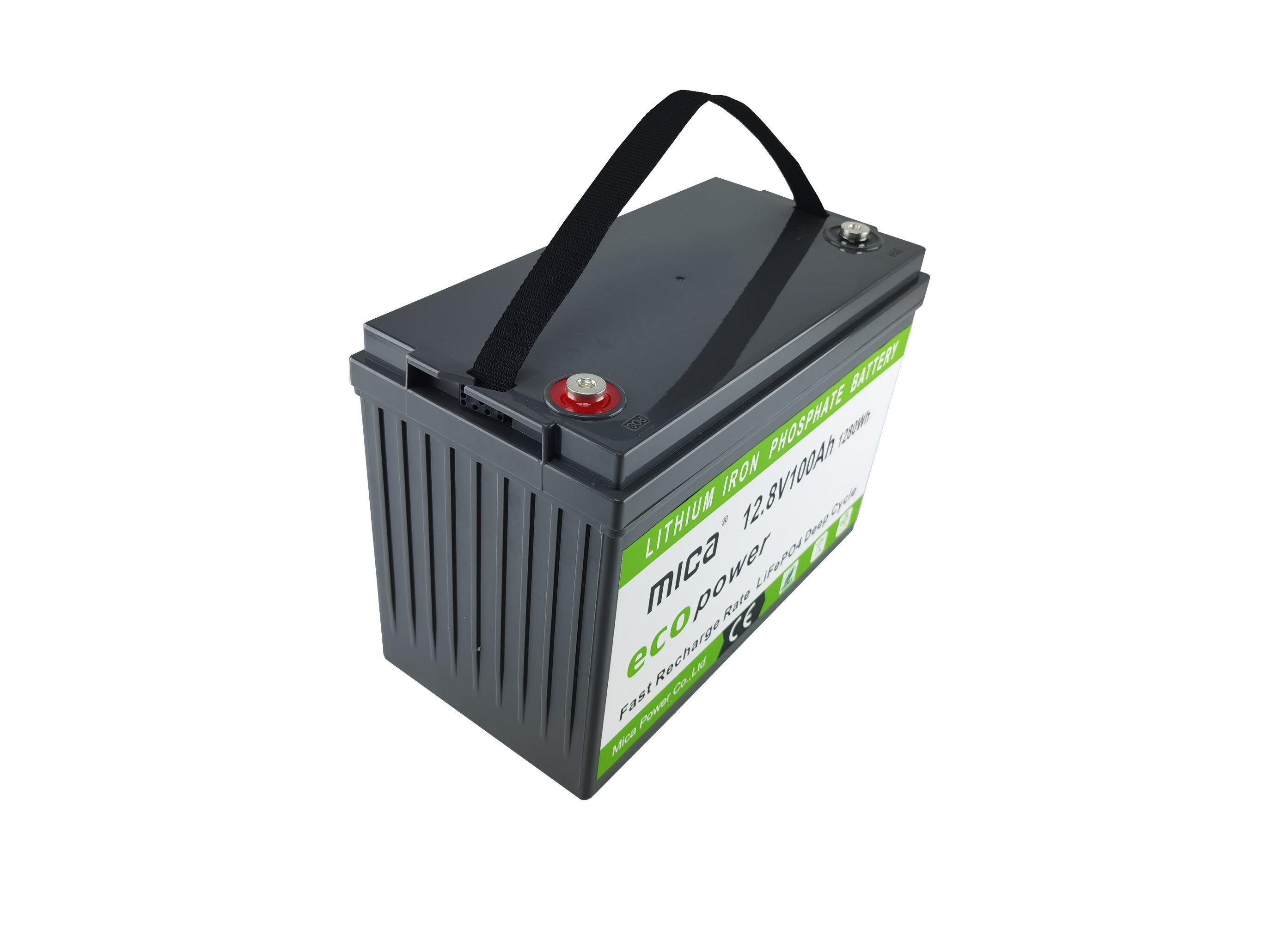

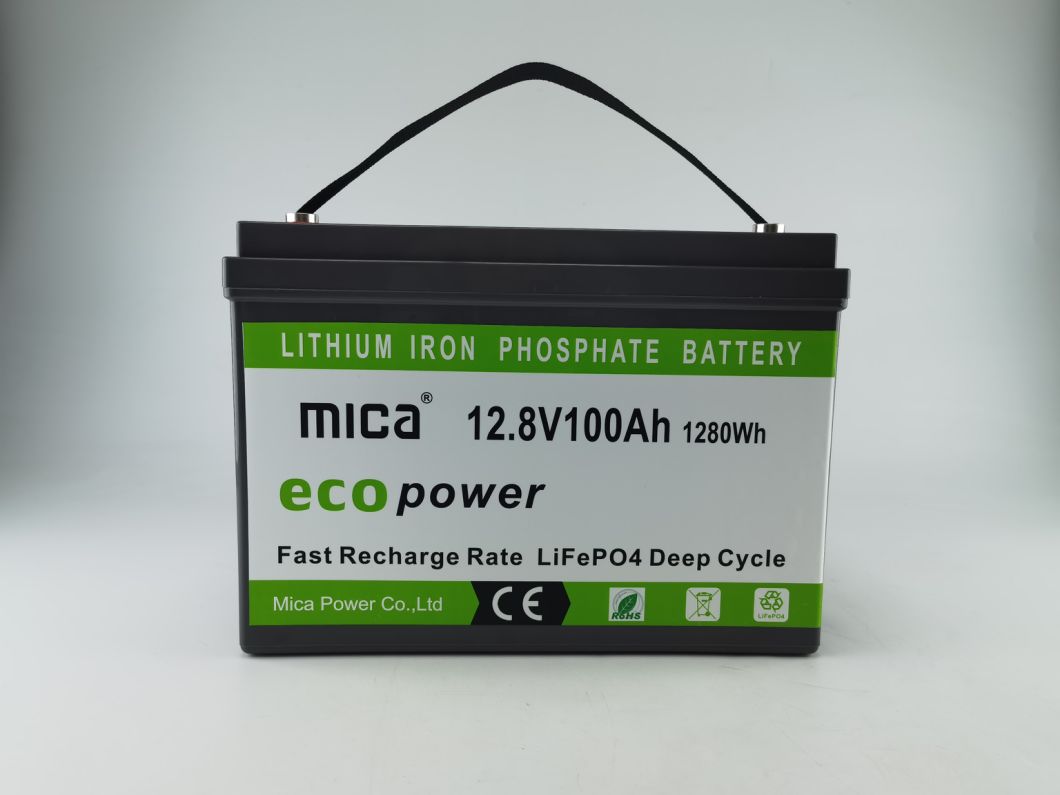

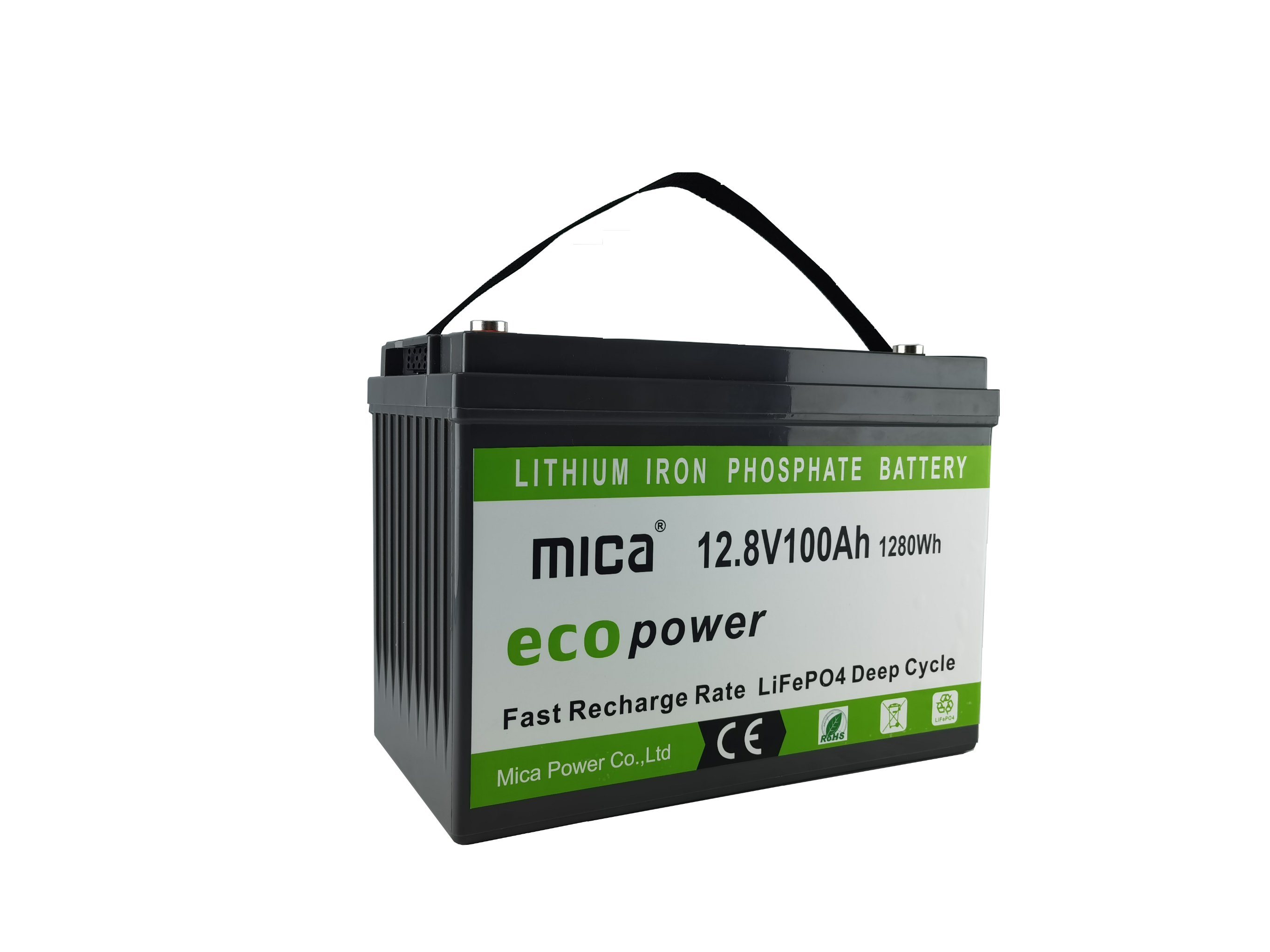

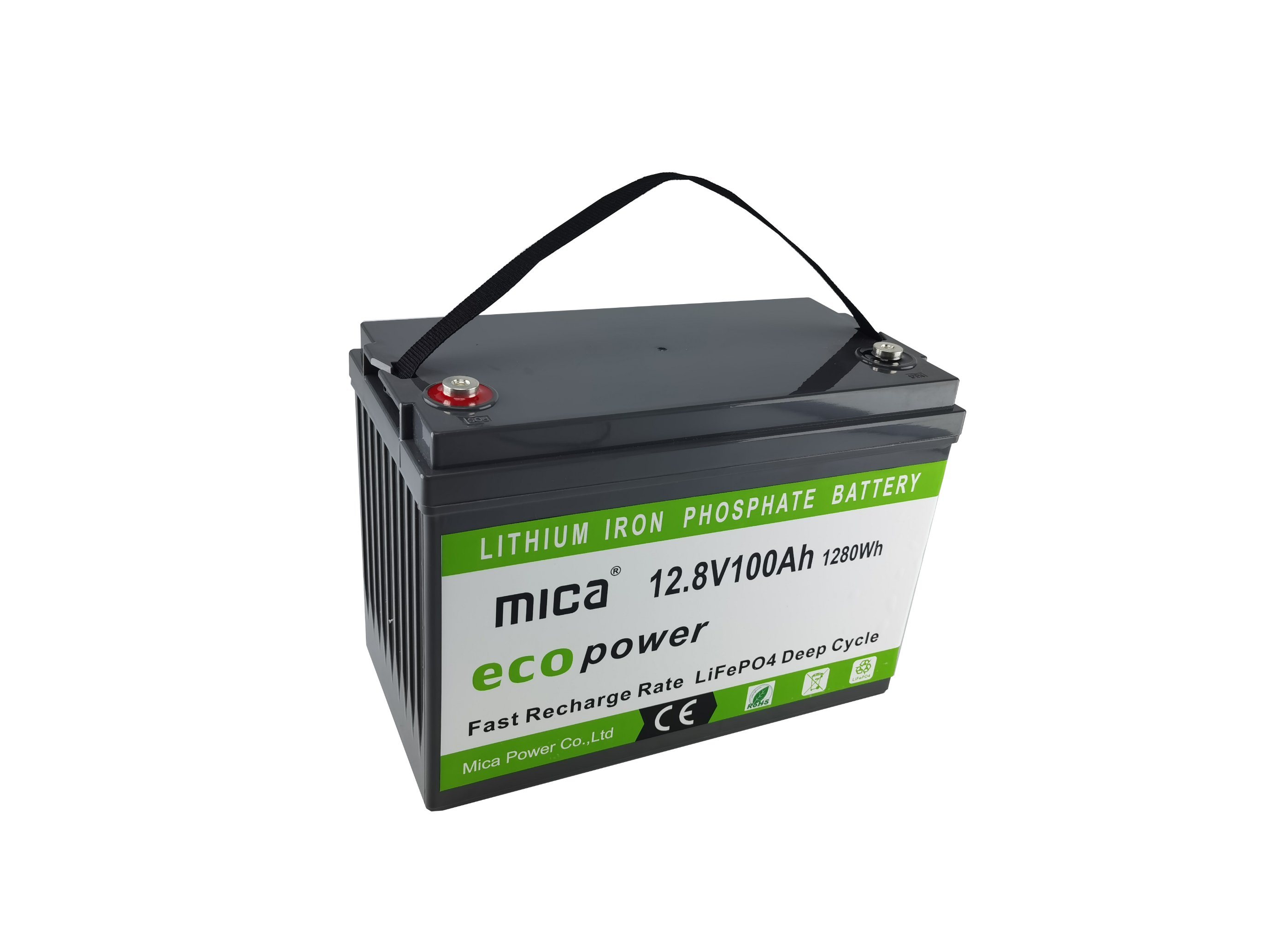

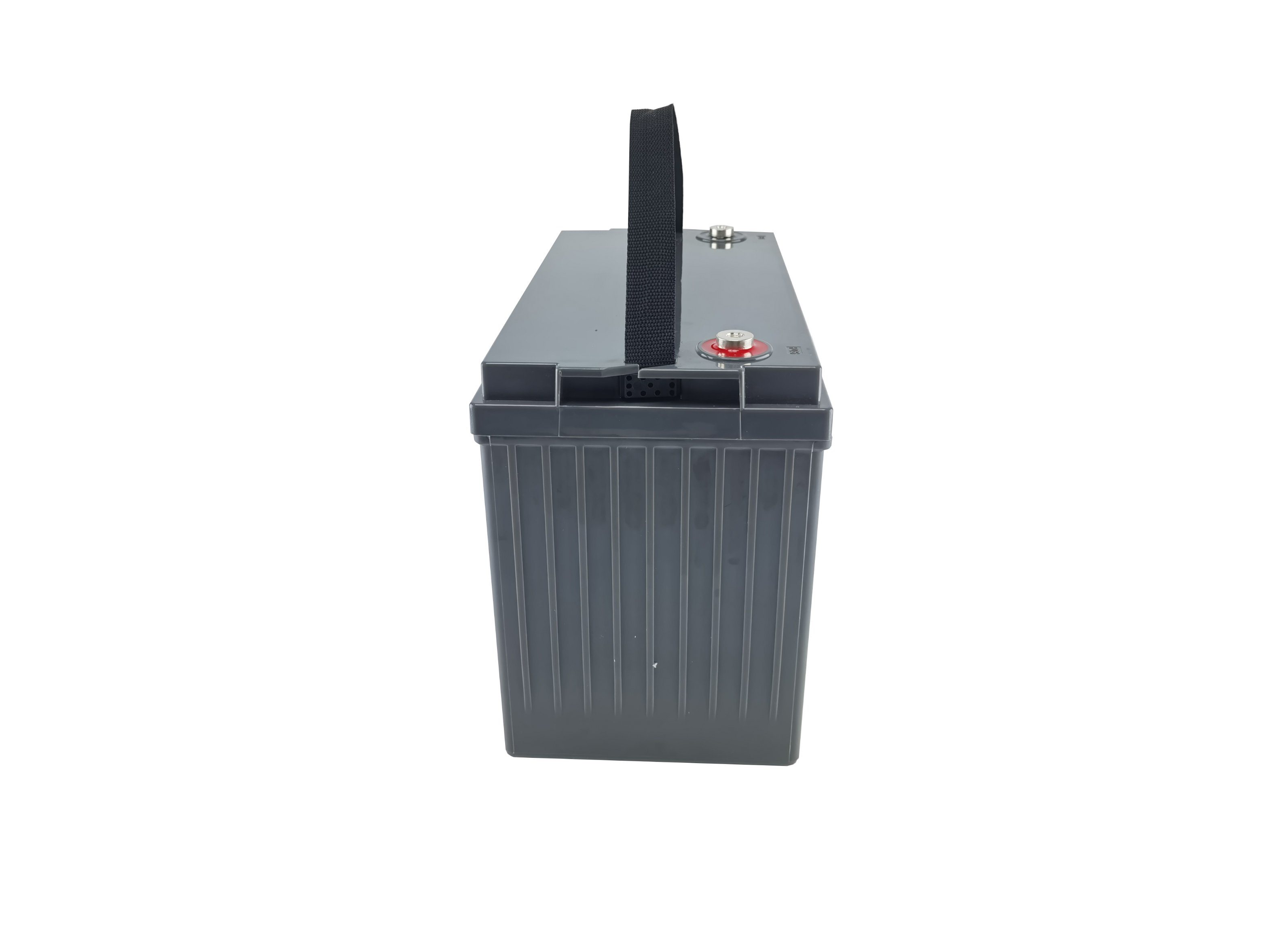

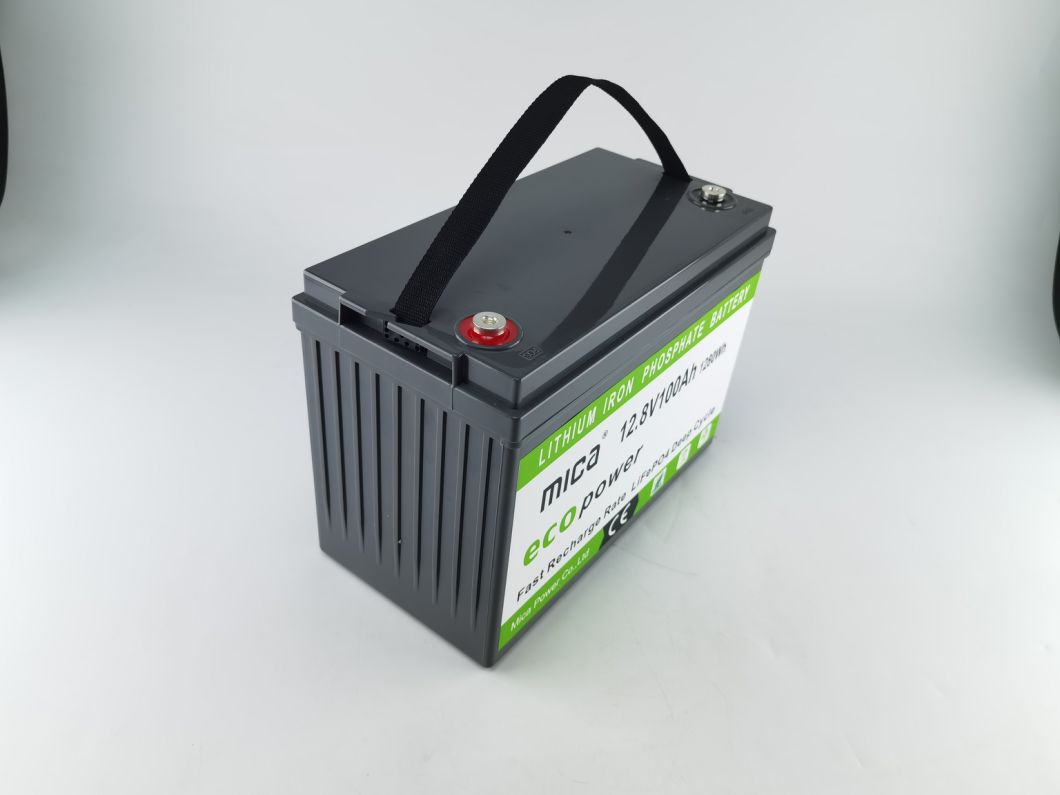

| Model NO. | MC-12.8V100Ah-01 | Rated Capacity | 100Ah |
| Standard Voltage | 12.8V | Usage | Energy System Storage |

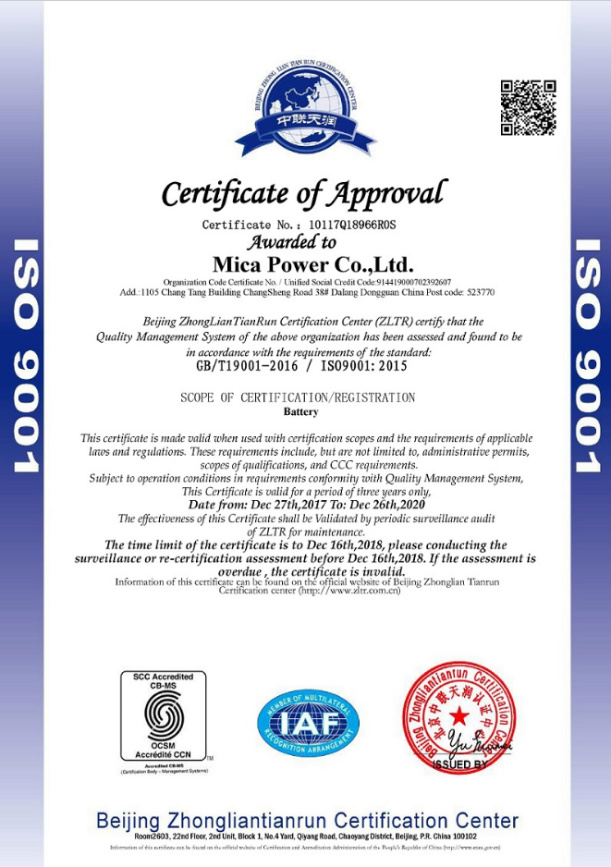

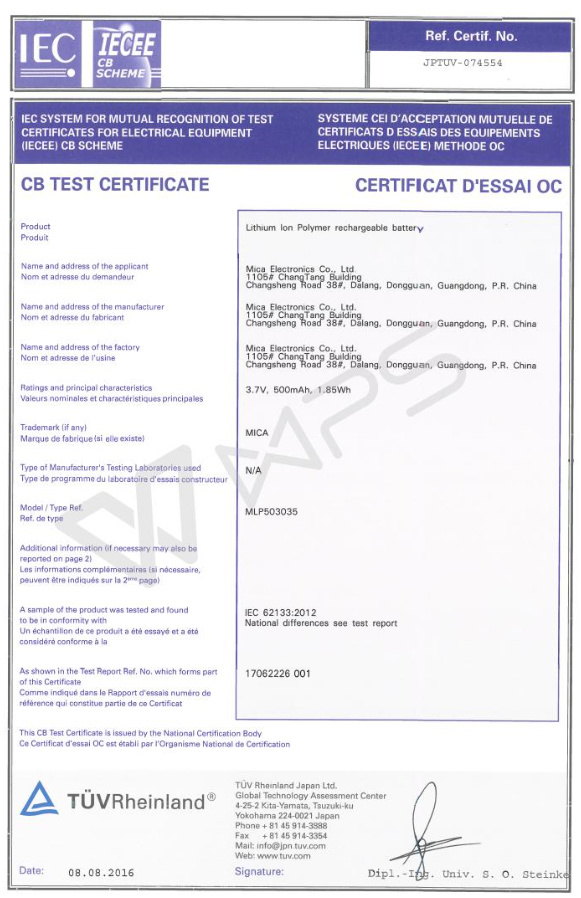

| Electrolyte | Li-ion | Certificates | UL1642 / IEC62133 / RoHS / Ce / FCC |
| Weight | ~13kg | Nominal Voltage | 12.8V |
| Nominal Capacity | 100ah | Trademark | OEM/ODM |
| Transport Package | Carton | Specification | 338 x 170 x 215mm |
| Origin | China | HS Code | 8507600090 |
| Battery Type | LiFePO4(Lithium Iron Phosphate) |
| Nominal Voltage | 12.8V |
| Nominal Capacity | 100Ah 25ºC,C10 |
| Nominal Energy | 1280Wh 25ºC,C10 |
| Operation Voltage | 10.4~14.6V |
| Operation Temperature | Charge: 0°C - 55°C | Discharge: -20°C - 60°C |
| Cycle Life 100%DOD | >3000 cycles (1280Wh 25ºC,C10) |
| Cycle Life 80%DOD | >4000 cycles (1024Wh 25ºC,C10) |
| Cycle Life 50%DOD | >6000 cycles (640Wh 25ºC,C10) |
| Dimension | 338 x 170 x 215mm (W x D x H) |
| Terminal Type | M6 |
| Weight | ~13 kg |
| Warranty Period | 5 years |
| Environment Protection | IP65 |
| OEM ODM | Acceptable |
| Warranty | 5 Years |
| Charge Voltage Max | 14.6V |
| Discharge Cut-off Voltage | 10.4V |
| Charge Current Max | 100A |
| Discharge Current Max | 100A continues 200A burst (10 seconds) |
| Self-discharge Rate | <2% per month |
| Protection | Over-charge protection Over-discharge protection Over current protection Cell balancing function Cell balancing function Over temperature protection |

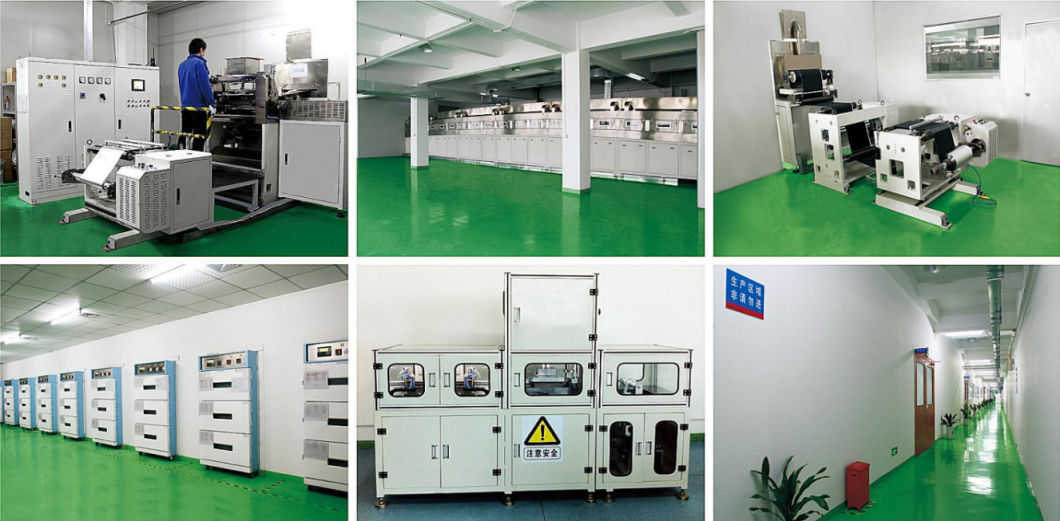

Backed by professional supporting team, we have expertise in R&D, OEM production and marketing. With the support of a professional and dedicated engineering and operation team, we are available to bringing customers' idea into reality. Flexible to customized request, such as sound adjusted, color, package, and accessories adjusted, so you can enjoy our quick one-stop OEM service.
