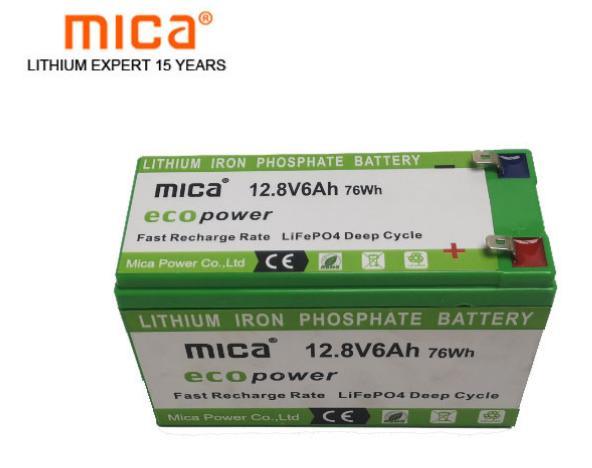

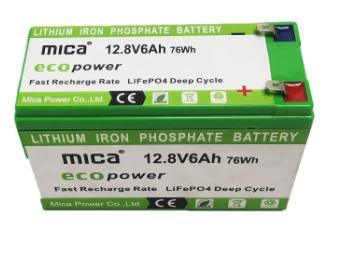

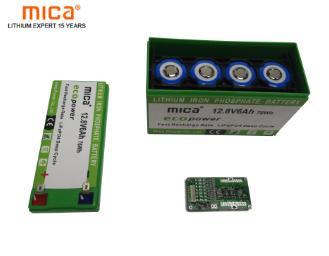

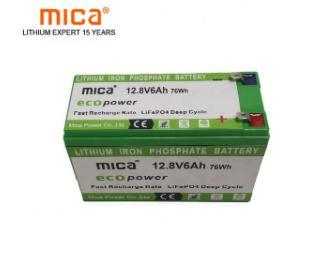

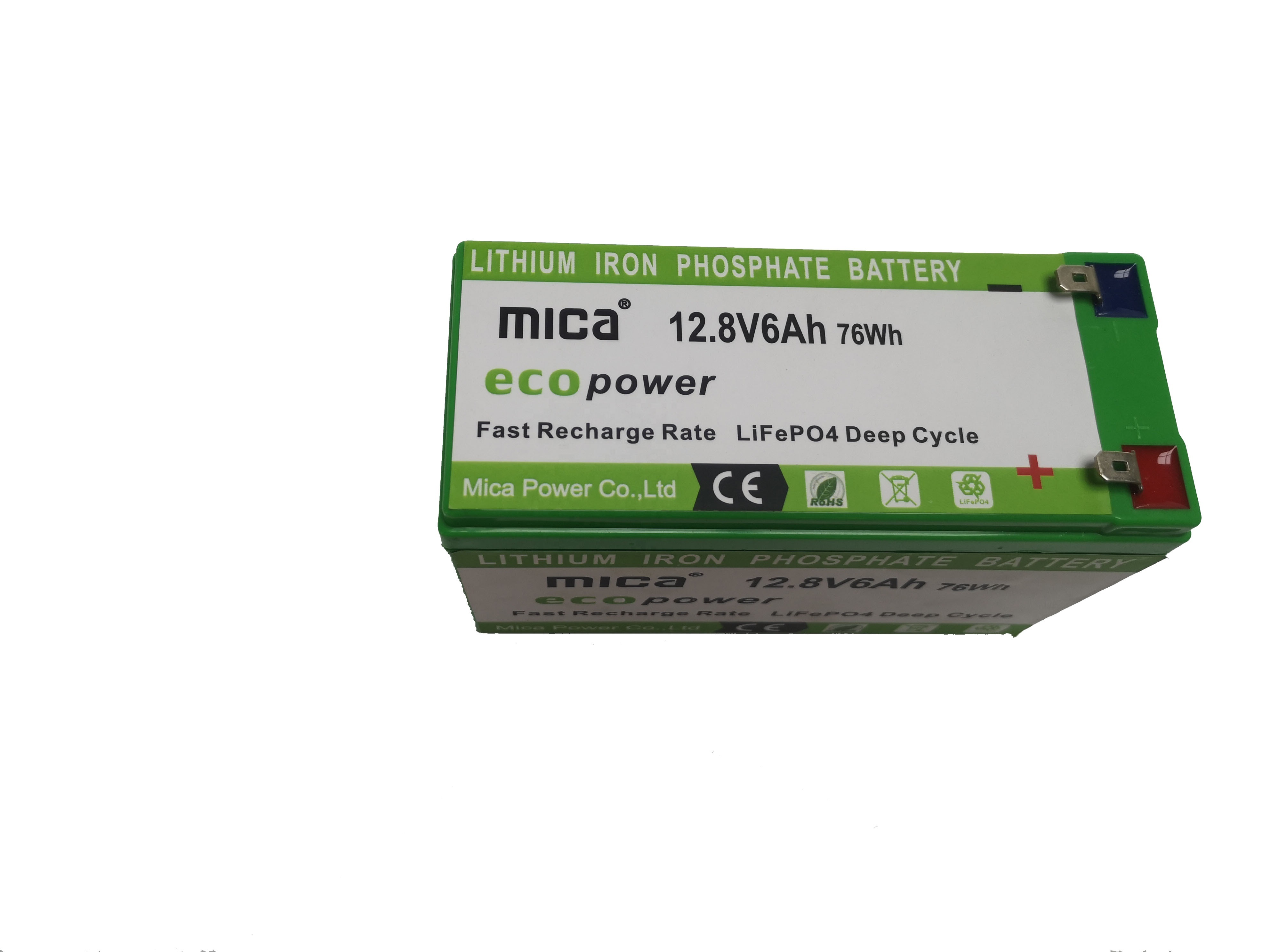

Lithium-Ion Battery Pack
Series and Parallel
Chargeable
12.8v 6ah
lithium battery
| General Information | |
| Battery Type | LiFePO4(Lithium Iron Phosphate) |
| Nominal Voltage | 12.8V |
| Nominal Capacity | 6Ah 25ºC,C10 |
| Nominal Energy | 76.8Wh@25ºC,C10 |
| Operation Voltage | 10~14.6V |
| Operation Temperature | Charge: 0°C - 45°C | Discharge: -20°C - 60°C |
| Cycle Life 100%DOD | >2000 cycles (76.8Wh25ºC,C10) |
| Cycle Life 80%DOD | >3000 cycles (61.4Wh25ºC,C10) |
| Cycle Life 50%DOD | >4000 cycles (38.4Wh25ºC,C10) |
| Dimension | 150 x 65 x 93mm (W x D x H) |
| Terminal Type | T1 |
| Weight | ~1.45 kg |
| Warranty Period | 5 years |
| Environment Protection | IP56 |
| BMS/Charge/Discharge | |
| Charge Voltage Max | 14.6V |
| Discharge Cut-off Voltage | 10V |
| Charge Current Max | 6A |
| Discharge Current Max | 10A |
| Self-discharge Rate | <2% per month |
| Protection | Over-charge protection Over-discharge protection Over current protection Cell balancing function Over temperature protection |
Customized logo
More than 15 Years' Experience in Lithium Battery
Mica Power Co. Ltd was established in 2009. Our management team has more than 15 years' experience in rechargeable battery. Our factory covers an area of 15,000 square meters and has more than 500 employees.
12.8v 6ah
lithium battery
| General Information | |
| Battery Type | LiFePO4(Lithium Iron Phosphate) |
| Nominal Voltage | 12.8V |
| Nominal Capacity | 6Ah 25ºC,C10 |
| Nominal Energy | 76.8Wh@25ºC,C10 |
| Operation Voltage | 10~14.6V |
| Operation Temperature | Charge: 0°C - 45°C | Discharge: -20°C - 60°C |
| Cycle Life 100%DOD | >2000 cycles (76.8Wh25ºC,C10) |
| Cycle Life 80%DOD | >3000 cycles (61.4Wh25ºC,C10) |
| Cycle Life 50%DOD | >4000 cycles (38.4Wh25ºC,C10) |
| Dimension | 150 x 65 x 93mm (W x D x H) |
| Terminal Type | T1 |
| Weight | ~1.45 kg |
| Warranty Period | 5 years |
| Environment Protection | IP56 |
| BMS/Charge/Discharge | |
| Charge Voltage Max | 14.6V |
| Discharge Cut-off Voltage | 10V |
| Charge Current Max | 6A |
| Discharge Current Max | 10A |
| Self-discharge Rate | <2% per month |
| Protection | Over-charge protection Over-discharge protection Over current protection Cell balancing function Over temperature protection |
Customized logo
More than 15 Years' Experience in Lithium Battery
Mica Power Co. Ltd was established in 2009. Our management team has more than 15 years' experience in rechargeable battery. Our factory covers an area of 15,000 square meters and has more than 500 employees.
