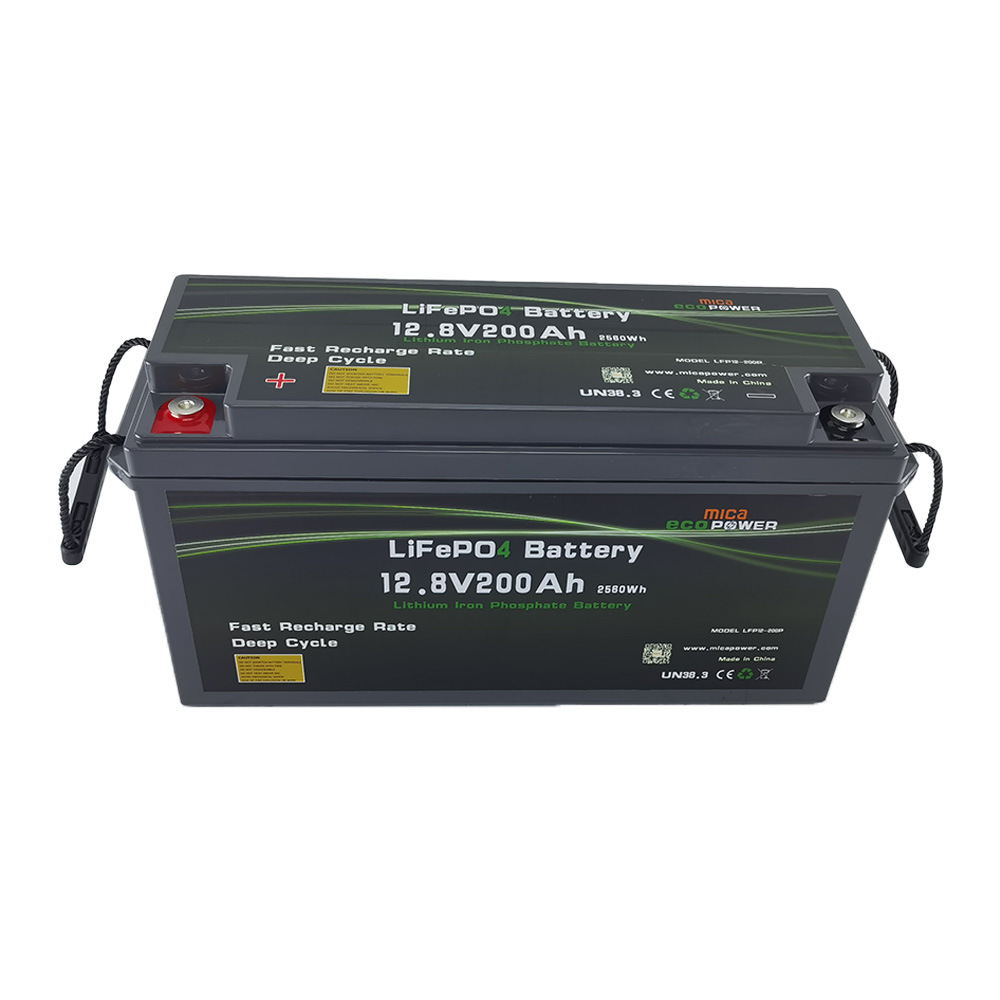

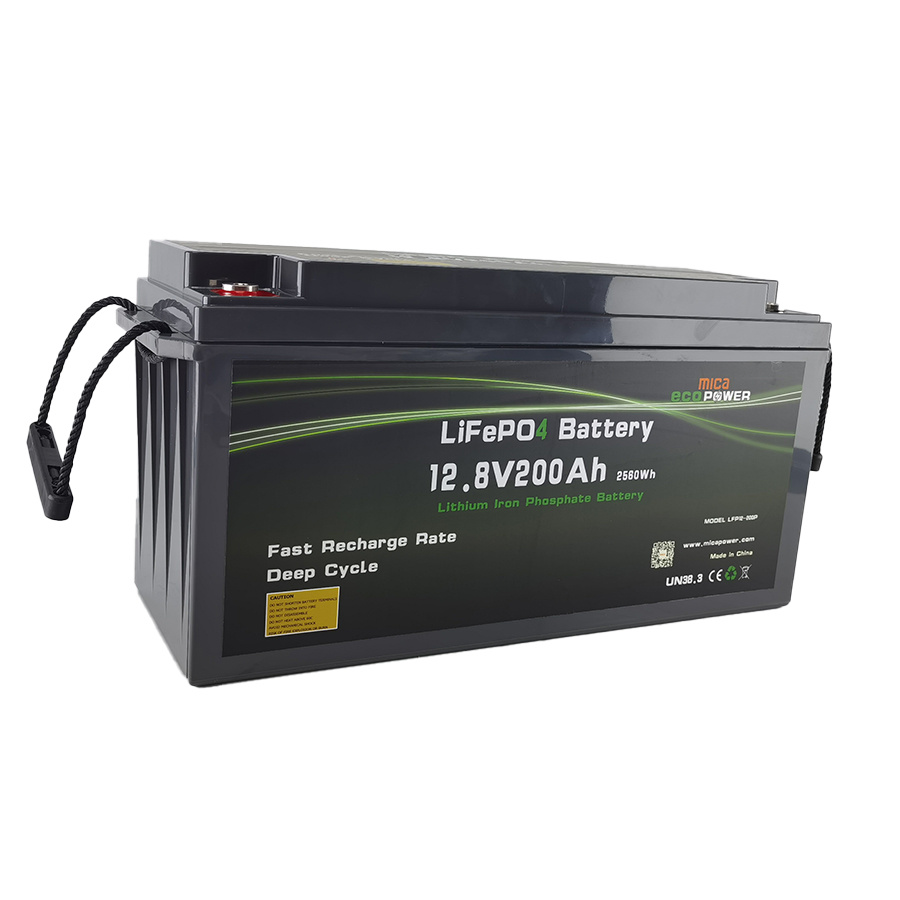

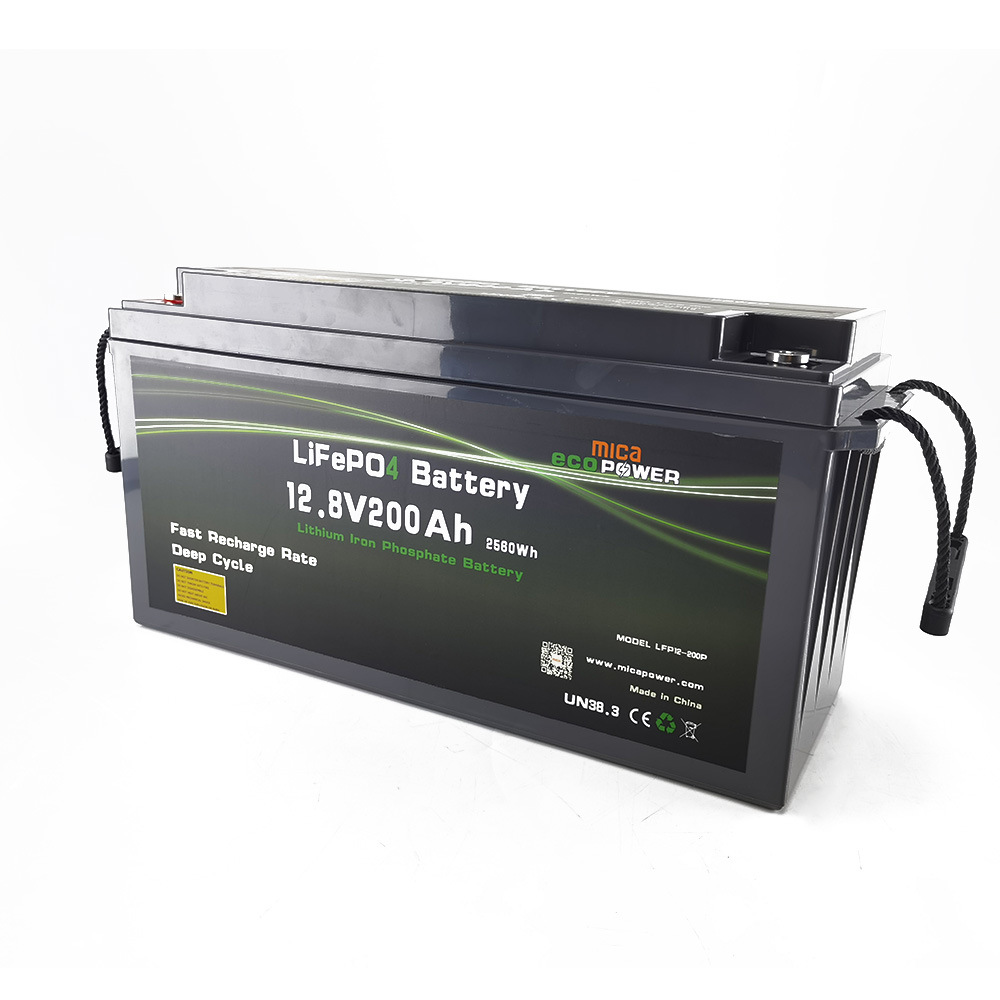

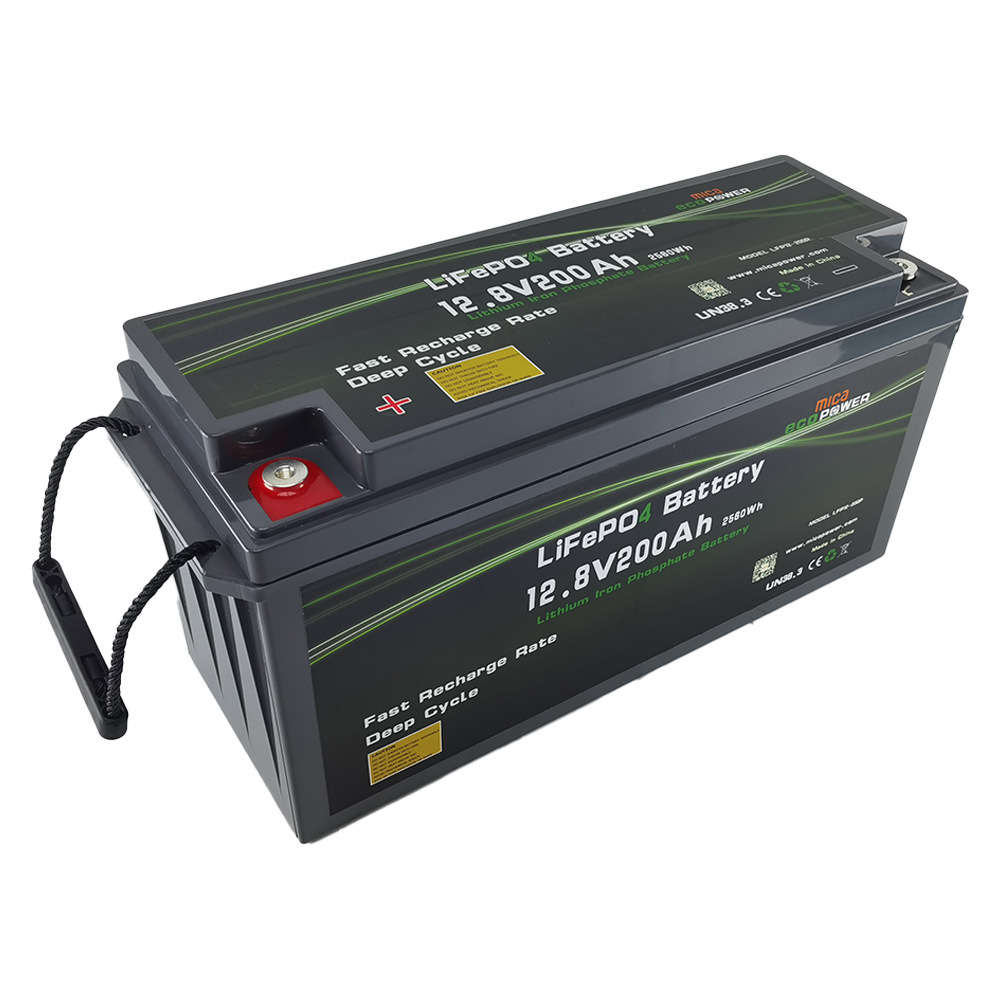

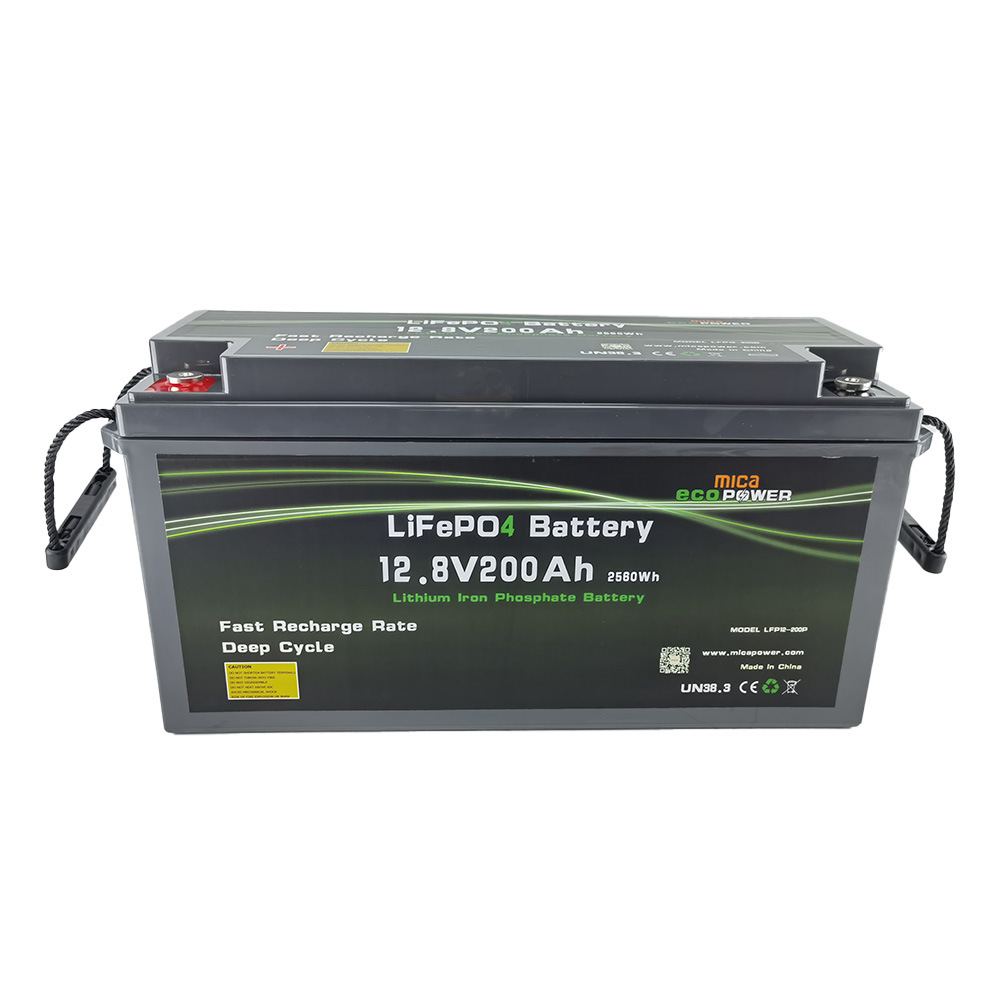

Factory ISO9001 Approved 12V 200ah LiFePO4 Battery Lithium Iron Phosphate Battery for Solar Energy Storage System Battery Bank Backup with CE Un38.3 MSDS

Share to:

Factory ISO9001 Approved 12V 200ah LiFePO4 Battery Lithium Iron Phosphate Battery for Solar Energy Storage System Battery Bank Backup with CE Un38.3 MSDS

Nominal Voltage:
12V, 12.8V
Certificates:
UL1642 / IEC62133 / RoHS / CE / FCC
Weight:
25kg
Nominal Capactiy:
200ah
Type:
Lithium-Ion Battery Pack
Connection Mode:
Series and Parallel

Availability:



Inquire Add to Basket

Product Description

General Information
Battery Type	LiFePO4(Lithium Iron Phosphate)
Nominal Voltage	12.8V
Nominal Capacity	200Ah25ºC,C10
Nominal Energy	2560Wh25ºC,C10
Operation Voltage	10~14.6V
Operation Temperature	Charge: 0°C - 45°C \| Discharge: -20°C - 60°C
Cycle Life 100%DOD	>3000 cycles (2560Wh25ºC,C10)
Cycle Life 80%DOD	>4000 cycles (2048Wh25ºC,C10)
Cycle Life 50%DOD	>6000 cycles (1280Wh25ºC,C10)
Dimension	522 x 238 x 222mm (W x D x H)
Terminal Type	M8
Weight	~25 kg
Warranty Period	5 years
Environment Protection	IP56

BMS/Charge/Discharge
Charge Voltage Max	14.6V
Discharge Cut-off Voltage	10V
Charge Current Max	100A
Discharge Current Max	100A continues 200A burst (10 seconds)
Self-discharge Rate	<2% per month
Self-discharge Rate	Over-charge protection Over-discharge protection Over current protection Cell balancing function Over temperature protection

Technical Specification

Suitable for energy storage use. High efficiency, long life and high reliability;
High precision voltage sample;

Protection functions:

Over and under voltage protection of entire pack and single cell
Charge and discharge over current protection
Charge and discharge over or under temperature protection
Short circuit protection

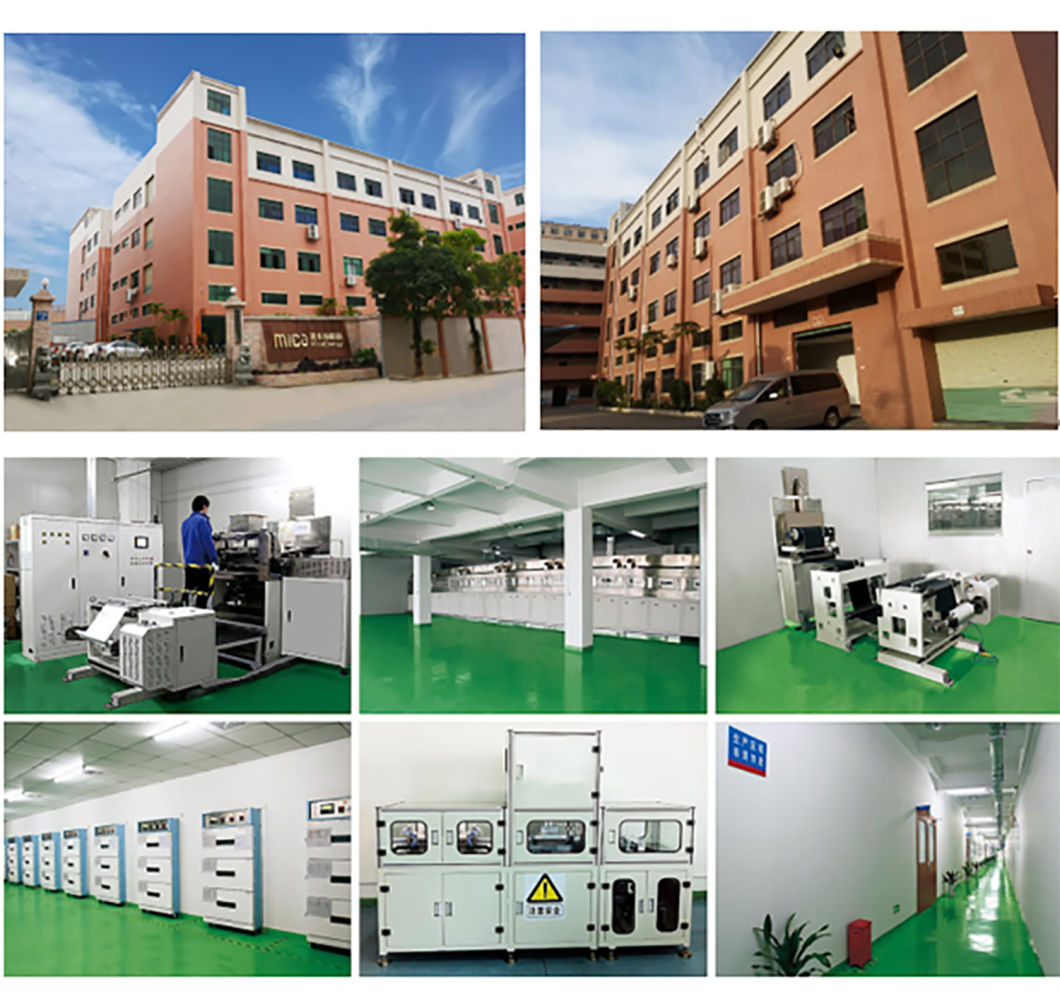

More than 15 Years' Experience in Lithium Battery

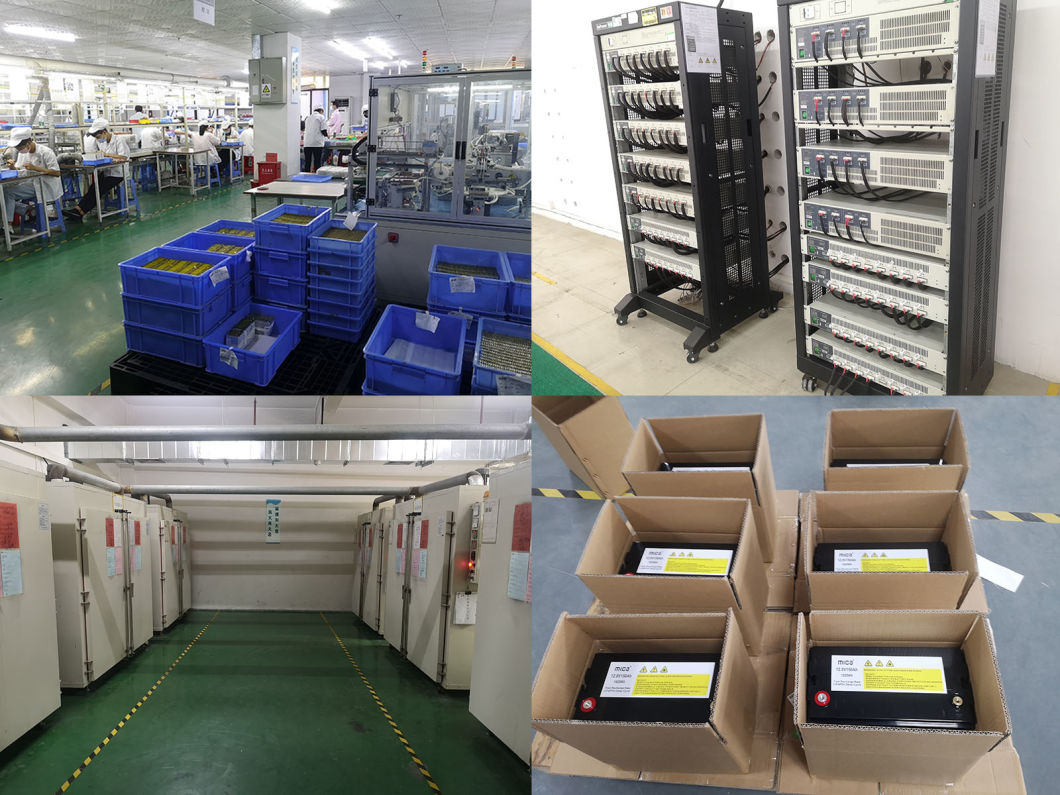

Mica Power Co. Ltd was established in 2009. Our management team has more than 15 years' experience in rechargeable battery. Our factory covers an area of 15,000 square meters and has more than 500 employees.

Benefit From Our Advantages

Backed by professional supporting team, we have expertise in R&D, OEM production and marketing. With the support of a professional and dedicated engineering and operation team, we are available to bringing customers' idea into reality. Flexible to customized request, such as sound adjusted, color, package, and accessories adjusted, so you can enjoy our quick one-stop OEM service.

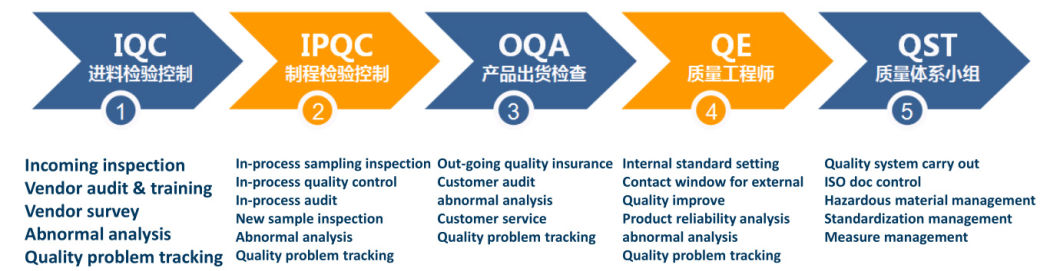

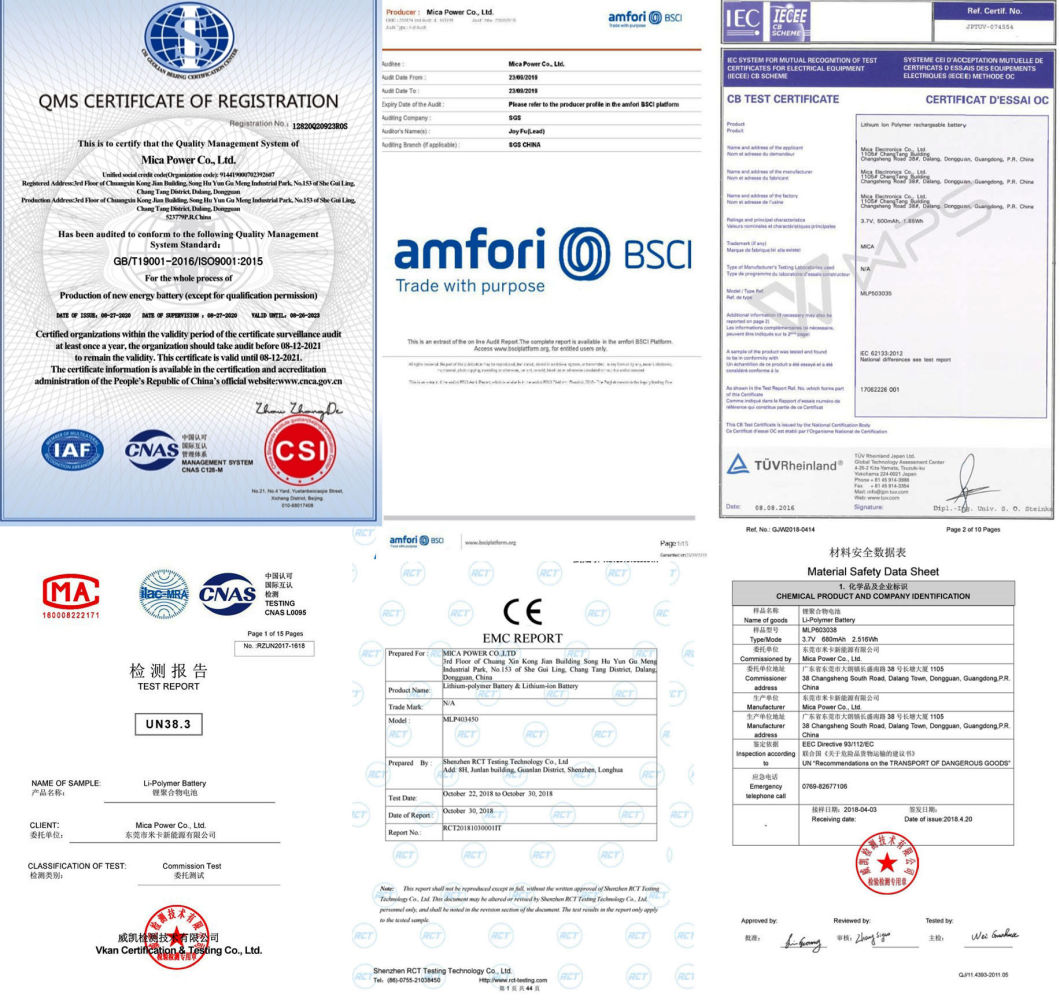

Meeting Quality Standards

Our company has passed ISO 9001:2015 quality and BSCI system approval and our products have got the ROHS, CE, UL, IEC, UN38.3 certifications. The battery products have the advantages of high energy density, high power density, small volume, light weight,long service life, low self-discharge, flexible and varied shapes, safety performance and so on.

Factory ISO9001 Approved 12V 200ah LiFePO4 Battery Lithium Iron Phosphate Battery for Solar Energy Storage System Battery Bank Backup with CE Un38.3 MSDS

FAQ

Q1: Can we get samples for test?
A: Yes, we can supply samples, and buyer pay for sample cost and shipping cost.

Q2: What is the MOQ ?
A: LiFepo4 battery is 50pcs/100pcs.
Li ion battery is 2000pcs/3000pcs.
More quantity has better price.

Q3: Can you accept OEM and ODM Service?
A: Yes, it's available.

Q4: What about the lead time?
A:Sample needs ~2wks , mass production time needs 3wks-4wks.

Q5: How do I track my shipment?

A: After we deliver your goods, we will send you the tracking NO. once your goods has been shipped.
