LiFePO4 Battery
Parallel Connection
Chargeable
High Discharge Rate
Large
Battery

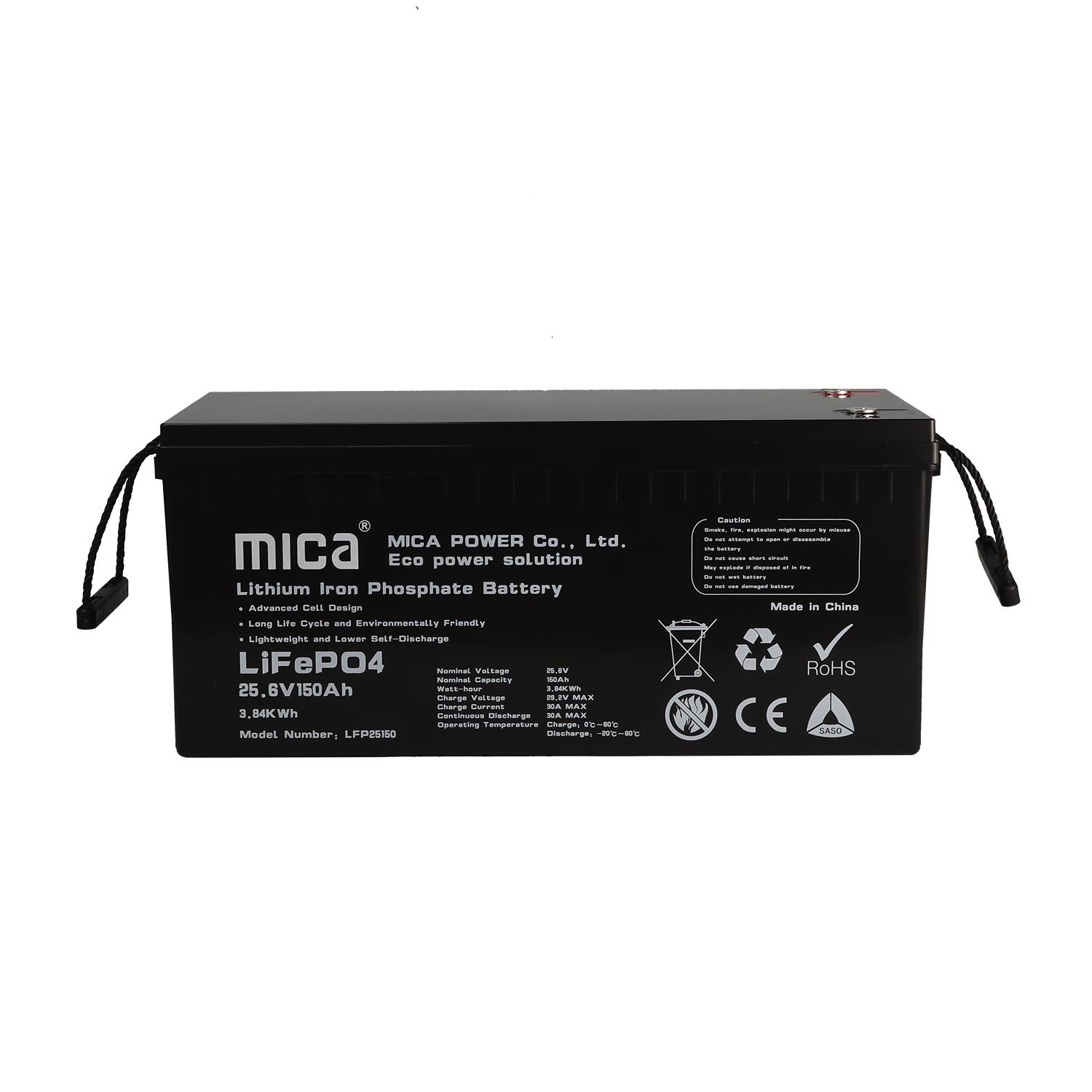

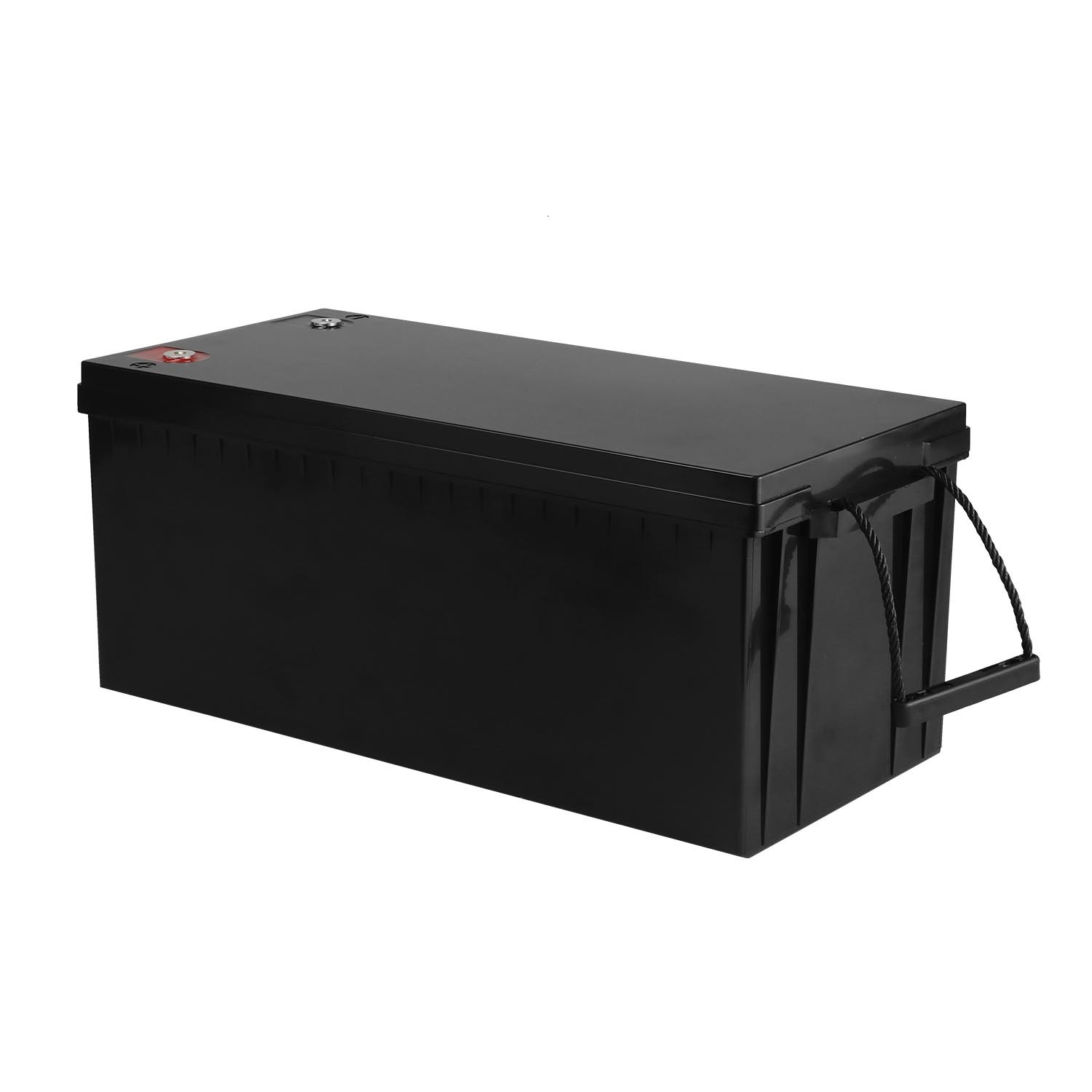

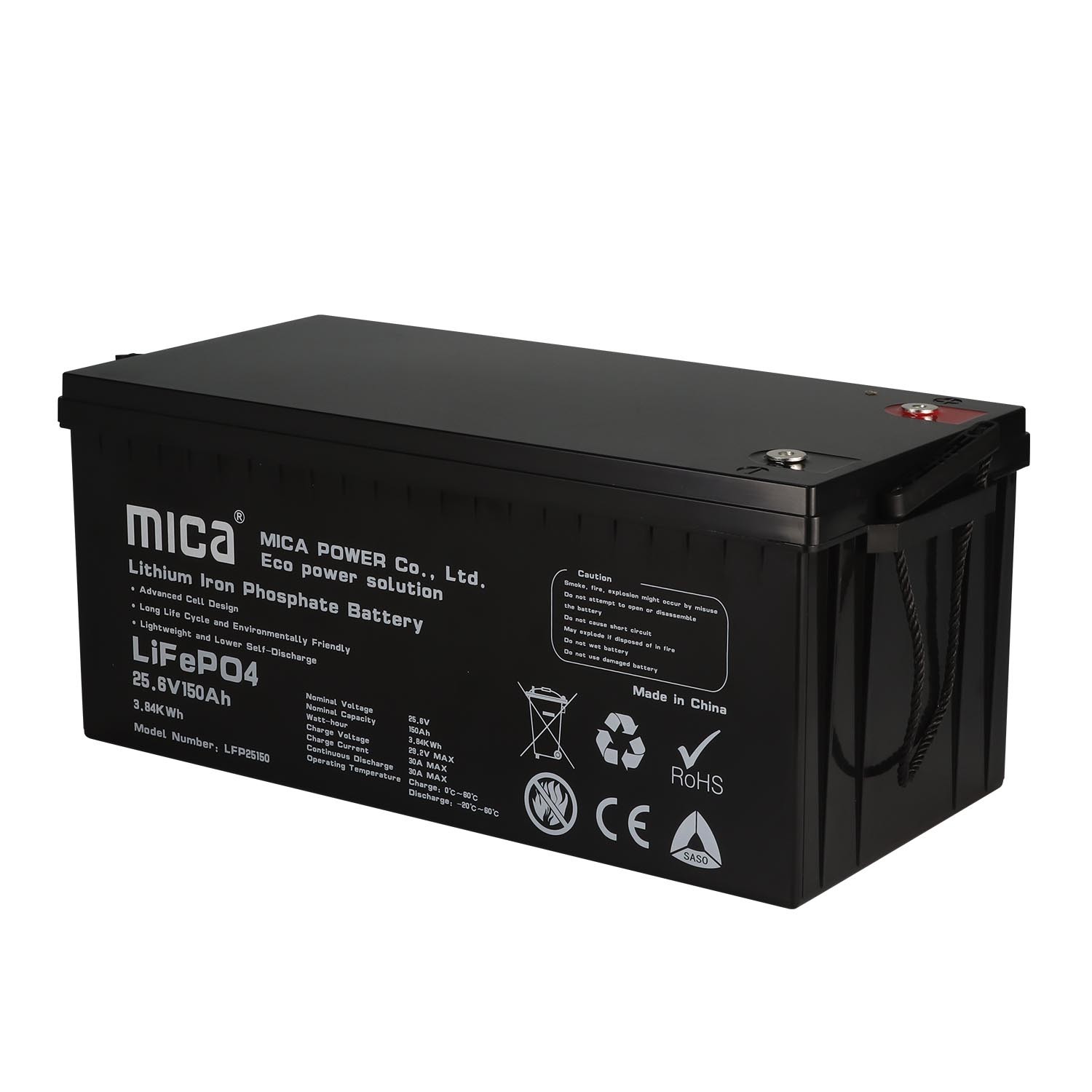

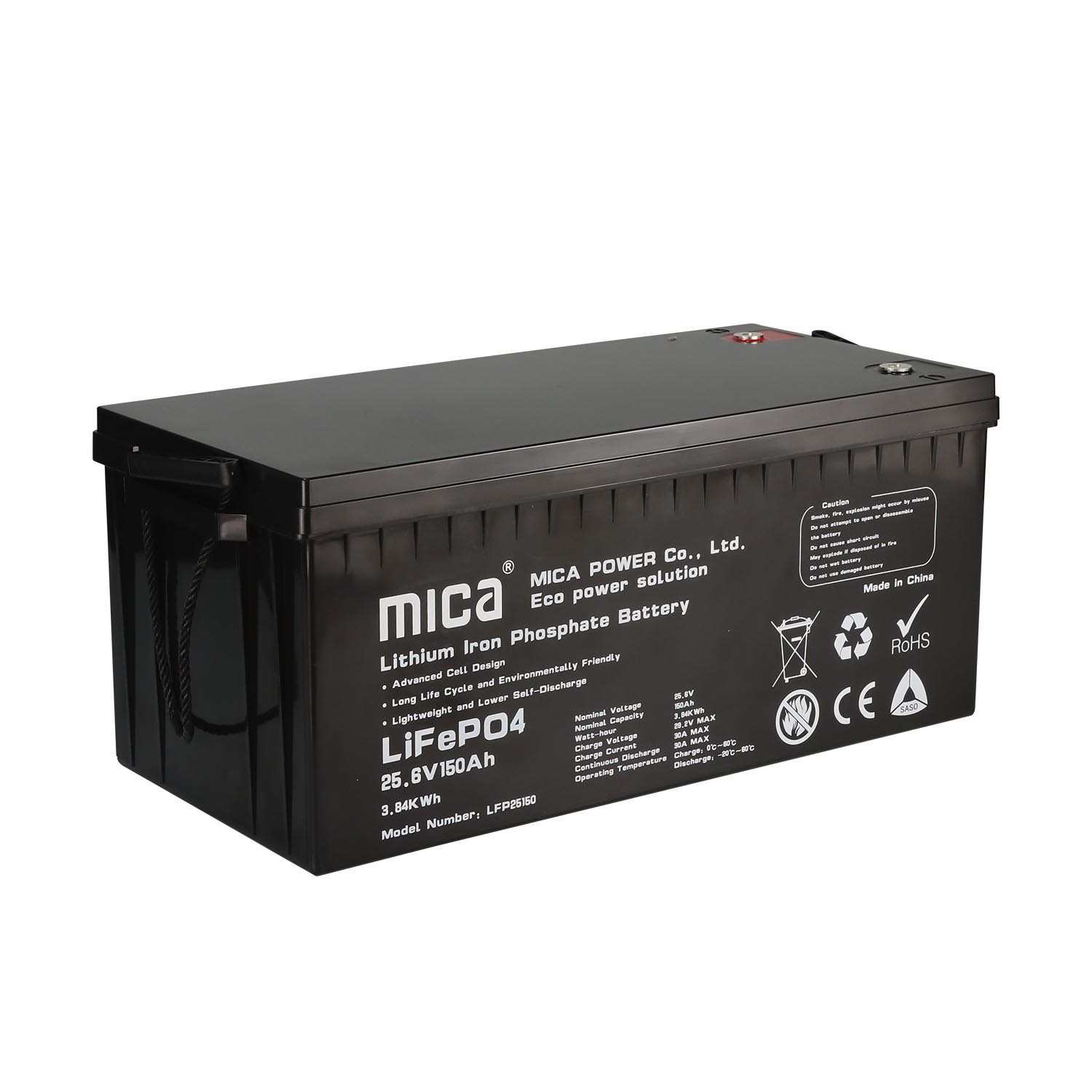

Product Feature
| General Information | |
| Battery Type | LiFePO4(Lithium Iron Phosphate) |
| Nominal Voltage | 25.6V |
| Nominal Capacity | 150Ah@25ºC,C10 |
| Nominal Energy | 3840Wh@25ºC,C10 |
| Operation Voltage | 20~29.2V |
| Operation Temperature | Charge: 0°C - 45°C | Discharge: -20°C - 60°C |
| Cycle Life @ 100%DOD | >3000 cycles (3840Wh@25ºC,C10) |
| Cycle Life @ 80%DOD | >4000 cycles (3072Wh@25ºC,C10) |
| Cycle Life @ 50%DOD | >6000 cycles (1920Wh@25ºC,C10) |
| Dimension | 522 x 238 x 222mm (W x D x H) |
| Terminal Type | M8 |
| Weight | ~36 kg |
| Warranty Period | 5 years |
| Environment Protection | IP56 |
| BMS/Charge/Discharge | |
| Charge Voltage Max | 25.6V |
| Discharge Cut-off Voltage | 20V |
| Charge Current Max | 100A |
| Discharge Current Max | 100A continues |
| 200A burst (10 seconds) | |
| Self-discharge Rate | <2% per month |
| Protection | Over-charge protection |
| Over-discharge protection | |
| Over current protection | |
| Cell balancing function | |
| Over temperature protection | |

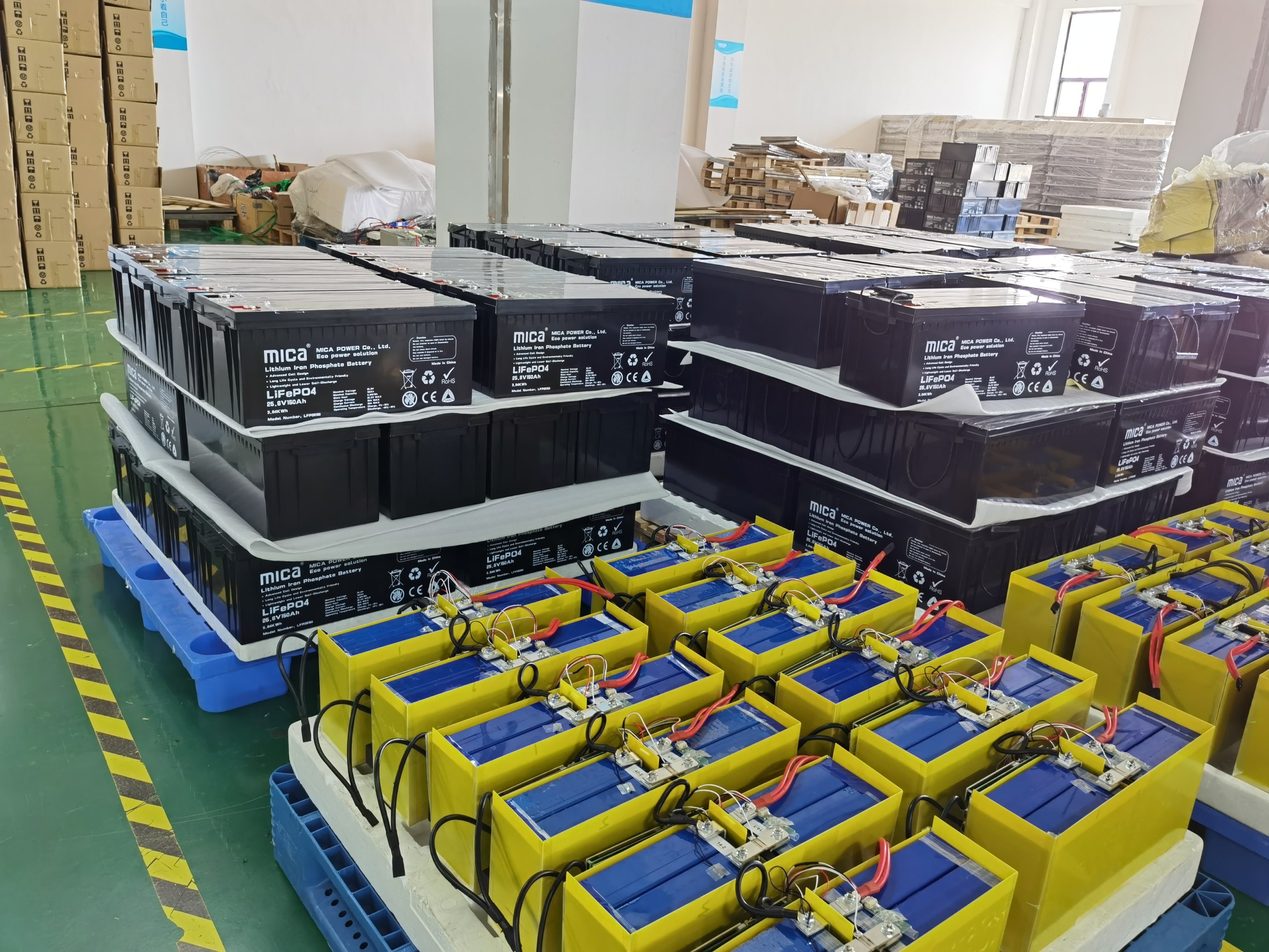

Professional Lithium Batteries Supplier, 15 years manufacturing experience
Q1: Do you accept sample order?
A: Yes, we welcome sample to test the quality, customized is available.
Q2: What will be the delivery time after I place the order?
A: For mass order will take 15-30 days, it depends on the order quantity. For sample will take around 1 week.
Q3: Who will deliver our goods?
A: The products delivered by express, airline and sea shipping is avaiable, you can choose the most suitable delivery way. Also if you have your own forwarder just pass it to us, we will follow it up.
Q4: Can I print my company logo on the products?
A: Yes. We can provide OEM service.
Q5: : What will be the payment terms?
A: We accept T/T, Paypal, Money Gram etc.
Q6: What is your Warranty Policy?
A: We offer 5 years warranty for our products and can be replaced with new ones for free if quality Issues. Using Lithium iron phosphate battery, which has high safety performance, long cycle life, with service life of more than 10 years.
Q7: How to choose a right battery?
A: Just tell us your demand, then we will recommend a suitable battery to you.
