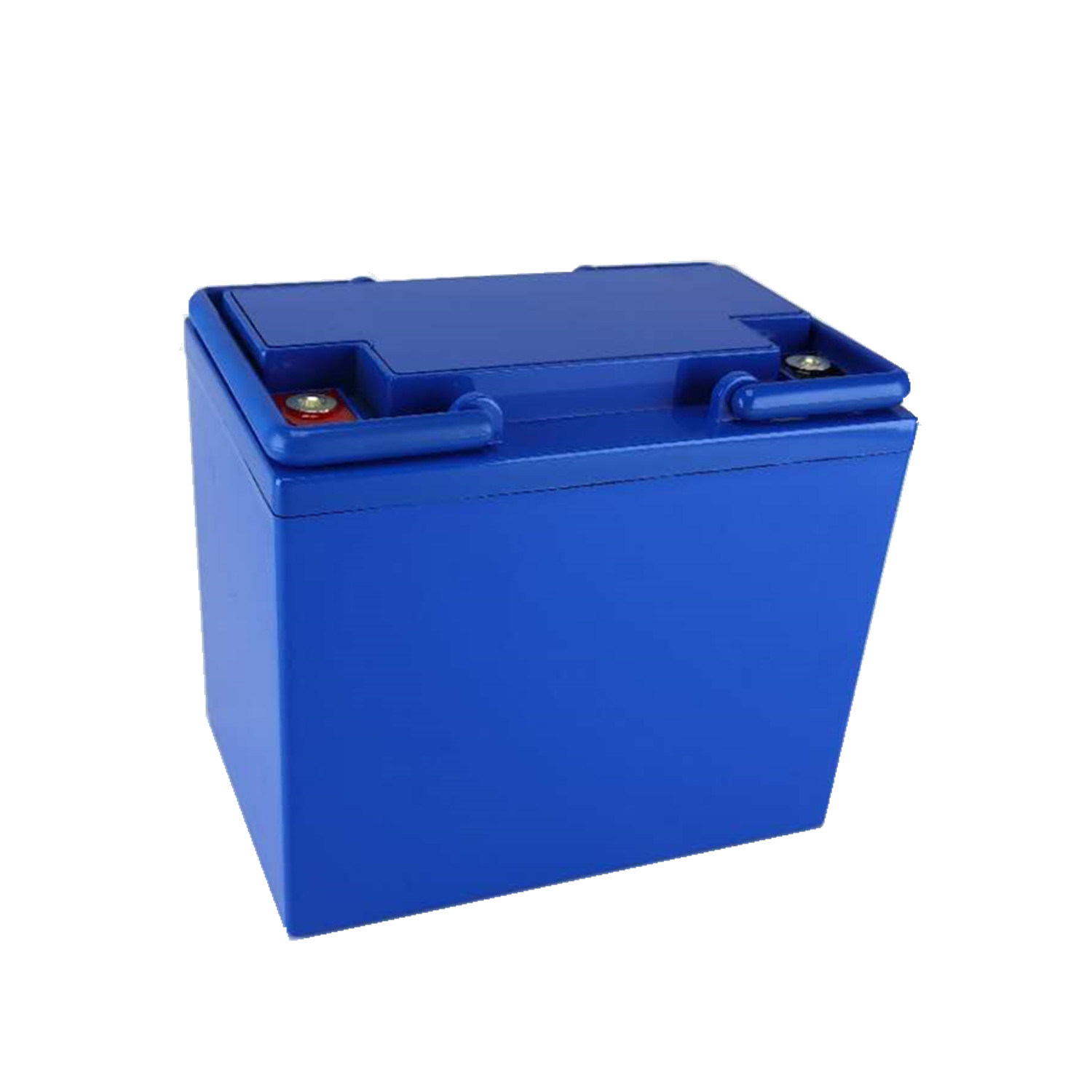

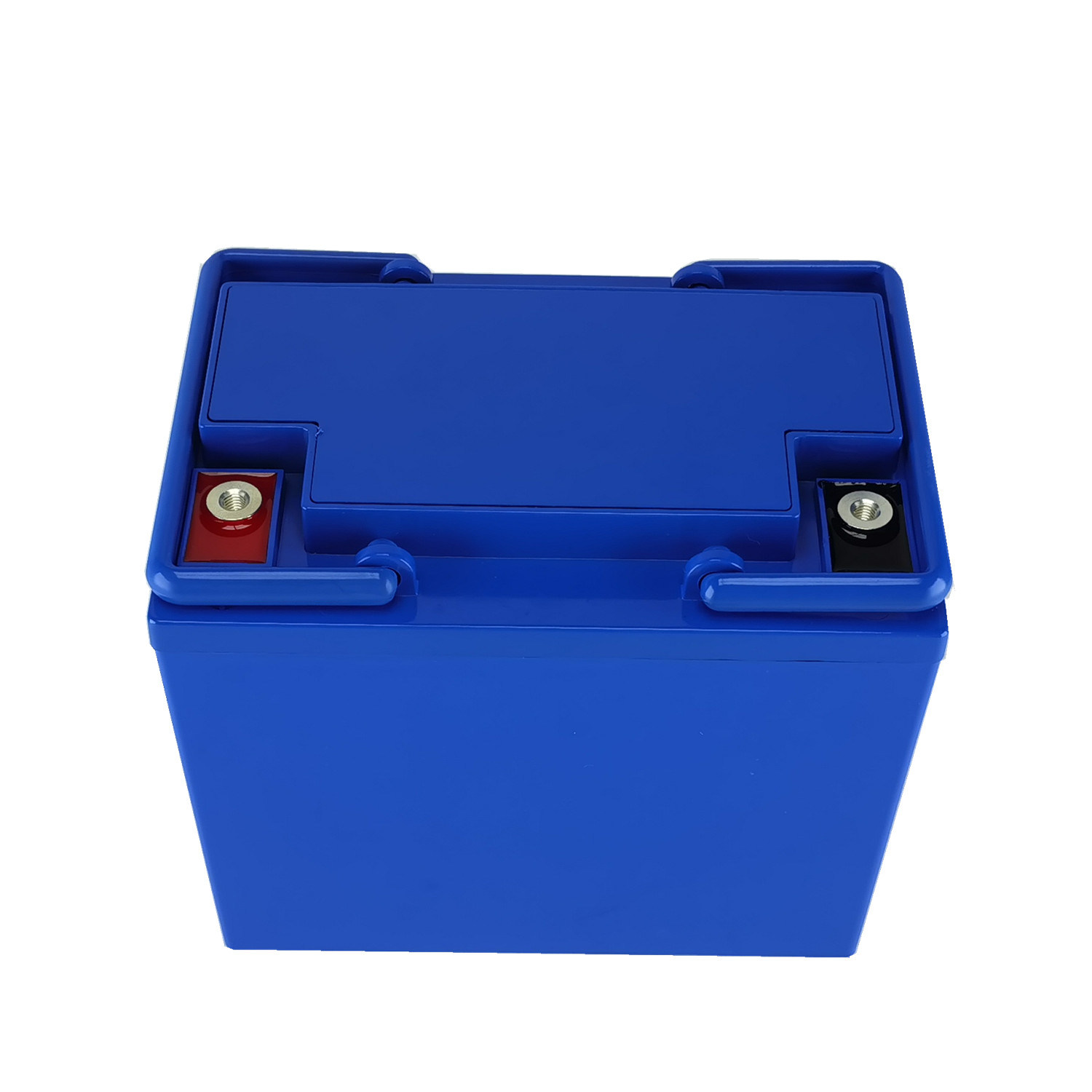

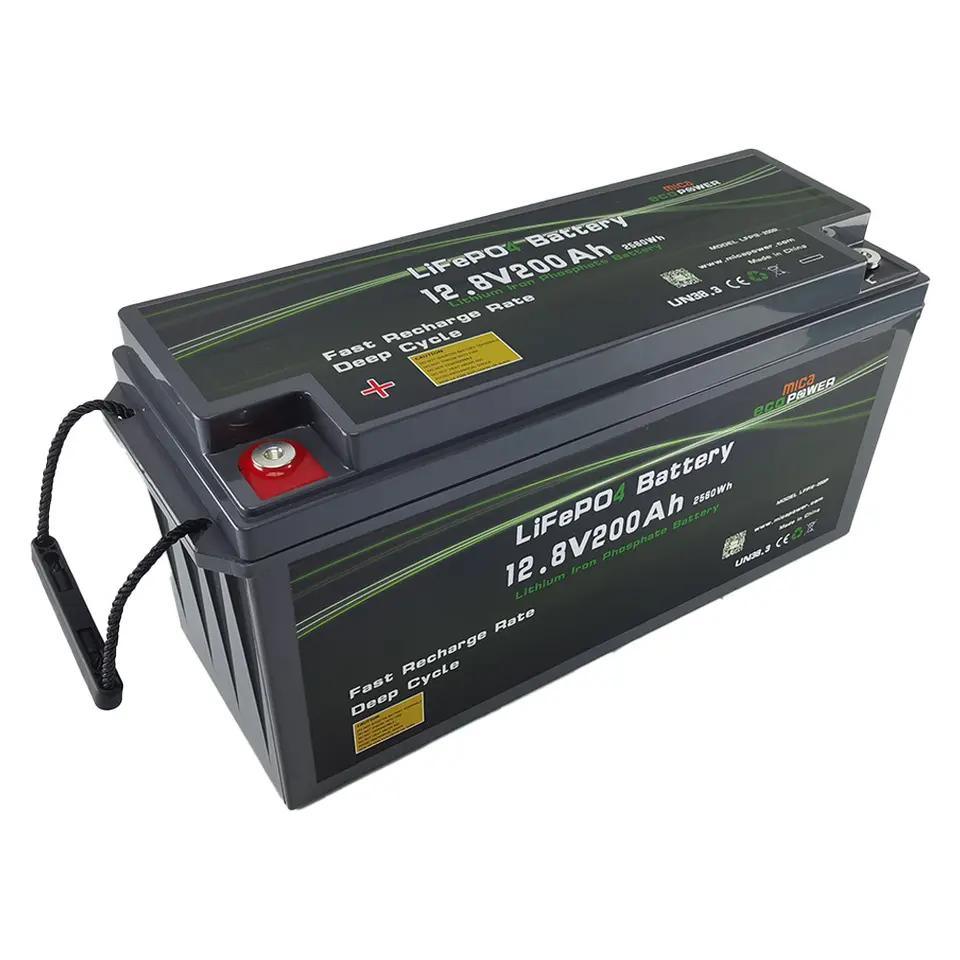

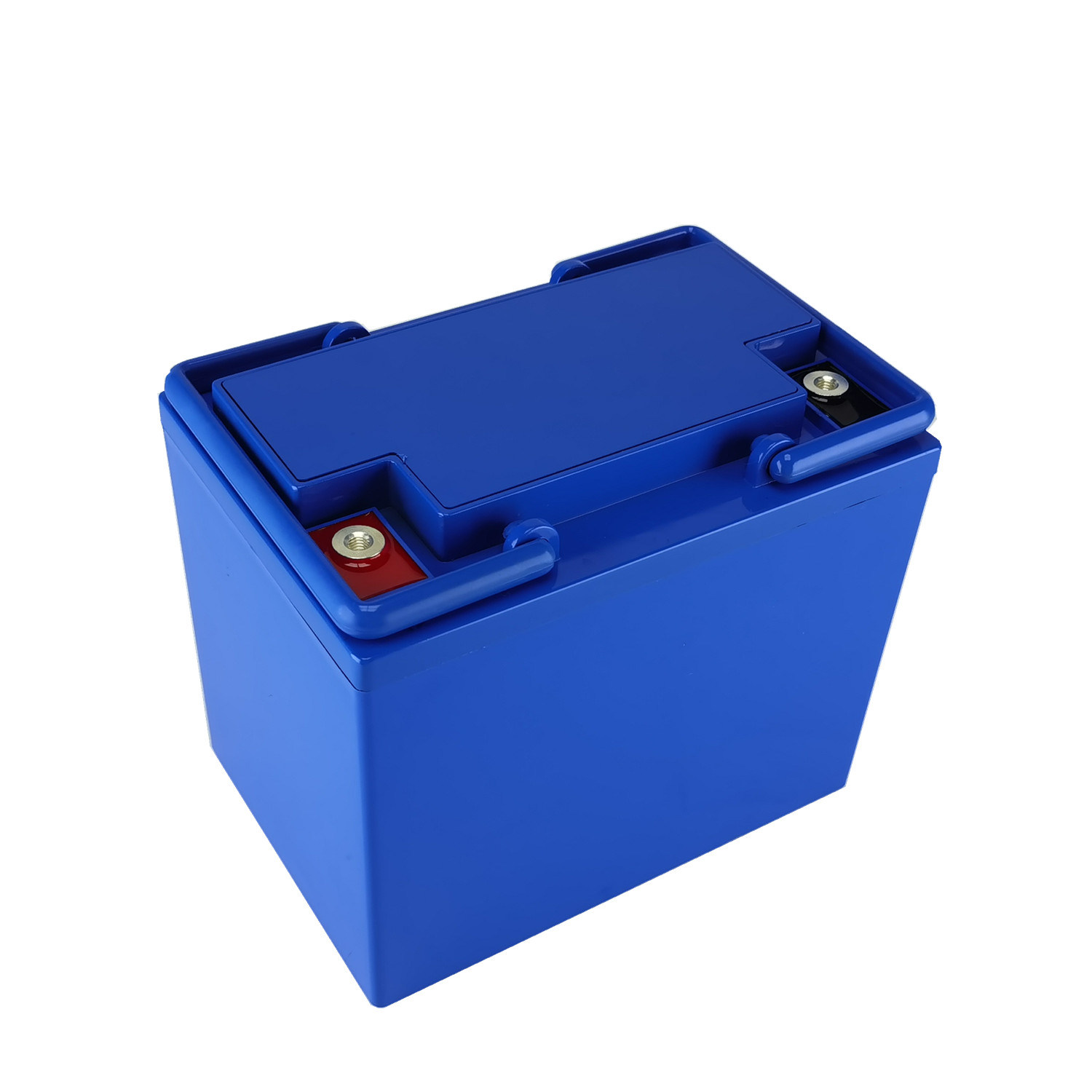

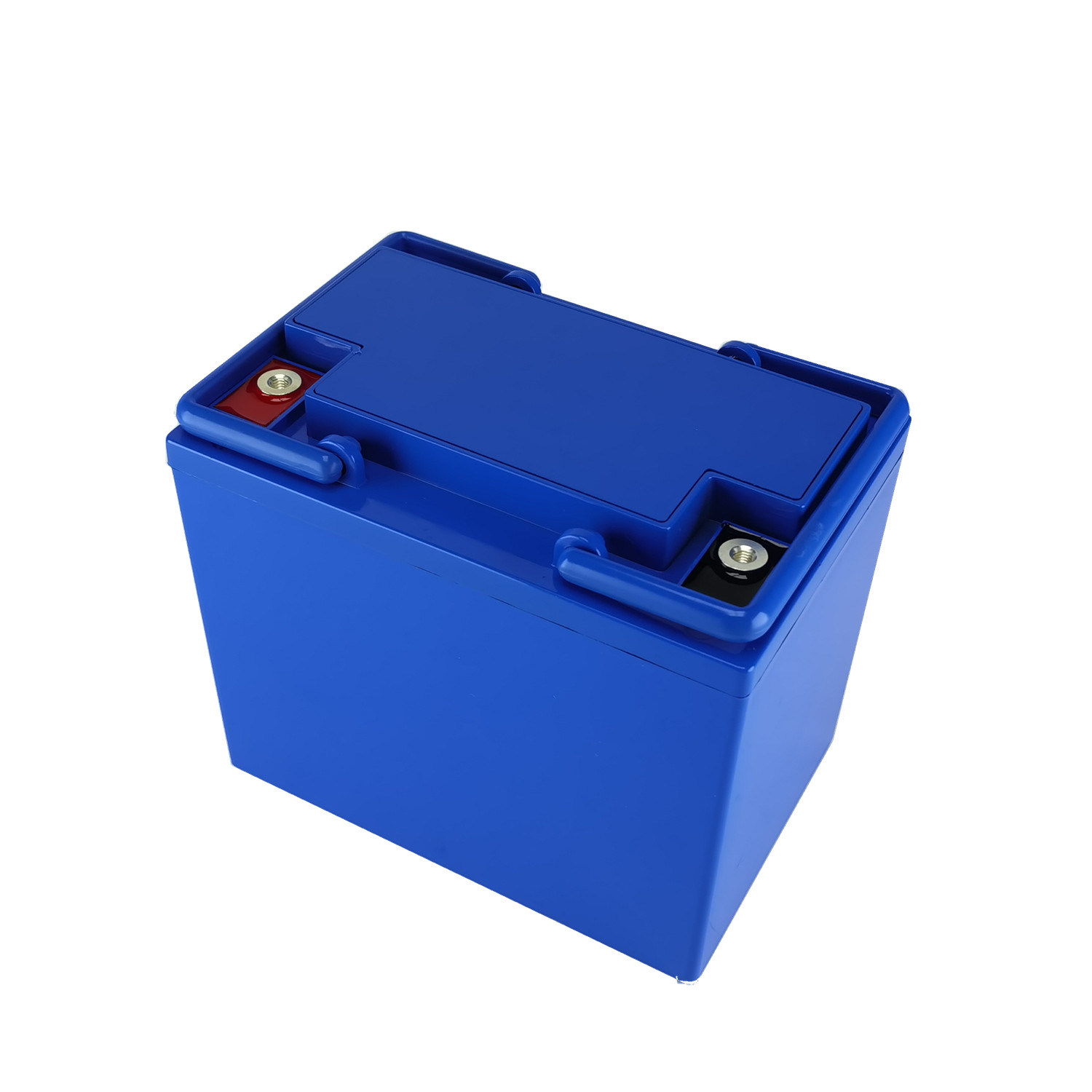

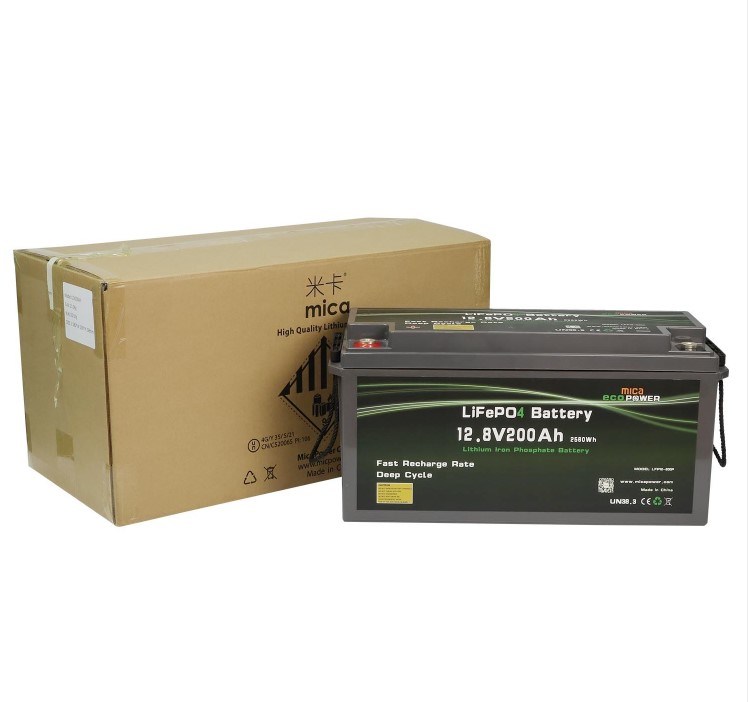

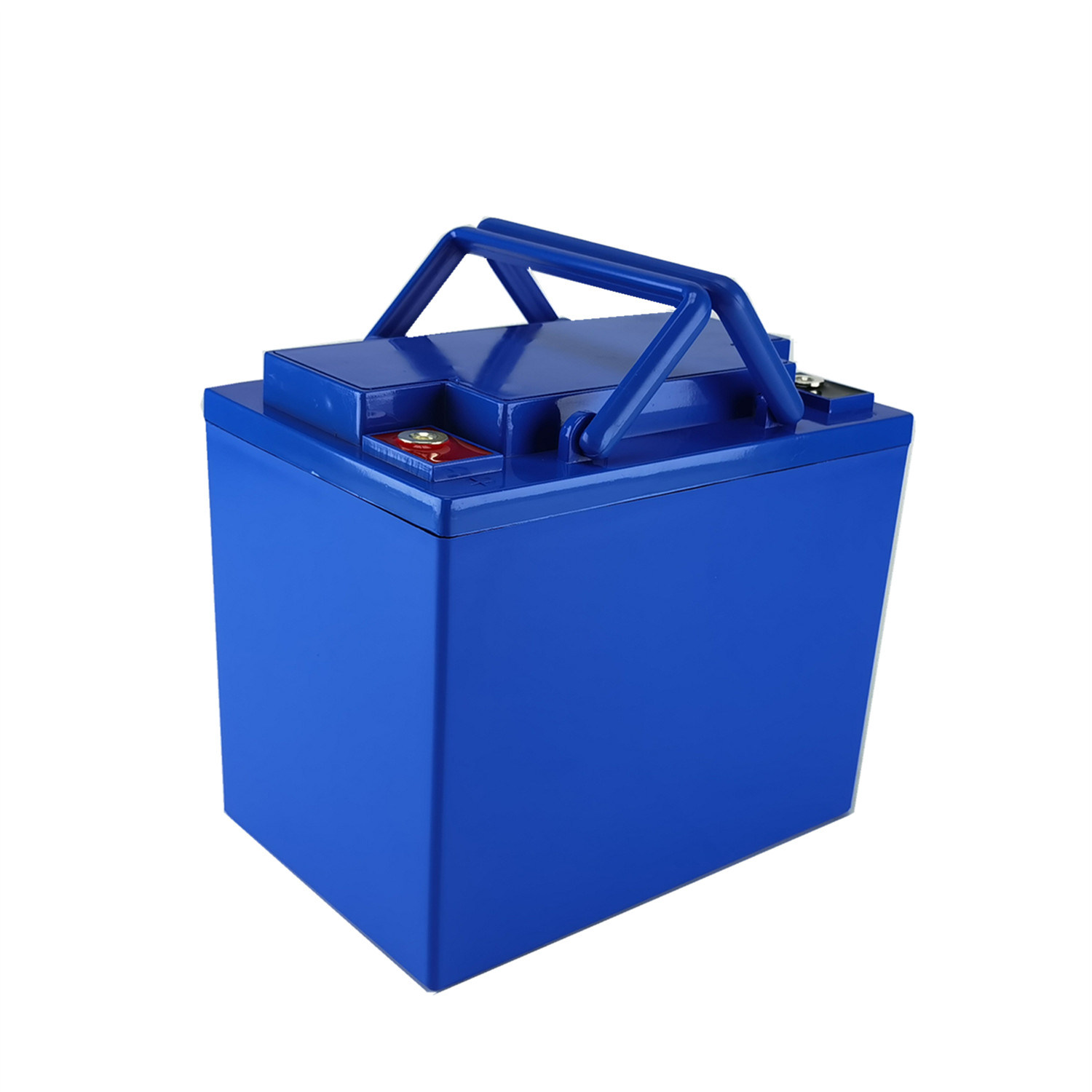

Factory 12V/12.8V 100ah/150ah/200ah 3000 Cycle Life LiFePO4 Battery Lithium Battery Pack

Type:
Lithium-Ion Battery Pack
Connection Mode:
Series and Parallel
Rechargeable:
Chargeable

Availability:



Inquire Add to Basket

Product Description

Technical Specification

Suitable for energy storage use. High efficiency, long life and high reliability;
High precision voltage sample;

Protection functions:

Over and under voltage protection of entire pack and single cell
Charge and discharge over current protection
Charge and discharge over or under temperature protection
Short circuit protection

General Information
Battery Type	LiFePO4(Lithium Iron Phosphate)
Nominal Voltage	12.8V
Nominal Capacity	100Ah 25ºC,C10
Nominal Energy	1280Wh 25ºC,C10
Operation Voltage	10.4~14.6V
Operation Temperature	Charge: 0°C - 55°C \| Discharge: -20°C - 60°C
Cycle Life 100%DOD	>3000 cycles (1280Wh 25ºC,C10)
Cycle Life 80%DOD	>4000 cycles (1024Wh 25ºC,C10)
Cycle Life 50%DOD	>6000 cycles (640Wh 25ºC,C10)
Dimension	338 x 170 x 215mm (W x D x H)
Terminal Type	M6
Weight	~13 kg
Warranty Period	5 years
Environment Protection	IP65
OEM ODM	Acceptable
Warranty	5 Years

BMS/Charge/Discharge
Charge Voltage Max	14.6V
Discharge Cut-off Voltage	10.4V
Charge Current Max	100A
Discharge Current Max	100A continues
Self-discharge Rate	<2% per month
Protection	Over-charge protection Over-discharge protection Over current protection Cell balancing function Cell balancing function Over temperature protection

Customized logo

We can also customize your own logo

Why choose us?

More than 15 Years' Experience in Lithium Battery

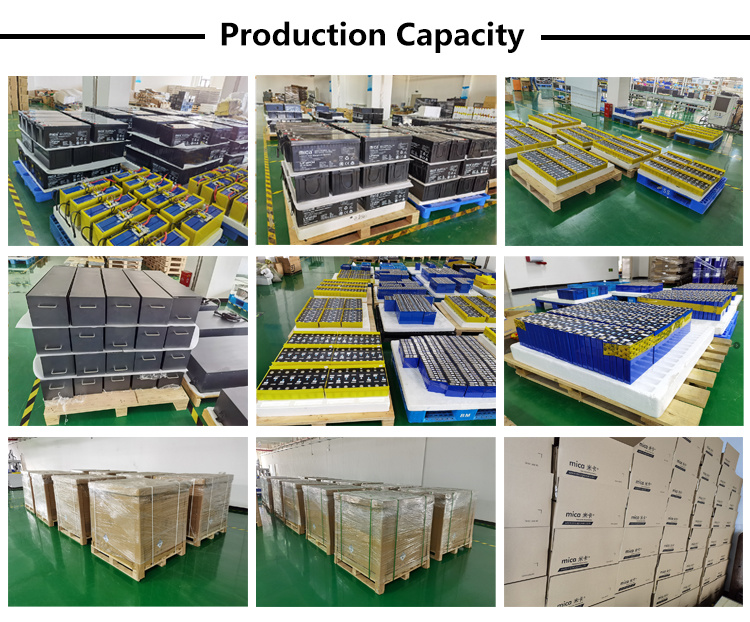

Mica Power Co. Ltd was established in 2009. Our management team has more than 15 years' experience in rechargeable battery. Our factory covers an area of 15,000 square meters and has more than 500 employees.

Benefit From Our Advantages
Backed by professional supporting team, we have expertise in R&D, OEM production and marketing. With the support of a professional and dedicated engineering and operation team, we are available to bringing customers' idea into reality. Flexible to customized request, such as sound adjusted, color, package, and accessories adjusted, so you can enjoy our quick one-stop OEM service.

Meeting Quality Standards
Our company has passed ISO 9001:2015 quality and BSCI system approval and our products have got the ROHS, CE, UL, IEC, UN38.3 certifications. The battery products have the advantages of high energy density, high power density, small volume, light weight,long service life, low self-discharge, flexible and varied shapes, safety performance and so on.
