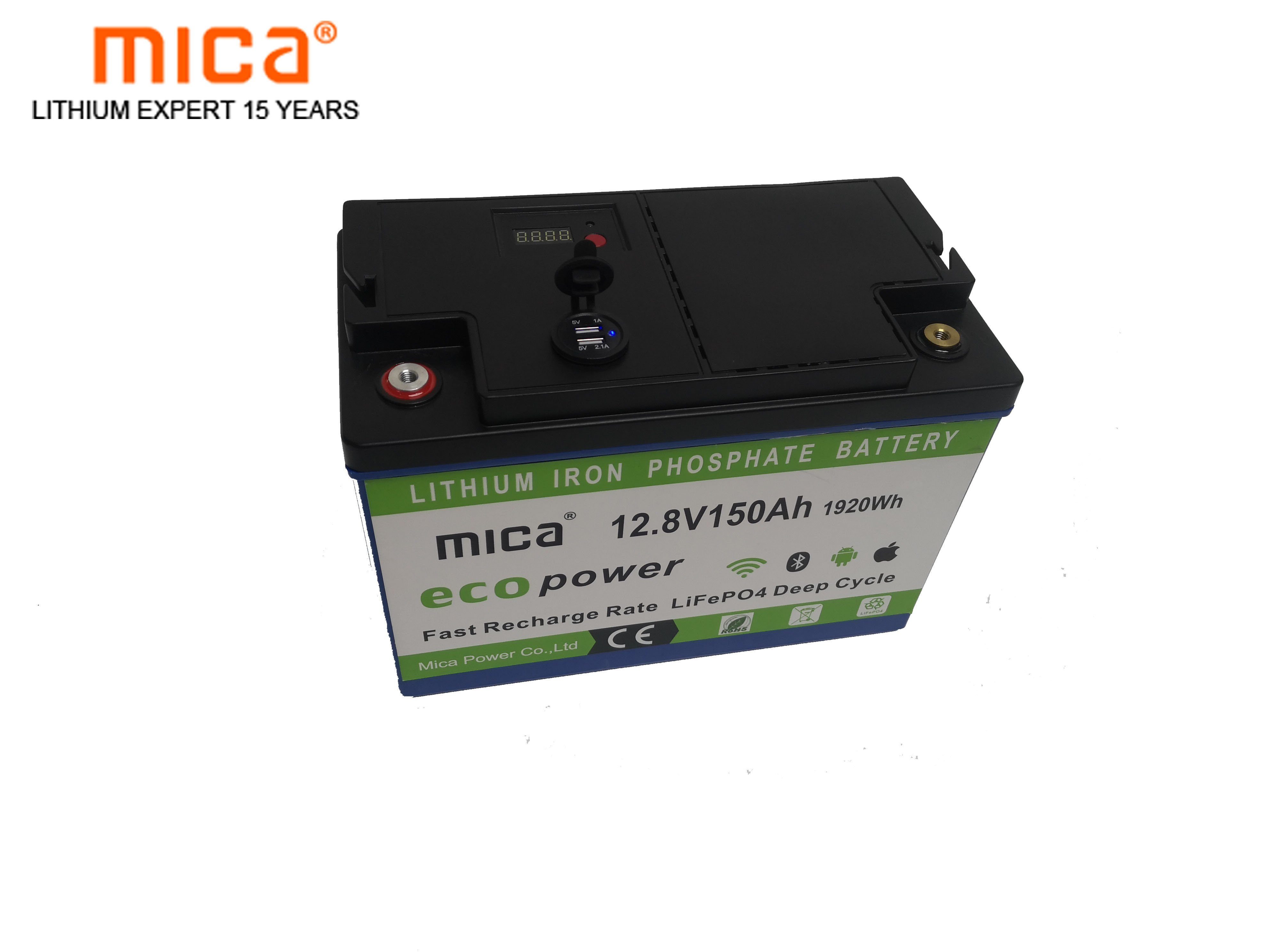

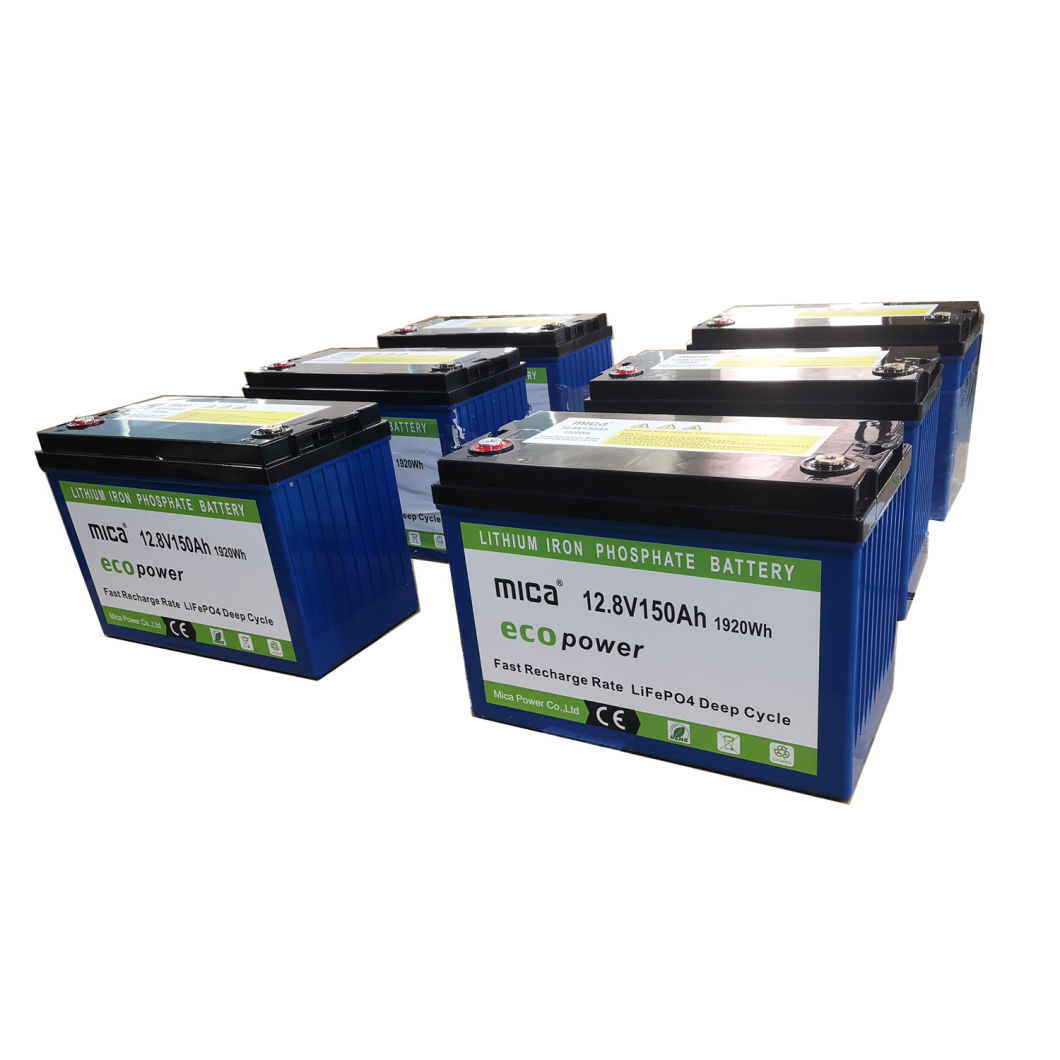

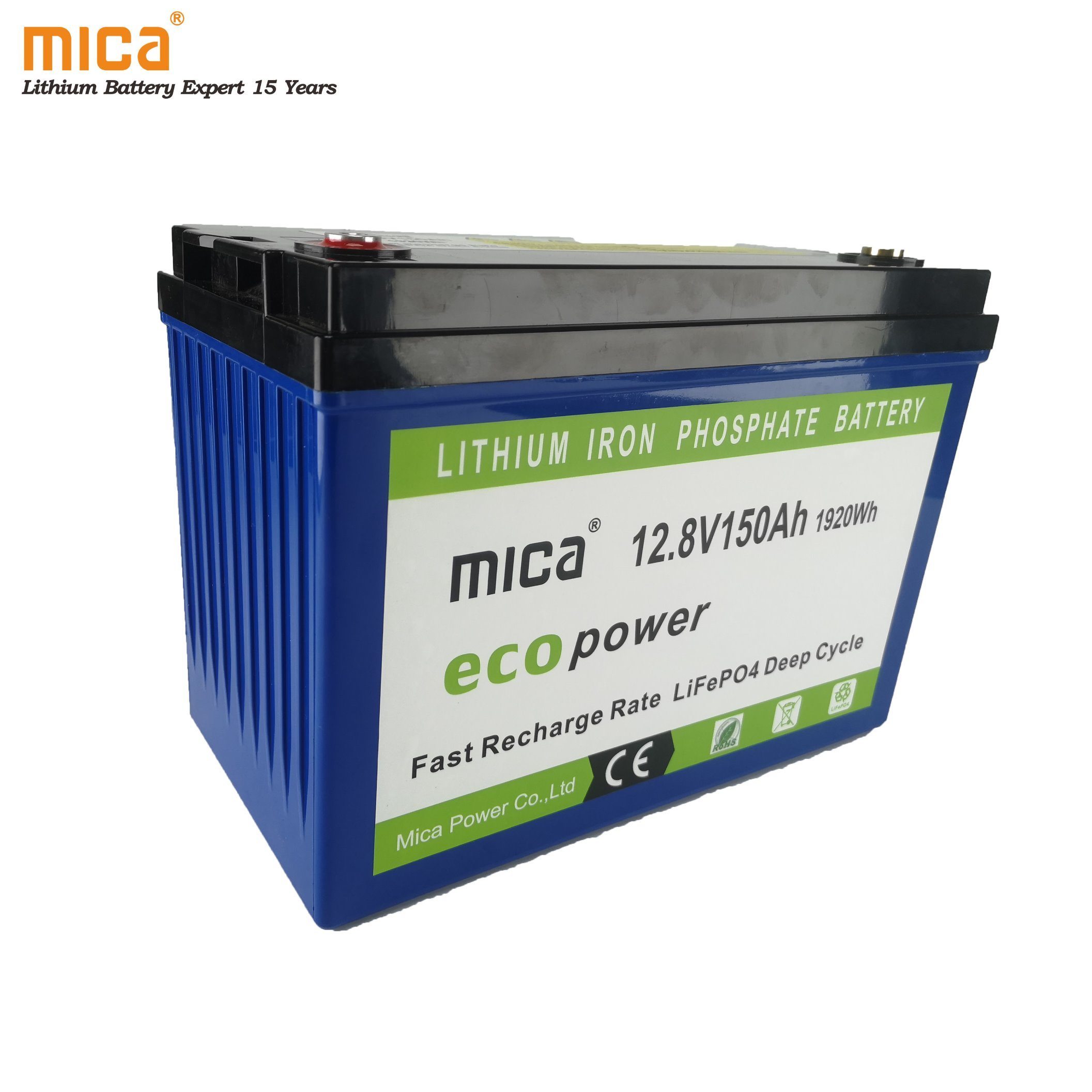

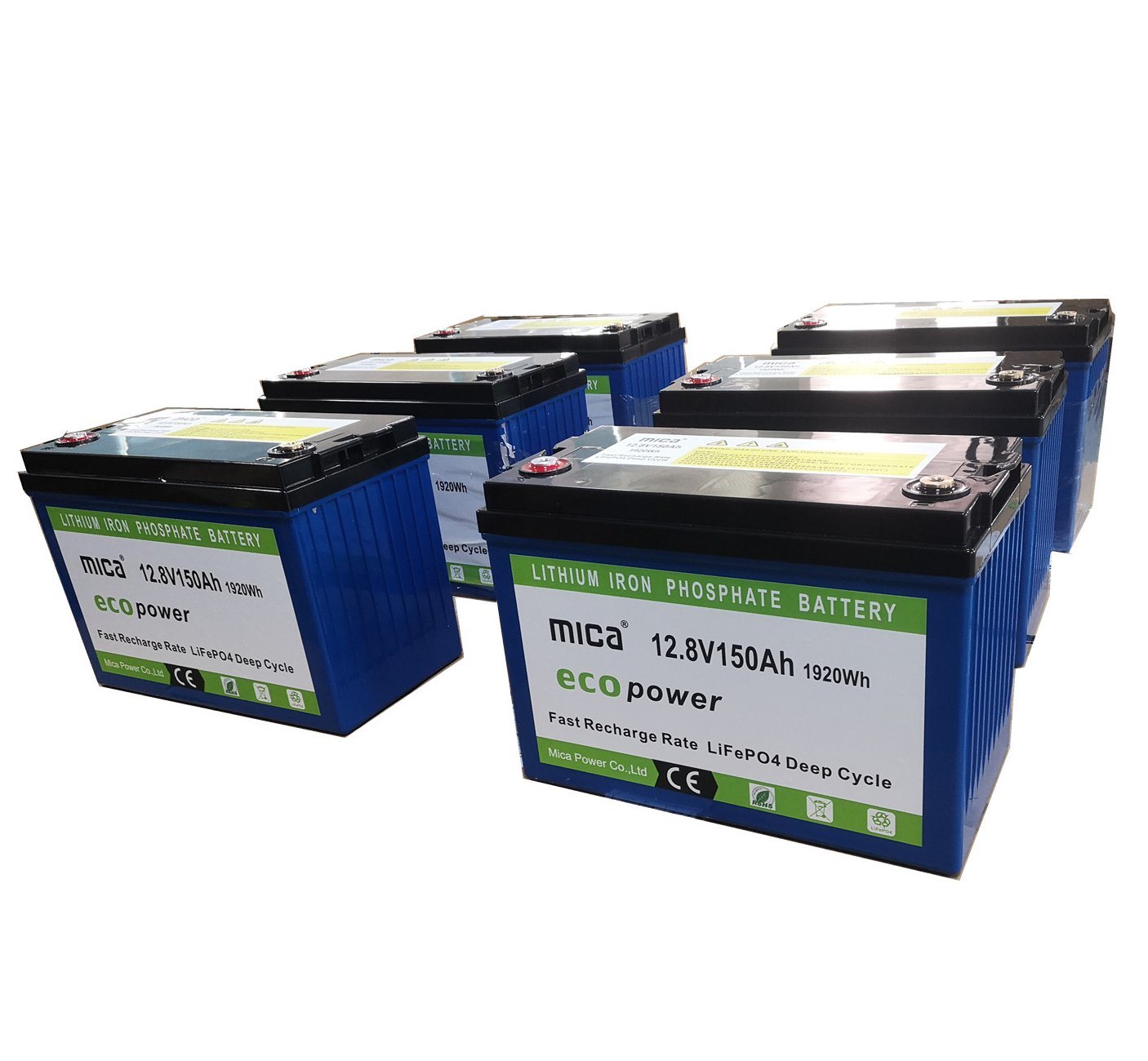

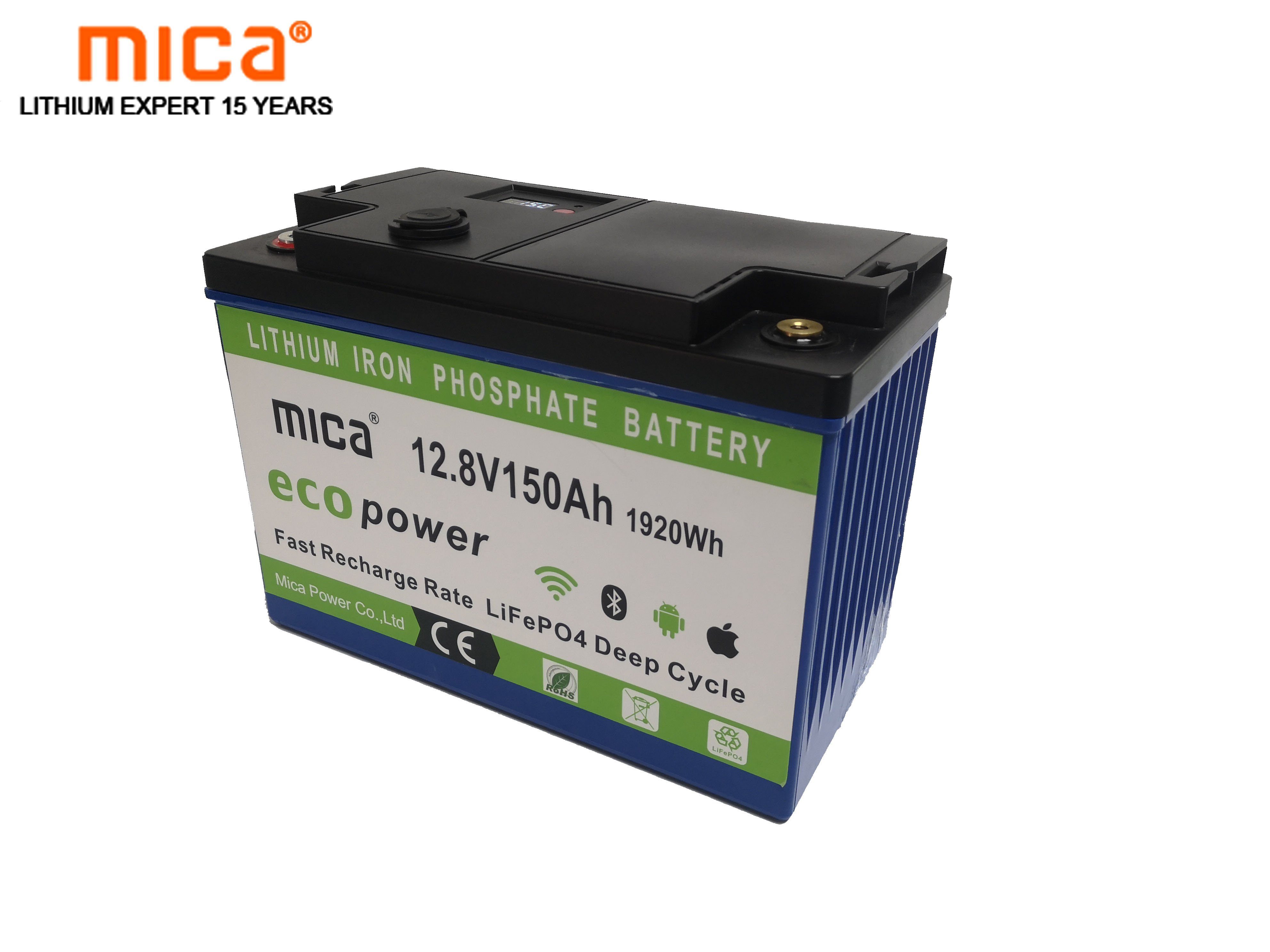

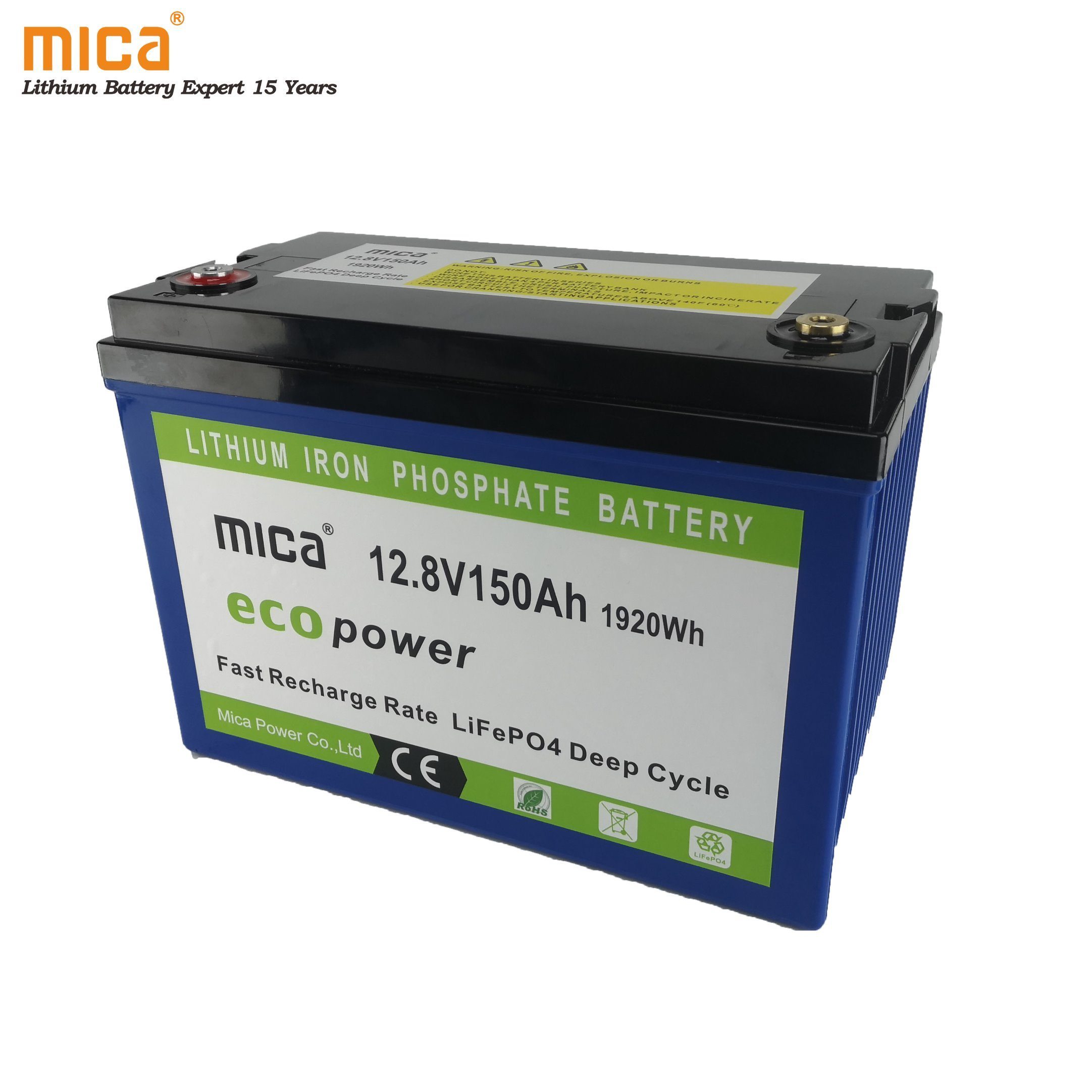

Lithium-Ion Battery Pack
Series and Parallel
Chargeable
Availability: | |
---|---|
Battery Type: | LiFePO4(Lithium Iron Phosphate) |
Nominal Voltage: | 12.8V |
Nominal Capacity: | 150Ah 25ºC,C10 |
Nominal Energy: | 1920Wh 25ºC,C10 |
Operation Voltage: | 10.4~14.4V |
Operation Temperature: | Charge: 0°C - 45°C | Discharge: -20°C - 60°C |
Dimension: | 327 x 172 x 238mm (W x D x H) |
Weight: | About 16KG |
Warranty Period: | 5 years |
Environment Protection: | IP56 |
Cycle Life 100%DOD: | >3000 cycles (1920Wh 25ºC,C10) |
Cycle Life 80%DOD: | >4000 cycles (1536Wh 25ºC,C10) |
Cycle Life 50%DOD: | >6000 cycles (960Wh 25ºC,C10) |
Charge Voltage Max: | 14.4V |
Charge Current Max: | 50A |
Discharge Current Max: | 100A continues, 200A burst (10seconds) |
Protection | Over-charge protection |
Over-discharge protection | |
Over current protection | |
Cell balancing function | |
Over temperature protection |
More than 15 Years' Experience in Lithium Battery
Mica Power Co. Ltd was established in 2009. Our management team has more than 15 years' experience in rechargeable battery. Our factory covers an area of 15,000 square meters and has more than 500 employees.
