24V, 25.6V
150ah
UL1642 / IEC62133 / RoHS / CE / FCC
35kg
10A
20A(20s)

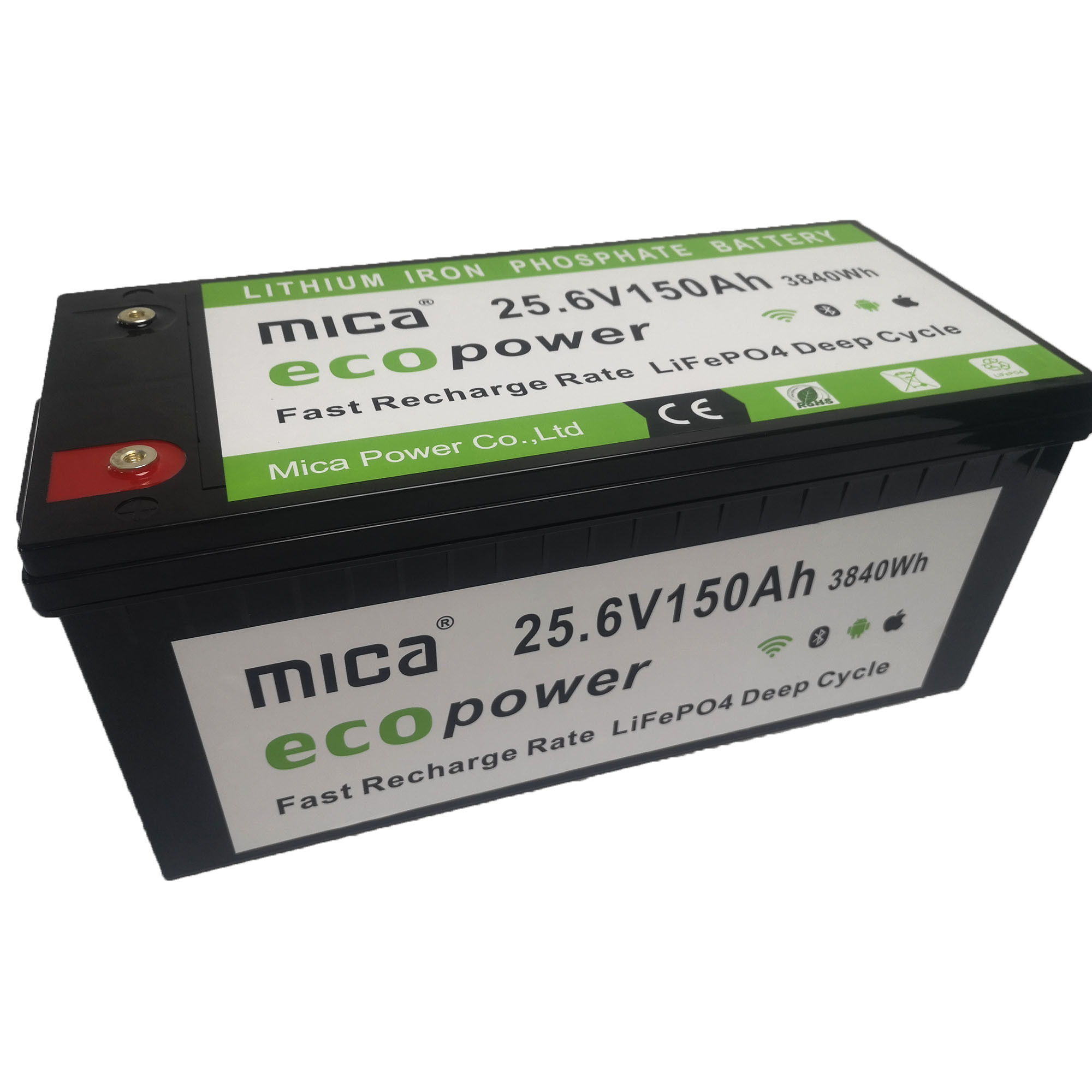

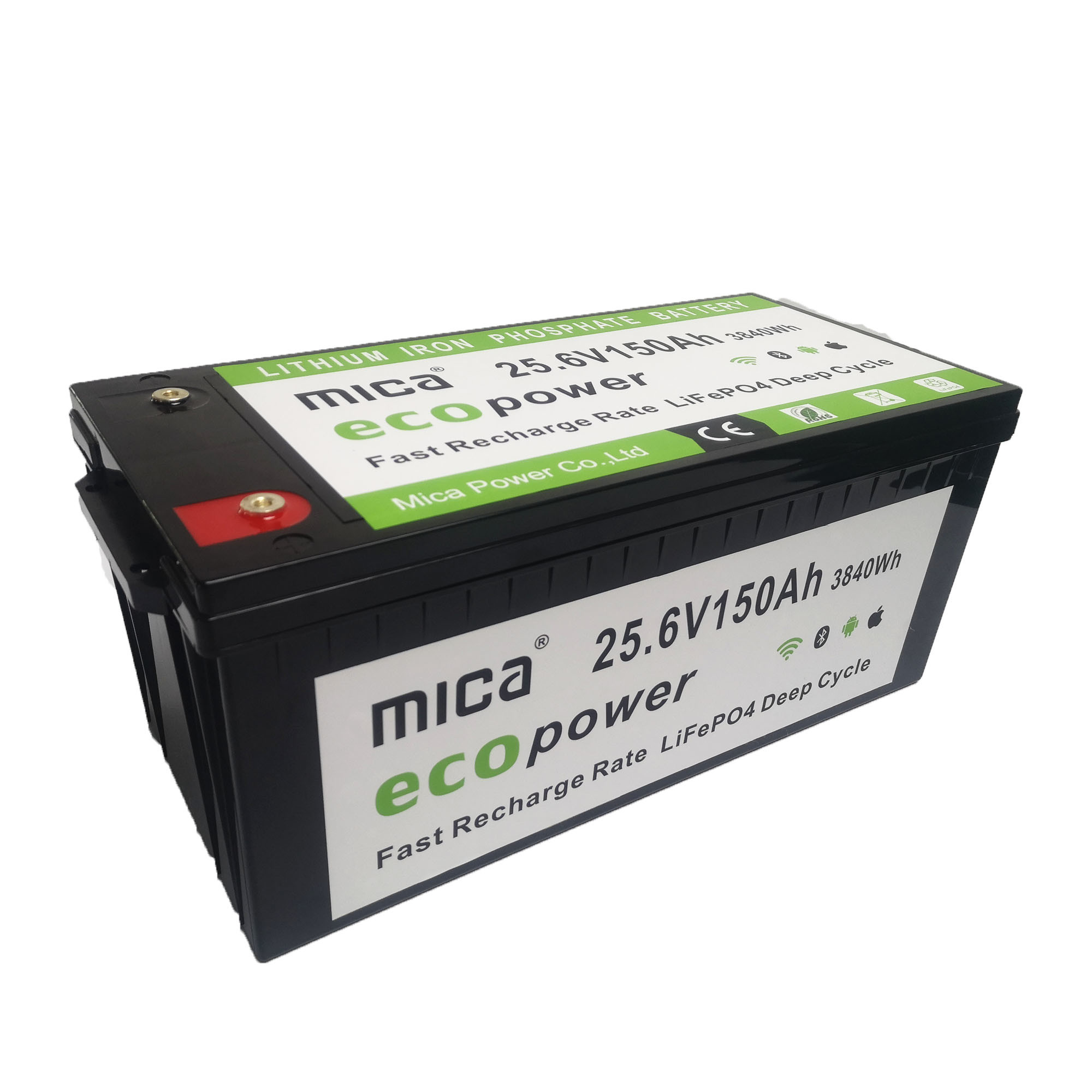

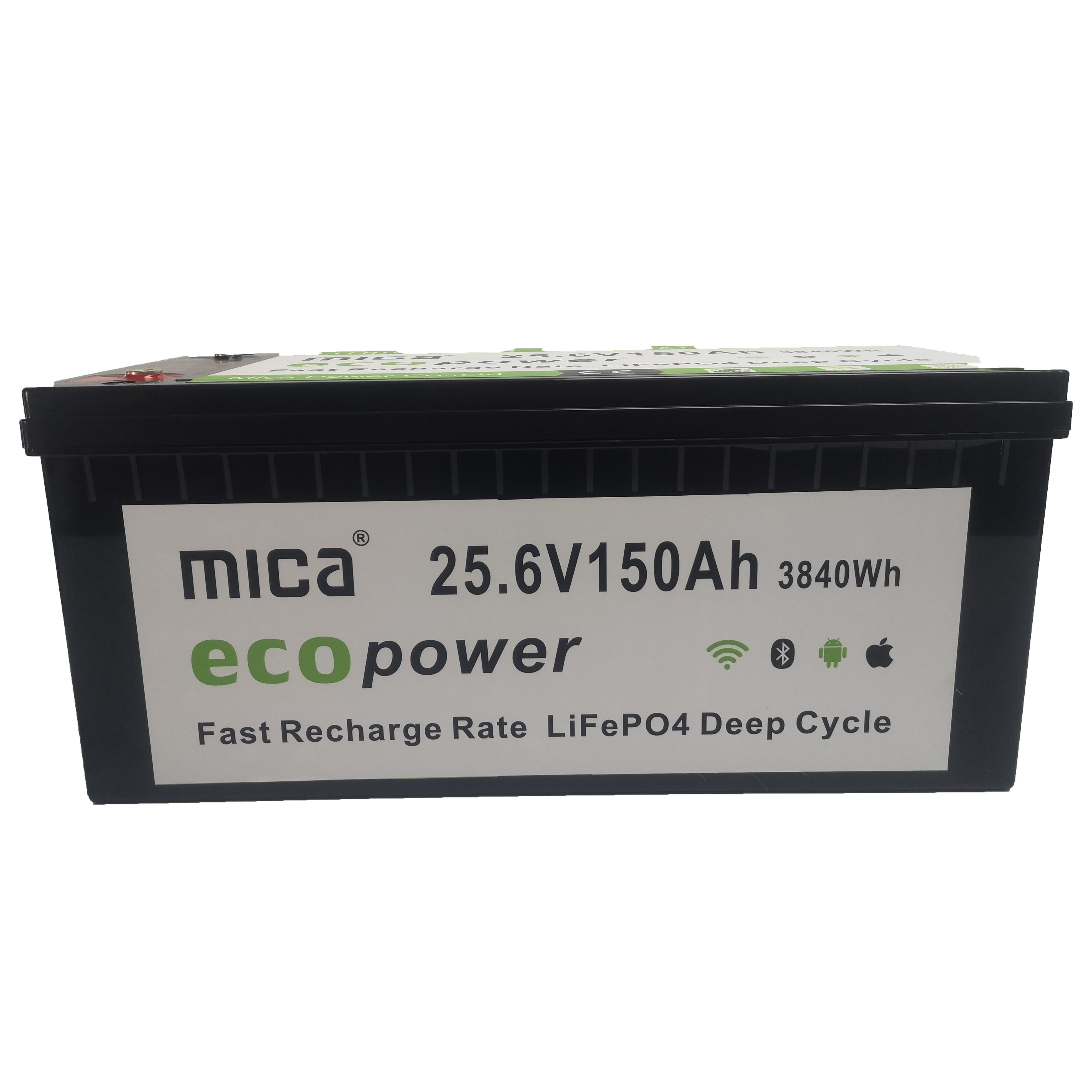

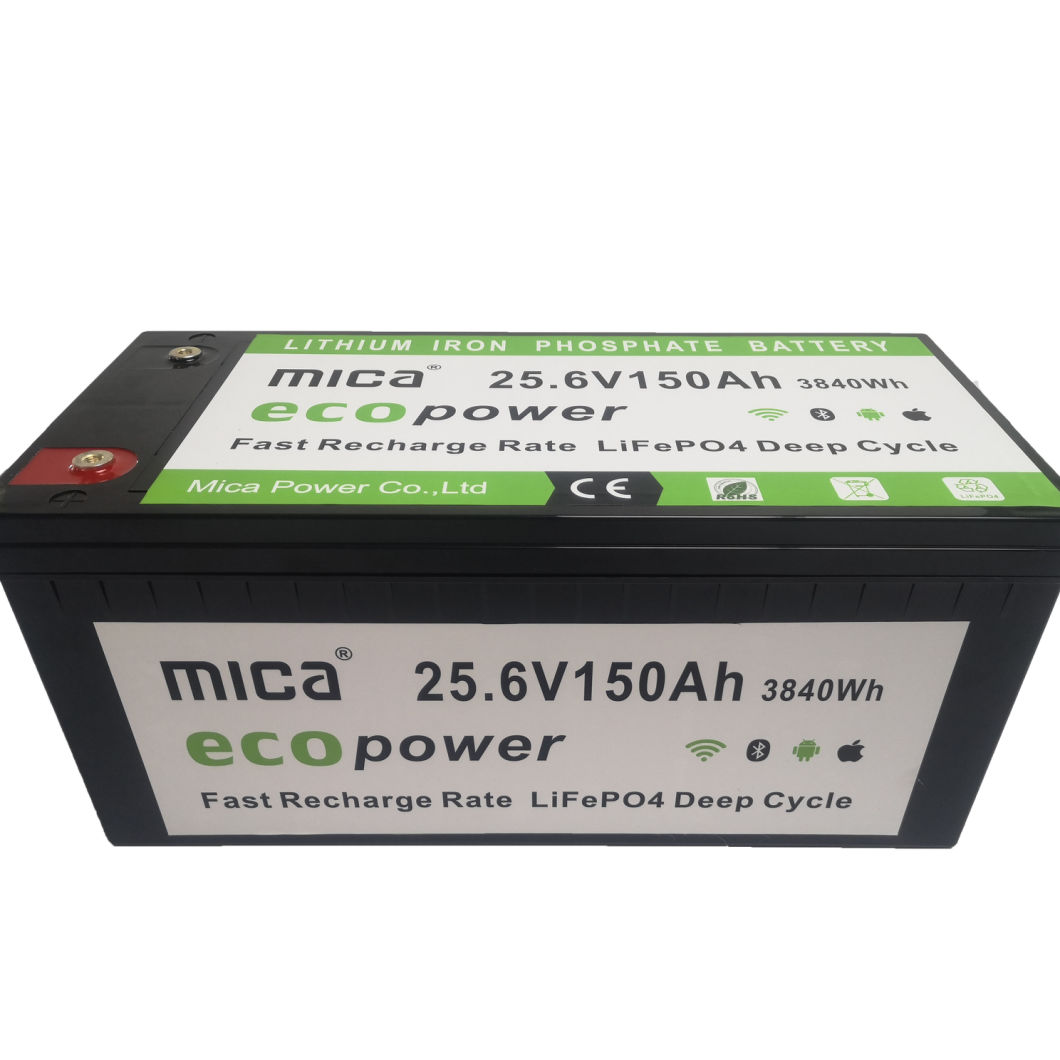

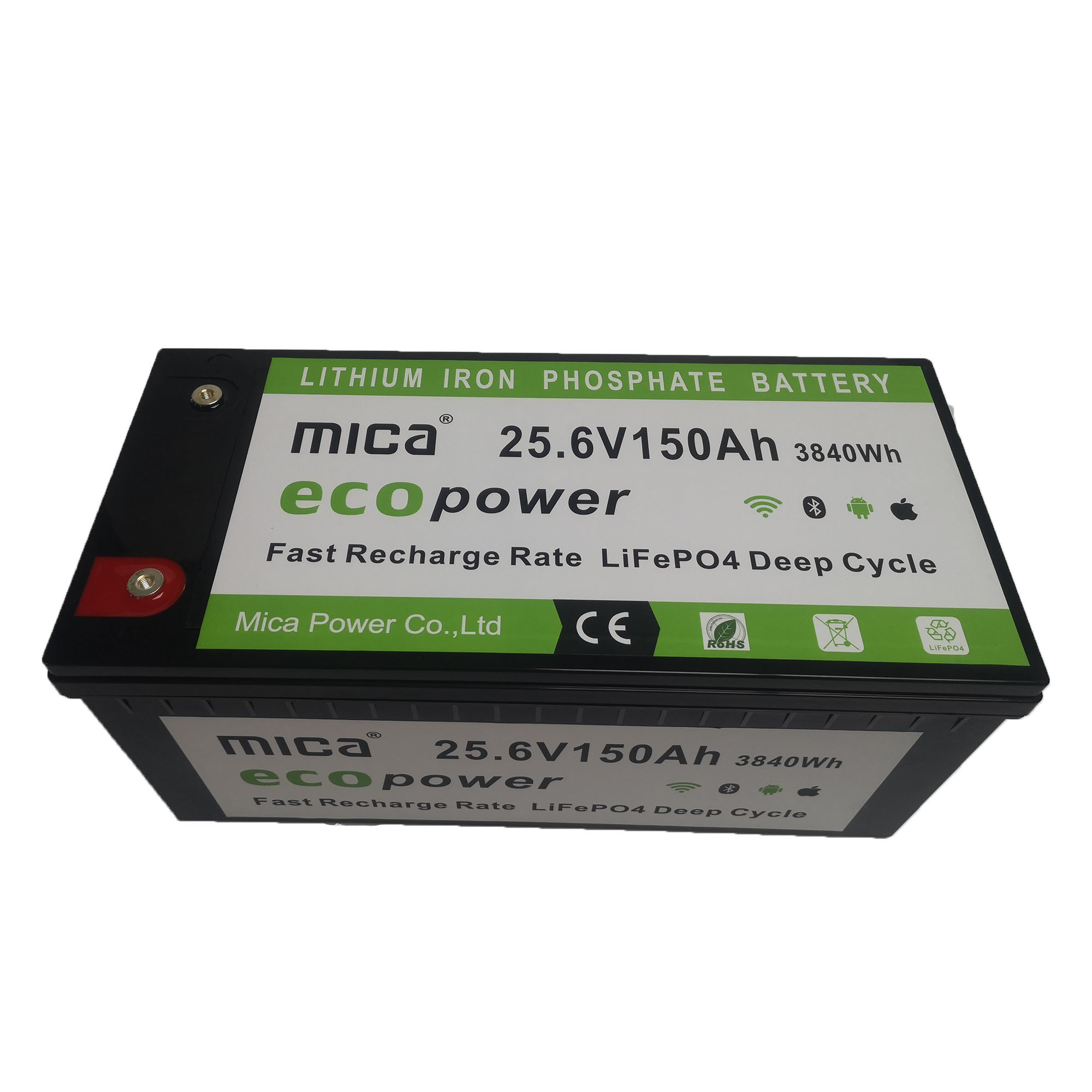

| General Information | |
| Battery Type | LiFePO4(Lithium Iron Phosphate) |
| Nominal Voltage | 25.6V |
| Nominal Capacity | 150Ah25ºC,C10 |
| Nominal Energy | 3840Wh25ºC,C10 |
| Operation Voltage | 20~29.2V |
| Operation Temperature | Charge: 0°C - 45°C | Discharge: -20°C - 60°C |
| Cycle Life | >3000 cycles (3840Wh25ºC,C10) |
| Dimension | 522 x 238 x 222mm (W x D x H) |
| Terminal Type | M8 |
| Weight | ~35 kg |
| Warranty Period | 5 years |
| Environment Protection | IP56 |
| OEM/ODM | Acceptable |
| Warranty | 5 Years |
| BMS/Charge/Discharge | |
| Charge Voltage Max | 29.2V |
| Discharge Cut-off Voltage | 20V |
| Charge Current Max | 100A |
| Discharge Current Max | 100A continues 200A burst (10seconds) |
| Self-discharge Rate | <2% per month |
| Protection | Over-charge protection Over-discharge protection Over current protection Cell balancing function Over temperature protection |
Technical Specification
Suitable for energy storage use. High efficiency, long life and high reliability;
High precision voltage sample;
Protection functions:
Q1: Can we get samples for test?
A: Yes, we can supply samples, and buyer pay for sample cost and shipping cost.
Q2: What is the MOQ ?
A: LiFepo4 battery is 50pcs/100pcs. Li ion battery is 2000pcs/3000pcs. More quantity has better price.
Q3: Can you accept OEM and ODM Service?
A: Yes, it's available.
Q4: What about the lead time?
A: Sample needs ~2wks , mass production time needs 2wks-4wks.
Q5: How do I track my shipment?
A: After we deliver your goods, we will send you the tracking No. once your goods has been shipped.
