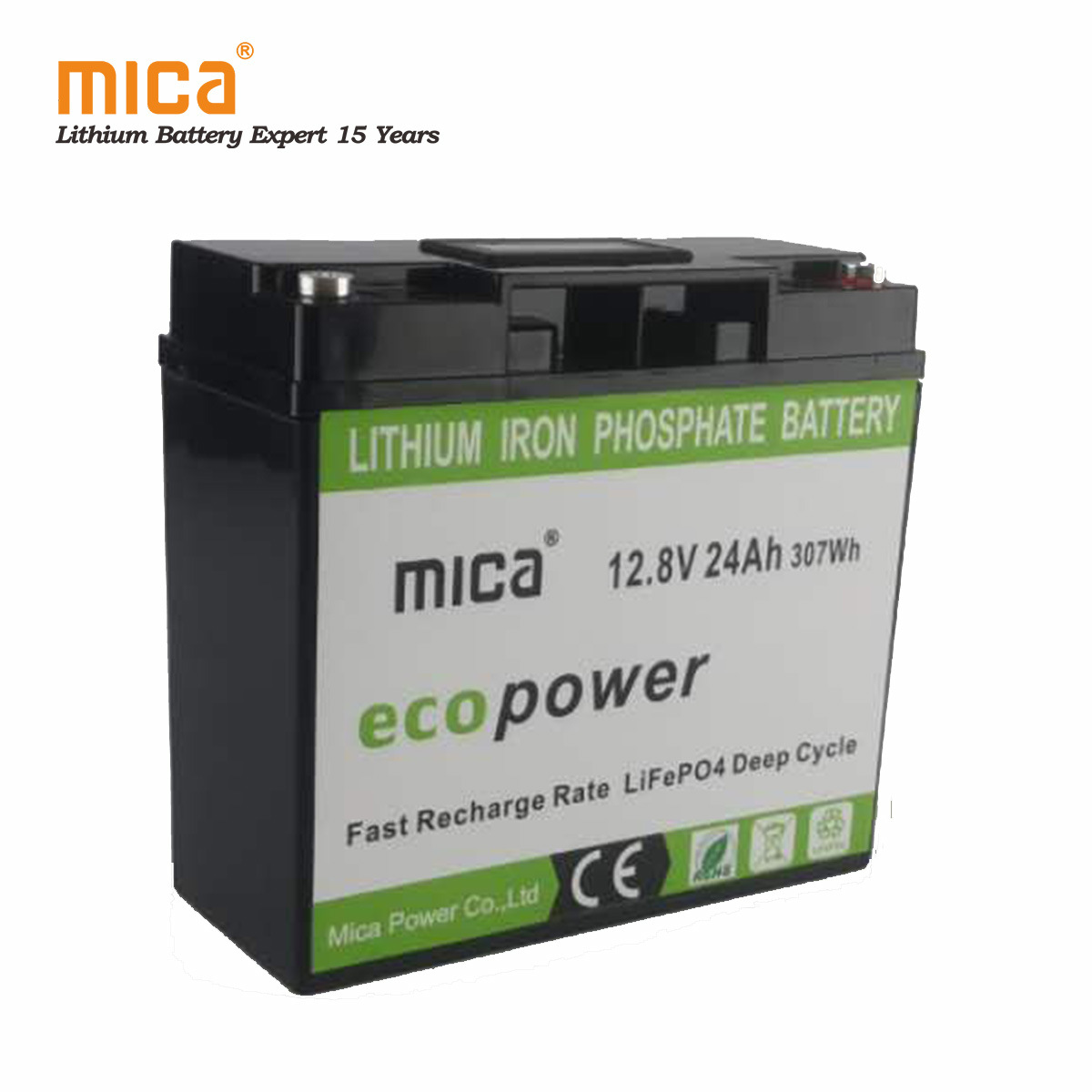

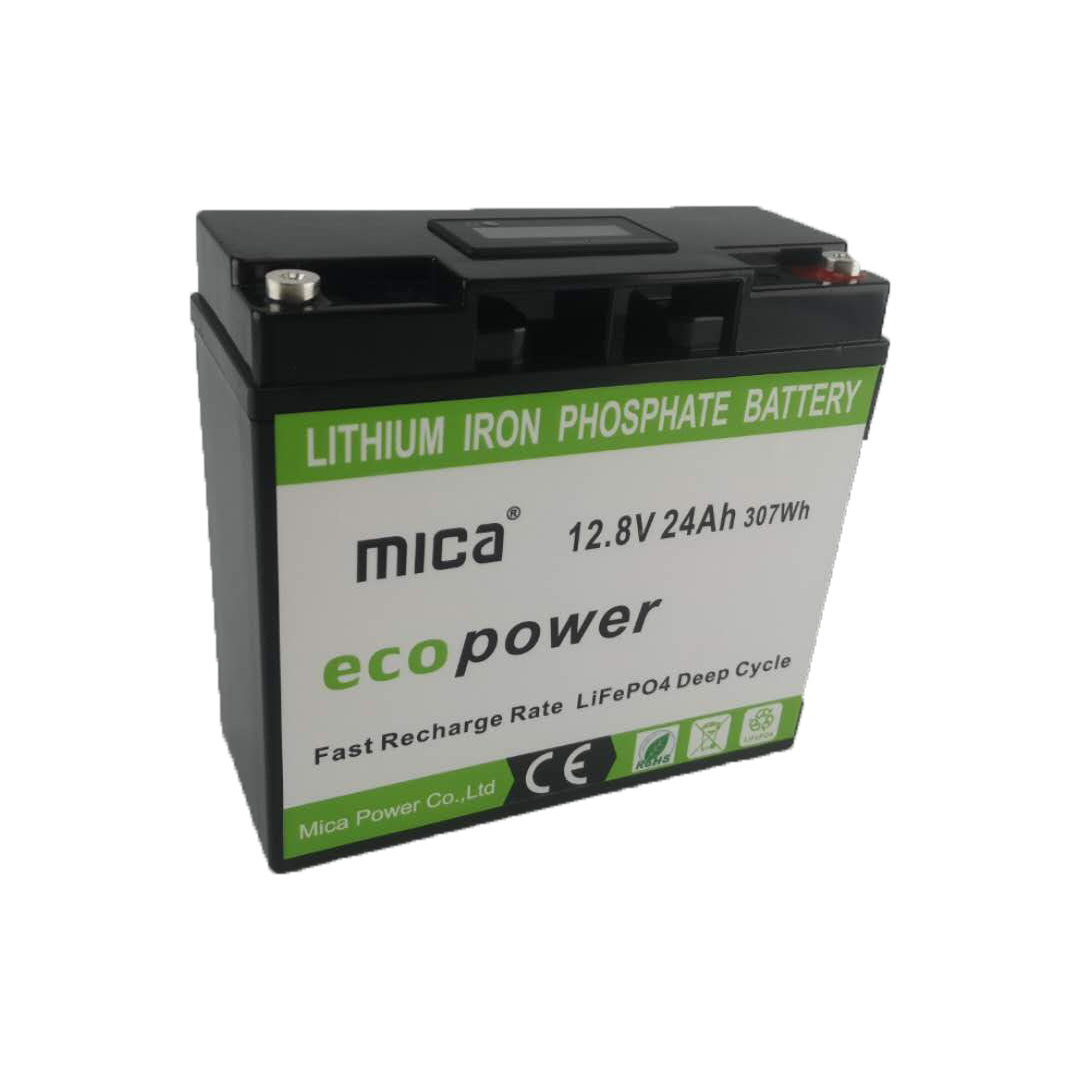

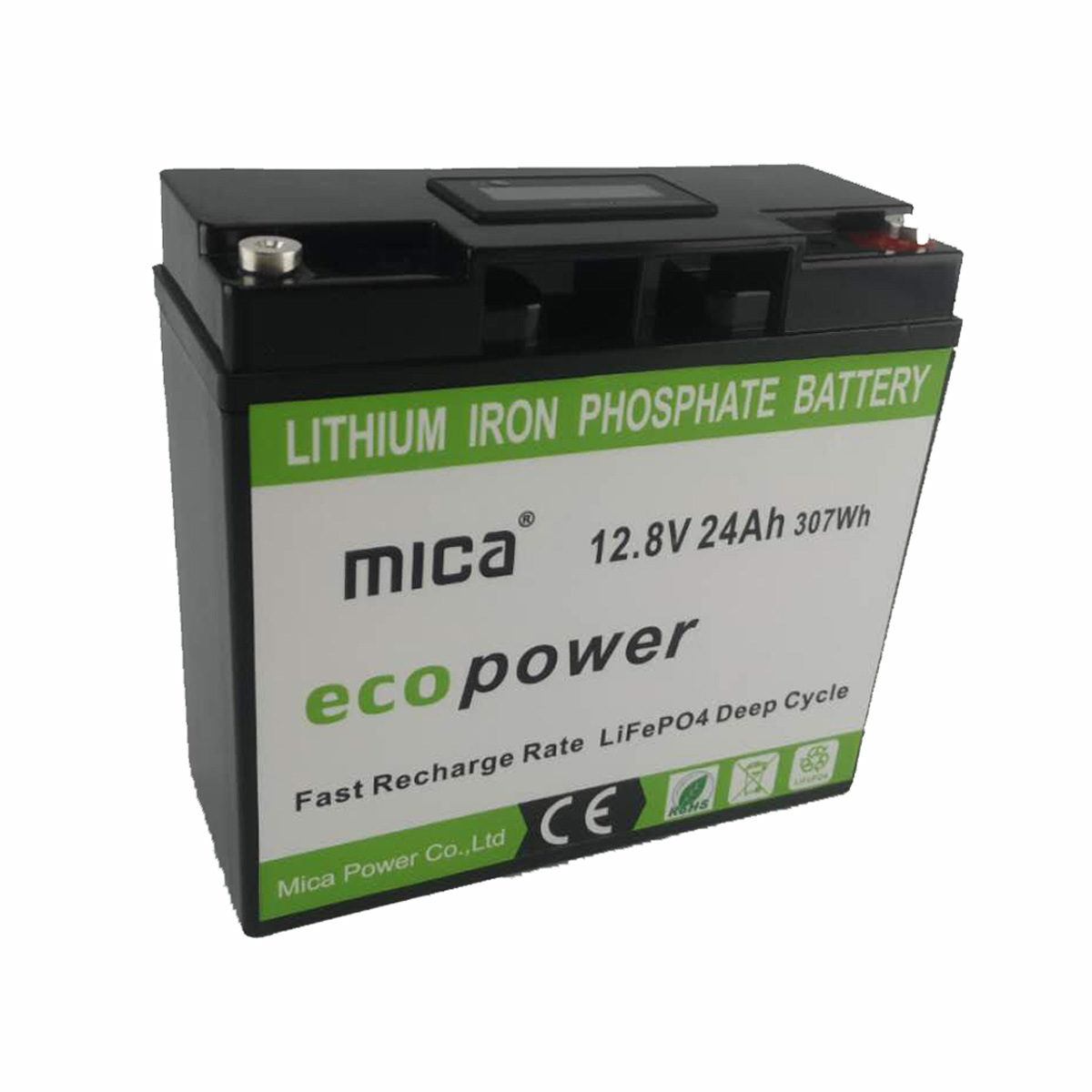

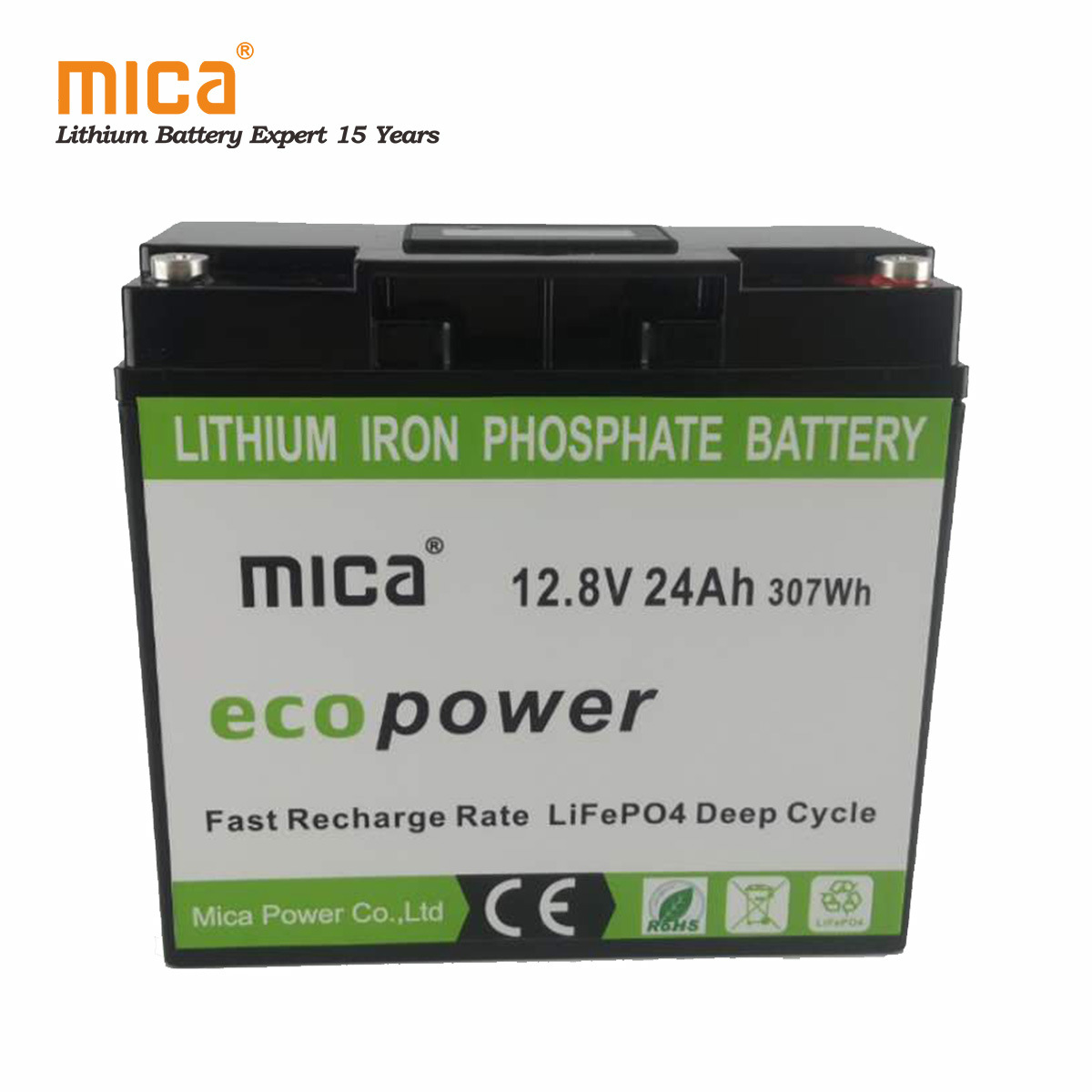

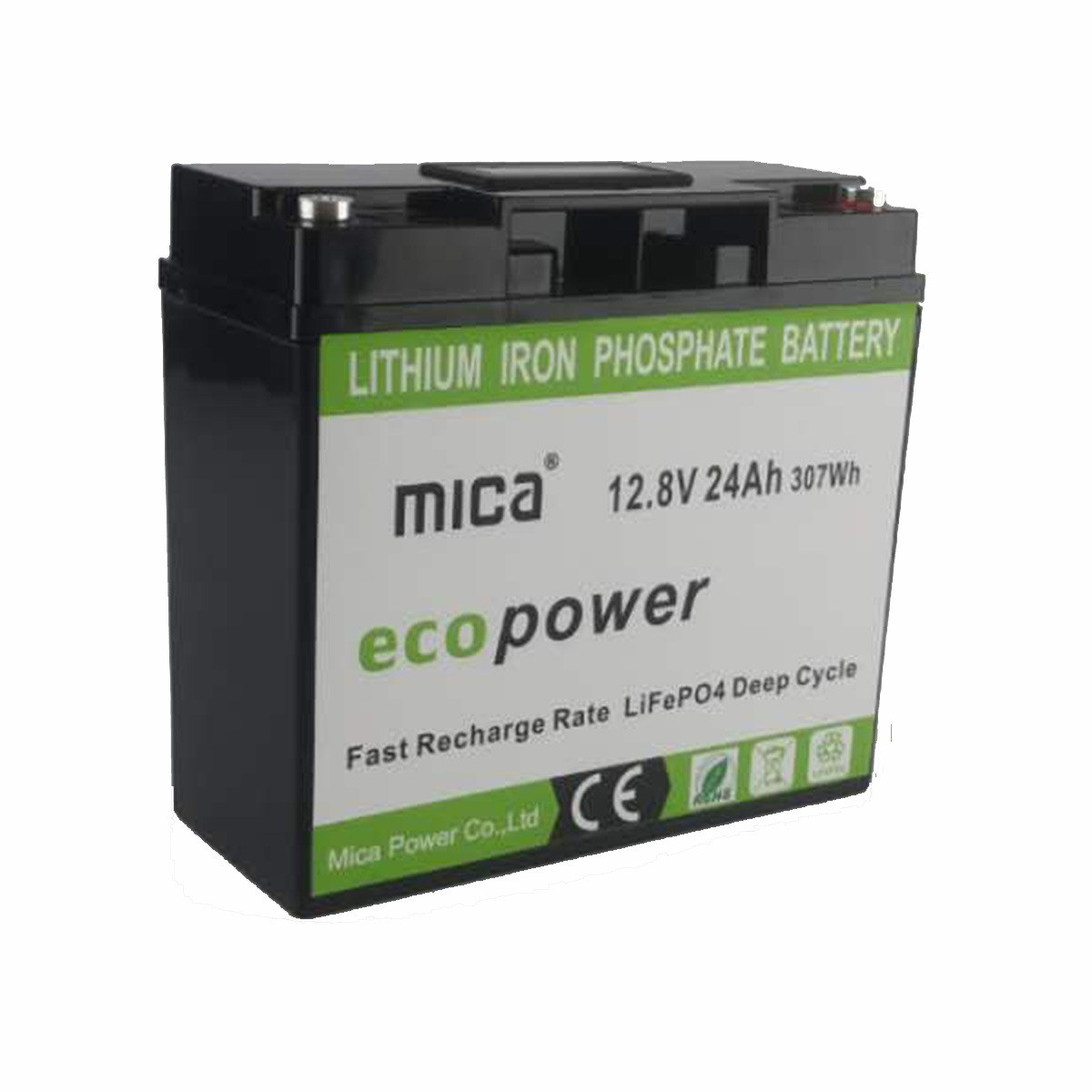

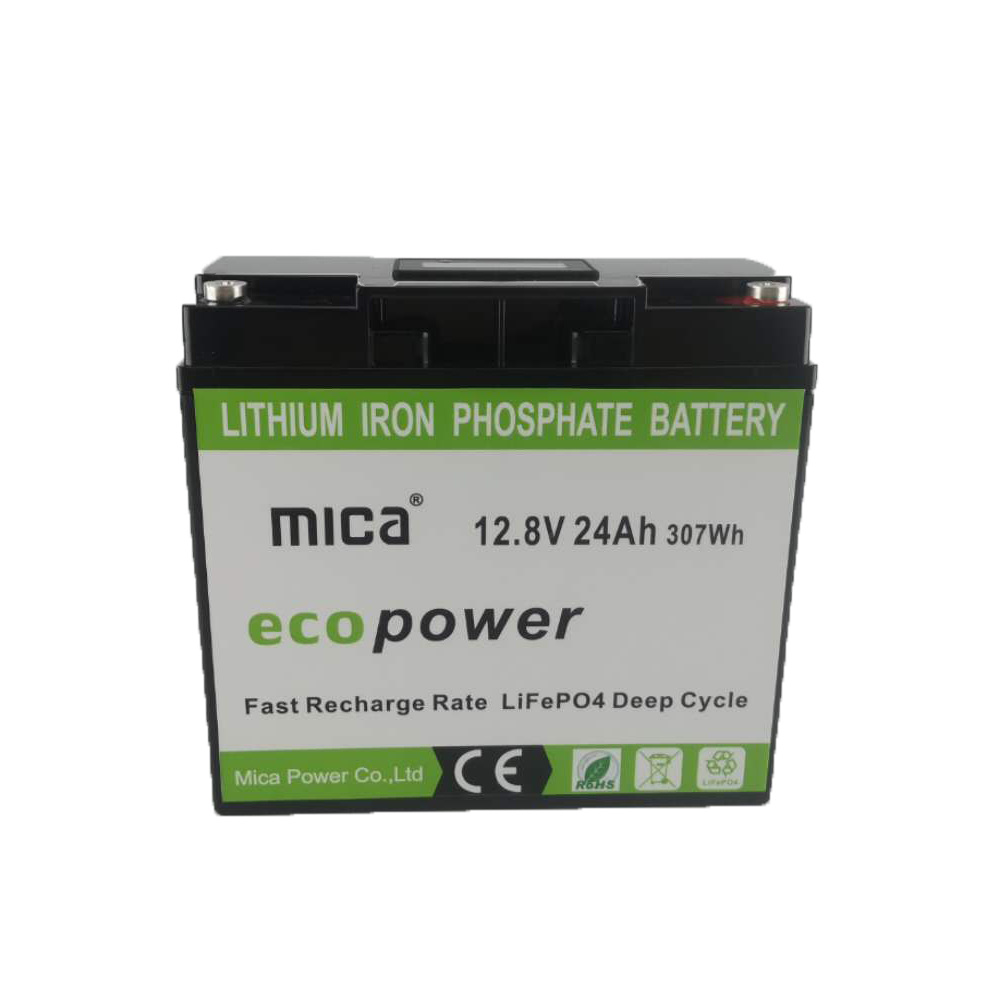

Deep Cycle 12.8V 24ah Lithium Ion Battery Pack 12V 25ah LiFePO4 for Electric Boat

Type:
Lithium-Ion Battery Pack
Connection Mode:
Series and Parallel
Rechargeable:
Chargeable
Discharge Rate:
High Discharge Rate
Size:
Medium
Accessories Type:
Battery

Availability:



Inquire Add to Basket

Product Description

12V24AH Lithium phosphate battery

Current: 24ah
Voltage; 12V
Warranty: 5 years
Weight: 2.9kg
Size: 181*77*171mm
Certification: CE, FCC, ROHS, UL, KC, MSDS, UN38.3

General Information
Battery Type	LiFePO4(Lithium Iron Phosphate)
Nominal Voltage	12.8V
Nominal Capacity	24Ah@25ºC,C10
Nominal Energy	320Wh@25ºC,C10
Operation Voltage	10~14.6V
Operation Temperature	Charge: 0°C - 45°C \| Discharge: -20°C - 60°C
Cycle Life @ 100%DOD	>2000 cycles (320Wh@25ºC,C10)
Cycle Life @ 80%DOD	>3000 cycles (256Wh@25ºC,C10)
Cycle Life @ 50%DOD	>4000 cycles (160Wh@25ºC,C10)
Dimension	181 x 77 x 171mm (W x D x H)
Terminal Type	M6
Weight	~2.9 kg
Warranty Period	5 years
Environment Protection	IP56
BMS/Charge/Discharge
Charge Voltage Max	14.6V
Discharge Cut-off Voltage	10V
Charge Current Max	20A
Discharge Current Max	20A continues
Discharge Current Max	40A burst (10 seconds)
Self-discharge Rate	<2% per month
Protection	Over-charge protection
	Over-discharge protection
	Over current protection
	Cell balancing function
	Over temperature protection

Professional Lithium Batteries Supplier, 15 years manufacturing experience
UL/IEC62133/UN38.3 Certificate Products | Focus on Lithium Batteries & Pack | OEM/ODM

Company Profile:
More than 15 Years' Experience in Lithium Battery
Mica Power Co. Ltd was established in 2009. Our management team has more than 15 years' experience in rechargeable battery. Our factory covers an area of 15,000 square meters and has more than 500 employees.
Deep Cycle 12.8V 24ah Lithium Ion Battery Pack 12V 25ah LiFePO4 for Electric Boat

Why choose us

More than 15 Years' Experience in Lithium Battery
Mica Power Co. Ltd was established in 2009. Our management team has more than 15 years' experience in rechargeable battery. Our factory covers an area of 15,000 square meters and has more than 500 employees.

Benefit From Our Advantages
Backed by professional supporting team, we have expertise in R&D, OEM production and marketing. With the support of a professional and dedicated engineering and operation team, we are available to bringing customers' idea into reality. Flexible to customized request, such as sound adjusted, color, package, and accessories adjusted, so you can enjoy our quick one-stop OEM service.

Meeting Quality Standards

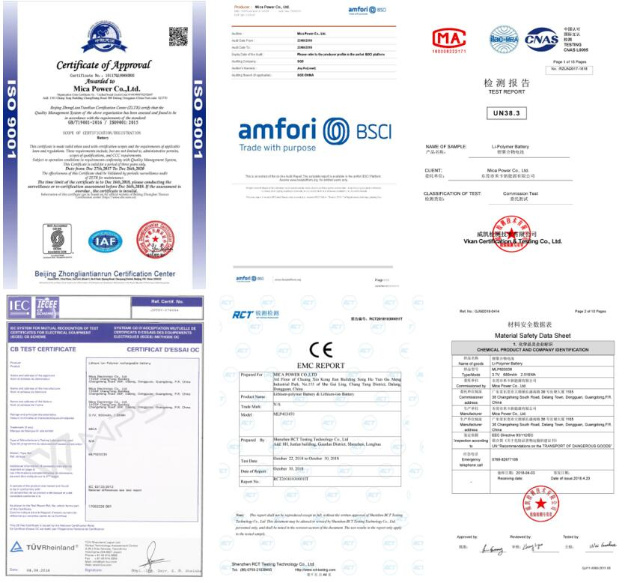

Our company has passed ISO 9001:2015 quality and BSCI system approval and our products have got the ROHS, CE, UL, IEC, UN38.3 certifications. The battery products have the advantages of high energy density, high power density, small volume, light weight,long service life, low self-discharge, flexible and varied shapes, safety performance and so on.
