Li-ion Battery
LFP
Yes
Lithium battery
Application:Electric Motorcycle /Forklift /Golf car /Wheelchair/Scooter/Rickshaw/Solar system
Key Specifications/Special Features:

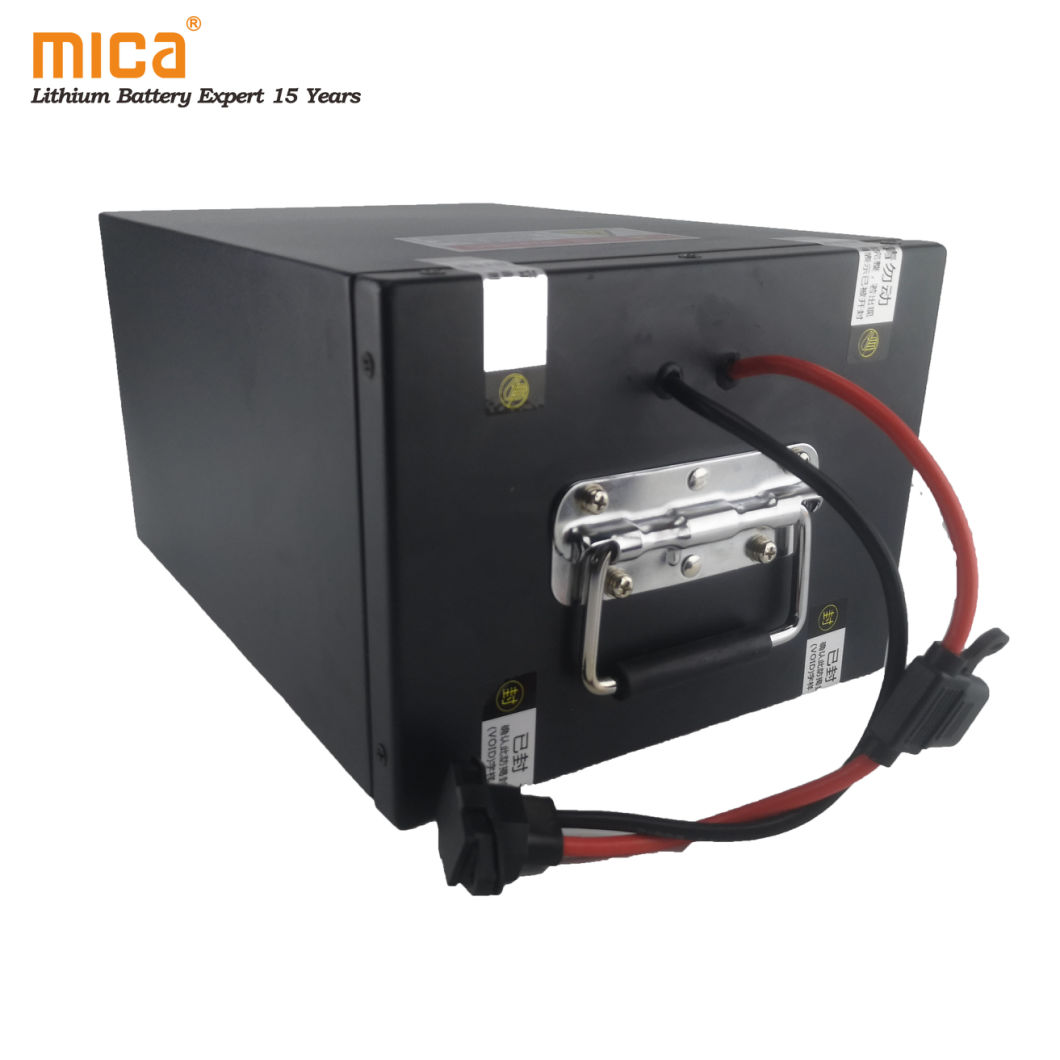

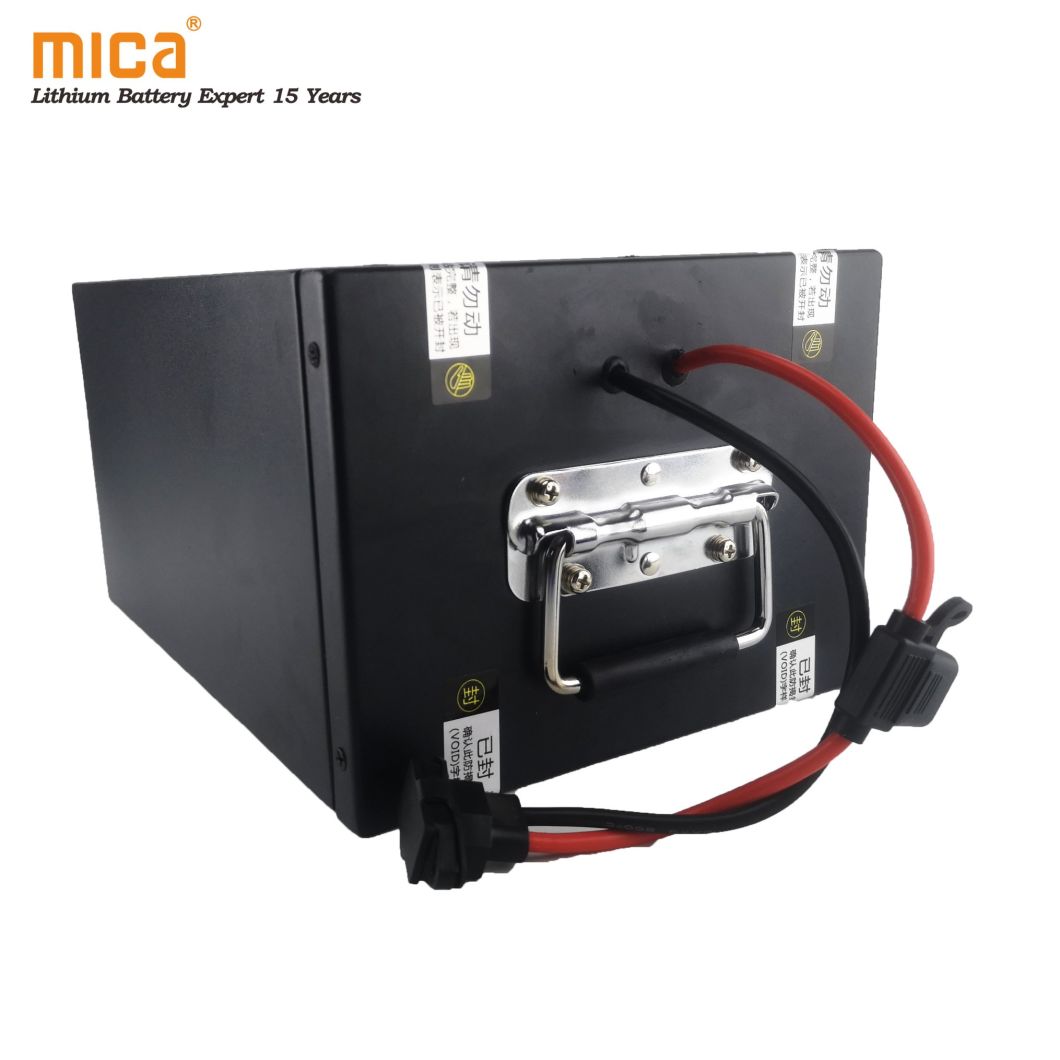

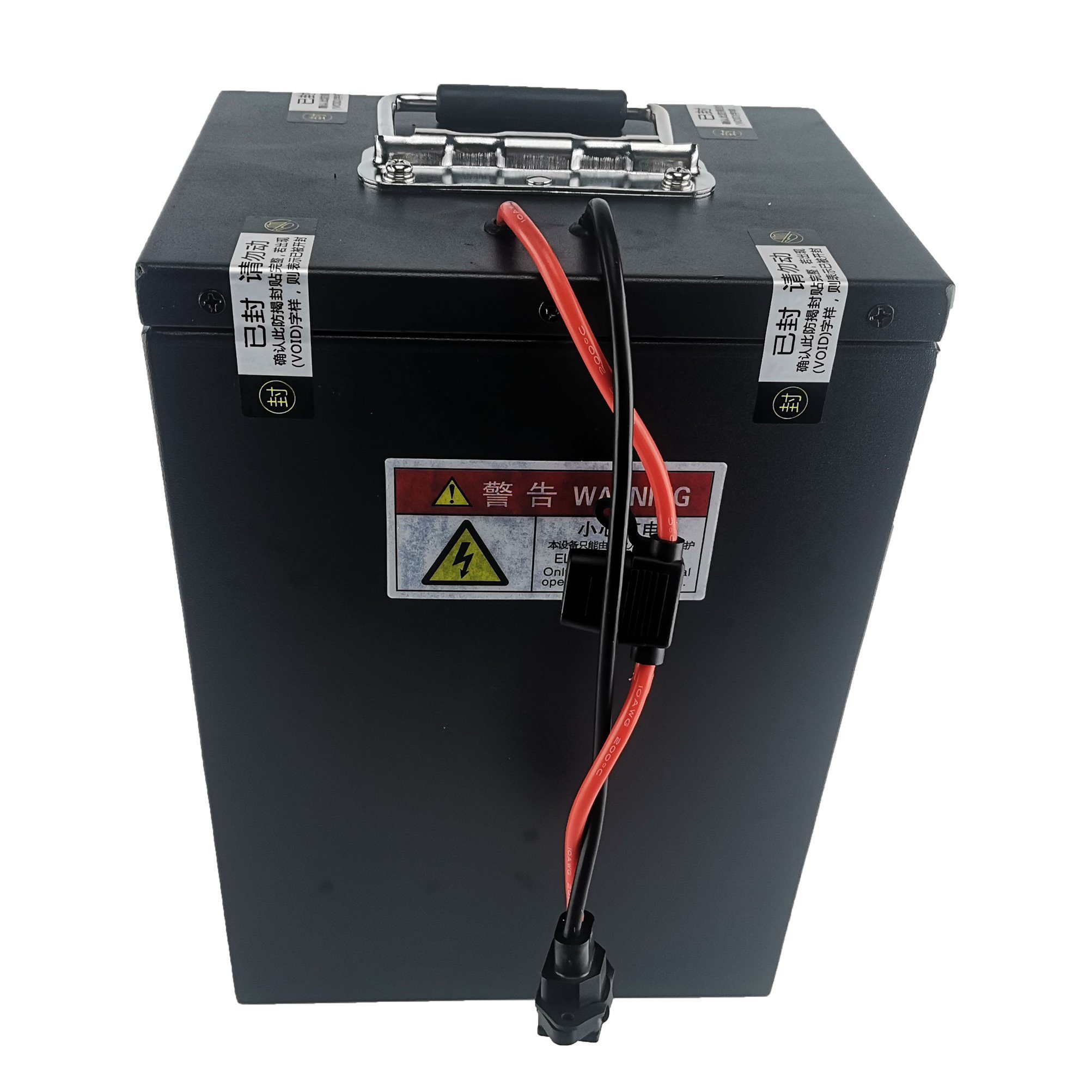

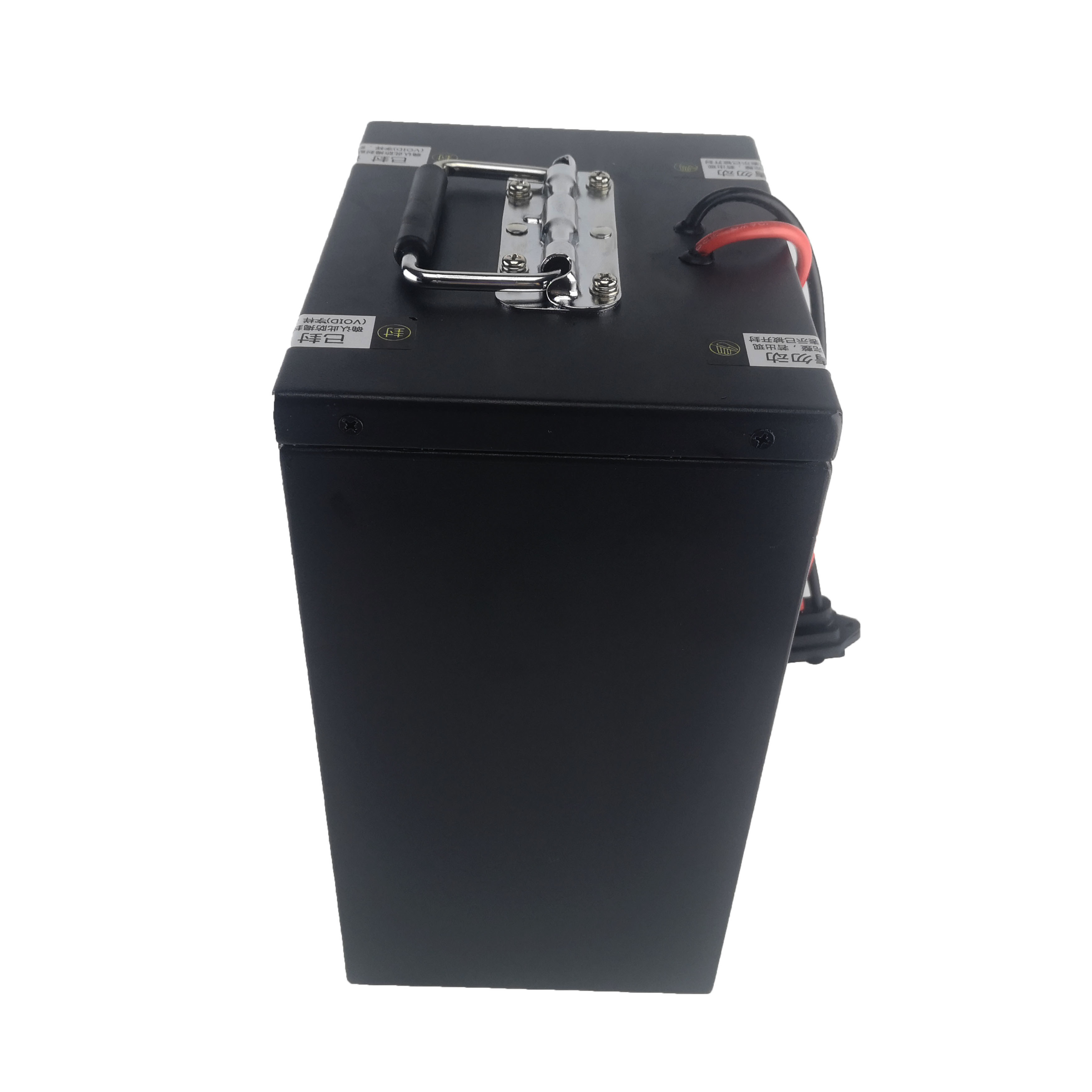

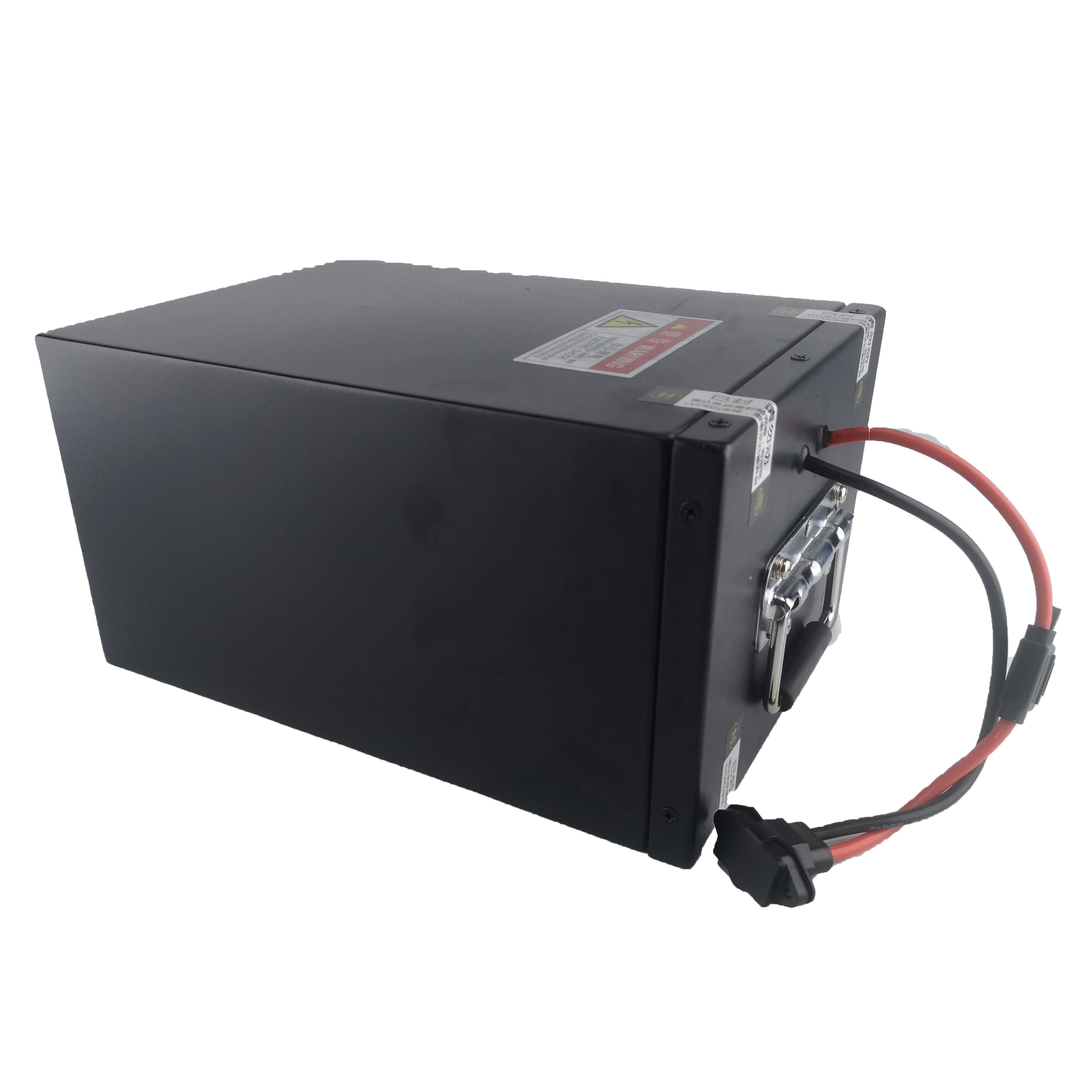

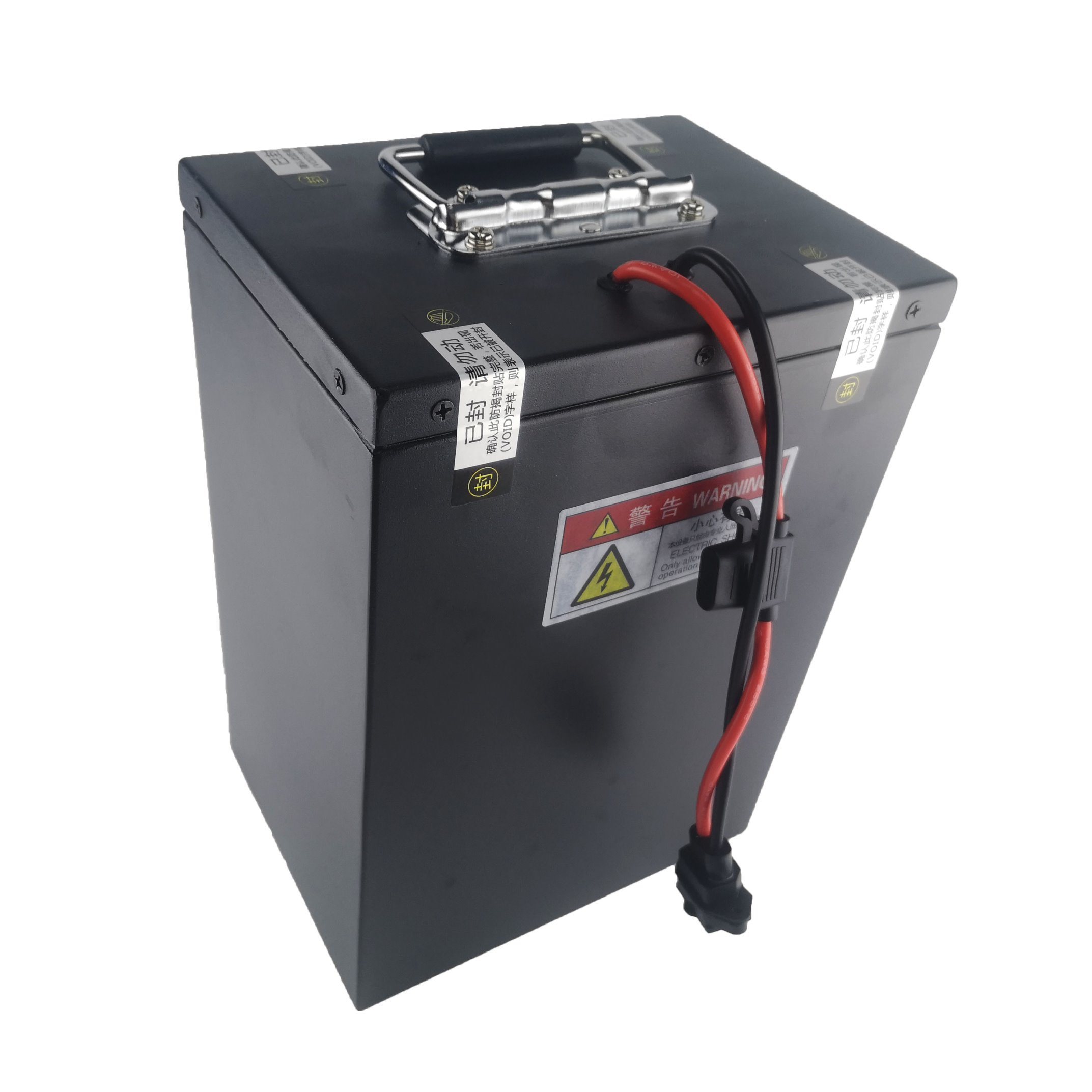

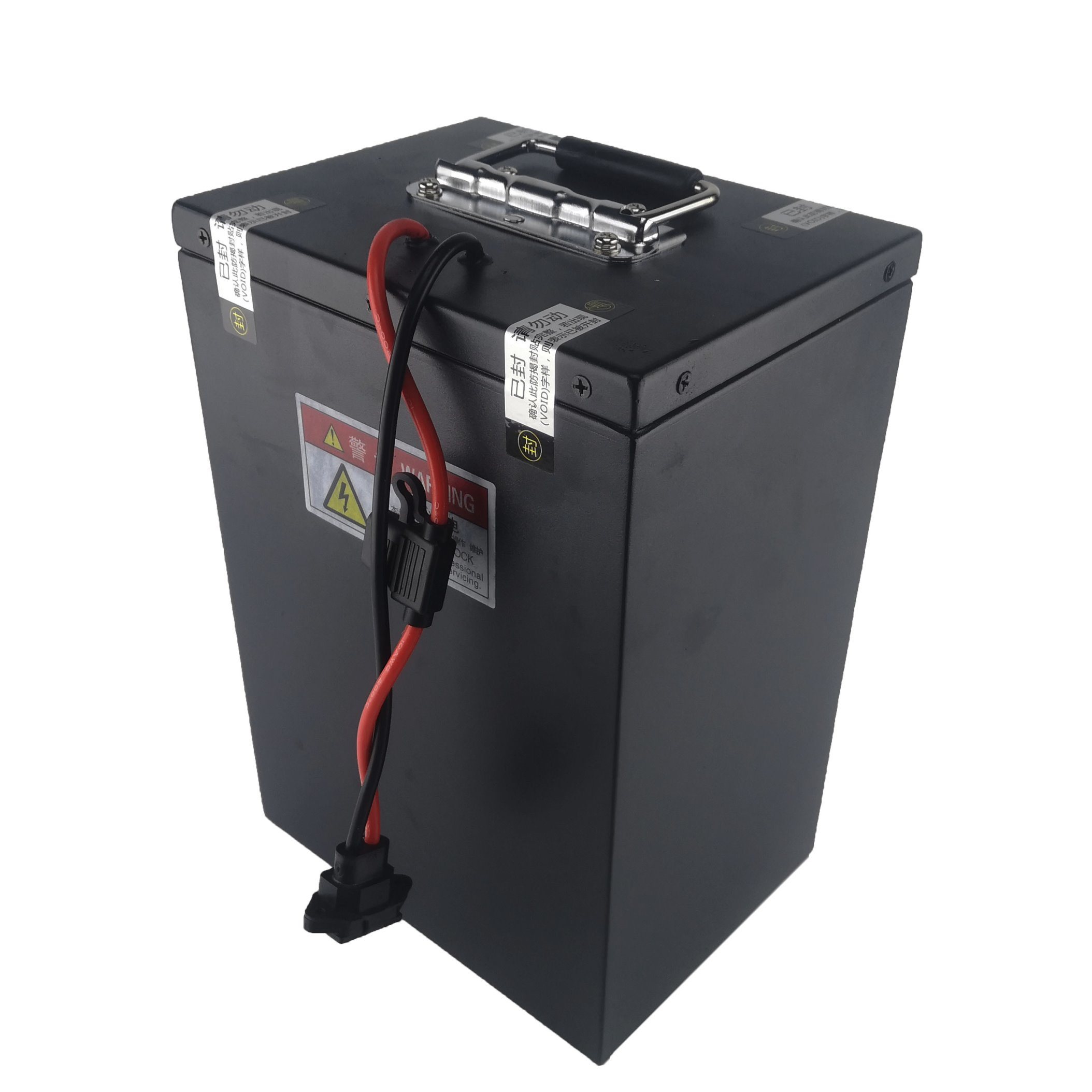

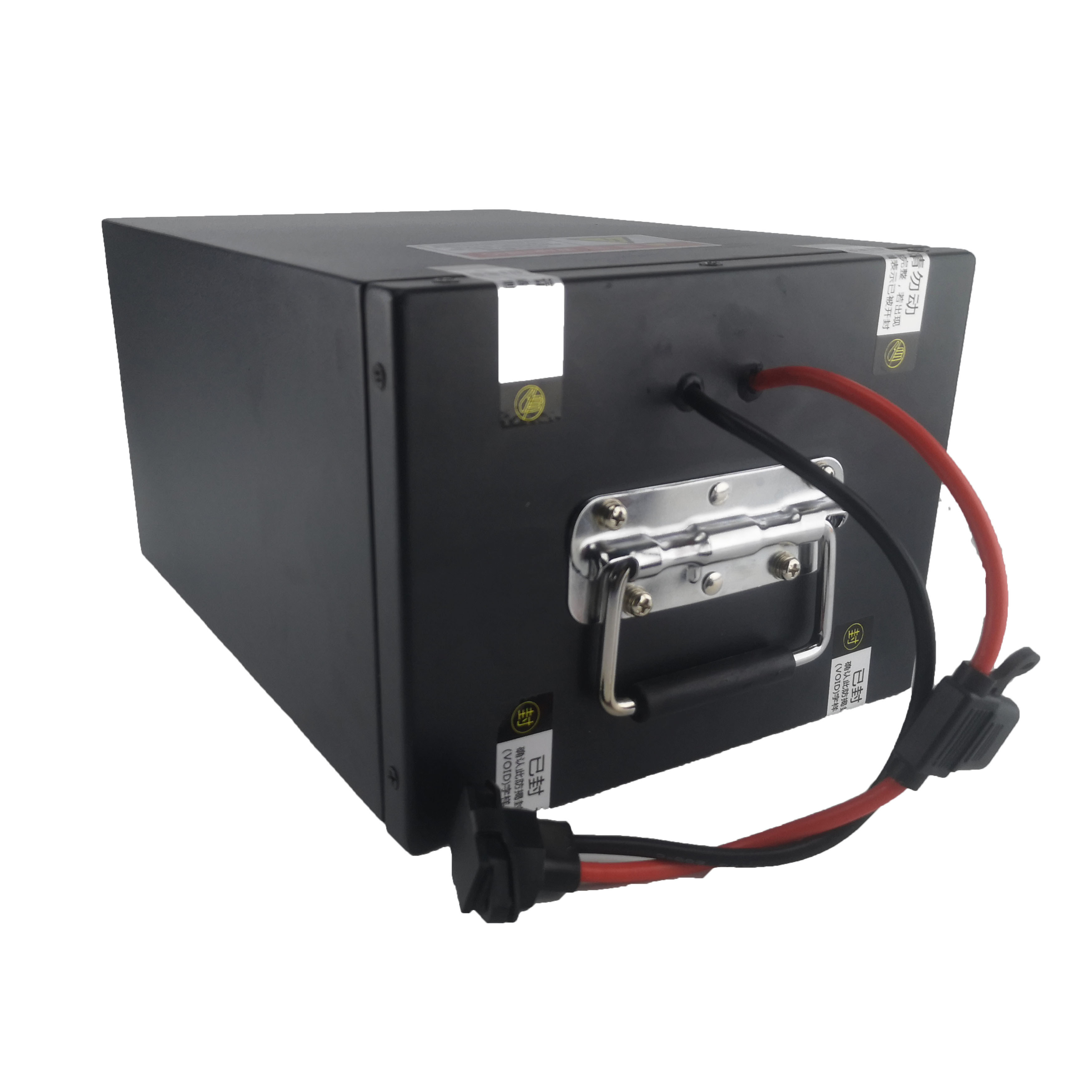

Factory price 60V 50Ah lithium ion battery pack with BMS with RoHS/CE approved
Specification
Nominal capacity: 50Ah
Nominal voltage: 60V
Combination: 16S
Max.charge voltage: 71.4V
Max.discharge cut off voltage:45.9V
Max. charge current: 0.5C
Max. discharge current: 1C
Dimension: L220×W166×H312mm
Weight: approx:23.5KG
Application: electric bike/motorcycle/wheelchair/scooter/golf/rickshaw/solar system
Packing: carton+wooden case + pallets
Operation temperature range: charge:0ºC~45ºC/Discharge:-20ºC~60ºC
Storage temperature range: less than 1 year:-20~25ºC
We are a professional lithium battery manufacturer with more than 15+ years experiences in China mainland, more detail pls see the
website and contact below, or you can just send me an inquiry then i will tell you the exact lead time and shipping cost for
shipping to your destination port. At the same time,OEM is accepted.
Specification
| Items | Parameter | |
| Battery model | MC-6050M | |
| Nominal voltage | 62V | |
| Minimum capacity | 50Ah@25ºC | |
| Charging voltage | 71.4V | |
| Discharging cut-off voltage | 46V | |
| Standard charging | 0.2C /71.4V | |
| Max charging | 25A /71.4V | |
| Standard discharging | 1C/46V | |
| Max discharging | continuous discharge | 25A/46V |
| non-continuous discharge | 2.0C/46V | |
| Recommend Motor Application | 3000W | |
| Operating temperature | Charging: 0°C ~ 45°C | |
| Discharging: -20°C ~60°C | ||
| Storage (At 50% SOC and specified temp, recoverable capacity in % vs time ) | -10ºC~25ºC | (12 months ≥85% ) |
| -10ºC ~45ºC | (6 months ≥85% ) | |
| -10ºC~55ºC | (1 month ≥90% ) | |
| 20±5ºC is the recommended storage temperature | ||
| Visual Inspection | There should not be any remarkable scratches, cracks, bolts, cauterization, deformations, swelling, leakage and so on the surface of the cell. | |
| Warranty | 12 months | |
More than 15 Years' Experience in Lithium Battery
Mica Power Co. Ltd was established in 2009. Our management team has more than 15 years' experience in rechargeable battery. Our
factory covers an area of 15,000 square meters and has more than 500 employees.
