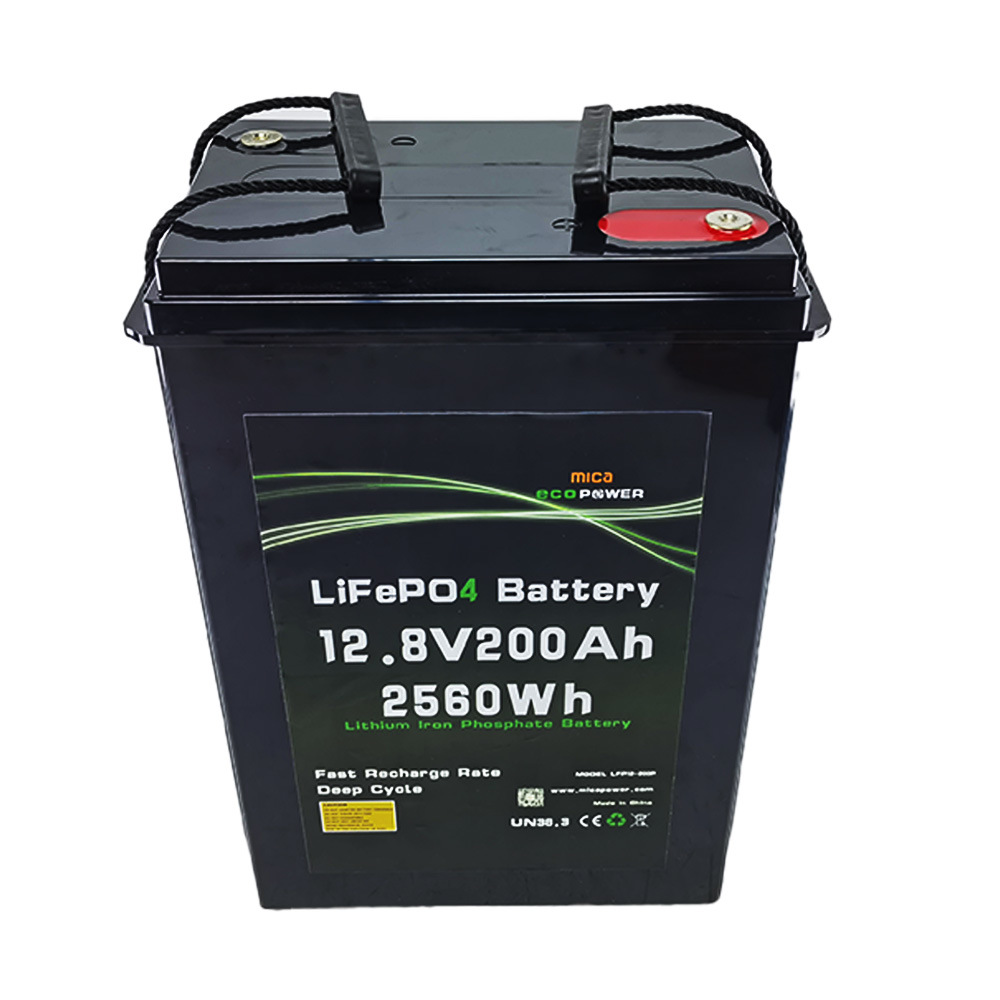

Batterie De Voiture 12.8V 200ah 2560wh 20kg Rechargeable Lithium Iron Battery for Truck with BMS /CE /Un38.3/ IEC62133/MSDS

After-sales Service:
3 Year Warranty
Warranty:
<5 Years
Number of Cells:
36pcs

Availability:



Inquire Add to Basket

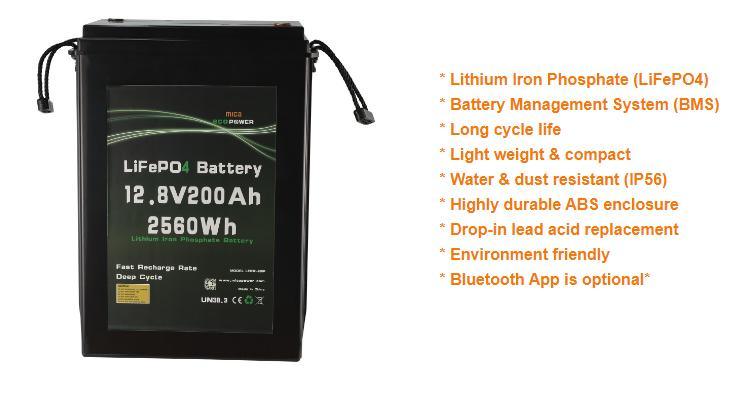

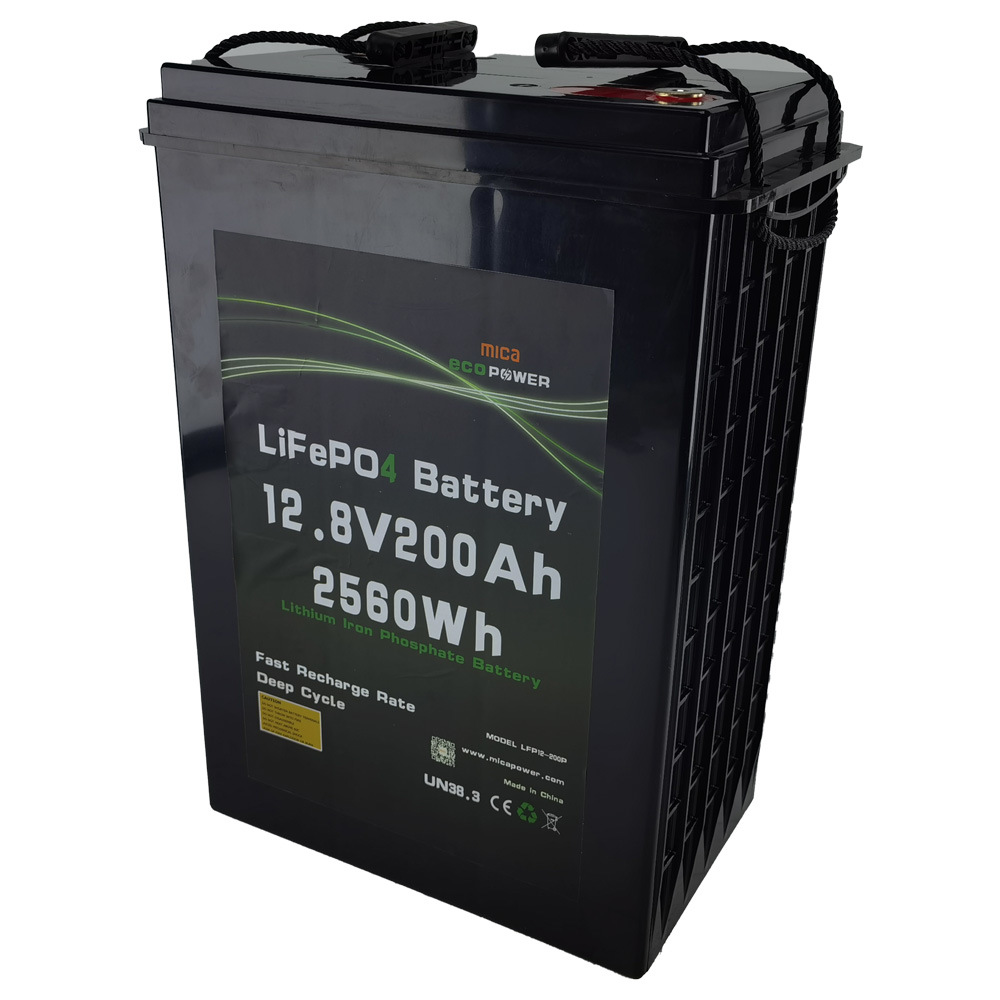

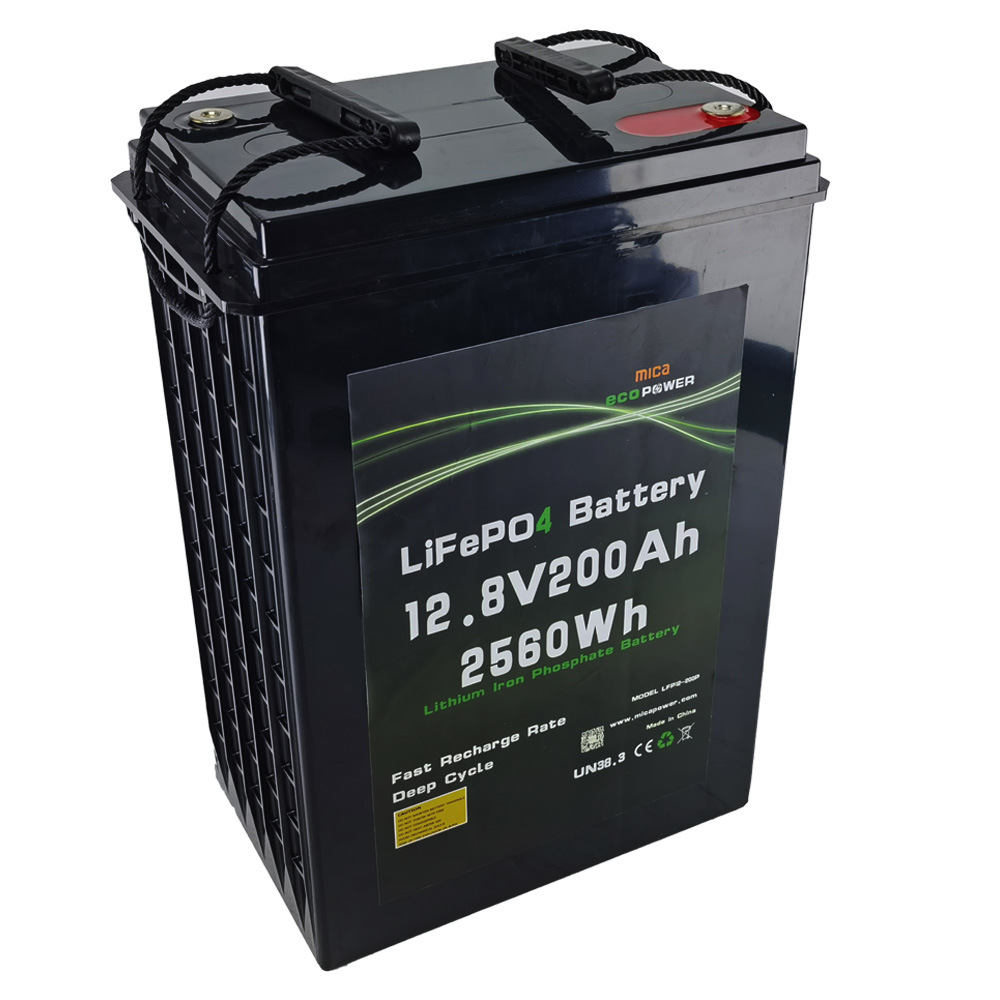

Product Description

Lithium Iron Phosphate Battery

Model: MC-12200F
Voltage: 12.8V
Current: 200AH
Power: 2560WH
Gross Weight: 20KG
BMS: yes
Cycle: 4500 times
Size: 295*178*405mm
Certification: CE, FCC, UL , ROHS, KC, MSDS, UN

General Information
Battery Type	LiFePO4(Lithium Iron Phosphate)
Nominal Voltage	12.8V
Nominal Capacity	200Ah25ºC,C10
Nominal Energy	2560Wh25ºC,C10
Operation Voltage	10~14.6V
Operation Temperature	Charge: 0°C - 45°C \| Discharge: -20°C - 60°C
Cycle Life 100%DOD	>3000 cycles (2560Wh25ºC,C10)
Cycle Life 80%DOD	>4000 cycles (2048Wh25ºC,C10)
Cycle Life 50%DOD	>6000 cycles (1280Wh25ºC,C10)
Dimension	295 x 178 x 405mm (L x W x H)

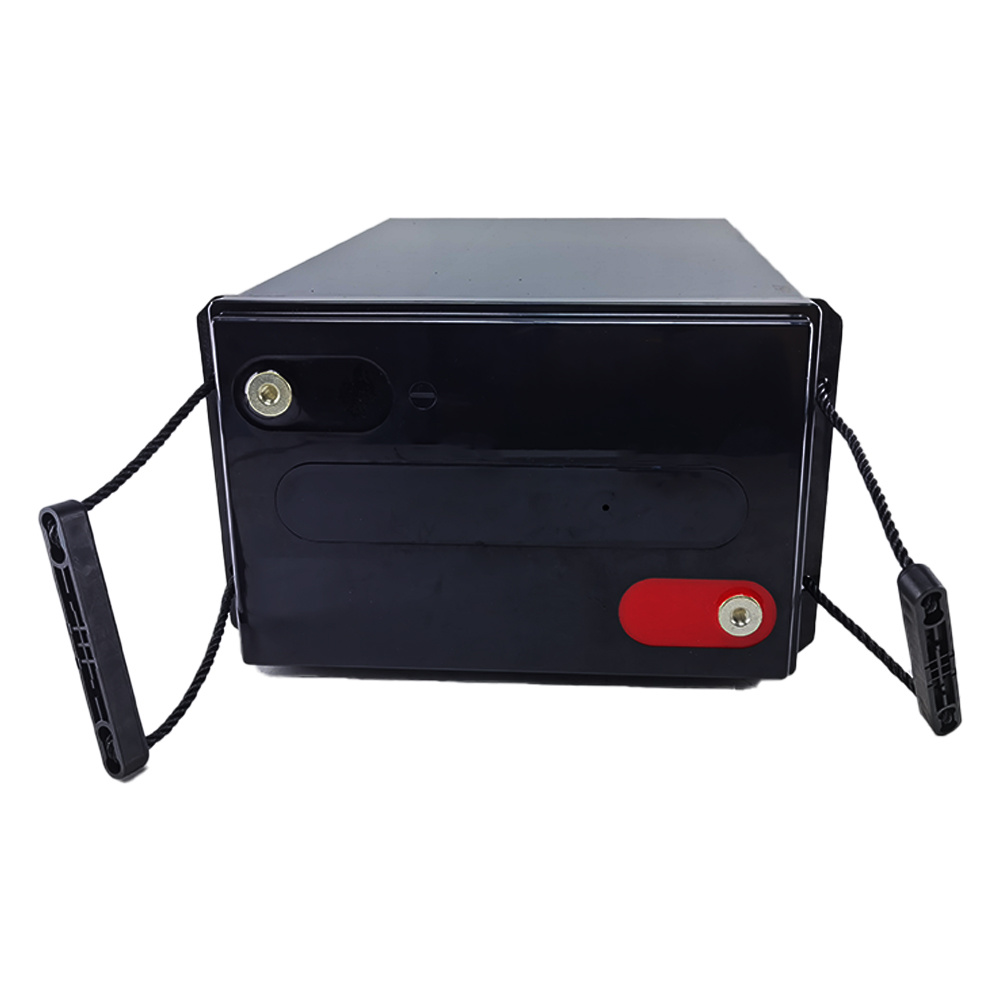

Terminal Type	M8
Weight	~20 kg
Warranty Period	5 years
Environment Protection	IP56

BMS/Charge/Discharge
Charge Voltage Max	14.6V
Discharge Cut-off Voltage	10V
Charge Current Max	100A
Discharge Current Max	100A continues 200A burst (10 seconds)
Self-discharge Rate	<2% per month
Self-discharge Rate	Over-charge protection Over-discharge protection Over current protection Cell balancing function Over temperature protection

Batterie De Voiture 12.8V 200ah 2560wh 20kg Rechargeable Lithium Iron Battery for Truck with BMS /CE /Un38.3/ IEC62133/MSDS

MICA POWER Co., Ltd. was founded in 2009 is a leading supplier in lithium battery solution in China. focusing on Lithium Polymer, Lithium ion & Lithium iron phosphate/LiFePO4 technology batteries and energy storage solutions.
Application for consumer electronics, AGV, RV/ caravan, marine, motorcycle, golf cart / trolly, UPS, solar storage, medical, clean machine, industrial, commercial use, etc with reliable and safety solution.
Our products have UL, CE, KC, PSE, RoHS, UN38.3 certificated and exported worldwide like Europe,North America, South America, Africa, Middle East and South-east Asia.

Batterie De Voiture 12.8V 200ah 2560wh 20kg Rechargeable Lithium Iron Battery for Truck with BMS /CE /Un38.3/ IEC62133/MSDS

1. Q: What's the main product in Mica Power?
A: Rechargeable LiFePO4 battery, Lithium ion battery and battery pack.
Battery widely used in ESS, Golf cart, electric forklift, e-bike, 3C and other fields.

2. Q: Do you have any Certificate?
A: Yes, our factory have ISO9001 certificate;
For Battery, UL/CB/IEC62619/IEC62133/CE/Rohs/UN38.3/MSDS, etc.

3. Q: Do you have any protection for battery pack?
A: Yes, each battery pack is assembled with BMS.
BMS main functions: Over-charge protection
Over-discharge protection
Over current protection
Cell balancing function
Over temperature protection

4. Q: Can I have a sample order?
A: Yes, sample order for test is available.

5. Q: How to proceed an order for lithium batteries?
A: Firstly, let us know your requirements or application;
Secondly, we quote according to your requirements or our suggestions;
Thirdly, customer confirms the order details and places deposit for formal order;
Fourthly, we will arrange the production and keep you updated before shipment;
Finally, Arrange the shipment and do after-sales service.

6. Q: Is it OK to print my logo on lithium batteries product?
A: Of course, we can print logo as requirements.

7. Q: Do you have MOQ limit?
A: Yes, we have MOQ limit for mass production, but it depends on battery model.
Please contact us for details.

8. Q: How about the lead time?
A: Generally, samples take 5-7 business days. Mass production takes 25-30 days.

9. Q: How about shipping method?
A: Shipment by Express, by Air and by Sea are available.

10. Q: What about after-sale service?
A: We will offer you 1-5 years guarantee based on different battery solutions.
Any problems, please check with Mica power, and we will offer you positive solutions.
