5 Year
RV/Ess/Trailer, etc
Yacht, Sailboat, Kayak, Jet Ski, Canoe, Boat/RV/Marine
Customized
CE, ISO
LiFePO4
| Items | Parameter | |

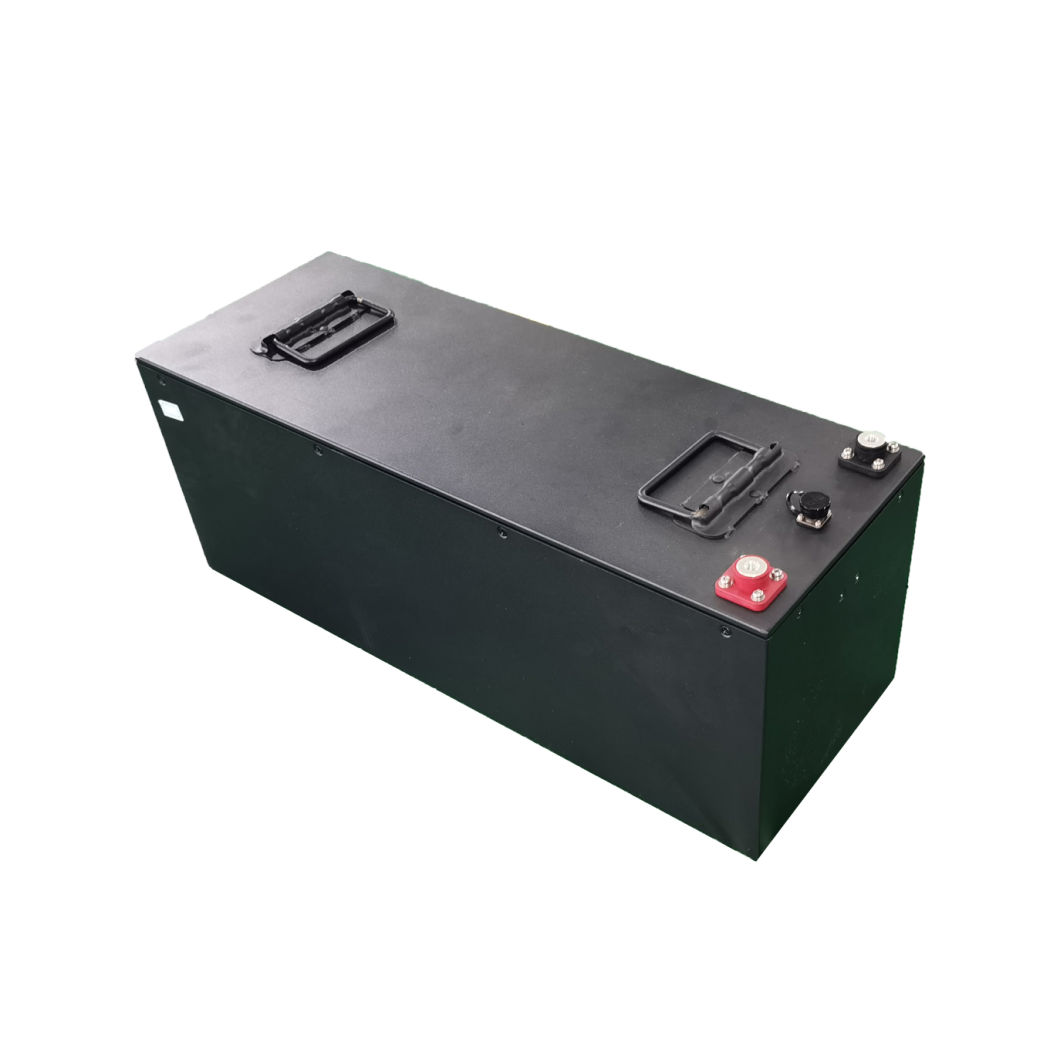

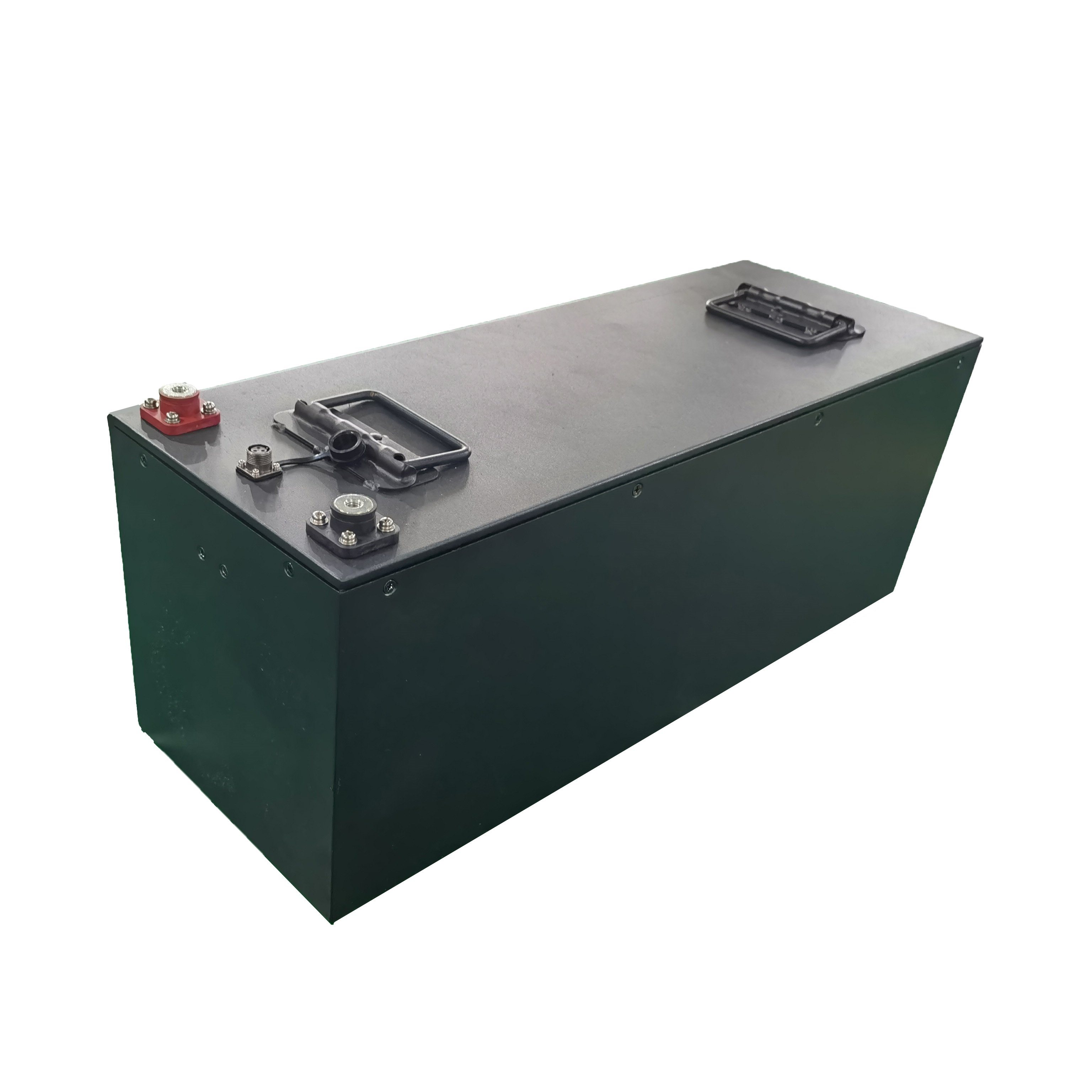

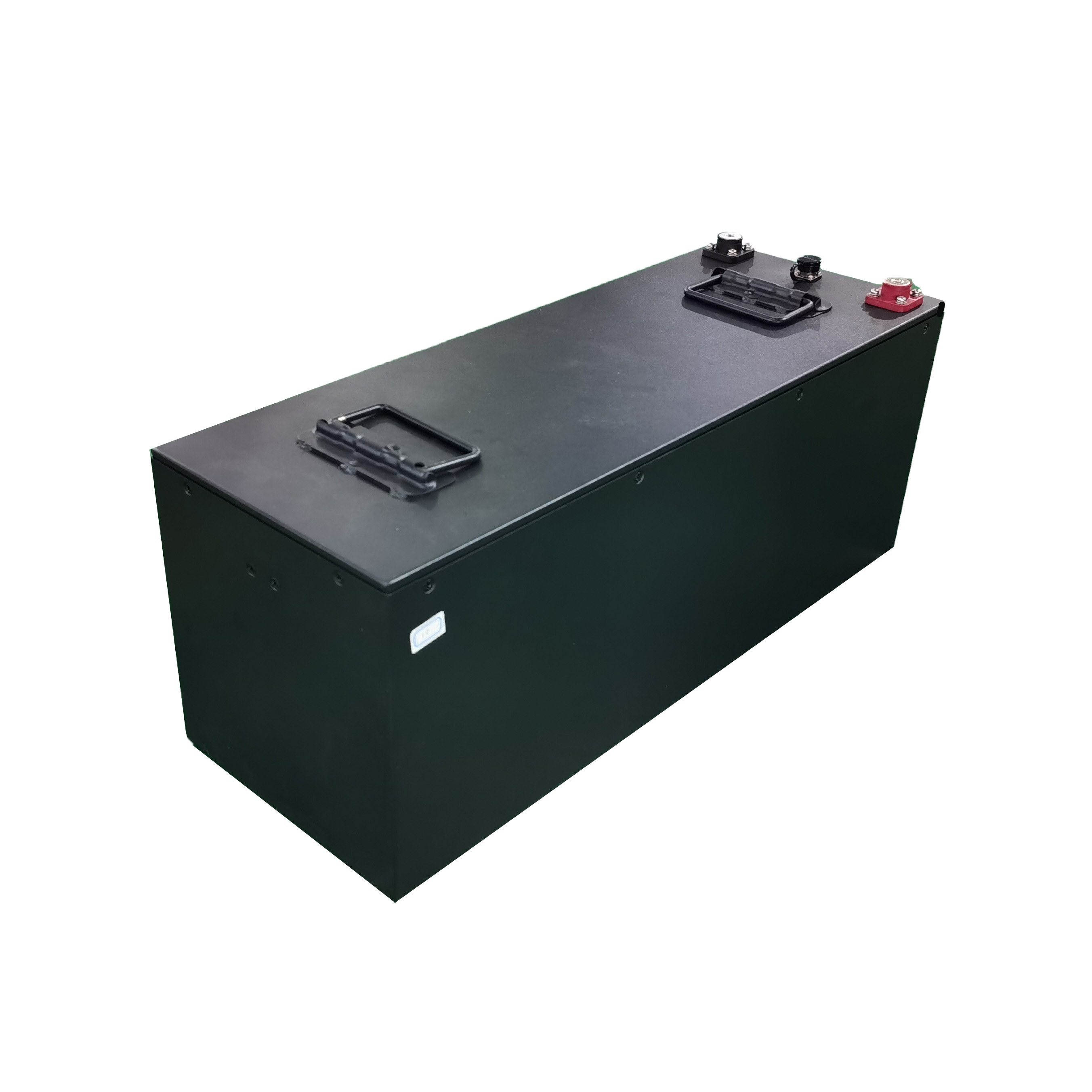

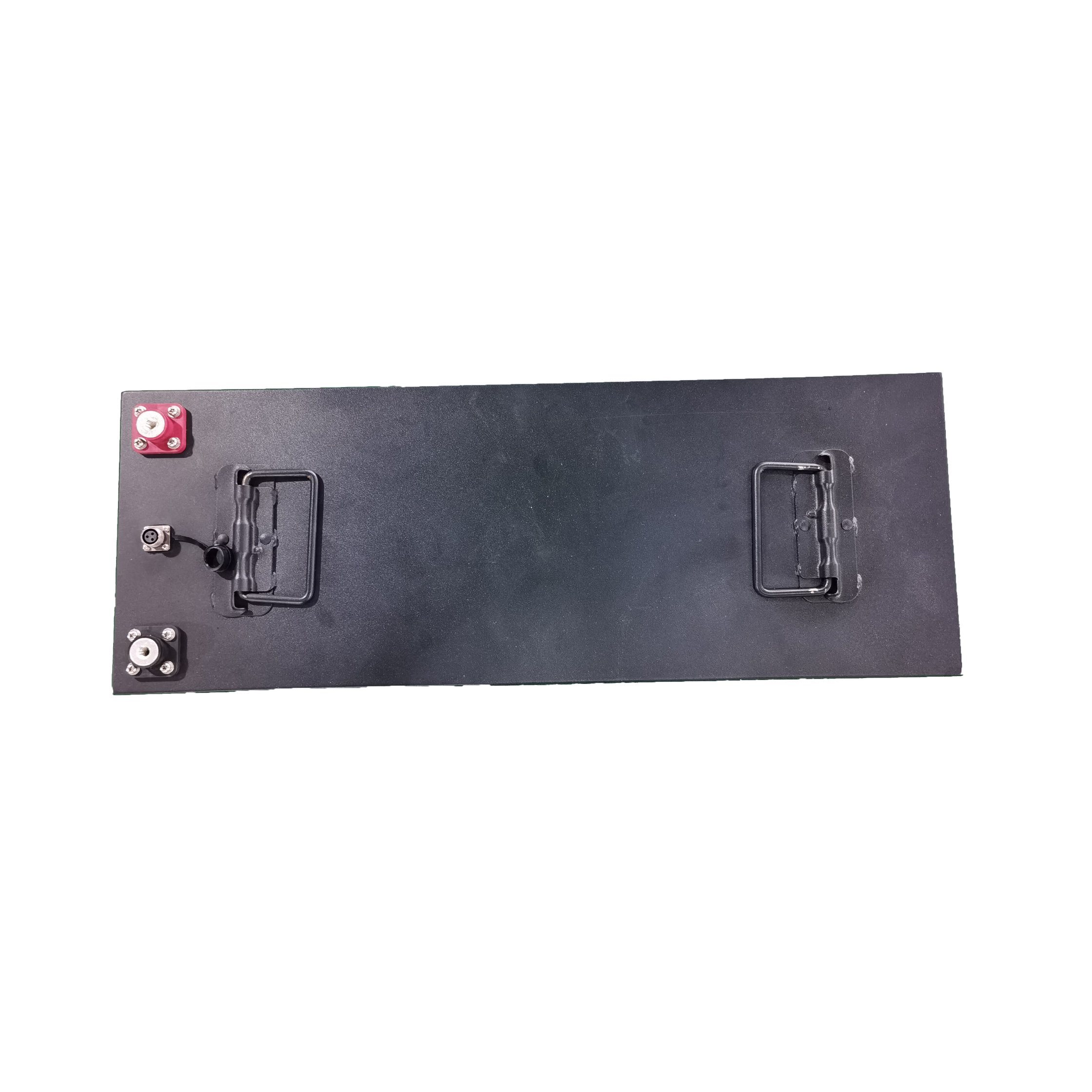

| Battery model | MC-24250F | |
| Nominal voltage | 25.6V | |
| Minimum capacity | 250Ah@25ºC,C10 | |
| Charging voltage | 29.2V | |
| Discharging cut-off voltage | 20V | |
| Standard charging | 0.2C /29.2V | |
| Max charging | 1.0C /29.2V | |
| Standard discharging | 1C/10V | |
| Max discharging | continuous discharge | 200A/20V |
| non-continuous discharge | 600A/20V | |
| Operation voltage | 20~29.2V | |
| Operating temperature | Charging: 0°C ~ 45°C | |
| Discharging: -20°C ~60°C | ||
| Storage (At 50% SOC and specified temp, recoverable capacity in % vs time ) | -10ºC~25ºC | (12 months ≥85% ) |
| -10ºC ~45ºC | (6 months ≥85% ) | |
| -10ºC~55ºC | (1 month ≥90% ) | |
| 20±5ºC is the recommended storage temperature | ||
| Visual Inspection | There should not be any remarkable scratches, cracks, bolts, cauterization, deformations, swelling, leakage and so on the surface of the cell. | |
| Self-discharge Rate | <3% per month | |
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
