Lithium-Ion Battery Pack
LFP
Yes
| Items | Parameters | |
| Battery model | MC-12160F | |
| Nominal voltage | 12.8V | |
| Minimum capacity | 160Ah@25ºC | |
| Charging voltage | 14.6V | |
| Discharging cut-off voltage | 10V | |
| Standard charging | 0.2C /14.6V | |
| Max charging | 1.0C /10V | |
| Standard discharging | 1C/10V | |
| Max discharging | continuous discharge | 100A/10V |
| peak discharge | 200A/10V | |
| Standard Charging mode | CC/CV | |
| Operating temperature | Charging: 0°C ~ 45°C | |
| Discharging: -20°C ~60°C | ||
| Storage (At 50% SOC and specified temp, recoverable capacity in % vs time ) | -10ºC~25ºC | (12 months ≥85% ) |
| -10ºC ~45ºC | (6 months ≥85% ) | |
| -10ºC~55ºC | (1 month ≥90% ) | |
| 20±5ºC is the recommended storage temperature | ||
| Visual Inspection | There should not be any remarkable scratches, cracks, bolts, cauterization, deformations, swelling, leakage and so on the surface of the cell. | |
| Self-discharge Rate | <2% per month | |

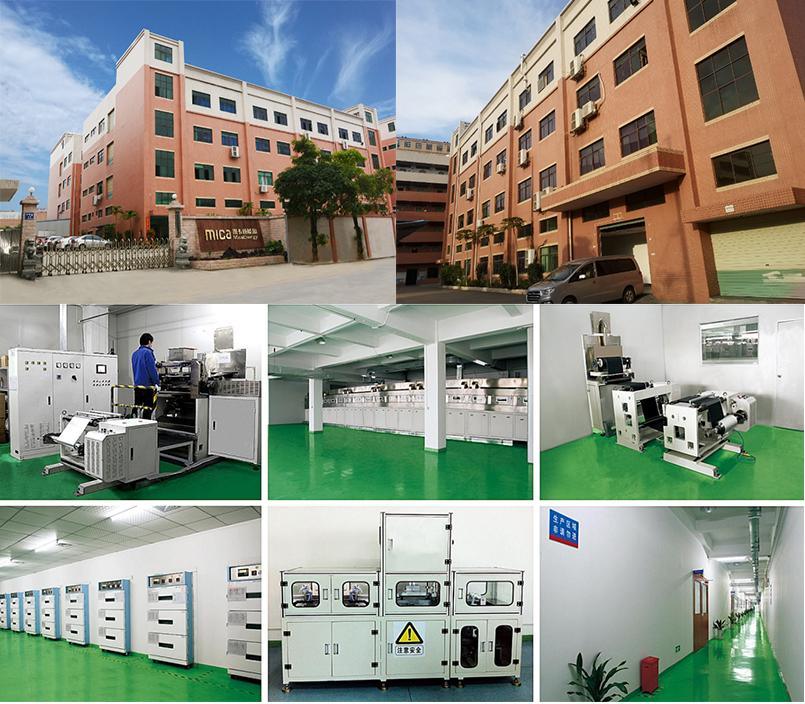

Mica Power Co. Ltd was established in 2009. Our management team has more than 15 years' experience in rechargeable battery.
Our factory covers an area of 15,000 square meters and has more than 500 employees.
Q1: Do you accept sample order?
A: Yes, we welcome sample order to test the quality and market.
Q2: What will be the delivery time after I place the order?
A: For mass order will take 15-30 days, it depends on the order quantity. For sample will take around 1 week.
Q3: Who will deliver our goods?
A: The products delivered by express, airline and sea shipping are also avaiable.
You can choose the most suitable delivery way. Also if you have your own forwarder just pass it to us, we will follow it up.
Q4: Can I print my company logo on the products?
A: Of course. We can provide OEM service.
Q5: : What will be the payment terms?
A: We accept T/T, Paypal, Money Gram etc.
Q6: What is your Warranty Policy?
A: We offer 5 years warranty for our products and can be replaced with new ones for free if quality issues. Using Lithium iron phosphate battery, which has high safety performance, long cycle life, with service life of more than 10 years.
Q7: How to choose a right battery?
A: Just tell us your demand, then we will recommend a suitable battery to you.
| Items | Parameters | |
| Battery model | MC-12160F | |
| Nominal voltage | 12.8V | |
| Minimum capacity | 160Ah@25ºC | |
| Charging voltage | 14.6V | |
| Discharging cut-off voltage | 10V | |
| Standard charging | 0.2C /14.6V | |
| Max charging | 1.0C /10V | |
| Standard discharging | 1C/10V | |
| Max discharging | continuous discharge | 100A/10V |
| peak discharge | 200A/10V | |
| Standard Charging mode | CC/CV | |
| Operating temperature | Charging: 0°C ~ 45°C | |
| Discharging: -20°C ~60°C | ||
| Storage (At 50% SOC and specified temp, recoverable capacity in % vs time ) | -10ºC~25ºC | (12 months ≥85% ) |
| -10ºC ~45ºC | (6 months ≥85% ) | |
| -10ºC~55ºC | (1 month ≥90% ) | |
| 20±5ºC is the recommended storage temperature | ||
| Visual Inspection | There should not be any remarkable scratches, cracks, bolts, cauterization, deformations, swelling, leakage and so on the surface of the cell. | |
| Self-discharge Rate | <2% per month | |
Mica Power Co. Ltd was established in 2009. Our management team has more than 15 years' experience in rechargeable battery.
Our factory covers an area of 15,000 square meters and has more than 500 employees.
Q1: Do you accept sample order?
A: Yes, we welcome sample order to test the quality and market.
Q2: What will be the delivery time after I place the order?
A: For mass order will take 15-30 days, it depends on the order quantity. For sample will take around 1 week.
Q3: Who will deliver our goods?
A: The products delivered by express, airline and sea shipping are also avaiable.
You can choose the most suitable delivery way. Also if you have your own forwarder just pass it to us, we will follow it up.
Q4: Can I print my company logo on the products?
A: Of course. We can provide OEM service.
Q5: : What will be the payment terms?
A: We accept T/T, Paypal, Money Gram etc.
Q6: What is your Warranty Policy?
A: We offer 5 years warranty for our products and can be replaced with new ones for free if quality issues. Using Lithium iron phosphate battery, which has high safety performance, long cycle life, with service life of more than 10 years.
Q7: How to choose a right battery?
A: Just tell us your demand, then we will recommend a suitable battery to you.
