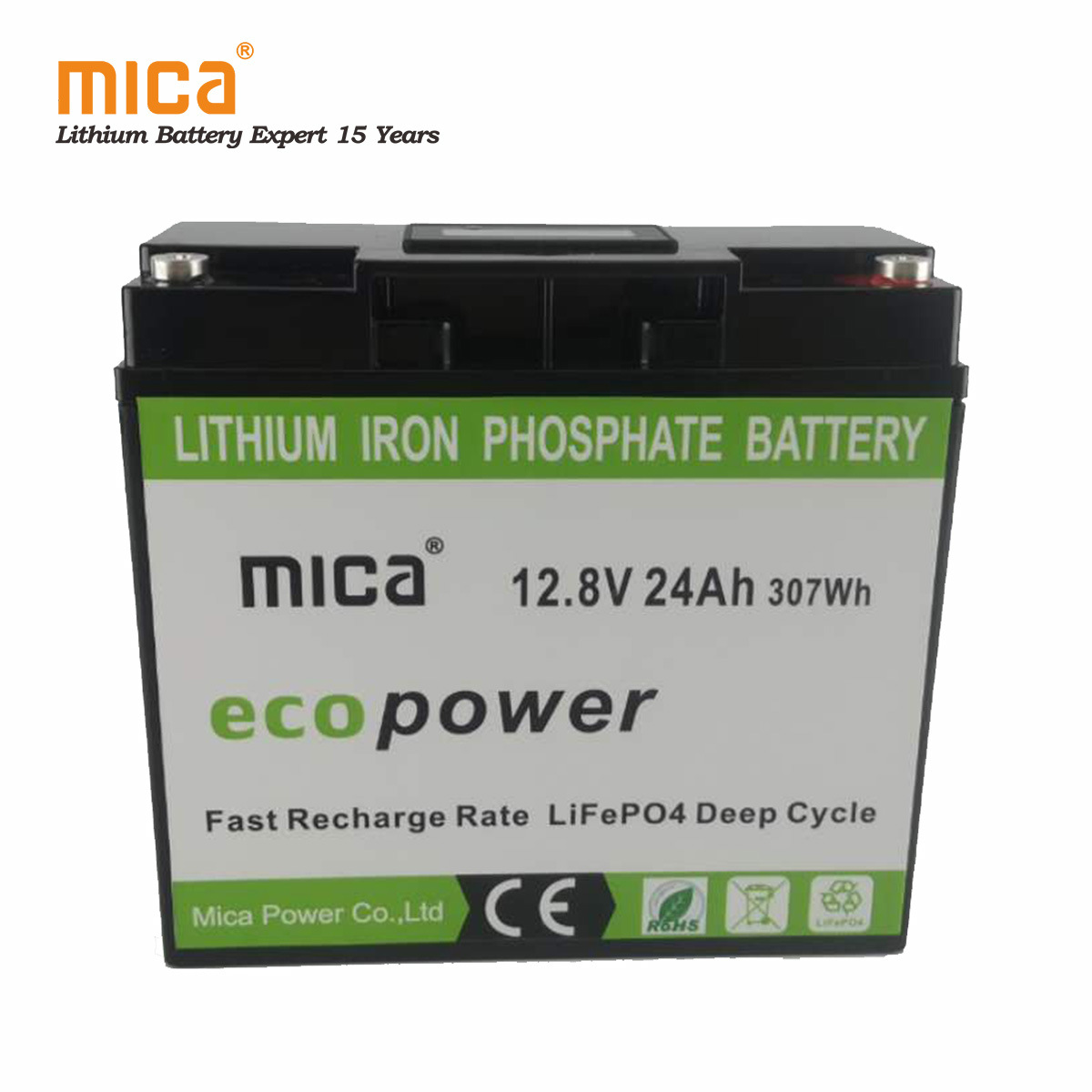

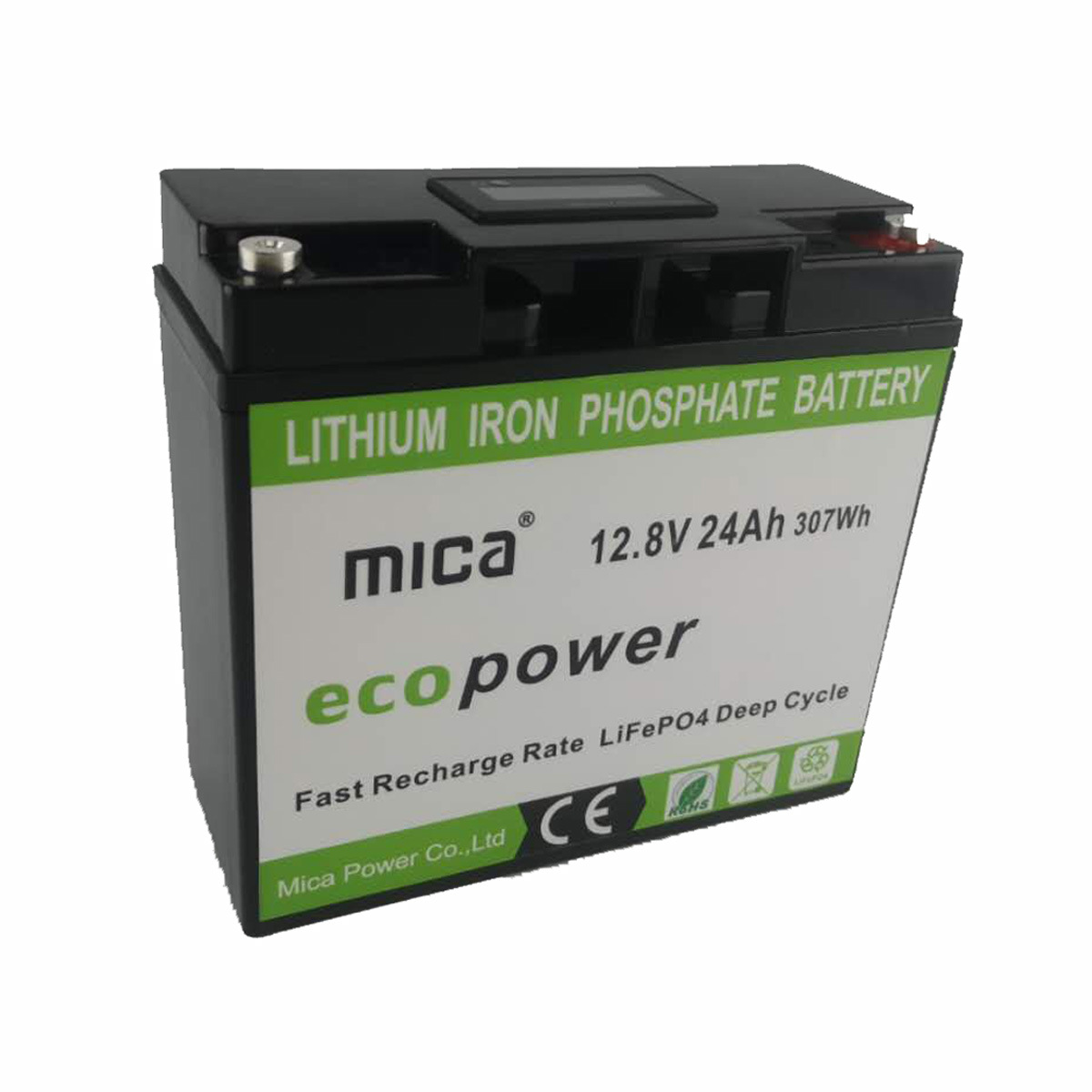

LiFePO4
Series and Parallel
Chargeable
20A
181*77*171mm
ABS Case
| Items | Parameter | |

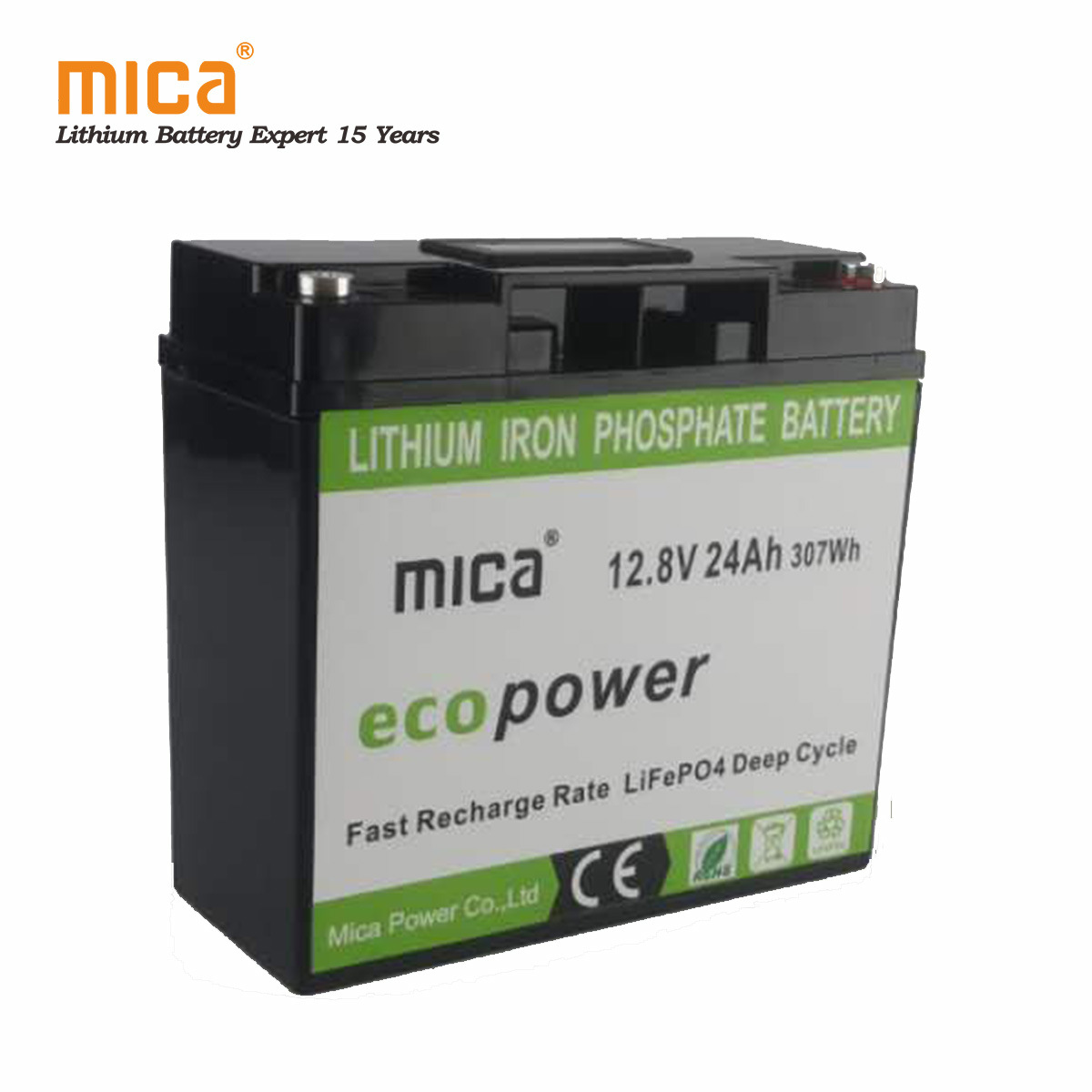

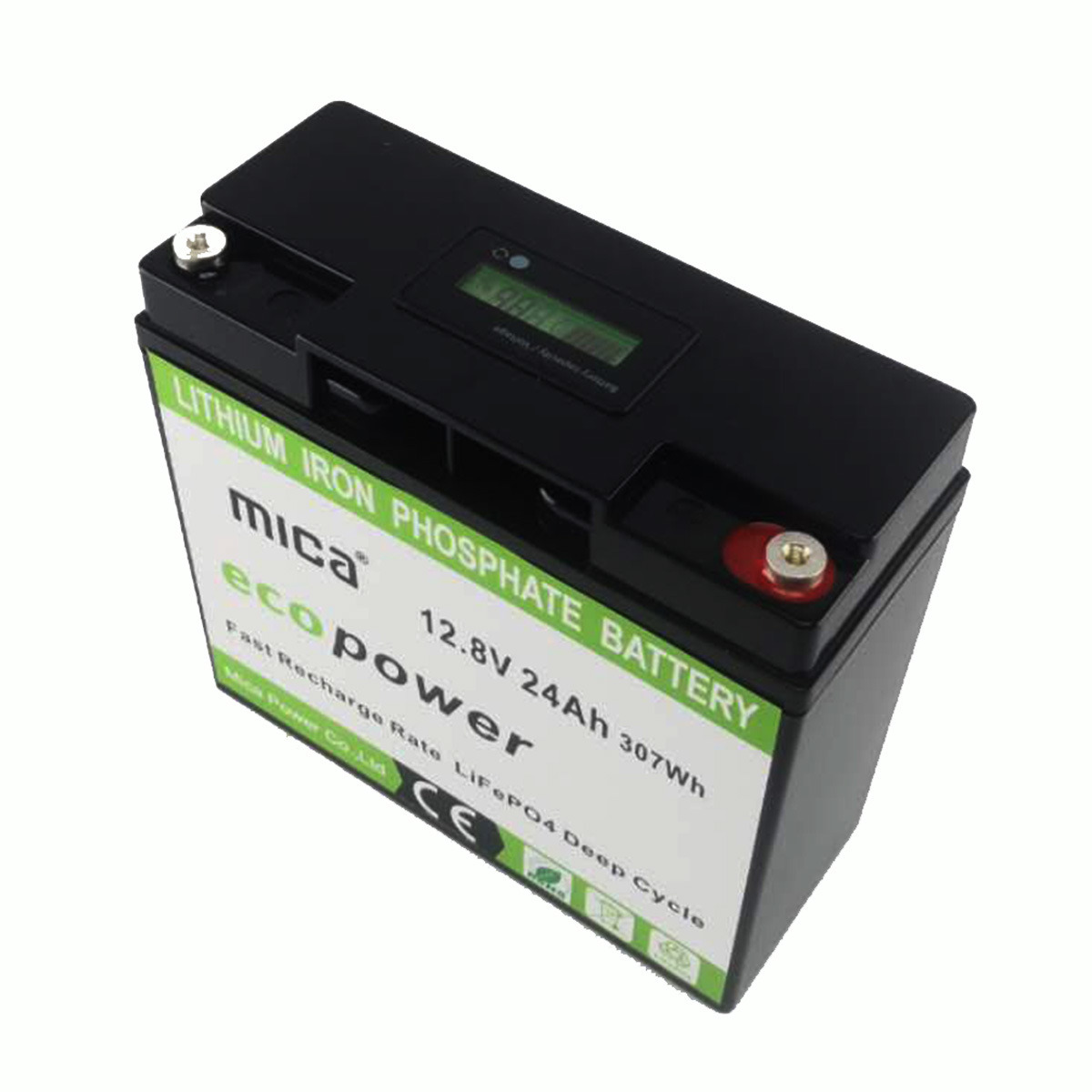

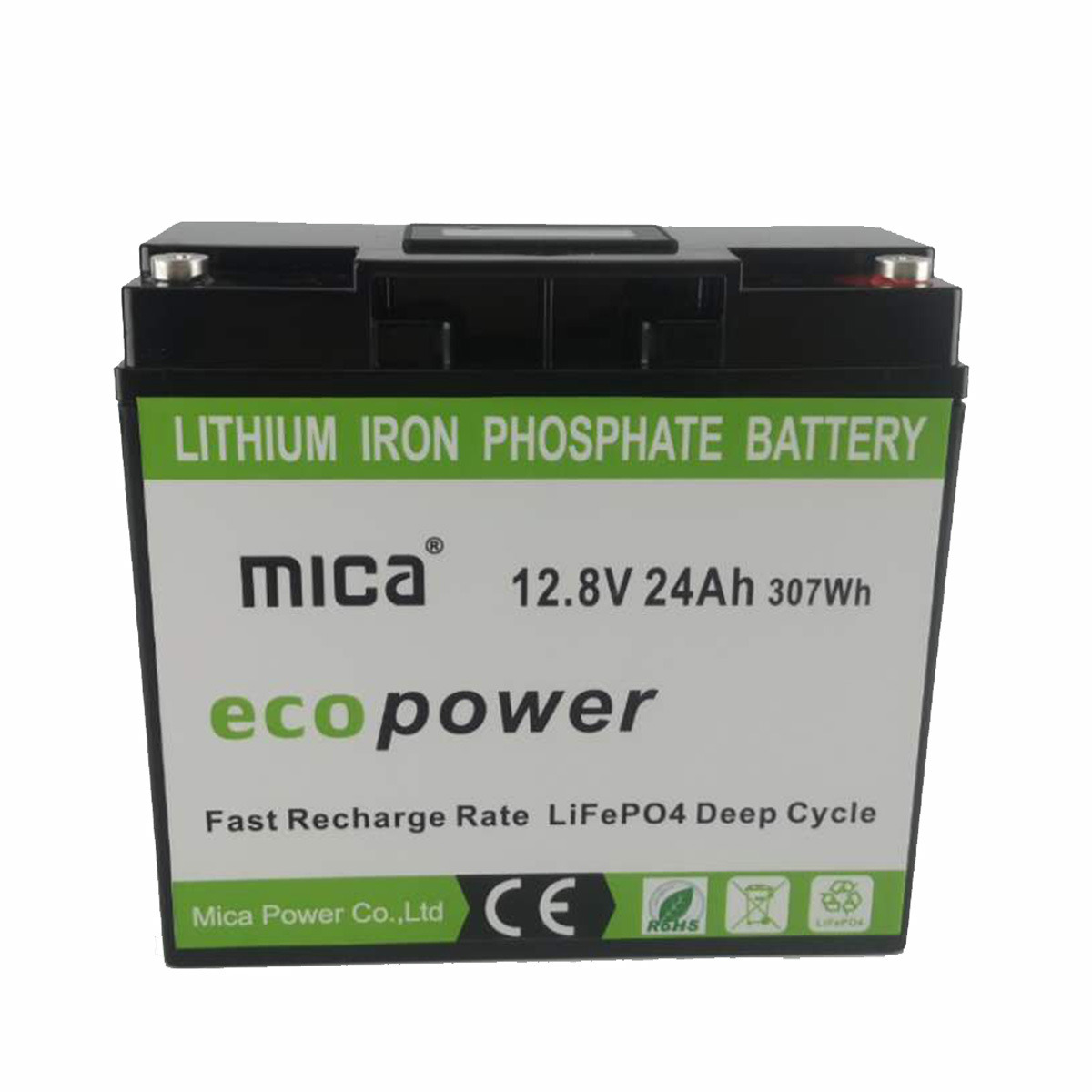

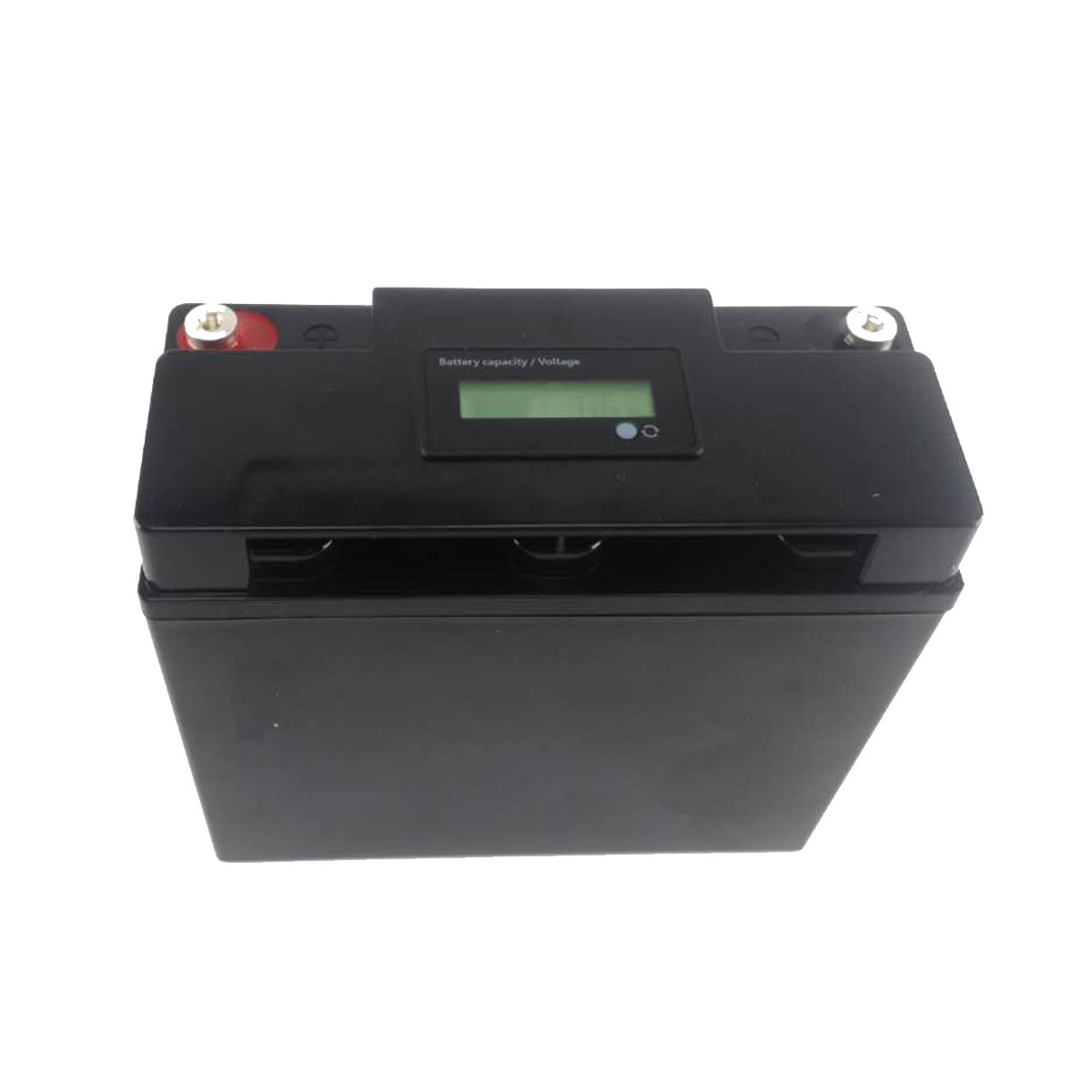

| Battery model | MC-1224F | |
| Nominal voltage | 12.8V | |
| Minimum capacity | 24Ah@25ºC | |
| Charging voltage | 14.6V | |
| Discharging cut-off voltage | 10V | |
| Standard charging | 0.2C /14.6V | |
| Max charging | 20A /14.6V | |
| Standard discharging | 20A/10V | |
| Max discharging | continuous discharge | 20A/10V |
| peak discharge | 40A/10V | |
| Standard Charging mode | CC/CV | |
| Operating temperature | Charging: 0°C ~ 45°C | |
| Discharging: -20°C ~60°C | ||
| Storage (At 50% SOC and specified temp, recoverable capacity in % vs time ) | -10ºC~25ºC | (12 months ≥85% ) |
| -10ºC ~45ºC | (6 months ≥85% ) | |
| -10ºC~55ºC | (1 month ≥90% ) | |
| 20±5ºC is the recommended storage temperature | ||
| Visual Inspection | There should not be any remarkable scratches, cracks, bolts, cauterization, deformations, swelling, leakage and so on the surface of the cell. | |
| Self-discharge Rate | <2% per month | |
