Yes
1 Year
Customized
| Items | Parameter | |

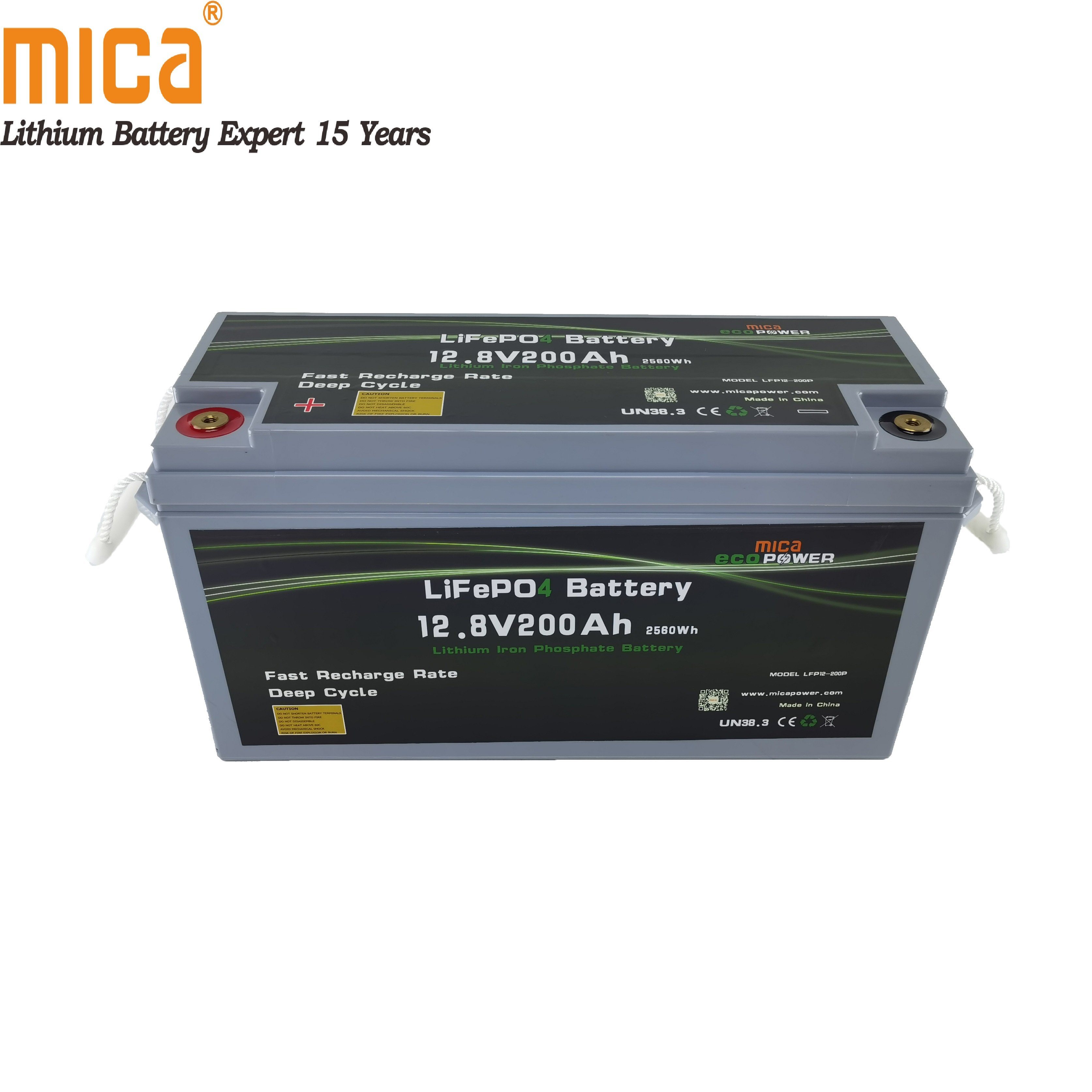

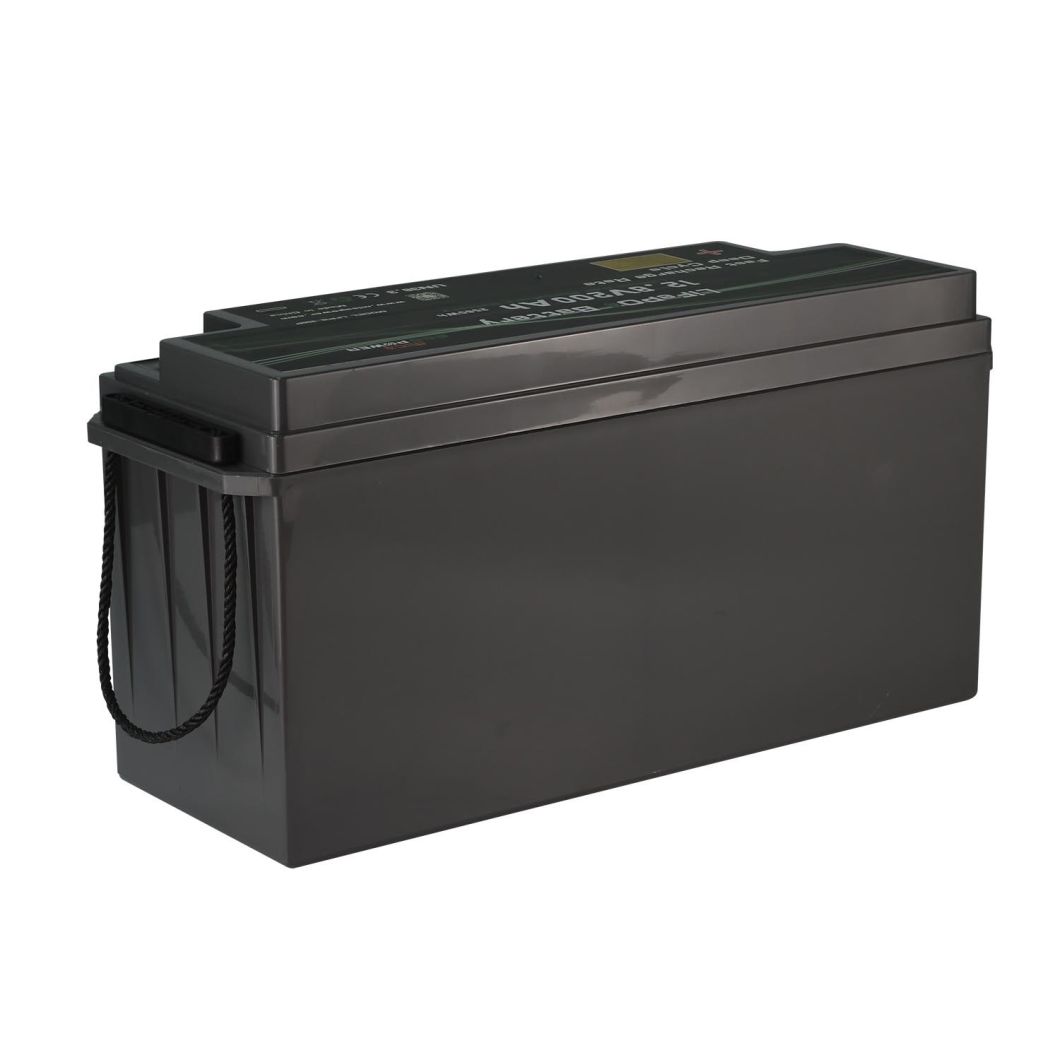

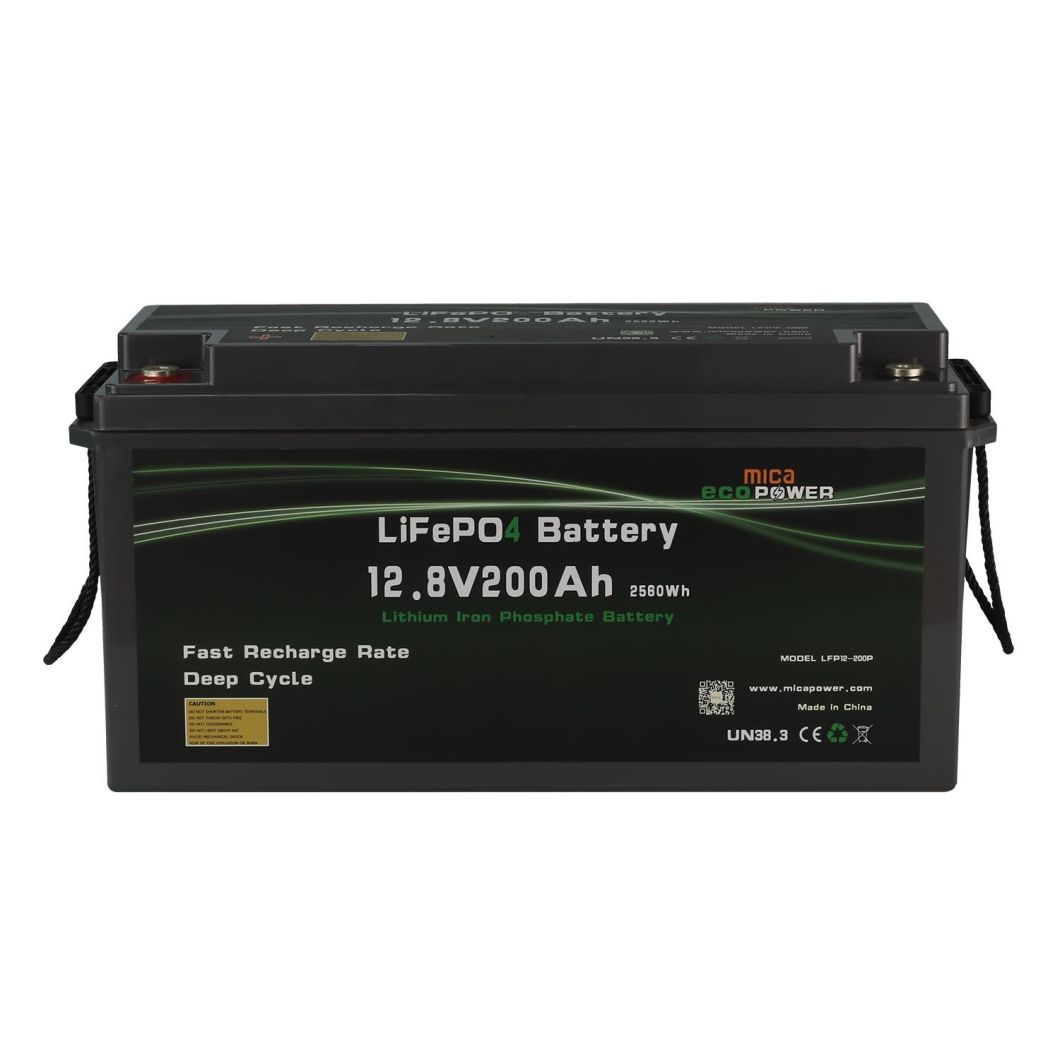

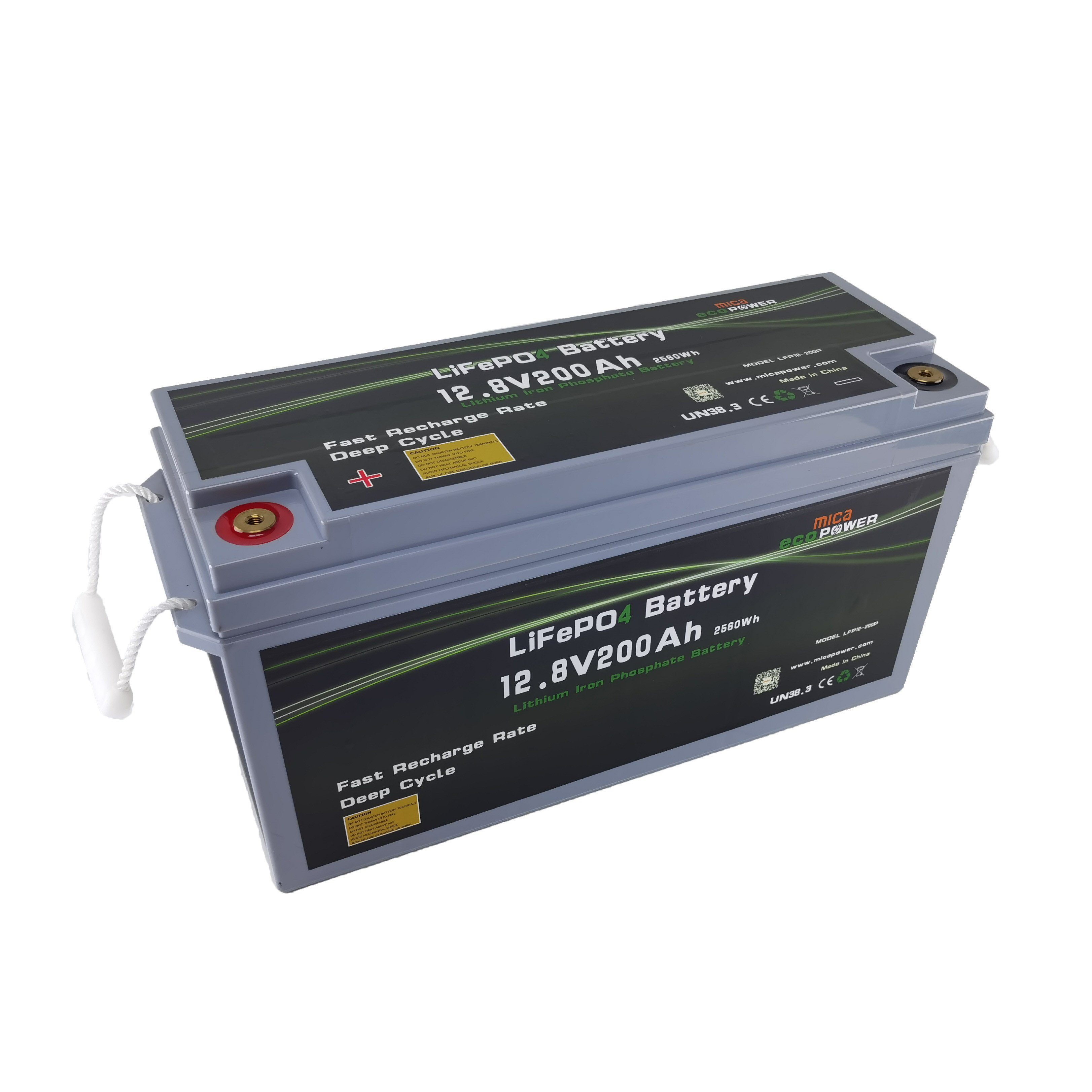

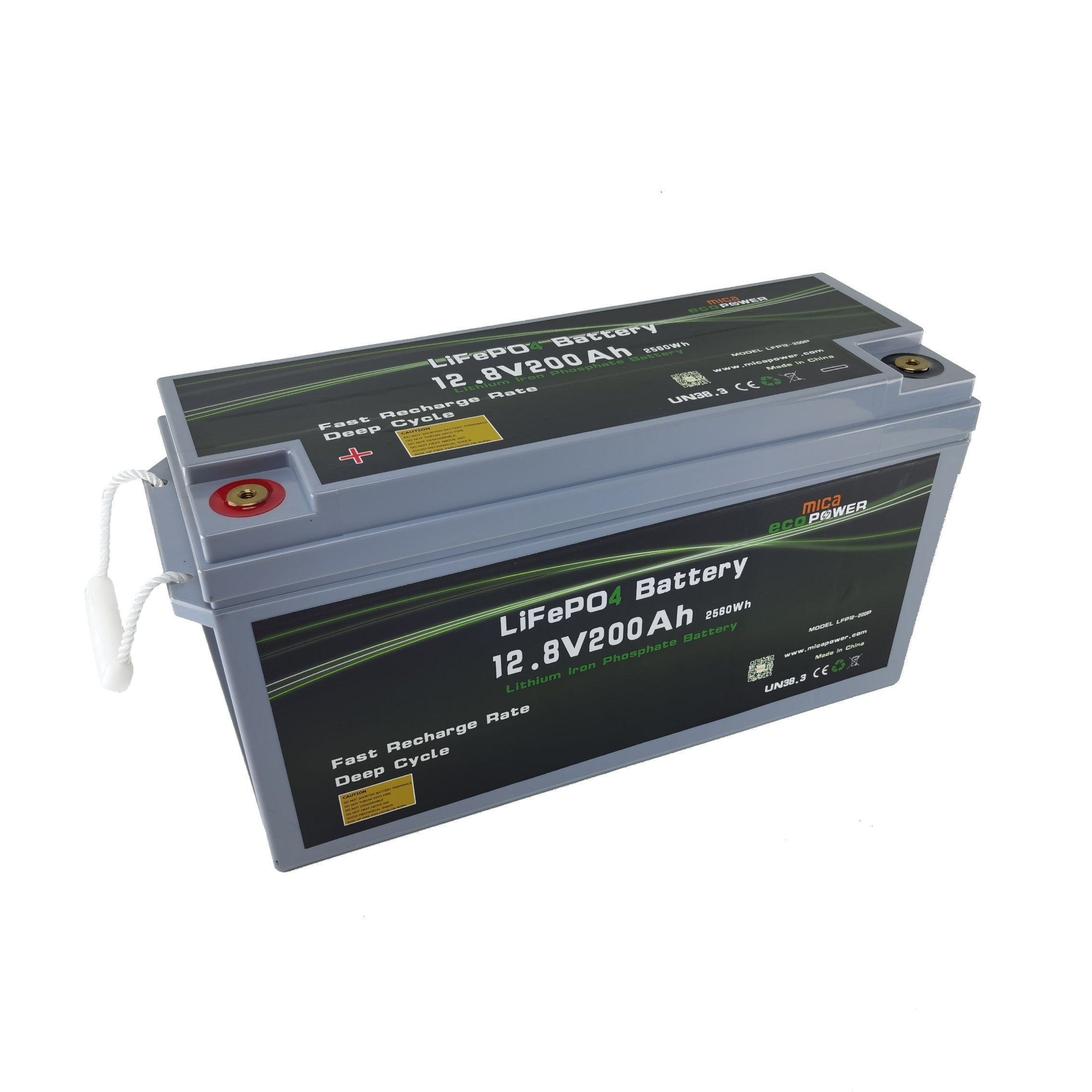

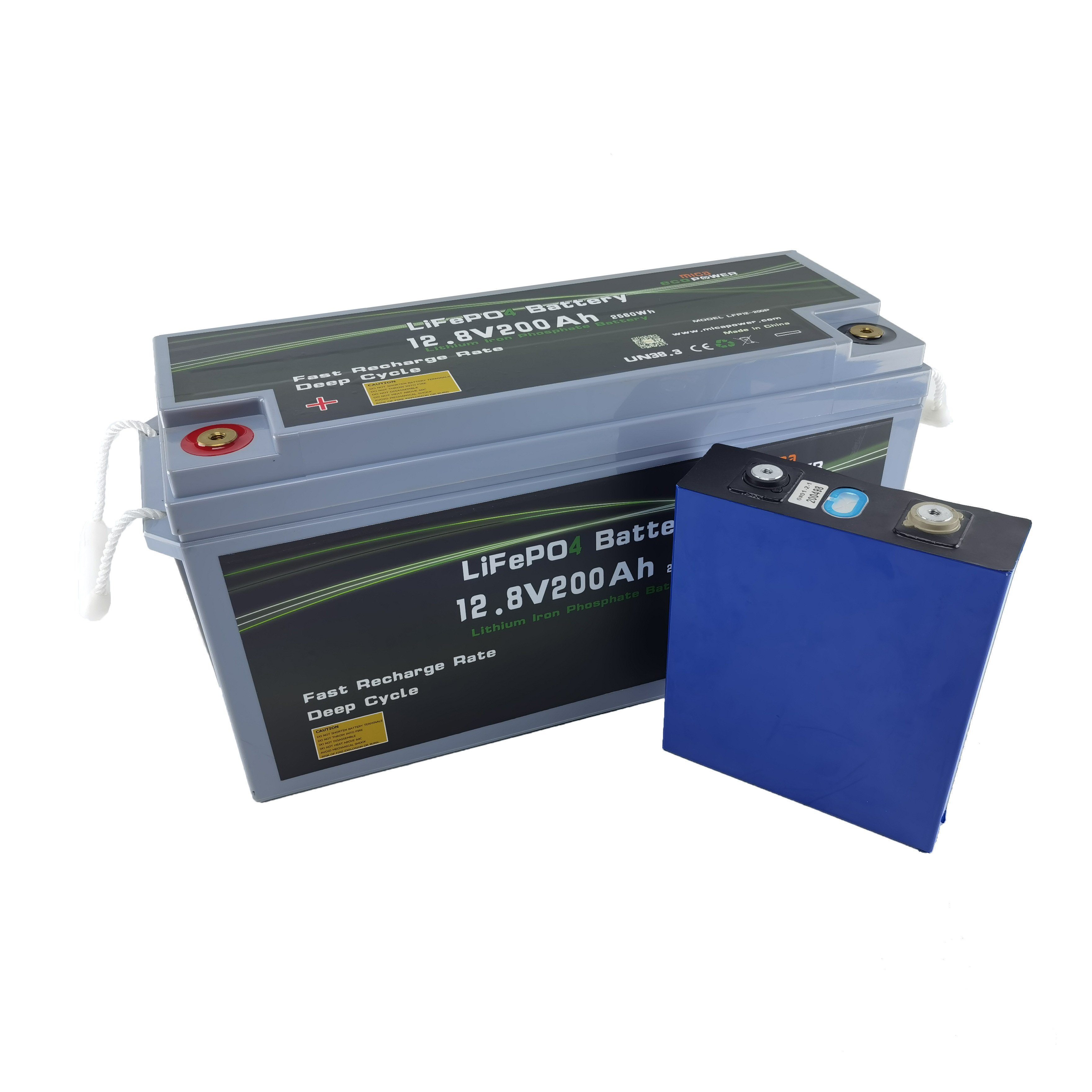

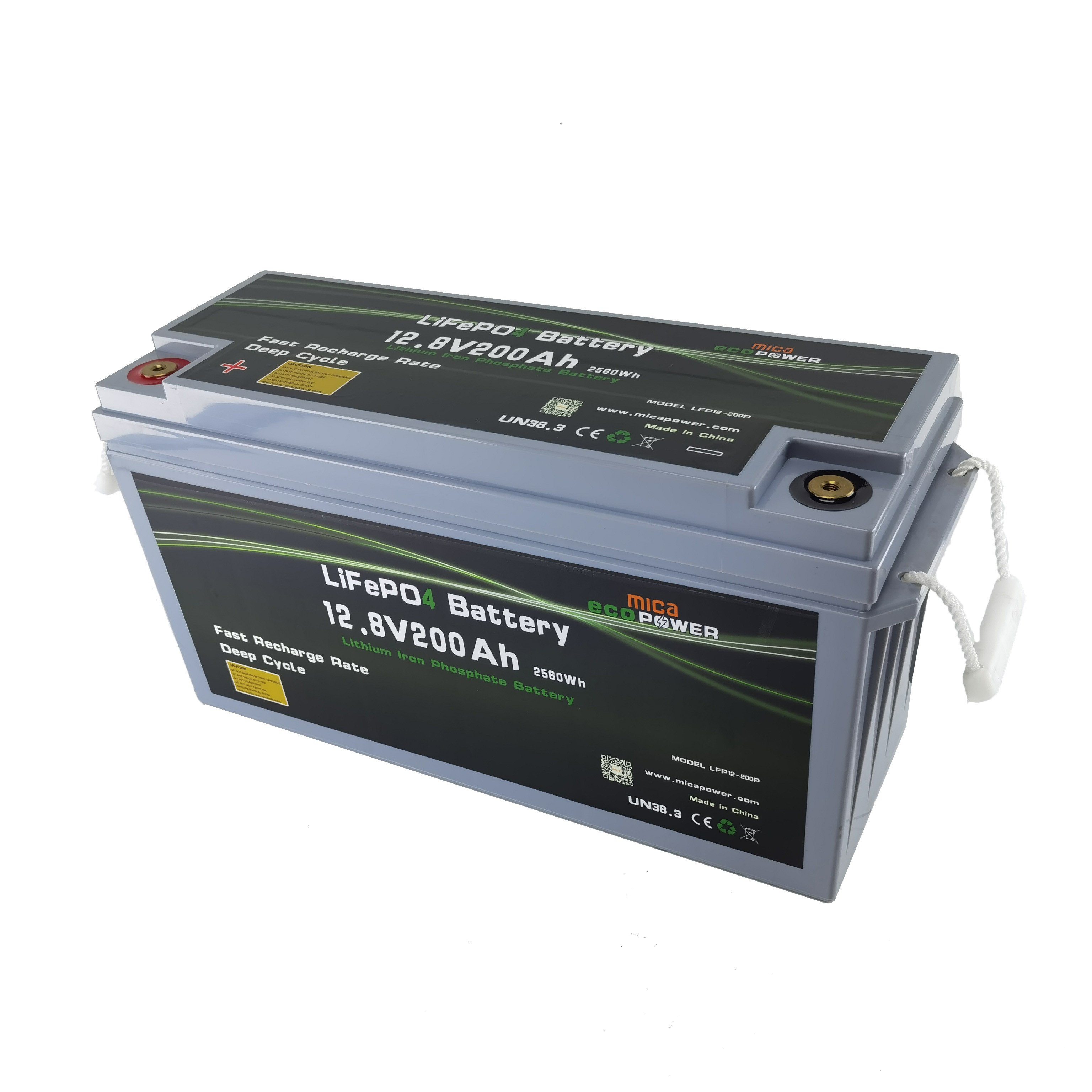

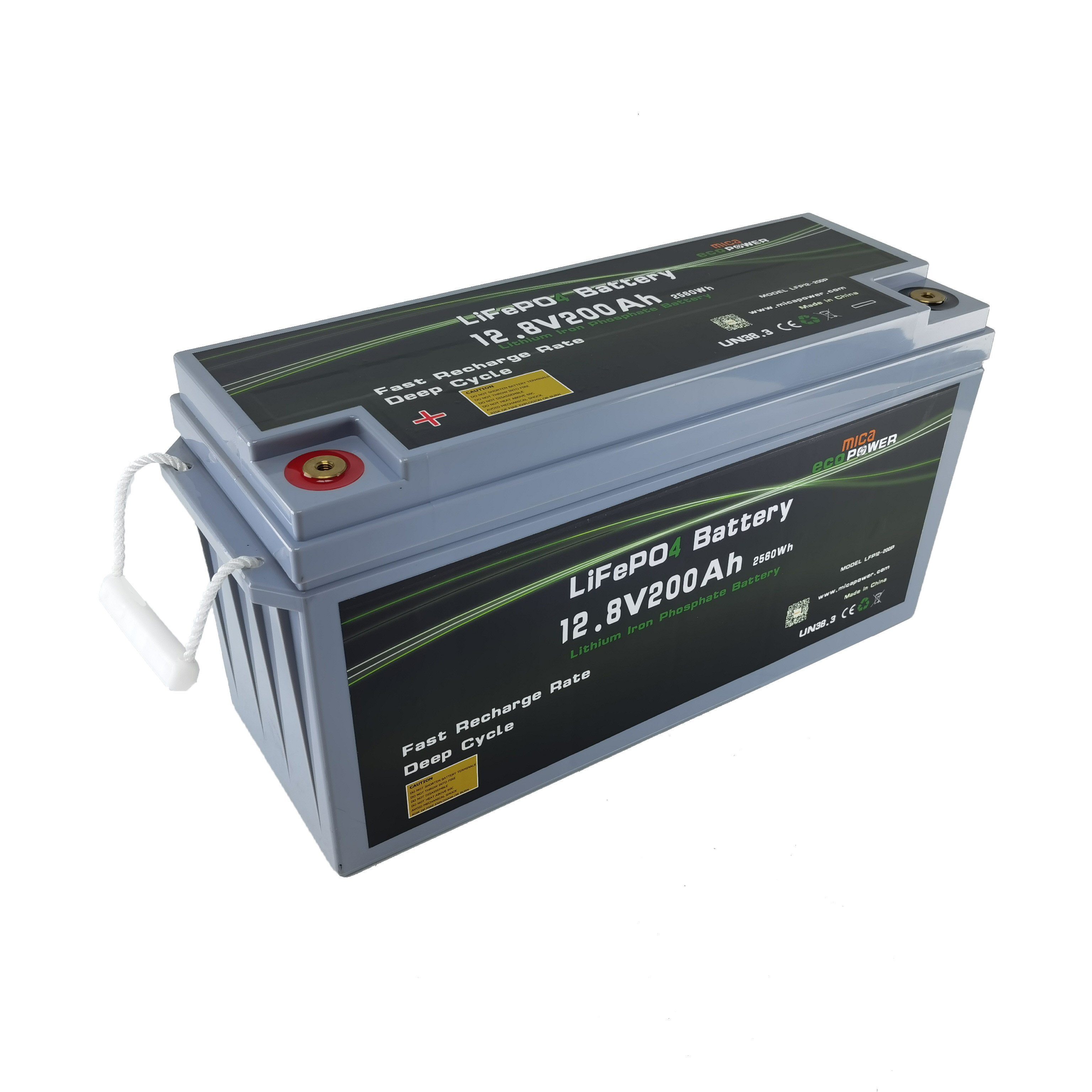

| Battery model | MC-12200F | |
| Nominal voltage | 12.8V | |
| Minimum capacity | 200Ah@25ºC | |
| Charging voltage | 14.6V | |
| Discharging cut-off voltage | 10V | |
| Standard charging | 0.2C /14.6V | |
| Max charging | 1C /14.6V | |
| Standard discharging | 100A/10V | |
| Max discharging | continuous discharge | 100A/10V |
| peak discharge | 200A/10V | |
| Standard Charging mode | CC/CV | |
| Operating temperature | Charging: 0°C ~ 45°C | |
| Discharging: -20°C ~60°C | ||
| Storage (At 50% SOC and specified temp, recoverable capacity in % vs time ) | -10ºC~25ºC | (12 months ≥85% ) |
| -10ºC ~45ºC | (6 months ≥85% ) | |
| -10ºC~55ºC | (1 month ≥90% ) | |
| 20±5ºC is the recommended storage temperature | ||
| Visual Inspection | There should not be any remarkable scratches, cracks, bolts, cauterization, deformations, swelling, leakage and so on the surface of the cell. | |
| Self-discharge Rate | <2% per month | |
