5 Years
Customized
Toys, Power Tools, Home Appliances, Consumer Elect
New
EST, ISO, CB, CE

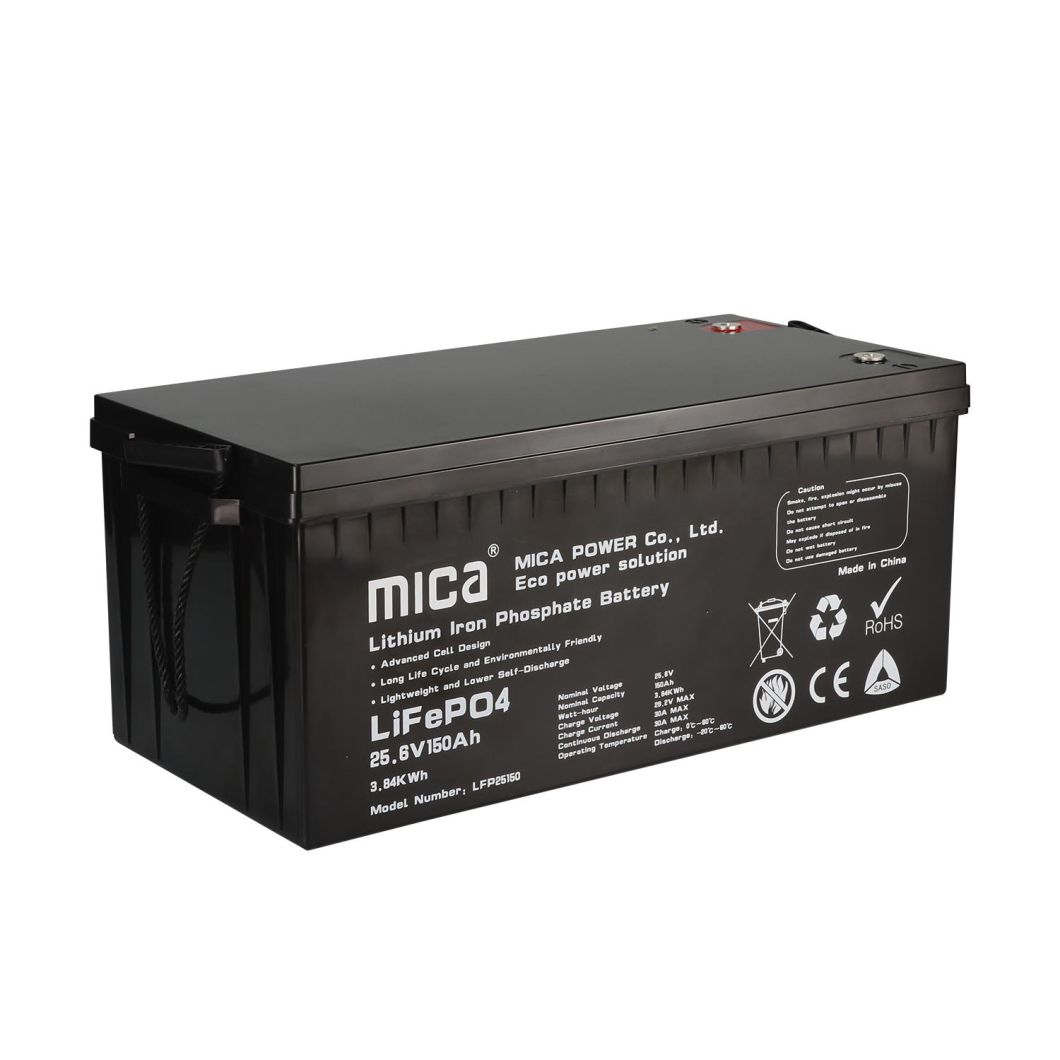

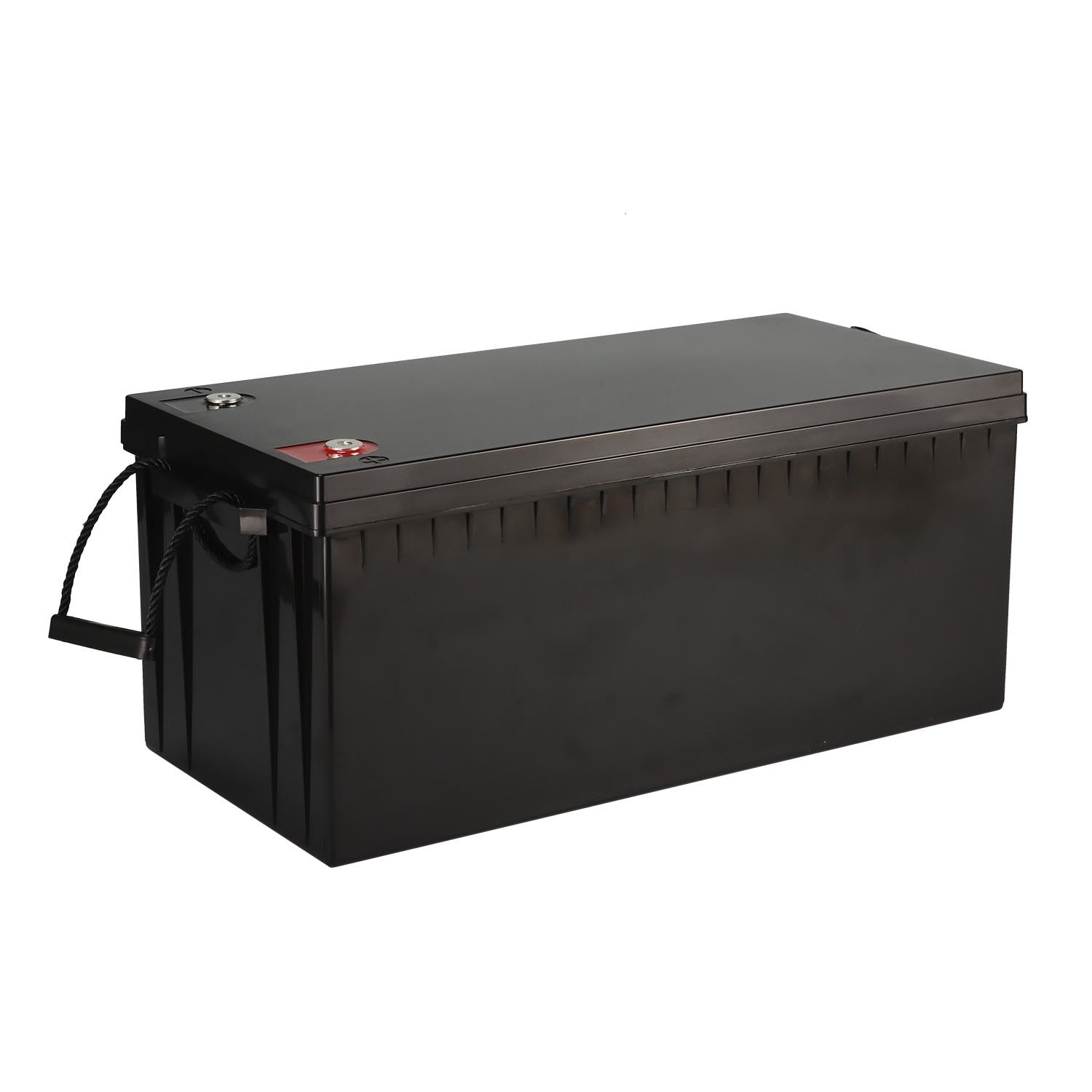

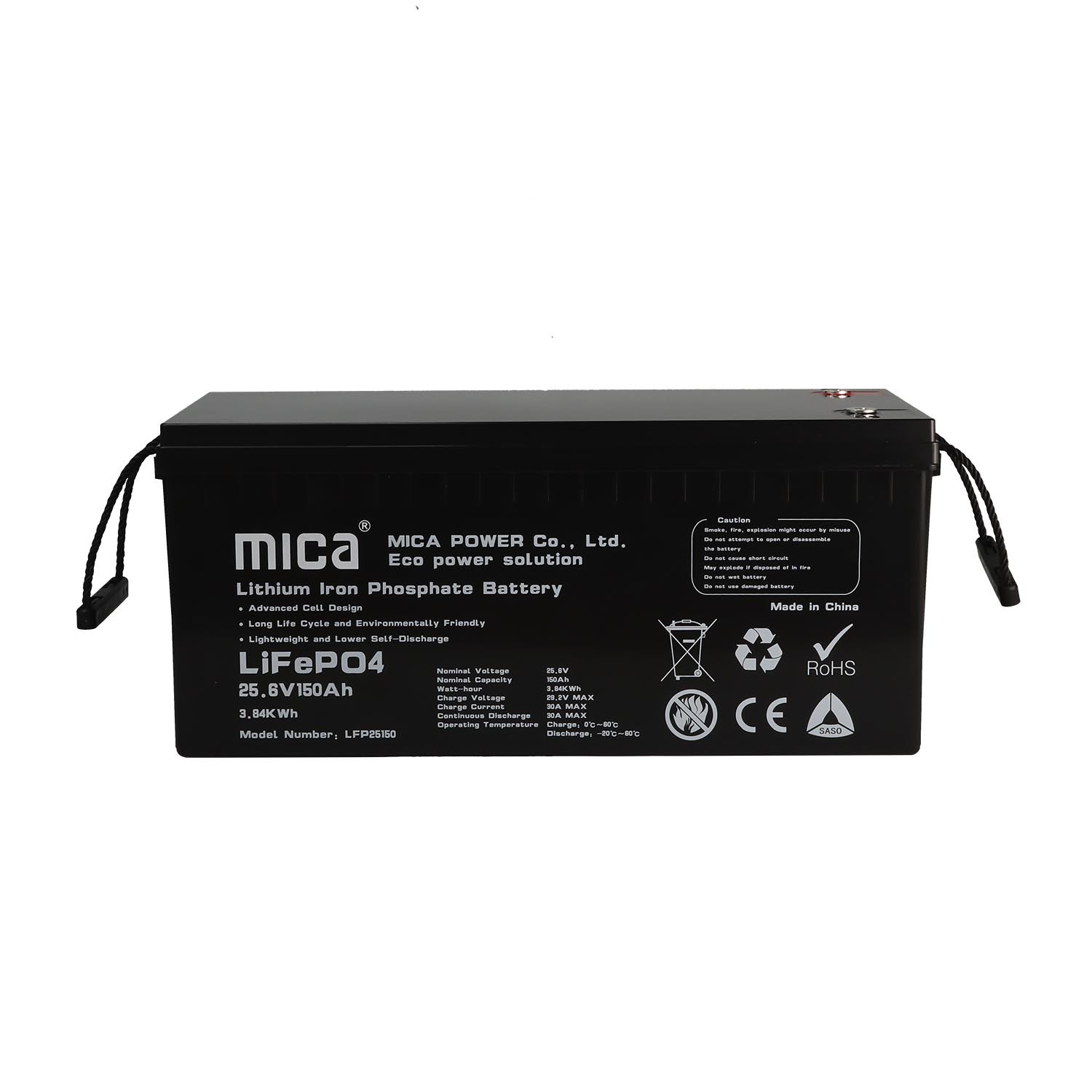

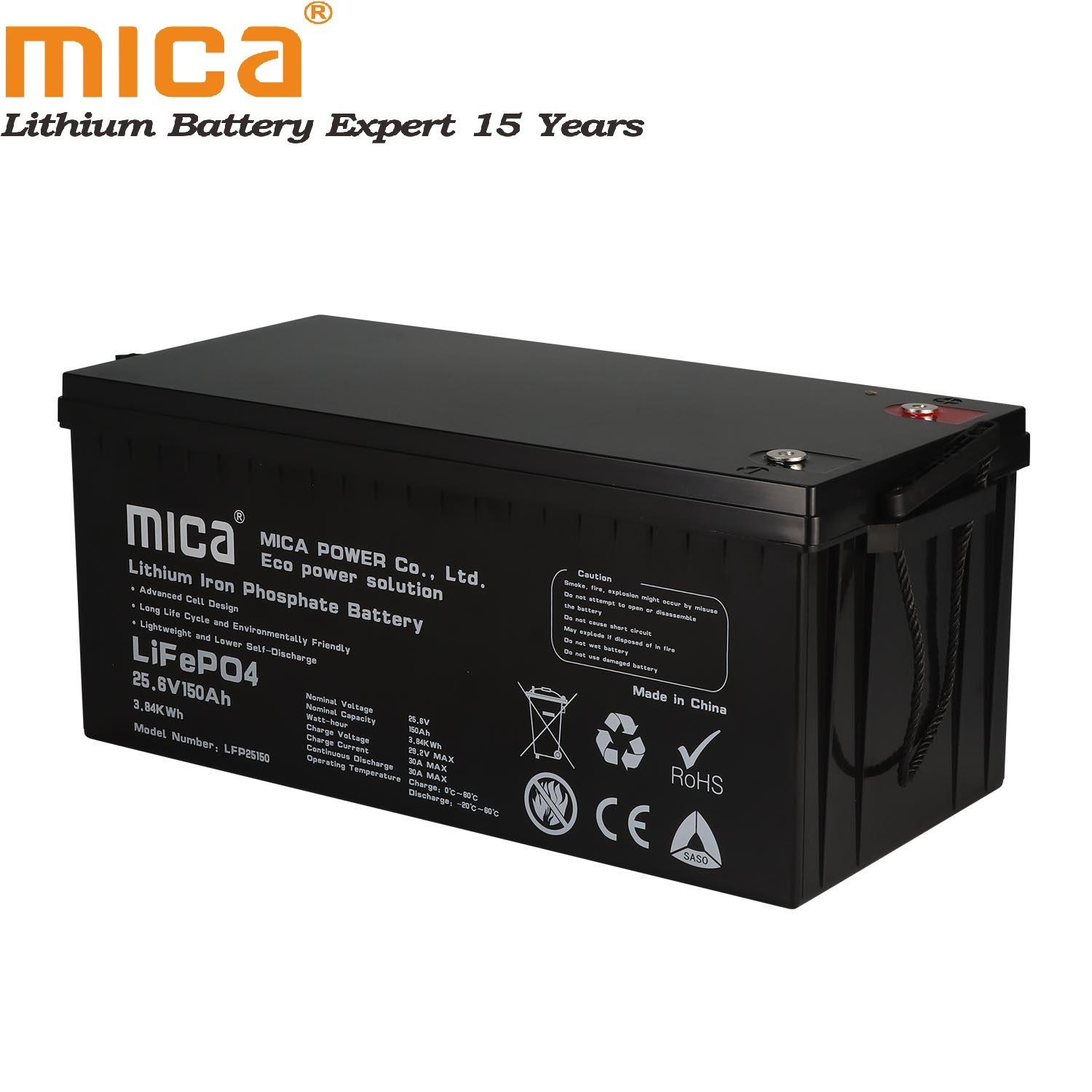

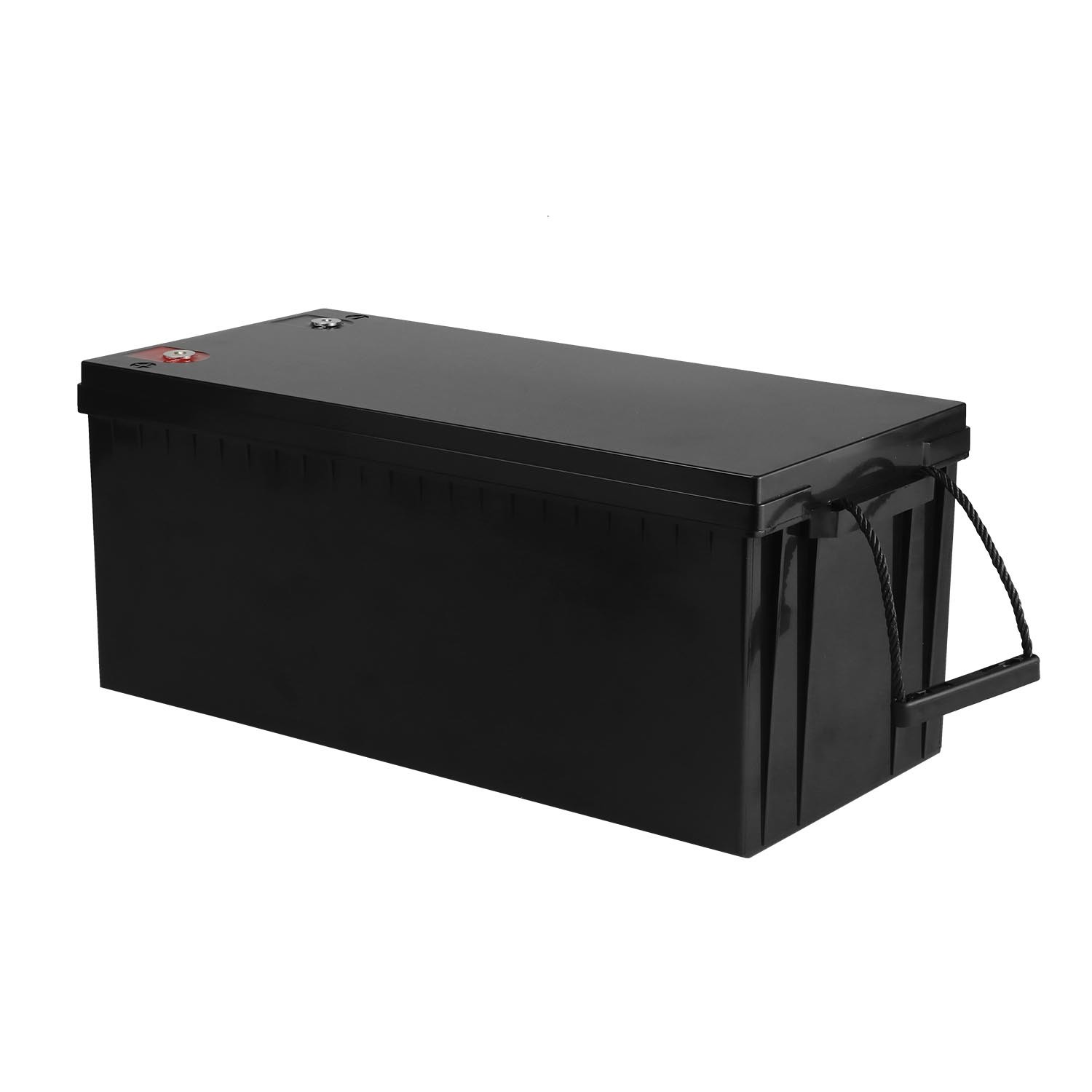

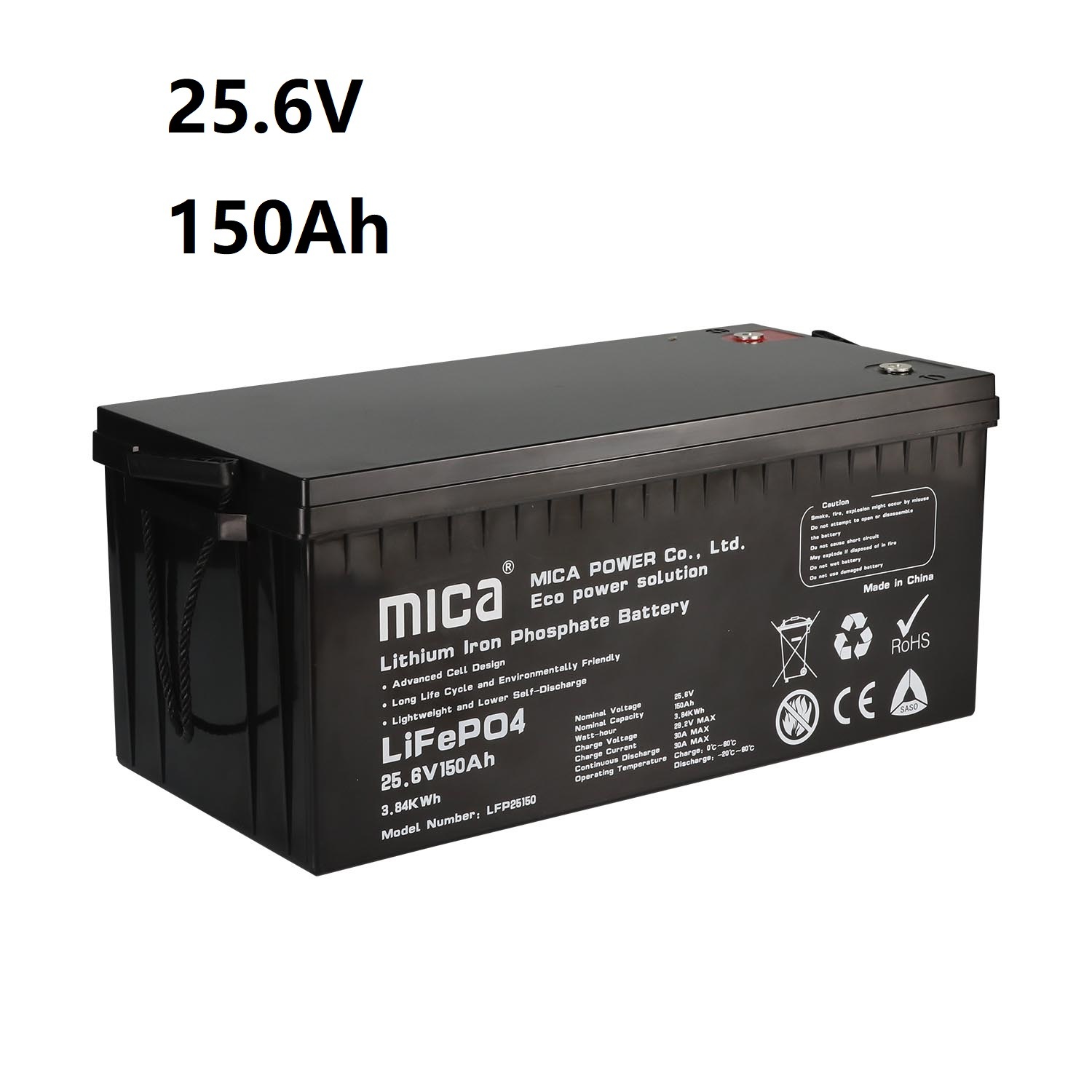

LiFePO4 Battery
Mainly focusing on different voltage and capacity for Li-ion lifepo4 battery cells and packs,
| General Information | | |
| Battery Type | LiFePO4(Lithium Iron Phosphate) | |
| Nominal Voltage | 25.6V | |
| Nominal Capacity | 150Ah25ºC,C10 | |
| Nominal Energy | 3840Wh25ºC,C10 | |
| Operation Voltage | 20~29.2V | |
| Operation Temperature | Charge: 0°C - 45°C | Discharge: -20°C - 60°C | |
| Cycle Life 100%DOD | >3000 cycles (3840Wh25ºC,C10) | |
| Cycle Life 80%DOD | >4000 cycles (3072Wh25ºC,C10) | |
| Cycle Life 50%DOD | >6000 cycles (1920Wh25ºC,C10) | |
| Dimension | 522 x 238 x 222mm (W x D x H) | |
| Terminal Type | M8 | |
| Weight | ~31 kg | |
| Warranty Period | 5 years | |
| Environment Protection | IP56 | |
| BMS/Charge/Discharge | |
| Charge Voltage Max | 29.2V |
| Discharge Cut-off Voltage | 20V |
| Charge Current Max | 30A |
| Discharge Current Max | 30A continues 60A burst (10seconds) |
| Self-discharge Rate | <2% per month |
| Protection | Over-charge protection Over-discharge protection Over current protection Cell balancing function Over temperature protection |

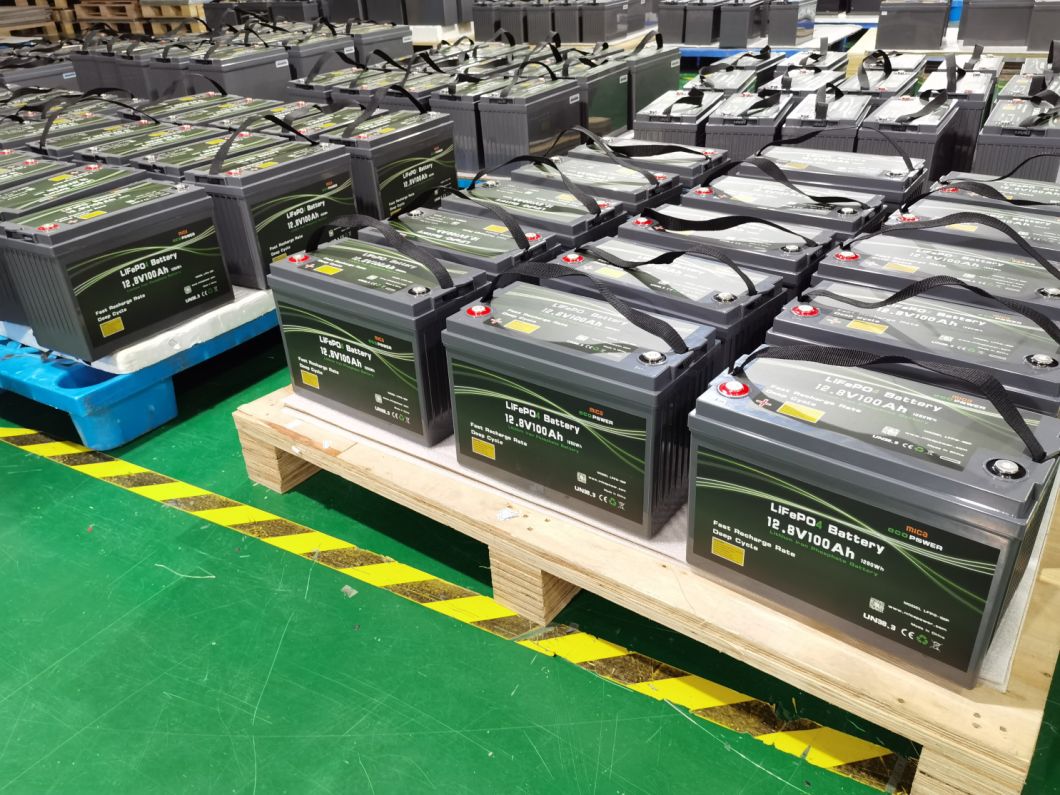

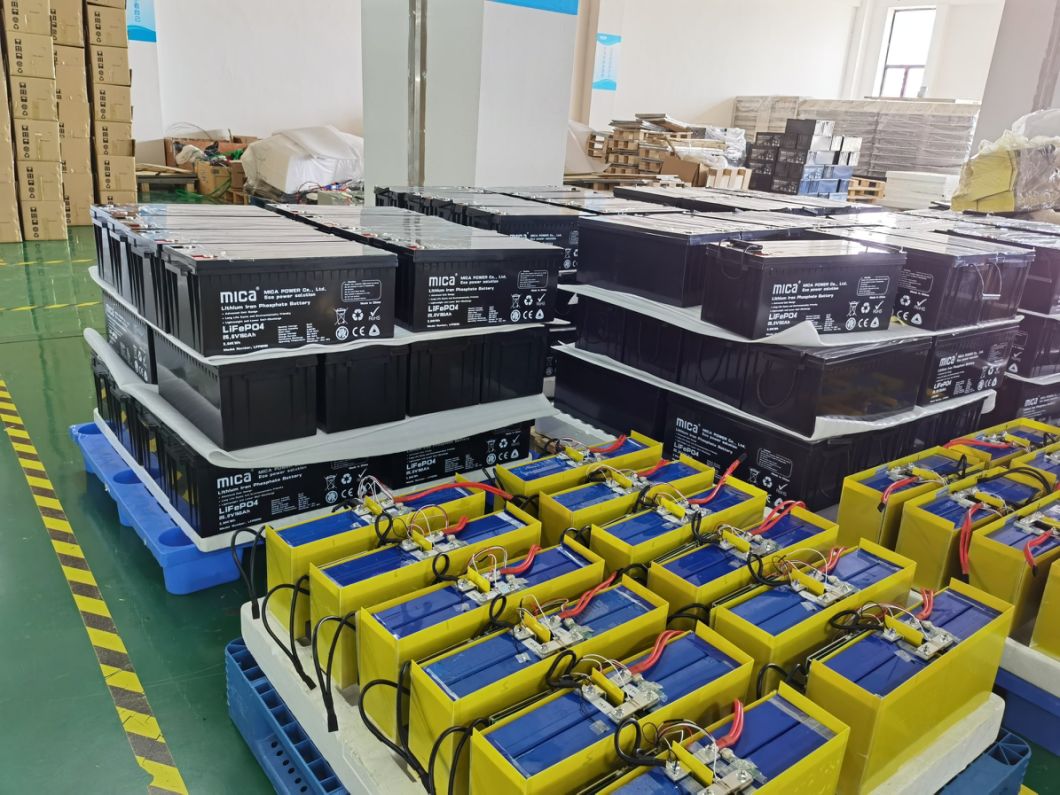

Mica Power Co. Ltd was established in 2009. Our management team has more than 15 years' experience in battery business. Facility Aare: 15000 square meters; Employee: 1000.
We specialize in manufacturing and exporting lithium-polymer batteries, lithium-ion batteries, LiFePo4 rechargeable batteries, rechargeable batteries for 3C consumer electronics such as TWS earphone,Bluetooth speaker, flashlight, POS machine energy storage system, power tool, BMS and all kinds of PCM for batteries and OEM/ODM battery packs. We also support customers with an outstanding service and a customized POS concept.
1. Q: What's the main product in Mica?
A: Rechargeable LiFePO4 battery, Li-ion, Lipo battery and power battery pack.
2. Q: Do you have any protection for battery pack?
A: Over-charge protection Over-discharge protection
Over current protection
Cell balancing function
Over temperature protection
3. Q: What is over discharge?
A: After charge, test the batteries' initial state. When the batteries are normal, discharge to 0V at 0.5C. Observe changes in battery appearance
4. Q: Can I have a sample order?
A: Yes, we accept sample order to test and check quality. Batteries can be made as require.
5. Q: Do you have MOQ limit?
A: Yes, we have MOQ limit for mass production, but it depends on battery model. Please contact us for details.
6. Q: How about the lead time?
A: Samples will takes 5-7 business days. Mass production will takes 25-30 days. It depends on quantity.
7. Q: How about shipping and delivery time?
A: Generally, battery will be shipped via Express, such as DHL, TNT, FedEx and UPS, delivery time is 3-5 business days.
Or DDP service, delivery time is 11-15 business days.
Airline and sea shipping also available.
8. Q: What about after-sale service?
A: We will offer you 1-5 year guarantee. If there are any problems, please inform us, we will offer you positive solutions.
