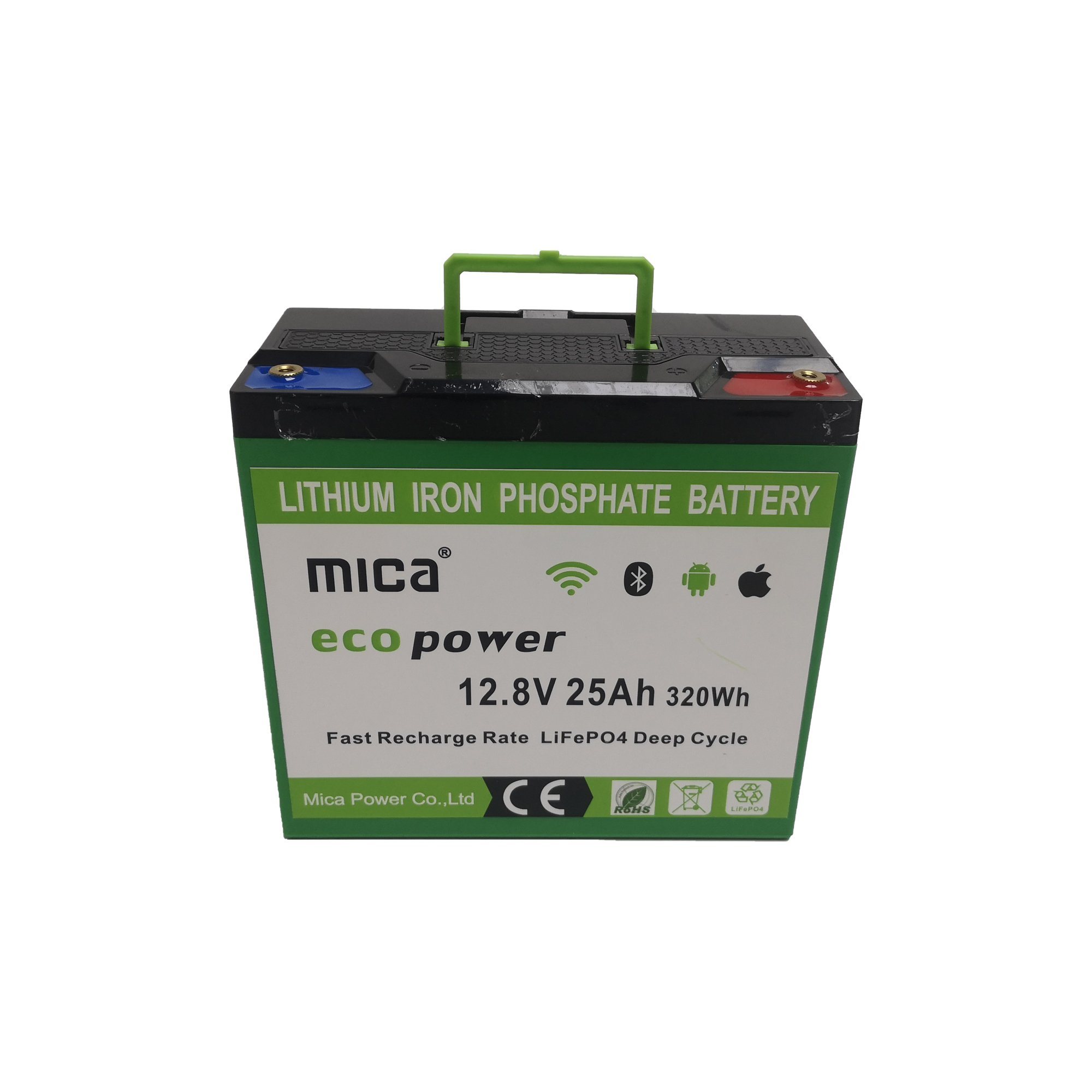

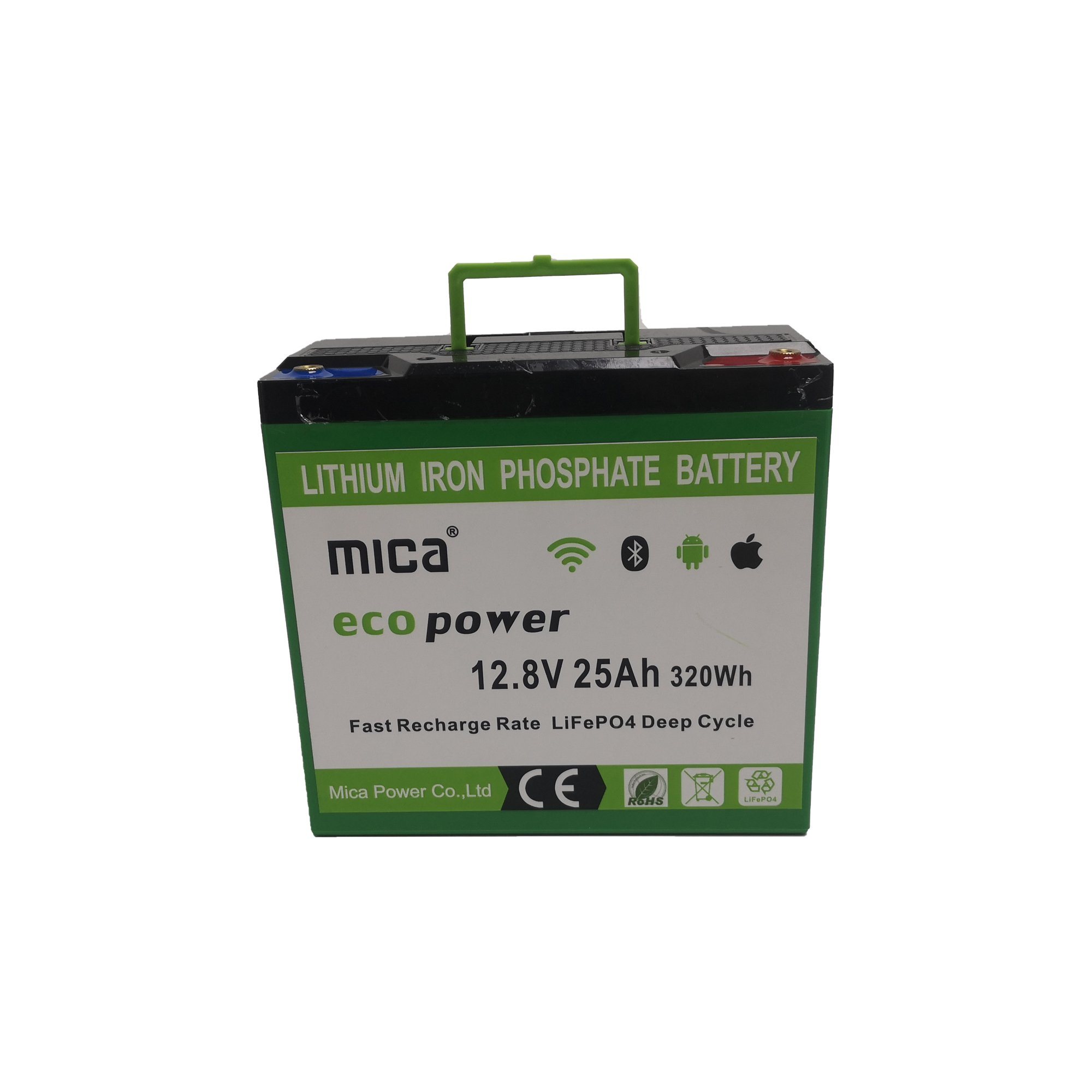

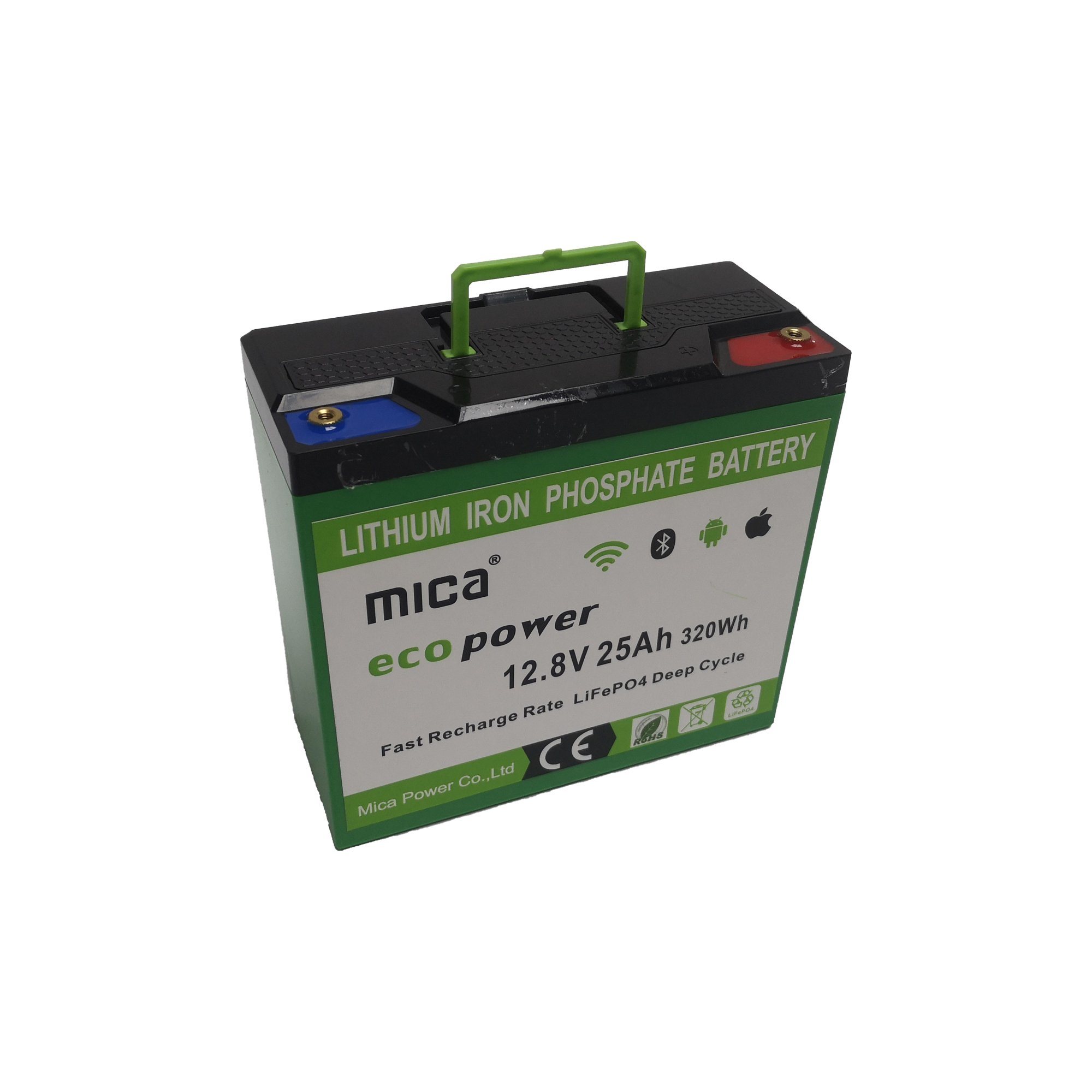

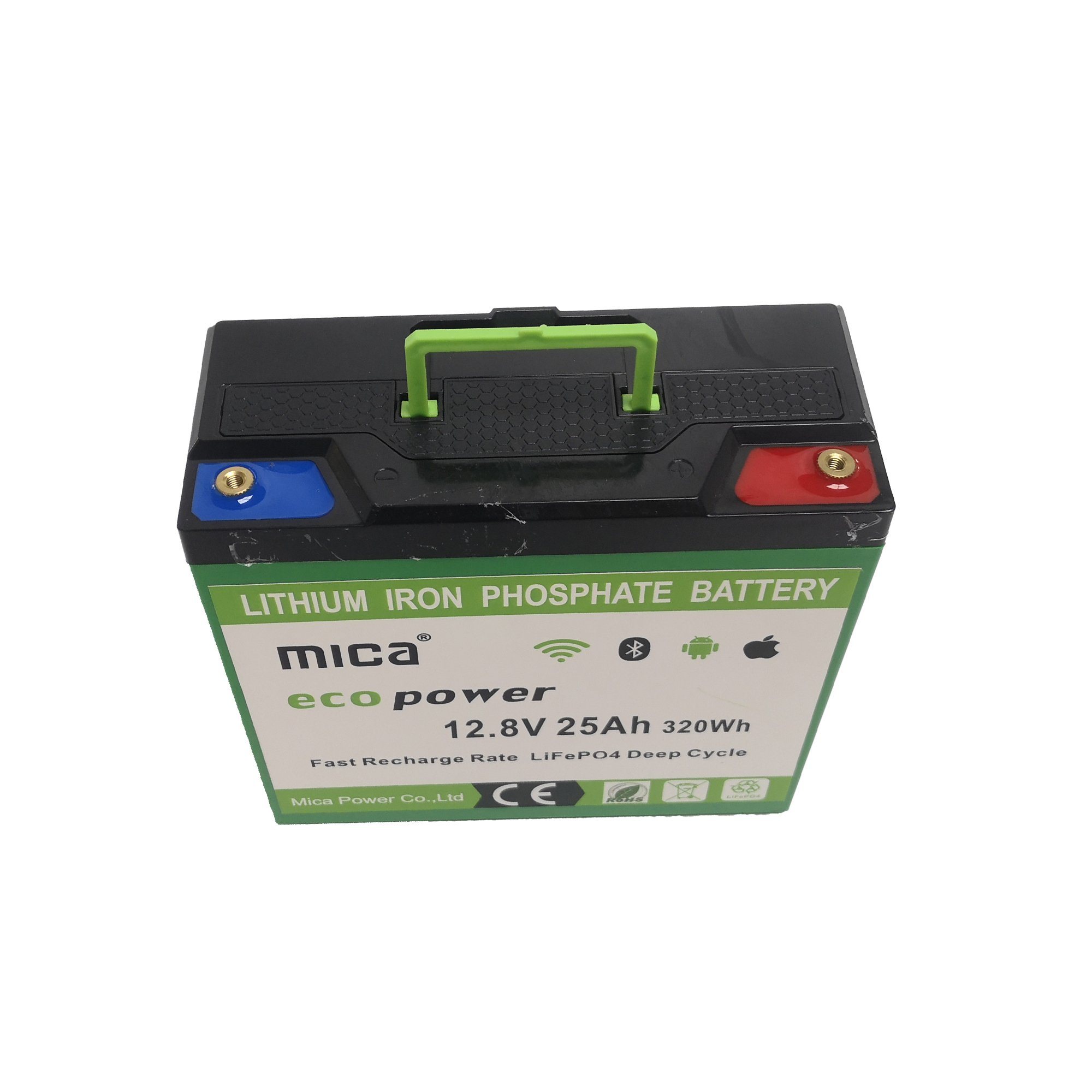

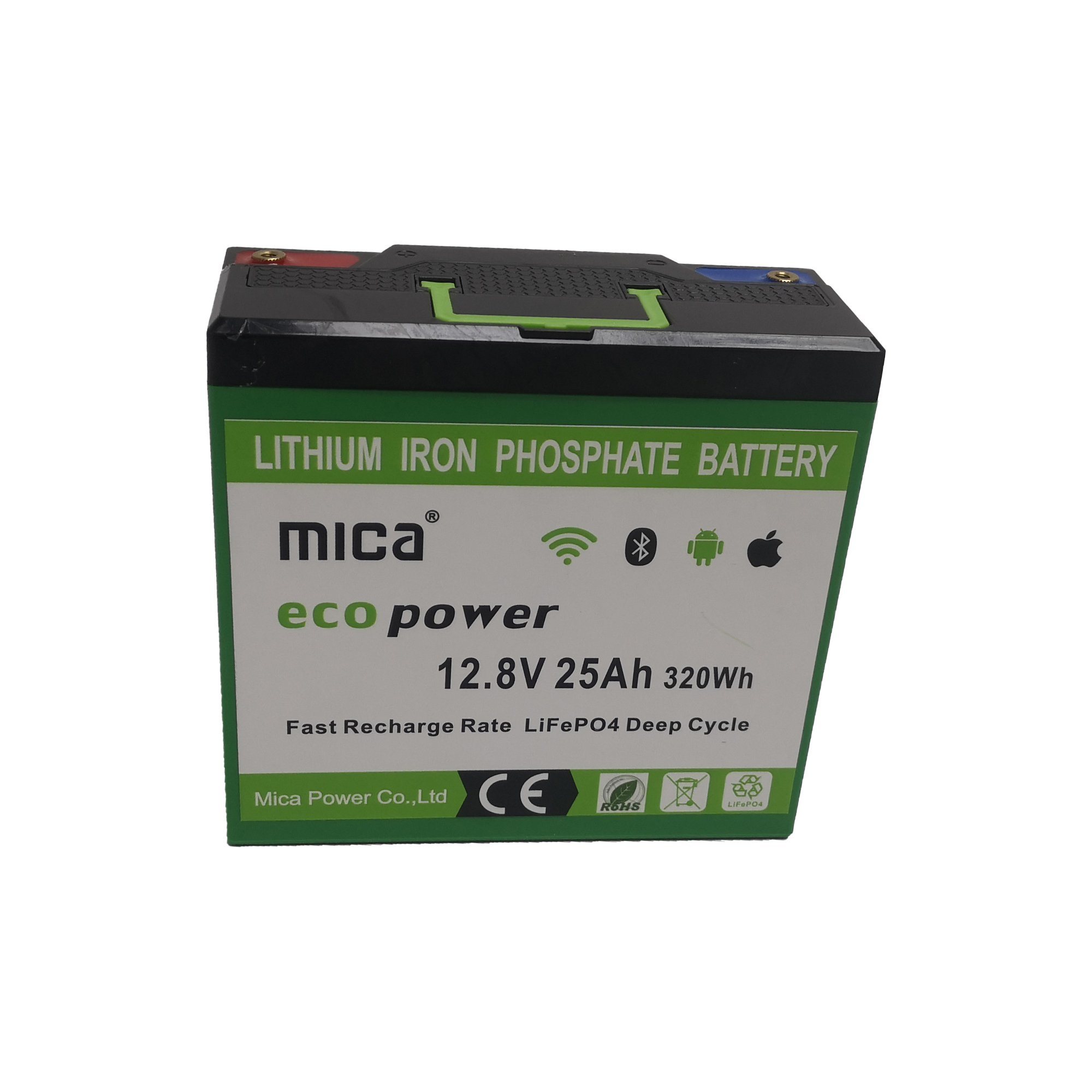

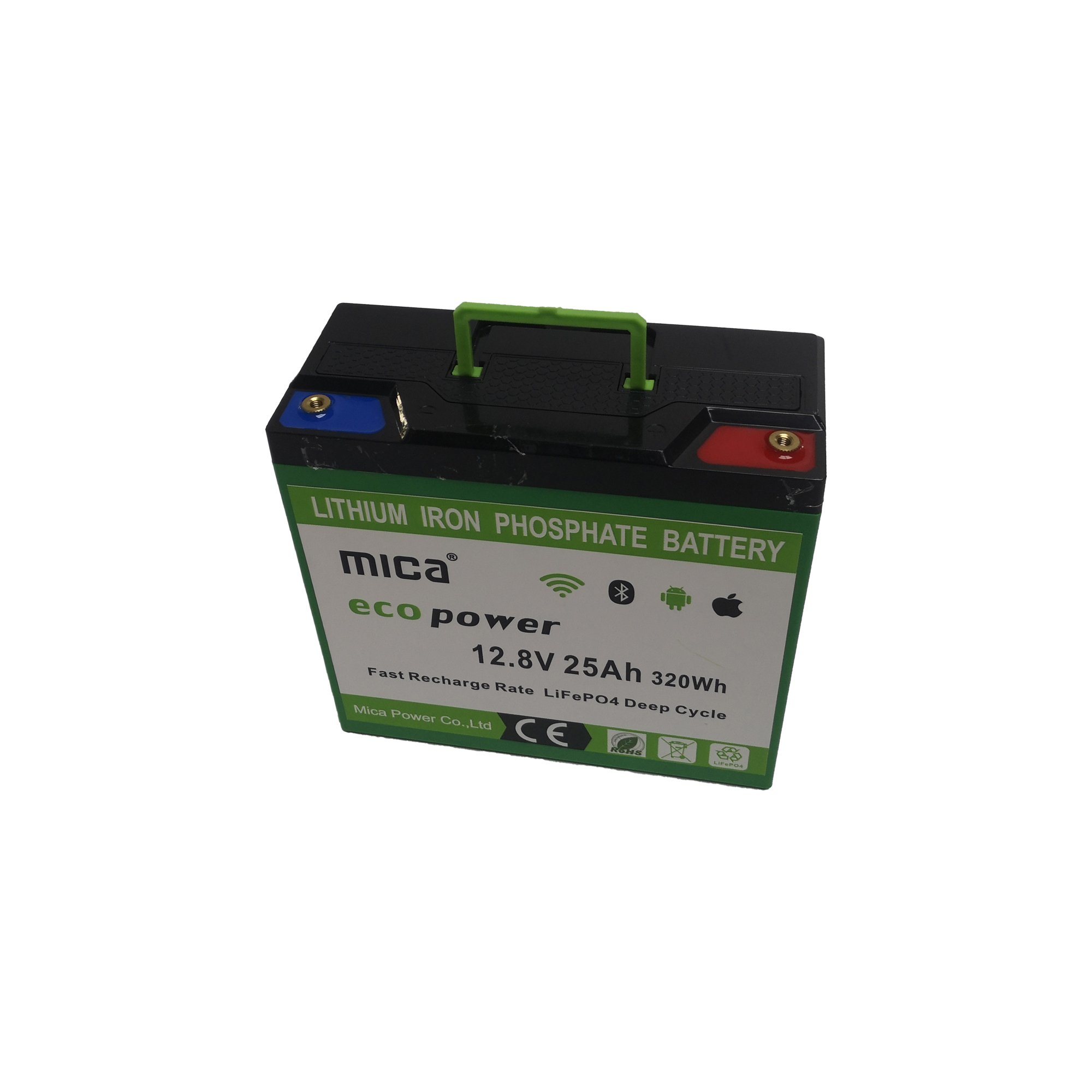

Lithium-Ion Battery Pack
Series and Parallel
Chargeable
Medium Discharge Rate
Medium
Battery
| General Information | |
| Battery Type | LiFePO4(Lithium Iron Phosphate) |
| Nominal Voltage | 12.8V |
| Nominal Capacity | 25Ah@25ºC,C10 |
| Nominal Energy | 320Wh@25ºC,C10 |
| Operation Voltage | 10~14.6V |
| Operation Temperature | Charge: 0°C - 45°C | Discharge: -20°C - 60°C |
| Cycle Life @ 100%DOD | >3000 cycles (320Wh@25ºC,C10) |
| Cycle Life @ 80%DOD | >4000 cycles (256Wh@25ºC,C10) |
| Cycle Life @ 50%DOD | >6000 cycles (160Wh@25ºC,C10) |
| Dimension | 181 x 77 x 171mm (W x D x H) |
| Terminal Type | M6 |
| Weight | ~3.1 kg |
| Warranty Period | 5 years |
| Environment Protection | IP56 |
| BMS/Charge/Discharge | |
| Charge Voltage Max | 14.6V |
| Discharge Cut-off Voltage | 10V |
| Charge Current Max | 20A |
| Discharge Current Max | 20A continues |
| 40A burst (10 seconds) | |
| Self-discharge Rate | <2% per month |
| Protection | Over-charge protection |
| Over-discharge protection | |
| Over current protection | |
| Cell balancing function | |
| Over temperature protection | |
More than 15 Years' Experience in Lithium Battery
Mica Power Co. Ltd was established in 2009. Our management team has more than 15 years' experience in rechargeable battery. Our factory covers an area of 15,000 square meters and has more than 500 employees.
