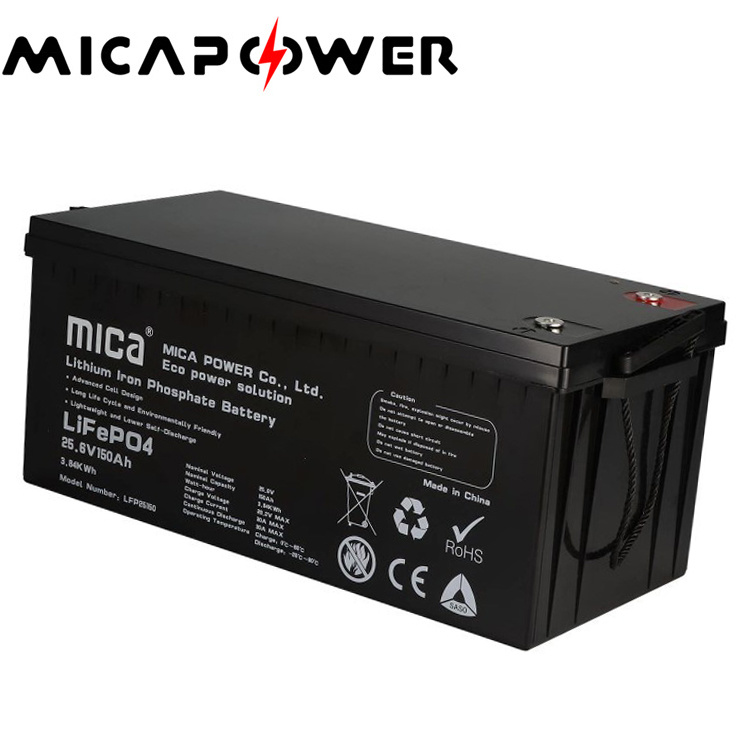

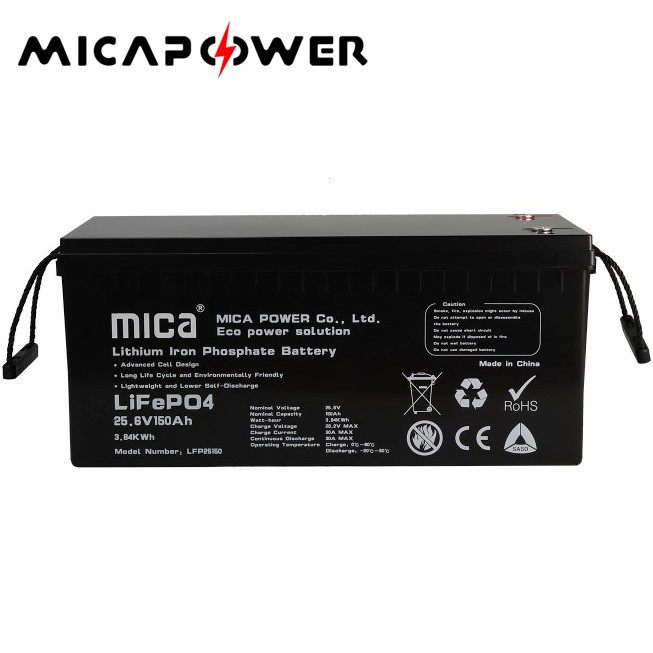

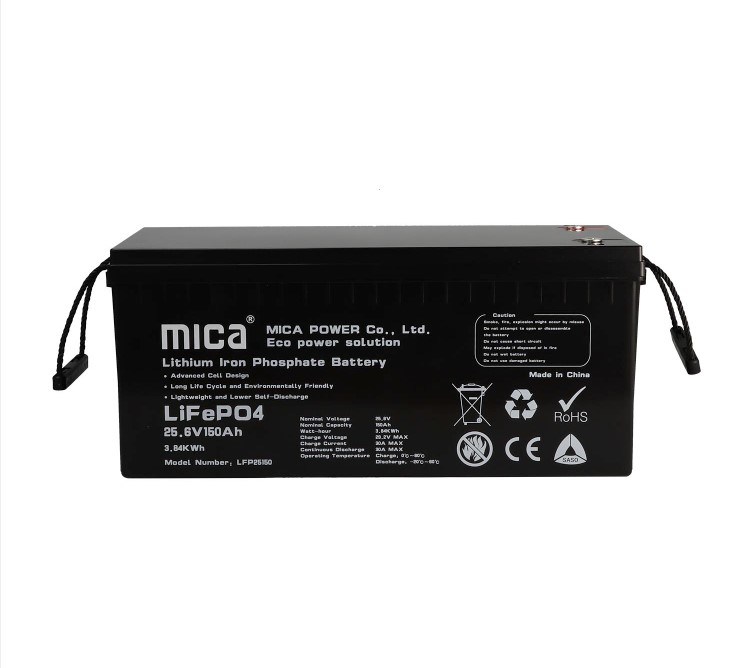

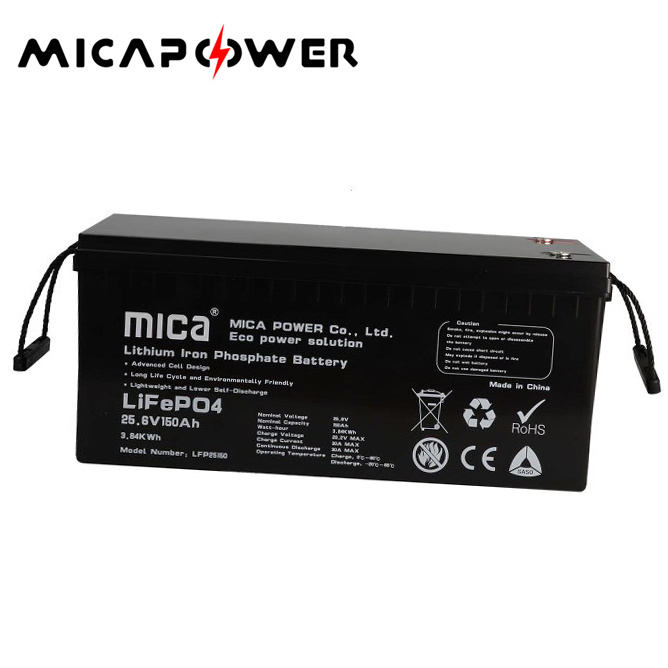

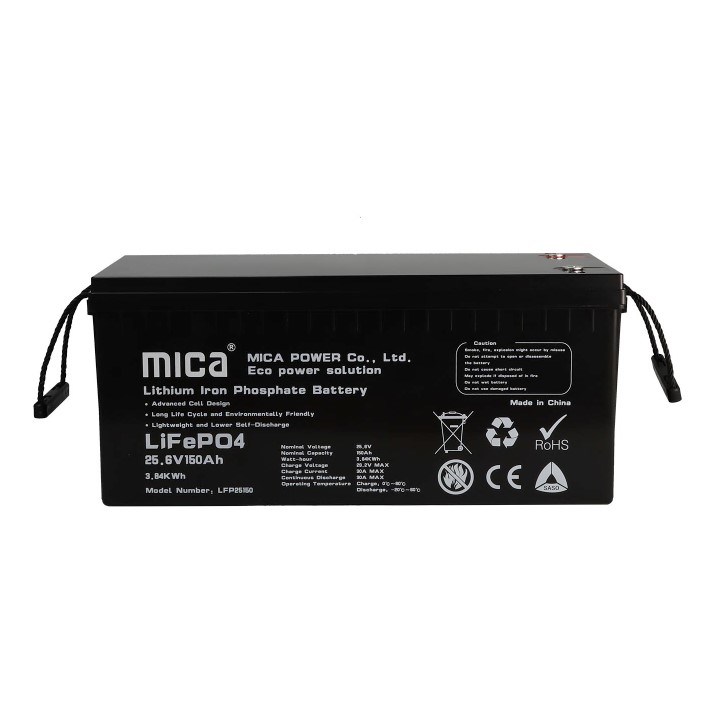

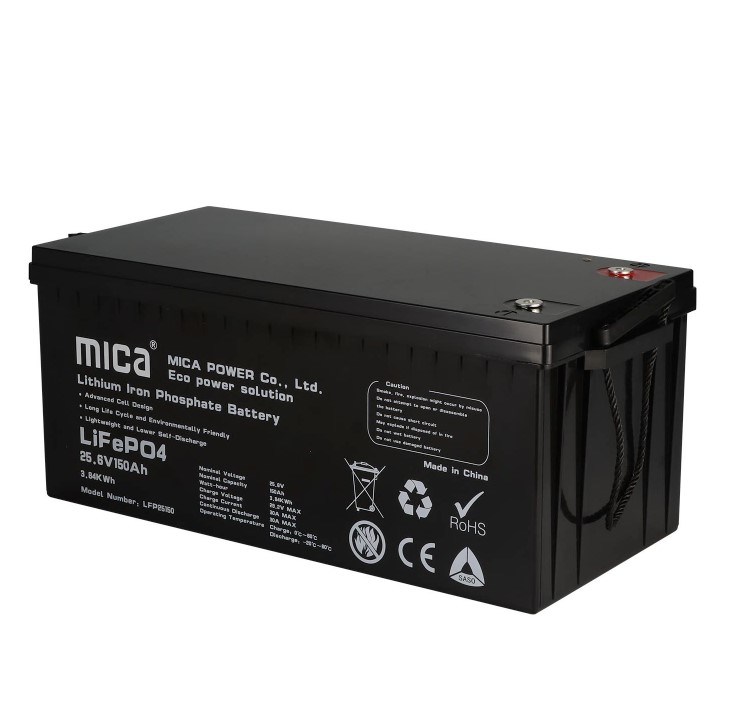

Li-ion Battery
LFP
Yes
Medium
25.6V
150ah
Availability: | |
---|---|
Features
General Information | |
Battery Type | LiFePO4(Lithium Iron Phosphate) |
Nominal Voltage | 25.6V |
Nominal Capacity | 150Ah25ºC,C10 |
Nominal Energy | 3840Wh25ºC,C10 |
Operation Voltage | 20~29.2V |
Operation Temperature | Charge: 0°C - 45°C | Discharge: -20°C - 60°C |
Cycle Life 100%DOD | >3000 cycles (3840Wh25ºC,C10) |
Cycle Life 80%DOD | >4000 cycles (3072Wh25ºC,C10) |
Cycle Life 50%DOD | >6000 cycles (1920Wh25ºC,C10) |
Dimension | 522 x 238 x 222mm (W x D x H) |
Terminal Type | M8 |
Weight | ~31 kg |
Warranty Period | 5 years |
Environment Protection | IP56 |
BMS/Charge/Discharge
Charge Voltage Max: 29.2V
Discharge Cut-off Voltage: 20V
Charge Current Max: 30A
Discharge Current Max: 30A continues 60A burst (10seconds)
Self-discharge Rate: <2% per month
Protection
Over-charge protection
Over-discharge protection
Over current protection
Cell balancing function
Over temperature protection
