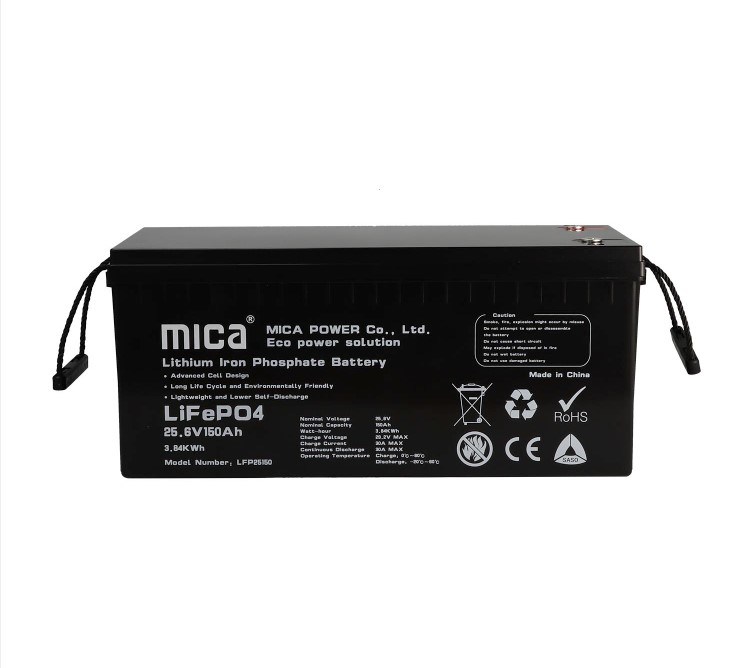

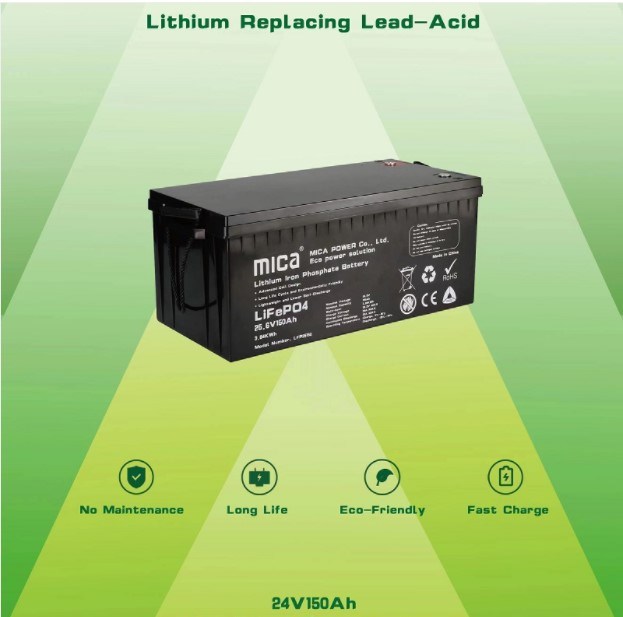

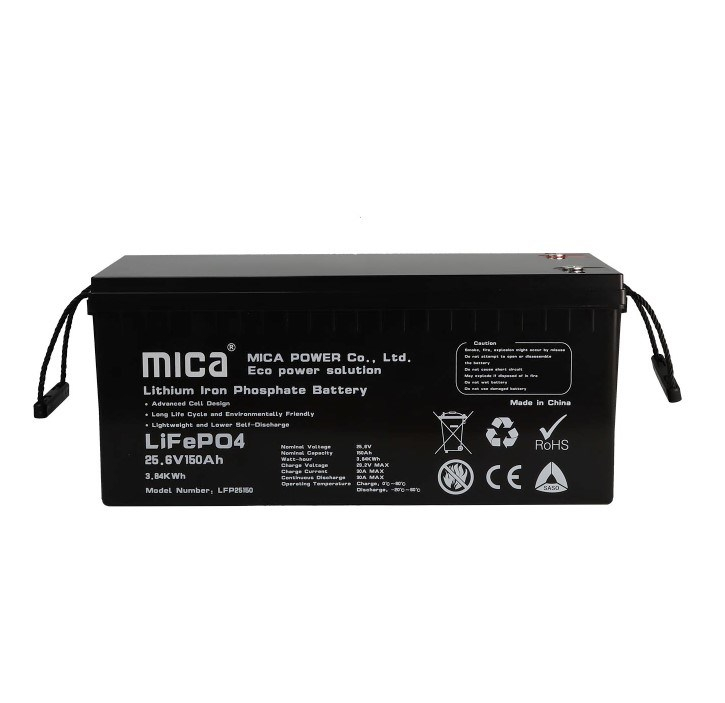

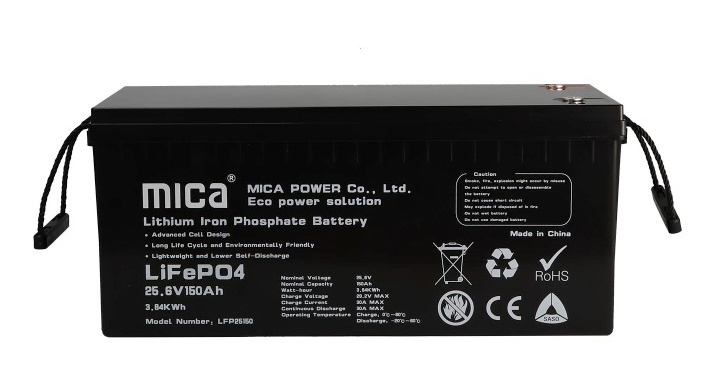

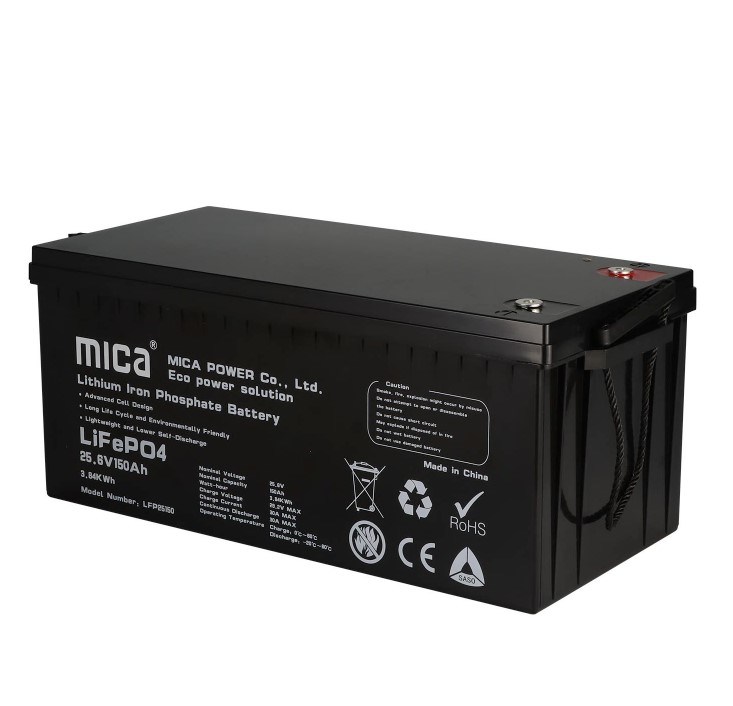

Li-ion Battery
LFP
Yes
| Availability: | |
|---|---|
Features
• Ultra-reliable Lithium Iron Phosphate (LiFePO4) technology
| General Information | |
| Battery Type | LiFePO4(Lithium Iron Phosphate) |
| Nominal Voltage | 25.6V |
| Nominal Capacity | 150Ah25ºC,C10 |
| Nominal Energy | 3840Wh25ºC,C10 |
| Operation Voltage | 20~29.2V |
| Operation Temperature | Charge: 0°C - 45°C | Discharge: -20°C - 60°C |
| Cycle Life 100%DOD | >3000 cycles (3840Wh25ºC,C10) |
| Cycle Life 80%DOD | >4000 cycles (3072Wh25ºC,C10) |
| Cycle Life 50%DOD | >6000 cycles (1920Wh25ºC,C10) |
| Dimension | 522 x 238 x 222mm (W x D x H) |
| Terminal Type | M8 |
| Weight | ~31 kg |
| Warranty Period | 5 years |
| Environment Protection | IP56 |
BMS/Charge/Discharge
Charge Voltage Max
29.2V
Discharge Cut-off Voltage
20V
Charge Current Max
30A
Discharge Current Max
30A continues60A burst (10seconds)
Self-discharge Rate
<2% per month
Protection
Over-charge protection
Over-discharge protection
Over current protection
Cell balancing function
Over temperature protection
