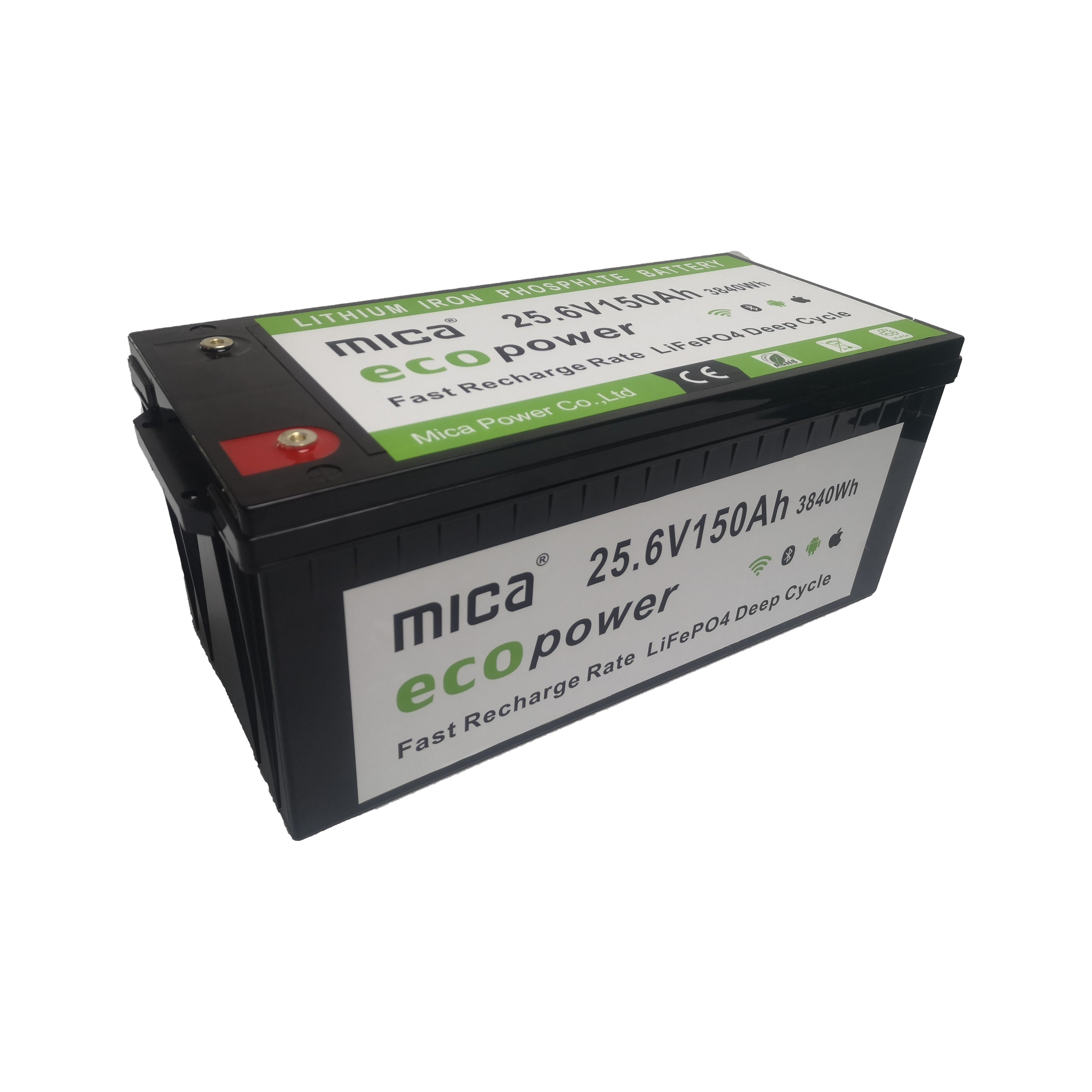

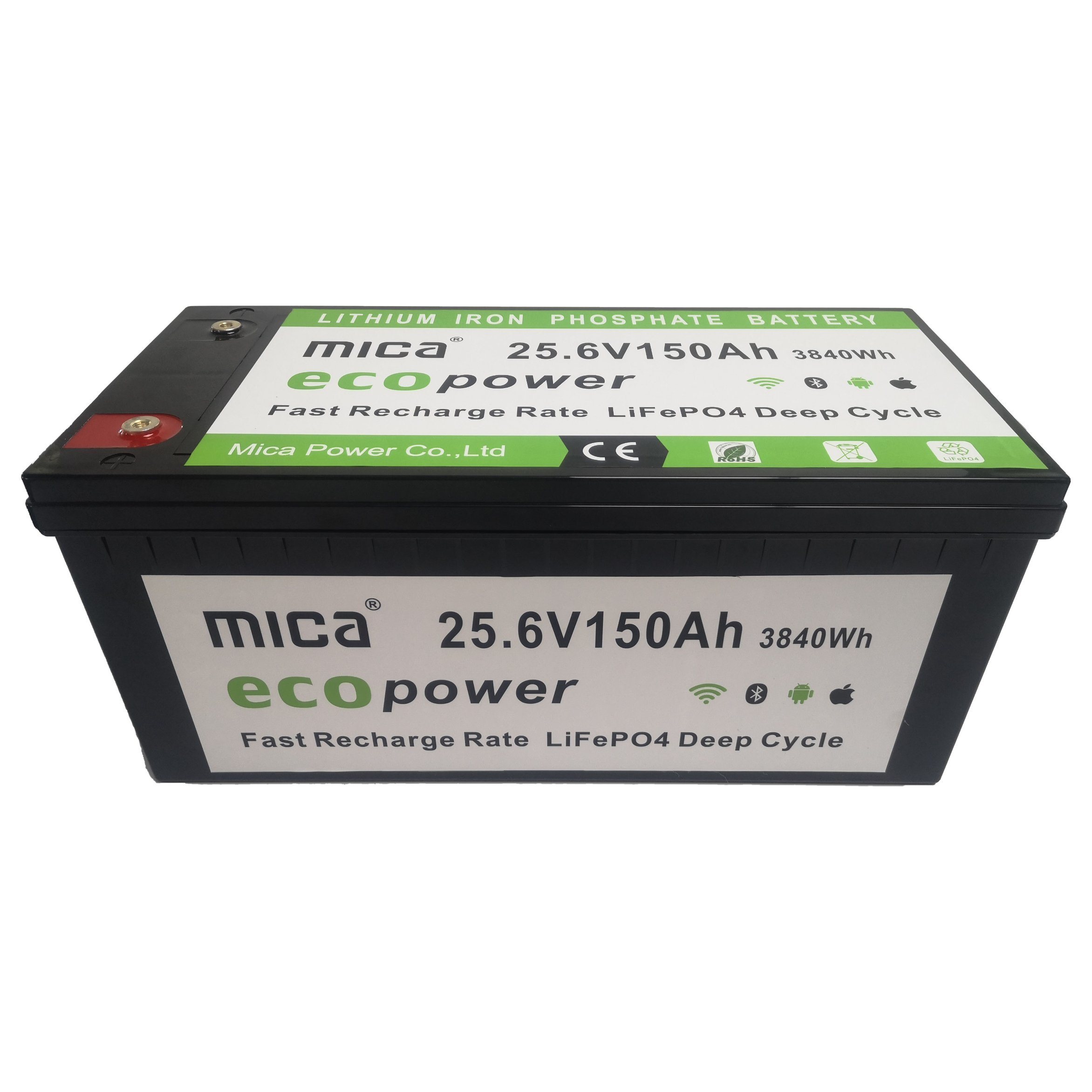

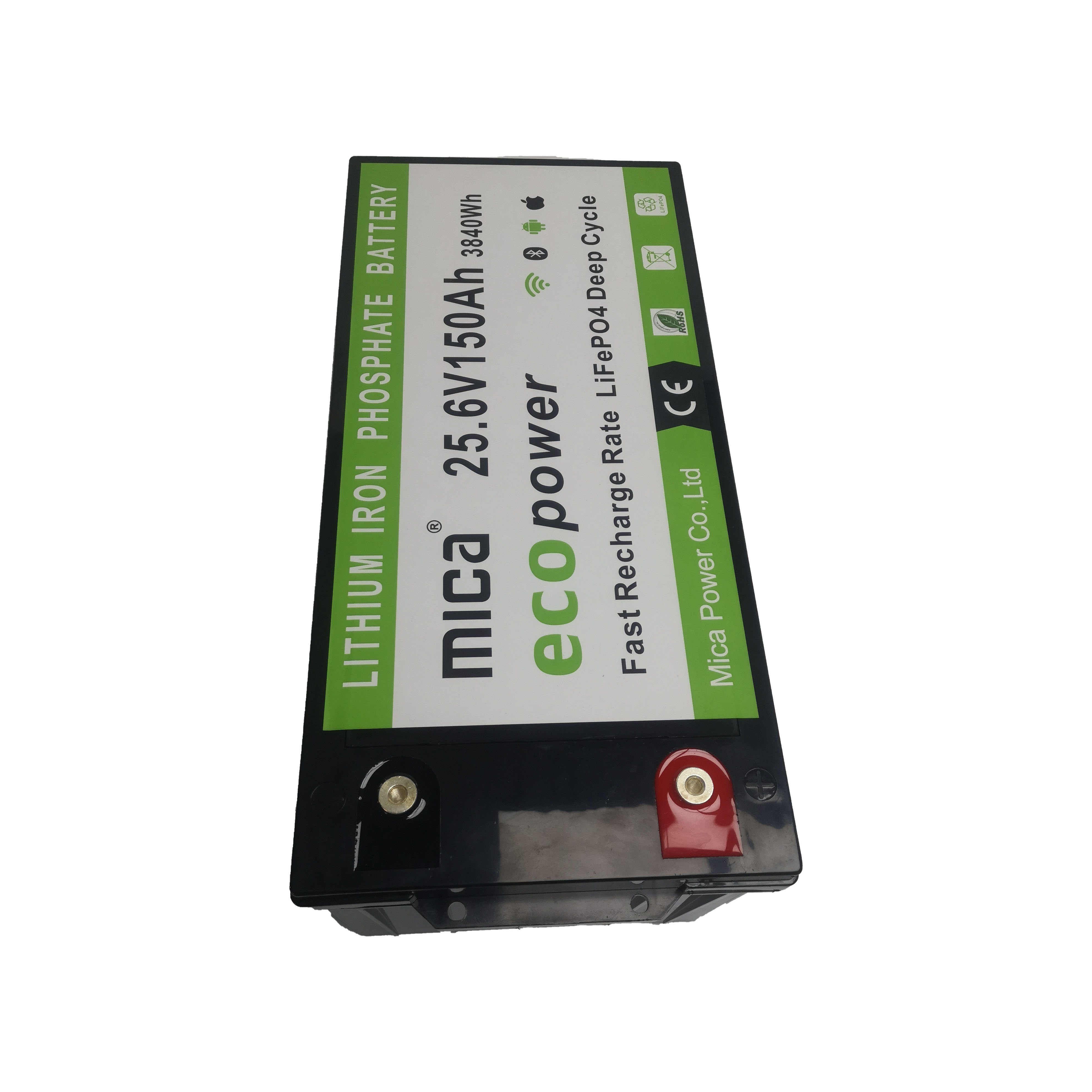

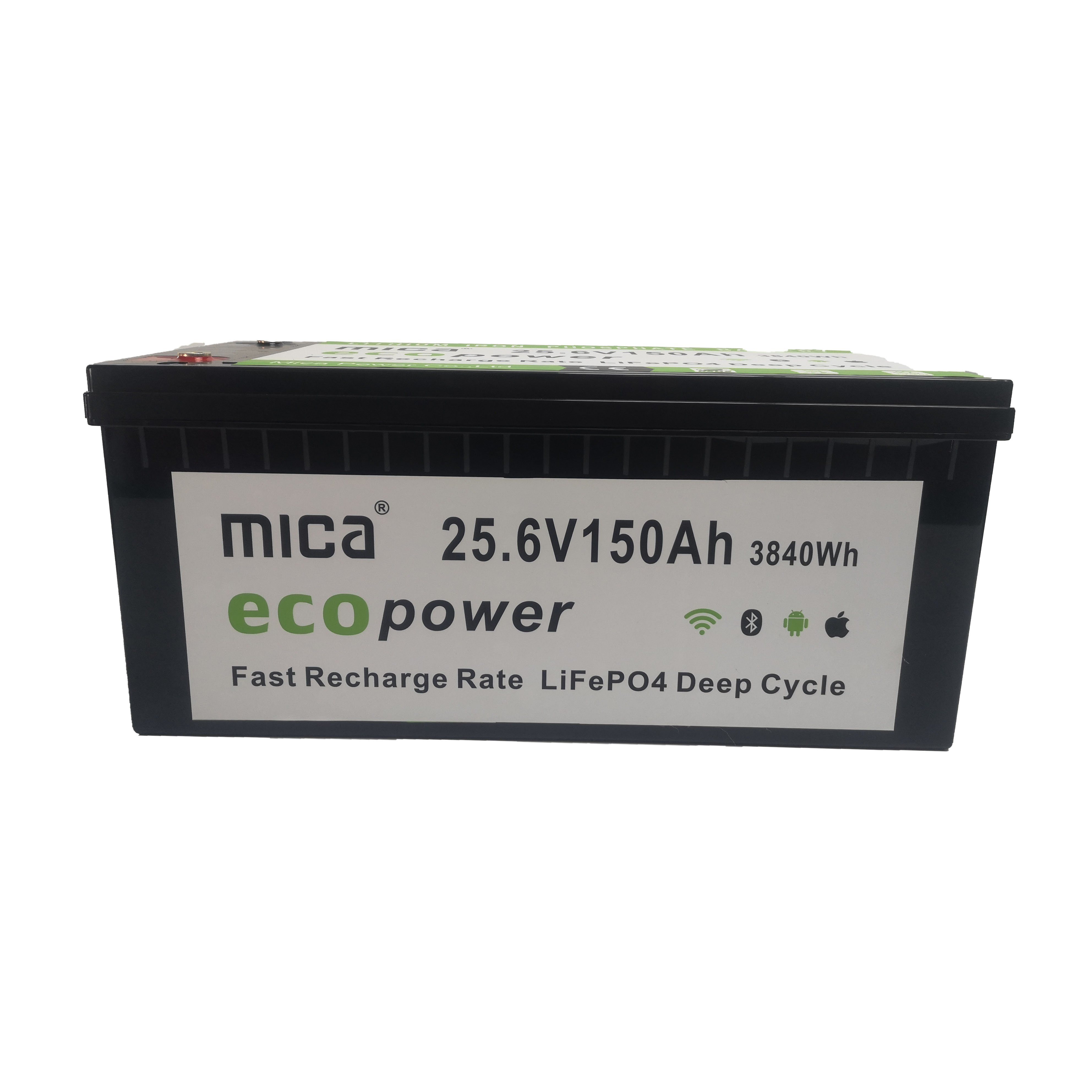

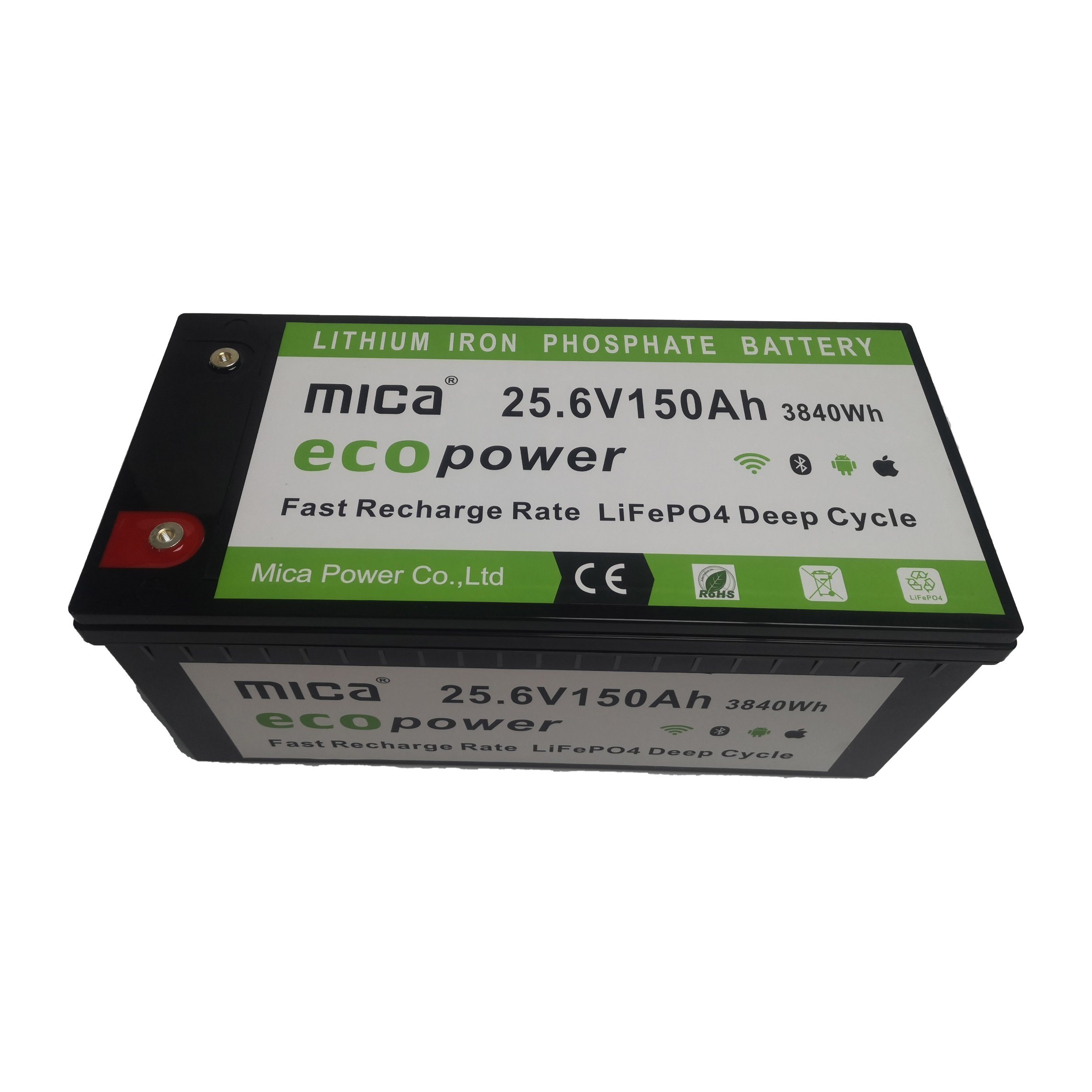

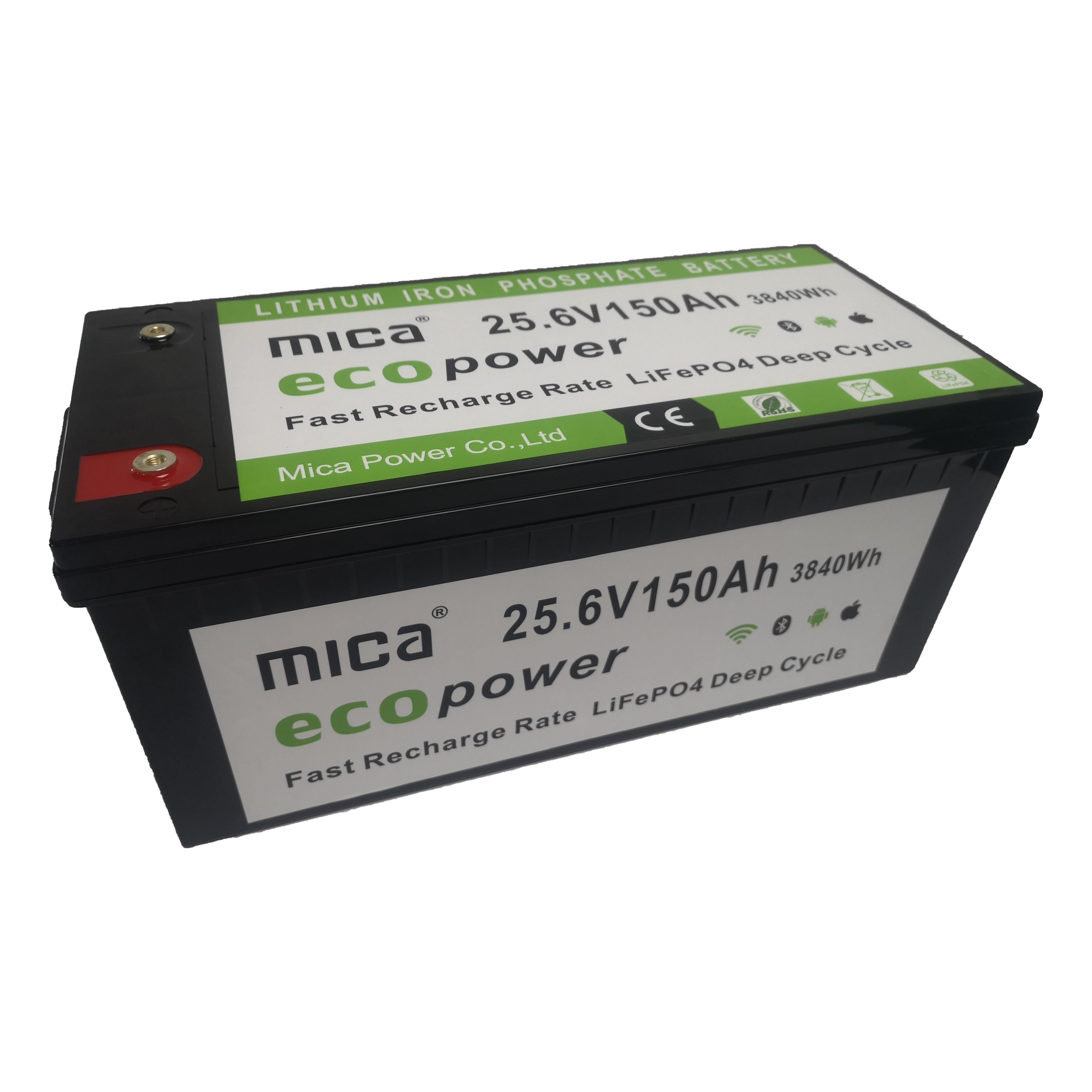

Mica 25.6V 100ah 150ah 200ah Lithium Ion Battery Deep Cycle RV Battery Pack with BMS for RV Solar Energy Storage System

Type:
Li-ion Battery
Cathode Material:
LFP
Rechargeable:
Yes

Availability:



Inquire Add to Basket

Product Description

Features
• Ultra-reliable Lithium Iron Phosphate (LiFePO4) technology
• Integrated battery management System (BMS)
• Ultra-long cycle life
• Light weight & compact
• Water & dust resistant (IP56)
• Highly durable ABS enclosure
• Drop-in lead acid replacement
• Environment friendly
• Bluetooth App is optional

General Information
Battery Type	LiFePO4(Lithium Iron Phosphate)
Nominal Voltage	25.6V
Nominal Capacity	150Ah25ºC,C10
Nominal Energy	3840Wh25ºC,C10
Operation Voltage	20~29.2V
Operation Temperature	Charge: 0°C - 45°C \| Discharge: -20°C - 60°C
Cycle Life 100%DOD	>3000 cycles (3840Wh25ºC,C10)
Cycle Life 80%DOD	>4000 cycles (3072Wh25ºC,C10)
Cycle Life 50%DOD	>6000 cycles (1920Wh25ºC,C10)
Dimension	522 x 238 x 222mm (W x D x H)
Terminal Type	M8
Weight	~31 kg
Warranty Period	5 years
Environment Protection	IP56

BMS/Charge/Discharge

Charge Voltage Max

29.2V

Discharge Cut-off Voltage

20V

Charge Current Max

30A

Discharge Current Max

30A continues

60A burst (10seconds)

Self-discharge Rate

<2% per month

Protection

Over-charge protection
Over-discharge protection
Over current protection
Cell balancing function
Over temperature protection

Mica 25.6V 100ah 150ah 200ah Lithium Ion Battery Deep Cycle RV Battery Pack with BMS for RV Solar Energy Storage System

Why choose us

More than 15 Years' Experience in Lithium Battery
Mica Power Co. Ltd was established in 2009. Our management team has more than 15 years' experience in rechargeable battery. Our factory covers an area of 15,000 square meters and has more than 500 employees.

Benefit From Our Advantages
Backed by professional supporting team, we have expertise in R&D, OEM production and marketing. With the support of a professional and dedicated engineering and operation team, we are available to bringing customers' idea into reality. Flexible to customized request, such as sound adjusted, color, package, and accessories adjusted, so you can enjoy our quick one-stop OEM service.

Meeting Quality Standards
Our company has passed ISO 9001:2015 quality and BSCI system approval and our products have got the ROHS, CE, UL, IEC, UN38.3 certifications. The battery products have the advantages of high energy density, high power density, small volume, light weight,long service life, low self-discharge, flexible and varied shapes, safety performance and so on.
