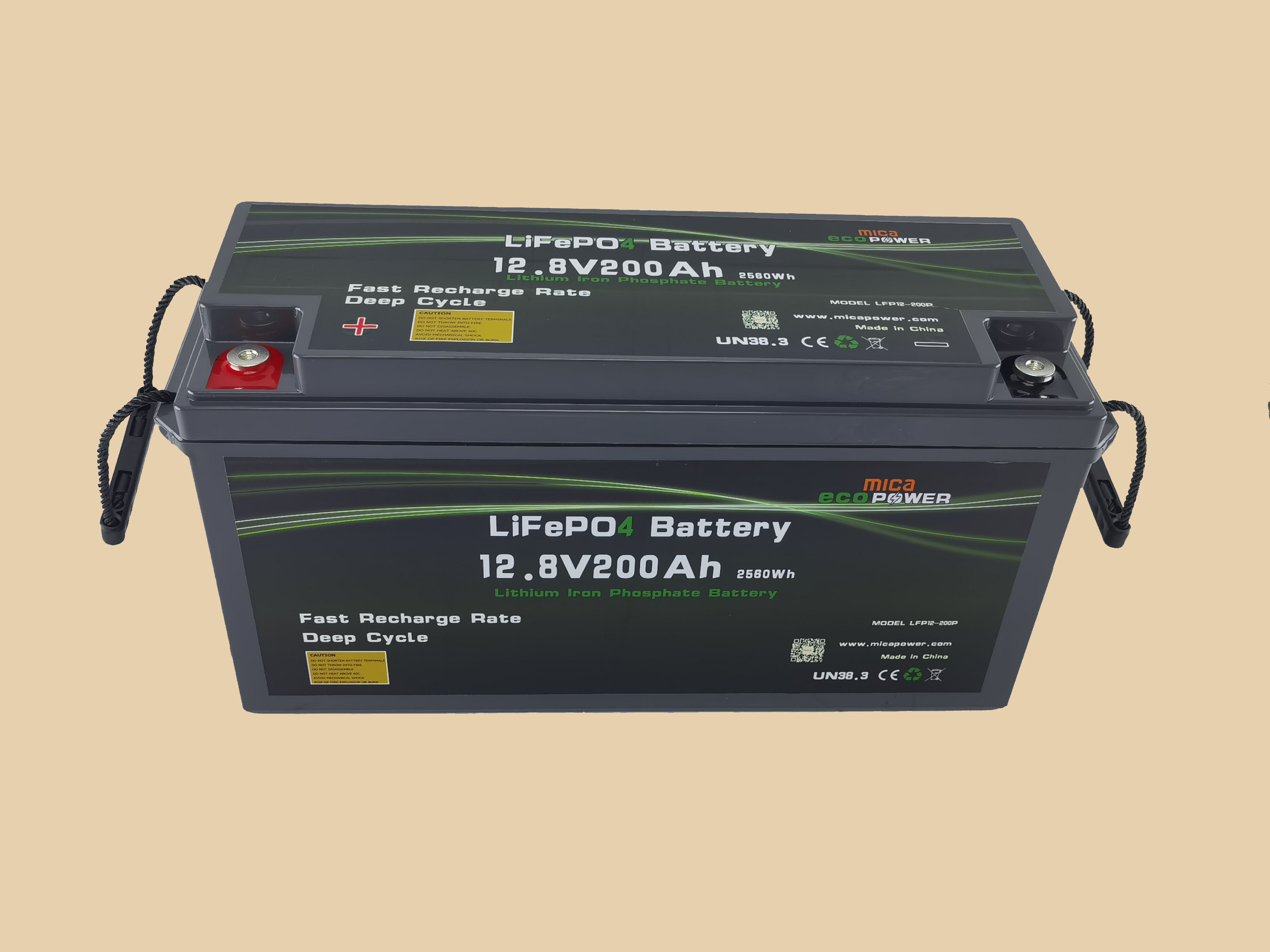

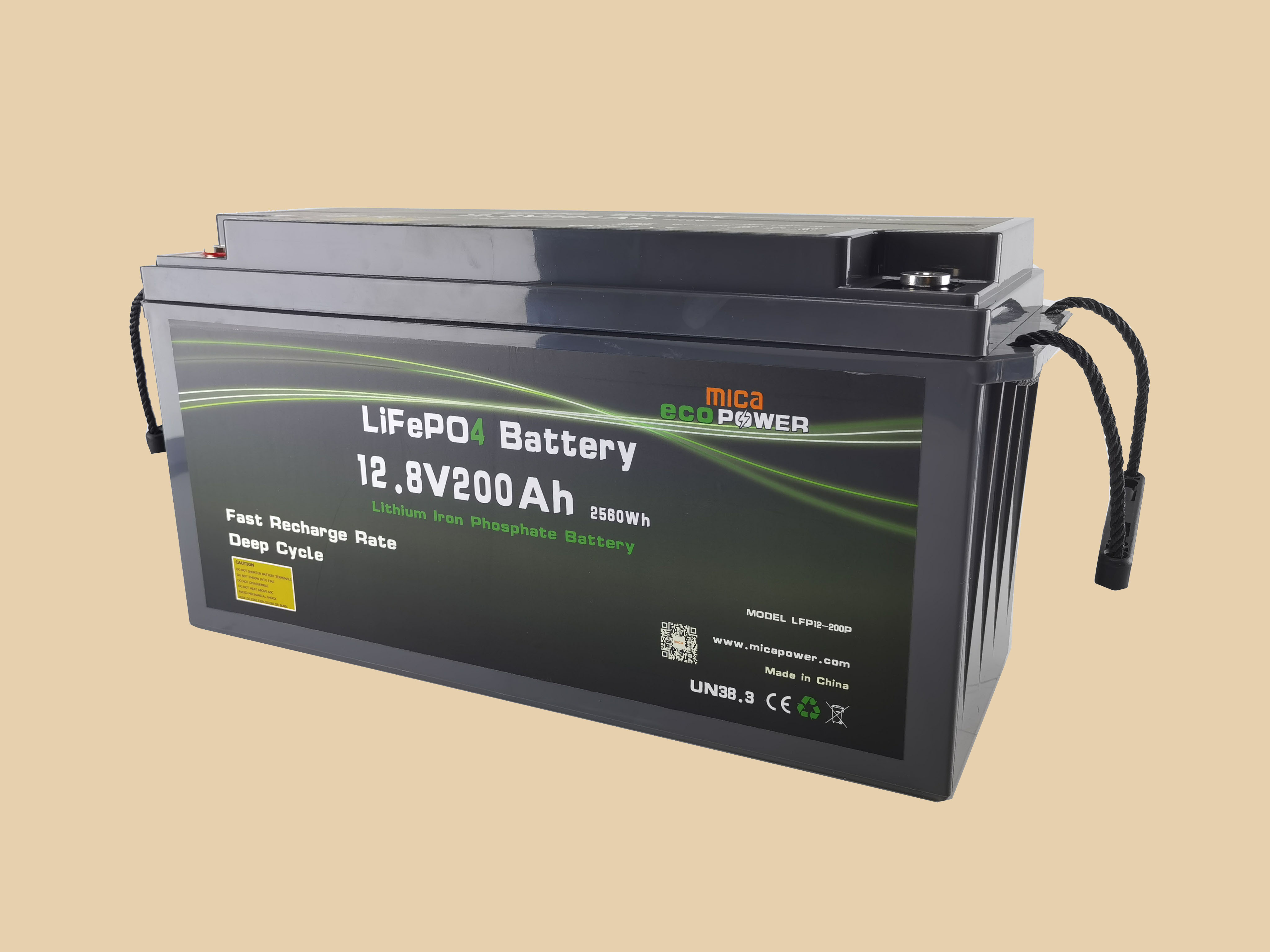

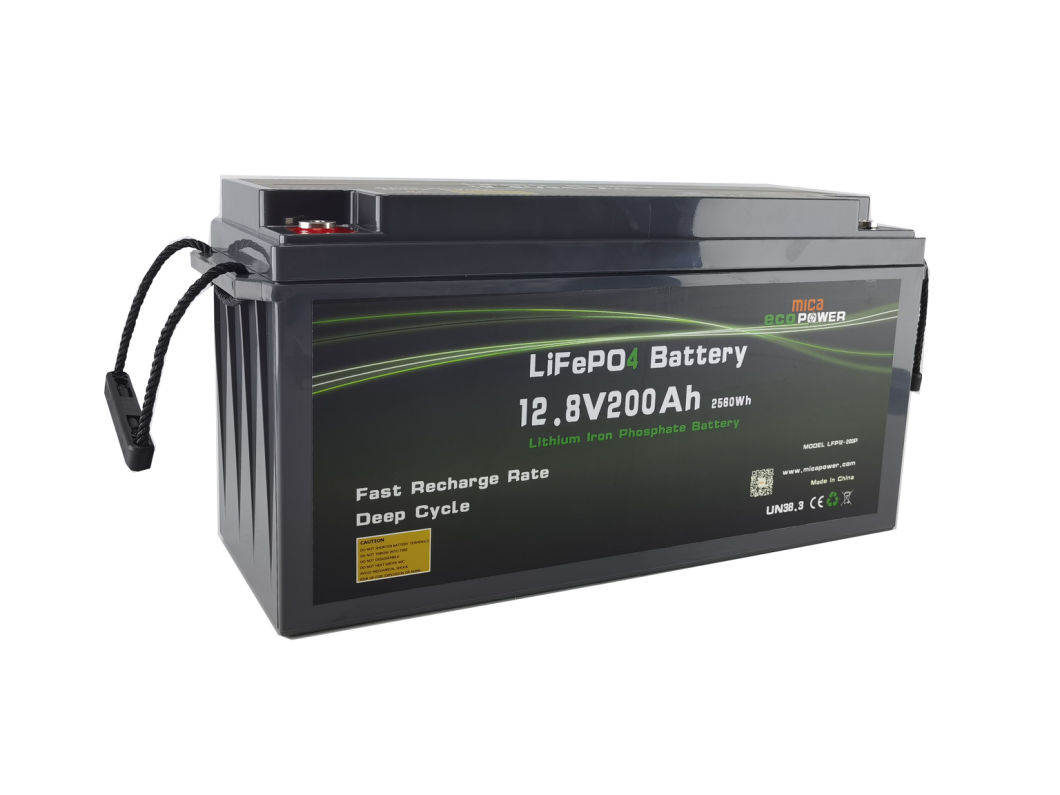

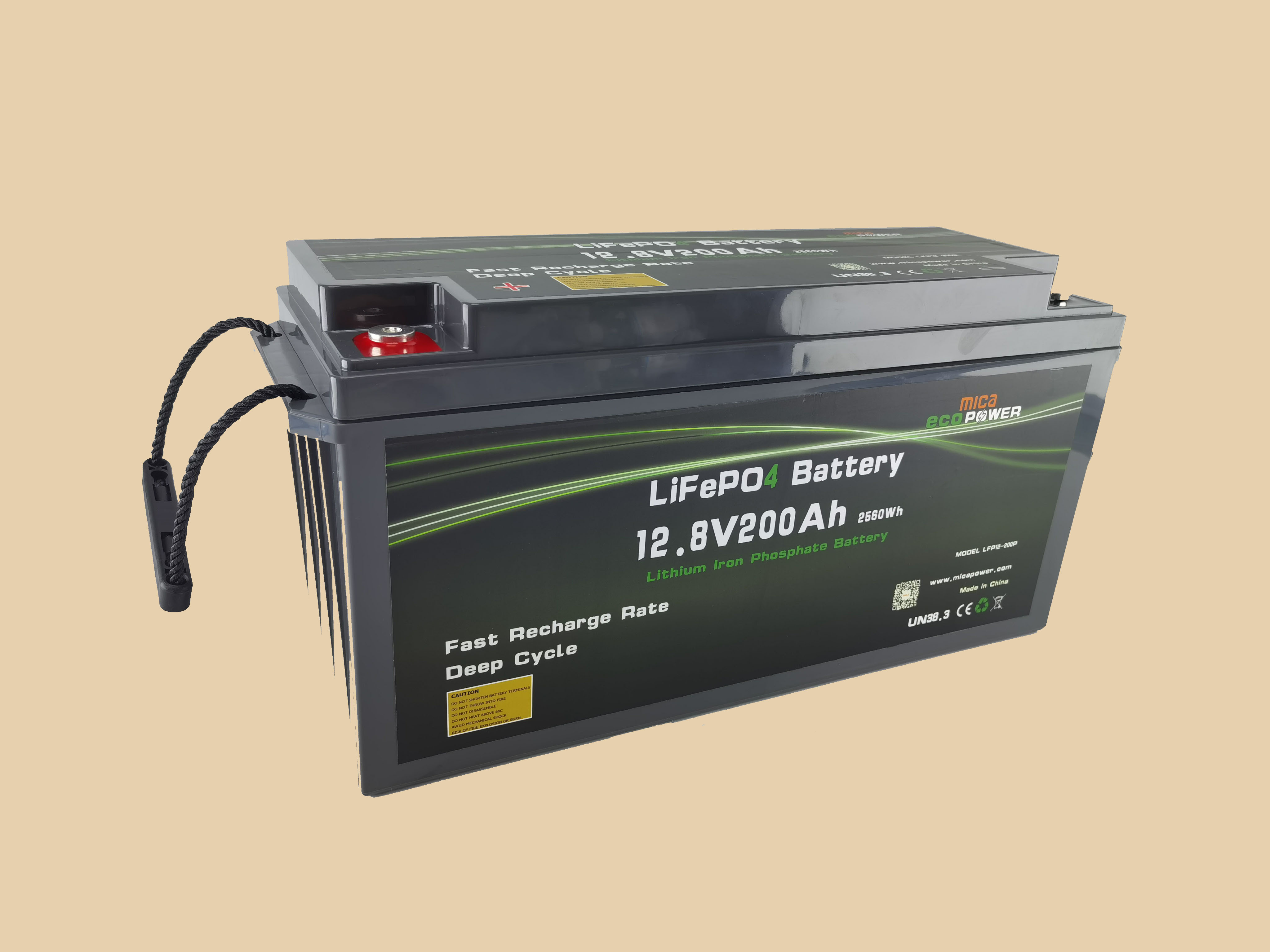

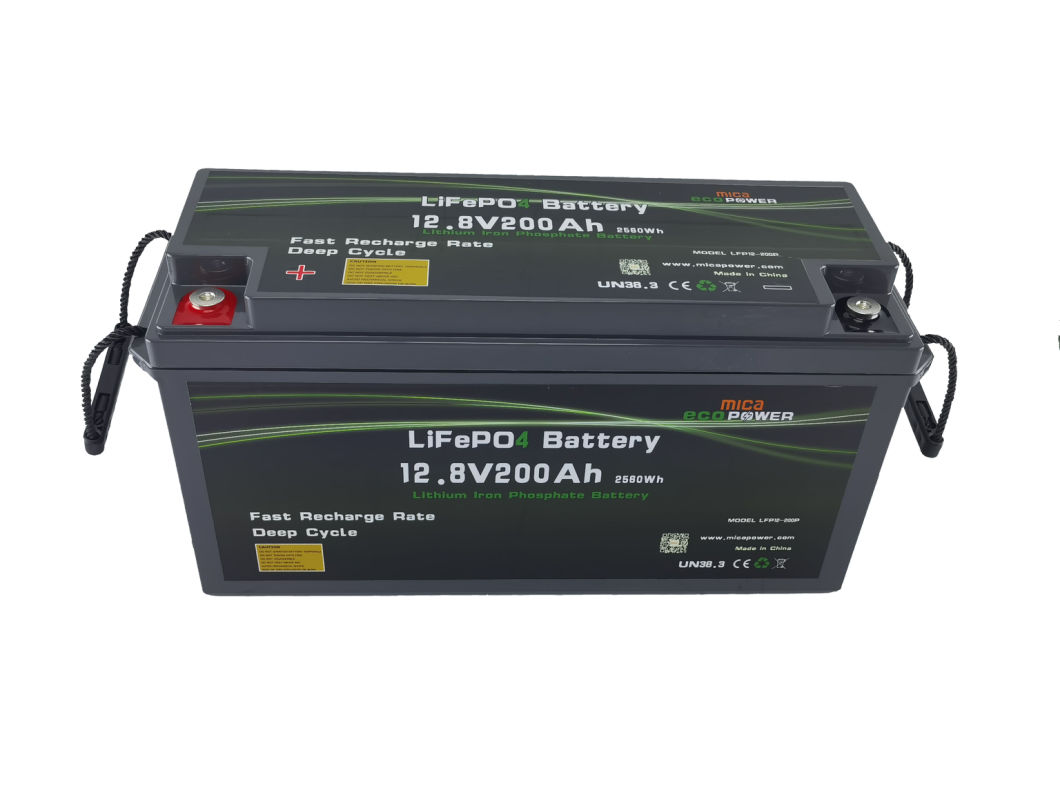

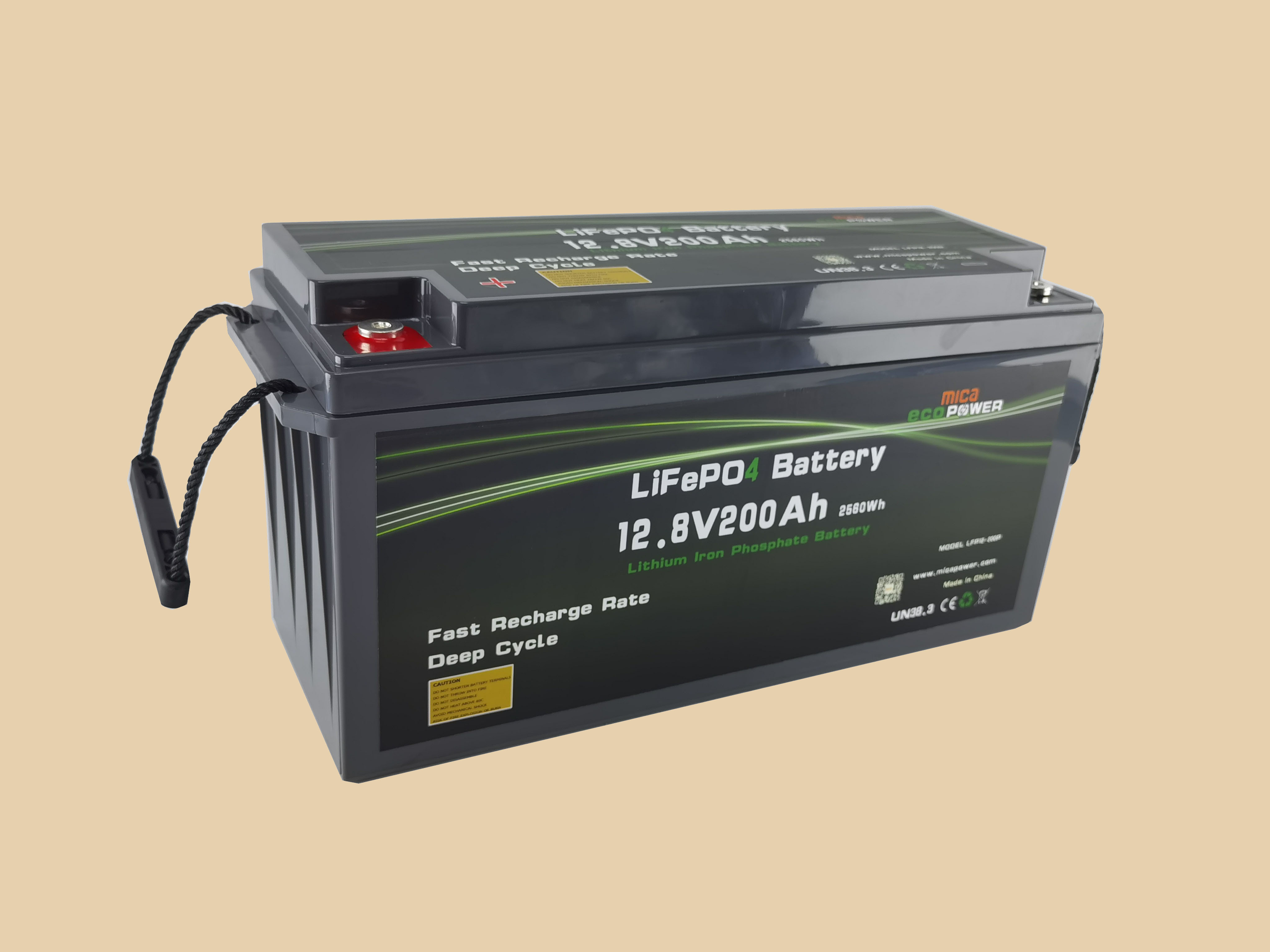

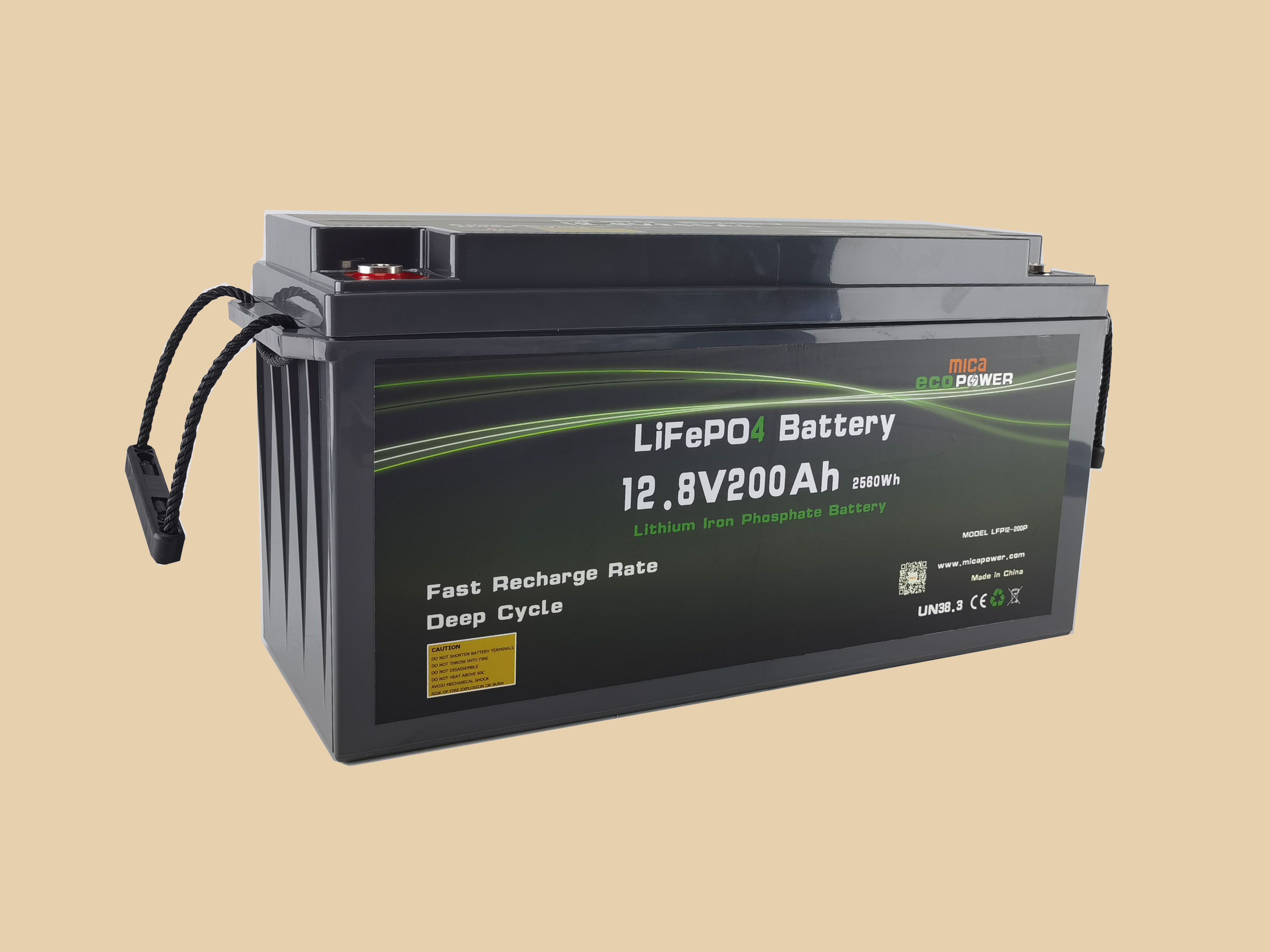

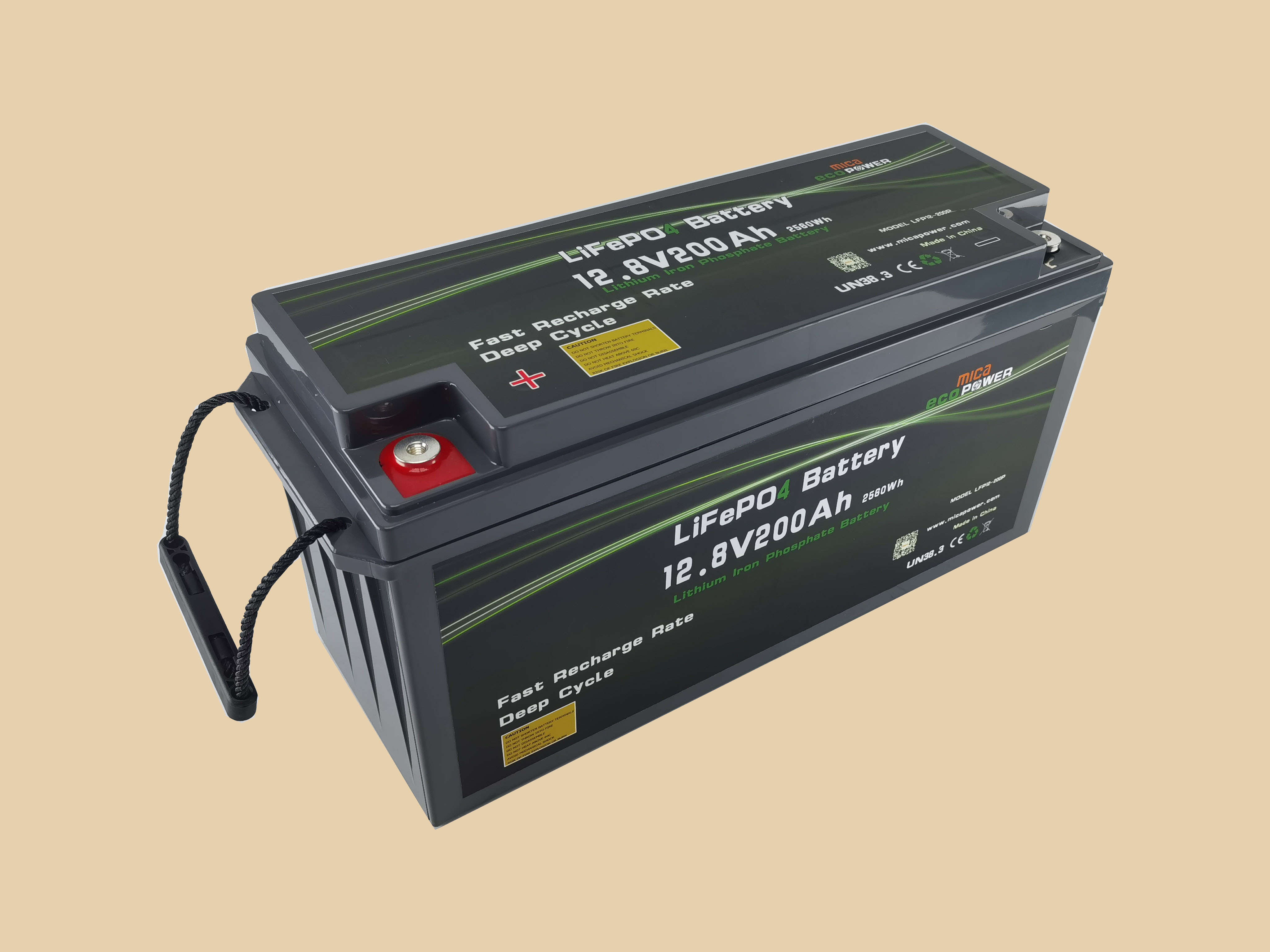

Lithium-Ion Battery Pack
Series and Parallel
Chargeable
Features
• Ultra-reliable Lithium Iron Phosphate (LiFePO4) technology| Battery Type | LiFePO4(Lithium Iron Phosphate) |
| Nominal Voltage | 12.8V |
| Nominal Capacity | 200Ah 25ºC,C10 |
| Nominal Energy | 2560Wh 25ºC,C10 |
| Operation Voltage | 10.4~14.6V |
| Operation Temperature | Charge: 0°C - 55°C | Discharge: -20°C - 60°C |
| Cycle Life 100%DOD | >3000 cycles (2560Wh 25ºC,C10) |
| Cycle Life 80%DOD | >4000 cycles (2048Wh 25ºC,C10) |
| Cycle Life 50%DOD | >6000 cycles (1280Wh 25ºC,C10) |
| Dimension | 522 x 238 x 222mm (W x D x H) |
| Terminal Type | M6 |
| Weight | ~25 kg |
| Warranty Period | 5 years |
| Environment Protection | IP65 |
| OEM ODM | Acceptable |
| Warranty | 5 Years |
| Charge Voltage Max | 14.6V |
| Discharge Cut-off Voltage | 10.4V |
| Charge Current Max | 200A |
| Discharge Current Max | 200A continues 400A burst (10 seconds) |
| Self-discharge Rate | <2% per="" month=""> |
| Protection | Over-charge protection Over-discharge protection Over current protection Cell balancing function Cell balancing function Over temperature protection |

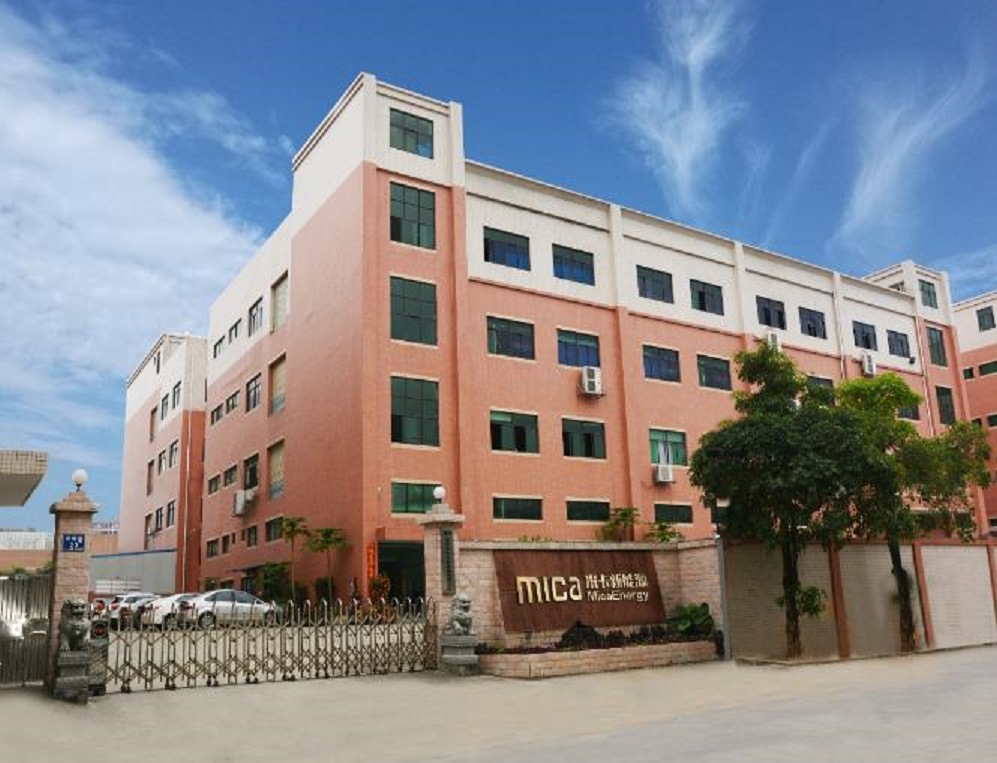

Mica battery was set up on May 2009 is a private hi-tech company integrating Lithium battery R&D, manufacturing and sales. With registered capital of 10 million RMB and an area over 20 thousand square meters, the company. Up to 2012,the total investment capital has accumulated to over 100 million RMB.

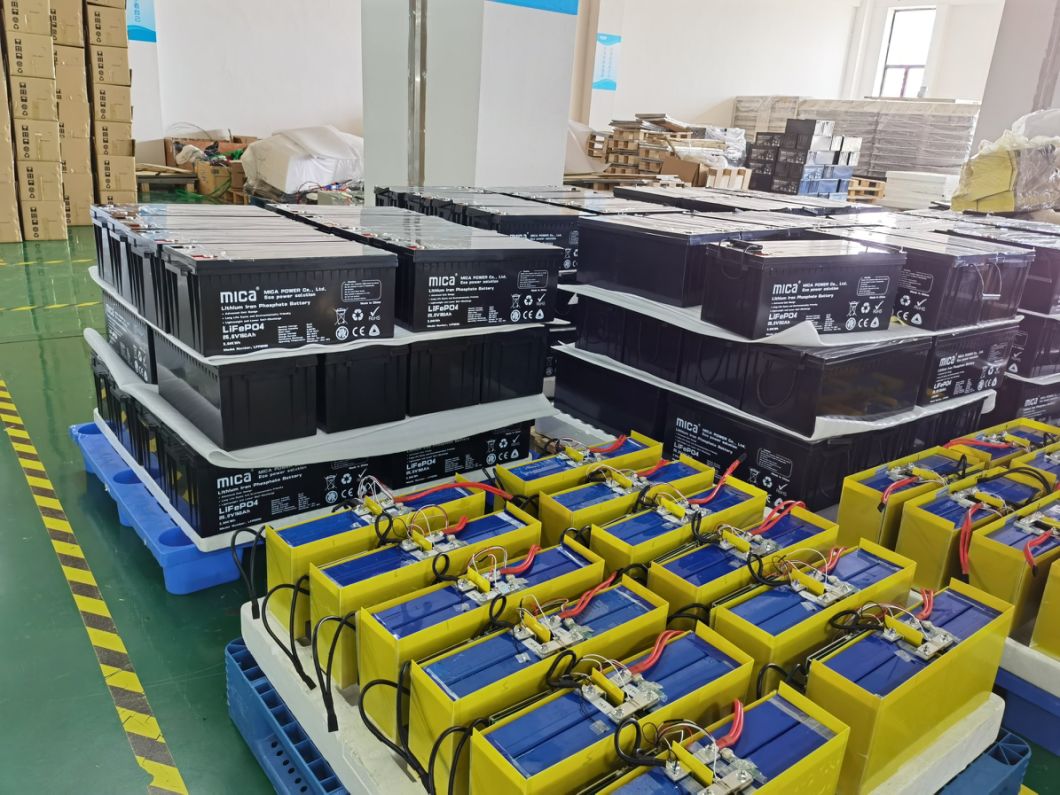

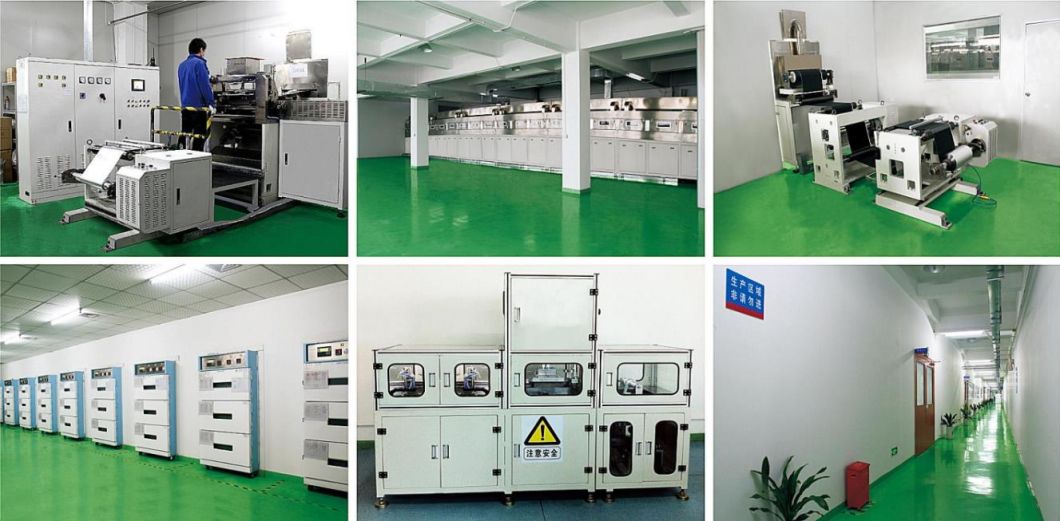

At present, the company has totally approx 1500 stuffs and obtains the most domestically-advanced automation equipment and leading producing technology. The daily production capacity of all kinds of Li-polymer and Al-Li-ion batteries amount to 200,000 units. All of these products are widely used in the communication fields and power battery field. We will increase investment and upgrade the daily production capacity of Li-polymer battery to 120,000 pieces, Al-Li-ion battery to 300,000 pieces to meet the ever-increasing needs of high-end market.
