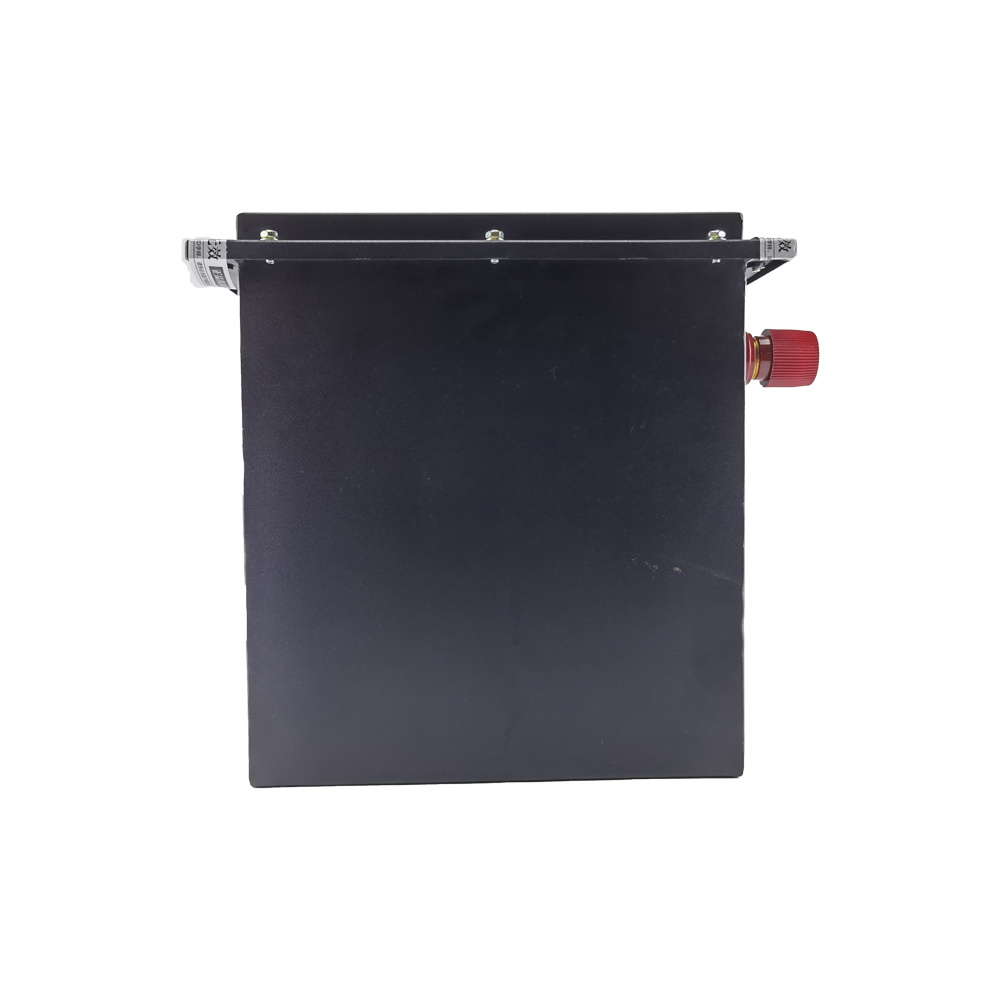

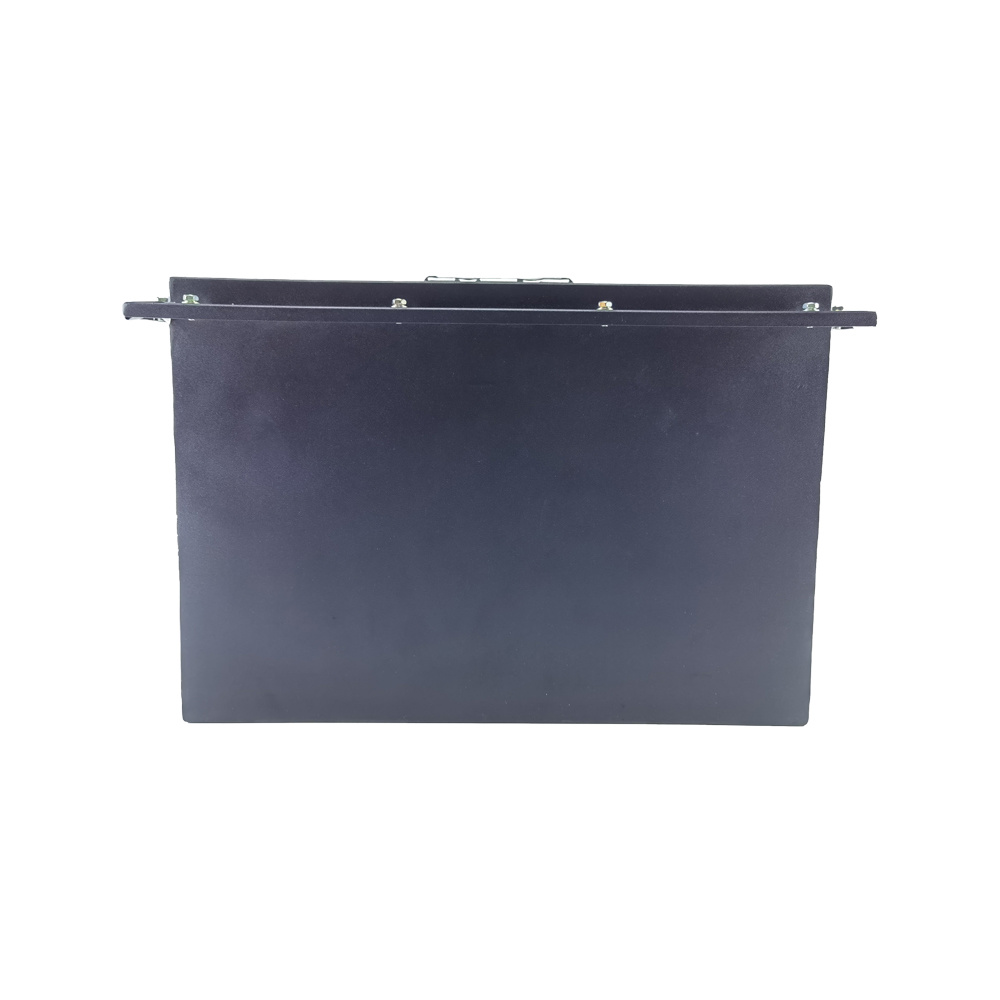

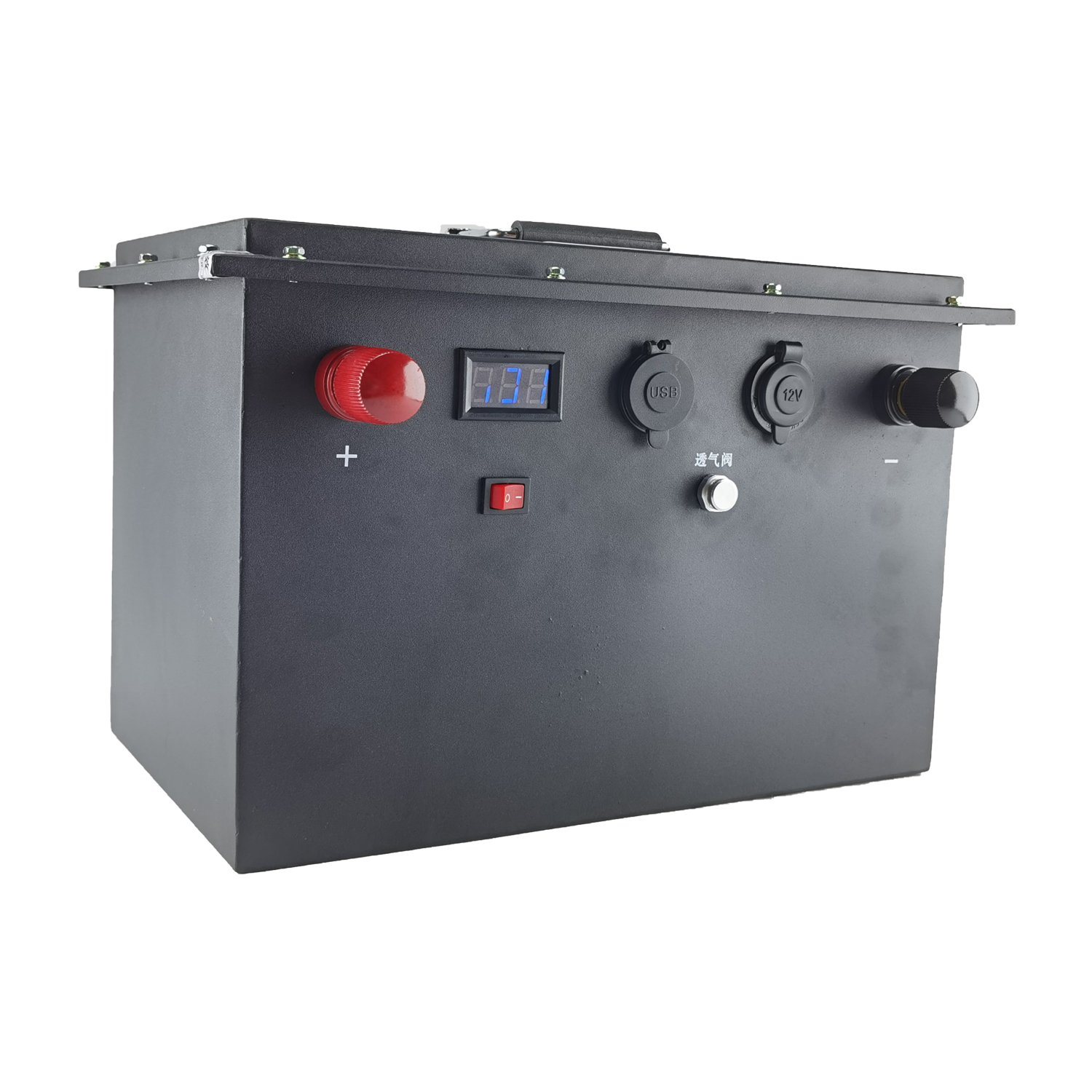

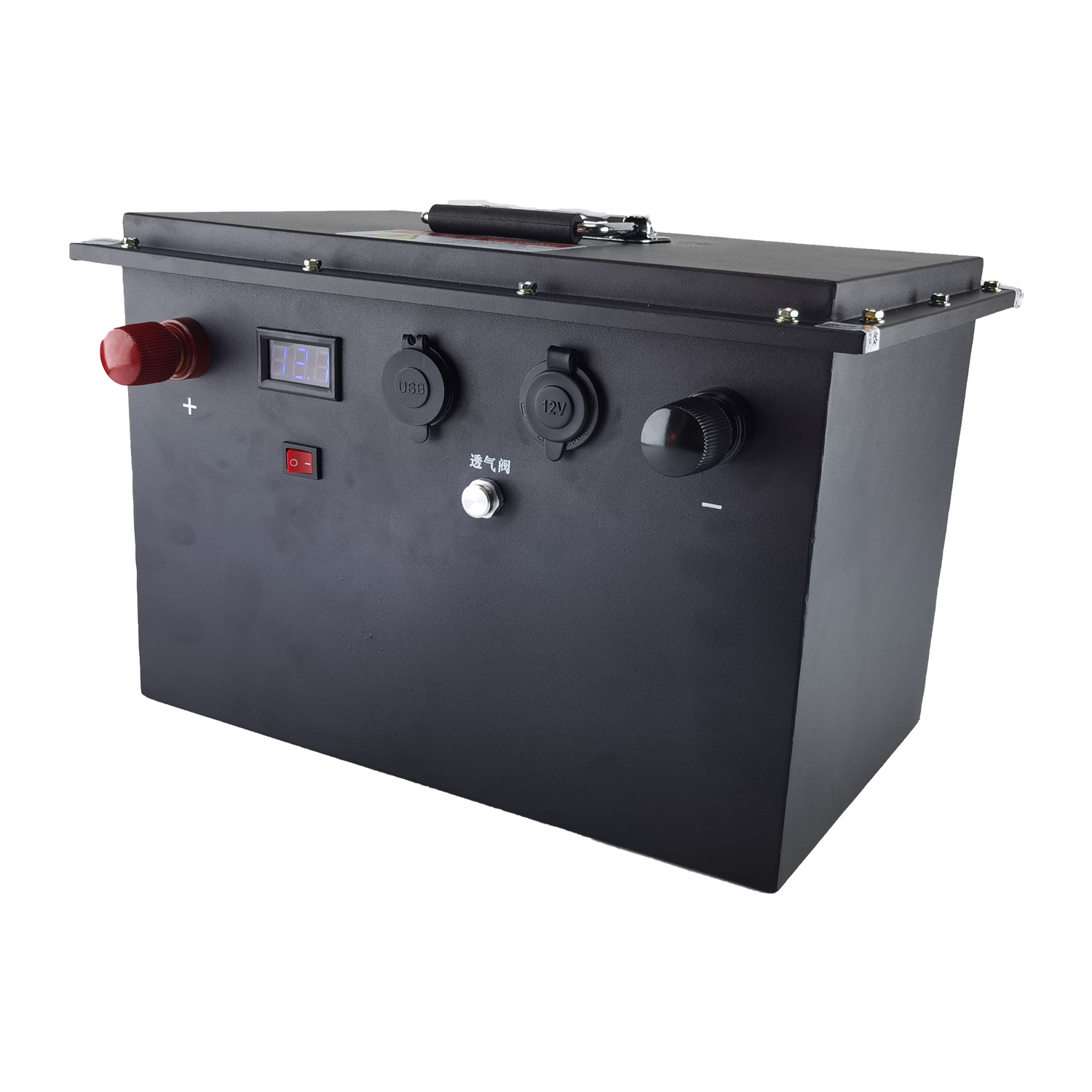

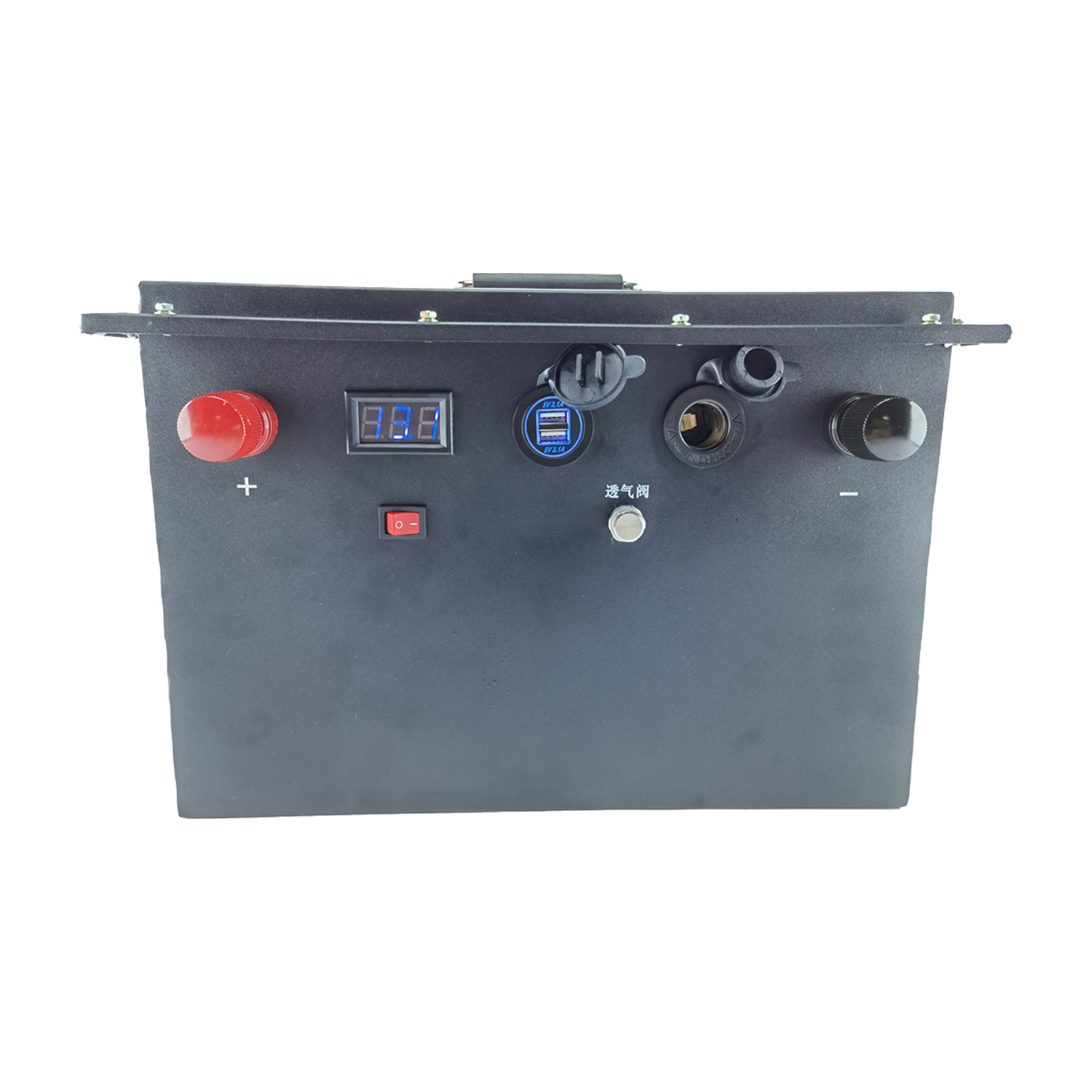

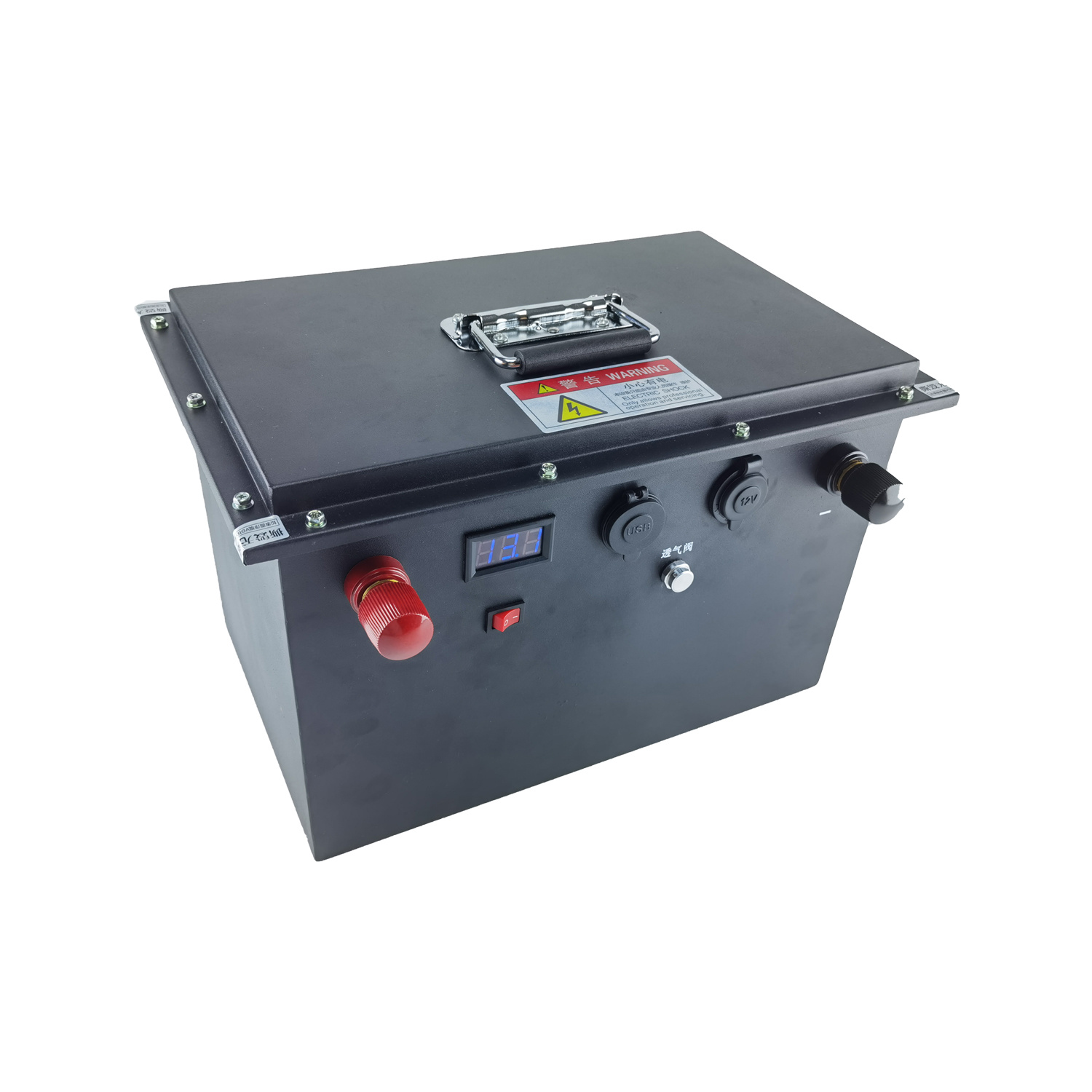

LiFePO4 12V 100ah 200ah Battery Case Lithium 12V LiFePO4 Battery Solar Energy System Battery Pack

Nominal Voltage:
12V
Warranty:
5years /8years
Nominal Capacity:
200ah
Cycle Life:
6000times
Weight:
~25kg
Standard Voltage:
12.8V

Availability:



Inquire Add to Basket

Product Description

LiFepo4 advantages:
Ultra-reliable Lithium Iron Phosphate (LiFePO4) technology
Integrated battery management System (BMS)
Ultra-long cycle life
Light weight & compact
Water & dust resistant (IP56)
Highly durable ABS enclosure
Drop-in lead acid replacement
Environment friendly
Bluetooth App is optional

General Information

Battery Type	LiFePO4(Lithium Iron Phosphate)
Nominal Voltage	12.8V
Nominal Capacity	200Ah 25ºC,C10
Nominal Energy	2560Wh 25ºC,C10
Operation Voltage	10.4~14.6V
Operation Temperature	Charge: 0°C - 55°C \| Discharge: -20°C - 60°C
Cycle Life 100%DOD	>3000 cycles (2560Wh 25ºC,C10)
Cycle Life 80%DOD	>4000 cycles (2048Wh 25ºC,C10)
Cycle Life 50%DOD	>6000 cycles (1280Wh 25ºC,C10)
Dimension	522 x 238 x 222mm (W x D x H)
Terminal Type	M6
Weight	~25 kg
Warranty Period	5 years
Environment Protection	IP65
OEM ODM	Acceptable
Warranty	5 Years

BMS/Charge/Discharge

Charge Voltage Max	14.6V
Discharge Cut-off Voltage	10.4V
Charge Current Max	200A
Discharge Current Max	200A continues 400A burst (10 seconds)
Self-discharge Rate	<2% per="" month="">
Protection	Over-charge protection Over-discharge protection Over current protection Cell balancing function Cell balancing function Over temperature protection

LiFePO4 12V 100ah 200ah Battery Case Lithium 12V LiFePO4 Battery Solar Energy System Battery Pack

Q1: Do you accept sample order?
A: Yes, we welcome sample to test the quality, customized is available.

Q2: What will be the delivery time after I place the order?
A: For mass order will take 15-30 days, it depends on the order quantity. For sample will take around 1 week.

Q3: Who will deliver our goods?
A: The products delivered by express, airline and sea shipping is avaiable, you can choose the most suitable delivery way. Also if you have your own forwarder just pass it to us, we will follow it up.

Q4: Can I print my company logo on the products?
A: Yes. We can provide OEM service.

Q5: : What will be the payment terms?
A: We accept T/T, Paypal, Money Gram etc.

Q6: What is your Warranty Policy?
A: We offer 5 years warranty for our products and can be replaced with new ones for free if quality Issues. Using Lithium iron phosphate battery, which has high safety performance, long cycle life, with service life of more than 10 years.

Q7: How to choose a right battery?
A: Just tell us your demand, then we will recommend a suitable battery to you.

Why choose us

More than 15 Years' Experience in Lithium Battery
Mica Power Co. Ltd was established in 2009. Our management team has more than 15 years' experience in rechargeable battery. Our factory covers an area of 15,000 square meters and has more than 500 employees.

Benefit From Our Advantages
Backed by professional supporting team, we have expertise in R&D, OEM production and marketing. With the support of a professional and dedicated engineering and operation team, we are available to bringing customers' idea into reality. Flexible to customized request, such as sound adjusted, color, package, and accessories adjusted, so you can enjoy our quick one-stop OEM service.

Meeting Quality Standards
Our company has passed ISO 9001:2015 quality and BSCI system approval and our products have got the ROHS, CE, UL, IEC, UN38.3 certifications. The battery products have the advantages of high energy density, high power density, small volume, light weight,long service life, low self-discharge, flexible and varied shapes, safety performance and so on.
