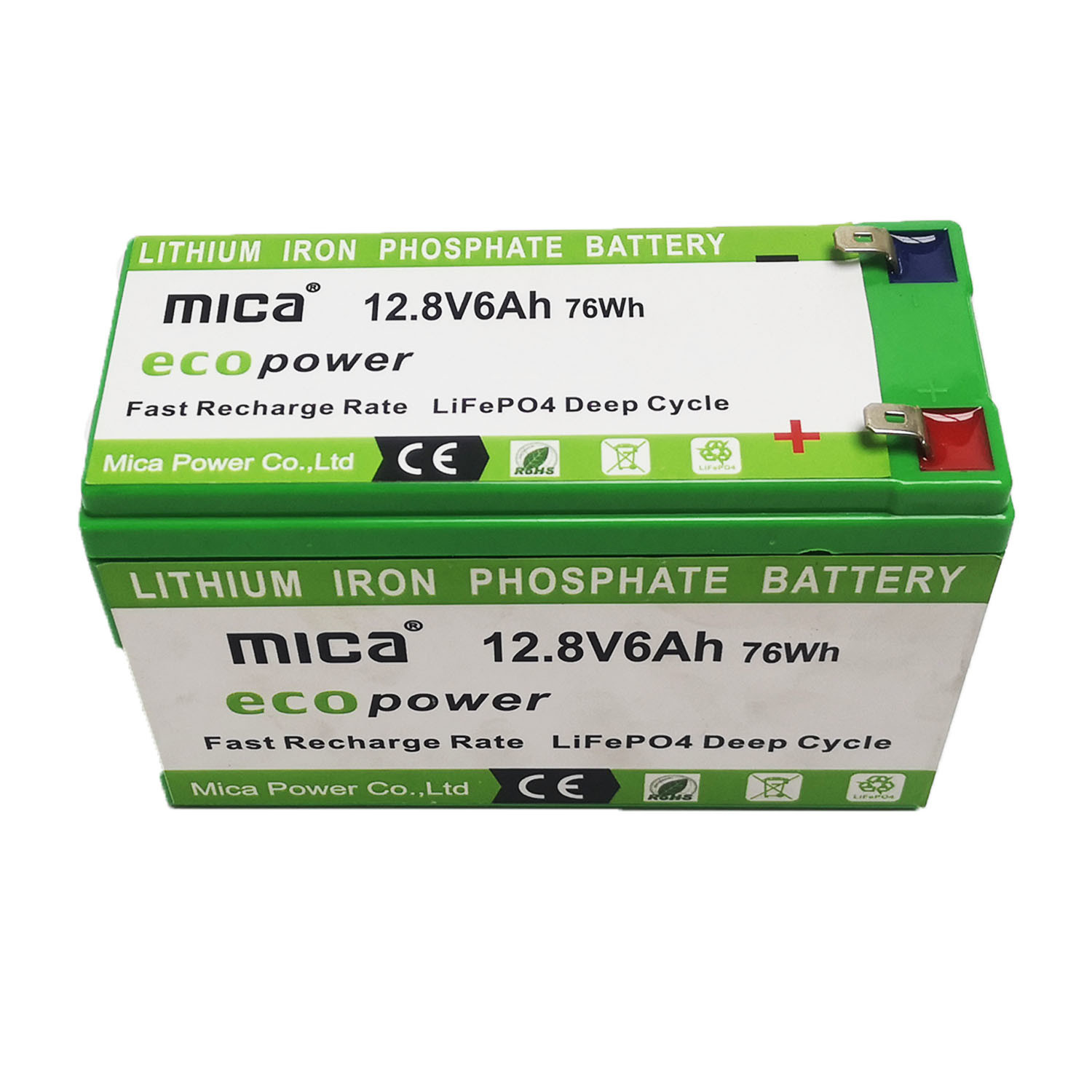

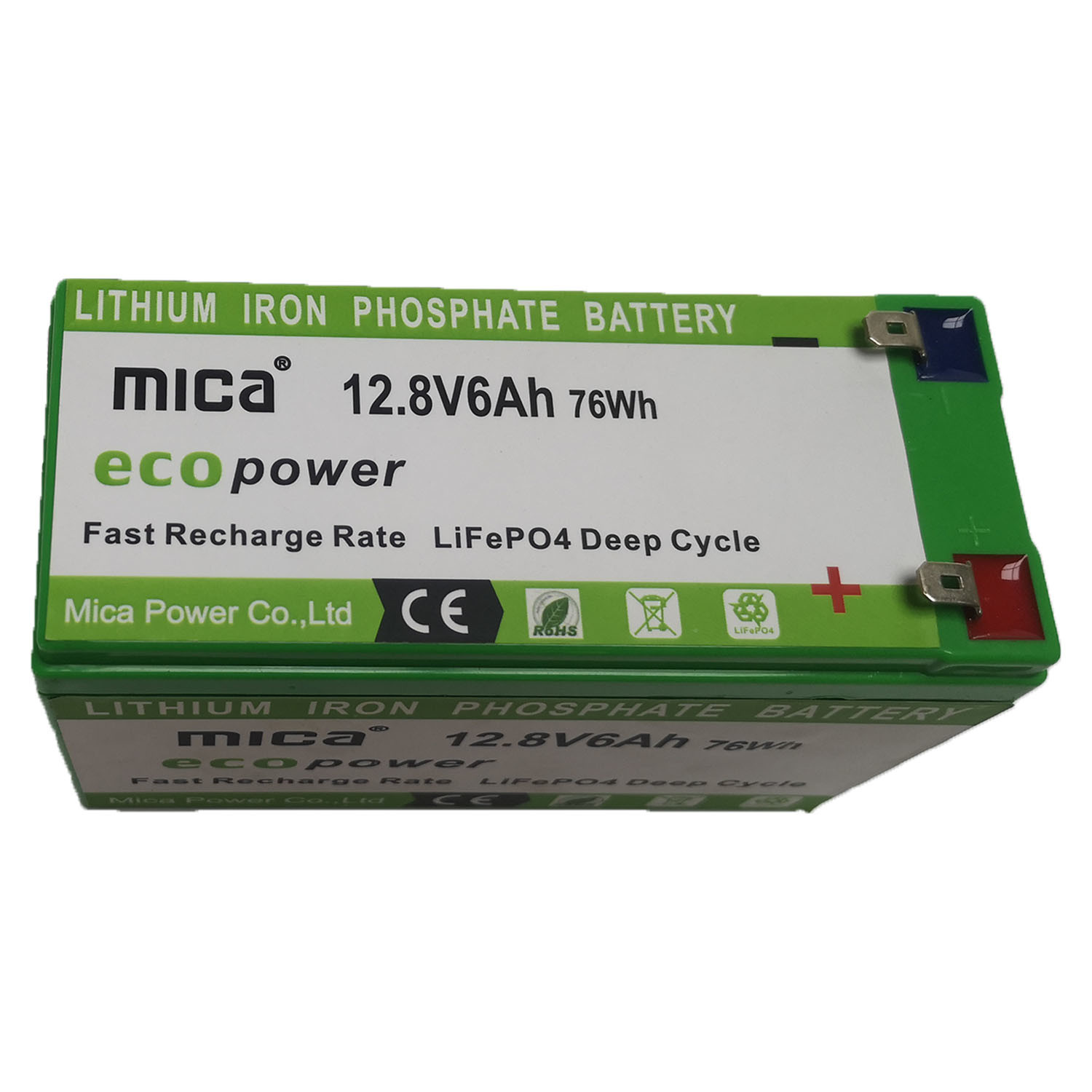

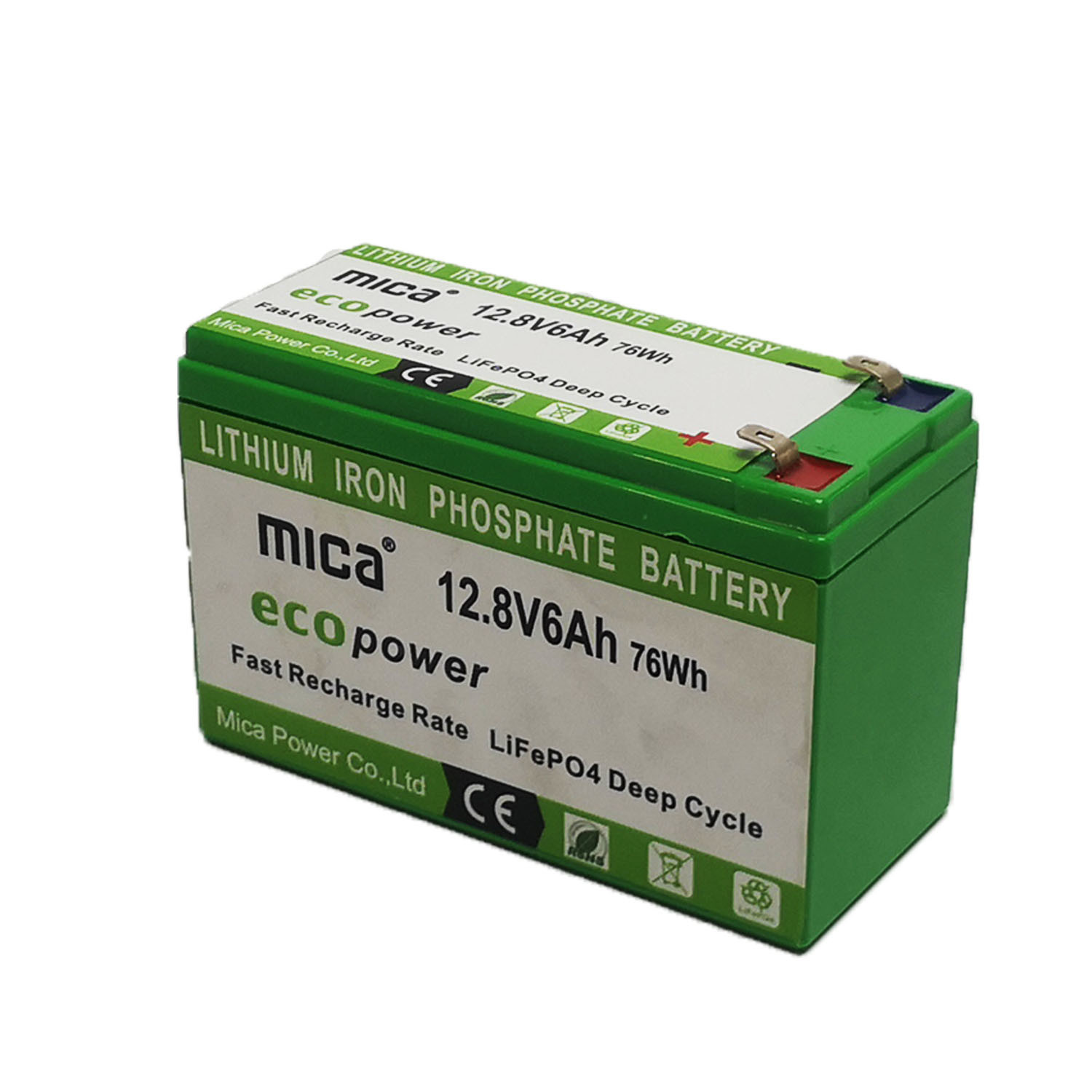

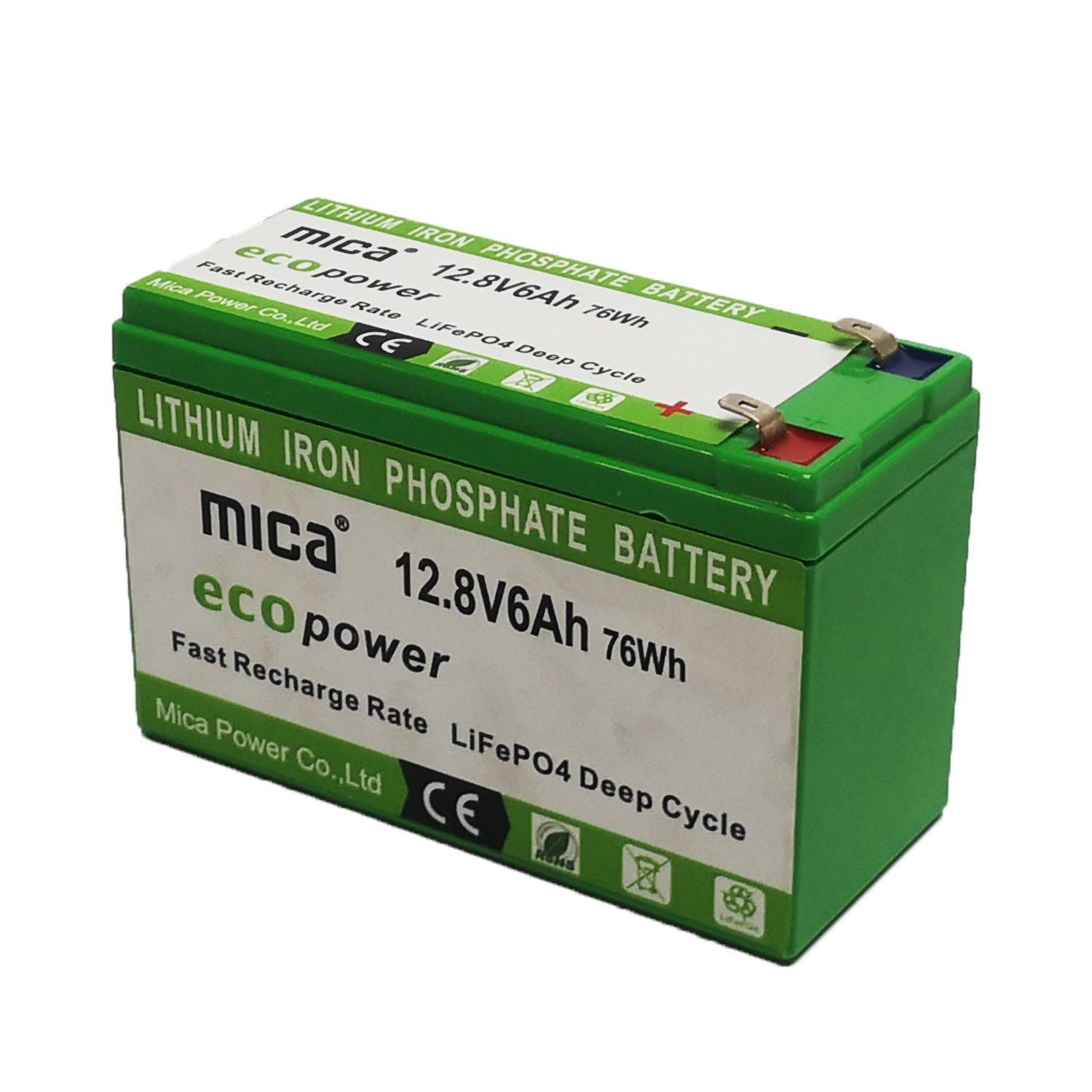

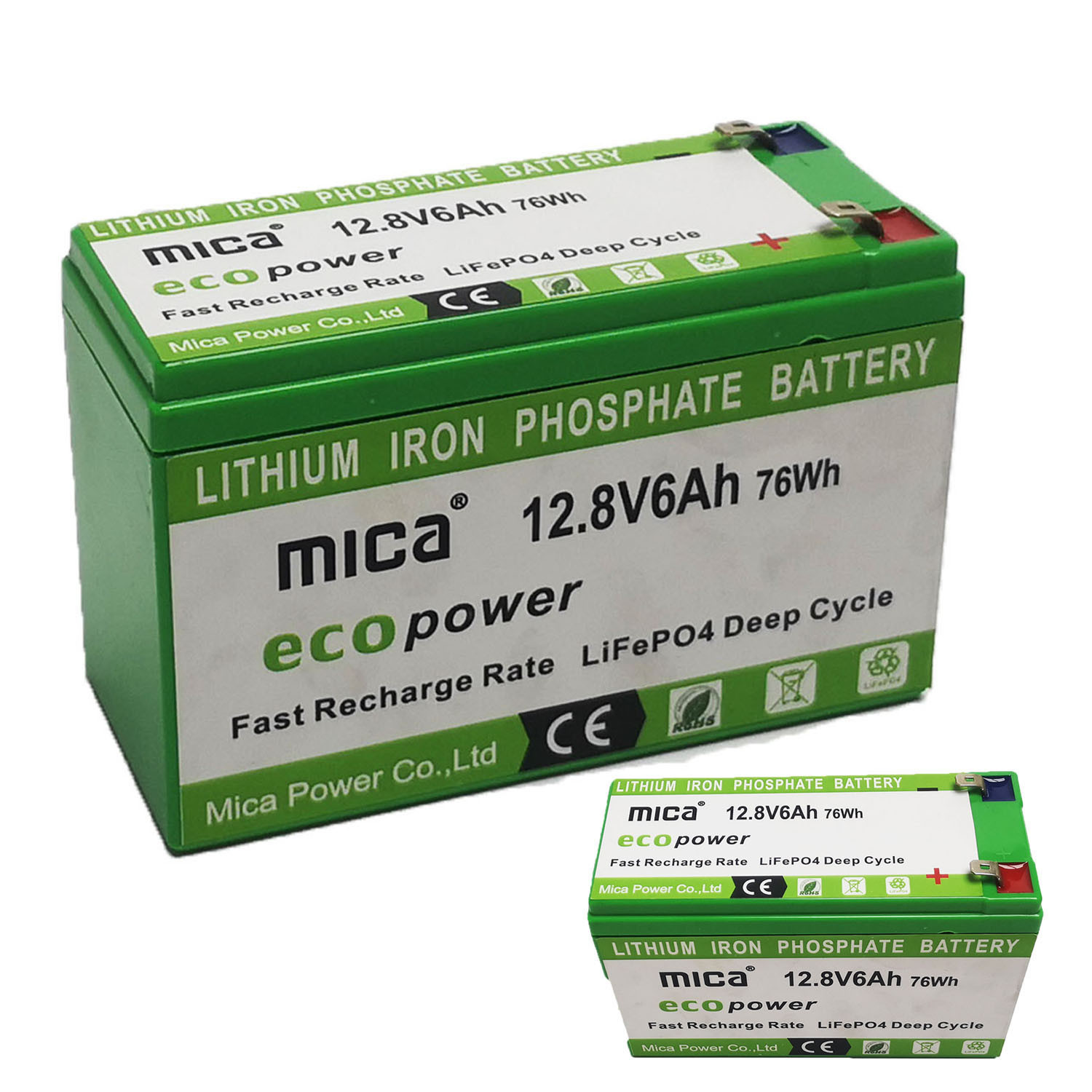

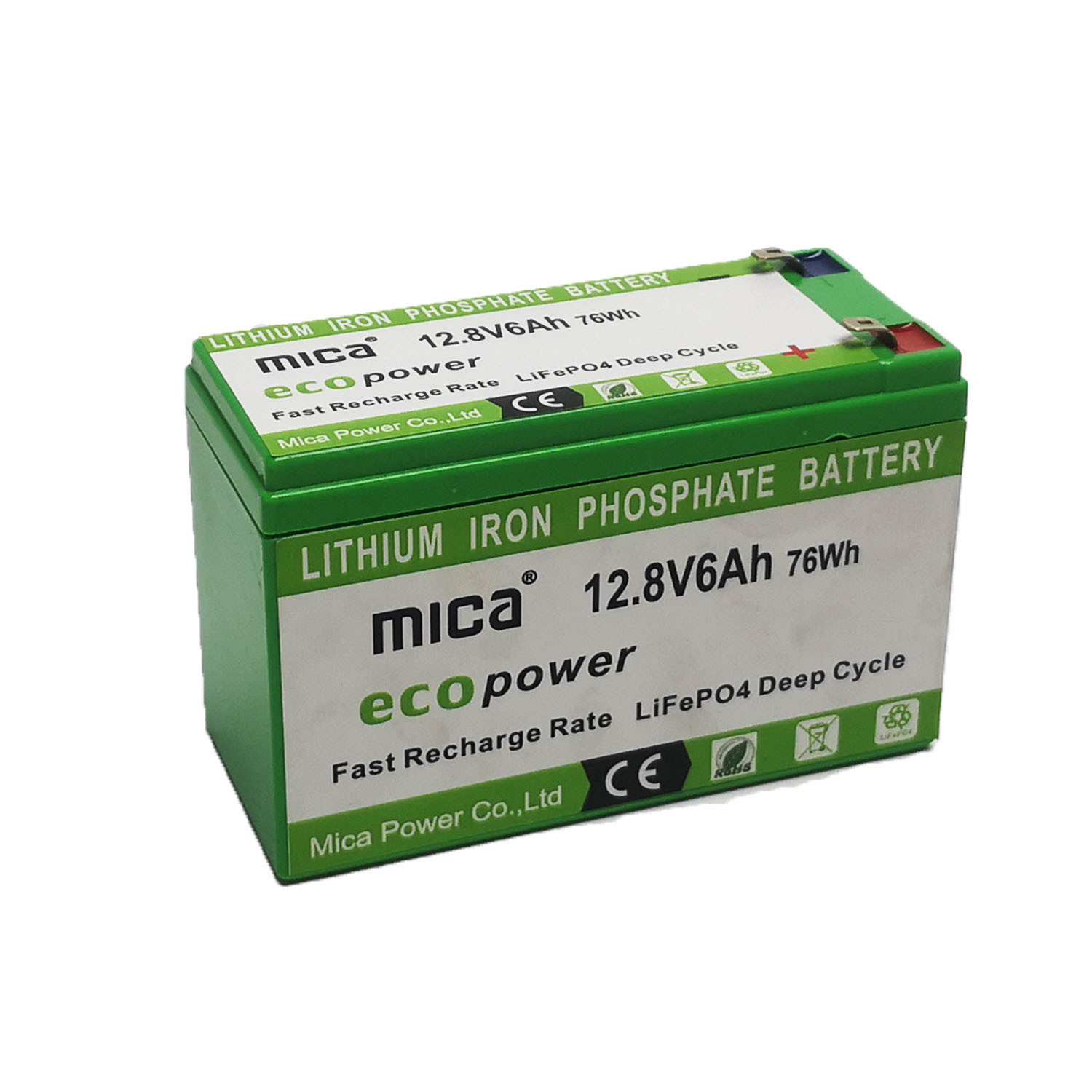

Lithium-Ion Battery Pack
Series and Parallel
Chargeable
Medium Discharge Rate
Small
Battery
| General Information | |
| Battery Type | LiFePO4(Lithium Iron Phosphate) |
| Nominal Voltage | 12.8V |
| Nominal Capacity | 6Ah 25ºC,C10 |
| Nominal Energy | 76.8Wh@25ºC,C10 |
| Operation Voltage | 10~14.6V |
| Operation Temperature | Charge: 0°C - 45°C | Discharge: -20°C - 60°C |
| Cycle Life 100%DOD | >2000 cycles (76.8Wh25ºC,C10) |
| Cycle Life 80%DOD | >3000 cycles (61.4Wh25ºC,C10) |
| Cycle Life 50%DOD | >4000 cycles (38.4Wh25ºC,C10) |
| Dimension | 150 x 65 x 93mm (W x D x H) |
| Terminal Type | T1 |
| Weight | ~1.45 kg |
| Warranty Period | 5 years |
| Environment Protection | IP56 |
| BMS/Charge/Discharge | |
| Charge Voltage Max | 14.6V |
| Discharge Cut-off Voltage | 10V |
| Charge Current Max | 6A |
| Discharge Current Max | 10A |
| Self-discharge Rate | <2% per month |
| Protection | Over-charge protection Over-discharge protection Over current protection Cell balancing function Over temperature protection |
