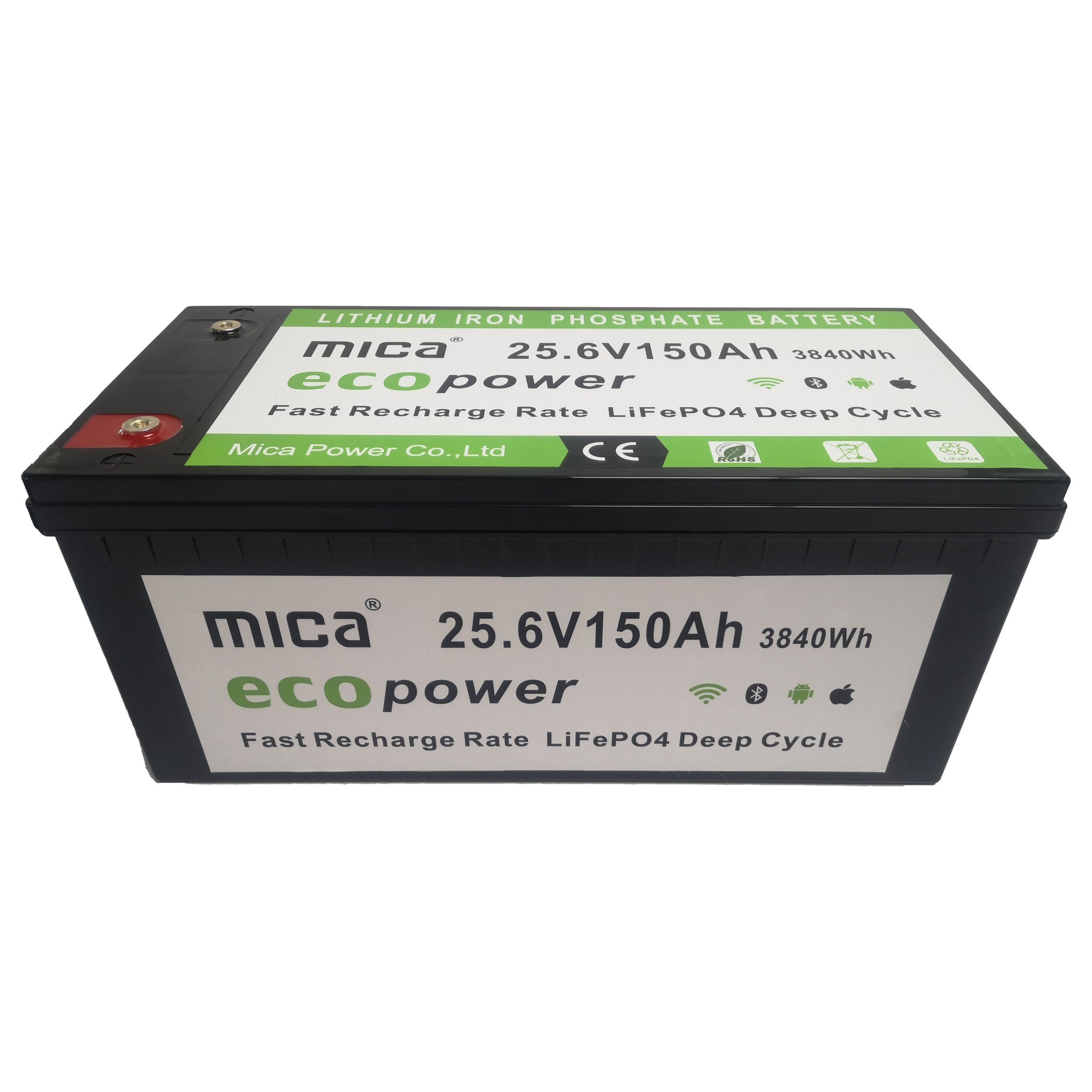

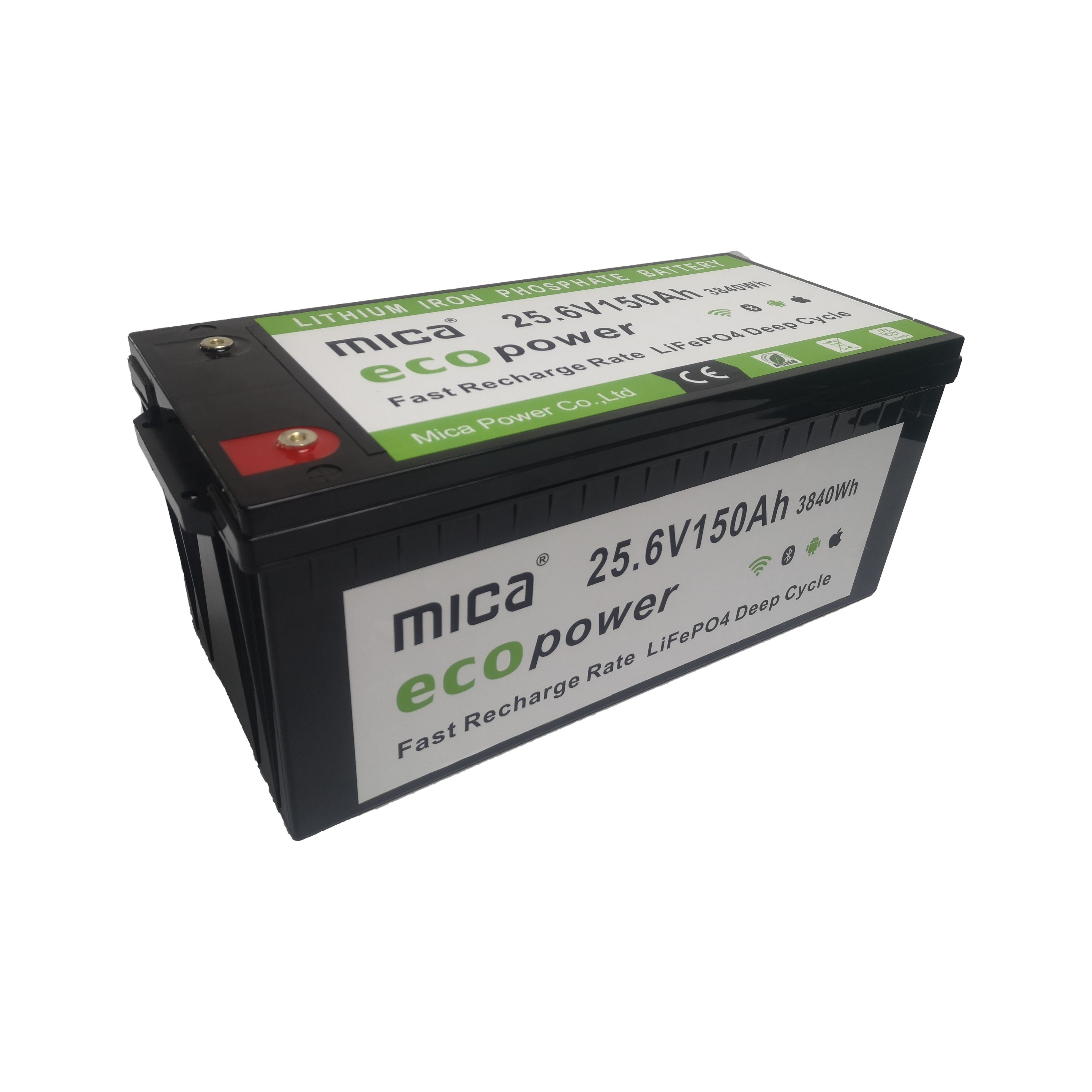

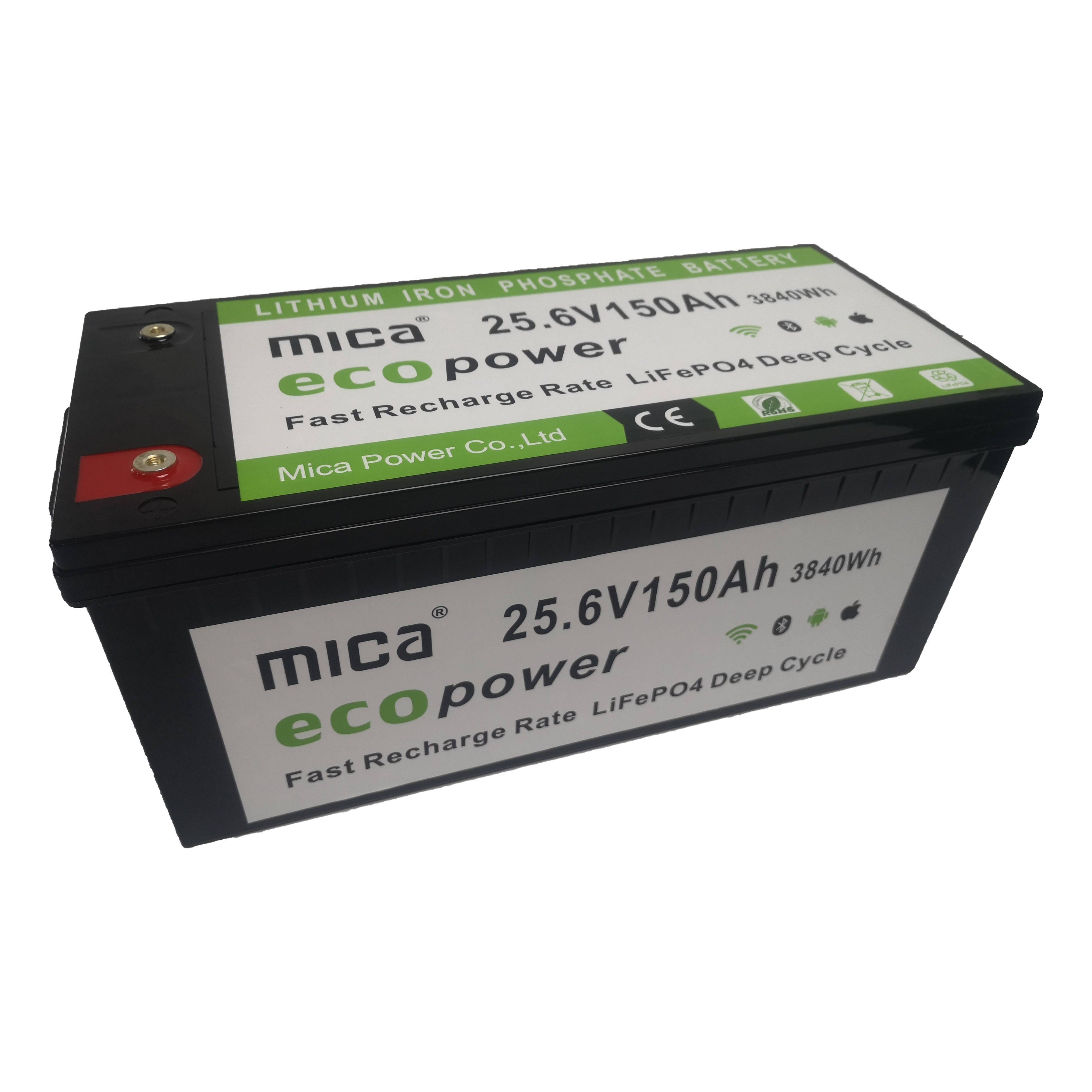

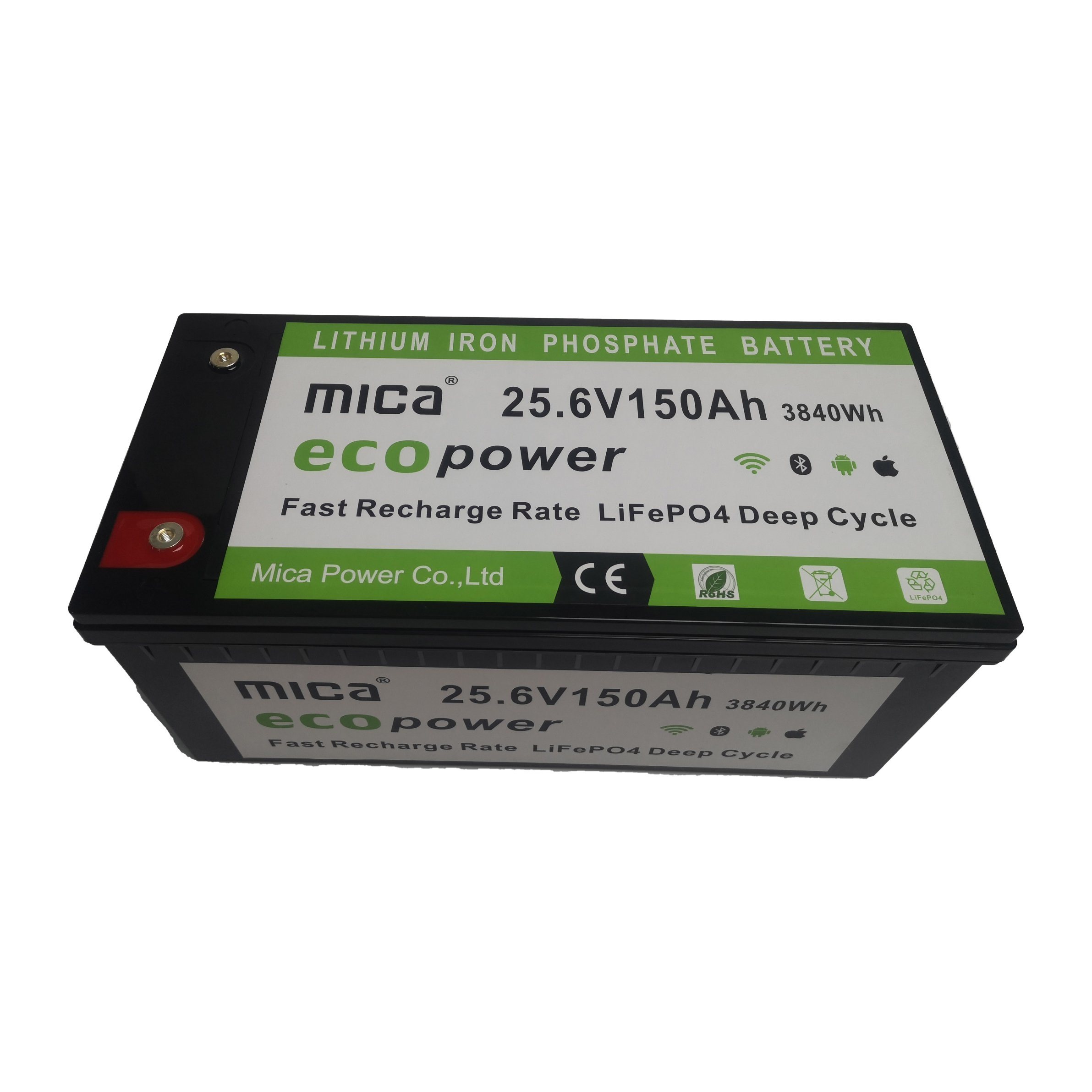

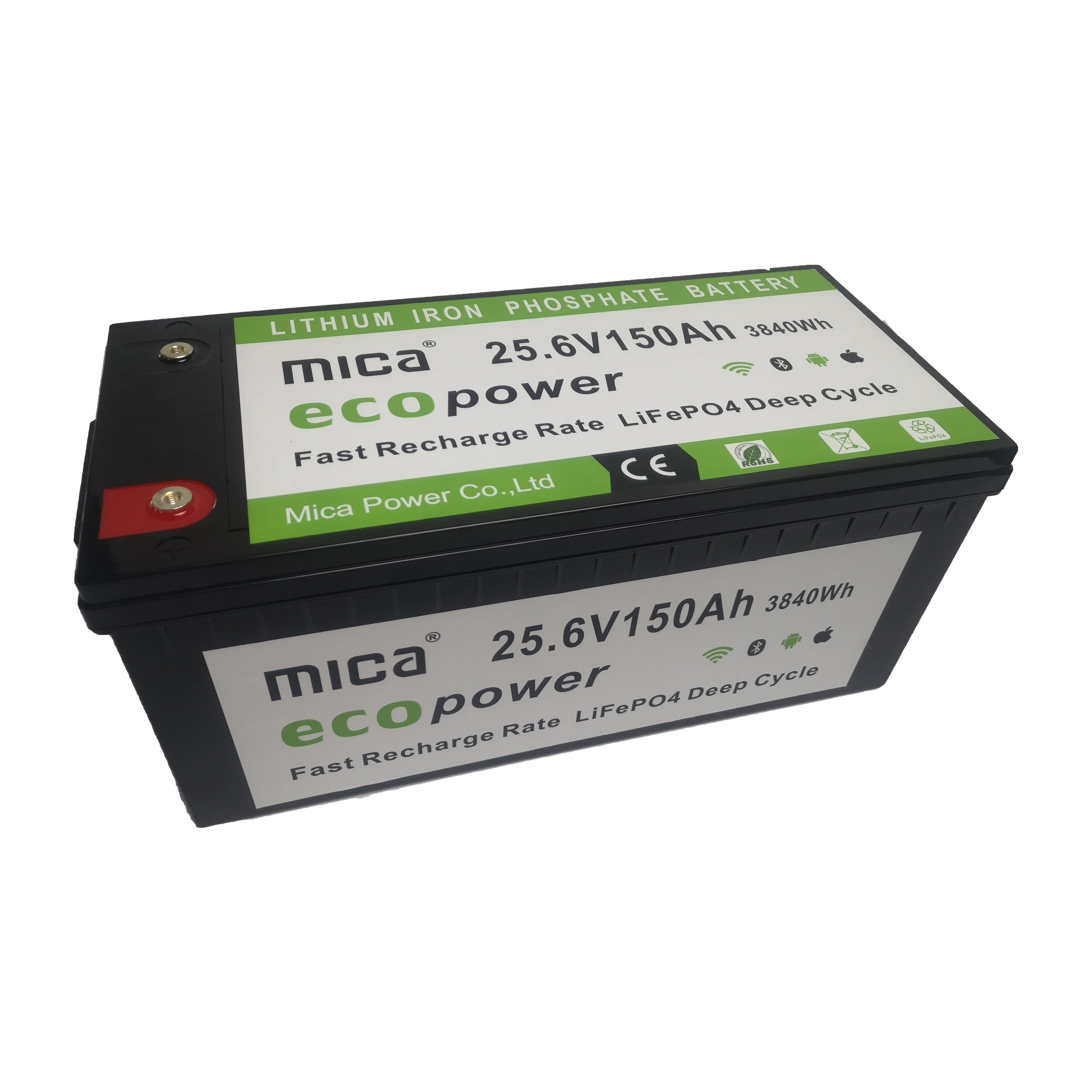

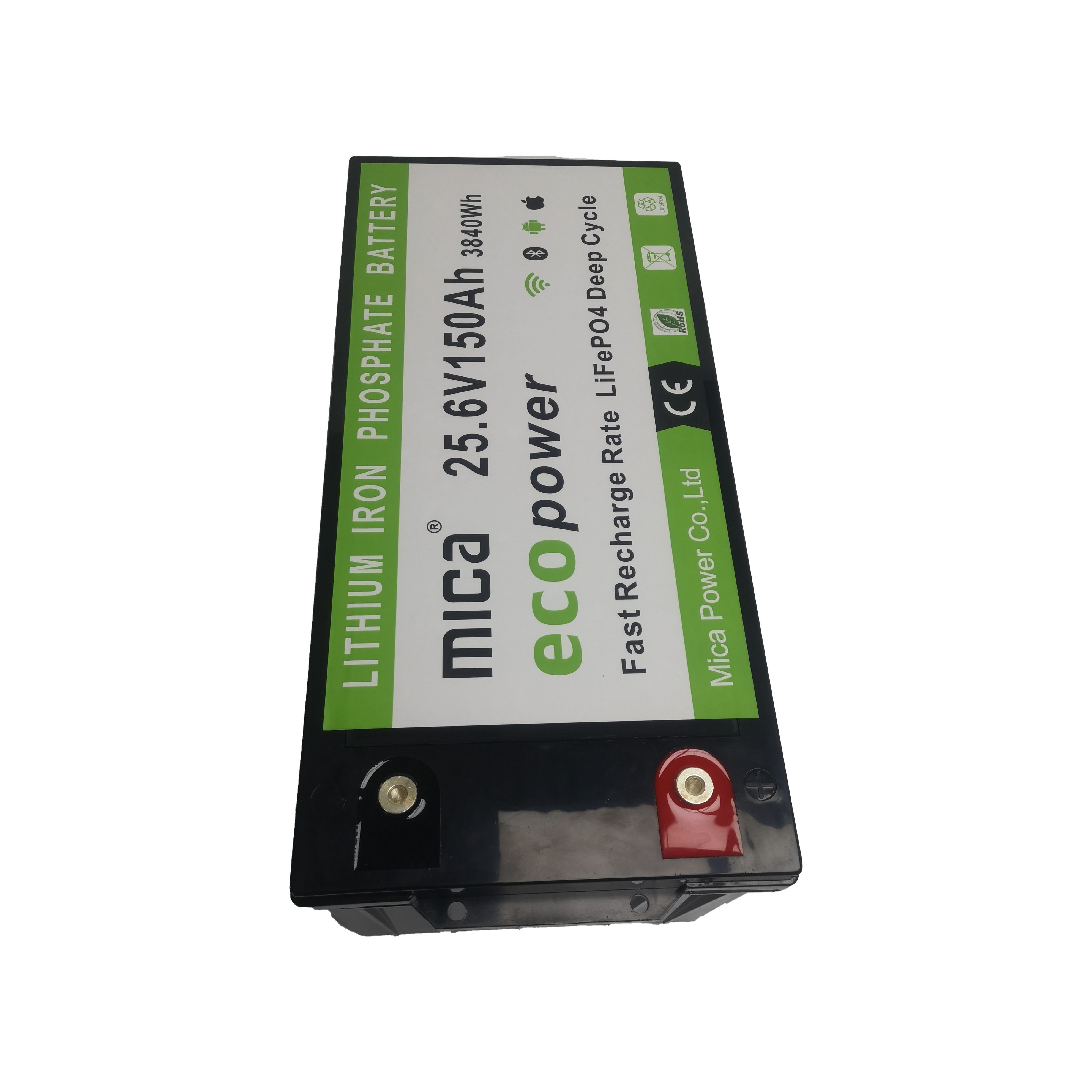

Factory Direct Price LiFePO4 Cell 25.6V 24V150ah 200ah Lithium Ion Battery for Solar System

Type:
Li-ion Battery
Cathode Material:
LFP
Rechargeable:
Yes
Size:
Medium
Nominal Voltage:
25.6V
Nominal Capacity:
150ah

Availability:



Inquire Add to Basket

Product Description

Features

• Ultra-reliable Lithium Iron Phosphate (LiFePO4) technology
• Integrated battery management System (BMS)
• Ultra-long cycle life
• Light weight & compact
• Water & dust resistant (IP56)
• Highly durable ABS enclosure
• Drop-in lead acid replacement
• Environment friendly
• Bluetooth App is optional

Items	Parameter
Battery model	MC-24150F
Nominal voltage	25.6V
Minimum capacity	150Ah@25ºC
Charging voltage	29.2V
Discharging cut-off voltage	20V
Standard charging	0.2C /29.2V
Max charging	1.0C /20V
Standard discharging	1C/20V
Max discharging	continuous discharge	100A/20V
	peak discharge	200A/20V
Standard Charging mode	CC/CV
Operating temperature	Charging: 0°C ~ 45°C
	Discharging: -20°C ~60°C
Storage (At 50% SOC and specified temp, recoverable capacity in % vs time )	-10ºC~25ºC	(12 months ≥85% )
	-10ºC ~45ºC	(6 months ≥85% )
	-10ºC~55ºC	(1 month ≥90% )
	20±5ºC is the recommended storage temperature
Visual Inspection	There should not be any remarkable scratches, cracks, bolts, cauterization, deformations, swelling, leakage and so on the surface of the cell.
Self-discharge Rate	<2% per month

BMS/Charge/Discharge

Charge Voltage Max: 29.2V

Discharge Cut-off Voltage: 20V

Charge Current Max: 30A

Discharge Current Max: 30A continues 60A burst (10seconds)

Self-discharge Rate: <2% per month

Protection

Over-charge protection
Over-discharge protection
Over current protection
Cell balancing function
Over temperature protection

Why choose us

More than 15 Years' Experience in Lithium Battery

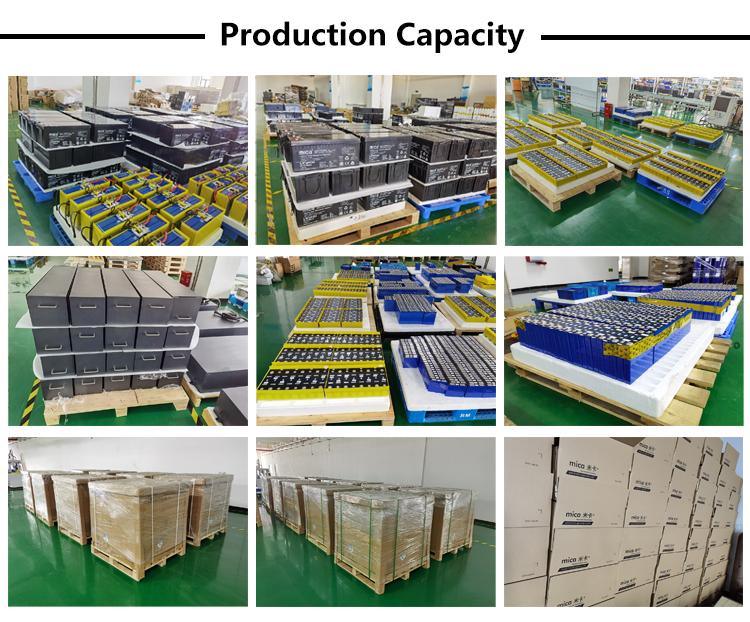

Mica Power Co. Ltd was established in 2009. Our management team has more than 15 years' experience in rechargeable battery. Our factory covers an area of 15,000 square meters and has more than 500 employees.

Benefit From Our Advantages
Backed by professional supporting team, we have expertise in R&D, OEM production and marketing. With the support of a professional and dedicated engineering and operation team, we are available to bringing customers' idea into reality. Flexible to customized request, such as sound adjusted, color, package, and accessories adjusted, so you can enjoy our quick one-stop OEM service.

Meeting Quality Standards
Our company has passed ISO 9001:2015 quality and BSCI system approval and our products have got the ROHS, CE, UL, IEC, UN38.3 certifications. The battery products have the advantages of high energy density, high power density, small volume, light weight,long service life, low self-discharge, flexible and varied shapes, safety performance and so on.
