5 Years
RV/ Marine/ Telecom 5g Station/ Electric Mobility
Yacht, Sailboat, Kayak, Jet Ski, Canoe
Availability: | |
---|---|
Features

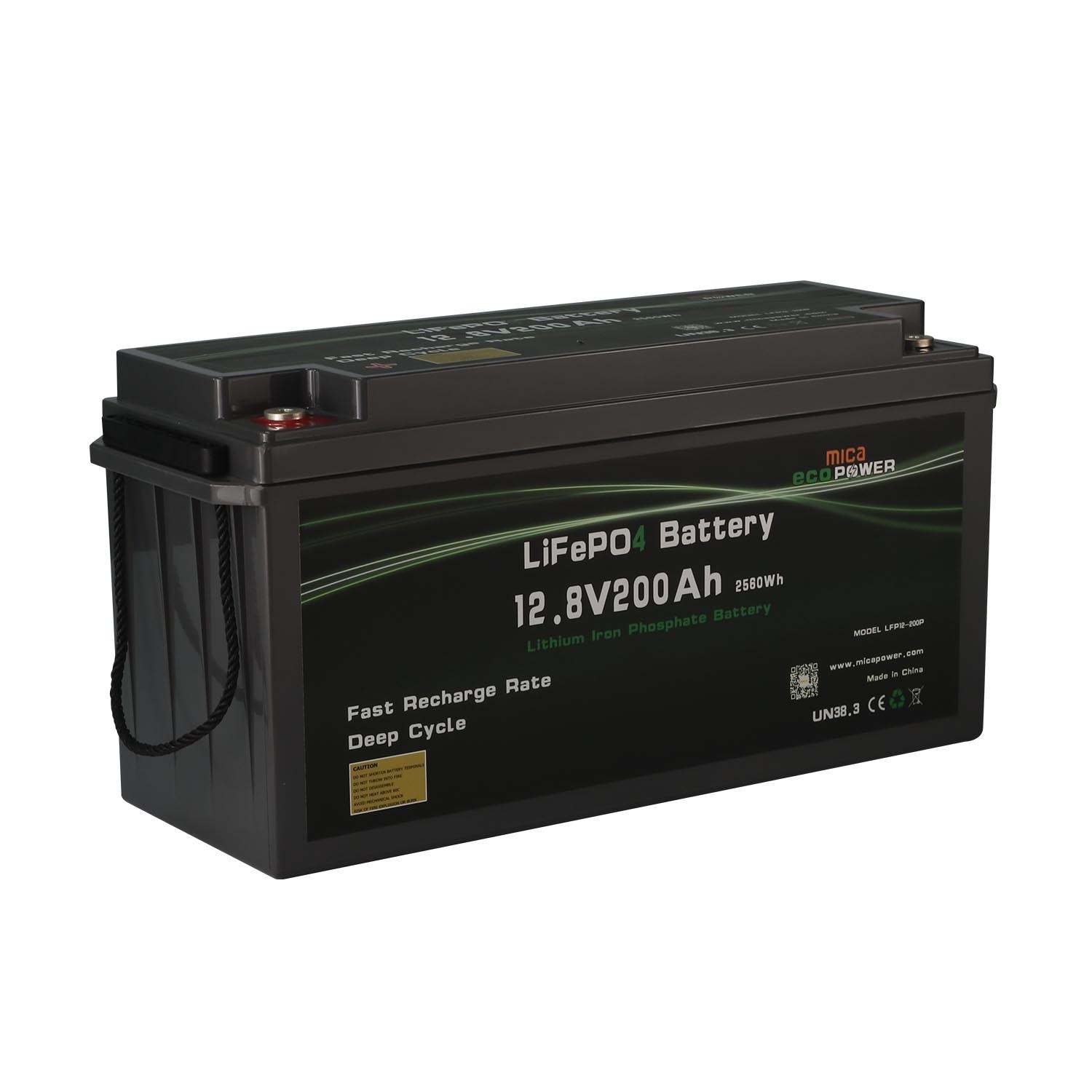

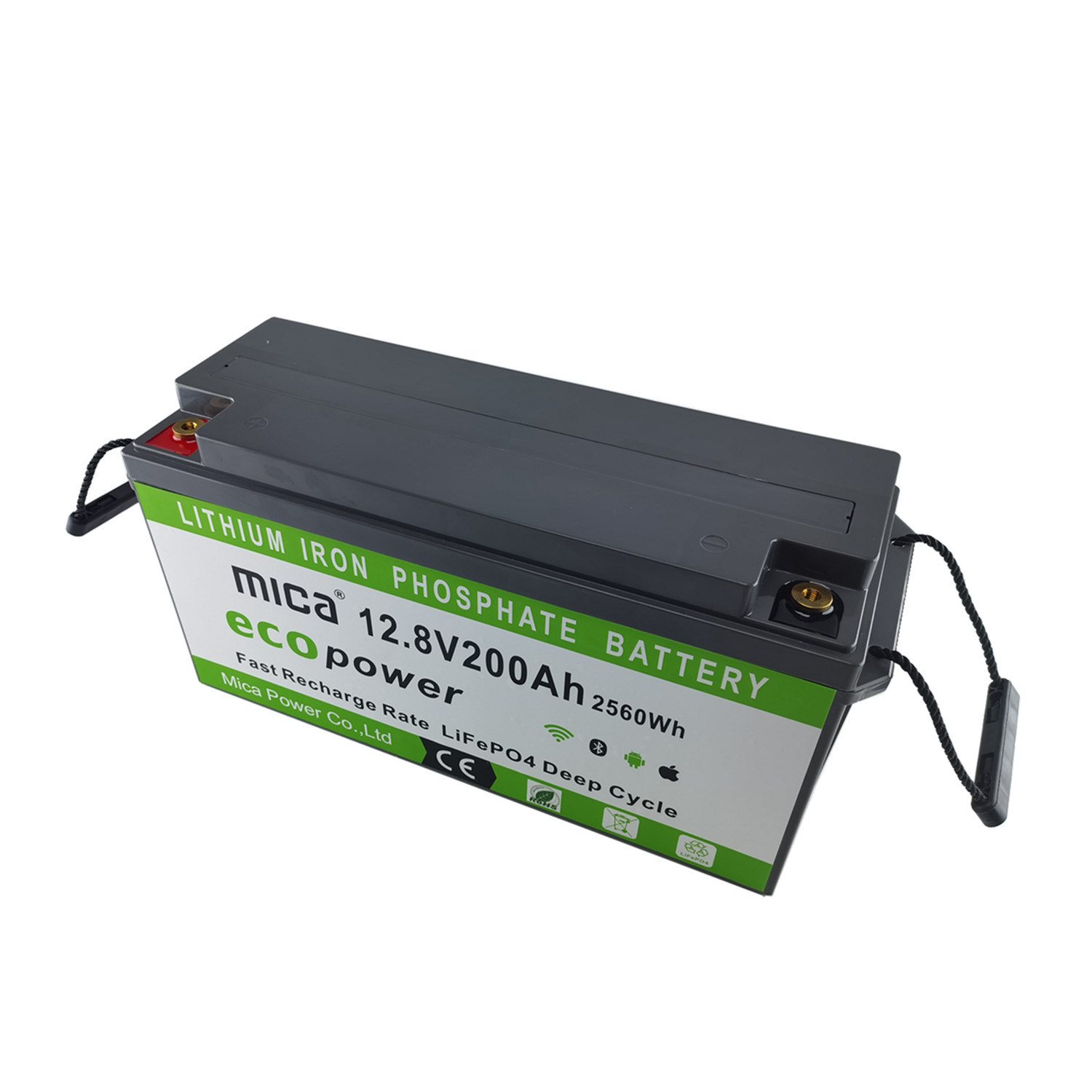

Battery Type: | LiFePO4(Lithium Iron Phosphate) |
Nominal Voltage: | 12.8V |
Nominal Capacity: | 200Ah 25ºC,C10 |
Nominal Energy: | 2560Wh 25ºC,C10 |
Operation Voltage: | 10.4~14.4V |
Operation Temperature: | Charge: 0°C - 45°C | Discharge: -20°C - 60°C |
Dimension: | 522 x 238 x 222mm (W x D x H) |
Weight: | About 25KG |
Warranty Period: | 5 years |
Environment Protection: | IP56 |
Cycle Life 100%DOD: | >3000 cycles (2560Wh 25ºC,C10) |
Cycle Life 80%DOD: | >4000 cycles (2048Wh 25ºC,C10) |
Cycle Life 50%DOD: | >6000 cycles (1280Wh 25ºC,C10) |
Charge Voltage Max: | 14.4V |
Charge Current Max: | 100A |
Discharge Current Max: | 100A continues, 200A burst (10seconds) |
Protection | Over-charge protection |
Over-discharge protection | |
Over current protection | |
Cell balancing function | |
Over temperature protection |
Q1. Can I have a sample order ?
