Golf Trolley
3-4
600-1700W

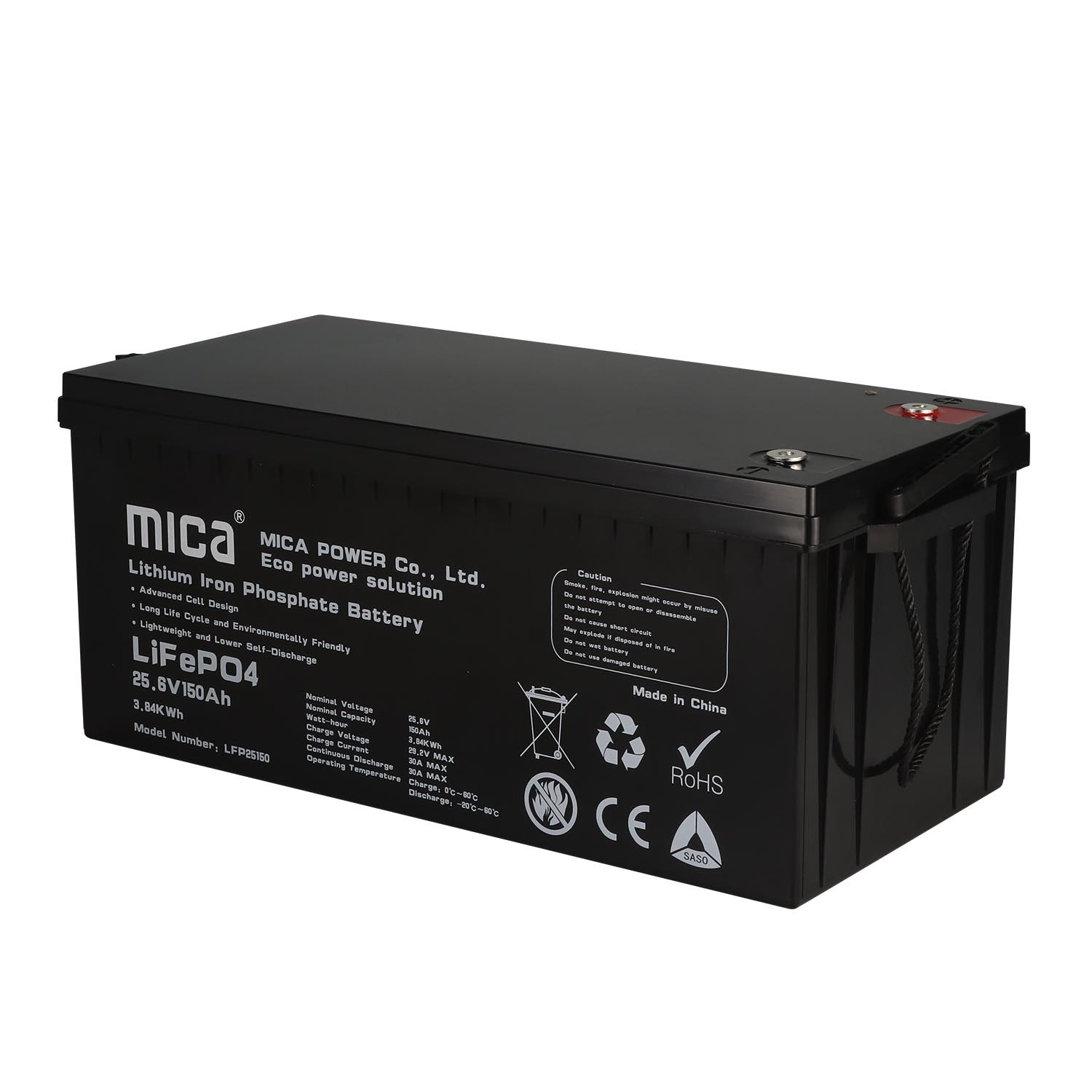

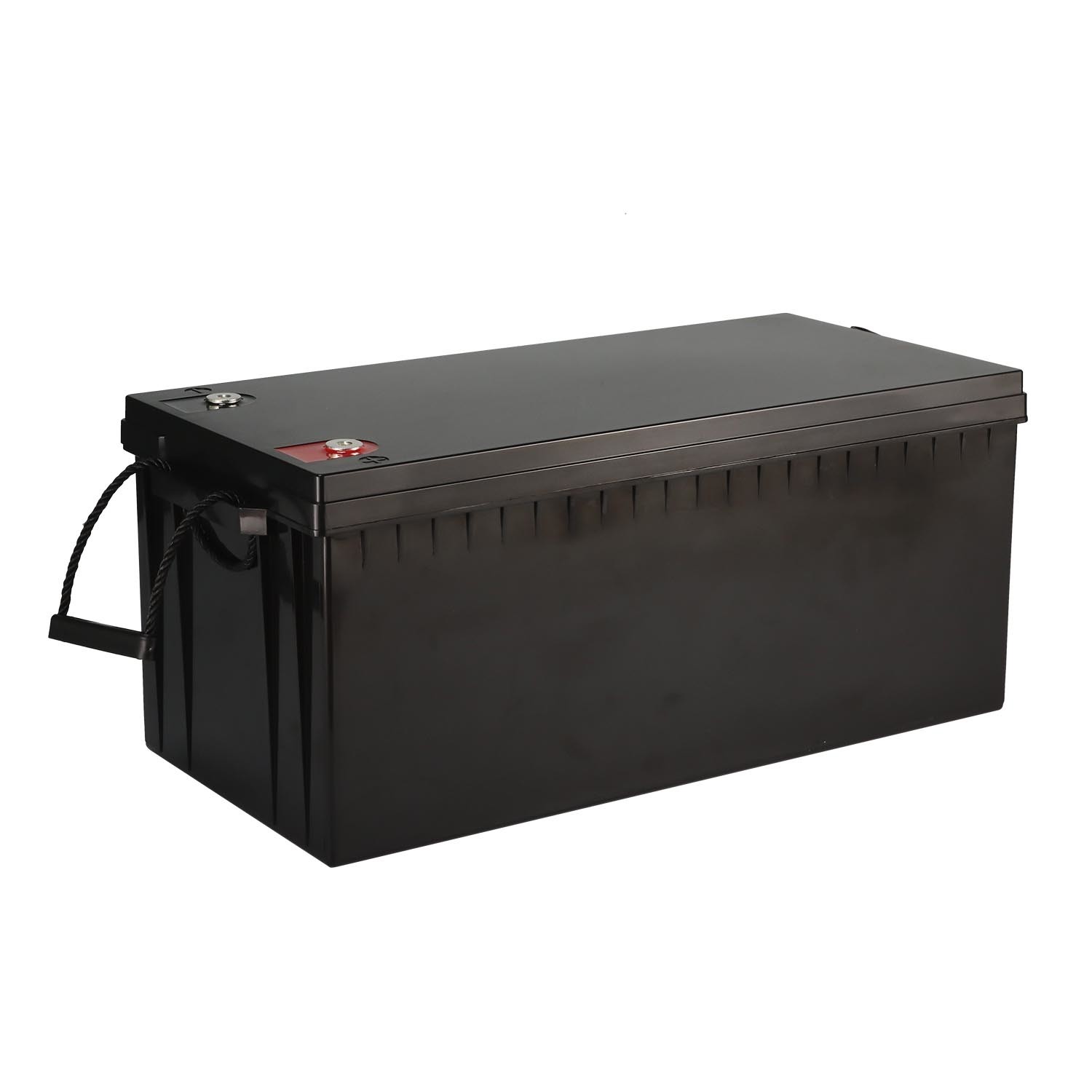

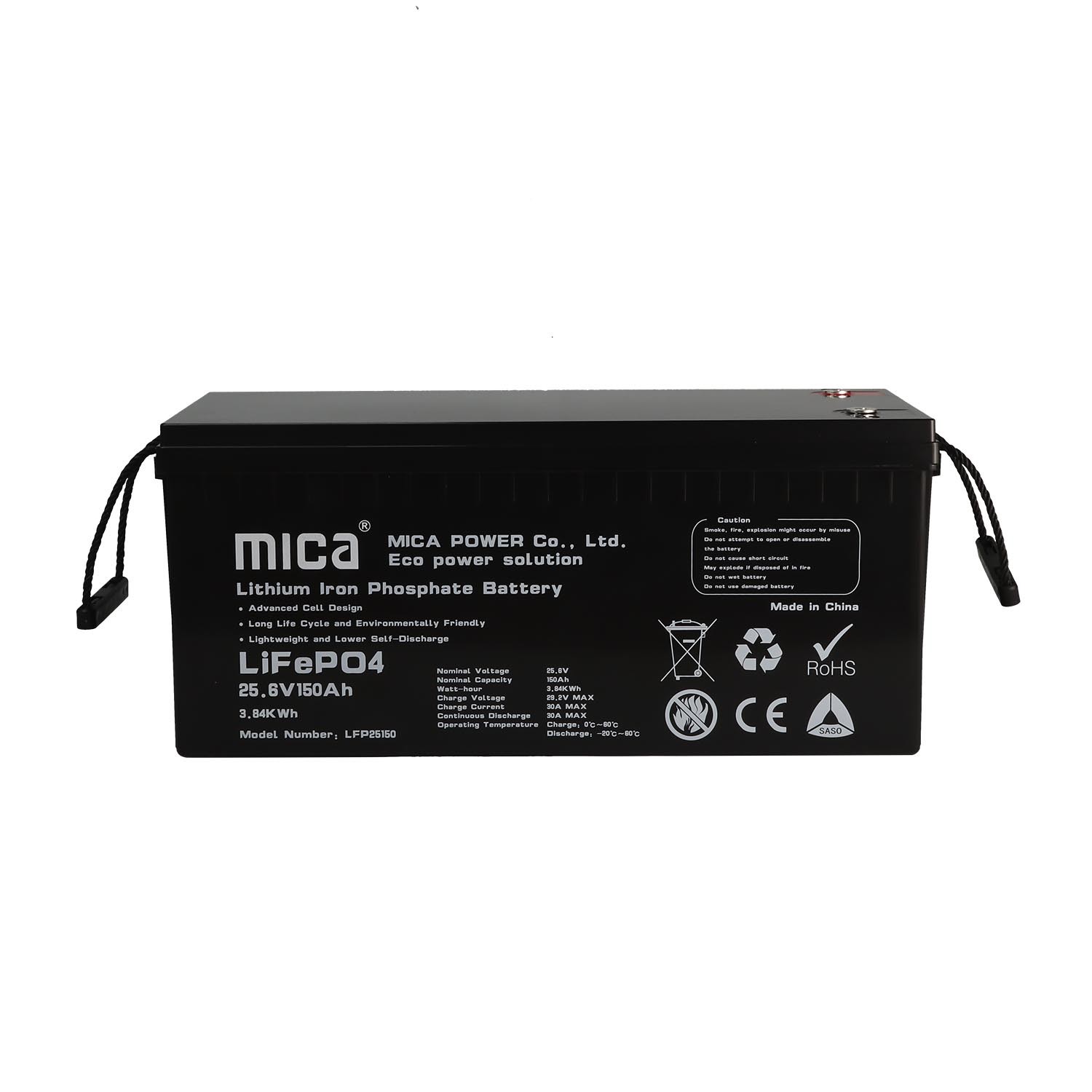

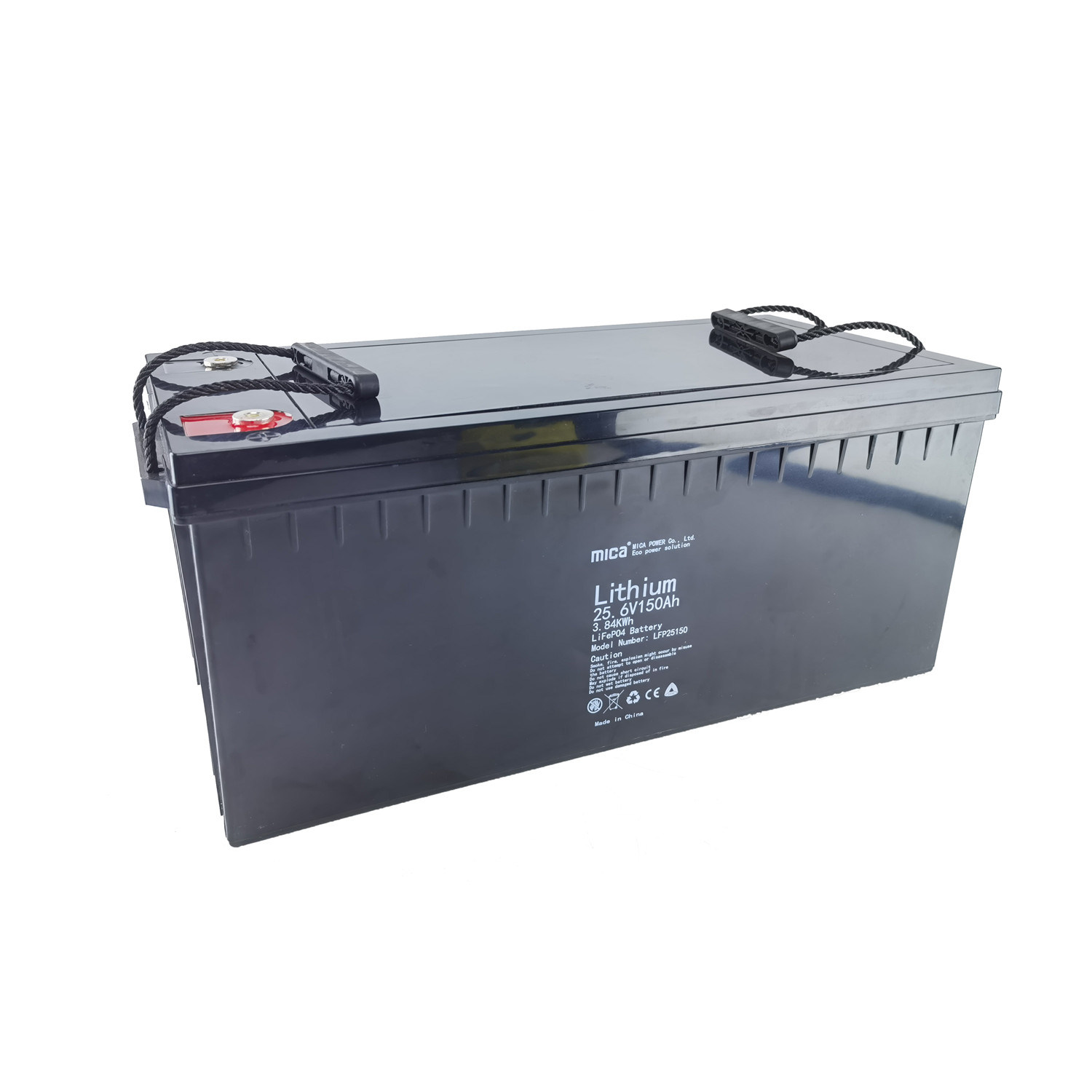

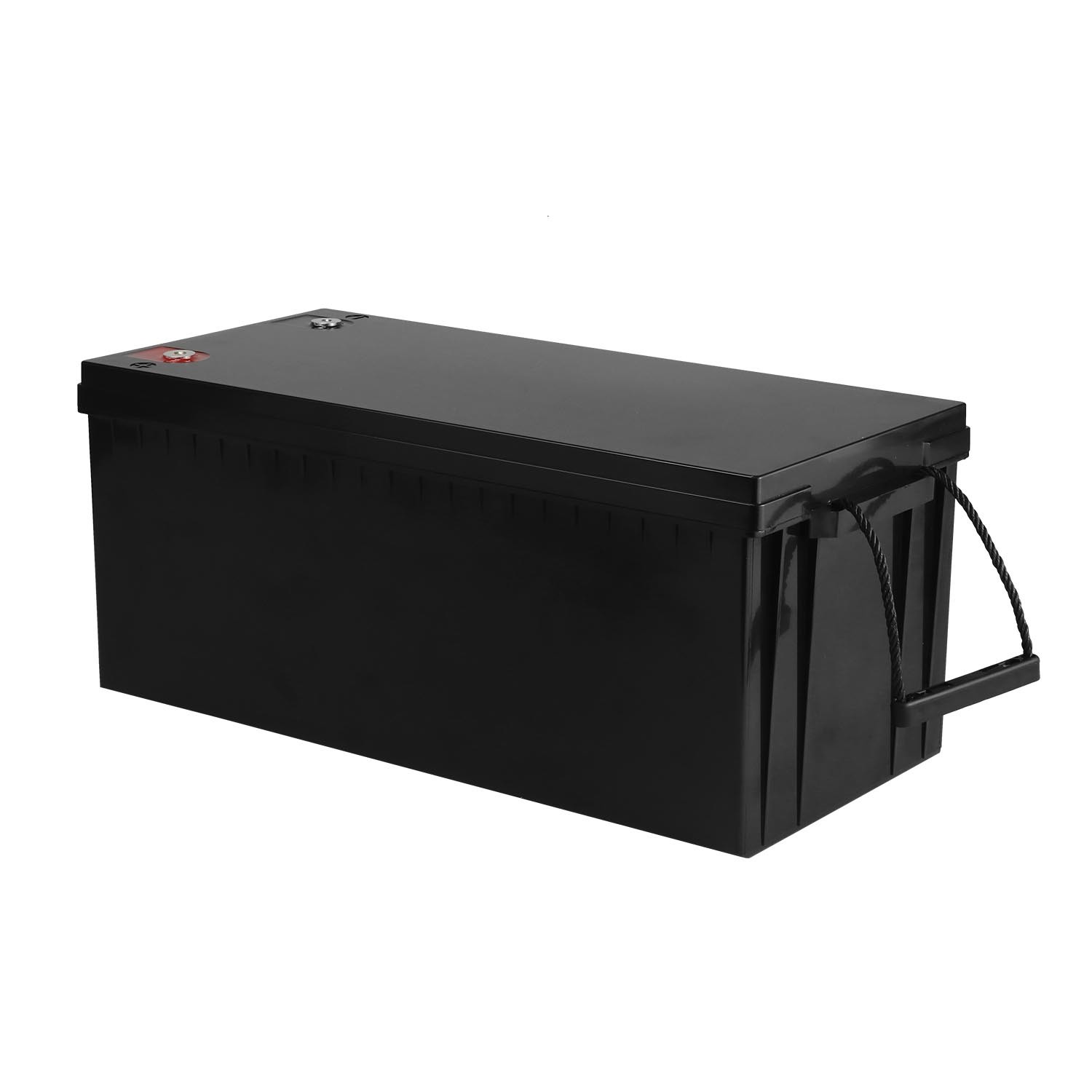

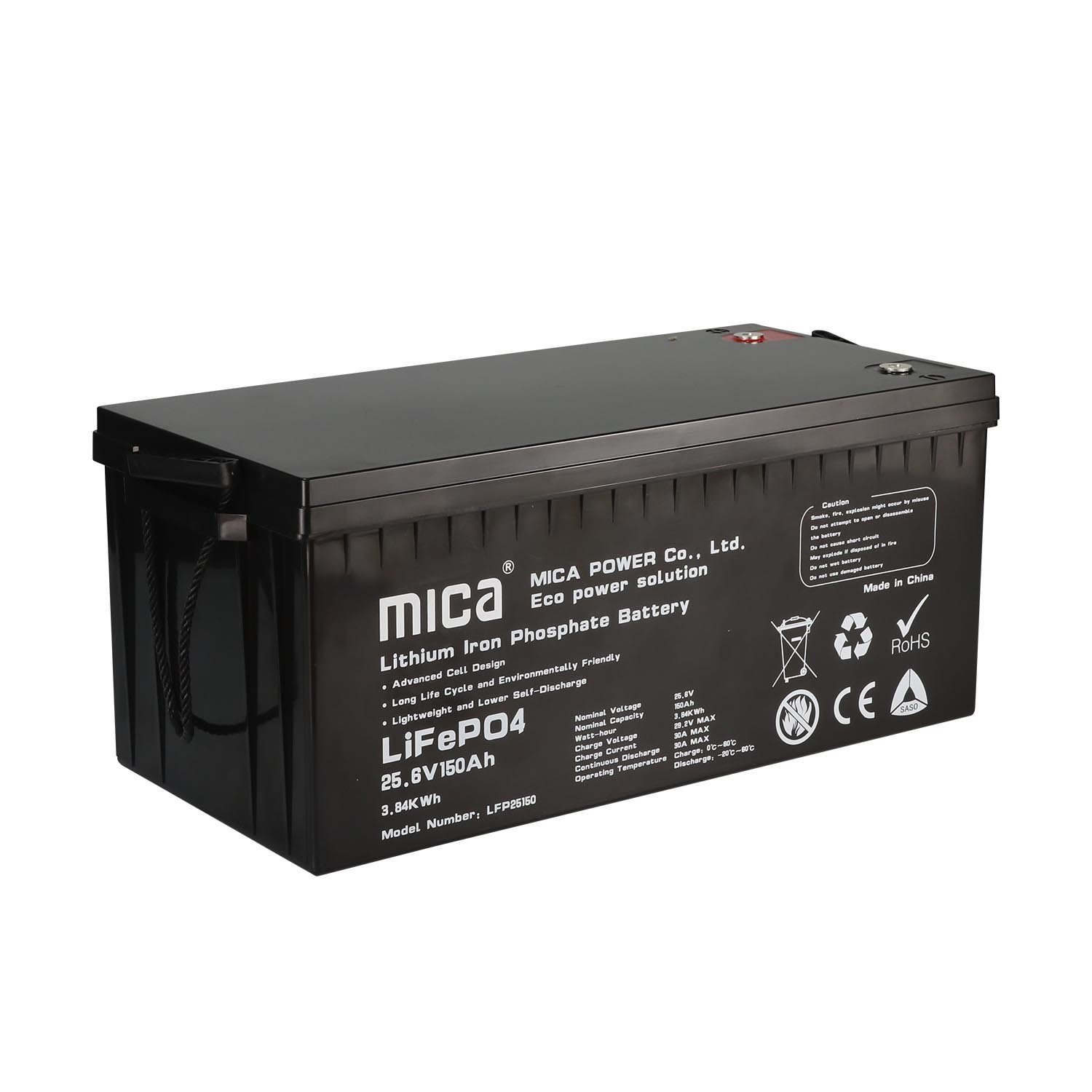

| General Information | | |
| Battery Type | LiFePO4(Lithium Iron Phosphate) | |
| Nominal Voltage | 25.6V | |
| Nominal Capacity | 150Ah 25ºC,C10 | |
| Nominal Energy | 3840Wh 25ºC,C10 | |
| Operation Voltage | 20~29.2V | |
| Operation Temperature | Charge: 0°C - 45°C | Discharge: -20°C - 60°C | |
| Cycle Life 100%DOD | >3000 cycles (3840Wh 25ºC,C10) | |
| Cycle Life 80%DOD | >4000 cycles (3072Wh 25ºC,C10) | |
| Cycle Life 50%DOD | >6000 cycles (1920Wh 25ºC,C10) | |
| Dimension | 522 x 238 x 222mm (W x D x H) | |
| Terminal Type | M8 | |
| Weight | ~31 kg | |
| Warranty Period | 5 years | |
| Environment Protection | IP56 | |
| BMS/Charge/Discharge | |
| Charge Voltage Max | 29.2V |
| Discharge Cut-off Voltage | 20V |
| Charge Current Max | 30A |
| Discharge Current Max | 30A continues 60A burst (10seconds) |
| Self-discharge Rate | <2% per month |
| Protection | Over-charge protection Over-discharge protection Over current protection Cell balancing function Over temperature protection |
MICA POWER Co., Ltd. was founded in 2009 is a leading supplier in lithium battery solution in China.
Focusing on Lithium Polymer, Lithium ion & Lithium iron phosphate/LiFePO4 technology batteries and energy storage solutions.
Application for consumer electronics, AGV, RV/ caravan, marine, motorcycle, golf cart / trolly, UPS, solar storage, medical, clean machine, industrial, commercial use, etc with reliable and safety solution.
Our products have UL, CE, KC, PSE, RoHS, UN38.3 certificated and exported worldwide like Europe,North America, South America, Africa, Middle East and South-east Asia.
1. Q: What's the main product in Mica Power?
A: Rechargeable LiFePO4 battery, Lithium ion battery and battery pack.
Battery widely used in ESS, Golf cart, electric forklift, e-bike, 3C and other fields.
2. Q: Do you have any Certificate?
A: Yes, our factory have ISO9001 certificate;
For Battery, UL/CB/IEC62619/IEC62133/CE/Rohs/UN38.3/MSDS, etc.
3. Q: Do you have any protection for battery pack?
A: Yes, each battery pack is assembled with BMS.
BMS main functions: Over-charge protection
Over-discharge protection
Over current protection
Cell balancing function
Over temperature protection
4. Q: Can I have a sample order?
A: Yes, sample order for test is available.
5. Q: How to proceed an order for lithium batteries?
A: Firstly, let us know your requirements or application;
Secondly, we quote according to your requirements or our suggestions;
Thirdly, customer confirms the order details and places deposit for formal order;
Fourthly, we will arrange the production and keep you updated before shipment;
Finally, Arrange the shipment and do after-sales service.
6. Q: Is it OK to print my logo on lithium batteries product?
A: Of course, we can print logo as requirements.
7. Q: Do you have MOQ limit?
A: Yes, we have MOQ limit for mass production, but it depends on battery model.
Please contact us for details.
8. Q: How about the lead time?
A: Generally, samples take 15 days. Mass production takes 25-30 days.

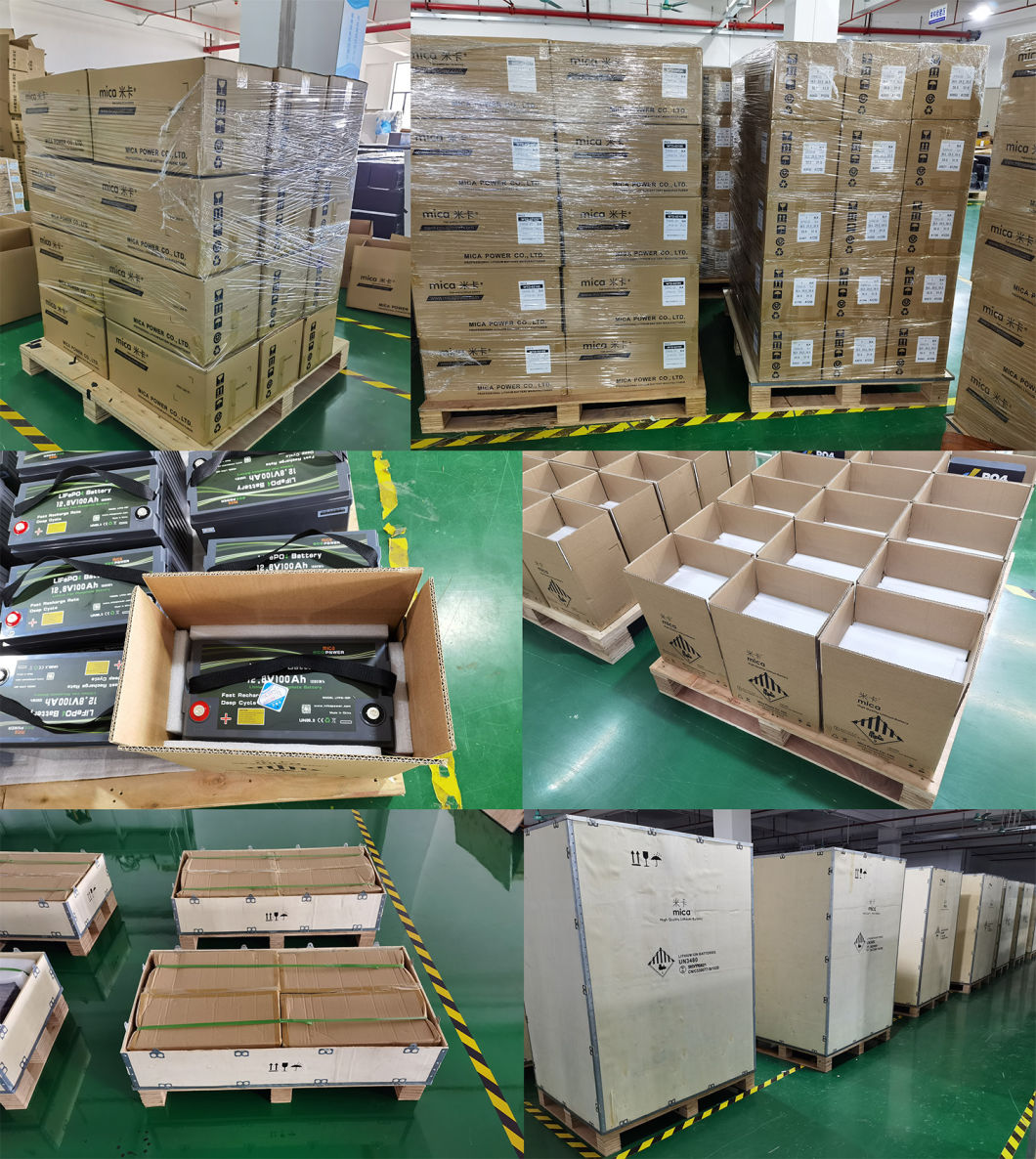

9. Q: How about shipping method?
A: Shipment by Express, by Air and by Sea are available.
10. Q: What about after-sale service?
A: We will offer you 1-5 years guarantee based on different battery solutions.
Any problems, please check with Mica power, and we will offer you positive solutions.
