Mica 48V 51.2V 200ah LiFePO4 Lithium Ion Solar Rechargeable Battery Inverter Integrated Machine for Home Solar Storage System Phosphate Battery

  • Li-ion Battery

  • LFP

  • Yes

Availability:
Inquire Add to Basket

Product Introduction

Mica 48V 51.2V 200ah LiFePO4 Lithium Ion Solar Rechargeable Battery Inverter Integrated Machine for Home Solar Storage System Phosphate Battery

The product is an energy storage inverter integrated machine, featuring high integration, high reliability, convenient installation, etc; The inverter module is designed with a mature scheme, and the lithium battery is lithium iron phosphate battery (LiFePO4), which is characterized by high reliability, high safety and long cycle life. The battery is equipped with an intelligent BMS lithium battery management system, which has the functions of overcharge protection, over discharge protection, temperature protection, over‐current protection, etc., and comprehensively monitors the key parameters of the battery.

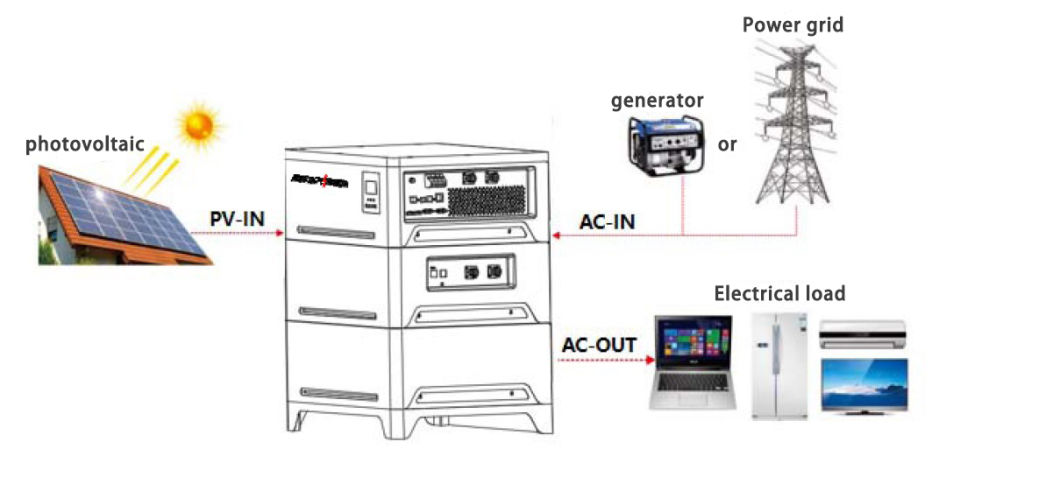

System diagram

Mica 48V 51.2V 200ah LiFePO4 Lithium Ion Solar Rechargeable Battery Inverter Integrated Machine for Home Solar Storage System Phosphate Battery

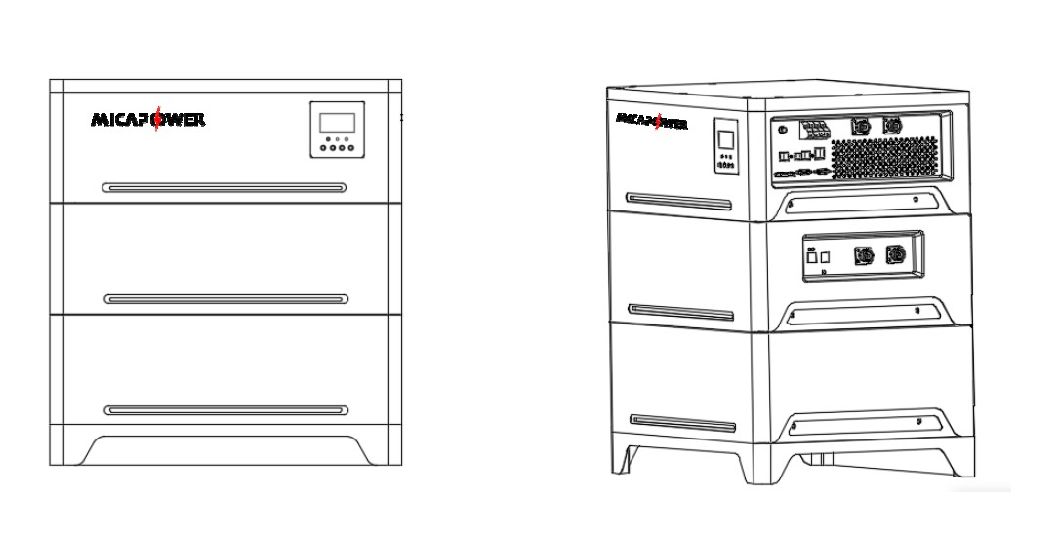

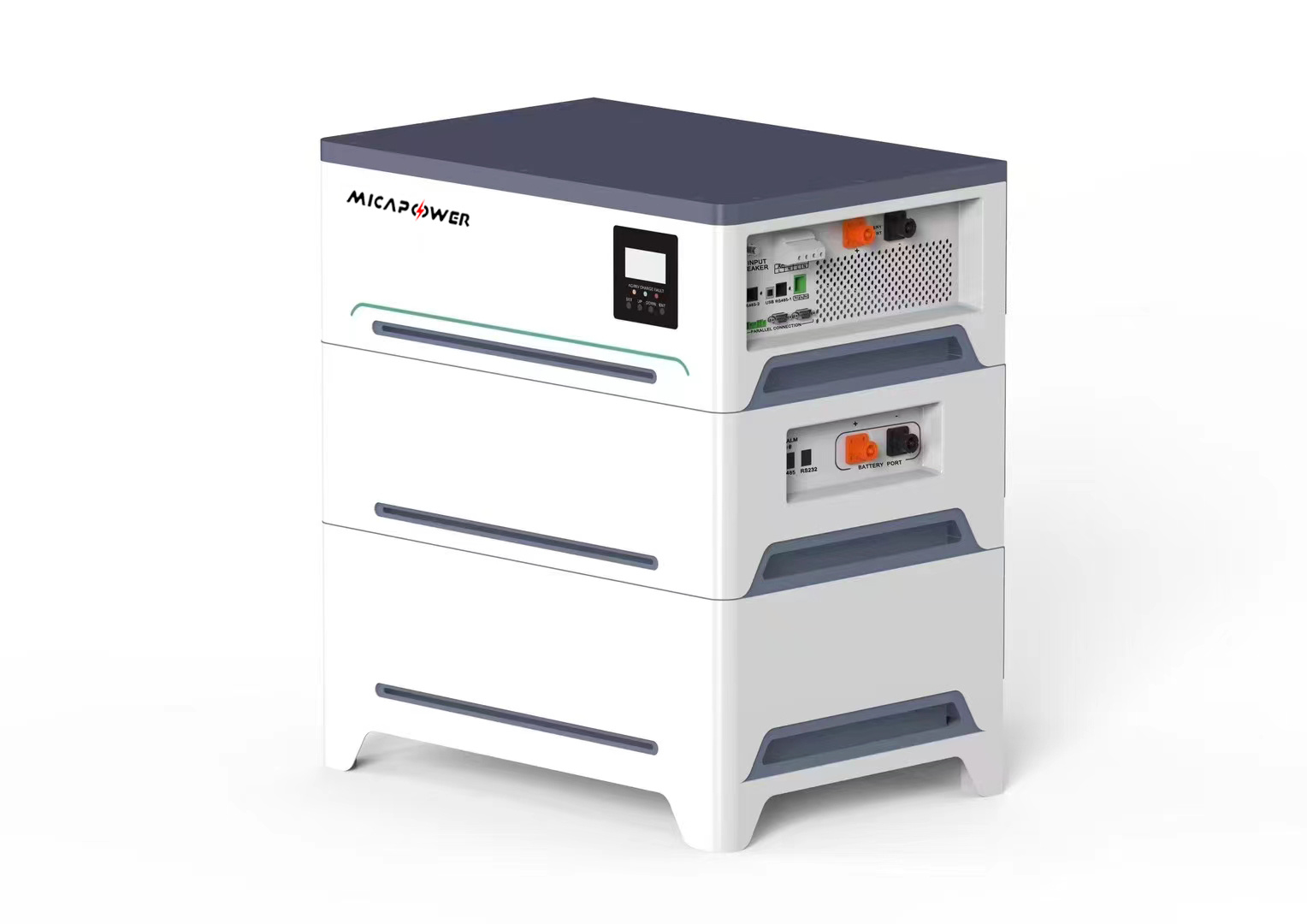

This product adopts a stacked design, including inverter module and standard battery module, with a standard module capacity of 5kwh/51.2V100Ah; Users can flexibly choose the number and configuration of battery modules based on their actual electricity needs. The inverter module has a power of 5kW and supports American standard AC110V and European standard AC230V outputs. If higher output power is required, stacking systems can be used in parallel, supporting up to 6 systems in parallel

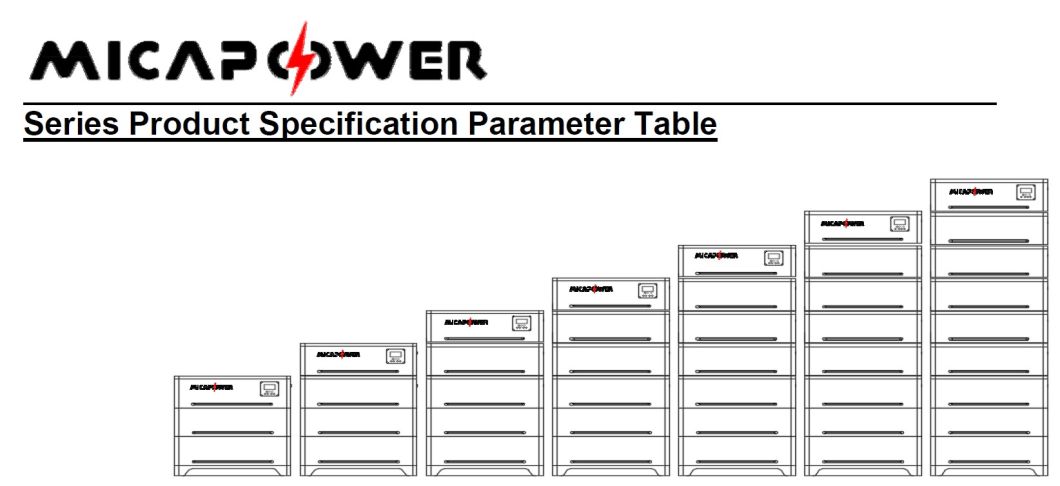

Specification

Mica 48V 51.2V 200ah LiFePO4 Lithium Ion Solar Rechargeable Battery Inverter Integrated Machine for Home Solar Storage System Phosphate Battery

Battery parameters
Technical Data 51.2V200Ah 51.2V300Ah 51.2V400Ah 51.2V500Ah 51.2V600Ah 51.2V700Ah 51.2V800Ah
Battery Module 51.2V100Ah/16S1P
Rated Energy (kWh) 10.24kwh 15.36kwh 20.48kwh 25.6kwh 30.72kwh 35.84kwh 40.96kwh
Number of Modules 2P 3P 4P 5P 6P 7P 8P
Cell Type LFP (LiFePO4)
Charge Voltage 57.6V @25ºC CC/CV
Min.discharg voltage 43.2V@25ºC /CC
Max. charg current 100A@25ºC
Max. discharg current 100A@25ºC
operation temperature Charge Tempera : 0ºC-50ºC / discharge tempera :-20ºC-55ºC
Cycle Life ≥6000 Cycles @0.3C/0.3C
Inverter parameters
Rate Power 5000VA/5000W
Monitoring Option WiFi
Output Voltage European standard:220-230-240VAC American Standard120Vac:(single phase)
Surge Power 10000VA/3S
Peak Efficiency 0.92
Transfer Time 10ms
Inverter Parallel Yes, max 6 units
Wave Form Pure Sine Wave
altx.PV Array Power 5200W
MPPT voltage Range 120~450Vdc
Solar Charge current 80A
AC Charge Current 60A
protection grade IP20(indoor use)
Frequency Range 50Hz/60Hz (Autosensing)
Dimensions(L*W*H) 413*413*665 413*413*857 413*413*1049 413*413*1241 413*413*1433 413*413*1625 413*413*1817
weight 146kg 204.5kg 263kg 321.5kg 380kg 438.5kg 497kg
Mica 48V 51.2V 200ah LiFePO4 Lithium Ion Solar Rechargeable Battery Inverter Integrated Machine for Home Solar Storage System Phosphate Battery Mica 48V 51.2V 200ah LiFePO4 Lithium Ion Solar Rechargeable Battery Inverter Integrated Machine for Home Solar Storage System Phosphate Battery Mica 48V 51.2V 200ah LiFePO4 Lithium Ion Solar Rechargeable Battery Inverter Integrated Machine for Home Solar Storage System Phosphate Battery
Exbihition

Mica 48V 51.2V 200ah LiFePO4 Lithium Ion Solar Rechargeable Battery Inverter Integrated Machine for Home Solar Storage System Phosphate Battery

Q&A

Q1: Do you accept sample order?
A: Yes, we welcome sample to test the quality, customized is available.

Q2: What will be the delivery time after I place the order?
A: For mass order will take 15-30 days, it depends on the order quantity. For sample will take around 1 week.

Q3: Who will deliver our goods?
A: The products delivered by express, airline and sea shipping is avaiable, you can choose the most suitable delivery way. Also if you have your own forwarder just pass it to us, we will follow it up.

Q4: Can I print my company logo on the products?
A: Yes. We can provide OEM service.

Q5: : What will be the payment terms?
A: We accept T/T, Paypal, Money Gram etc.

Q6: What is your Warranty Policy?
A: We offer 5 years warranty for our products and can be replaced with new ones for free if quality Issues. Using Lithium iron phosphate battery, which has high safety performance, long cycle life, with service life of more than 10 years.

Q7: How to choose a right battery?
A: Just tell us your demand, then we will recommend a suitable battery to you.
