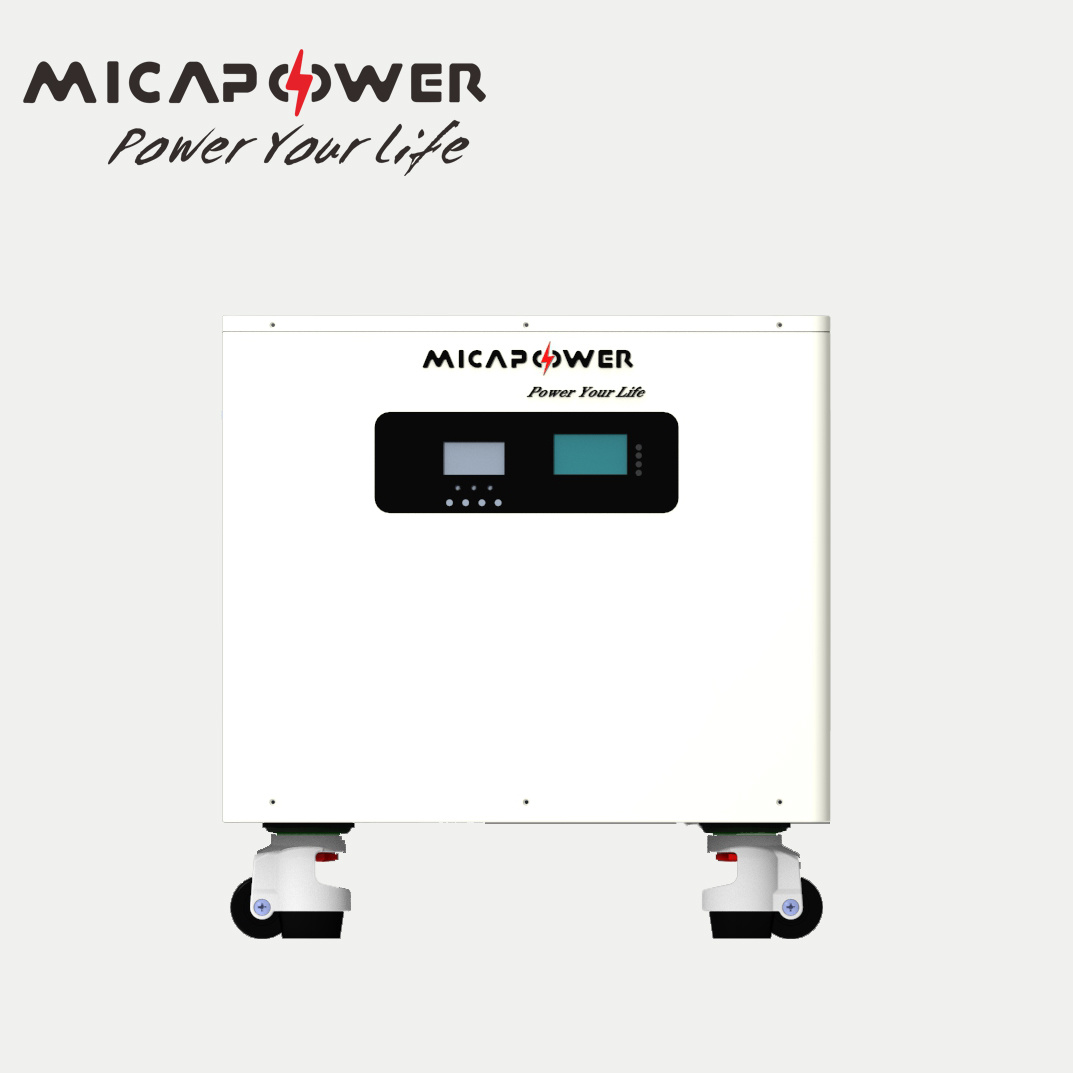

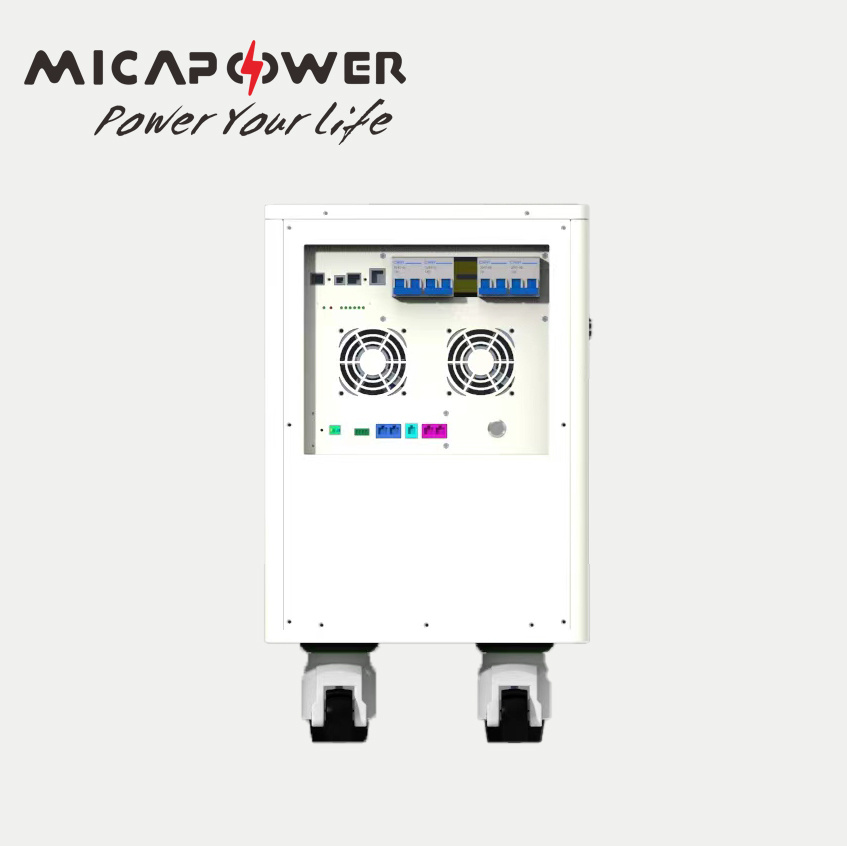

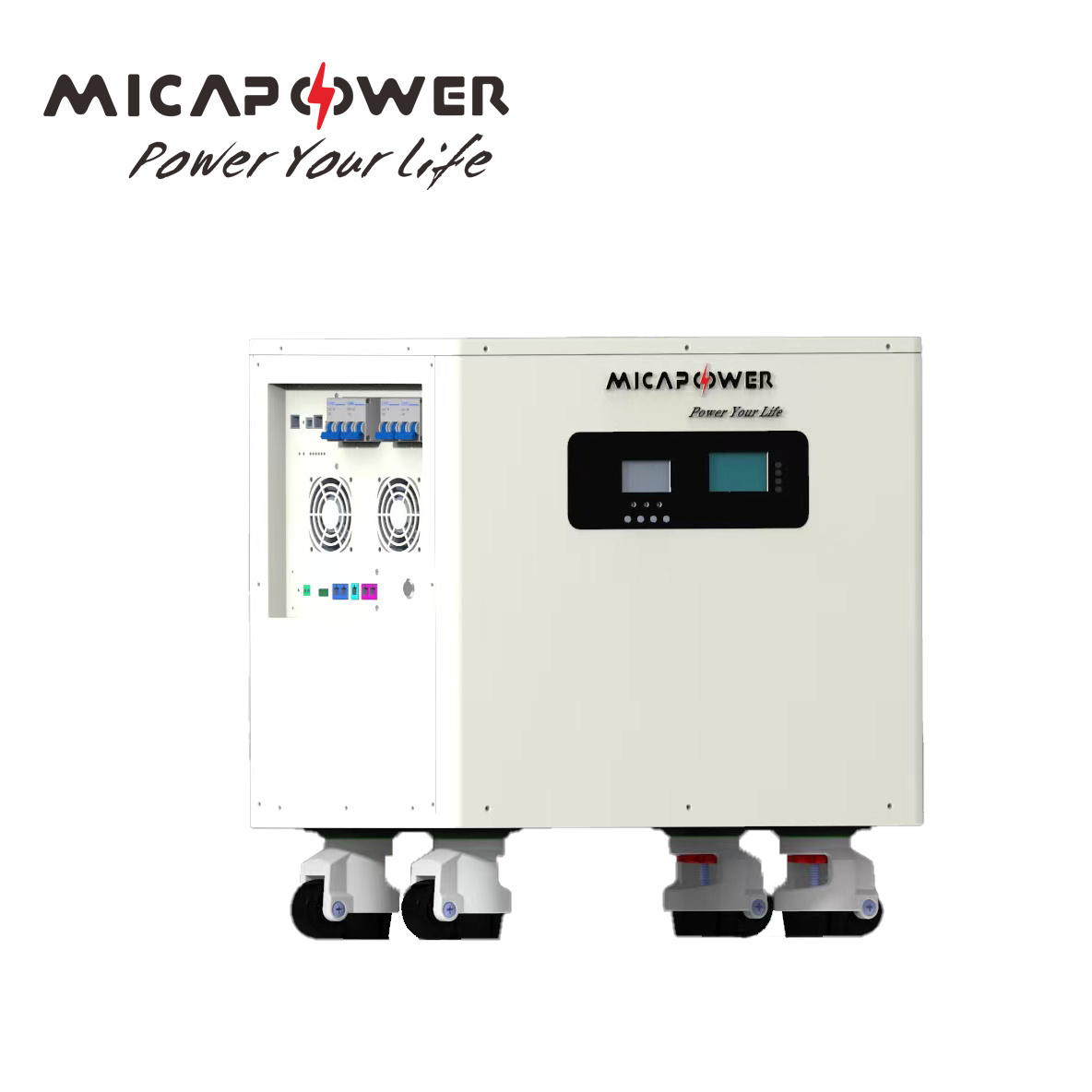

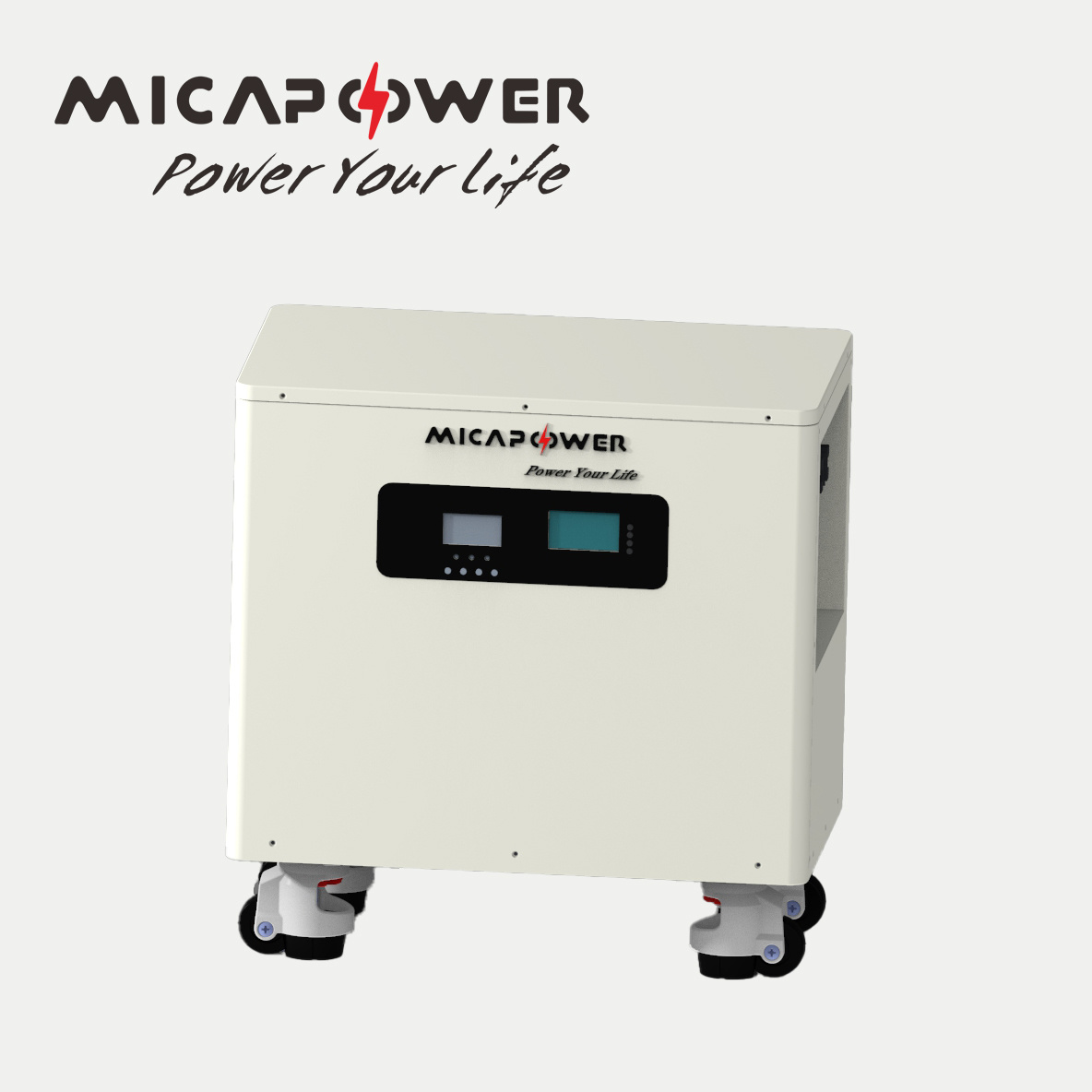

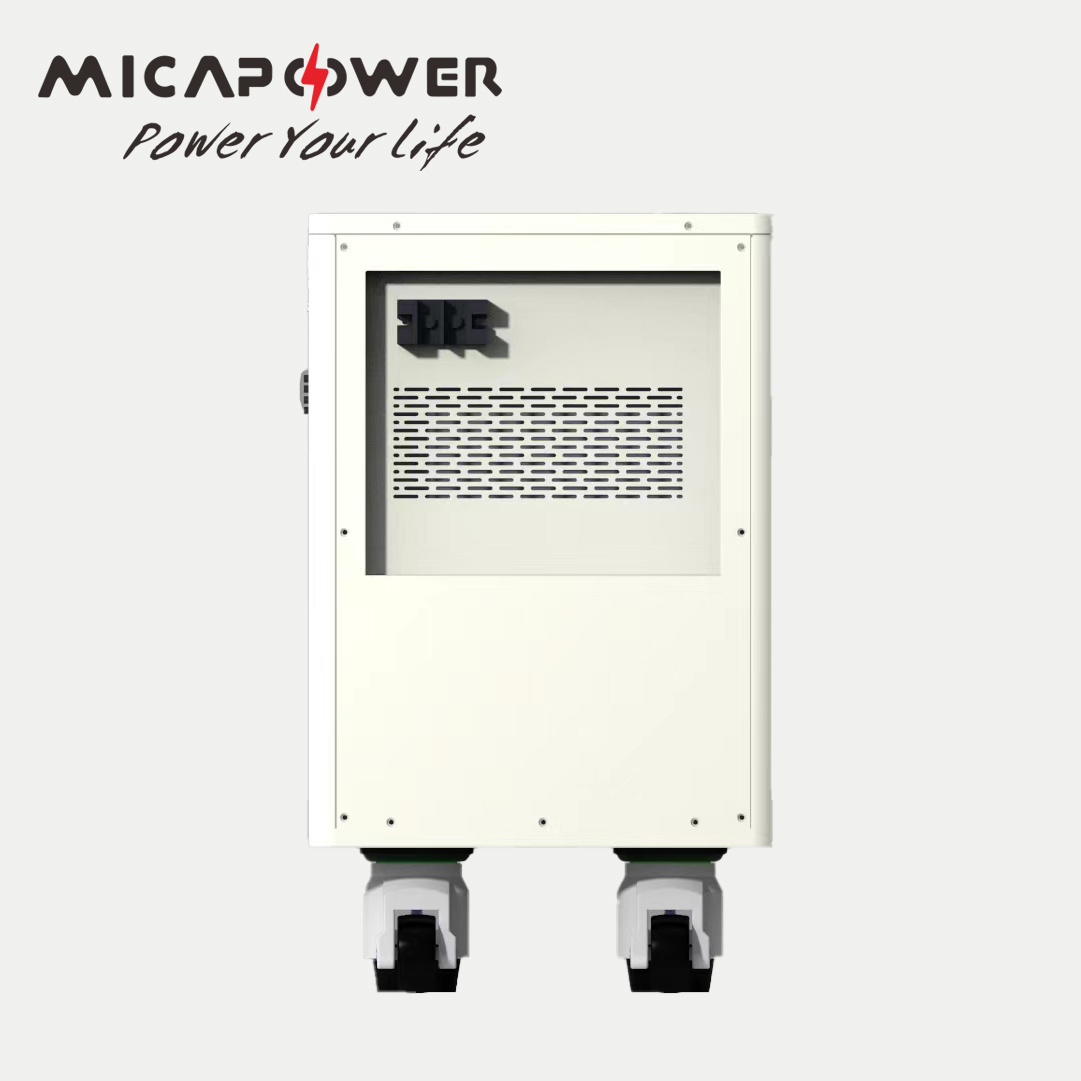

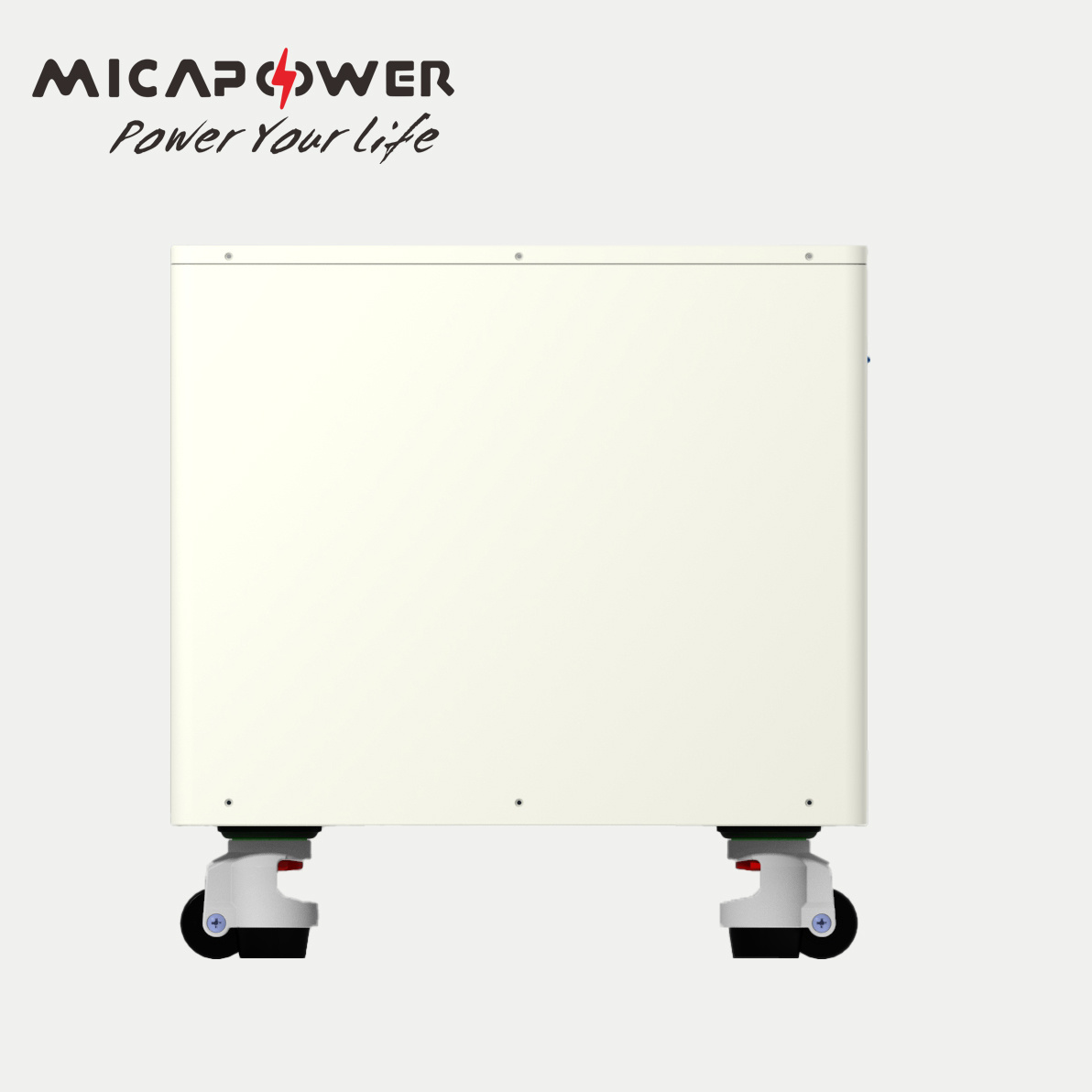

48V 51.2V 200ah 300ah All in One Battery LiFePO4 Battery Energy Storage System Solar Batteries 10kwh 15kwh 20kwh Lithium Battery with 5kw Inverter

Share to:

48V 51.2V 200ah 300ah All in One Battery LiFePO4 Battery Energy Storage System Solar Batteries 10kwh 15kwh 20kwh Lithium Battery with 5kw Inverter

Weight:
130kg
Warranty:
3 Years
Cycle Life:
4000cycles
Nominal Capacity:
200ah
Battery Type:
Lithium Iron Phosphate
Voltage Range:
40V-58.4V

Availability:



Inquire Add to Basket

Product Description

This battery pack is an ideal addition to solar panel systems, especially in the off-grid case where houseowners
need or want to become independent of their utility. This energy storage battery allows you to maintain a
sustained power supply during the day or night.
Specification
Features:
1.Modern design.
2.Easy plug and play.
3.A safe and reliable management system.
4.Make every single cells in control.
5.Support off-grid and on-grid systems.
6.Long lifespan LFP battery.
7.Compact size.
8.High efficiency.
9.Easy installation.
10.High energy density.

5KW inverter with 10kwh battery

Electric supply mode
Rated input voltage	220/230Vac
Input Voltage	(170Vac~280Vac)±2% (90Vac~280Vac)±2%
Frequency	50Hz
Frequency range	47±0.3Hz ~ 55±0.3Hz (50Hz)
Overload/short circuit protection	Circuit breaker
Efficiency	>95%
AC backflow protection	yes
Maximum bypass overload current	40A
Inversion mode
Output voltage waveform	Pure sine wave
Rated output power(VA)	5000
Rated output power(W)	5000
Power factor	1
Rated output voltage(Vac)	230Vac (200/208/220/240Vac Settable)
Output voltage error value	±5%
Output frequency range (Hz)	50Hz ± 0.3Hz/60Hz ± 0.3Hz
Efficiency	>90%
Overload protection	yes
Peak power	6000VA
Short Circuit Protection	yes
Electric supply charging mode
Maximum charging current	60A
Charging voltage range	40-60Vdc
overcharge protection	yes

48V 51.2V 200ah 300ah All in One Battery LiFePO4 Battery Energy Storage System Solar Batteries 10kwh 15kwh 20kwh Lithium Battery with 5kw Inverter

Why choose us?

More than 15 Years' Experience in Lithium Battery
Mica Power Co. Ltd was established in 2009. Our management team has more than 15 years'
experience in rechargeable battery. Our factory covers an area of 15,000 square meters and
has more than 500 employees.

Benefit From Our Advantages
Backed by professional supporting team, we have expertise in R&D, OEM production and marketing.
With the support of a professional and dedicated engineering and operation team, we are available to
bringing customers' idea into reality. Flexible to customized request, such as sound adjusted, color,
package, and accessories adjusted, so you can enjoy our quick one-stop OEM service.

Meeting Quality Standards
Our company has passed ISO 9001:2015 quality and BSCI system approval and our products have
got the ROHS, CE, UL, IEC, UN38.3 certifications. The battery products have the advantages of high
energy density, high power density, small volume, light weight,long service life, low self-discharge,
flexible and varied shapes, safety performance and so on.

Mica Power Co. Ltd was established in 2009. Our management team has more than 15 years' experience in battery business.
Facility Aare: 15000 square meters; Employee: 1000.We specialize in manufacturing and exporting lithium-polymer batteries,
lithium-ion batteries, LiFePo4 rechargeable batteries, rechargeable batteries for 3C consumer electronics such as TWS earphone,
Bluetooth speaker, flashlight, POS machine energy storage system, power tool, BMS and all kinds of PCM for batteries and
OEM/ODM battery packs. We also support customers with an outstanding service and a customized POS concept

48V 51.2V 200ah 300ah All in One Battery LiFePO4 Battery Energy Storage System Solar Batteries 10kwh 15kwh 20kwh Lithium Battery with 5kw Inverter

FAQ

1,Q: What's the main product in Mica?
A: Rechargeable LiFePO4 battery, Li-ion, Lipo battery and power battery pack.

2,Q: Do you have any protection for battery pack?
A: Over-charge protection

Over-discharge protection
Over current protection
Cell balancing function
Over temperature protection

3,Q: What is over discharge?
A: After charge, test the batteries' initial state. When the batteries are normal, discharge to 0V at 0.5C. Observe changes in battery
appearance

4. Q: Can I have a sample order?
A: Yes, we accept sample order to test and check quality. Batteries can be made as require.

5. Q: Do you have MOQ limit?
A: Yes, we have MOQ limit for mass production, but it depends on battery model. Please contact us for details.

6. Q: How about the lead time?
A: Samples will takes 5-7 business days. Mass production will takes 25-30 days. It depends on quantity.

7. Q: How about shipping and delivery time?
A: Generally, battery will be shipped via Express, such as DHL, TNT, FedEx and UPS, delivery time is 3-5 business days. Or DDP service,
delivery time is 11-15 business days. Airline and sea shipping also available.

8. Q: What about after-sale service?
A: We will offer you 1-5 year guarantee. If there are any problems, please inform us, we will offer you positive solutions.
