230kg
5 Years
> 4000 Cycles

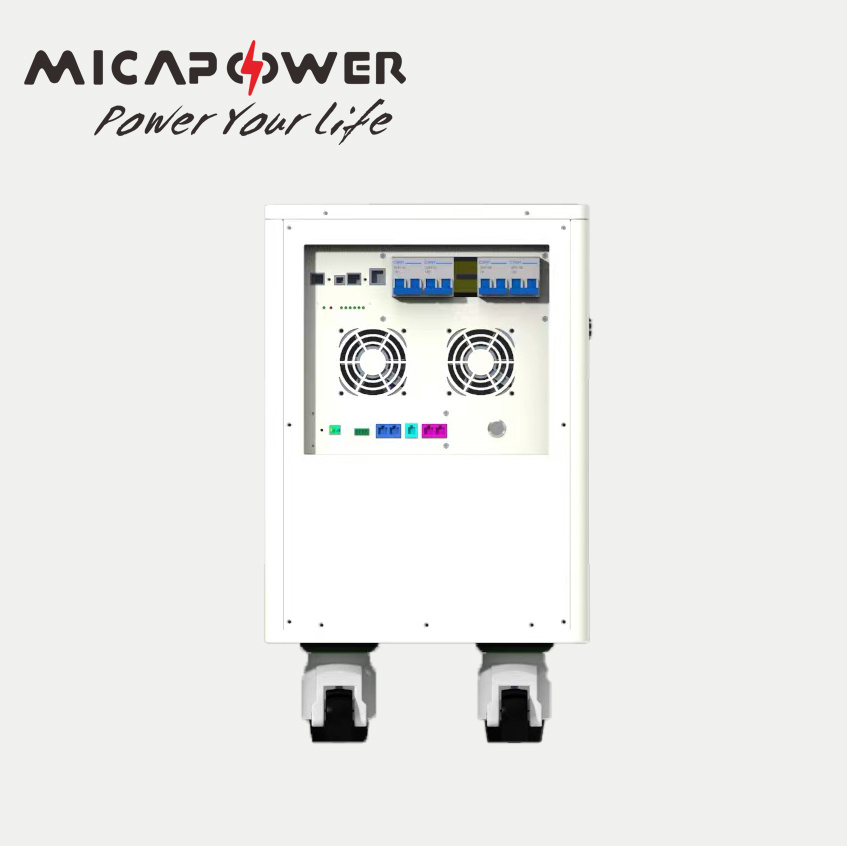

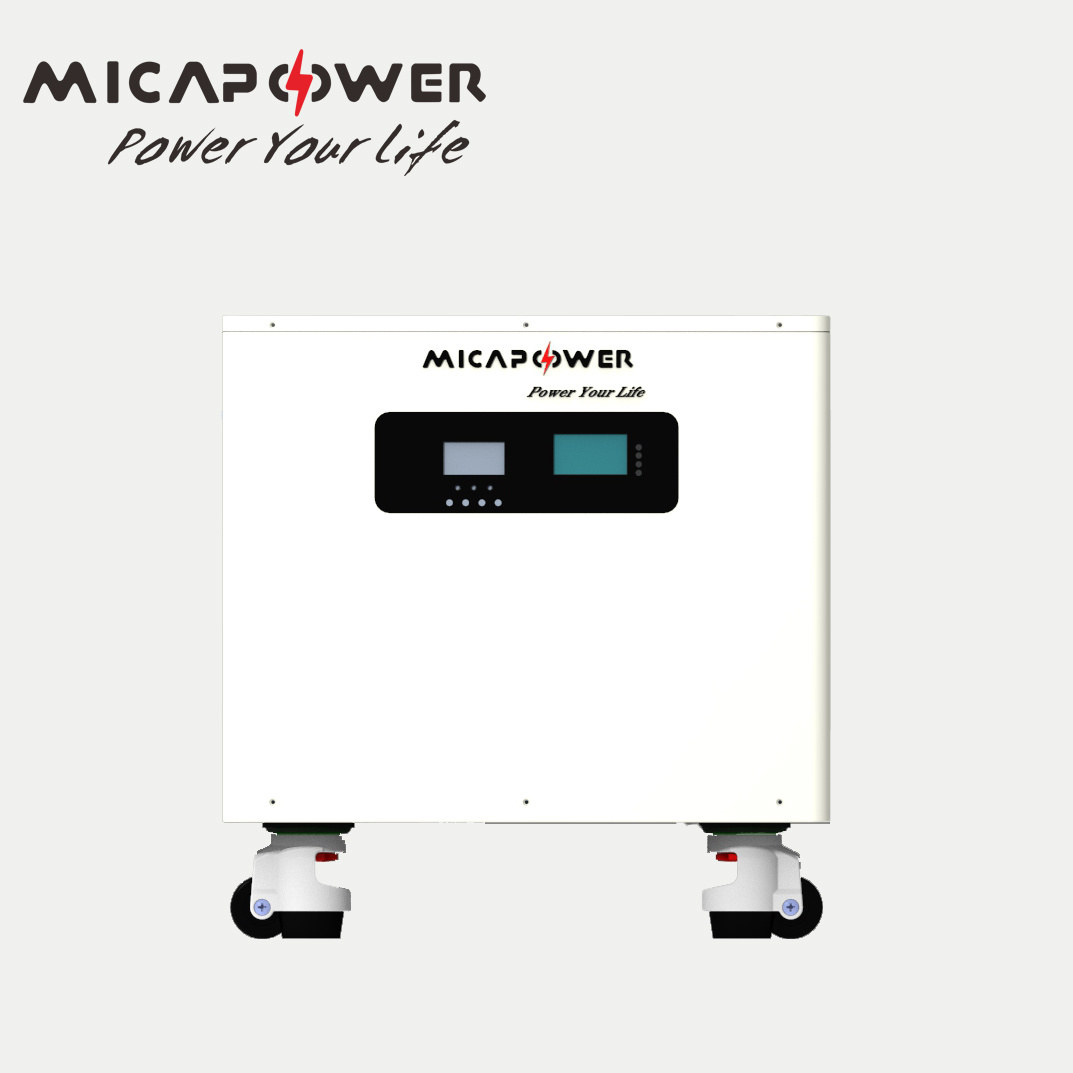

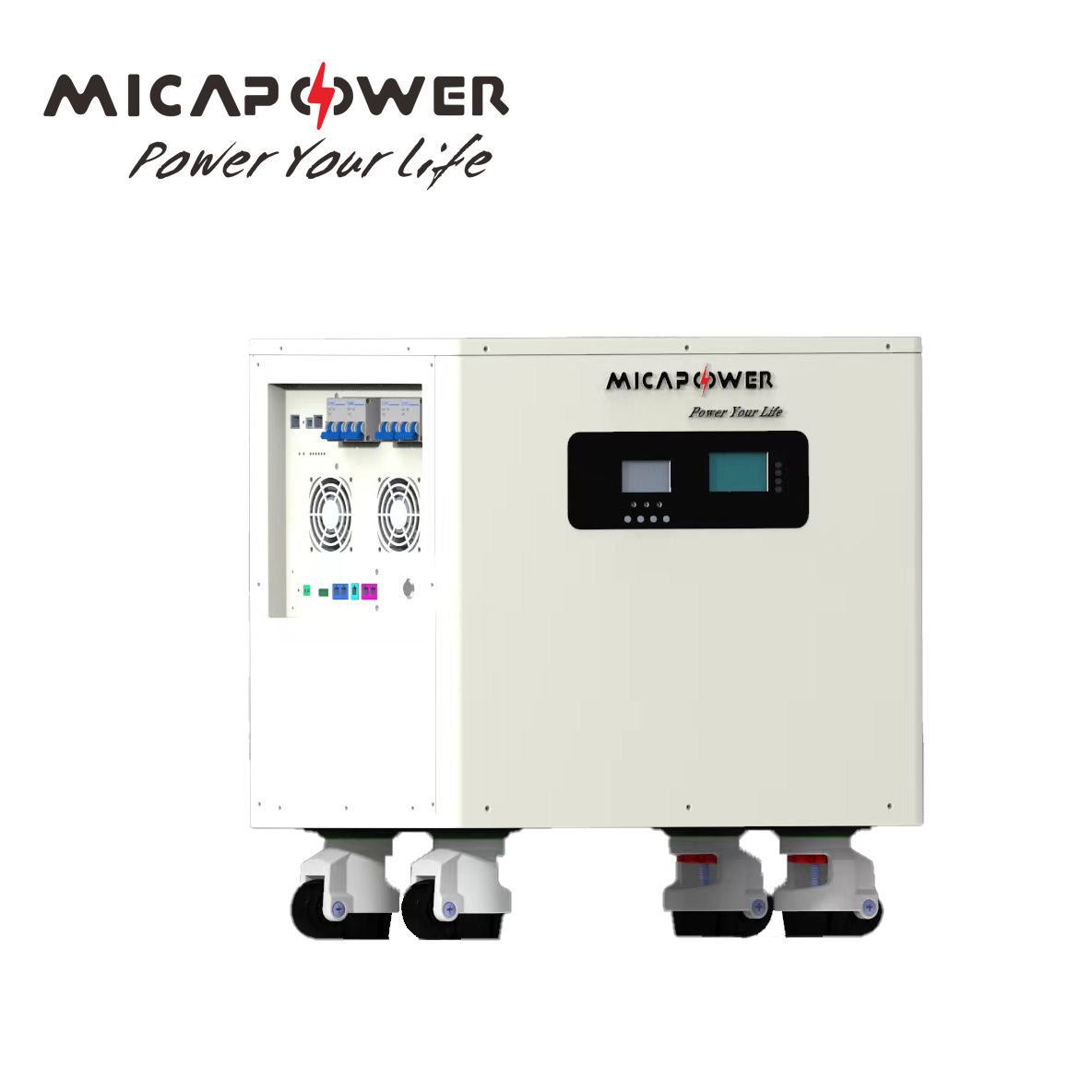

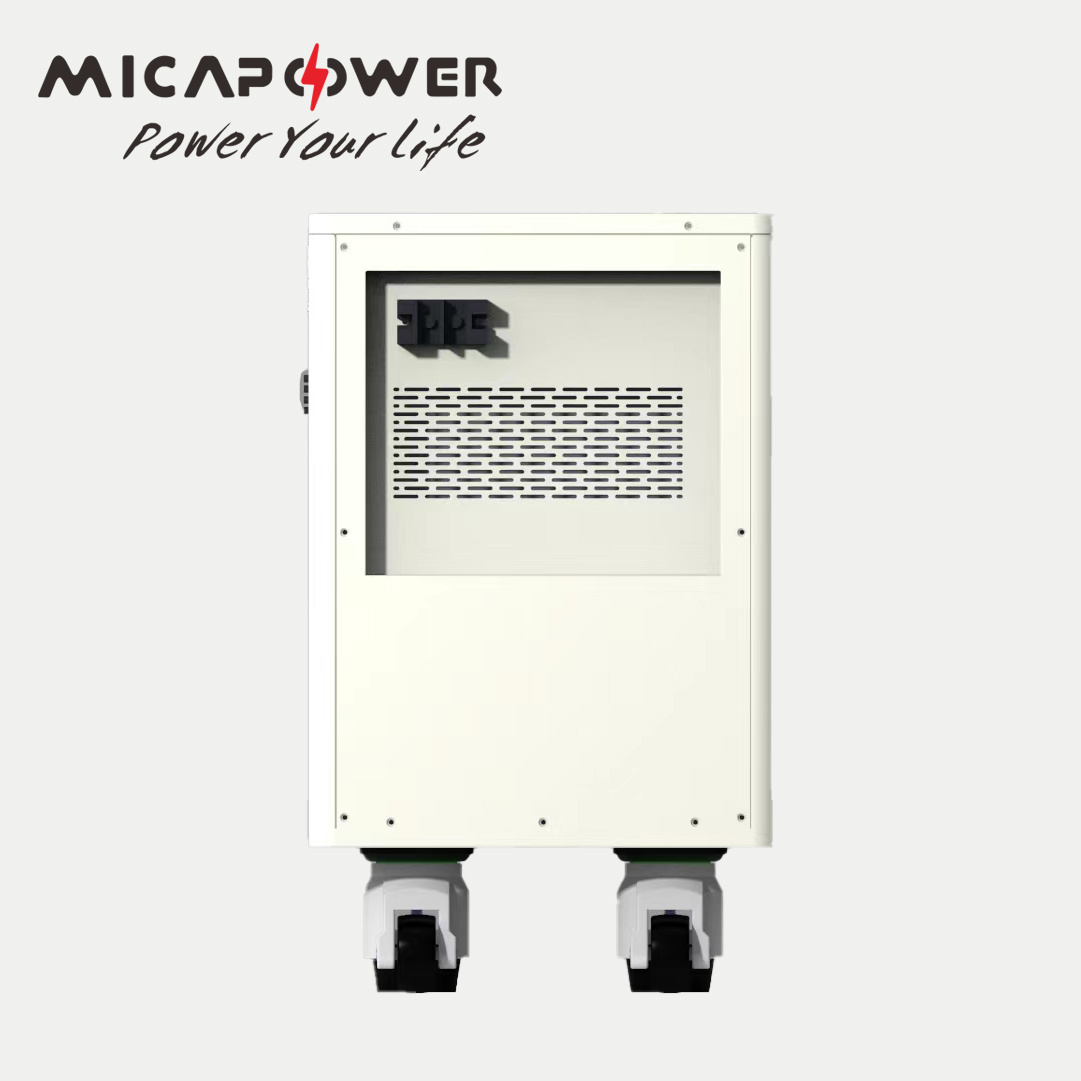

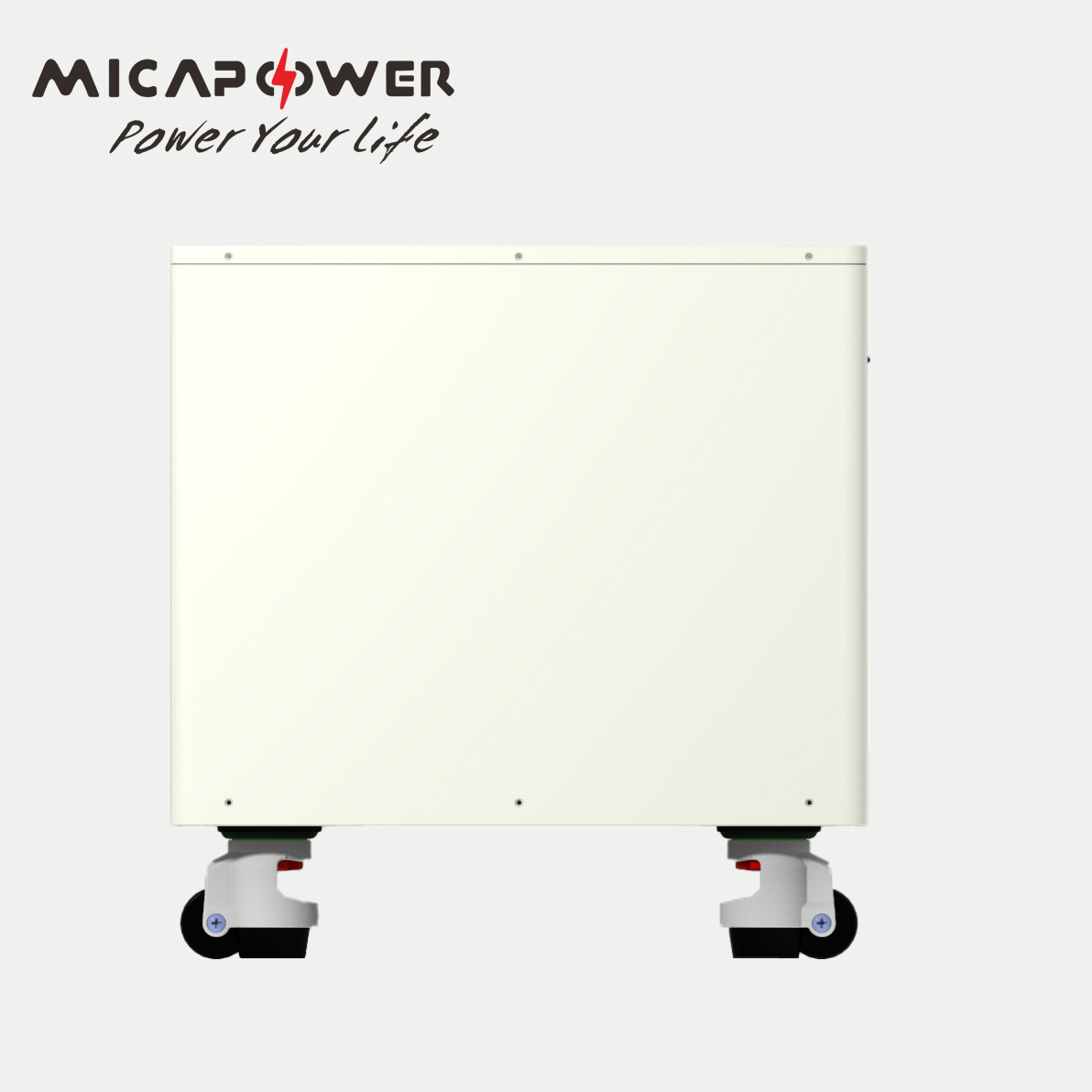

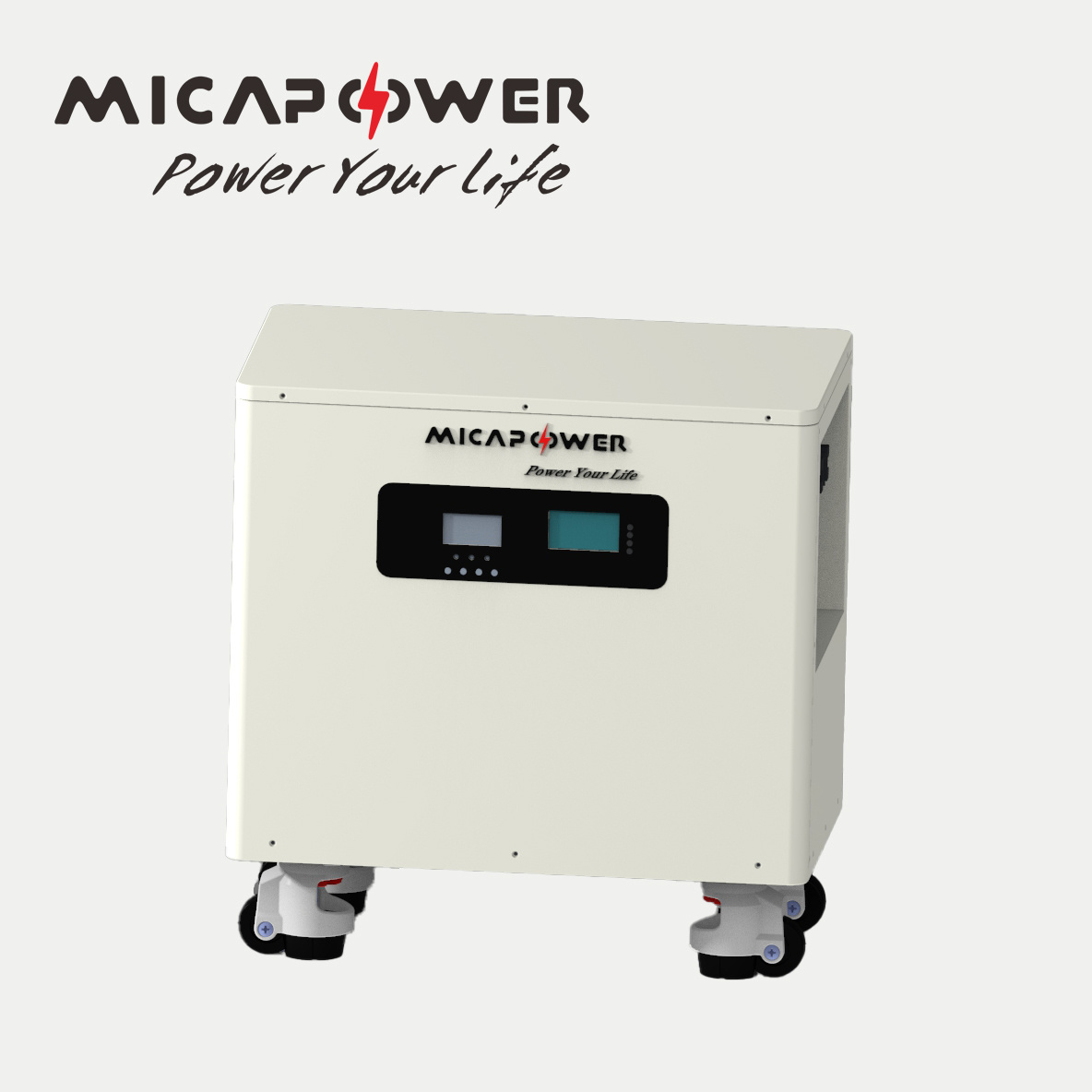

This product is a mobile indoor Integrated inverter, which can be flexibly placed according to the on-site application space situation.
This product is a battery composed of lithium iron phosphate batteries and has photovoltaic and inverter functions, including photovoltaic conversion, energy storage, UPS power supply, etc.
| Model | 20KWH /10KW |
| Battery parameters | |
| Cell type | LiFePo4-200Ah |
| Battery model | 51.2V400Ah |
| Rated capacity of battery | 20.48KWh |
| Battery voltage range | 40V-58.4V |
| Electric supply mode | |
| Rated input voltage | 380/400Vac |
| Input Voltage | (330Vac~480Vac)±2% |
| Frequency | 50Hz |
| Frequency range | 47±0.3Hz ~ 55±0.3Hz (50Hz) |
| Overload/short circuit protection | Circuit breaker |
| Efficiency | >95% |
| AC backflow protection | yes |
| Maximum bypass overload current | 80A |
| Inversion mode | |
| Output voltage waveform | Pure sine wave |
| Rated output power(VA) | 10000 |
| Rated output power(W) | 10000 |
| Power factor | 1 |
| Rated output voltage(Vac) | 400Vac |
| Output voltage error value | ±5% |
| Output frequency range (Hz) | 50Hz ± 0.3Hz/60Hz ± 0.3Hz |
| Efficiency | >90% |
| Overload protection | yes |
| Peak power | 10000VA |
| Short Circuit Protection | yes |
| Electric supply charging mode | |
| Maximum charging current | 100A |
| Charging voltage range | 40-60Vdc |
| Overcharge protection | yes |
| Solar charging | |
| Maximum PV open circuit voltage | 500Vdc |
| PV Working voltage range | 120-500Vdc |
| MPPT voltage range | 120-450Vdc |
| Battery voltage range | 40-60Vdc |
| Maximum output power | 5000W |
| Solar charging current range(settable) | 0-80A |
| Short circuit protection during charging | yes |
| Reverse polarity protection | yes |
| Working temperature range | -15°C to 55°C |
| Storage Temperature Range | -25°C ~ 60°C |
| Humidity range | 5% to 95% |

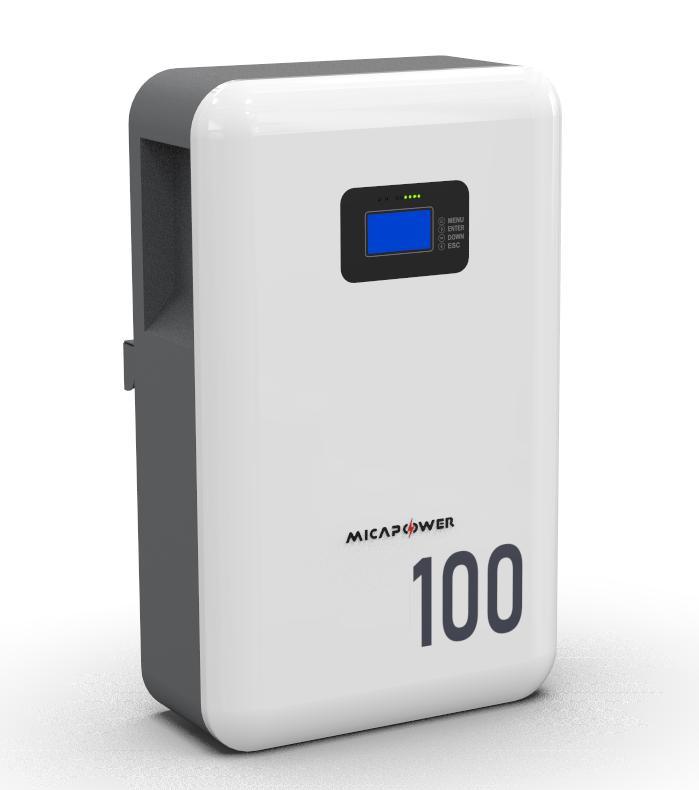

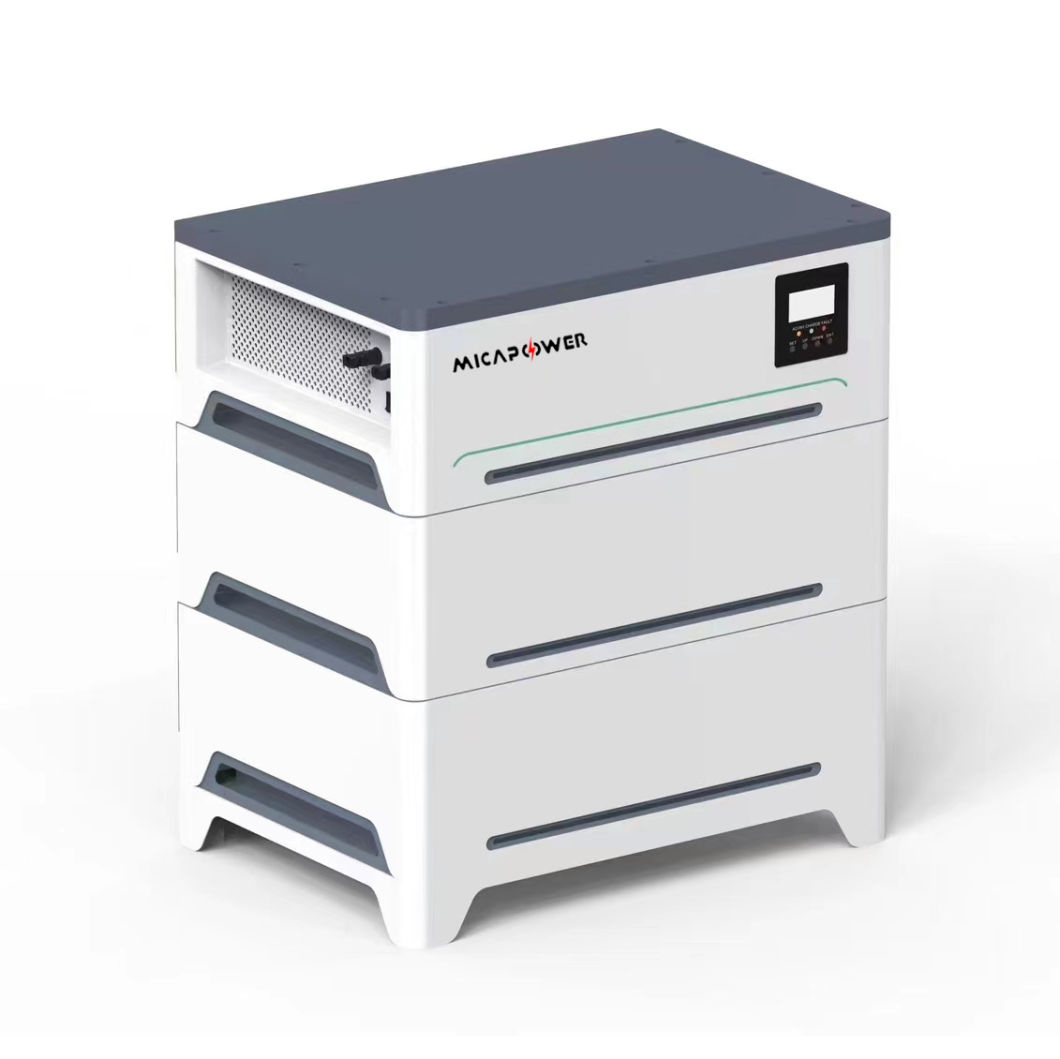

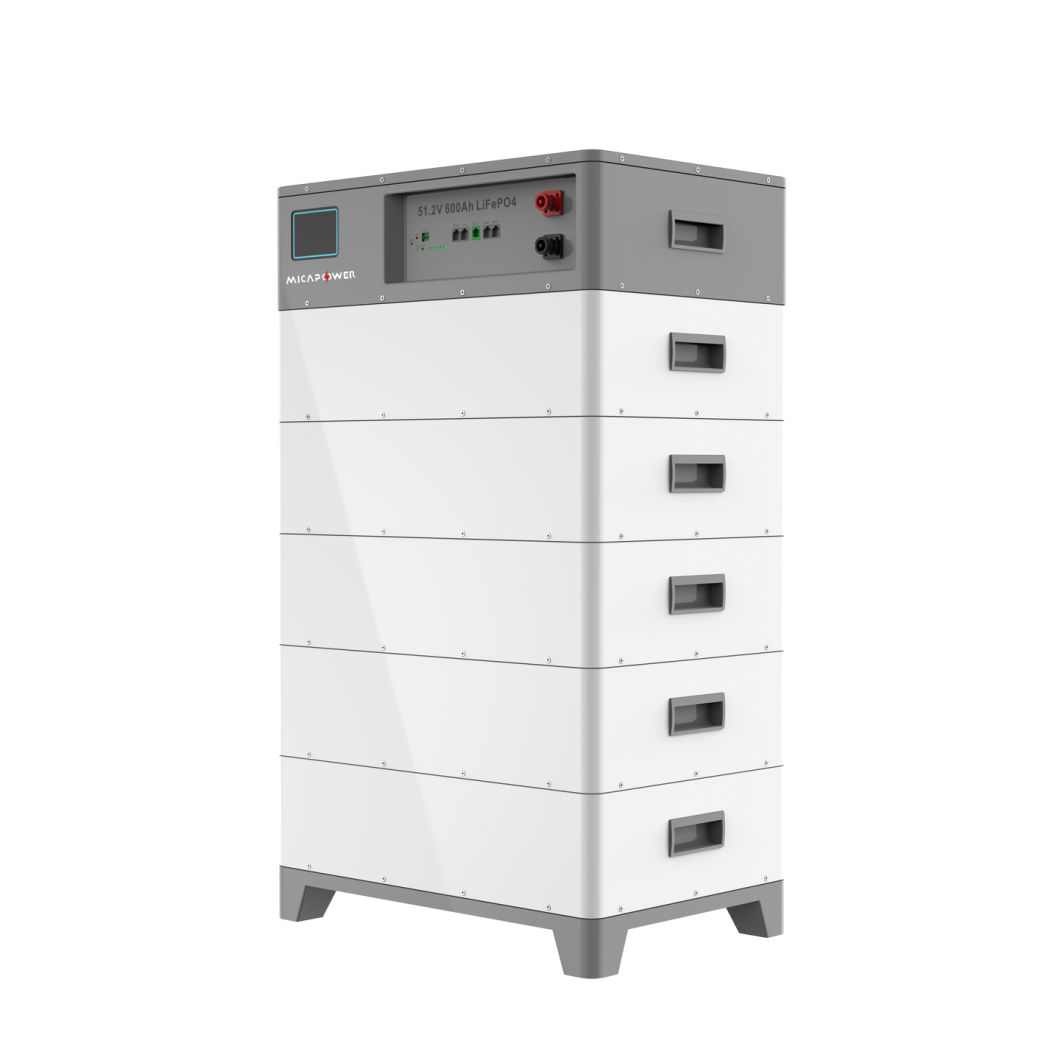

10kwh stackable ESS 30kwh stackable ESS 10kwh Wall-mounted ESS
MICA POWER Co., Ltd. was founded in 2009 is a leading supplier in lithium battery solution in China. focusing on Lithium Polymer, Lithium ion & Lithium iron phosphate/LiFePO4 technology batteries and energy storage solutions.
Application for consumer electronics, AGV, RV/ caravan, marine, motorcycle, golf cart / trolly, UPS, solar storage, medical, clean machine, industrial, commercial use, etc with reliable and safety solution.
Our products have UL, CE, KC, PSE, RoHS, UN38.3 certificated and exported worldwide like Europe,North America, South America, Africa, Middle East and South-east Asia.
1. Q: What's the main product in Mica?
A: Rechargeable LiFePO4 battery, Li-ion, Lipo battery and power battery pack.
2. Q: Do you have any protection for battery pack?
A: Over-charge protection Over-discharge protection
Over current protection
Cell balancing function
Over temperature protection
3. Q: What is over discharge?
A: After charge, test the batteries' initial state. When the batteries are normal, discharge to 0V at 0.5C.
Observe changes in battery appearance
4. Q: Can I have a sample order?
A: Yes, we accept sample order to test and check quality. Batteries can be made as require.
5. Q: Do you have MOQ limit?
A: Yes, we have MOQ limit for mass production, but it depends on battery model. Please contact us for details.
6. Q: How about the lead time?
A: Samples will takes 5-7 business days.
Mass production will takes 25-30 days. It depends on quantity.
7. Q: How about shipping and delivery time?
A: Generally, battery will be shipped via Express, such as DHL, TNT, FedEx and UPS, delivery time is 3-5 business days.
Or DDP service, delivery time is 11-15 business days. Airline and sea shipping also available.
8. Q: What about after-sale service?
A: We will offer you 1-5 year guarantee. If there are any problems, please inform us, we will offer you positive solutions.
