48V
5 Years
100ah

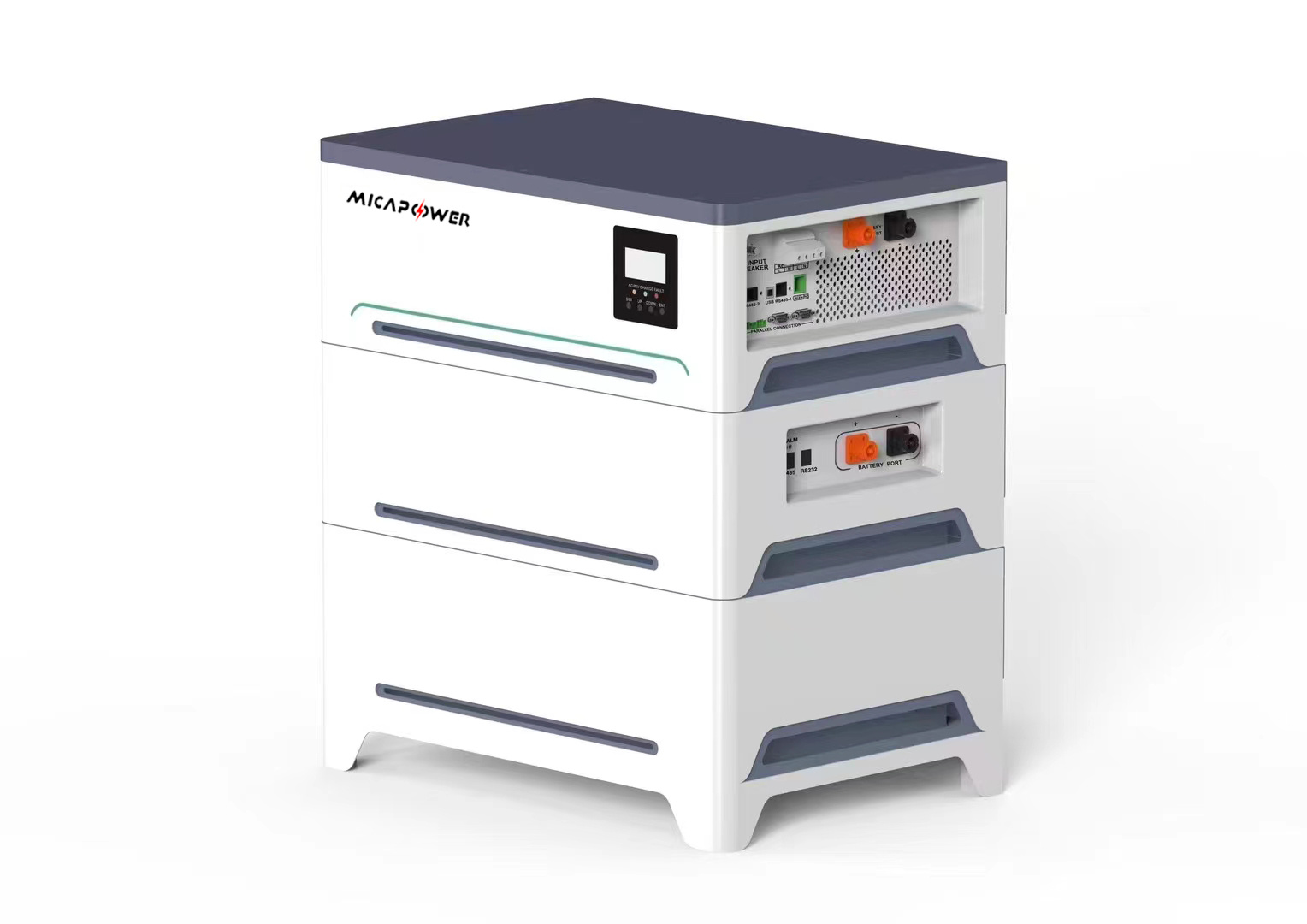

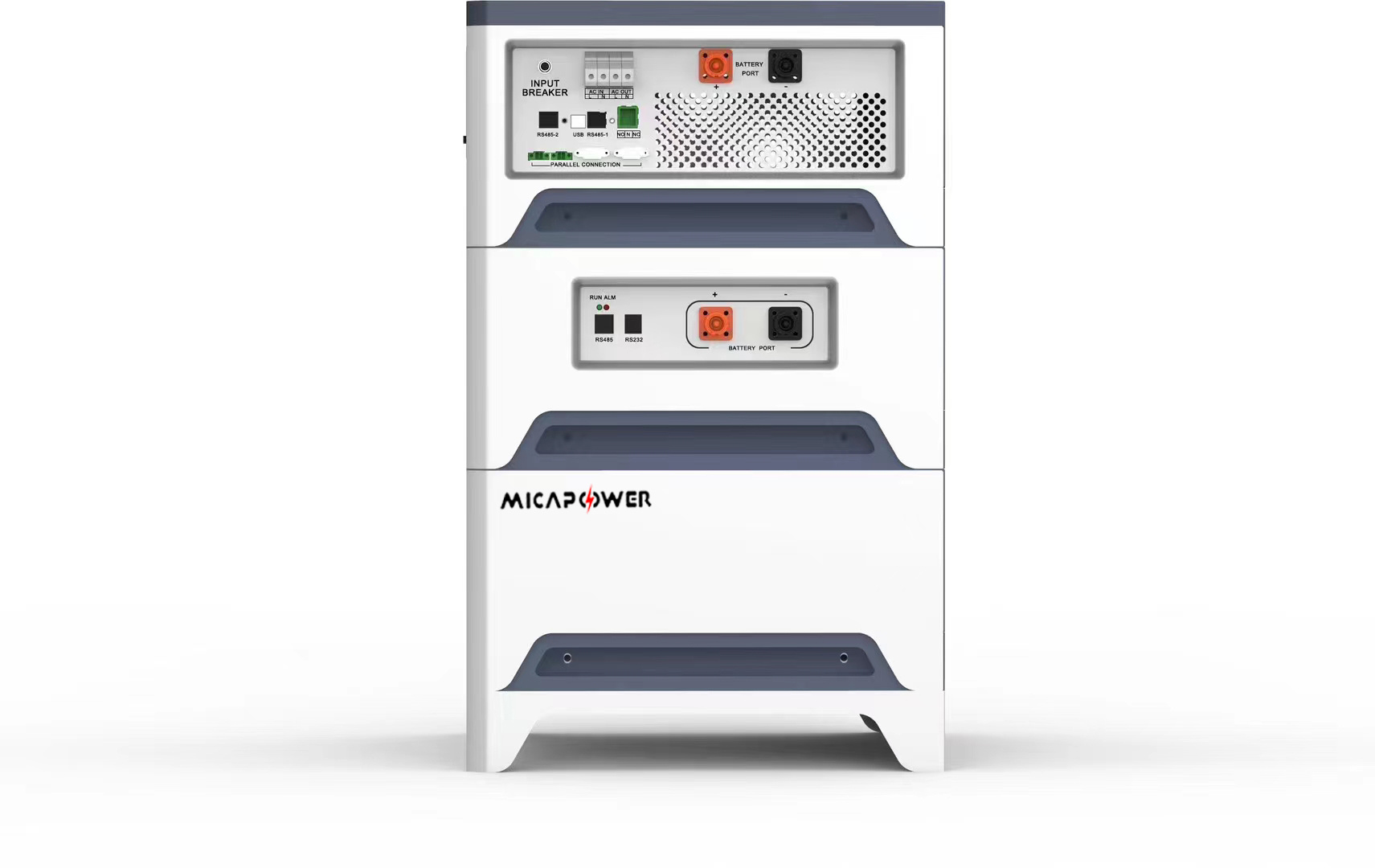

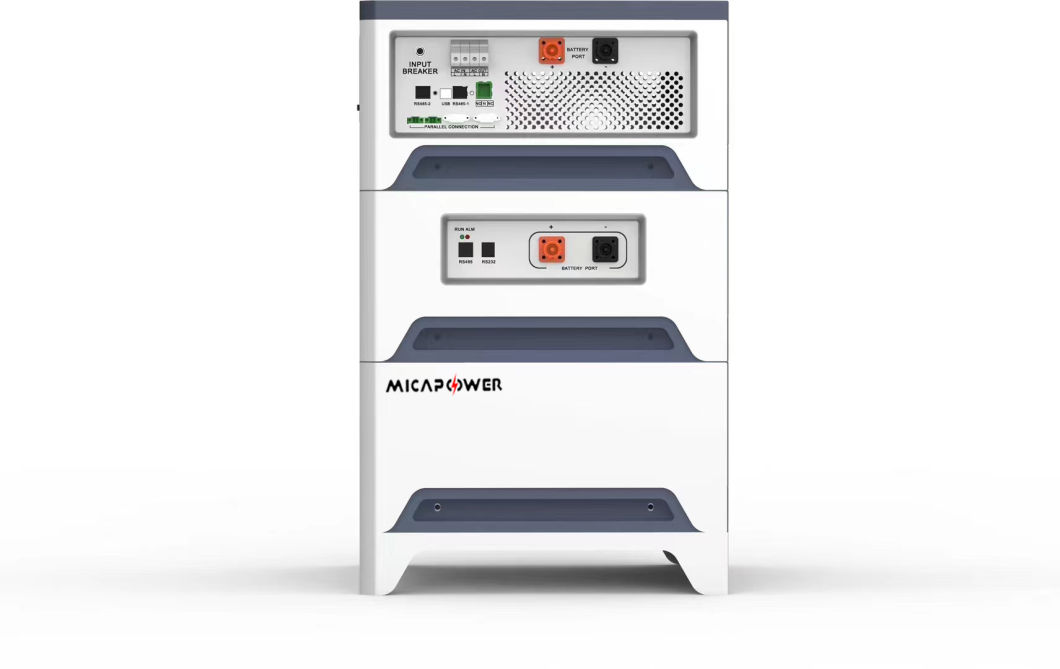

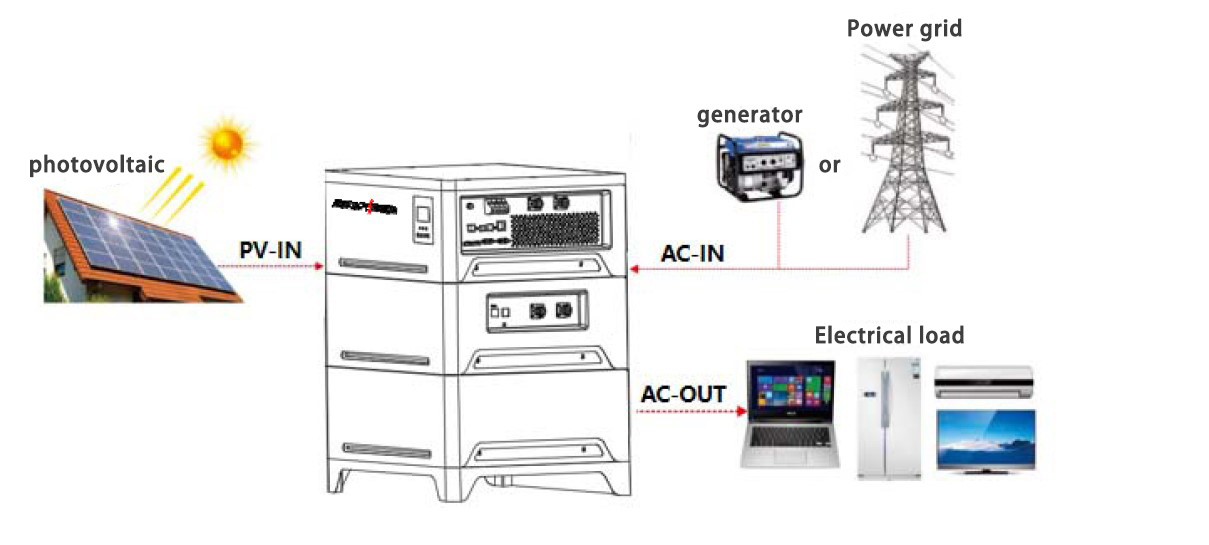

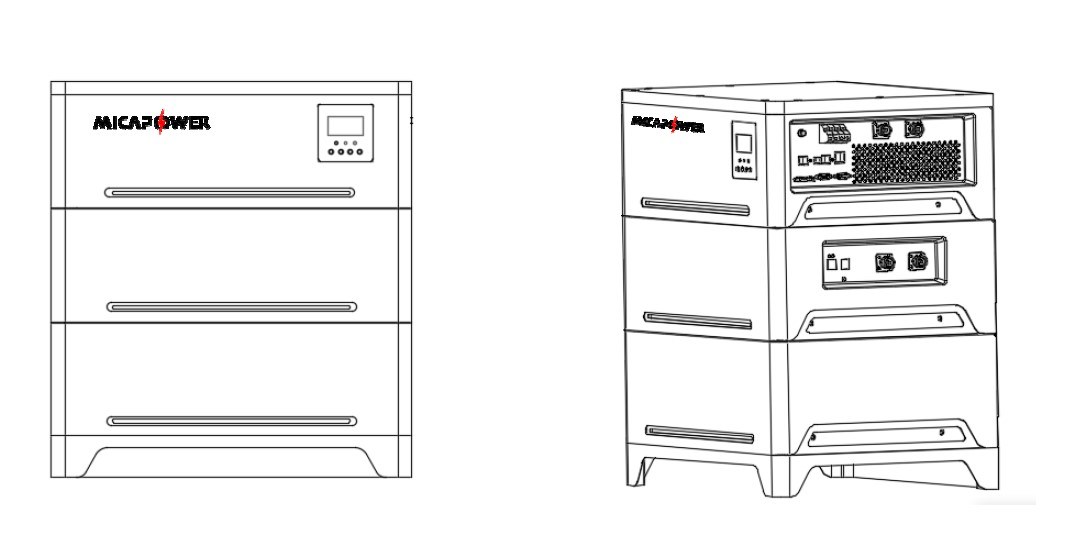

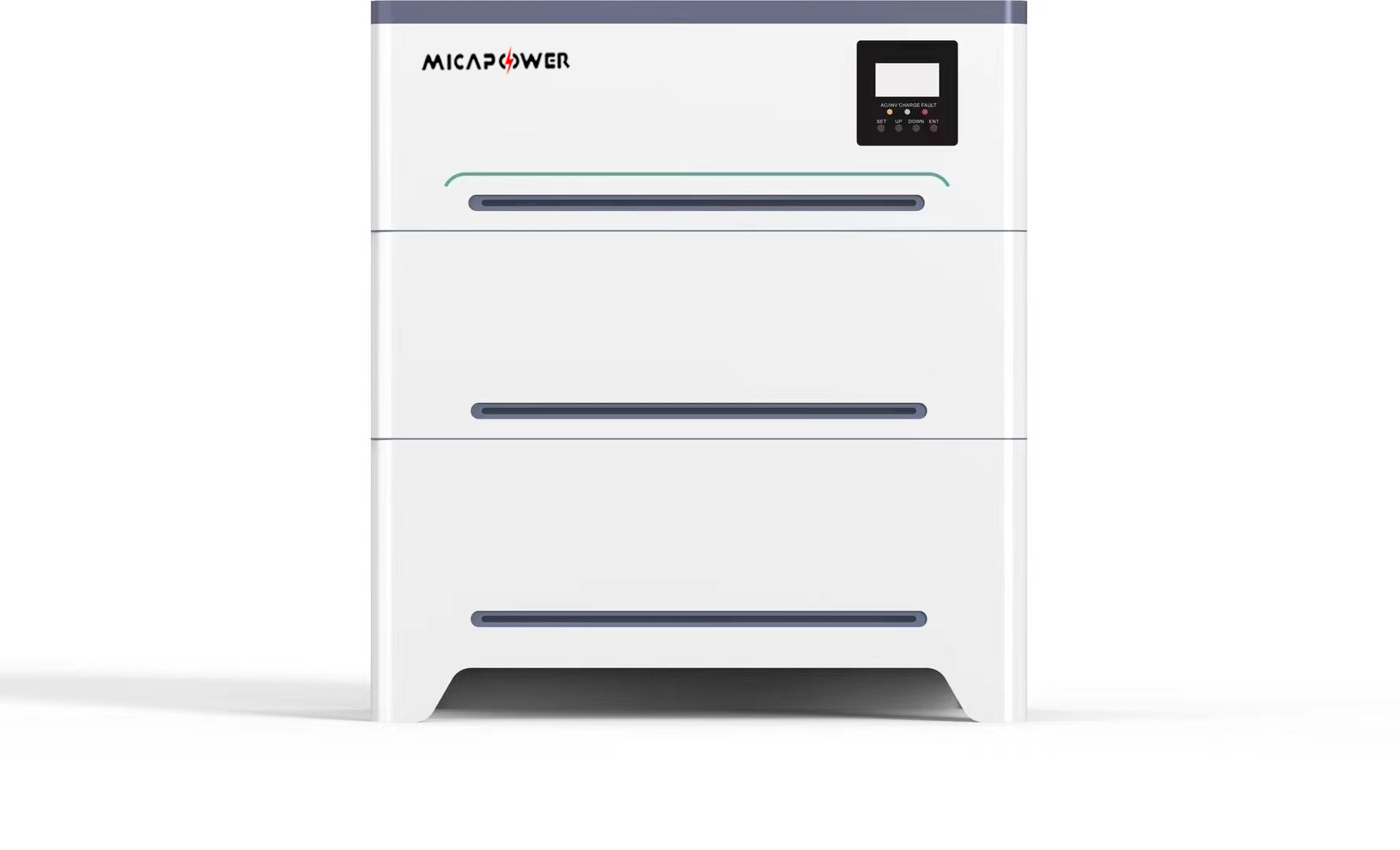

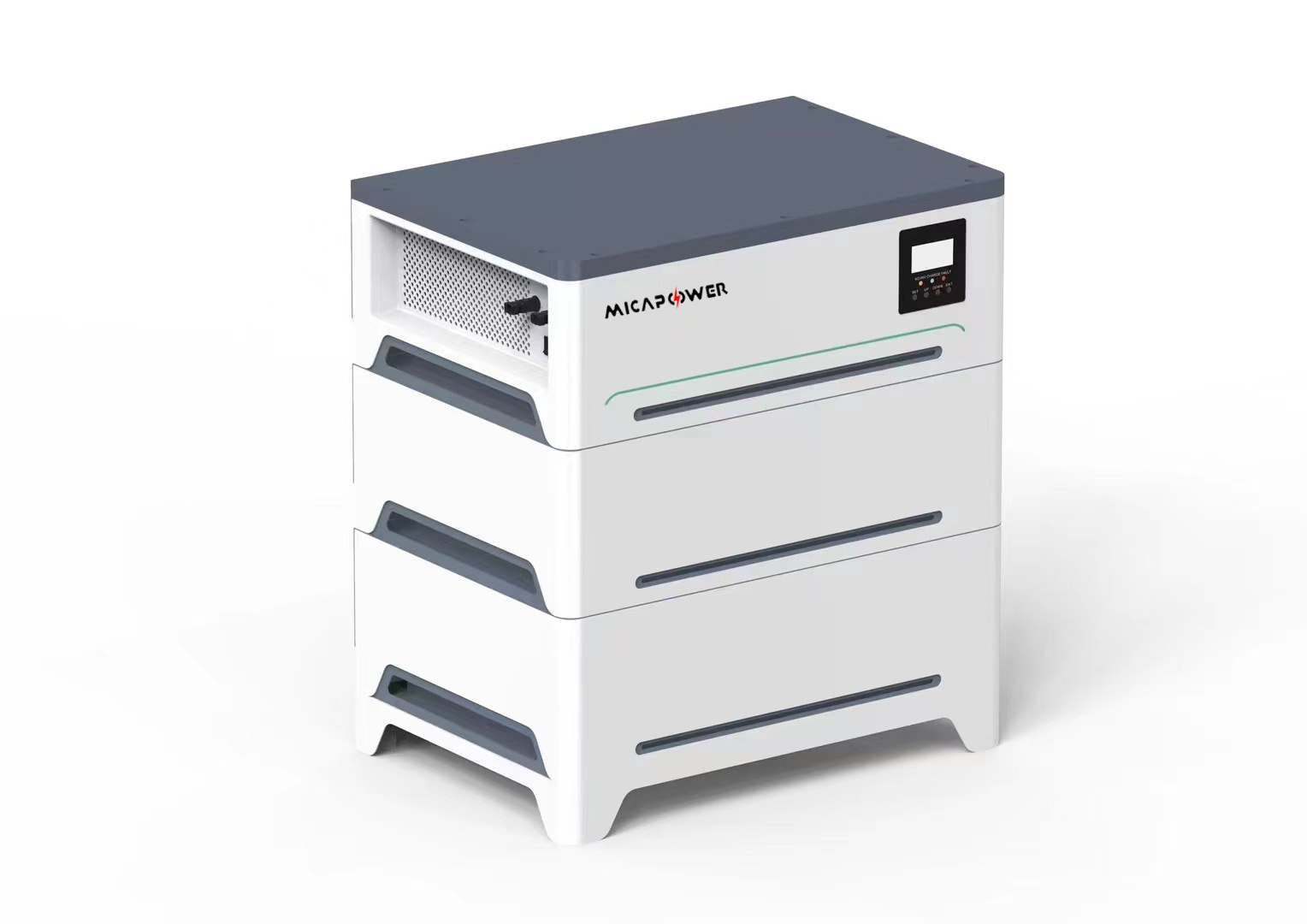

The product is an energy storage inverter integrated machine, featuring high integration, high reliability, convenient installation, etc; The inverter module is designed with a mature scheme, and the lithium battery is lithium iron phosphate battery (LiFePO4), which is characterized by high reliability, high safety and long cycle life. The battery is equipped with an intelligent BMS lithium battery management system, which has the functions of overcharge protection, over discharge protection, temperature protection, over current protection, etc., and comprehensively monitors the key parameters of the battery.

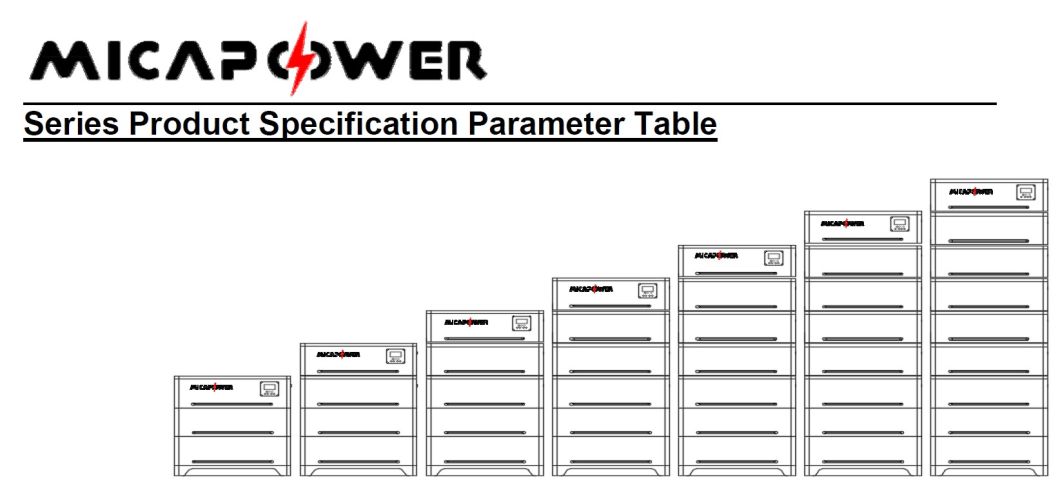

Specification
| Battery parameters | |||||||
| Technical Data | 51.2V200Ah | 51.2V300Ah | 51.2V400Ah | 51.2V500Ah | 51.2V600Ah | 51.2V700Ah | 51.2V800Ah |
| Battery Module | 51.2V100Ah/16S1P | ||||||
| Rated Energy(kWh) | 10.24kwh | 15.36kwh | 20.48kwh | 25.6kwh | 30.72kwh | 35.84kwh | 40.96kwh |
| Number of Modules | 2P | 3P | 4P | 5P | 6P | 7P | 8P |
| Cell Type | LFP(LiFePO4) | ||||||
| Charge Voltage | 57.6V @25ºC CC/CV | ||||||
| Min.discharg Voltage | 43.2V@25ºC /CC | ||||||
| Max. charg current | 100A@25ºC | ||||||
| Max.discharg current | 100A@25ºC | ||||||
| operation temperature | Charge Tempera : 0ºC-50ºC / discharge tempera :-20ºC-55ºC | ||||||
| Cycle Life | ≥6000 Cycles @0.3C/0.3C | ||||||
| Inverter parameters | |||||||
| Rate Power | 5000VA/5000W | ||||||
| Monitoring Option | WiFi | ||||||
| Output Voltage | European standard:220-230-240VAC American Standard120Vac:(single phase) | ||||||
| Surge Power | 10000VA/3S | ||||||
| Peak Efficiency | 0.92 | ||||||
| Transfer Time | 10ms | ||||||
| Inverter Parallel | Yes, max 6 units | ||||||
| Wave Form | Pure Sine Wave | ||||||
| altx.PV Array Power | 5200W | ||||||
| MPPT voltage Range | 120~450Vdc | ||||||
| Solar Charge current | 80A | ||||||
| AC Charge Current | 60A | ||||||
| protection grade | IP20(indoor use) | ||||||
| Frequency Range | 50Hz/60Hz (Autosensing) | ||||||
| Dimensions(L*W*H) | 413*413*665 | 413*413*857 | 413*413*1049 | 413*413*1241 | 413*413*1433 | 413*413*1625 | 413*413*1817 |
| weight | 146kg | 204.5kg | 263kg | 321.5kg | 380kg | 438.5kg | 497kg |
Customized logo
We also offer OEM/ODM service
Why choose us?

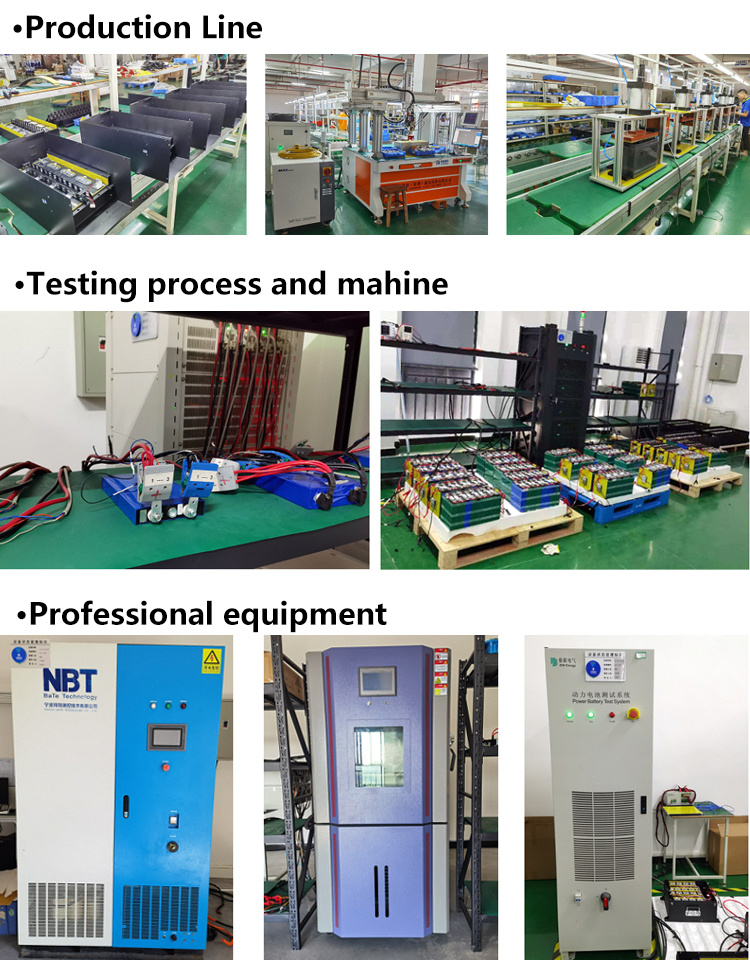

We are a battery manufacturer with 15 years' experience in rechargeable batteries.Our
company has independent R&D and production capabilities in key links, which can
provide customers with professional solutions and services of energy system and
lithium battery. Our products are widely used in lead-acid replacement, household energy
storage system, industry, data center, 5G, UPS, low-speed EV, portable power station and
so on.
1. Q: What's the main product in Mica Power?
A: Rechargeable LiFePO4 battery, Lithium ion battery and battery pack.
Battery widely used in ESS, Golf cart, electric forklift, e-bike, 3C and other fields.
2. Q: Do you have any Certificate?
A: Yes, our factory have ISO9001 certificate;
For Battery, UL/CB/IEC62619/IEC62133/CE/Rohs/UN38.3/MSDS, etc.
3. Q: Do you have any protection for battery pack?
A: Yes, each battery pack is assembled with BMS.
BMS main functions: Over-charge protection
Over-discharge protection
Over current protection
Cell balancing function
Over temperature protection
4. Q: Can I have a sample order?
A: Yes, sample order for test is available.
5. Q: How to proceed an order for lithium batteries?
A: Firstly, let us know your requirements or application;
Secondly, we quote according to your requirements or our suggestions;
Thirdly, customer confirms the order details and places deposit for formal order;
Fourthly, we will arrange the production and keep you updated before shipment;
Finally, Arrange the shipment and do after-sales service.
6. Q: Is it OK to print my logo on lithium batteries product?
A: Of course, we can print logo as requirements.
7. Q: Do you have MOQ limit?
A: Yes, we have MOQ limit for mass production, but it depends on battery model.
Please contact us for details.
8. Q: How about the lead time?
A: Generally, samples take 5-7 business days. Mass production takes 25-30 days.
9. Q: How about shipping method?
A: Shipment by Express, by Air and by Sea are available.
10. Q: What about after-sale service?
A: We will offer you 1-5 years guarantee based on different battery solutions.
Any problems, please check with Mica power, and we will offer you positive solutions.
