48V
3 Years
100ah
Specification
| General Information | |
| Battery model | MC-48100F |
| Nominal voltage | 48V |
| Minimum capacity | 100Ah@25ºC |
| Charging voltage | 54.6V |
| Discharging cut-off voltage | 39V |
| Standard charging | 0.2C /54.6V |
| Max charging | 1.0C /54.6V |
| Standard discharging | 1C/39V |
| Max discharging | continuous discharge 100A/39V non-continuous discharge 200A/39V |
| Operation voltage | 39V~54.6V |
| Operating temperature | Charging: 0°C ~ 45°C Discharging: -20°C ~60°C |
| Storage (At 50% SOC and specified temp, recoverable capacity in % vs time ) | -10ºC~25ºC (12 months ≥85% ) -10ºC ~45ºC (6 months ≥85% ) -10ºC~55ºC (1 month ≥90% ) 20±5ºC is the recommended storage temperature |
| Visual Inspection | There should not be any remarkable scratches, cracks, bolts, cauterization, deformations, swelling, leakage and so on the surface of the cell. |
| Warranty | 12 months |
Advantages:
1.Super safe technology: with over charge protection/over discharge protection/over current protection/short protection/interior resistance/current
consumption
2.Ultra long cycle life 500-700 times
3.Hundreds of models for different size with 10-10000mAh
4.Flexible size design, can be customized
Applications:
Power Bank, RC toys, Power Tool, Electronic bike, Electric scooter, LED light, Security Products, Solar&Wind Energy Storage System, etc.
Customized logo
We also offer OEM/ODM service
Why choose us?
We are a battery manufacturer with 15 years' experience in rechargeable batteries.Our
company has independent R&D and production capabilities in key links, which can
provide customers with professional solutions and services of energy system and
lithium battery. Our products are widely used in lead-acid replacement, household energy
storage system, industry, data center, 5G, UPS, low-speed EV, portable power station and
so on.
1. Q: What's the main product in Mica Power?
A: Rechargeable LiFePO4 battery, Lithium ion battery and battery pack.
Battery widely used in ESS, Golf cart, electric forklift, e-bike, 3C and other fields.

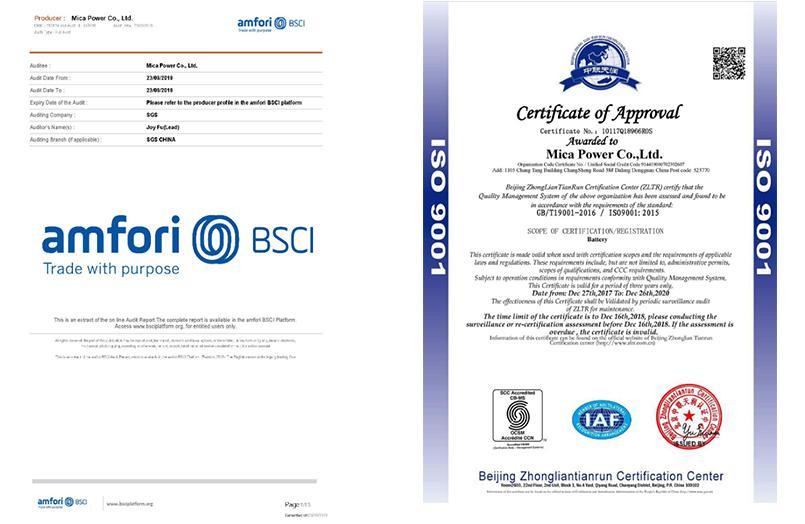

2. Q: Do you have any Certificate?
A: Yes, our factory have ISO9001 certificate;
For Battery, UL/CB/IEC62619/IEC62133/CE/Rohs/UN38.3/MSDS, etc.
3. Q: Do you have any protection for battery pack?
A: Yes, each battery pack is assembled with BMS.
BMS main functions: Over-charge protection
Over-discharge protection
Over current protection
Cell balancing function
Over temperature protection
4. Q: Can I have a sample order?
A: Yes, sample order for test is available.
5. Q: How to proceed an order for lithium batteries?
A: Firstly, let us know your requirements or application;
Secondly, we quote according to your requirements or our suggestions;
Thirdly, customer confirms the order details and places deposit for formal order;
Fourthly, we will arrange the production and keep you updated before shipment;
Finally, Arrange the shipment and do after-sales service.
6. Q: Is it OK to print my logo on lithium batteries product?
A: Of course, we can print logo as requirements.
7. Q: Do you have MOQ limit?
A: Yes, we have MOQ limit for mass production, but it depends on battery model.
Please contact us for details.
8. Q: How about the lead time?
A: Generally, samples take 5-7 business days. Mass production takes 25-30 days.
9. Q: How about shipping method?
A: Shipment by Express, by Air and by Sea are available.
10. Q: What about after-sale service?
A: We will offer you 1-5 years guarantee based on different battery solutions.
Any problems, please check with Mica power, and we will offer you positive solutions.
