48V
5 Years
100ah

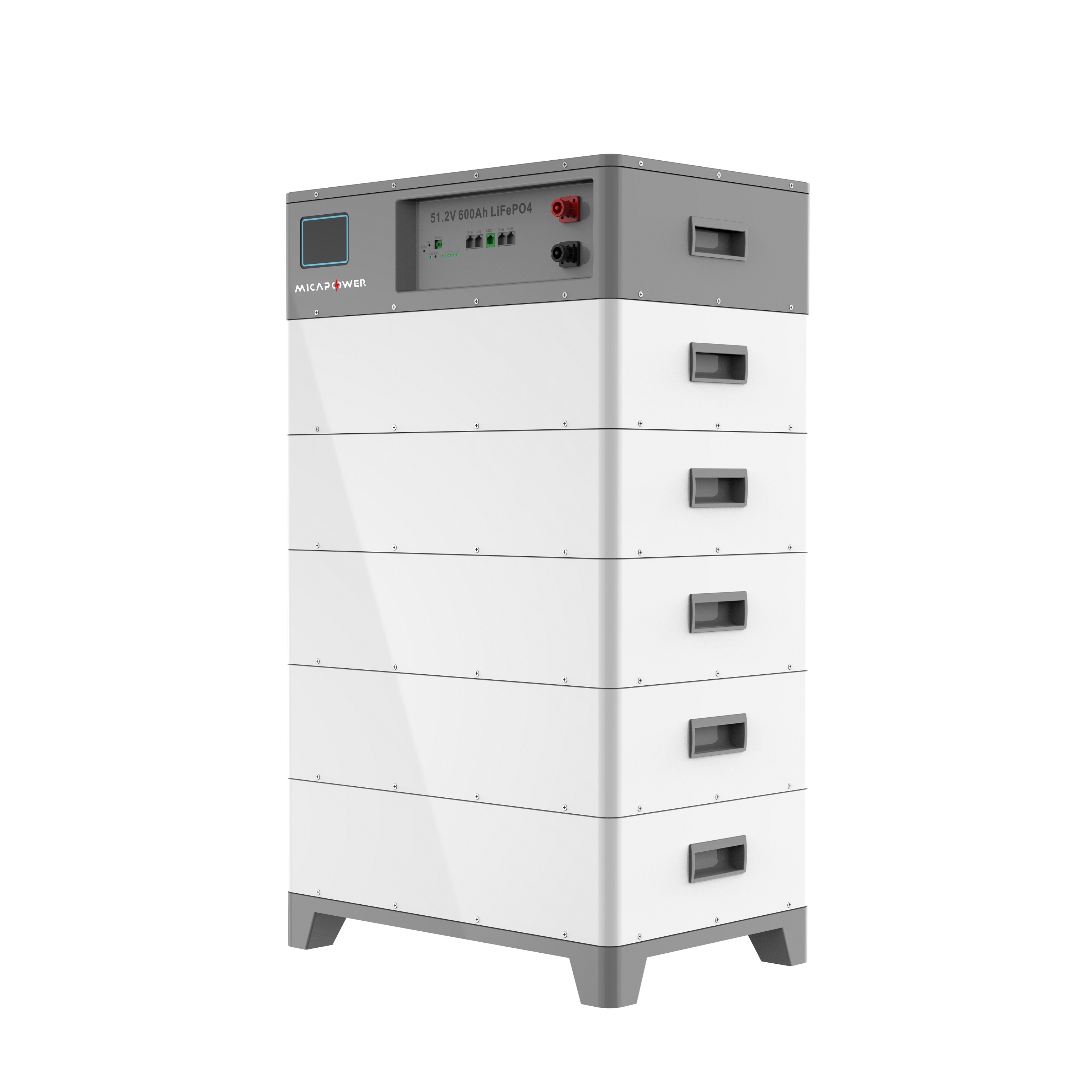

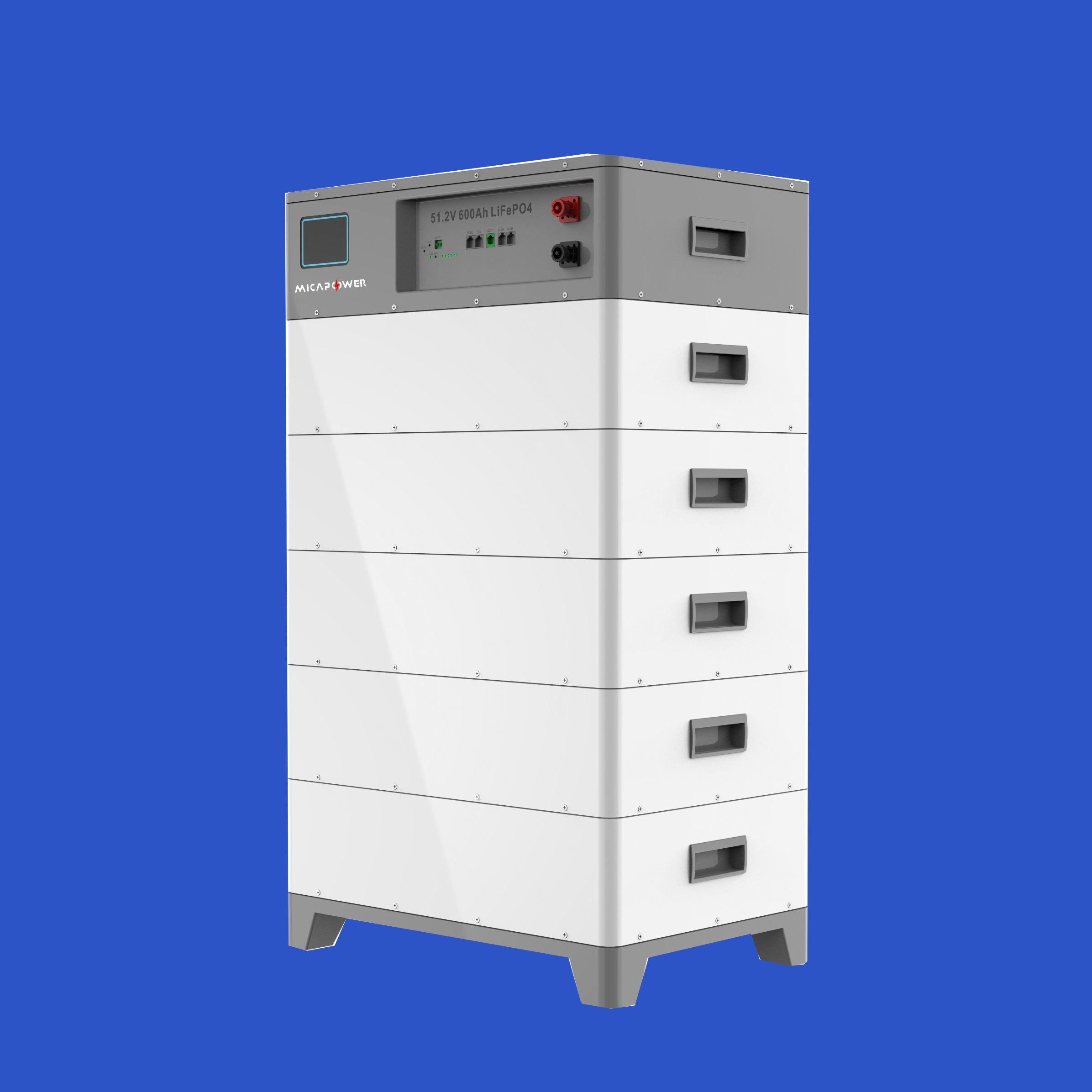

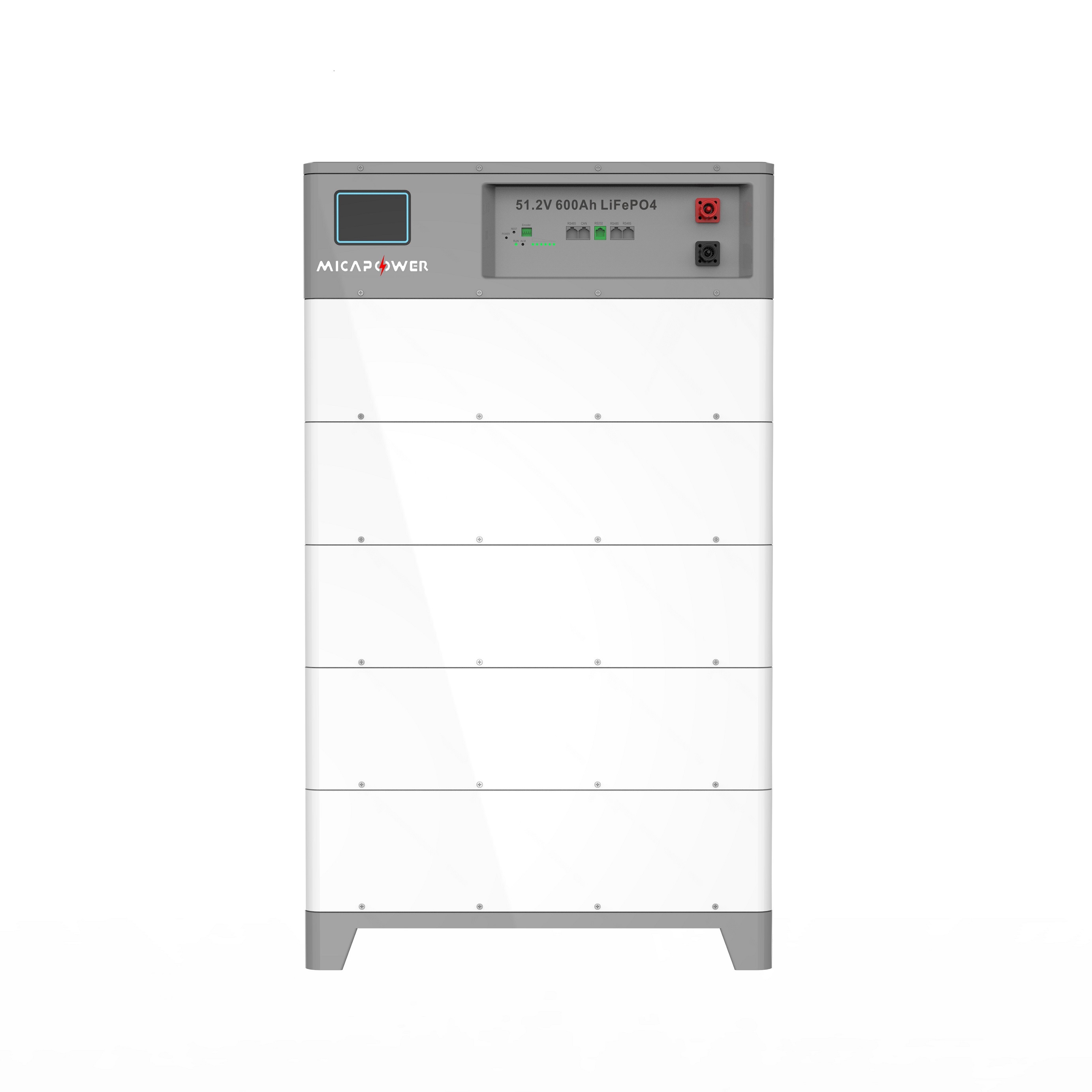

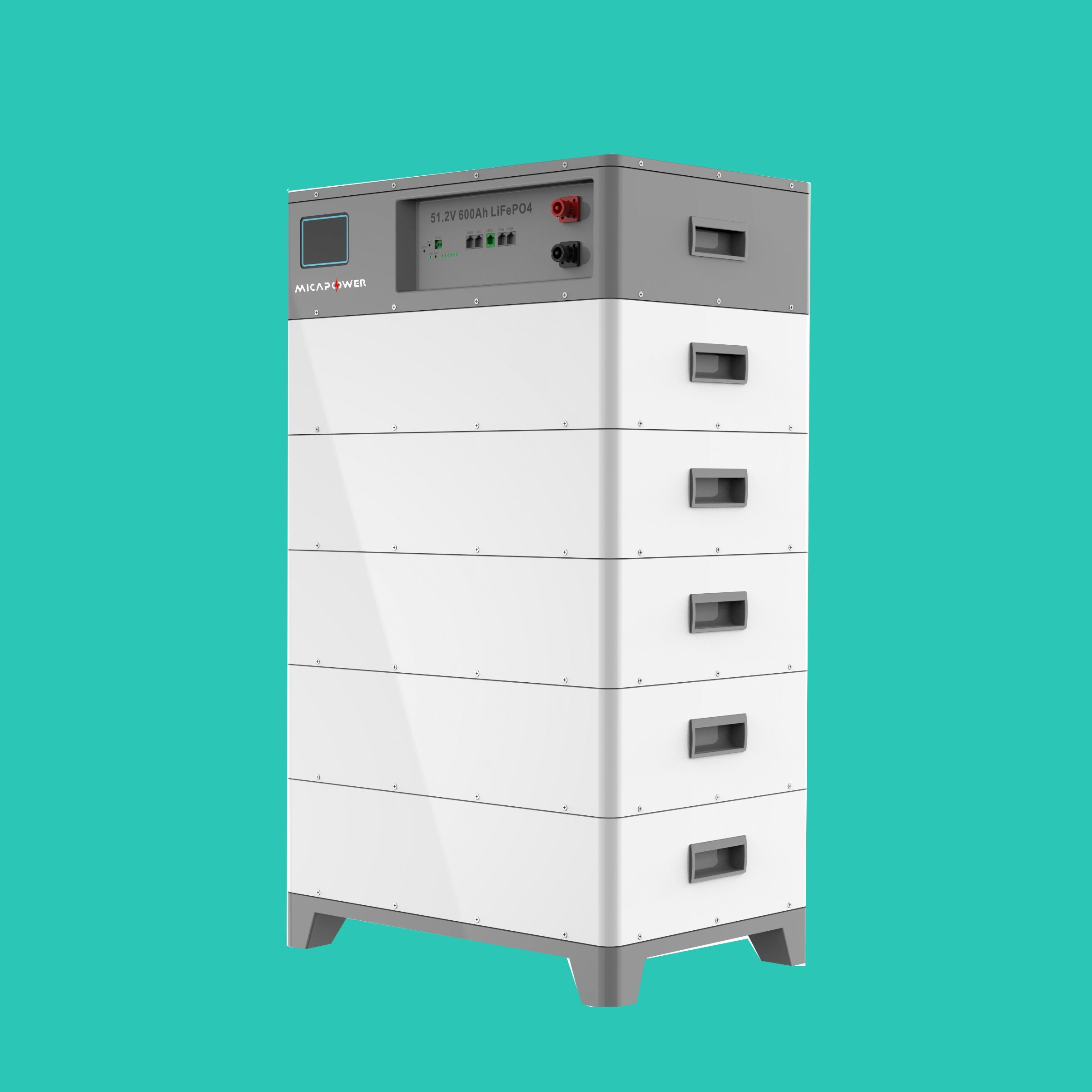

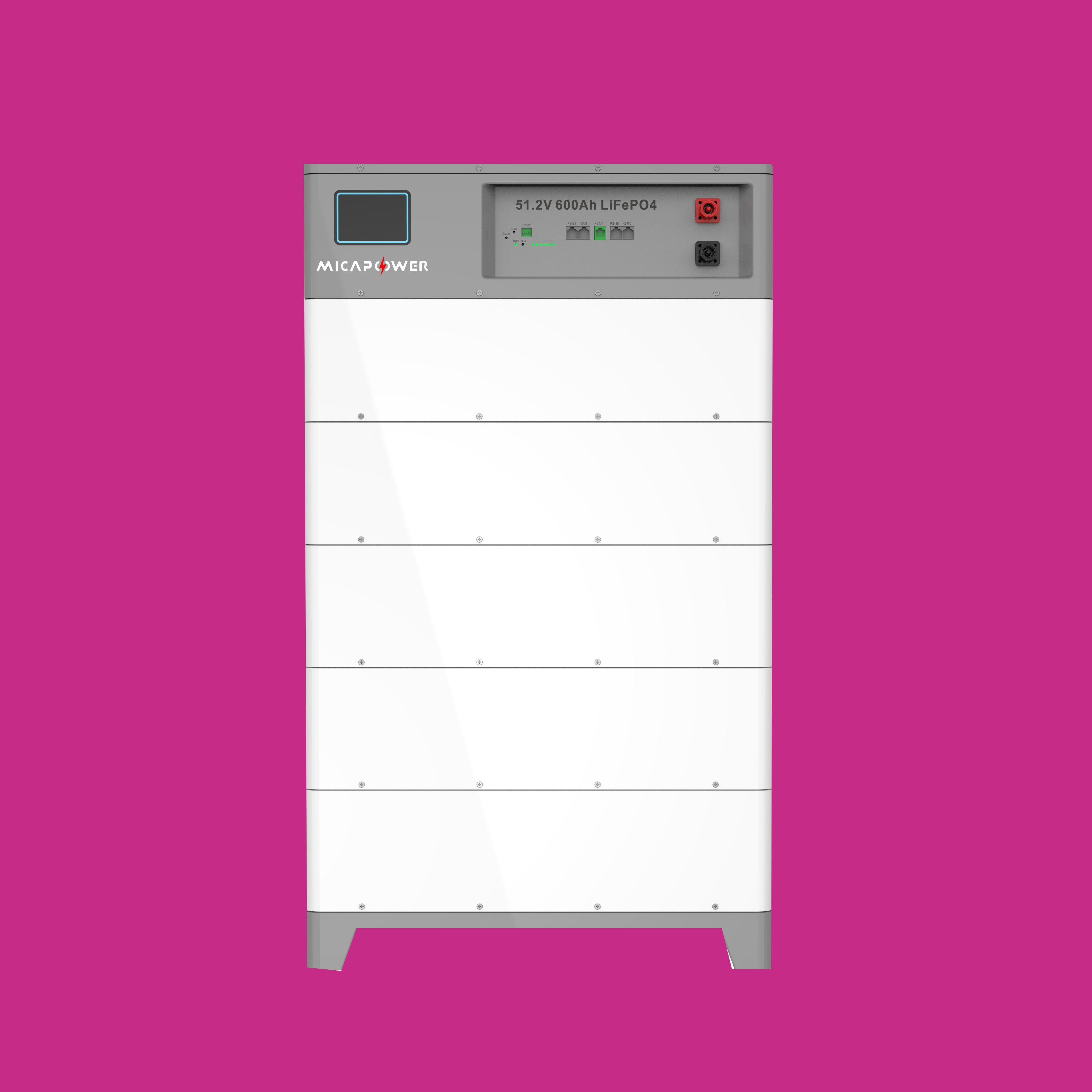

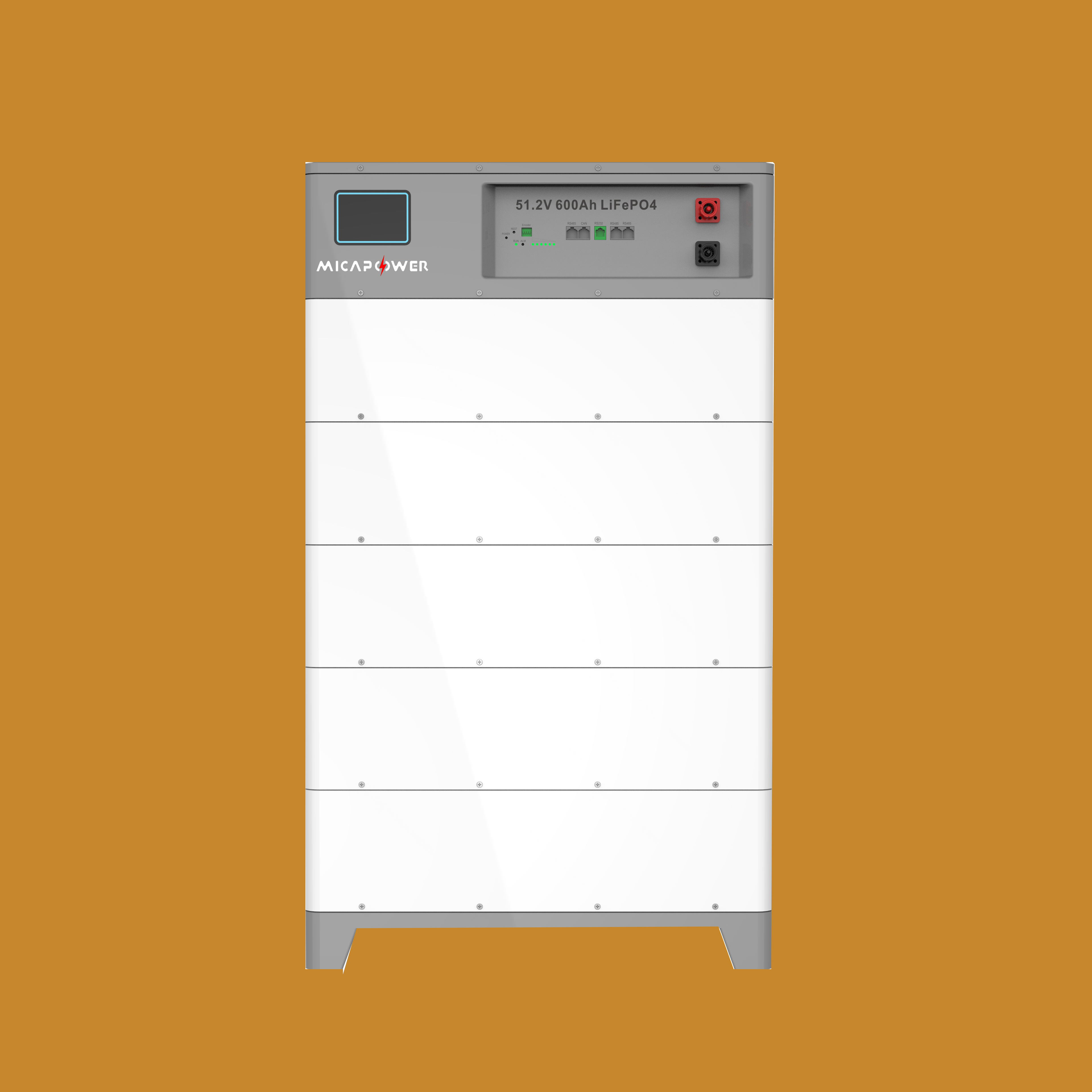

Specification
| General Information | |
| Battery Type | LiFePO4(Lithium Iron Phosphate) |
| Nominal Voltage | 51.2V |
| Nominal Capacity | 400Ah-800Ah |
| Nominal Energy | 20.48KWh/30.72KWh/40.96KWh |
| Operation Voltage | 46.4V-57.6V |
| Operation Temperature | Charge: 0°C - 55°C | Discharge: -20°C - 60°C |
| Cycle Life | 6000 cycles @0.3C/0.3C 80%DOD |
| Dimension | 560 * 380 * 833/1148/1463mm (L x W x H)(40KWh/60KWh/80KWh) |
| Commnication Port | RS485/CAN |
| Weight | 174kg/260kg/346kg(40KWh/60KWh/80KWh) |
| Warranty Period | 5 years / 8years |
| Installation Method | Stackable |
| Environment Protection | IP55 |
| Certificate | UN38.3/MSDS/CE |
| BMS/Charge/Discharge | |
| Charge Voltage Max | 57.6V |
| Discharge Cut-off Voltage | 46.4V |
| Charge Current Max | 100A |
| Discharge Current Max | 100A continues |
| Self-discharge Rate | <2% per month |
| Self-discharge Rate | Over-charge protection Over-discharge protection Over current protection Cell balancing function Over temperature protection |
Customized logo
We also offer OEM/ODM service
Why choose us?
We are a battery manufacturer with 15 years' experience in rechargeable batteries.Our
company has independent R&D and production capabilities in key links, which can
provide customers with professional solutions and services of energy system and
lithium battery. Our products are widely used in lead-acid replacement, household energy
storage system, industry, data center, 5G, UPS, low-speed EV, portable power station and
so on.
1. Q: What's the main product in Mica Power?
A: Rechargeable LiFePO4 battery, Lithium ion battery and battery pack.
Battery widely used in ESS, Golf cart, electric forklift, e-bike, 3C and other fields.
2. Q: Do you have any Certificate?
A: Yes, our factory have ISO9001 certificate;
For Battery, UL/CB/IEC62619/IEC62133/CE/Rohs/UN38.3/MSDS, etc.
3. Q: Do you have any protection for battery pack?
A: Yes, each battery pack is assembled with BMS.
BMS main functions: Over-charge protection
Over-discharge protection
Over current protection
Cell balancing function
Over temperature protection
4. Q: Can I have a sample order?
A: Yes, sample order for test is available.
5. Q: How to proceed an order for lithium batteries?
A: Firstly, let us know your requirements or application;
Secondly, we quote according to your requirements or our suggestions;
Thirdly, customer confirms the order details and places deposit for formal order;
Fourthly, we will arrange the production and keep you updated before shipment;
Finally, Arrange the shipment and do after-sales service.
6. Q: Is it OK to print my logo on lithium batteries product?
A: Of course, we can print logo as requirements.
7. Q: Do you have MOQ limit?
A: Yes, we have MOQ limit for mass production, but it depends on battery model.
Please contact us for details.
8. Q: How about the lead time?
A: Generally, samples take 5-7 business days. Mass production takes 25-30 days.
9. Q: How about shipping method?
A: Shipment by Express, by Air and by Sea are available.
10. Q: What about after-sale service?
A: We will offer you 1-5 years guarantee based on different battery solutions.
Any problems, please check with Mica power, and we will offer you positive solutions.
