Approx 93kg
3 Year Warranty
>4000times
100ah
100A
90A

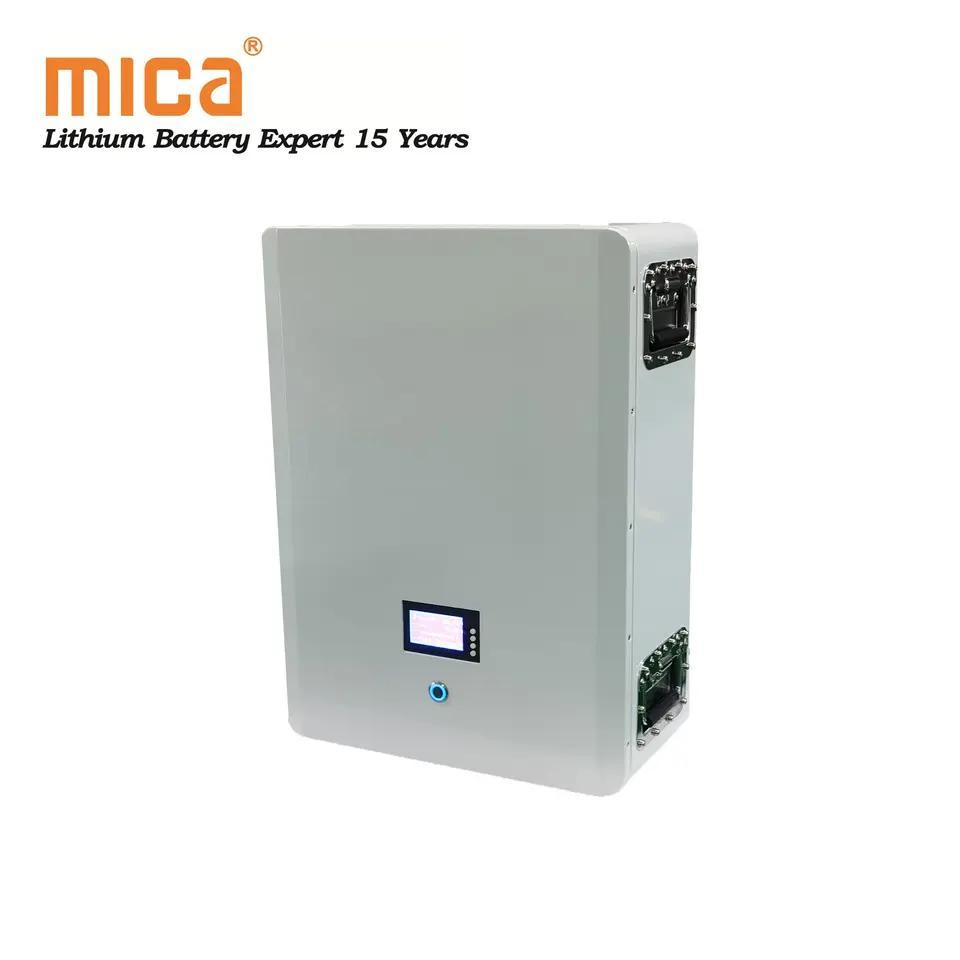

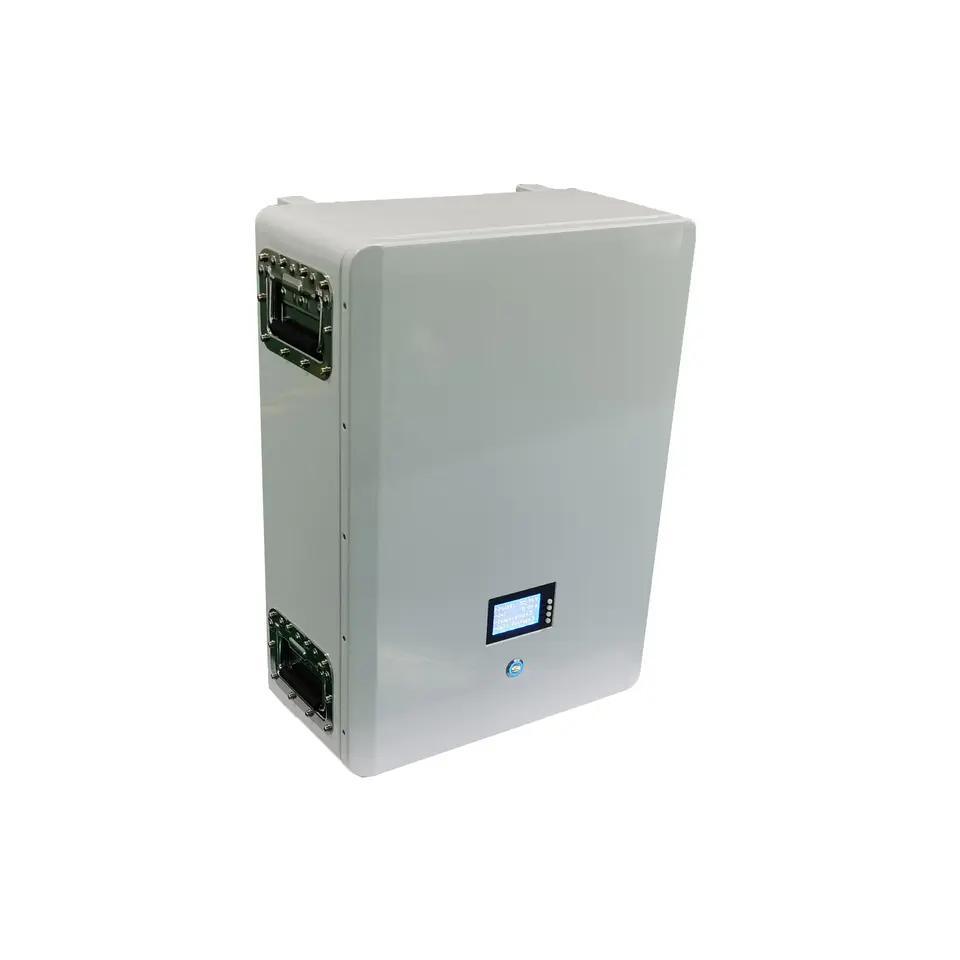

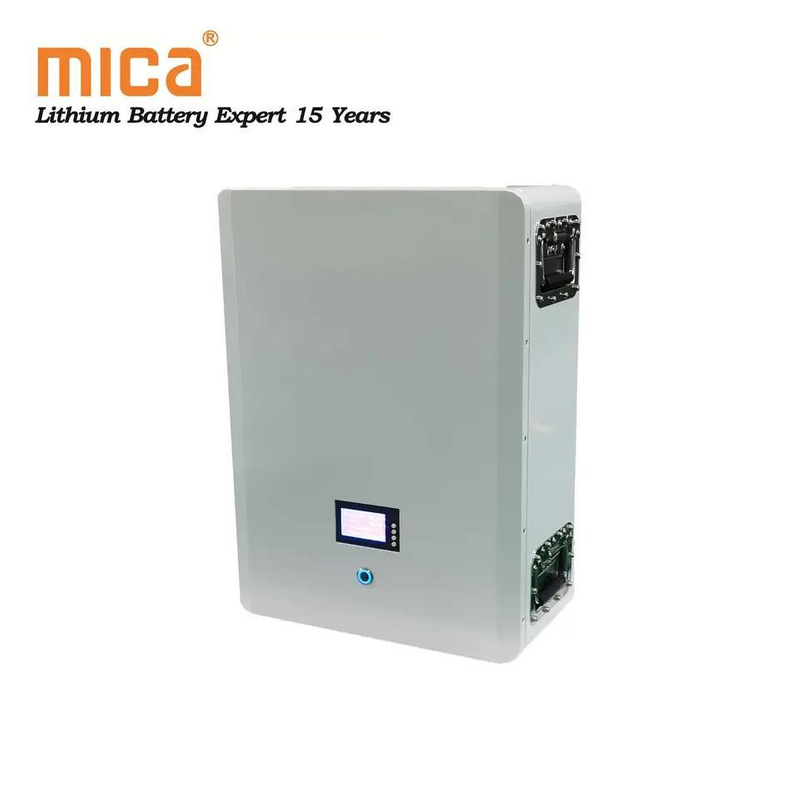

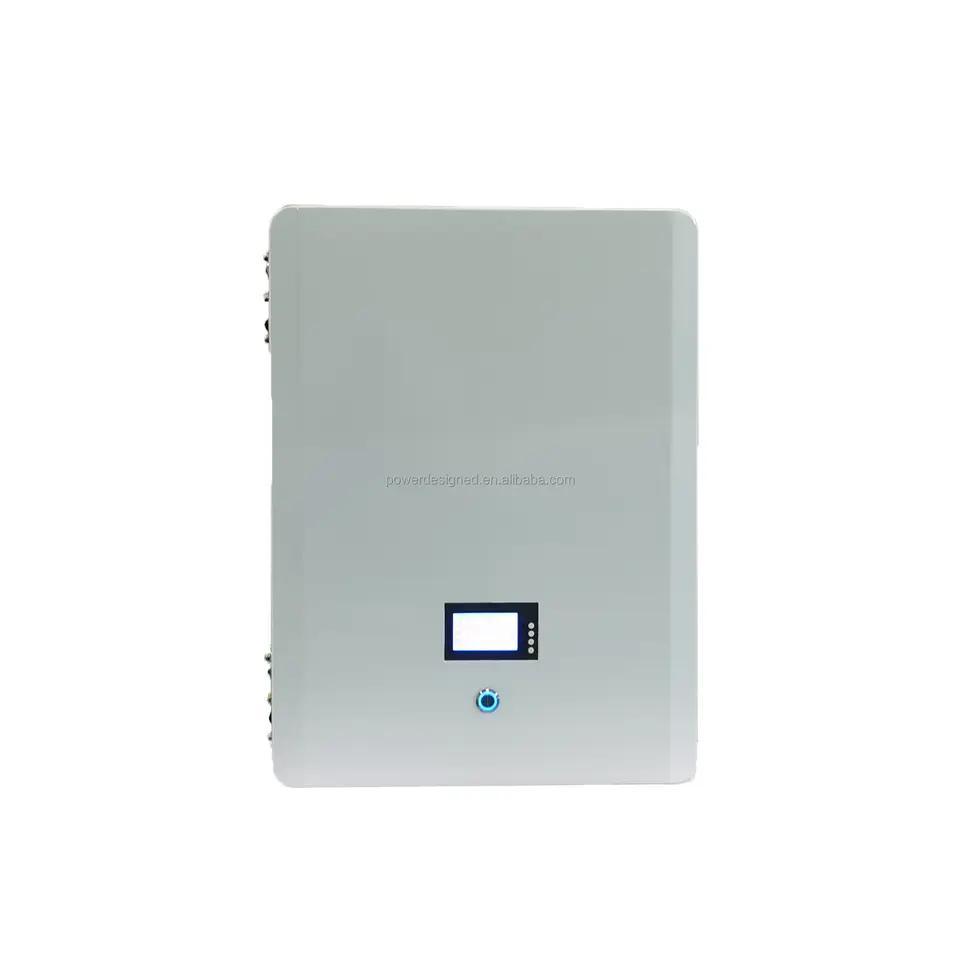

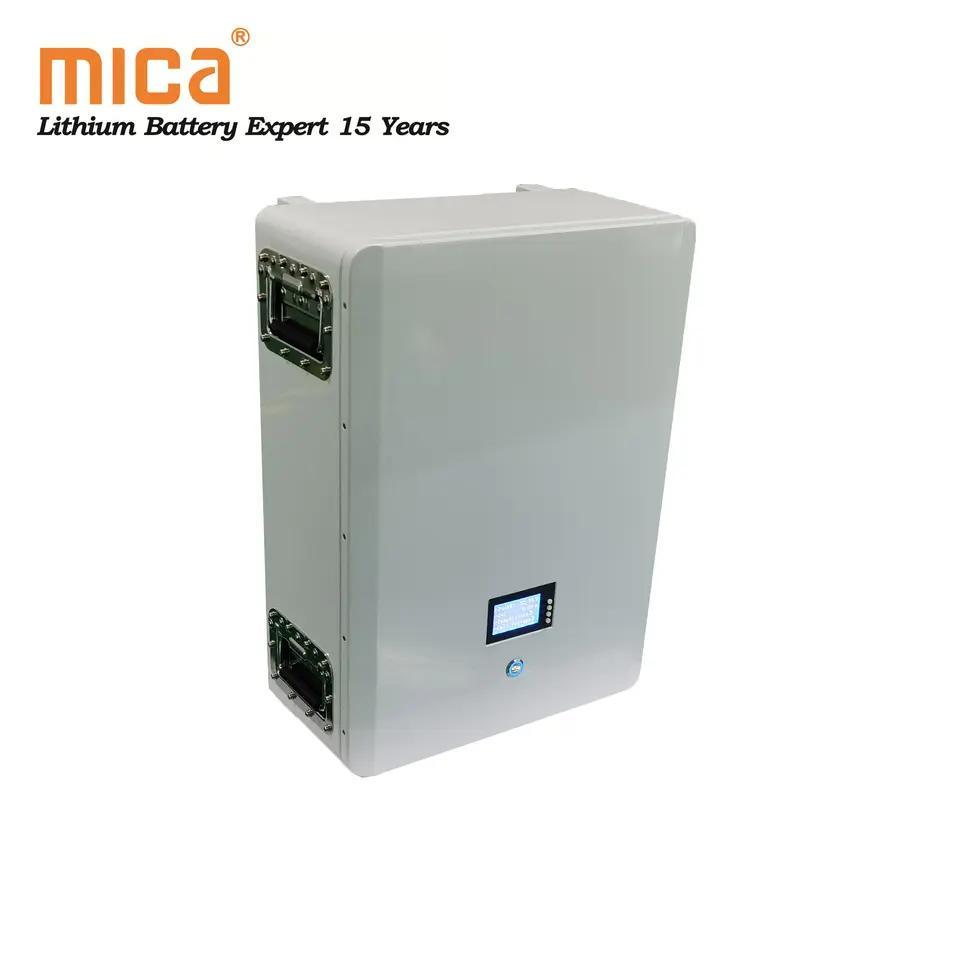

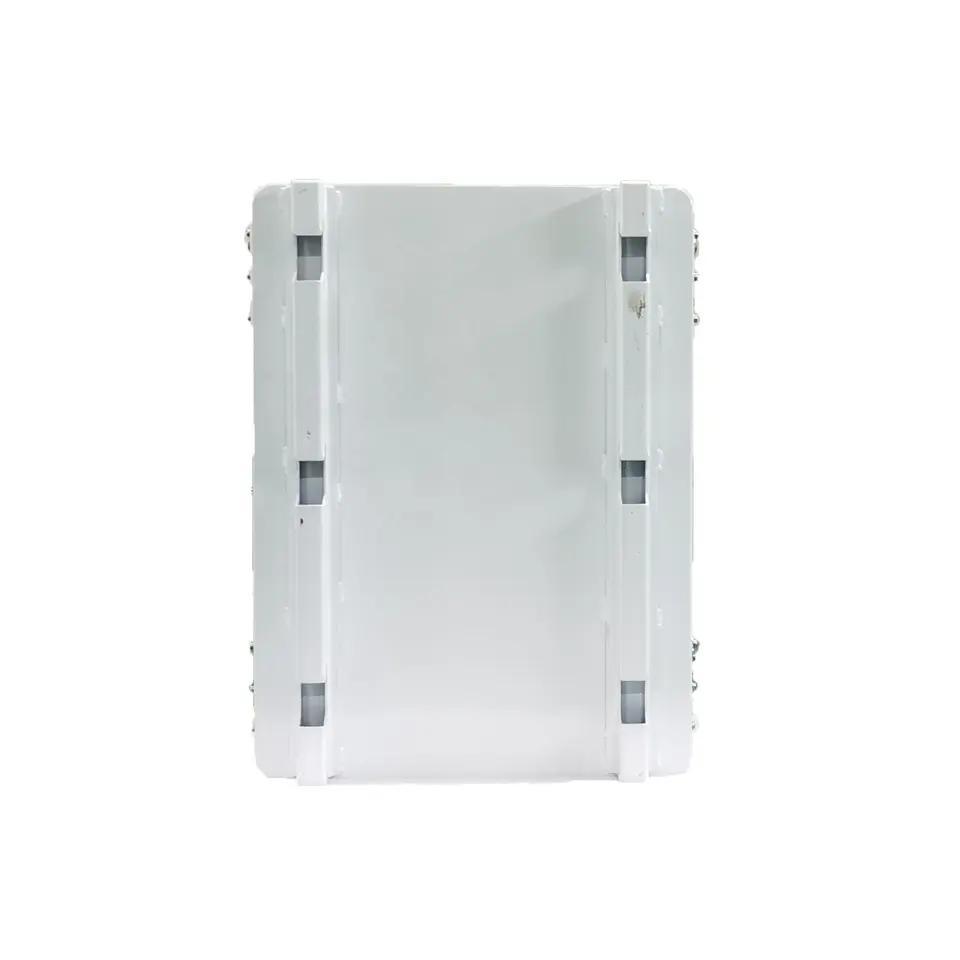

Lithium Phopshate Iron Battery
Model: MC-48v-100ah
Voltage: 48V
Current: 100ah
Warranty: 3 years
Certification: CE/UN38.3/IEC62133/MSDS
| Items | Parameter | |
| Battery model | MC-10KWH-WM | |
| Nominal voltage | 51.2V | |
| Minimum capacity | 200Ah@25ºC | |
| Charging voltage | 58.4V | |
| Discharging cut-off voltage | 40V | |
| Standard charging | 0.2C /58.4V | |
| Max charging | 100A /58.4V | |
| Standard discharging | 90A/40V | |
| Max discharging | continuous discharge | 90A/40V |
| peak discharge | 100A/40V | |
| Standard Charging mode | CC/CV | |
| Operating temperature | Charging: 0°C ~ 45°C | |
| Discharging: -20°C ~60°C | ||
| Storage (At 50% SOC and specified temp, recoverable capacity in % vs time ) | -10ºC~25ºC | (12 months ≥85% ) |
| -10ºC ~45ºC | (6 months ≥85% ) | |
| -10ºC~55ºC | (1 month ≥90% ) | |
| 20±5ºC is the recommended storage temperature | ||
| Visual Inspection | There should not be any remarkable scratches, cracks, bolts, cauterization, deformations, swelling, leakage and so on the surface of the cell. | |
| Self-discharge Rate | <2% per month | |

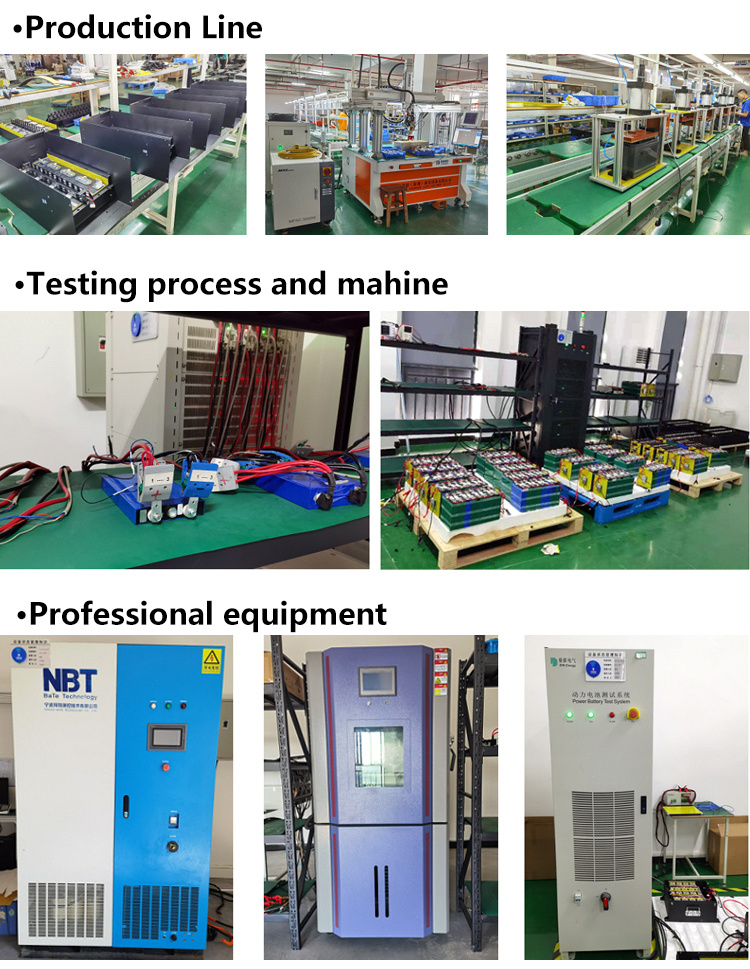

Mica Power Co. Ltd was established in 2009. Our management team has more than 15 years' experience in battery business. Facility Aare: 15000 square meters; Employee: 1000.
We specialize in manufacturing and exporting lithium-polymer batteries, lithium-ion batteries, LiFePo4 rechargeable batteries, rechargeable batteries for 3C consumer electronics such as TWS earphone,Bluetooth speaker, flashlight, POS machine energy storage system, power tool, BMS and all kinds of PCM for batteries and OEM/ODM battery packs. We also support customers with an outstanding service and a customized POS concept.
1. Q: What's the main product in Mica Power?
A: Rechargeable LiFePO4 battery, Lithium ion battery and battery pack.
Battery widely used in ESS, Golf cart, electric forklift, e-bike, 3C and other fields.
2. Q: Do you have any Certificate?
A: Yes, our factory have ISO9001 certificate;
For Battery, UL/CB/IEC62619/IEC62133/CE/Rohs/UN38.3/MSDS, etc.
3. Q: Do you have any protection for battery pack?
A: Yes, each battery pack is assembled with BMS.
BMS main functions: Over-charge protection
Over-discharge protection
Over current protection
Cell balancing function
Over temperature protection
4. Q: Can I have a sample order?
A: Yes, sample order for test is available.
5. Q: How to proceed an order for lithium batteries?
A: Firstly, let us know your requirements or application;
Secondly, we quote according to your requirements or our suggestions;
Thirdly, customer confirms the order details and places deposit for formal order;
Fourthly, we will arrange the production and keep you updated before shipment;
Finally, Arrange the shipment and do after-sales service.
6. Q: Is it OK to print my logo on lithium batteries product?
A: Of course, we can print logo as requirements.
7. Q: Do you have MOQ limit?
A: Yes, we have MOQ limit for mass production, but it depends on battery model.
Please contact us for details.
8. Q: How about the lead time?
A: Generally, samples take 5-7 business days. Mass production takes 25-30 days.
9. Q: How about shipping method?
A: Shipment by Express, by Air and by Sea are available.
10. Q: What about after-sale service?
A: We will offer you 1-5 years guarantee based on different battery solutions.
Any problems, please check with Mica power, and we will offer you positive solutions.
