48V, 51.2V
200ah
Li-ion

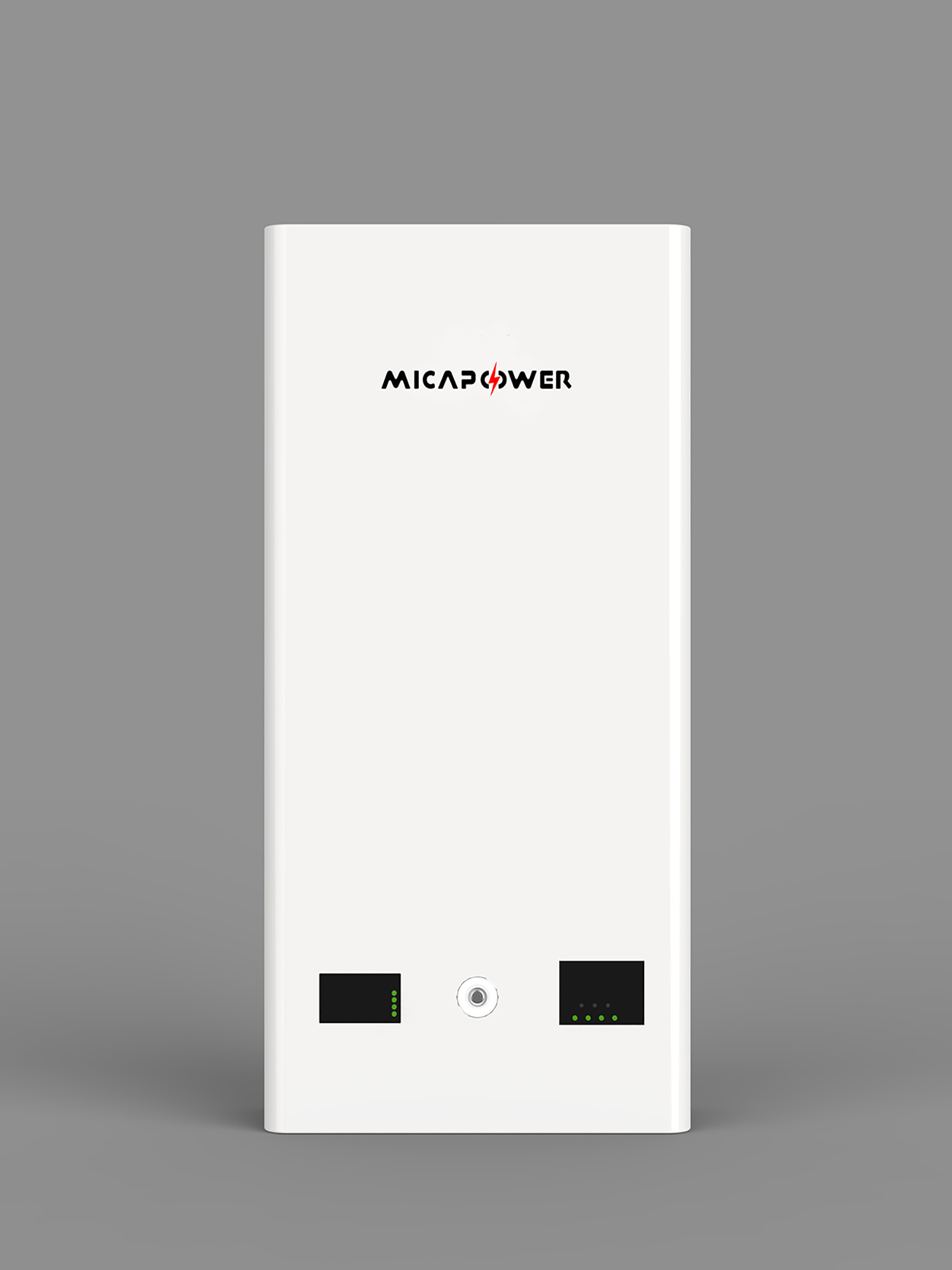

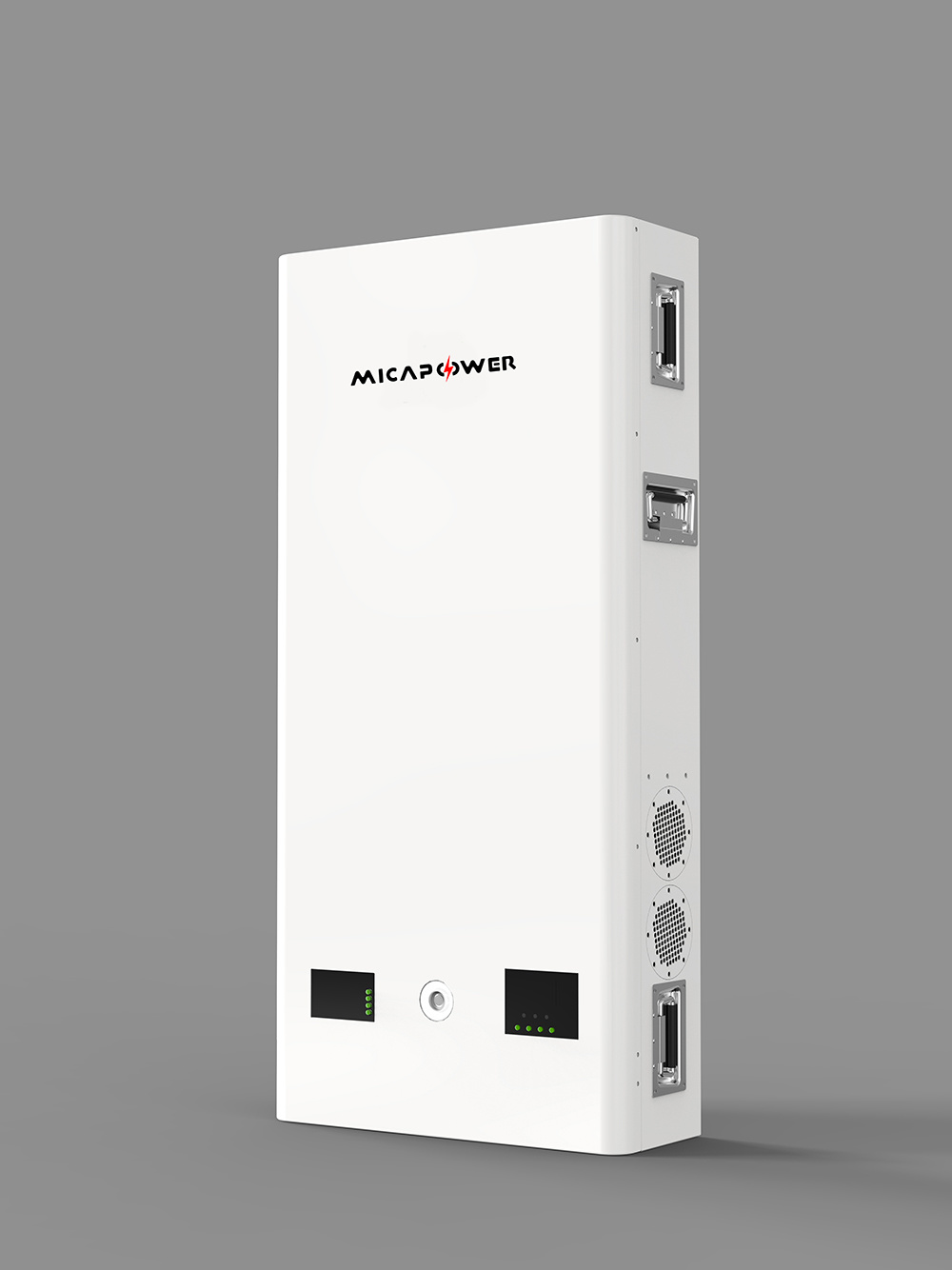

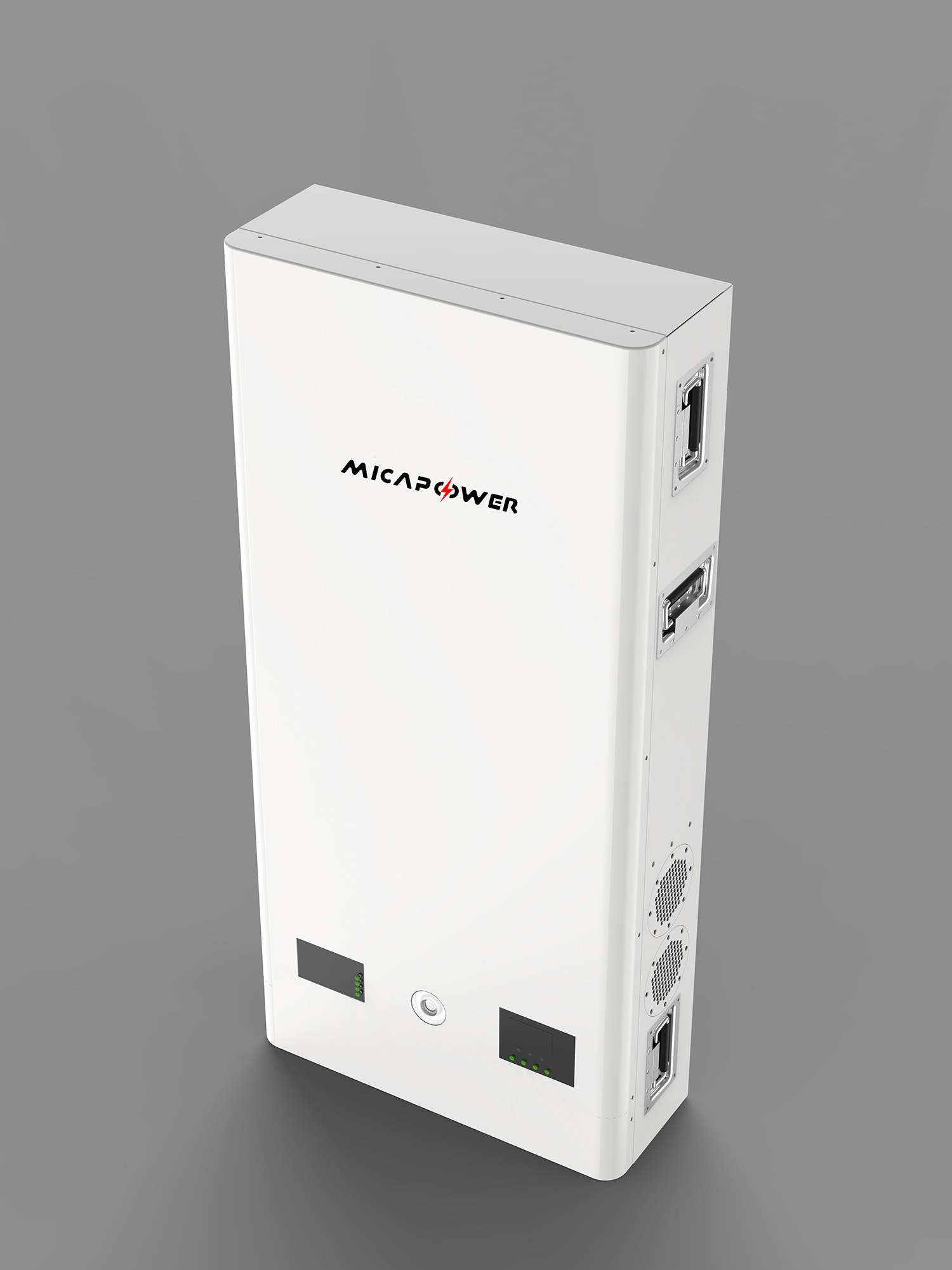

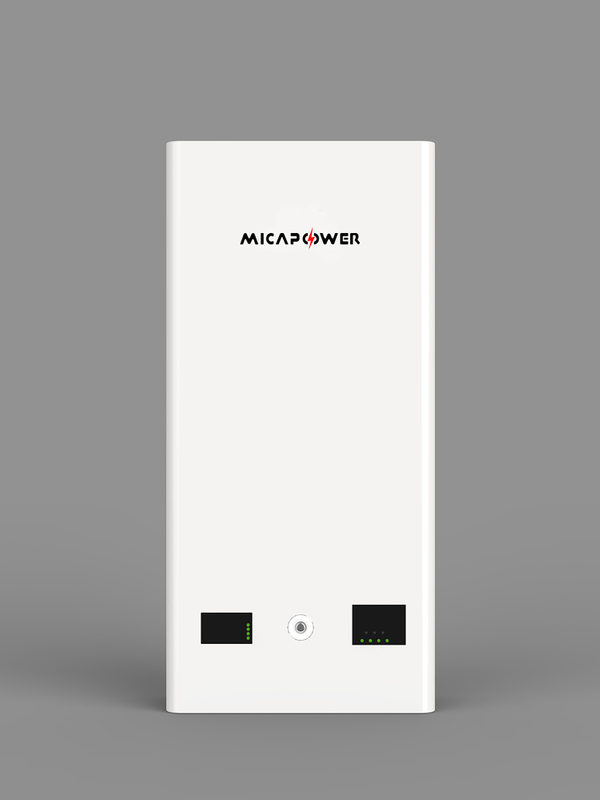

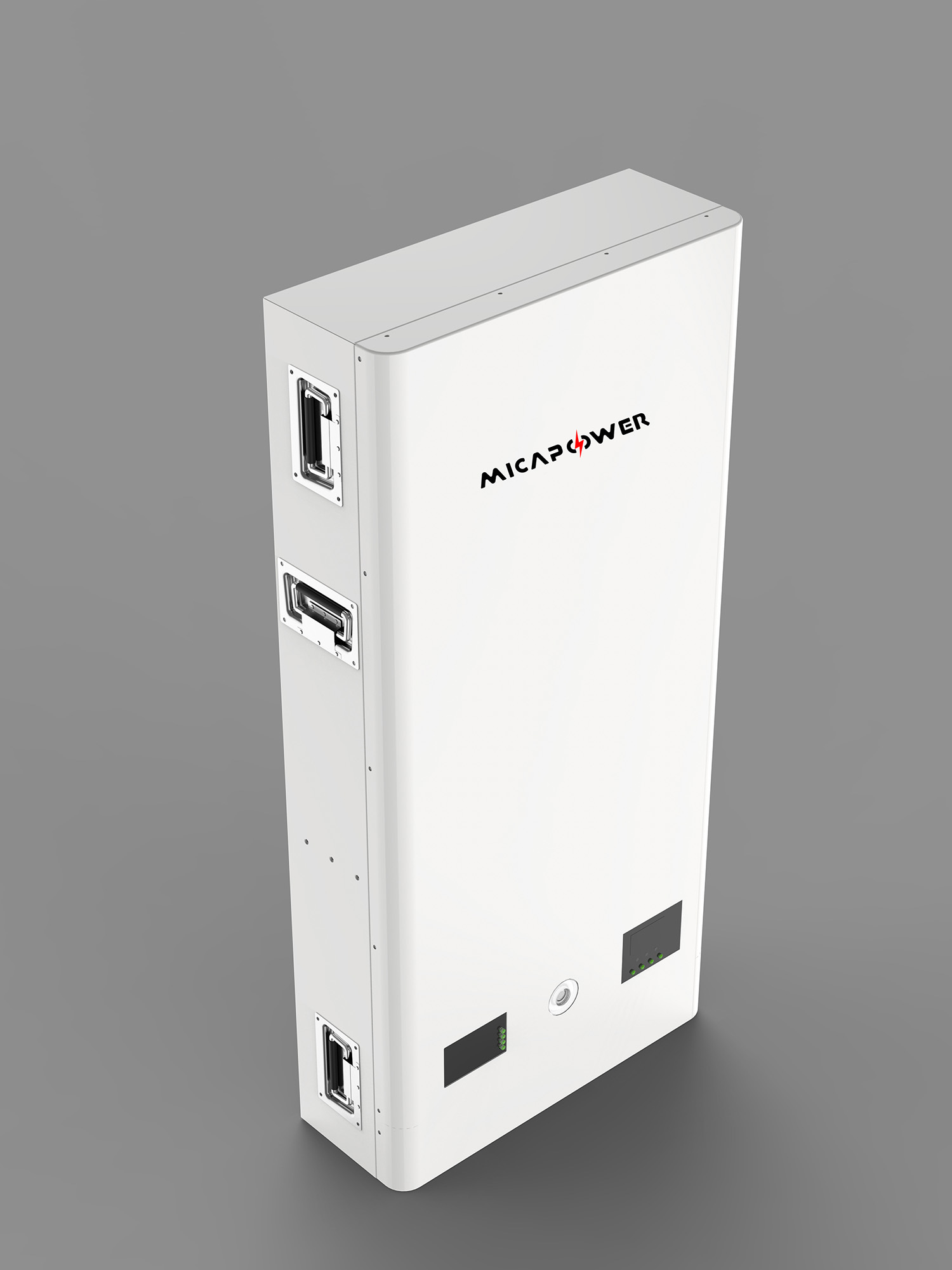

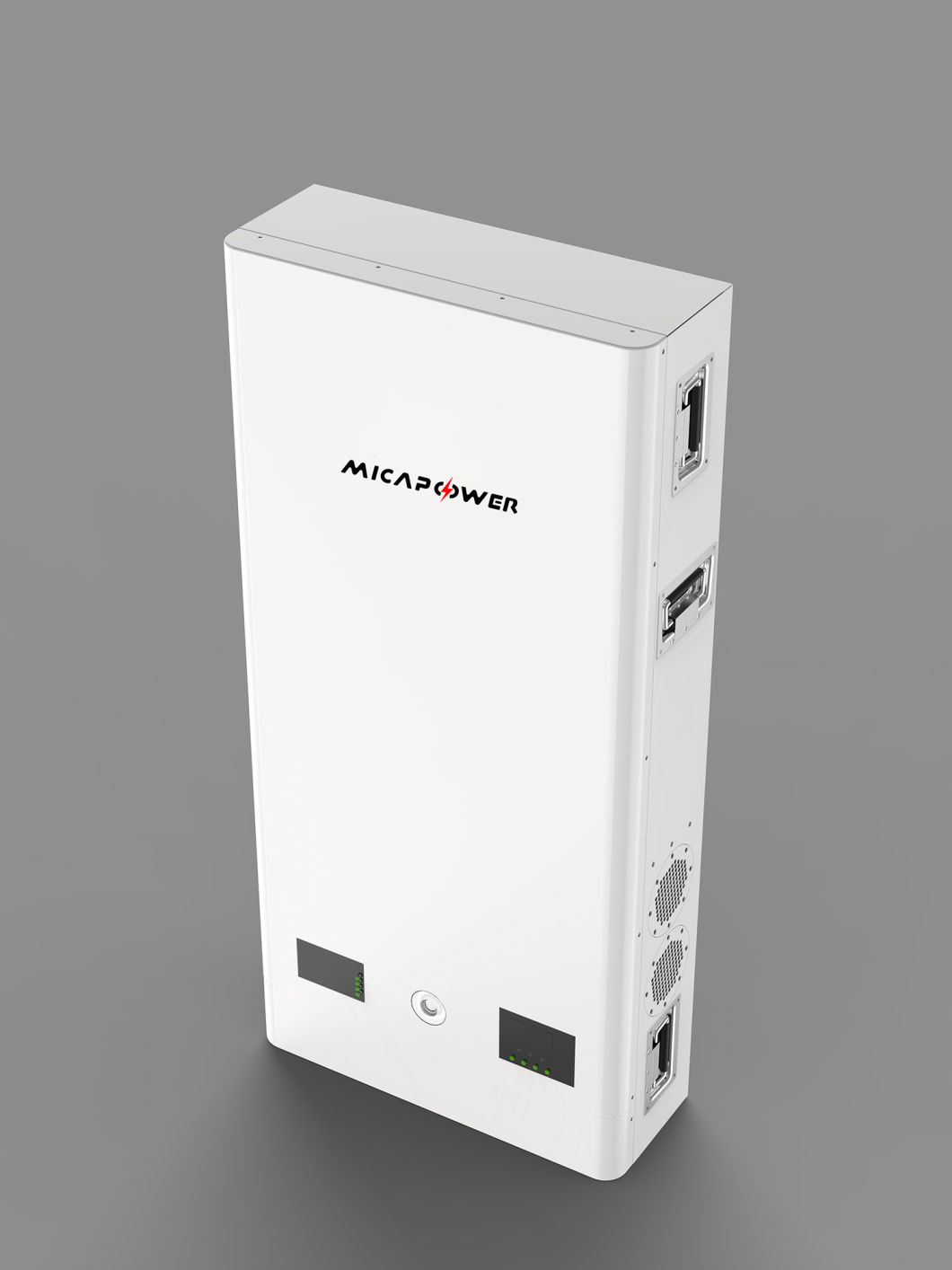

| Battery module specification | |
| Battery Type | LiFePO4(Lithium Iron Phosphate) |
| Configuration | 16S2P-Prismatic 100Ah cell |
| Nominal Voltage | 51.2V |
| Nominal Capacity | 200Ah |
| Nominal Energy | 10.24KWh |
| Operation Voltage | 46.4V-57.6V |
| Max discharge/charge current | 100A @25ºC |
| Operation Temperature | Charge: 0°C - 45°C | Discharge: -20°C - 55°C |
| Internal resistance | ≤30mΩ @AC 1kHz |
| Dimension | 1100*520*195 mm |
| Commnication Port | RS485/CAN |
| Weight | about 100kg |
| Warranty Period | 3 years/5 years |
| Environment Protection | IP21 |
| Certificate | UN38.3/MSDS/CE |
| Inverter Specification | |
| AC input | 220V/230Vac(customized) |
| AC input voltage range | APL Generator mode:90Vac-280Vac; Mains mode:170Vac-280Vac |
| AC Mains charging current | Max 60A |
| AC mains charging efficiency | >95% |
| Conversion time (bypass vs. inverter | 10mS |
| Output voltage waveform | Pure sine wave |
| AC output rated voltage | 230Vac |
| Rated output power | 5000W |
| Peak power | 10000W |
| Max efficiency | 92% |
| No-load power consumption | ≤50W |
| PV input voltage range | 60-145Vdc |
| Max PV input current | 50A |
| Max PV output current | 4400W |
| Max PV charge current | 80A |
| Rated battery input voltage | 48V |
| Battery voltage range | 40Vdc-60Vdc |
| WIFI module | Optional |
| Certificate | CE/EN61000 |
| Self-discharge Rate | Over-charge protection Over-discharge protection Over current protection Cell balancing function Over temperature protection |
Q1: Can we get samples for test?A: Yes, we can supply samples, and buyer pay for sample cost and shipping cost.
Q2: What is the MOQ ?
A: We can accept < 10pcs for trial order.
Q3: Can you accept OEM and ODM Service?
A: Yes.
Q4: What about the lead time?
A: Sample needs ~2wks , mass production time needs 2wks-4wks working days.
Q5: How do I track my shipment?
A: After we deliver your goods, we will send you the tracking No. once your goods has been shipped.
