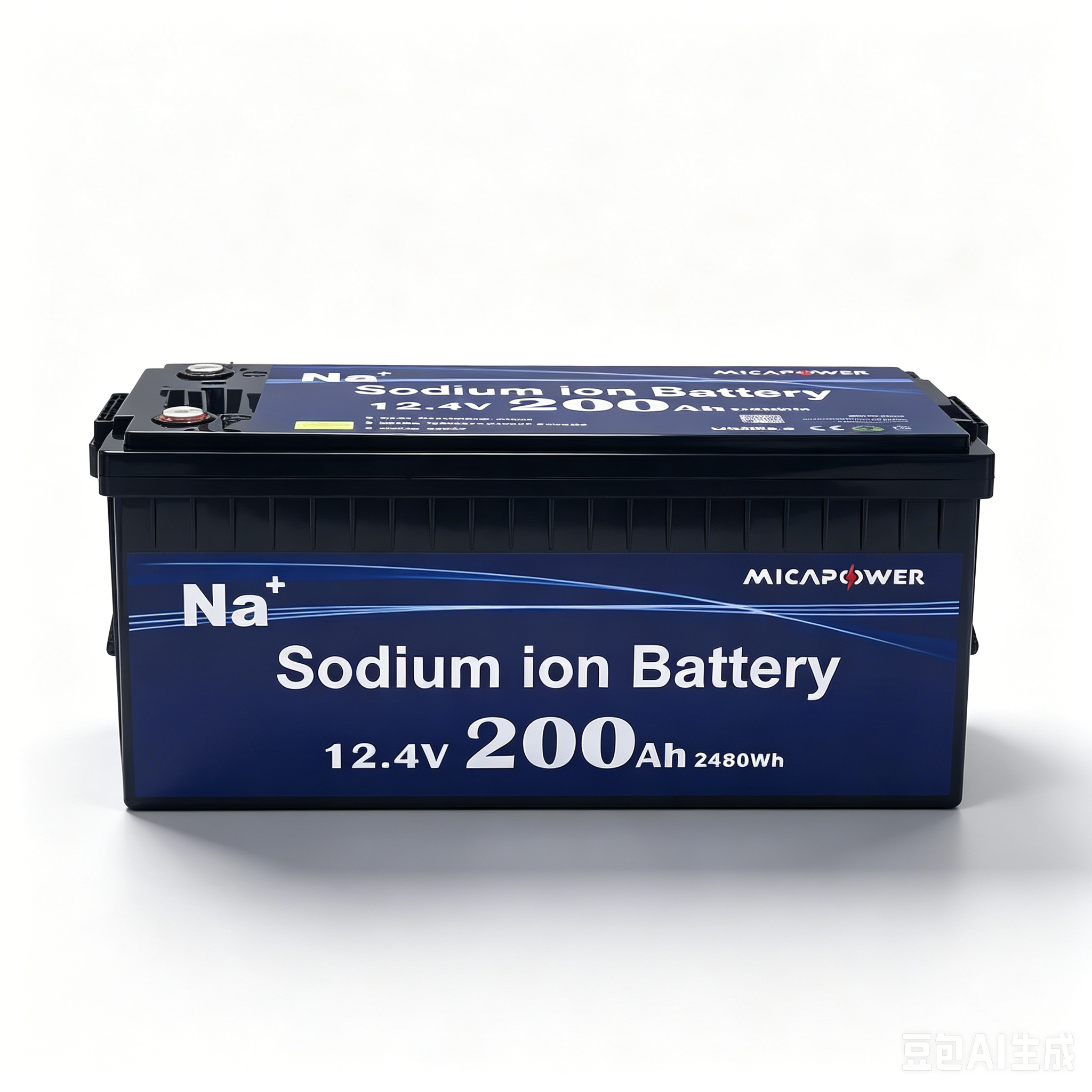

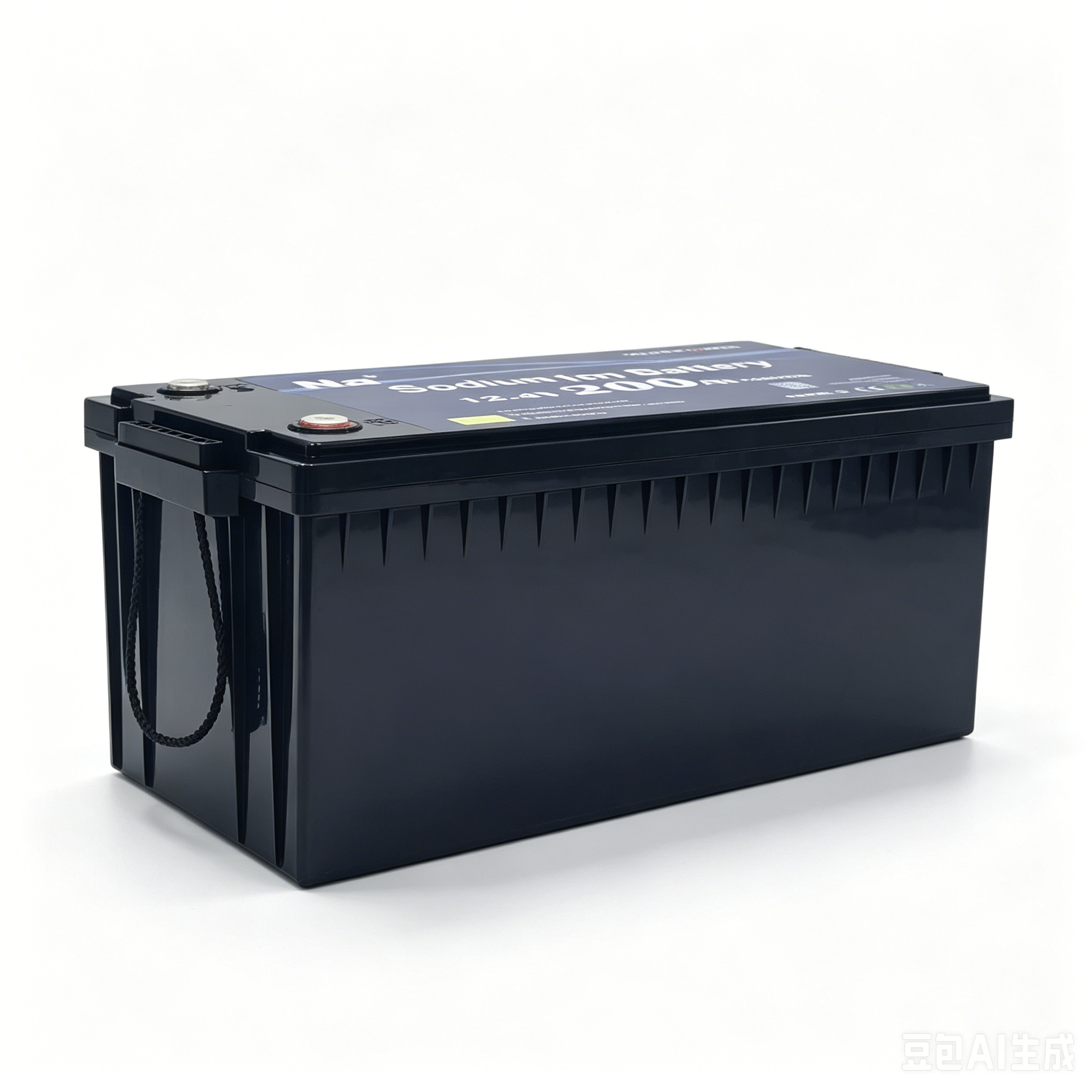

Sodium Ion Battery
Series and Parallel
Chargeable
Medium Discharge Rate
Medium
Battery
|
| |
*Connecting terminal
*Connecting line
*instruction manual
*Packing in corrugated boxes
Common customization:
Battery screen display
Bluetooth detection system
Low temperature heating module
Battery size customization
Module structure customization
Air vent valve/air interface and other opening customization
Packaging/Logo customization
| Items | Parameter | |

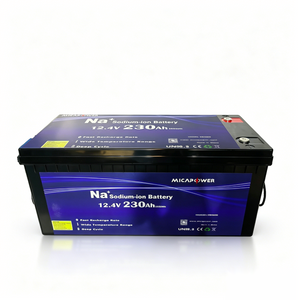

| Battery model | MC-SIB12230P | |
| Nominal voltage | 12.4V | |
| Minimum capacity | 230Ah@25ºC,C10 | |
| Charging voltage | 16V | |
| Discharging cut-off voltage | 8V | |
| Standard charging | 0.2C /14.4V | |
| Max charging | 1.0C /14.4V | |
| Standard discharging | 1C/8V | |
| Max discharging | continuous discharge | 1.0C/8V |
| non-continuous discharge | 2.0C/8V | |
| Operation voltage | 8~16V | |
| Operating temperature | Charging: 0°C ~ 45°C | |
| Discharging: -30°C ~60°C | ||
| Storage (At 50% SOC and specified temp, recoverable capacity in % vs time ) | -10ºC~25ºC | (12 months ≥85% ) |
| -10ºC ~45ºC | (6 months ≥85% ) | |
| -10ºC~55ºC | (1 month ≥90% ) | |
| 20±5ºC is the recommended storage temperature | ||
| Visual Inspection | There should not be any remarkable scratches, cracks, bolts, cauterization, deformations, swelling, leakage and so on the surface of the cell. | |
| Self-discharge Rate | <2% per month | |
Why choose us
Our company has passed ISO 9001:2015 quality and BSCI system approval and our products have got the ROHS, CE, UL, IEC, UN38.3 certifications. The battery products have the advantages of high energy density, high power density, small volume, light weight,long service life, low self-discharge, flexible and varied shapes, safety performance and so on.
