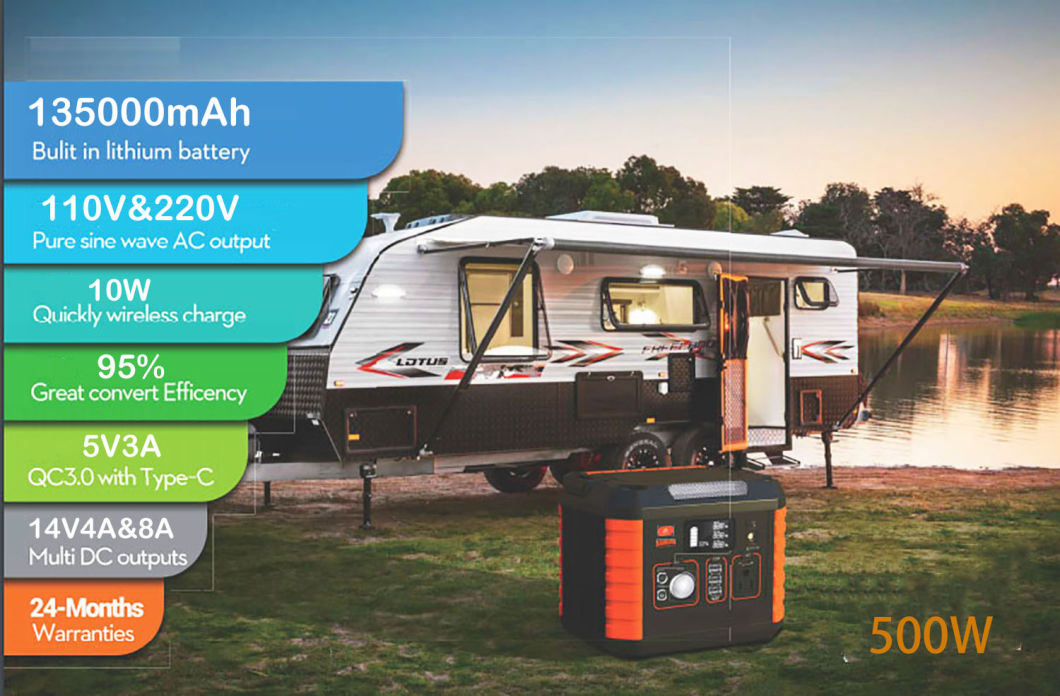

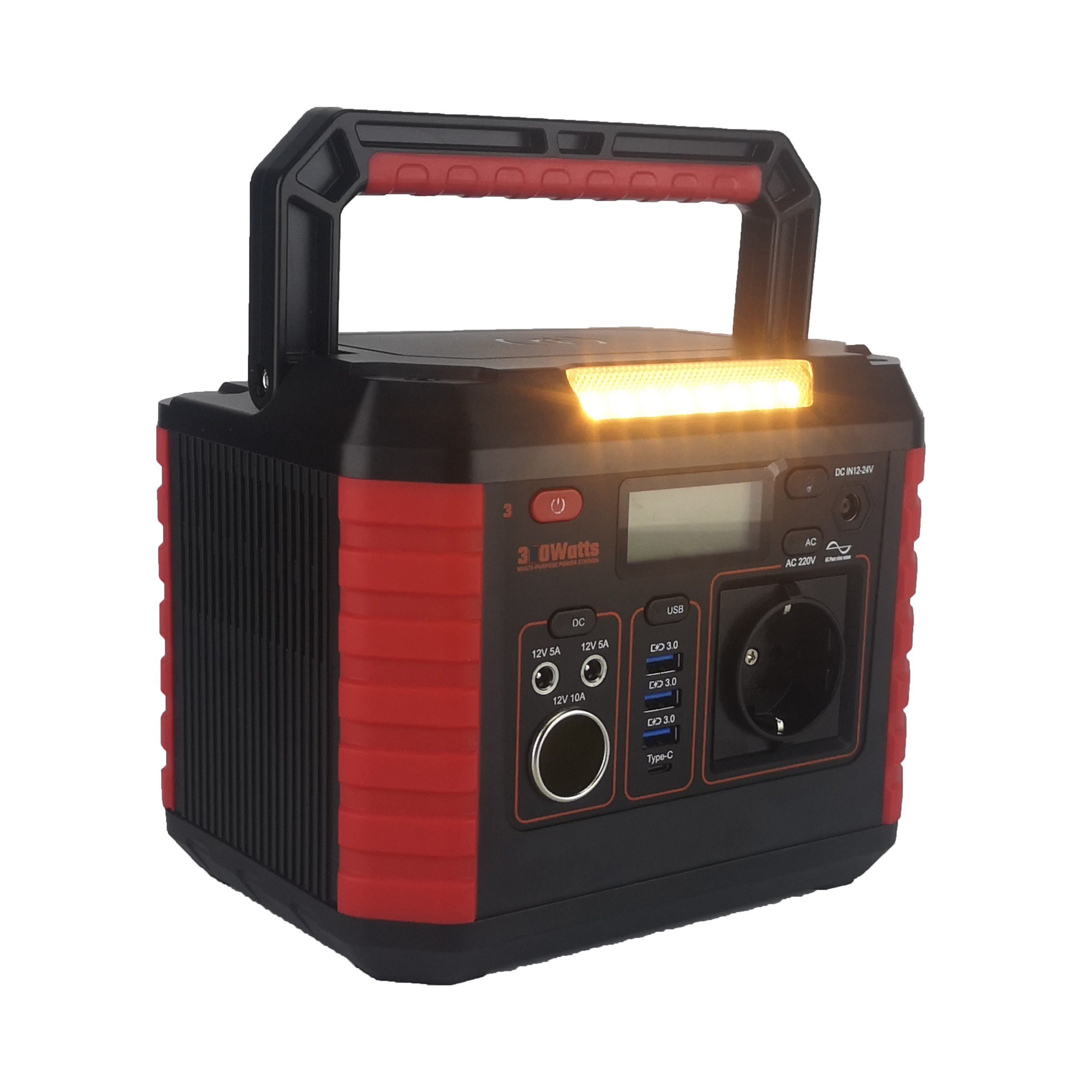

Portable Power Station 300W/500W/1000W/2000W Li-ion Battery for Camping/RV/Boat/Emergency Use/Lithium Ion Battery/Rechargerable/Battery Power Supply

Battery is Removable:
No
Capacity:
＞20000mAh
Compatible Brand:
iPhone
Charging Type:
Solar
Applicable Models:
Laptop
Cell Type:
18650 Lithium-ion

Availability:



Inquire Add to Basket

Product Description

No	Items	Parameter	Standard
1	Model	MC500
2	Battery type	Li-ion 18650 cell	3.7V
3	Rated Capacity	135000mAh
4	Output	USB output port	3*QC 3.0 USB(5V/3A )
		USB output port working time	>30h
		DC output port	14V4A/14V8A
		DC output port working time	>8h
		AC output port	110V/500W Pure Sine Wave
		AC output port	110V/500W Pure Sine Wave
		Type-C	5V/3A
		Car output port working time	>2.5h
		cigarette lighter	14V/8A
		Wireless Charging	10W
		LED	3W
		Reverse charging protection	Yes
5	Charging	Charging voltage	12-28V
		Charging Current	10A
		Charging Time	About 10h
6	Self-consumption	On working	200mA
6	Self-consumption	On standby	5mA
7	Dimensions	LWH	280200200mm
8	Weight	Weight(Net weight)	4.8kg
8	Weight	Weight(with accessories)	5.8kg
9	Range of Working Temperature	Charging	10ºC~40ºC
9	Range of Working Temperature	Discharging	0ºC~75ºC
10	Range of Storage Temperature	Less than 1 year	-20ºC~+25ºC
		Less than 3 months	-20ºC~+45ºC
		Less than 1 month	-20ºC~+60ºC

Package including:

No	Name	Model	Unit	Quantity
1	Portable power station	MC500	pcs	1
2	Adapter	25V 4A	pcs	1
3	Solar charging wire		pcs	1
4	Car charger line		pcs	1
5	User manual		pcs	1

Functional Description:

AC output:

(1)Press the AC output button;

(2)The AC output indicator shows blue and can be loaded. If the indicator is off and the buzzer sounds, the AC output is faulty.

DC output: connect the load to DC ports directly. When there is no load, the DC port is in the sleep state.
Drone output: connect the drone port to the drone charger directly by pressing the positive and negative poles.
DC input: connect the charging adapter and AC socket to the charging port of the portable 8 Lithium Battery Expert 15 Years power station for charging, the battery indicator shows the power when charging; disconnect all loads when charging;

Performance Test:

1.Standard test conditions

The test product must be a new product that has not been shipped for more than one month and the battery has not been cycle charge and discharge more than 5 times. Unless otherwise specified, the tests in this specification shall be under the following

conditions:Temperature:23ºC±2ºC;

Relative humidity:45%~85%RH;

Atmospheric pressure:86kPa~106kPa;

2.Measurement Apparatus

(1)Dimension Measuring Instrument
The dimension measuring shall be implemented by instruments with equal or more precision scale of 0.01mm;
(2)Voltmeter Standard class specified in the national standard or more sensitive class having inner 7 Lithium Battery Expert 15 Years impedance not less than 10kΩ /V

(3)Ammeter
Standard class specified in the national standard or more sensitive class. Total external resistance including ammeter and wire is less than 0.01Ω\
(4)The resistance test method is the AC impedance method (AC 1kHz LCR)

The resistance is not a constant value and varies with temperature and saturation of the state of charge, and related to length and capacity of the cable.

(5)All testing equipment and measuring instruments must be inspected by the certification institutes;

(6)Battery test system current accuracy should be within ±0.1%, constant pressure accuracy within ±0.5%, timing accuracy within ±0.1%;
(7)The temperature measuring instrument should not be lower than ±0.5°C;
