Mobile Electric 220V 600W 1200W 2400W Outdoor Camping Solar Emergency Portable Power Station LED Lamp Pure Sine Wave AV DC Charging LiFePO4 Battery

Share to:

Mobile Electric 220V 600W 1200W 2400W Outdoor Camping Solar Emergency Portable Power Station LED Lamp Pure Sine Wave AV DC Charging LiFePO4 Battery

Nominal Capacity:
600W
Size:
295*202*241mm
Weight:
7.3kg

Availability:



Inquire Add to Basket

Product Description

Contact us for more information
Lithium battery cell,BMS,mechanic and system

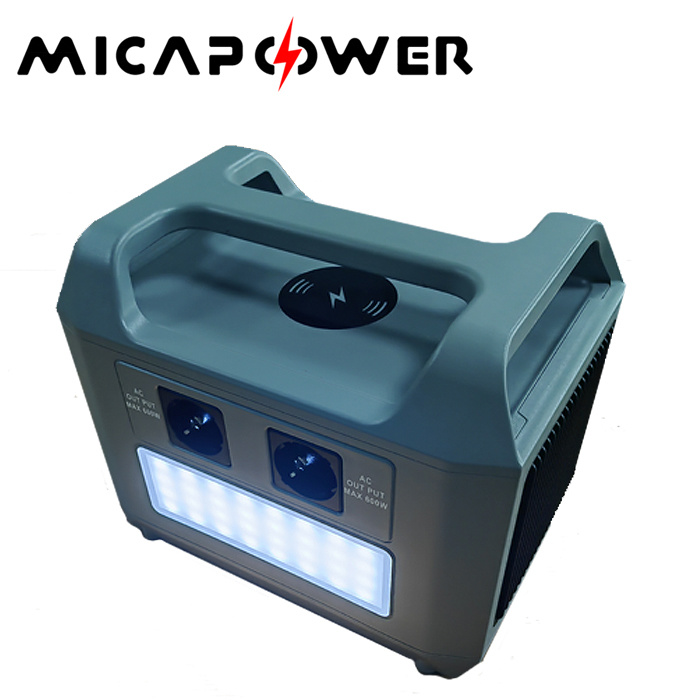

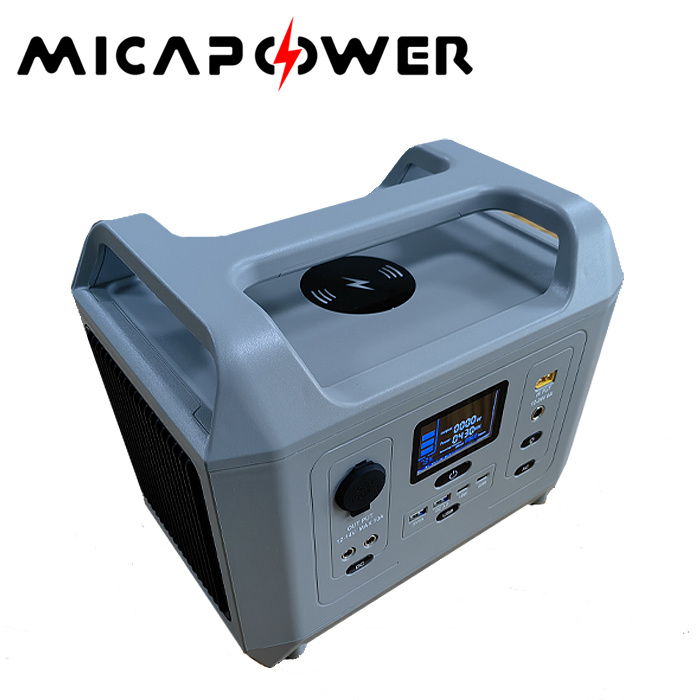

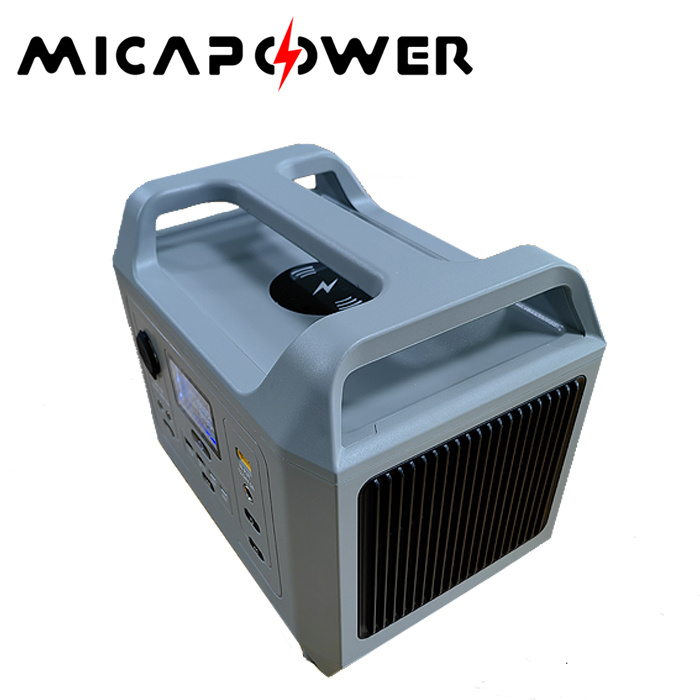

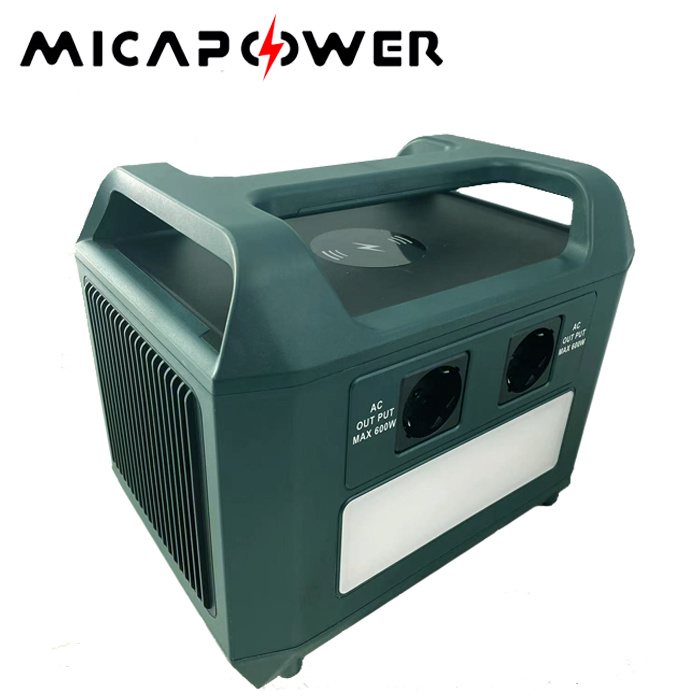

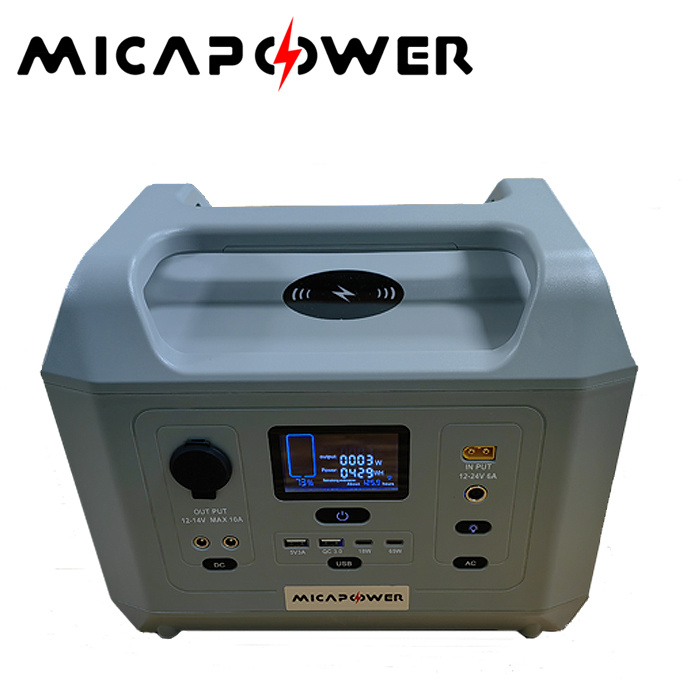

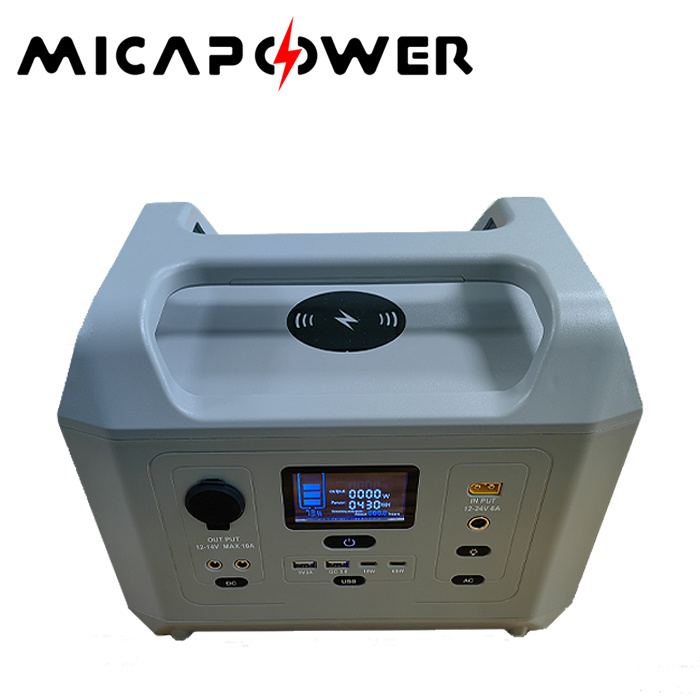

This is portable power station,you can use for outdoor,camping,car,lightinng, mobile phone charging,notebook charging
Features
1. Lithium Phosphate Batteries
2. LED flash lighing with SOS
3. AC230 fast charging, solar charging (12-100V 400W MAX)
4. 2 × DC head 5521 output port and 1 x cigarette lighter output
5. speed charger QC 3.0 Output x 2, TYPE-C: Output PD100W ×2

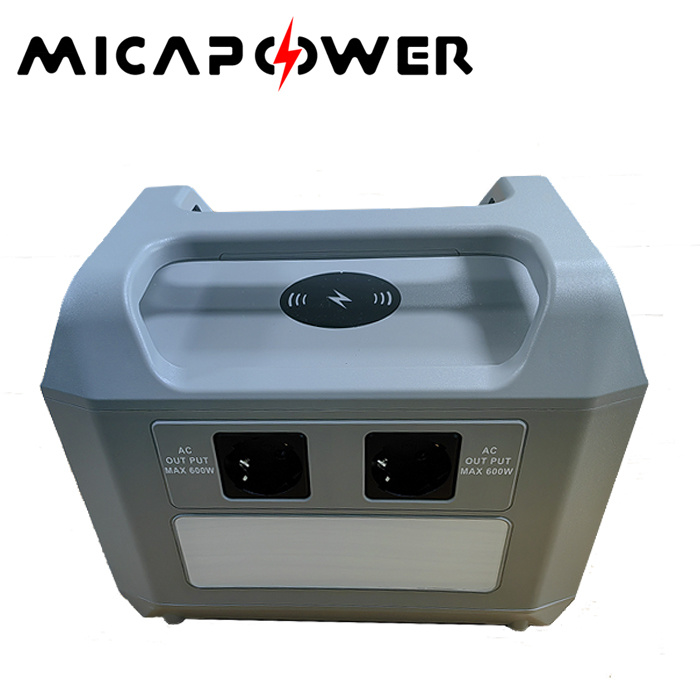

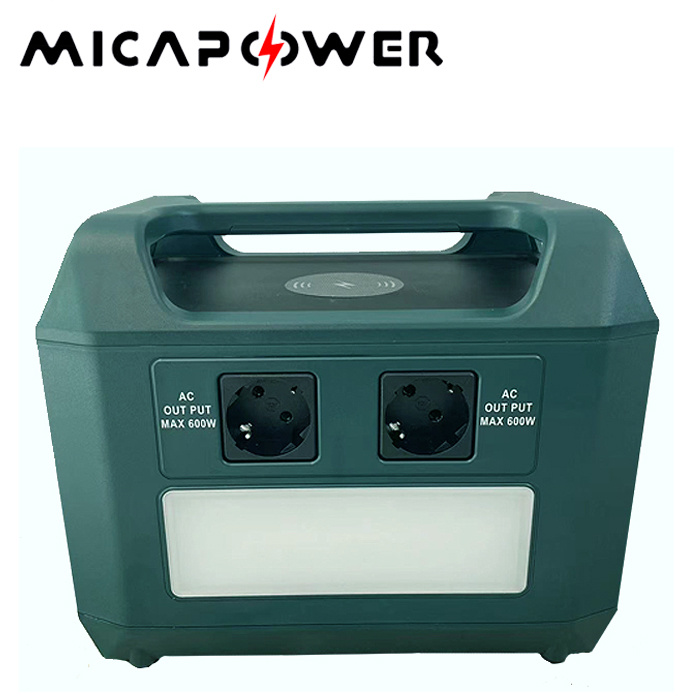

6. 3 × Universal standard AC Port, 600W AC Power Output
7. Fanless and least noiseless design, industrial leading power inverter
8. Over-charging, Over-current, Over-voltage, Over-temperature and Short-circuit Protections

Battery	Capacity	LiFeP04 25.6V40Ah 1024Wh
AC Input	AC 230V Charging	230V
PV Input	12~100V 400W max Charger
USB/Output	USBl Output USB2 0utput TYPE C1 Output TYPE C2 Output	QC3.018W5V3A/9V2A/12V1.5A QC3.018W5V3A/9V2A/12V1.5A PD100W 5V3A/9V3A/15V3A/20V3A/20V5A PD100W 5V3A/9V3A/15V3A/20V3A/20V5A
DC Output	DC1 Output DC2 Output Cigarette lighter Output	12V8A 12V8A 12V8A
AC Output	AC Output1 AC Output2 Frequency Max	AC 230V Sine Wave 600W Peak 1000W AC230VSine Wave 600W Peak 1000W Sine Wave 600W Peak 1000W
Wireless Charger	DC	15W 5V3A
LED Lighting	Power	Mode High light/Low Light/ SOS/Flash
Weight	Net Weight 7.3Kg / Gross Weight 9Kg
Size	LengthWidthHeight 295202241mm

Circuit Protection
No	Items	Parameter	Standard
1	Over-charging Protection	Protection Voltage	4.25V
		Recovery voltage	4.15V
		Protection delay time	2s
2	Over-discharging Protection	Protection Voltage	2.8V
		Recovery voltage	3.0V
		Protection delay time	2s
3	Over-current Protection	discharge over-current protection	20A
3	Over-current Protection	discharge over-current protection delay time	1s
4	Short-circuit Protection	Recovery conditions	Recharge after short circuit release
5	Balanced loop	Balanced start voltage	4.19V
5	Balanced loop	Balanced current	127mA

Customized logo
we can do your own logo on power station

Why choose us?

We are a battery manufacturer with 15 years' experience in rechargeable batteries.Our
company has independent R&D and production capabilities in key links, which can
provide customers with professional solutions and services of energy system and
lithium battery. Our products are widely used in lead-acid replacement, household energy
storage system, industry, data center, 5G, UPS, low-speed EV, portable power station and so on.

Mobile Electric 220V 600W 1200W 2400W Outdoor Camping Solar Emergency Portable Power Station LED Lamp Pure Sine Wave AV DC Charging LiFePO4 Battery

Performance Test:

1.Standard test conditions

The test product must be a new product that has not been shipped for more than one month and the battery has not been cycle charge and discharge more than 5 times. Unless otherwise specified, the tests in this specification shall be under the following

conditions:Temperature:23ºC±2ºC;

Relative humidity:45%~85%RH;

Atmospheric pressure:86kPa~106kPa;

2.Measurement Apparatus

(1)Dimension Measuring Instrument
The dimension measuring shall be implemented by instruments with equal or more precision scale of 0.01mm;
(2)Voltmeter Standard class specified in the national standard or more sensitive class having inner 7 Lithium Battery Expert 15 Years impedance not less than 10kΩ /V

(3)Ammeter
Standard class specified in the national standard or more sensitive class. Total external resistance including ammeter and wire is less than 0.01Ω\
(4)The resistance test method is the AC impedance method (AC 1kHz LCR)

The resistance is not a constant value and varies with temperature and saturation of the state of charge, and related to length and capacity of the cable.

(5)All testing equipment and measuring instruments must be inspected by the certification institutes;

(6)Battery test system current accuracy should be within ±0.1%, constant pressure accuracy within ±0.5%, timing accuracy within ±0.1%;
(7)The temperature measuring instrument should not be lower than ±0.5°C;

Q1: Can we get samples for test?
A: Yes, we can supply samples, and buyer pay for sample cost and shipping cost.

Q2: What is the MOQ ?
A: We can accept < 50pcs for trial order.

Q3: Can you accept OEM and ODM Service?
A: Yes.

Q4: What about the lead time?
A: Sample needs ~2wks , mass production time needs 2wks-4wks.

Q5: How do I track my shipment?
A: After we deliver your goods, we will send you the tracking No. once your goods has been shipped.
